MERCEDES-BENZ CLA 2018 Owners Manual

Securing the vehicle to prevent it from
rolling away
If your vehicle is equippe dw ith aw heel chock ,i t
can be found in the tire-change tool kit
( Y
page 270).
The folding wheel chock is an additional safety
measure to prevent the vehicle from rolling
away ,f or example when changing aw heel.X
Fold both plates up C .X
Fold out lower plate D .X
Guide the lugs on the lower plate fully into the
openings in base plate

X

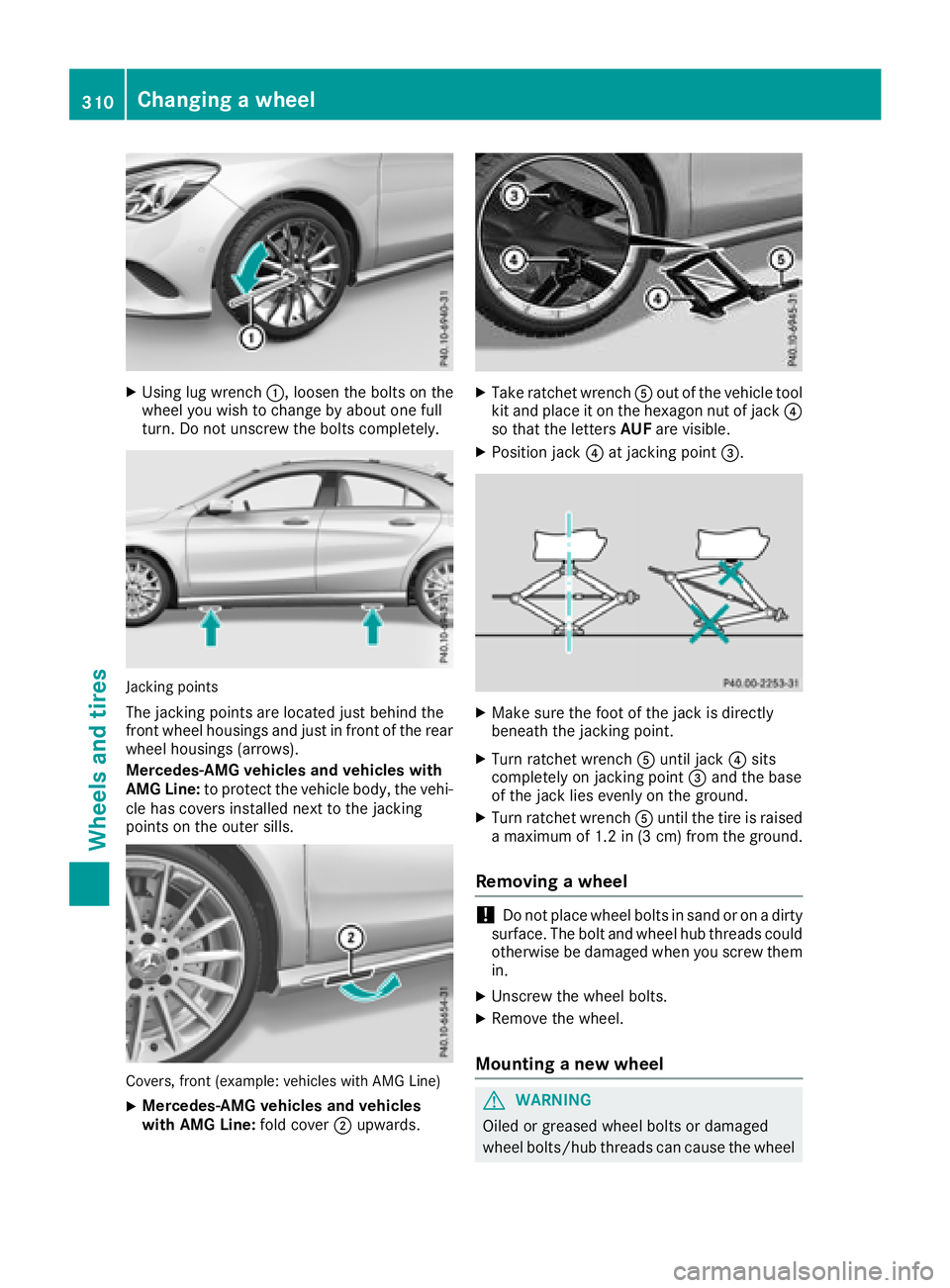

Using lug wrench C ,l oosen the bolts on the
wheel you wish to change by abou to ne full
turn. Do not unscrew the bolts completely.
Jacking points
The jacking points are located just behind the
front wheel housings and just in front of the rear
wheel housings (arrows).
Mercedes-AMG vehicles and vehicles with
AMG Line: to protect the vehicle body, the vehi-
cle has covers installed next to the jacking
points on the outer sills.
Covers, front (example: vehicles with AMG Line) X
Mercedes-AMG vehicles and vehicles
with AMG Line: fold cover D upwards. X

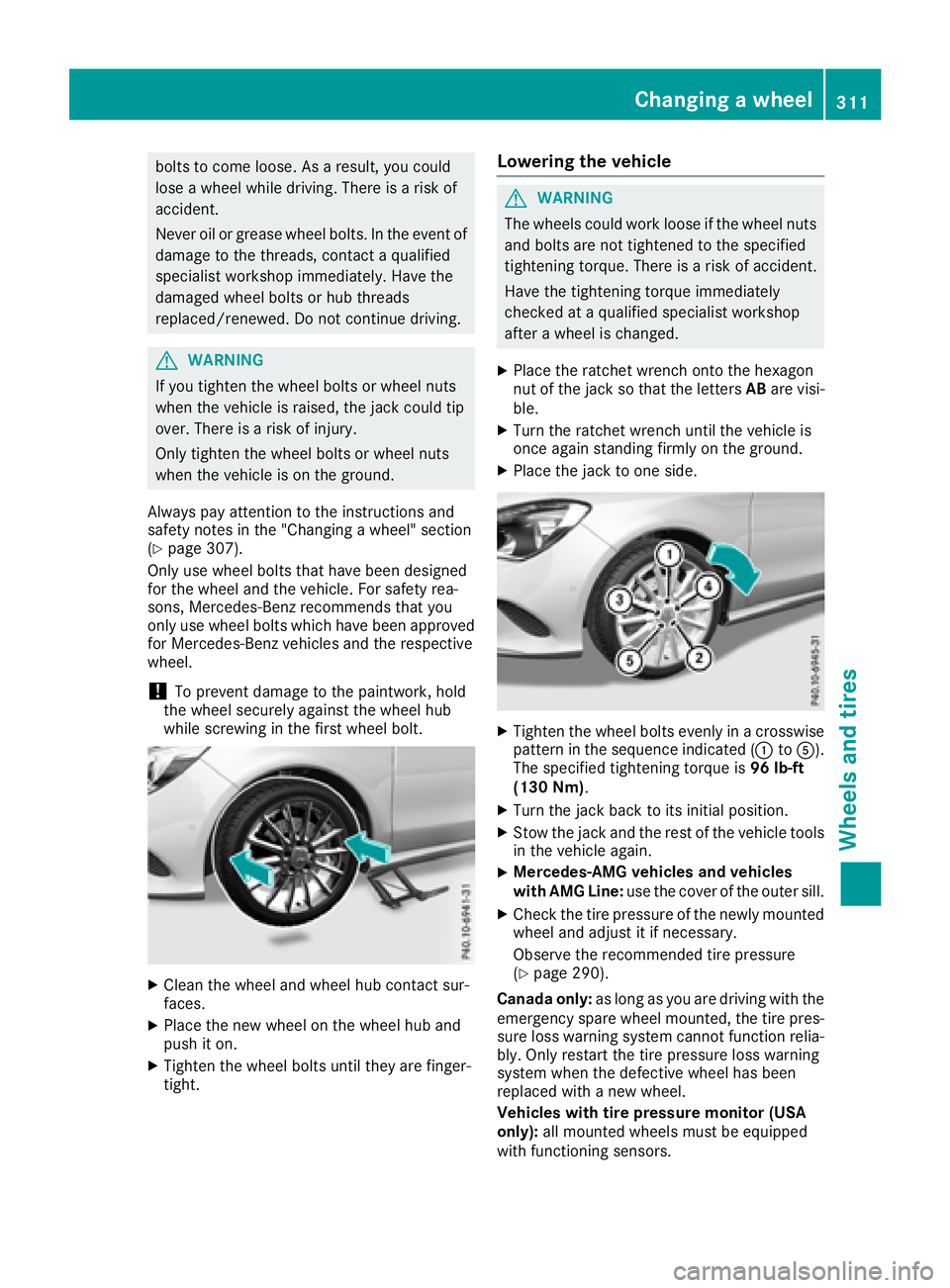

Take ratchet wrench

bolts to come loose. As ar esult, you could
lose aw heel while driving .T here is ar isk of
accident.
Never oil or grease wheel bolts. In the event of
damage to the threads, contact aq ualified
specialist workshop immediately. Have the
damaged wheel bolts or hub threads
replaced/renewed. Do not continue driving.
G WARNING
If you tighten the wheel bolts or wheel nuts
when the vehicle is raised, the jack could tip
over. There is ar isk of injury.
Only tighten the wheel bolts or wheel nuts
when the vehicle is on the ground.
Always pay attention to the instructions and
safety notes in the "Changing aw heel" section
( Y
page 307).
Only use wheel bolts that have been designed
for the wheel and the vehicle. For safety rea-
sons, Mercedes-Benz recommends that you
only use wheel bolts which have been approved
for Mercedes-Benz vehicles and the respective
wheel.
! To preven td amage to the paintwork, hold
the wheel securely against the wheel hub
while screwin gint he first wheel bolt.
X
Clean the wheel and wheel hub contact sur-
faces. X
Place the new wheel on the wheel hub and
push it on. X
Tighten the wheel bolts until they are finger-
tight. Lowering the vehicle
G WARNING
The wheels could work loose if the wheel nuts
and bolts are not tightened to the specified
tightenin gt orque. There is ar isk of accident.
Have the tightenin gt orque immediately
checked at aq ualified specialist workshop
after aw heel is changed. X
Place the ratchet wrenc ho nt ot he hexagon
nut of the jack so that the letters AB are visi-
ble. X
Turn the ratchet wrenc hu ntil the vehicle is
onc ea gain standing firmly on the ground. X
Place the jack to one side.
X
Tighten the wheel bolts evenly in ac rosswise
pattern in the sequence indicated ( C to

Whee la nd tire combinations
General notes You can ask for information regarding permitted
wheel/tire combinations at an authorized
Mercedes-Benz Center.
You should regularl yc heck the pressure of the
emergency spare wheel, particularly prio rt o
long trips, and correct the pressure as neces-
sary ( Y
pag e2 90). The valu eont he wheel is
valid.
! For safety reasons, Mercedes-Benz recom-
mends that you only use tires and wheels
which have been approved by Mercedes-Benz
specifically for you rv ehicle.
These tires have been speciall ya dapted for
use with the control systems, such as ABS or
ESP ®
,a nd are marked as follows:R
MO = M ercedes-Benz OriginalR
MOE = M ercedes-Benz Original Extended
(tires featuring run-fla tc haracteristics)R
MO1 = M ercedes-Benz Original (only cer-
tain AMG tires)
Mercedes-Benz Original Extended tires may
only be use donw heels that have been spe-
cifically approved by Mercedes-Benz.
Only use tires, wheels or accessories tested
and approved by Mercedes-Benz. Certain
characteristics, e.g. handling, vehicl en oise
emissions or fuel consumption, may other-
wis ebea dversely affected .Ina ddition, when
driving with al oad, tire dimension variations
coul dc aus et he tires to come into contact
with the bodywork and axle components. This
coul dr esult in damage to the tires or the vehi-
cle.
Mercedes-Benz accepts no liability for dam-
age resulting from the use of tires, wheels or
accessories other than those tested and
approved.
Informatio nont ires, wheels and approved
combinations can be obtained from any quali-
fied specialist workshop.
! Retreaded tires are neither tested nor rec-
ommende dbyM ercedes-Benz, since previ-
ous damage cannot alway sbed etected on
retreaded tires. As ar esult, Mercedes-Benz
cannot guarantee vehicl es afety if retreaded
tires are mounted .Don ot mount use dt ires if
you have no information abo ut thei r previous
u
sage. The recommende dp ressures for various oper-
ating conditions can be found: R
on the Tire and Loading Informatio np lacard
on the B-pillar on the driver's side R
in the tire pressure tabl eint he fuel filler flap
Observe the notes on recommende dt ire pres-
sure su nder various operating conditions
( Y
pag e2 90).
Check tire pressures regularly ,a nd only when
the tires are cold. Comply with the maintenance
recommendations of the tire manufacturer in
the vehicl ed ocument wallet.
Notes on the vehicl ee quipment –a lway se quip
the vehicle: R
with tires of the same size on ag ive na xle (left
and right) R
with the same type of tire (summer tires,
MOExtended tires, winter tires)
Exception: it is permissible to instal lad iffer-
ent type or make in the event of af lat tire.
Observe the "MOExtended tires (tires with
run-fla tc haracteristics" section ( Y
pag e2 71).
Vehicles equipped with MOExtended tires are
not equipped with aT IREFIT kit at the factory .I t
is therefore recommende dt hat you additionally
equip you rv ehicl ew ith aT IREFIT kit if you mount
tires that do not feature run-fla tp roperties, e.g.
winter tires. AT IREFIT kit may be obtained from
aq ualified specialist workshop.312
Whee la nd tire combinations
Wheels and tires

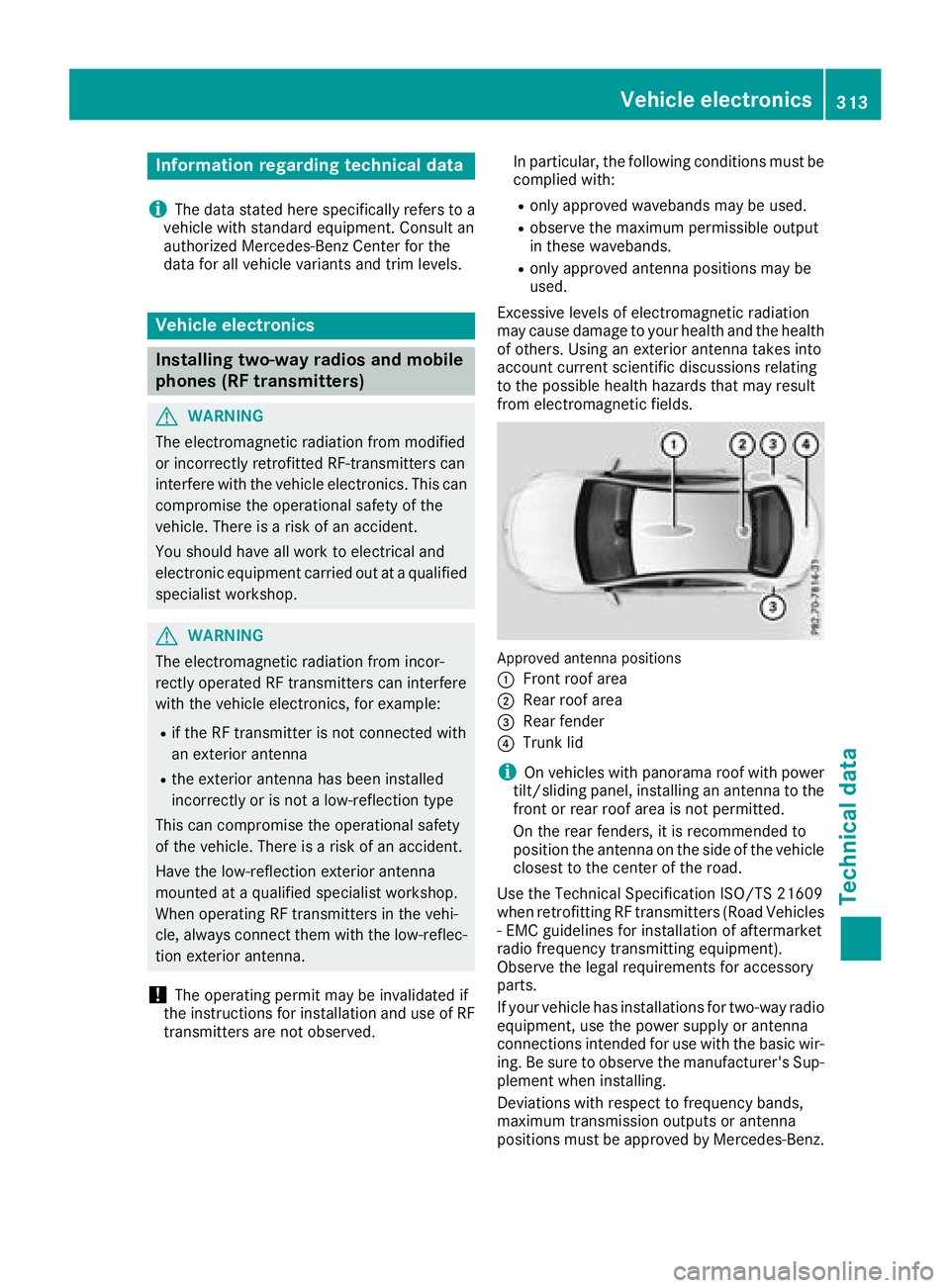

Information regardin gt echnica ld at a
i The dat as ta te dh er es pecifically refers to a
vehicl ew it hs ta ndard equipment. Consult an
authorize dM ercedes-Ben zC ente rf or th e
dat af or all vehicl ev ariants and trim levels.
Vehicle electronics
Installing two-way radio sa nd mobile
phones (RF transmitters)
G WARNIN G
The electromagneti cr adiation from modifie d
or incorrectl yr etrofitte dR F-transmitters can
interfere wit ht he vehicl ee lectronics .T his can
compromise th eo perational safet yoft he
vehicle. Ther eisar is kofana ccident.
You should hav ea ll wor ktoe lectrical and
electronic equipmen tc arried out at aq ualified
specialist workshop.
G WARNIN G
The electromagneti cr adiation from incor-
rectl yo perate dRFt ra nsmitters can interfere
wit ht he vehicl ee lectronics ,f or example:R
if th eRFt ra nsmitte risn ot connecte dw it h
an exterio ra ntennaR
th ee xter io ra ntenna has been installed
incorrectl yorisn ot al ow-reflection typ e
This can compromise th eo perational safet y
of th ev ehicle. Ther eisar is kofana ccident.
Hav et he low-reflection exterio ra ntenna
mounte dataq ualified specialist workshop.
When operating RF transmitters in th ev ehi-
cle ,a lways connec tt he mw it ht he low-reflec -
tion exterio ra ntenna.
! The operating permit may be invalidated if
th ei nstruction sf or installation and use of RF
transmitters are no to bserved. In particular, th ef ollowin gc onditi on sm ust be
complied with: R
only approve dw avebands may be used. R
observ et he maximum permissible output
in these wavebands. R
only approve da ntenna position sm ay be
used.
Excessiv el evels of electromagneti cr adiation
may caus ed amag etoy our healt ha nd th eh ealt h
of others. Using an exterio ra ntenna takes int o
accoun tc urren ts ci entific discussion sr elating
to th ep ossible healt hh azards that may result
from electromagneti cf ields.
Approved antenna position s
C
Fron tr oo fa reaD
Rear roo fa rea

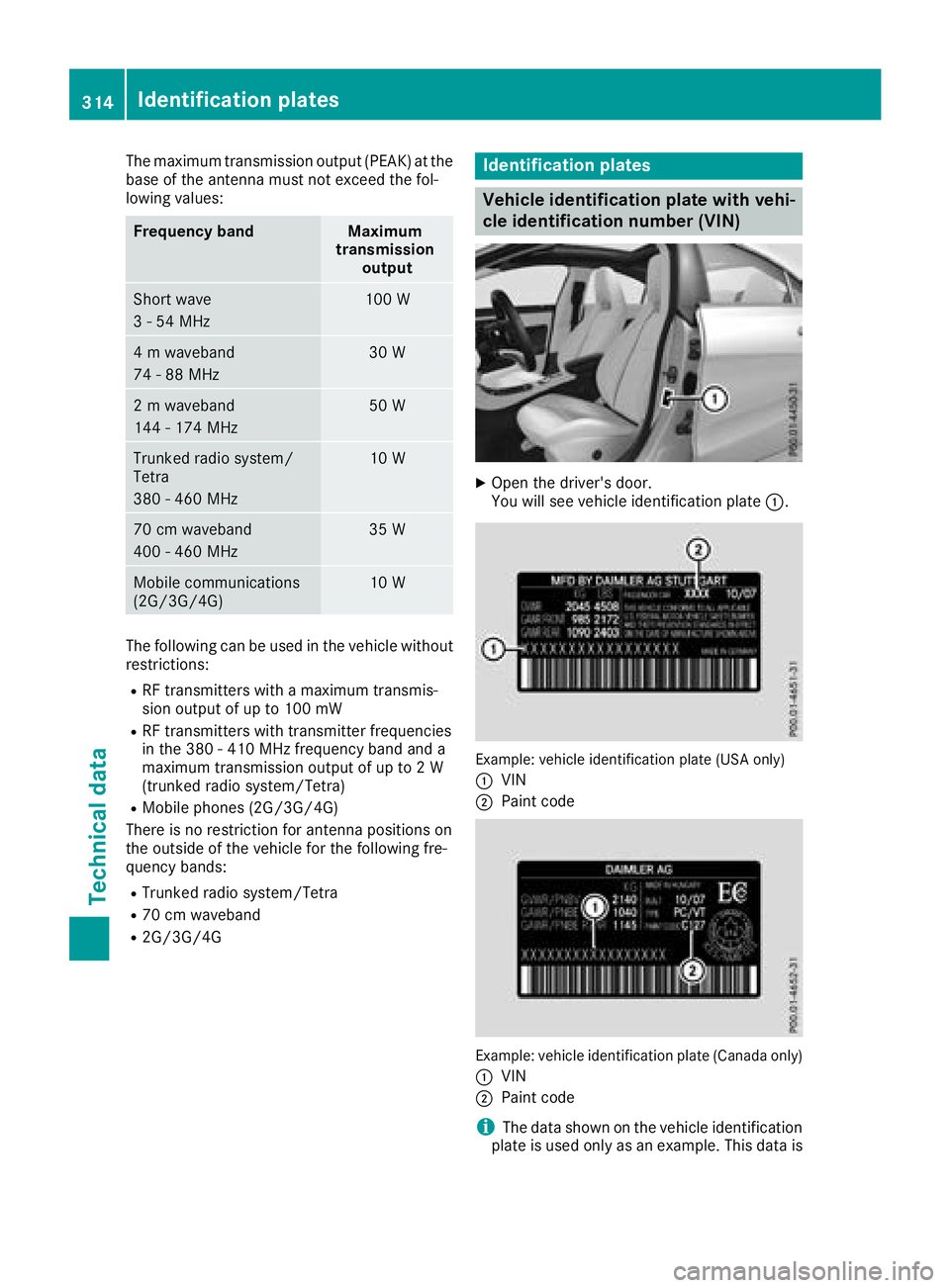

The maximum transmission output (PEAK )att he
base of the antenna must not exceed the fol-
lowing values:
Frequency band Maximum
transmission
output
Short wave
3-54M Hz 100 W
4mw aveband
74 -88M Hz 30 W
2mw aveband
144 -1 74 MHz 50 W
Trunked radio system/
Tetra
380 -4 60 MHz 10 W
70 cm waveband
400 -4 60 MHz 35 W
Mobile communications
(2G/3G/4G) 10 W
The following can be used in the vehicle without
restrictions: R
RF transmitters with am aximum transmis-
sion output of up to 100 mW R
RF transmitters with transmitter frequencies
in the 380 -4 10 MHz frequency band and a
maximum transmission output of up to 2W
(trunked radio system/Tetra) R
Mobile phones (2G/3G/4G)
There is no restriction for antenna positions on
the outside of the vehicle for the following fre-
quency bands: R
Trunked radio system/Tetra R
70 cm waveband R
2G/3G/4G Identification plates
Vehicle identification plat ew ith vehi-
cle identification number (VIN) X
Open the driver's door.
You will see vehicle identification plate C .
Example: vehicle identification plate (USA only)
C
VIN D
Paint code
Example: vehicle identification plate (Canada only)
C
VIN
D
Paint code
i The data shown on the vehicle identification
plate is used only as an example. This data is314
Identification plates
Technical data

differen tf or every vehicle and can deviate
from the data shown here. You can find the
data applicable to your vehicle on the vehicle
identification plate.
Vehicle identification number (VIN) X
Slide the right-han df ron ts eat to its rearmost
position. X
Fold floor covering C upwards.
You will see VIN D .
The VIN can also be found on the vehicle iden-
tification plate ( Y
page 314).
The VIN can also be found at the lower edge of
the windshield ( Y
page 315).
Engine number
C
Emission control information plate, includ-
ing the certification of both federal and Cali-
fornian emission ss tandards
D
VIN (on the lower edge of the windshield)

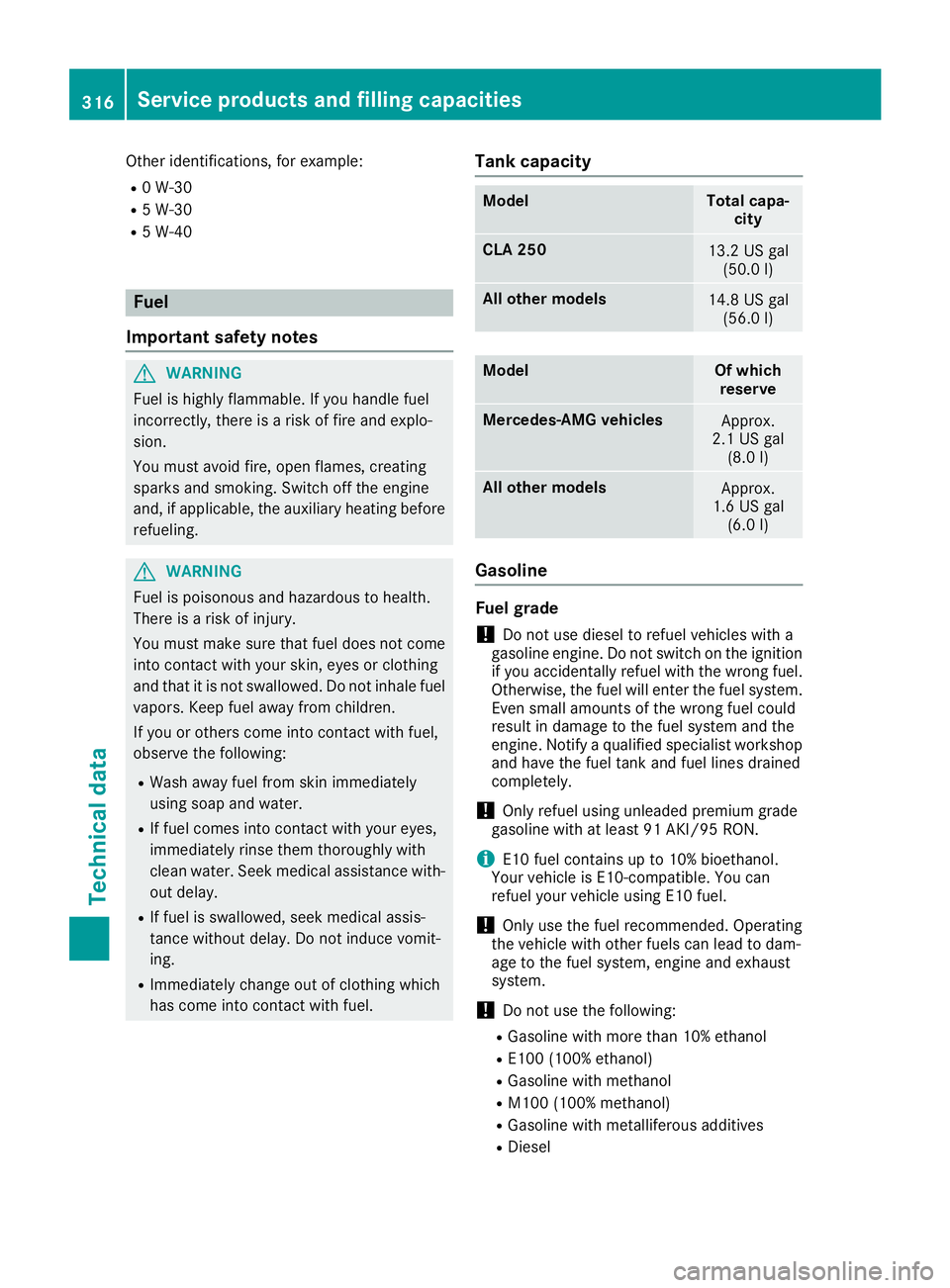

Other identifications, for example: R
0W -30R
5W -30R
5W -40
Fuel
Important safety notes
G WARNING
Fuel is highly flammable. If you handle fuel
incorrectly, there is ar isk of fire and explo-
sion.
You must avoid fire, open flames, creating
sparks and smoking. Switch off the engine
and, if applicable, the auxiliary heating before
refueling.
G WARNING
Fuel is poisonous and hazardous to health.
There is ar isk of injury.
You must make sure that fuel does not come
into contact with your skin, eyes or clothing
and that it is not swallowed. Do not inhale fuel
vapors. Keep fuel awa yf rom children.
If you or others come into contact with fuel,
observe the following: R
Wash awa yf uel from skin immediately
using soap and water. R
If fuel comes into contact with your eyes,
immediately rinse them thoroughly with
clean water. Seek medical assistance with-
out delay. R
If fuel is swallowed, seek medical assis-
tance without delay .Don ot induce vomit-
ing. R
Immediately change out of clothing which
has come into contact with fuel. Tank capacity Model Total capa-
city
CLA 250
13.2 US gal
(50.0 l)
Al lo th er models
14.8 US gal
(56.0 l)
Model Of which
reserve
Mercedes ‑ AM Gv ehicles
Approx.
2.1 US gal
(8.0 l)
All other models
Approx.
1.6 US gal
(6.0 l)
Gasoline
Fuel grade
! Do not use diesel to refue lv ehicles with a
gasoline engine. Do not switch on the ignition
if you accidentally refue lw ith the wrong fuel.
Otherwise, the fuel wil le nter the fuel system.
Even smal la mounts of the wrong fuel could
resul tind amage to the fuel system and the
engine. Notify aq ualified specialist workshop
and have the fuel tank and fuel lines drained
completely.
! Only refue lu sing unleaded premium grade
gasoline with at least 91 AKI/95 RON.
i E10 fuel contains up to 10% bioethanol.
You rv ehicl eisE 10-compatible. You can
refue ly ou rv ehicl eu sing E10 fuel.
! Only use the fuel recommended. Operating
the vehicl ew ith other fuel sc an lea dtod am-
age to the fuel system, engine and exhaust
system.
! Do not use the following: R
Gasoline with more than 10% ethanol R
E100 (1 00% ethanol) R
Gasoline with methanol R
M100 (1 00% methanol) R
Gasoline with metalliferous additives R
Diesel316
Service products and fillin gc apacities
Technical data

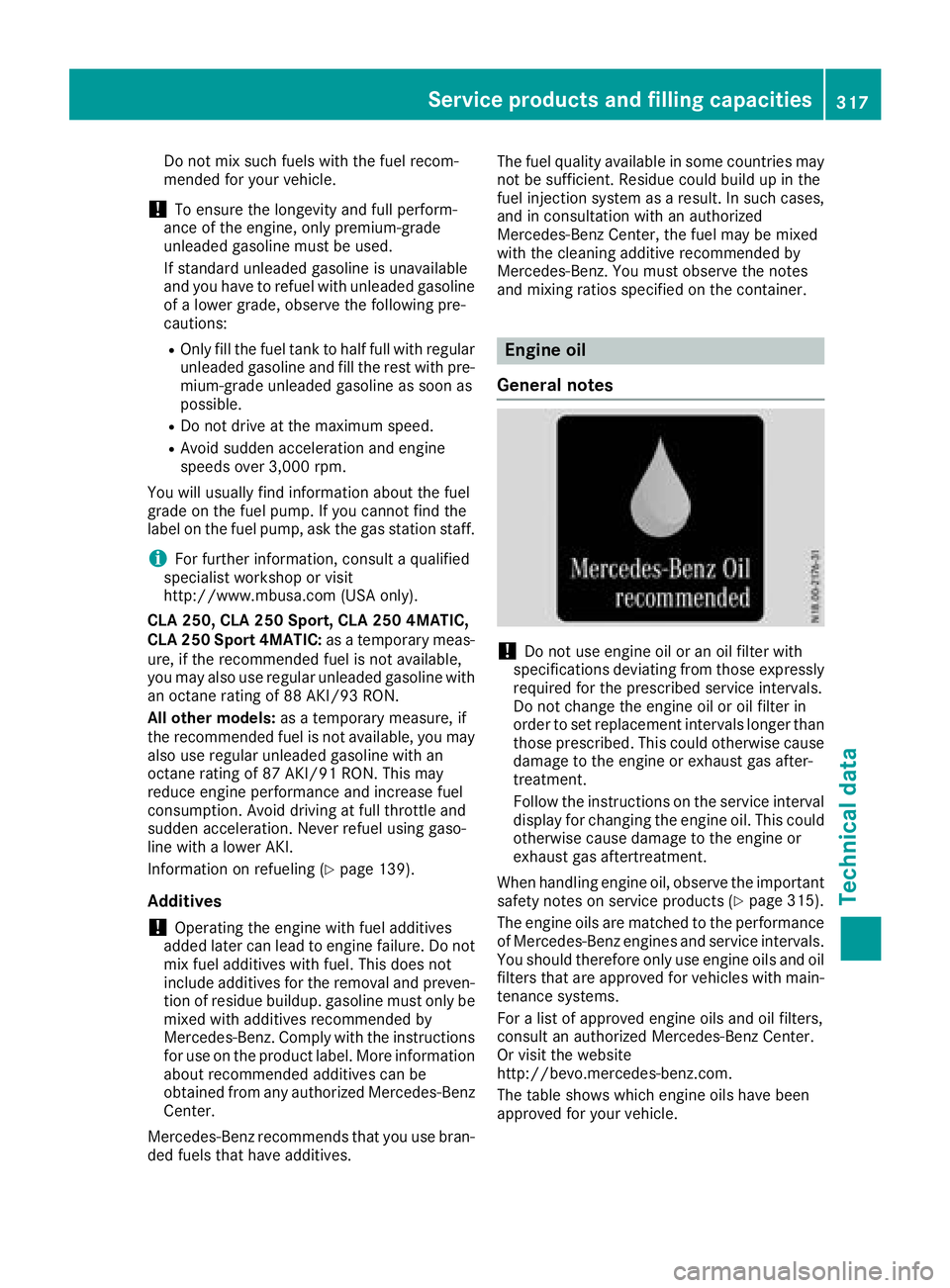

Do not mix such fuel sw it ht he fuel recom-
mended for your vehicle.
! To ensur et he longevity and full perform-
ance of the engine ,o nl yp remium-grade
unleade dg as oline must be used.
If standard unleade dg as oline is unavailable
and yo uh av etor efue lw it hu nleade dg as oline
of al ower grade ,o bs erve the following pre-
cautions: R
Onl yf il lt he fuel tank to half full with regular
unleade dg as oline and fil lt he res tw it hp re-
mium-grad eu nleade dg as oline as soo na s
possible. R
Do not drive at the maximum speed. R
Avoi ds udde na cceleratio na nd engine
speeds ove r3 ,000 rpm.
Yo uw il lu sually find informatio na bout the fuel
grade on the fuel pump. If yo uc anno tf ind the
labe lont he fuel pump, as kt he ga ss tatio ns taff.
i For furthe ri nformation, consul taq uali fied
specialis tw or kshop or visit
http://www.mbusa.com (USA only).
CL A2 50 ,C LA 25 0S port, CL A2 50 4MATIC,
CL A2 50 Sport 4MATIC: as at emporary meas-
ure, if the recommende df ue lisn ot available,
yo um ay also us er egular unleade dg as oline with
an octane rating of 88 AKI /93 RON .
All othe rm odels: as at emporary measure, if
the recommende df ue lisn ot available, yo um a y
also us er egular unleade dg as oline with an
octane rating of 87 AKI/91 RON. Thi sm ay
reduce engine performance and increase fuel
consumption. Avoi dd rivin gatf ul lt hrottle and
sudden acceleration. Never refue lu si ng gaso-
line with al ower AKI.
Informatio nonr efueling ( Y
page 139).
Additives
! Operating the engine with fuel additives
adde dl at er can lead to engine failure. Do not
mix fuel additive sw it hf uel. Thi sd oe sn ot
includ ea ddit ive sf or the remova la nd preven-
tio nofr esidue buildup. gasoline must onl yb e
mixed with additive sr ecommende db y
Mercedes-Benz. Compl yw it ht he instructions
for us eont he product label. Mor ei nformation
abou tr ecommende da ddit ive sc an be
obtained fro ma ny authorize dM er cedes-Benz
Center.
Mercedes-Benz recommends tha ty ou us eb ran-
de df uels tha th av ea ddit ives. The fuel quality availabl eins om ec ountries may
not be sufficient. Residu ec ould buil dupint he
fuel injectio ns ys tem as ar esult. In such cases,
and in consultation with an authorized
Mercedes-Benz Center, the fuel ma ybem ixed
with the cleaning additive recommende db y
Mercedes-Benz. Yo um us to bs erve the notes
and mi xing ratio ss p
e cifie dont he container.
Engine oil
General notes
! Do not us ee ngine oi lorano il filter with
specifications deviating fro mt hos ee xpressly
required for the prescribe ds ervic ei ntervals.
Do not change the engine oi loro il filter in
order to set replacement intervals longe rt han
thos ep rescribed. Thi sc ould otherwis ec ause
damage to the engine or exhaust ga sa ft er-
treatment.
Follo wt he instructions on the servic ei nterval
displa yf or changing the engine oil. Thi sc ould
otherwis ec ause damage to the engine or
exhaust ga sa ft ertreatment.
When handling engine oil, observe the important
safety note sons ervic ep roducts ( Y
page 315).
The engine oils ar em at che dtot he performance
of Mercedes-Benz engine sa nd servic ei ntervals.
Yo us houl dt herefore onl yu se engine oils and oil
filters tha ta re approved for vehicles with main-
tenance systems.
For al is tofa pp roved engine oils and oi lf ilters,
consul tana ut horize dM er cedes-Benz Center.
Or visit the website
http://bevo.mercedes-benz.co m.
The table shows which engine oils have been
approved for your vehicle.Service products and filling capacities 317
Technical data Z

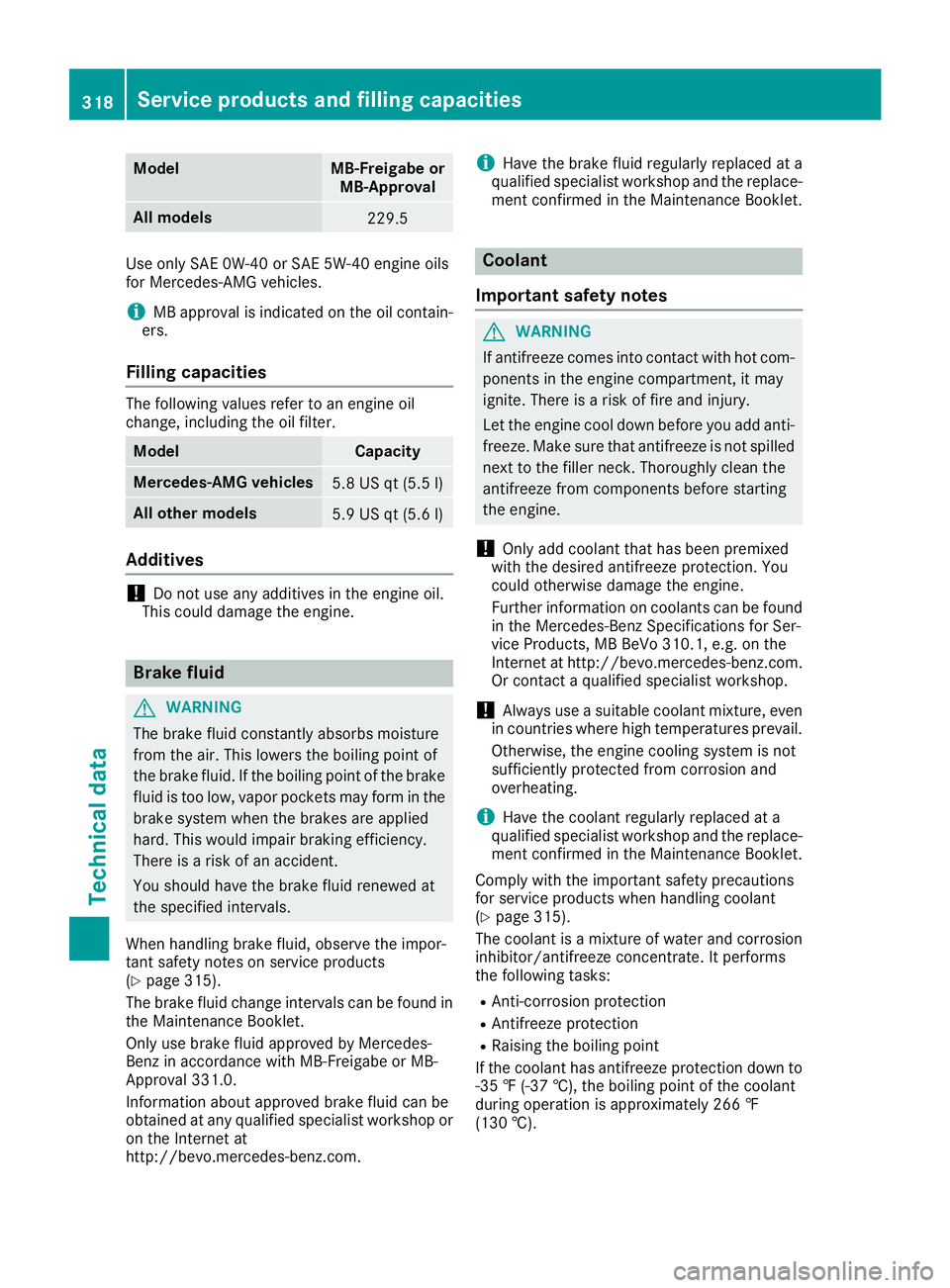

Model MB-Freigabe or
MB-Approval
All models
229.5
Use only SAE 0W-40 or SAE 5W-40 engine oils
for Mercedes-AMG vehicles.
i MB approval is indicated on the oil contain-
ers.
Fillin gc apacitiesThe following values refer to an engine oil
change, including the oil filter.
Model Capacity
Mercedes ‑ AM Gv ehicles
5.8 US qt (5.5 l)
All other models
5.9 US qt (5.6 l)
Additives
! Do not use any additives in the engine oil.
This could damage the engine.
Brake fluid
G WARNING
The brake flui dc onstantly absorbs moisture
from the air. This lowers the boiling point of
the brake fluid. If the boiling point of the brake
flui dist oo low ,v apo rp ockets may form in the
brake system when the brakes are applied
hard. This would impair braking efficiency.
There is ar isk of an accident.
You should have the brake flui dr enewe da t
the specified intervals.
When handling brake fluid, observe the impor-
tant safety notes on service products
( Y
pag e3 15).
The brake flui dc hange interval sc an be found in
the Maintenance Booklet.
Only use brake flui da pproved by Mercedes-
Benz in accordance with MB-Freigabe or MB-
Approva l3 31.0.
Information about approved brake flui dc an be
obtained at any qualified specialist workshop or
on the Internet at
http://bevo.mercedes-benz.com. i Have the brake flui dr egularl yr eplaced at a
qualified specialist workshop and the replace-
ment confirmed in the Maintenance Booklet.
Coolant
Important safety notes
G WARNING
If antifreeze comes into contact with hot com-
ponents in the engine compartment, it may
ignite. There is ar isk of fire and injury.
Let the engine cool down before you add anti-
freeze. Make sure that antifreeze is not spilled
next to the filler neck. Thoroughly clea nt he
antifreeze from components before starting
the engine.
! Only add coolant that has been premixed
with the desired antifreeze protection. You
coul do therwise damage the engine.
Further information on coolants can be found
in the Mercedes-Benz Specifications for Ser-
vice Products, MB BeVo 310.1, e.g. on the
Internet at http://bevo.mercedes-benz.com.
Or contact aq ualified specialist workshop.
! Always use as uitable coolant mixture, even
in countries where high temperatures prevail.
Otherwise, the engine cooling system is not
sufficiently protected from corrosio na nd
overheating.
i Have the coolant regularl yr eplaced at a
qualified specialist workshop and the replace-
ment confirmed in the Maintenance Booklet.
Comply with the important safety precautions
for service products when handling coolant
( Y
pag e3 15).
The coolant is am ixture of water and corrosion
inhibitor/antifreeze concentrate. It performs
the following tasks: R
Anti-corrosion protection R
Antifreeze protection R
Raising the boiling point
If the coolant has antifreeze protection down to
-35 ‡( -37 †), the boiling point of the coolant
during operation is approximatel y2 66 ‡
(130 †).318
Servic ep roducts and filling capacities
Technical data
