Practical advice
Jump-starting
If the battery is discharged, the engine can
be started from another vehicle using jump
leads. Forim proved accessibility, your ve-
hicle has been fitted with a positive and
negative contact in the eng ine compart-
ment.
Please note:
! Jump-starting must only be performed
when the engine and catalytic convert-
er are cold.
! Do not start the engine if the battery
has frozen. Let th ebattery thaw out
fir st.
! Jump-starting may only be performed
from batteries with the sam enominal
vol tage.
! Use jump leads for jump -starti ng.You
can obtain further information from a
qualified speci alistw orkshop, e.g. a
Mercedes-Benz Service Centre. !
Avoid repeated and lengthy starting
at tem pts.
Never start the vehicle using a rapid battery
charger.
6 Make sure thatthe two vehicles do not
touch.
6 Switch off all electri cal consumers. 1
Positive terminal of donor battery
2 Positive contact of your vehicle
3 Negative terminal of your vehicle
4 Negative contact of donor battery
6 Open the red cap on positi vecontact
2 of your vehicl e. Jump-starting
G
Risk ofacid burns Do not lean over the battery while the en-
gine is being jump-started.
G
Risk of explosion Avoid cr
eating sparks. Keep naked flames
away from the battery and do not smoke in
it s vi cini ty.
Comply with safety precautions and special
protective measures when handling batter-
ies ( =
page 375). ==209en_d2.boo Seite
379 Dienstag, 25. Mai 2004 7:26 19

380 Practical advice
Jump-starting
6
Connect positive terminal 1to posi-
ti ve conta ct2 on your vehicle using
the jump lead. Start with the donor bat-
ter y.
6 Run the donor vehicle's engine at idling
speed.
6 Connect negative terminal 4of the
donor battery to negative contact 3of
your vehicle using the jump lead. Start
wi th the donor battery.
6 Start the engine.
6 You can now switch electrical consum-
ers back on. Do not under any circum-
stances switch on the lights. 6
First undo the jump leads from nega-
tive terminals 3and 4of the batter-
ies, and then from positi veterminals
1 and 2.
6 Have the battery checked at aqualified
specialist workshop, e.g. a Mercedes-
Benz Service Centre. 209en_d2.boo Seite
380 Dienstag, 25. Mai 2004 7:26 19

381
Practical advice
Towing
Comply with national regulations when
towing.
Having the vehicle carried away on a trans-
porter or trailer is pre ferable to towing it
away. We recommend the use of a rigid
towbar if towing is nec essary.
You may on lytow the vehicle a maximum
of 50 km. A maximum towing speed of
50 km /hmust not be exceeded. i
Deactivate the automatic locking while driv-
in gfunction when towi ng. You could otherwise
beco me locked out when pushi ngortowing the
vehicle.
! Vehicles wit hautomatic transmission
must not be tow-started.
! If th eengine does not start, try jump-
starting it ( =page 379).
! If the vehicle does not start after
jump-starting, have it towed to a quali-
fied specialist work shop, e.g. to a
Mercedes-Benz Service Centre.
! If the vehicle is to be towed for a longer
distance, only tow it with the rear axle
raised. !
If the vehicle has suffere dtransmission
damage, only tow it with the propeller
shaft disconnected.
! Before tow ing the vehicle, make sure
the battery isconnected and charged.
Otherwise, you will not be able to
switch on the ignition and will have
no steering and braki ngassistance.
! Shift the transmission to position N. Opening the front cover
The fixing points for the bolt-on towing eye
are located in the bumpers. They are locat-
ed under the cover on the right-hand side
when
viewed in the direction of travel both
at the front and the rear.
! Only secure the tow cable or towbar to the
towing eye.The vehicle could otherwi sebe
damaged. Towing
G
Risk of accident Tow the vehicle using a rigid
towbar if:
! the engine will not start
! there is a malfunction in the power sup-
ply or the vehicle's electrical sy stem
There is no power assistance for the steer-
ing when the engine is not running. Signifi-
ca ntly greater force is then needed to steer
the vehicle and to brake.
When towing or tow-starting another vehi-
cle, its weight should not be greater than the
permissible gross weight of your ve hicle. Po
ints to bear in mind Fitting the towing eye209en_d2.boo Seite
381 Dienstag, 25. Mai 2004 7:26 19

389
Te
chnical data
Genuine Mercedes-Benz parts
Vehicle electronics
Vehicle identification plates Engine
Perfo rmance
Tyres and wheels
Vehicle dimensions Trailer tow hitch
Vehicle weights
Service products and capacities
Frequencies for garage door openers* 209en_d2.
boo Seite 389 Dienstag, 25. Mai 2004 7:26 19

390 Technical data
Genuine Mercedes-Benz parts
The "Technical data" section contains all
the necessary technical data for your vehi-
cle. Some of the values given are provi-
sional and, in some cases, calculated
values. Final
values were not available
when this manual was printed.
i The technical data was determined in ac-
co rdance with EU Directives. All data applies to
the vehicle's standard equipment. The data may
therefore differ for vehicles with optional equip-
me nt. You may obtain further information from a
Me rcede s-Be nz Service Cen tre.
You will find information ab out your vehicle's
noise level in th evehicle 'sdoc umen tation.
Mercedes-Benz tests genuine parts and
con version parts and accessories whi ch
have been speci fically approved for your
veh icle in terms of their reliability, safety
and suitab ility.
Despite ongoing market research,
Mercedes-Benz is unable to guarantee oth-
er parts. Mercedes-Benz therefore accepts
no responsi bility for the use of such parts
in Mercedes-Benz vehicles, even if they
have been independently or officially ap-
proved. In Germany and other countries, certain
parts are only officially approv
edfor instal-
lation or modification work ifthey comply
with legal requirements. All genuine
Mercedes-Benz parts satisfy these
regul ations.
Make sure thatreplacement parts are suit-
able for you rvehicle. In many countries,
parts that constitute a modification tothe
vehicle could invalidate the vehicle's gen-
eral operating permit. This isthe case if:
! ther e is achan gein the vehicle type ap-
proved in the general operating permit
! road users could be endangered
! exhaust emissions or noise levels are
adversely affected
The use of parts wh ich have not been offi-
cially approve dcan jeopardise the safety
of your vehicle.
Mercedes-Benz therefore recommends
that you use genuine Mercedes-Benz parts
and conversion parts and accessories
whi chhave been approved for your vehi-
cle. You can obtain genuine Merce
des-Benz
parts and appro ved conversion parts and
accessories from any Merced es-Benz
Service Centre. Here you will receive ad-
vi ce about technical modifications, and the
parts will be pro fessionally fitted.
Always quote the vehicle identification
number and the engine number when or-
dering genuine parts. You will find these
numbers onthe vehicle data card in the
"Service Booklet" or on your vehicle's iden-
tification plates ( =pa ge 393). Genuine Mercedes
-Benz parts H
Environmental note DaimlerChrysler also supplies reconditioned
assemblies and parts which are of the same
quality as new parts. These parts have the
same warranty as new parts. 209en_d2.boo Seite
390 Dienstag, 25. Mai 2004 7:26 19

391
Te
chnical data
Ve hicle el ectron ics
! Only have th eengine electronics and asso-
ciated parts, such as control units, sensors or
connec tor leads, serviced at a qualified spe cial-
is tworkshop. Otherwise, vehicle parts may wear
more quickly and the vehicle warranty and gen-
eral operating permit may be invalidated. Electrical and electronic equipment can
jeopardise the operational safety of your
vehicle. If equipment of th iskind is retrofit-
te d, it must be typ eappro vedand must
bear the emark .The emark can be ob-
tained from the equipment manufacturer
or an authorised testing authority.
If you wish to install telephones or two-way
radios in the vehicle, you must obtain for-
mal approval. Mercedes-Benz approves
the installation of mobile telephones and
two-w ayradios provide dthat they are in-
stalled professionally and a low-reflection
exterior aerial is used.
The transmission output of the telephone
or two-way radio must not exceed the max-
imum transmission outputs specif ied on
the next page. Vehicle electronics
Ta
mperi ngwith th eengine
el ectro nics G
Risk of accident On
ly have the engine electronics and ass oci-
ate dparts serviced at aqu alified specialist
workshop which has the neces sary special-
ist knowledge and tools to carry out the
work required. Mercedes -Benz recommends
that you use a Mercedes-Be nzService Cen-
tre for this purpose.
In particular, work rel evan t to safety or on
safe ty-re lated systems mustbe carried out
at a qualified spec ialist workshop. Road
safe ty could otherwise be affected. Re
trofitting electrica l/electronic
equipment G
Risk of accident Mobile phones and two-way radios could in-
terf
erewith the vehicle 'selec tronics and
thereby impair the vehi cle'sopera ting safet y
and your sa fety if:
! they do not have an exterior aerial
! theexterior aerial is not reflection-free
! theexterior aerial has been fitted incor-
rectly
Health risks may also occur due to exces-
sive el ectromagnetic radiation.
For this reason, onl yhave the exterior aerial
fitted at a qualified specia list workshop
whi chhas the necessary specialist knowl-
edge and tools to carry out the work re-
quired. Merc edes-Benz recommends that
you use a Mercedes-Benz Service Centre for
thi spurpose. In particular, work relevant to
safety or on safety-relat ed systems mustbe
carried out at a quali fied specialist work-
sh op. 209en_d2.boo Seite
391 Dienstag, 25. Mai 2004 7:26 19

399
Te
chnical data
Tyres and wheels

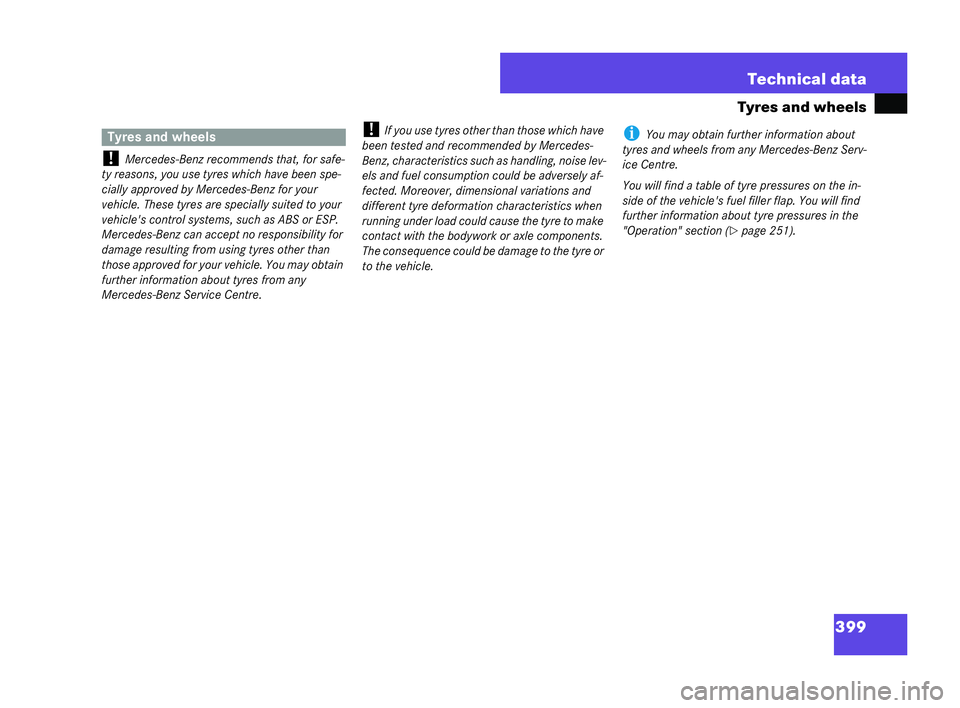

! Mercedes-Benz recommends that, for safe-
ty reasons, you use tyres which have be enspe-
cially approved by Mercedes-Benz for your
vehicle. These tyres are specially suite dto your
vehicle's control systems, such as ABS or ESP.
Mercedes-Benz can accept no responsibility for
damage resulting from using tyr esother than
tho seapprove dfor your vehicle. You may obtain
further information about tyres fro many
Mercedes-Benz Service Centre. !
If you use tyres other tha nth ose which have
been tested and rec ommendedbyMe rcedes-
Benz, characteristics su chas handling, noise lev-
el sa nd fuel consumption could be adver selyaf-
fe ct ed. Moreover, dimensional variations and
different tyre deformation characterist ics when
ru nn ingunder load could cause the tyre to make
co ntact with the bodywork or axle components.
The con sequence could be damage to the tyre or
to th evehicle. i
You may obtain further information about
tyres and wheels from any Mercede s-Be nz Serv-
ice Centre.
You will find a table of tyre pre ssures on the in-
side of the vehicle's fuel filler flap. You will find
fur ther information abo uttyre pressures in the
"Operation" section ( =
pag e251). Tyres and wheels209en_d2.boo Seite
399 Dienstag, 25. Mai 2004 7:26 19

405
Te
chnical data
Trailer tow hitch
! If you have a trail ercoupling retrofitted,
modifi cations may have to be made to the cool-
ing system depending on the type of vehicle. CLK Coupé

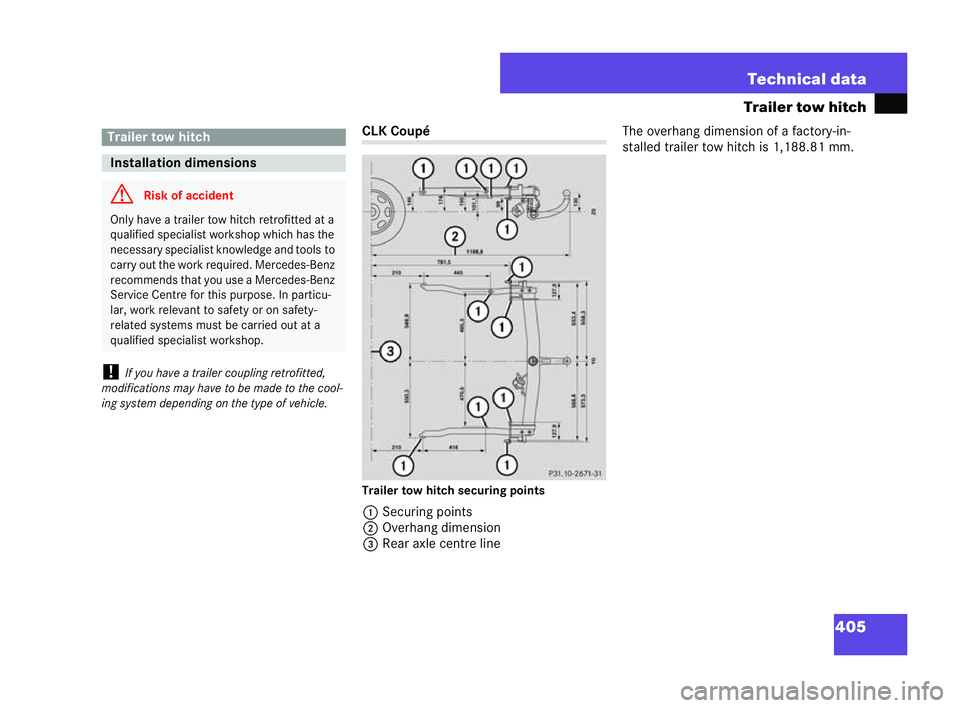

Trailer to
whitch secur ing points
1 Securing points
2 Overhang dimension
3 Rear axle centre line The
overhang dimension of a factory-in-
stalled trailer tow hitch is 1,188.81 mm. Trailer tow hitch
Installation dimensions
G
Risk of accident On
lyha ve a trailer tow hitch retrofitted at a
qualified specia list workshop which has the
nec essary specialist knowl edge and tools to
carry out the work required. Merced es-Benz
reco mmends that you use a Merce des-Benz
Service Centre for this purpose. In particu-
lar, work relevant to safety or on safety-
re lated systems must be carried out at a
qualified specialist workshop. P31.10-2
671-31 209en_d2.boo Seite
405 Dienstag, 25. Mai 2004 7:26 19

410 Technical data
Service products and capacities
Servi
cepro ducts are:
! Fuels (e.g. petrol, diesel)
! Lubricants (e.g. engine oil, transmis-
sion oil, greases)
! Coolant
! Brake flui d
Mercedes-Benz recommends that you
use products tested and approved for
Mercedes-Benz, which are listed in the
Mercedes-Benz Owner's Manuals, be-
cause:
! Construction parts and service prod-
ucts are compatible with each other.
! Damage resulting from usi ngnon-
approved serv ice products is not cov-
ered by warranty
You may obtain further information from
any Mercedes-Benz Serv ice Ce ntre. Tank capacity
You will find further
information about fu-
els and refuelli ng inthe "Operation" sec-
tion (= page 241). Service products and cap
acities G
Riskofaccident When handling, storing and disposing of
servic
epro ducts, please observe the rele-
va nt regulation s.Failure to do so could en-
danger people and the environme nt.
Ke ep service produ ctsout of the reach of
children.
Consult a doctor immedi ately if any service
product is swal lowed. H
Environmental note Dispose of servi
ceprod ucts in an environ-
mentally-resp onsible manner. Fuels
G
Risk ofinjury Fu
el is highl y flamma ble.
Smokin g, fire and naked flame sar e prohibit-
ed whe nhandling fuels.
Switch off the engine before refuelling.
Do not allow fuel to come into contact with
sk in or clothing.
Your health may be damaged if:
! you spill fuel onto your bare skin
! you inhale fuel vapours Total capac
ity 62 l
Including reserve
fuel approximatel
y8 l 209en_d2.boo Seite
410 Dienstag, 25. Mai 2004 7:26 19

411
Te
chnical data
Service products and capacities Fuel con
sumption
The vehicle will use more fuel than usual in
the following conditions:
! at very low temperatures
! in urban traffic
! on short trips
! when to wing a trailer
! in mountainous terrain
The consumption figures were determined
in acco rdan ce with EUDirec tive
19 99 /1 00/E C under the following
test conditions:
! Urban driv ing conditions are simulated
by frequent pulling awayand stopping.
! Extra-urban dr iving con ditions are sim-
ulated by accelerating from 0 to
120 km /husing all gears.
! Total fuel consumption is cal culated
us ing a weighting of approximately 37%
for urb andriving and approxi mately
63% for extra-urban driv ing. i
The act ual consumption value sof your vehi-
cl ema y deviate from the values given depending
on:
! Driving style
! Road and traffic conditions
! Environmental influences
! Vehicle's operating state
Mercedes-Benz isconstantly updating its
vehicles to the state of the art. Depending
on when the Owner's Manual went to print,
it may be that the current consumption val-
ues are lower than those listed inthe fol-
lowing table. The current consumption
val ues can be found in the COC papers (EC
CE RTIFICATE OF CONFORMITY). These pa-
pers are supplied when the veh icle is deliv-
ered. !Donotuse fuel addi tives. These couldlead
to increased wear and engine damage. If youuse
fuel additives, your warranty entitlement will be
restricte d. H
Enviro nment alno te CO
2(carbon dioxide) is the gas which
sci entists currently consider to be chiefly
responsib lefor global warming (greenhouse
eff ect). Your vehicle's CO
2emissions vary
directly in acc ordance with fuel consump-
tion and therefore depend on:
! theefficie ntuse of fuel by the engine
! your style of driving
! other non-tec hnical factorssuch asen-
vironme ntal influences or roa dcondi-
tions
Yo ucan contribute to minim isingCO
2emis-
sions by drivi ngcarefully and having your ve-
hicle servi ced regularly. 209en_d2.
boo Seite 411 Dienstag, 25. Mai 2004 7:26 19
