Practical advice

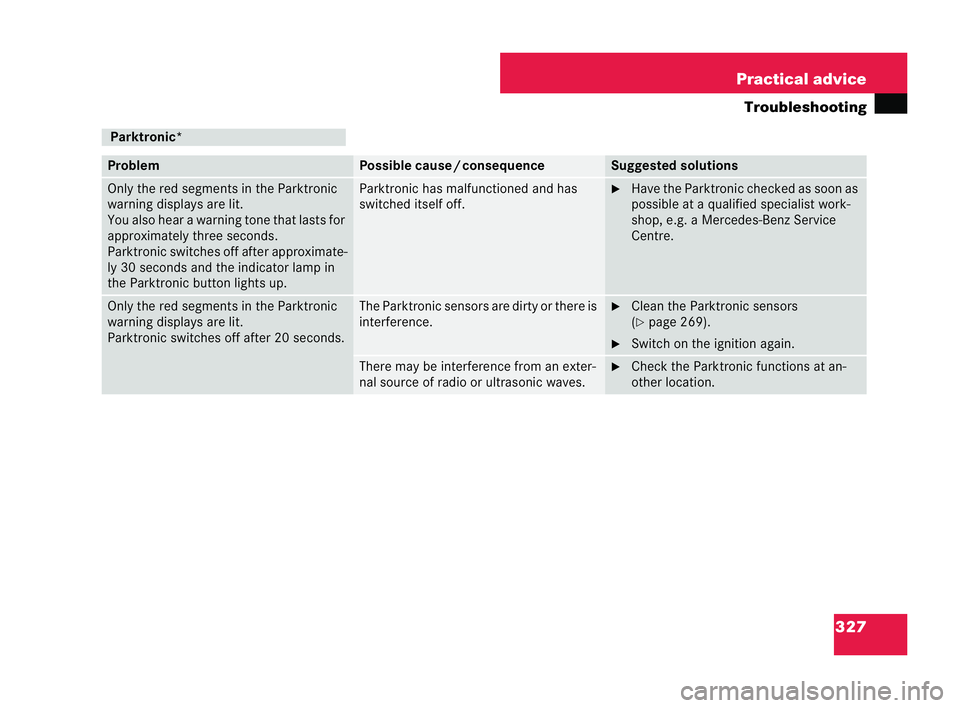

Tr ou bleshooting Parktronic*
Problem Possible cause
/consequ ence Suggested sol
utions Only the red segments in the Parktronic
warning dis
plays are lit.
You also hear a warning tone that lasts for
approximate lythree seconds.
Parktronic switches off after approximate-
ly 30 seconds and the indicator lamp in
the Parktronic button lights up. Parktronic has malfunctioned and has
switched itself off. 6
Have the Parktronic checked as soon as
possible at a qualified specialist work-
shop, e.g. a Mercedes-Benz Service
Centre. Only the red segments in the Parktronic
warning dis
plays are lit.
Parktronic switches off after 20 seconds. The Parktronic sensors are dirty or there is
in
terference. 6
Clean the Parktronic sensors
(=
page 269).
6 Switch on the ignition again. There may be interference from an exter-
nal source of radio or ultrasonic waves. 6
Check the Parktronic functions at an-
other location. 209en_d2.boo Seite
327 Dienstag, 25. Mai 2004 7:26 19

328 Practical advice
Trouble
shoo ting Headlamps
Problem Po
ssible caus e/consequ ence Su
ggested solutions The headlamps are misted up on the in-
side. Air humidity is ver
yhigh. 6
Drive with the lights sw itched on.
The misting-up disappears after a sho rt
dista nce. The headlamp housing is not airtight, al-
lowing moisture to enter. 6
Have the headlamp checked at a
qualified specialist workshop, e.g. a
Mercedes-Benz Service Centre. 209en_d2.boo Seite
328 Dienstag, 25. Mai 2004 7:26 19

331
Practical advice
Tr ou bleshooting Problem Possible caus
e/consequence Suggested solutions
The soft top will not close. The ignition
isnot switched on. 6
Turn the key to position 2in th eigni-
tion lock. The parking brake has not been applied. 6
Apply the parking brake. The boot lid is open. 6
Close the boot lid ( =page 86). The roll-over bars have been deployed. 6
Retract the roll-over bars manually
(=
page 344). The soft top mechanism or controls are
faulty. 6
Close the soft top using the emergen-
cy operation procedure if necessary
( =
page 347).
6 Visit a qualified specialist workshop,
e.g. a Mercedes-Benz Service Centre. 209en_d2.boo Seite
331 Dienstag, 25. Mai 2004 7:26 19

334 Practical advice
Trouble
shoo ting Key and remote control
Problem Possible caus
e/consequ ence Su
ggested solutions You cannot lock or unlock the vehicle us-
ing the remote control. The remote control batteries are dis-
charged or almost discharged. 6
Point the tip of the remote control at the
driver's door from close range and try
aga in.
If this does not work:
6 Lock or unlock the vehicle using the
emergency key element ( =page 341).
6 Check the remote control batteries
(
= page 80) and change them if neces-
sary ( =pa ge 354). The remote control is faulty. 6
Lock or unlock the vehicle using the
emergency key element ( =page 341).
6 Have the remote control checked at a
qualified specialist workshop, e.g. a
Mercedes-Benz Service Centre. 209en_d2.boo Seite
334 Dienstag, 25. Mai 2004 7:26 19

336 Practical advice
Trouble
shoo ting Problem Po
ssible caus e/consequ ence Su
ggested solutions The key cannot be turned
inthe ignition
lock. The
on-board voltage is too low. 6
Switch off consum ers that are not re-
quired, e.g. seat heating or interior light-
in g, an d try toturn the key again.
If this does not work:
6 Check the star ter battery and charge it
if necessary.
or
6 The vehicle may be jump-started
( = page 379).
or 6 Consult a qualified specialist workshop,
e.g. a Mercedes-Benz Service Centre. 209en_d2.boo Seite
336 Dienstag, 25. Mai 2004 7:26 19

340 Practical advice
Trouble
shoo ting Leaving the vehicle parked up
Problem Possibl
ecaus e/consequ ence Su
ggested solutions You wish to
leave the vehicle parked up
for a long period of time (longer than
six weeks). 6
Consult a qualified specialist workshop,
e.g. a Mercedes-Benz Service Centre.
6 Disconnect the battery ( =page 377). 209en_d2.boo Seite
340 Dienstag, 25. Mai 2004 7:26 19

346 Practical advice
Openin
g/clo sing in an emergency
6 Take the Allen key from the Owner's
Manual wallet. 1
Dec orative seam
2 Allen key
3 To push the key downwards
4 To push the head rest raint downwards
6 Insert the long shaft of Allen key 2
into the recess whi chison the left-
hand side (seen in the direction of trav-
el) of the respective head restraint us-
ing decorative seam 1asa gu ide. 6
Firstly, press Allen key downw ards 3
firmly and hold itin this position.
6 Then push the head restraint down-
wards until it engages 4.
6 Remove the key again and release the
head restr aint.
6 Repeat the procedure for the other
head rest raint. G
Risk of inju ry You must only retract the roll-over bars
man-
ually when the soft top is open. Ot herwi se,
the function ofthe roll -over bars may be im-
paired and they will not be abl eto protect
you optimally.
To retract the roll-over bars when the soft
top is closed, visit a qualified specialist
workshop, e.g. a Mercedes-Benz Service
Centre. P 77.00-2188-31209en
