MERCEDES-BENZ CLK-CLASS 2004 Owners Manual
Manufacturer: MERCEDES-BENZ, Model Year: 2004, Model line: CLK-CLASS, Model: MERCEDES-BENZ CLK-CLASS 2004Pages: 464, PDF Size: 6.07 MB

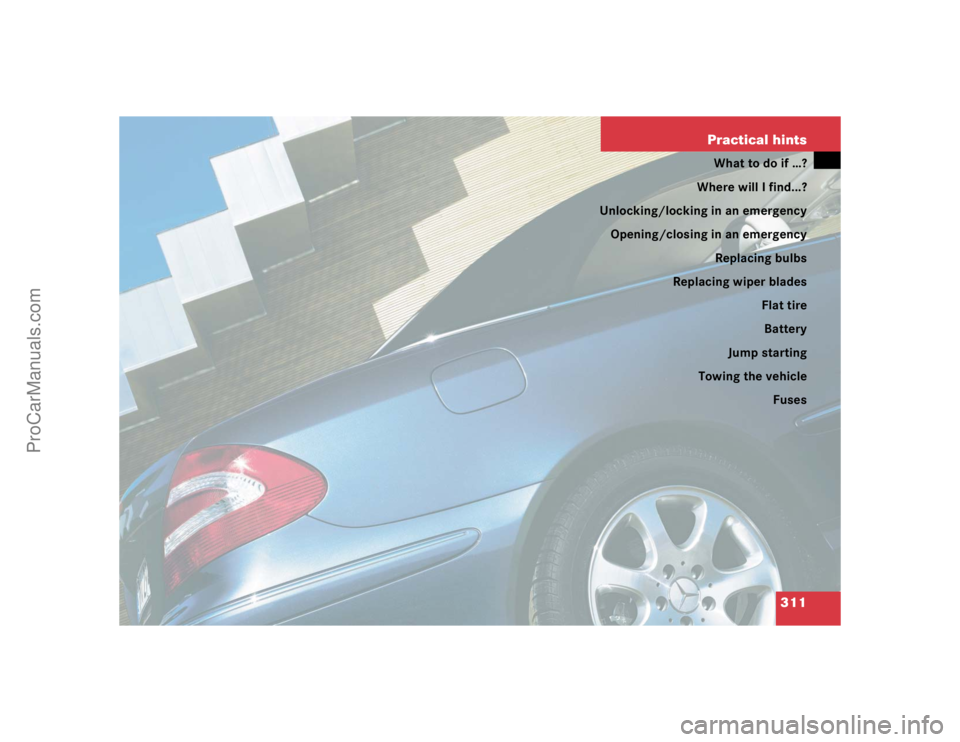

Page 311 of 464
311 Practical hints
What to do if …?
Where will I find...?
Unlocking/locking in an emergency
Opening/closing in an emergency
Replacing bulbs
Replacing wiper blades
Flat tire
Battery
Jump starting
Towing the vehicle
Fuses
ProCarManuals.com

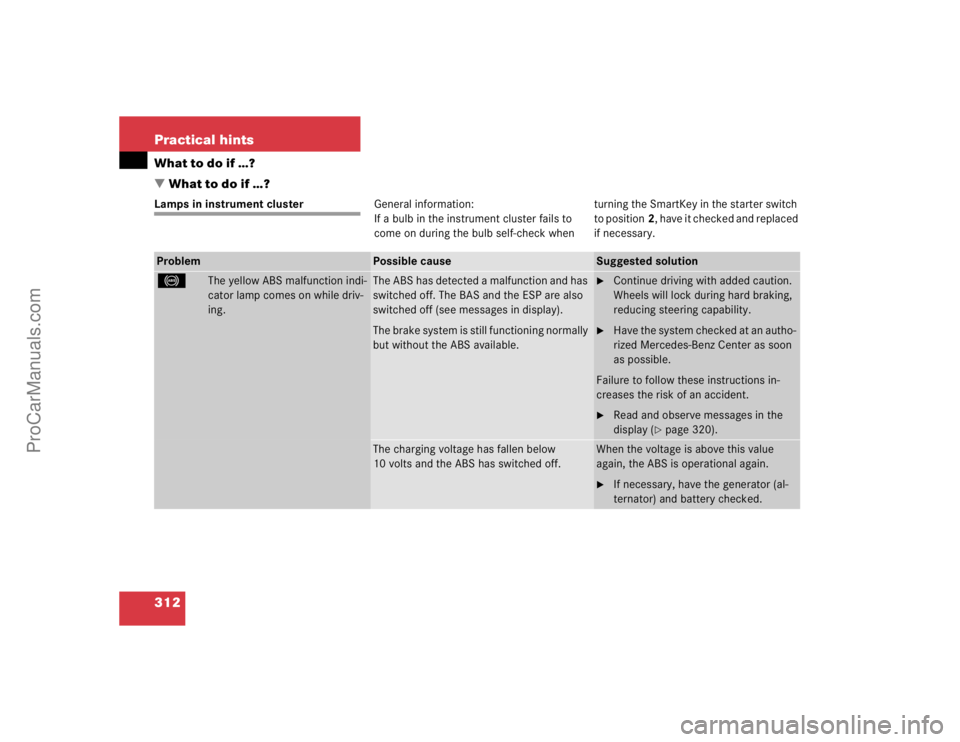

Page 312 of 464
312 Practical hintsWhat to do if …?
What to do if …?Lamps in instrument clusterGeneral information:
If a bulb in the instrument cluster fails to
come on during the bulb self-check when turning the SmartKey in the starter switch
to position2, have it checked and replaced
if necessary.Problem
Possible cause
Suggested solution
-
The yellow ABS malfunction indi-
cator lamp comes on while driv-
ing.
The ABS has detected a malfunction and has
switched off. The BAS and the ESP are also
switched off (see messages in display).
The brake system is still functioning normally
but without the ABS available.
Continue driving with added caution.
Wheels will lock during hard braking,
reducing steering capability.
Have the system checked at an autho-
rized Mercedes-Benz Center as soon
as possible.
Failure to follow these instructions in-
creases the risk of an accident.
Read and observe messages in the
display (
page 320).
The charging voltage has fallen below
10 volts and the ABS has switched off.
When the voltage is above this value
again, the ABS is operational again.
If necessary, have the generator (al-
ternator) and battery checked.
ProCarManuals.com

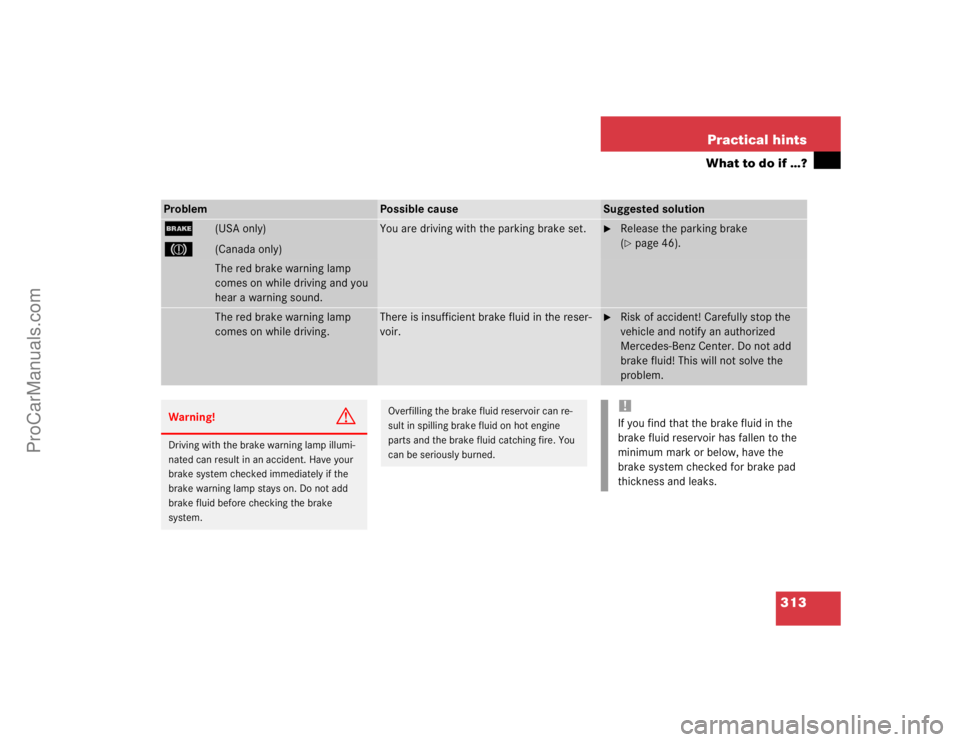

Page 313 of 464
313 Practical hints
What to do if …?
Problem
Possible cause
Suggested solution
;
(USA only)
3
(Canada only)
You are driving with the parking brake set.
Release the parking brake
(page 46).
The red brake warning lamp
comes on while driving and you
hear a warning sound.The red brake warning lamp
comes on while driving.
There is insufficient brake fluid in the reser-
voir.
Risk of accident! Carefully stop the
vehicle and notify an authorized
Mercedes-Benz Center. Do not add
brake fluid! This will not solve the
problem.
Warning!
G
Driving with the brake warning lamp illumi-
nated can result in an accident. Have your
brake system checked immediately if the
brake warning lamp stays on. Do not add
brake fluid before checking the brake
system.
Overfilling the brake fluid reservoir can re-
sult in spilling brake fluid on hot engine
parts and the brake fluid catching fire. You
can be seriously burned.
!If you find that the brake fluid in the
brake fluid reservoir has fallen to the
minimum mark or below, have the
brake system checked for brake pad
thickness and leaks.
ProCarManuals.com

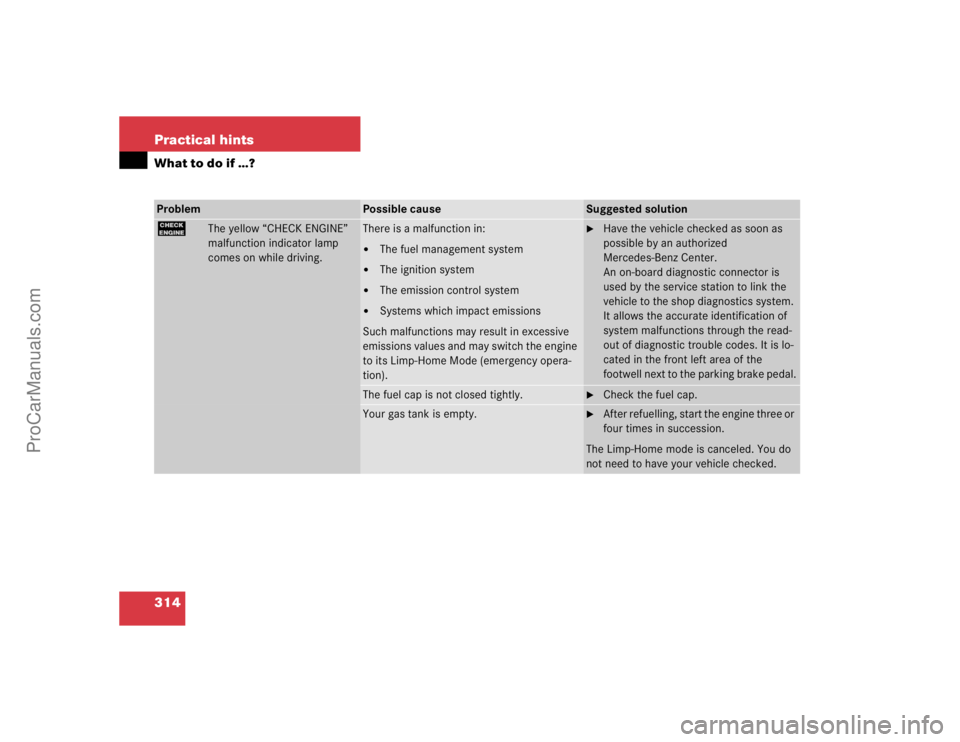

Page 314 of 464
314 Practical hintsWhat to do if …?Problem
Possible cause
Suggested solution
?
The yellow “CHECK ENGINE”
malfunction indicator lamp
comes on while driving.
There is a malfunction in:
The fuel management system
The ignition system
The emission control system
Systems which impact emissions
Such malfunctions may result in excessive
emissions values and may switch the engine
to its Limp-Home Mode (emergency opera-
tion).
Have the vehicle checked as soon as
possible by an authorized
Mercedes-Benz Center.
An on-board diagnostic connector is
used by the service station to link the
vehicle to the shop diagnostics system.
It allows the accurate identification of
system malfunctions through the read-
out of diagnostic trouble codes. It is lo-
cated in the front left area of the
footwell next to the parking brake pedal.
The fuel cap is not closed tightly.
Check the fuel cap.
Your gas tank is empty.
After refuelling, start the engine three or
four times in succession.
The Limp-Home mode is canceled. You do
not need to have your vehicle checked.
ProCarManuals.com

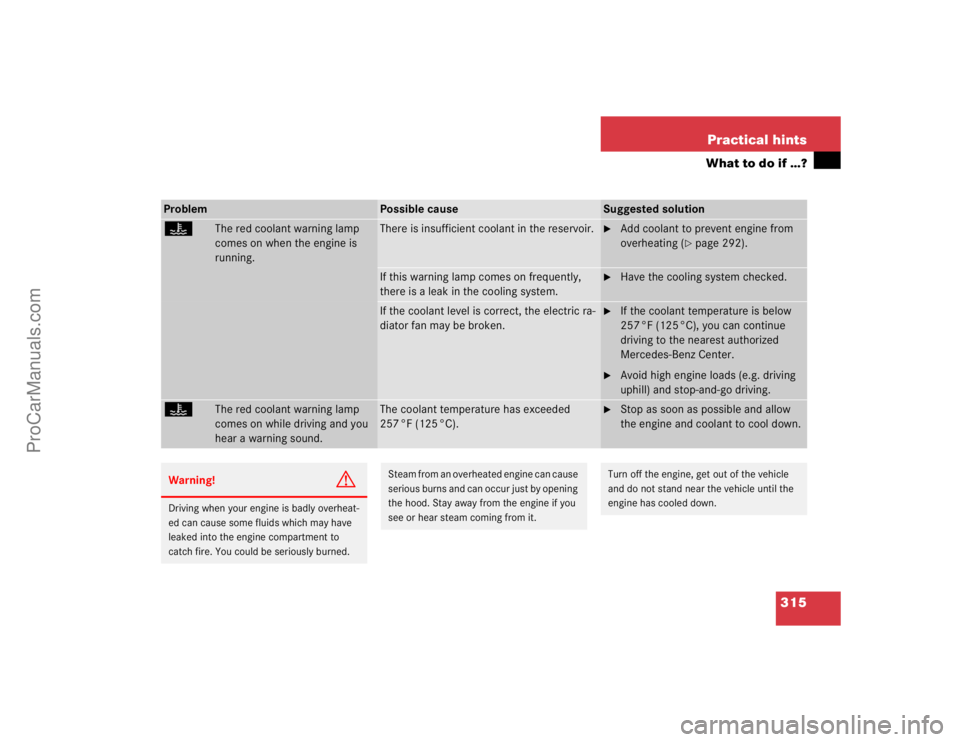

Page 315 of 464
315 Practical hints
What to do if …?
Problem
Possible cause
Suggested solution
•
The red coolant warning lamp
comes on when the engine is
running.
There is insufficient coolant in the reservoir.
Add coolant to prevent engine from
overheating (
page 292).
If this warning lamp comes on frequently,
there is a leak in the cooling system.
Have the cooling system checked.
If the coolant level is correct, the electric ra-
diator fan may be broken.
If the coolant temperature is below
257 °F (125 °C), you can continue
driving to the nearest authorized
Mercedes-Benz Center.
Avoid high engine loads (e.g. driving
uphill) and stop-and-go driving.
•
The red coolant warning lamp
comes on while driving and you
hear a warning sound.
The coolant temperature has exceeded
257 °F (125 °C).
Stop as soon as possible and allow
the engine and coolant to cool down.
Warning!
G
Driving when your engine is badly overheat-
ed can cause some fluids which may have
leaked into the engine compartment to
catch fire. You could be seriously burned.
Steam from an overheated engine can cause
serious burns and can occur just by opening
the hood. Stay away from the engine if you
see or hear steam coming from it.
Turn off the engine, get out of the vehicle
and do not stand near the vehicle until the
engine has cooled down.
ProCarManuals.com

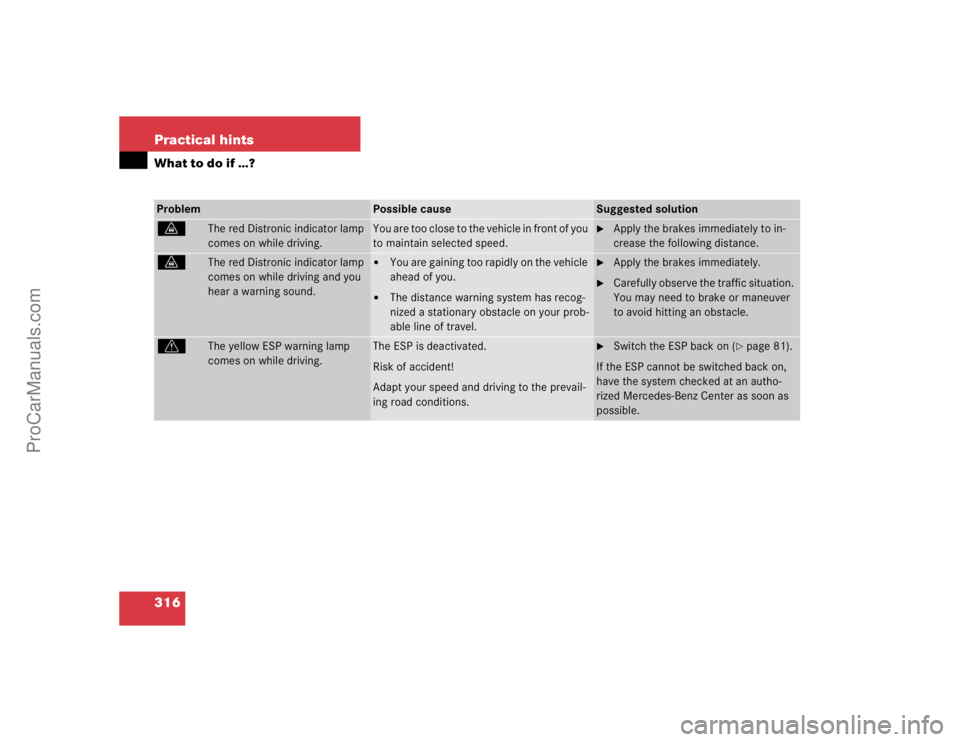

Page 316 of 464
316 Practical hintsWhat to do if …?Problem
Possible cause
Suggested solution
l
The red Distronic indicator lamp
comes on while driving.
You are too close to the vehicle in front of you
to maintain selected speed.
Apply the brakes immediately to in-
crease the following distance.
l
The red Distronic indicator lamp
comes on while driving and you
hear a warning sound.
You are gaining too rapidly on the vehicle
ahead of you.
The distance warning system has recog-
nized a stationary obstacle on your prob-
able line of travel.
Apply the brakes immediately.
Carefully observe the traffic situation.
You may need to brake or maneuver
to avoid hitting an obstacle.
v
The yellow ESP warning lamp
comes on while driving.
The ESP is deactivated.
Risk of accident!
Adapt your speed and driving to the prevail-
ing road conditions.
Switch the ESP back on (
page 81).
If the ESP cannot be switched back on,
have the system checked at an autho-
rized Mercedes-Benz Center as soon as
possible.
ProCarManuals.com

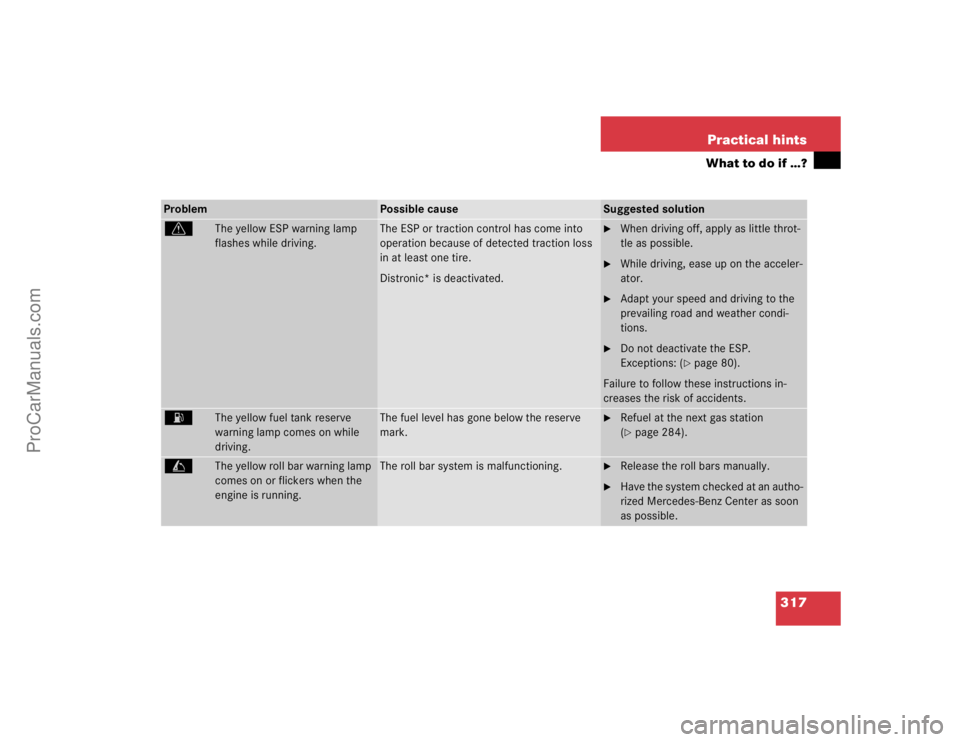

Page 317 of 464
317 Practical hints
What to do if …?
Problem
Possible cause
Suggested solution
v
The yellow ESP warning lamp
flashes while driving.
The ESP or traction control has come into
operation because of detected traction loss
in at least one tire.
Distronic* is deactivated.
When driving off, apply as little throt-
tle as possible.
While driving, ease up on the acceler-
ator.
Adapt your speed and driving to the
prevailing road and weather condi-
tions.
Do not deactivate the ESP.
Exceptions: (
page 80).
Failure to follow these instructions in-
creases the risk of accidents.
A
The yellow fuel tank reserve
warning lamp comes on while
driving.
The fuel level has gone below the reserve
mark.
Refuel at the next gas station
(page 284).
C
The yellow roll bar warning lamp
comes on or flickers when the
engine is running.
The roll bar system is malfunctioning.
Release the roll bars manually.
Have the system checked at an autho-
rized Mercedes-Benz Center as soon
as possible.
ProCarManuals.com

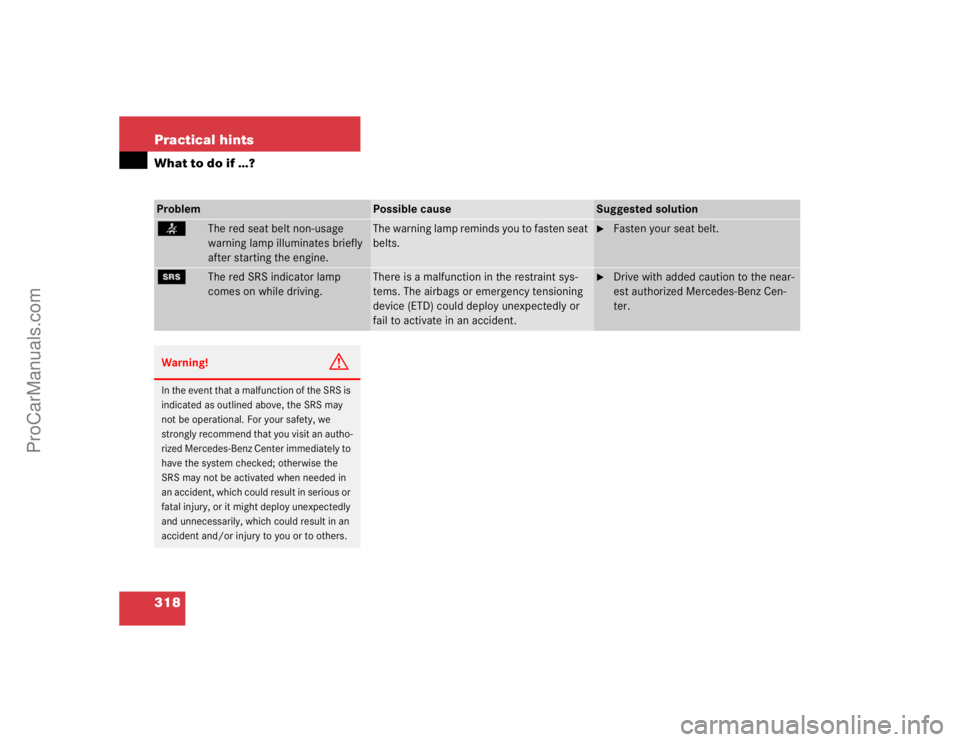

Page 318 of 464
318 Practical hintsWhat to do if …?Problem
Possible cause
Suggested solution
<
The red seat belt non-usage
warning lamp illuminates briefly
after starting the engine.
The warning lamp reminds you to fasten seat
belts.
Fasten your seat belt.
1
The red SRS indicator lamp
comes on while driving.
There is a malfunction in the restraint sys-
tems. The airbags or emergency tensioning
device (ETD) could deploy unexpectedly or
fail to activate in an accident.
Drive with added caution to the near-
est authorized Mercedes-Benz Cen-
ter.
Warning!
G
In the event that a malfunction of the SRS is
indicated as outlined above, the SRS may
not be operational. For your safety, we
strongly recommend that you visit an autho-
rized Mercedes-Benz Center immediately to
have the system checked; otherwise the
SRS may not be activated when needed in
an accident, which could result in serious or
fatal injury, or it might deploy unexpectedly
and unnecessarily, which could result in an
accident and/or injury to you or to others.
ProCarManuals.com

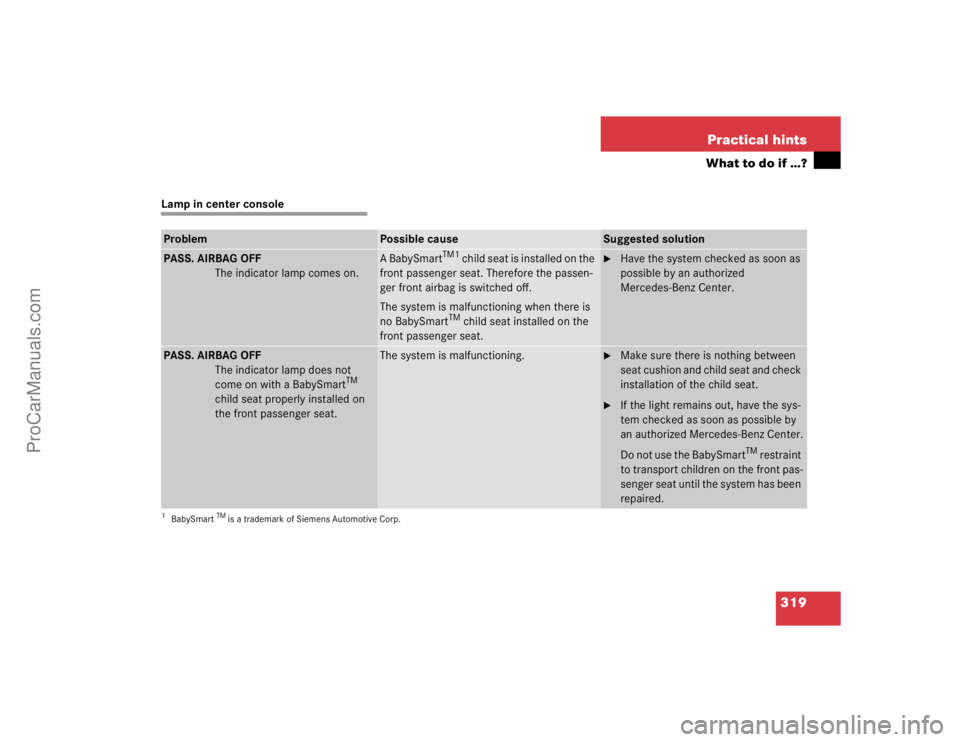

Page 319 of 464
319 Practical hints
What to do if …?
Lamp in center consoleProblem
Possible cause
Suggested solution
PASS. AIRBAG OFF
The indicator lamp comes on.
A BabySmart
TM1
child seat is installed on the
front passenger seat. Therefore the passen-
ger front airbag is switched off.
1BabySmart
TM is a trademark of Siemens Automotive Corp.
Have the system checked as soon as
possible by an authorized
Mercedes-Benz Center.
The system is malfunctioning when there is
no BabySmart
TM child seat installed on the
front passenger seat.
PASS. AIRBAG OFF
The indicator lamp does not
come on with a BabySmart
TM
child seat properly installed on
the front passenger seat.
The system is malfunctioning.
Make sure there is nothing between
seat cushion and child seat and check
installation of the child seat.
If the light remains out, have the sys-
tem checked as soon as possible by
an authorized Mercedes-Benz Center.
Do not use the BabySmart
TM restraint
to transport children on the front pas-
senger seat until the system has been
repaired.
ProCarManuals.com

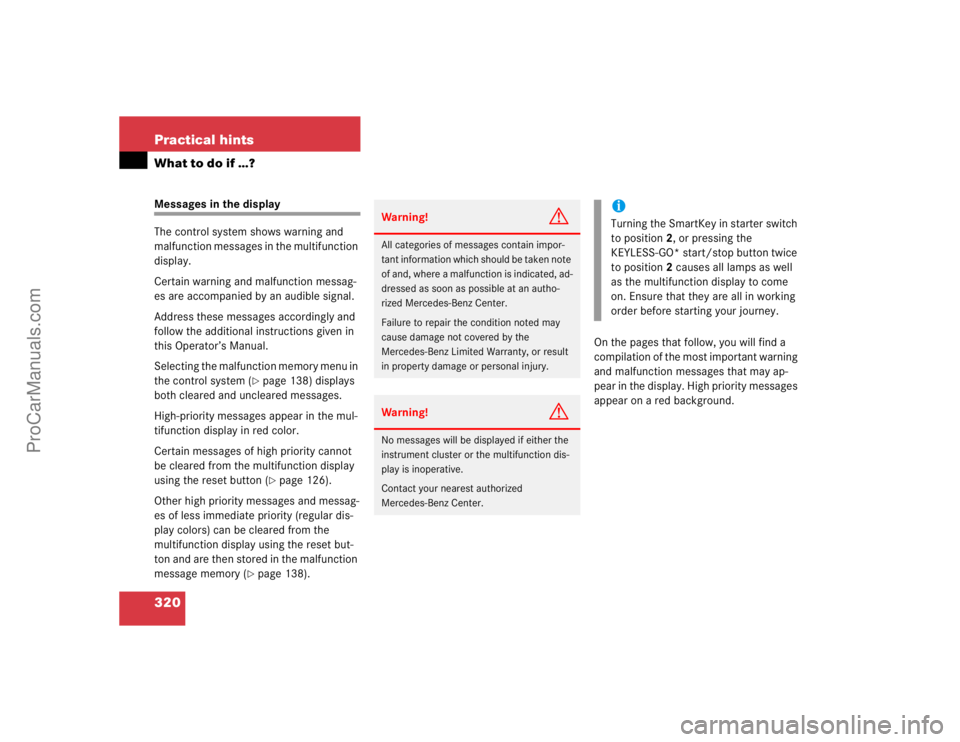

Page 320 of 464
320 Practical hintsWhat to do if …?Messages in the display
The control system shows warning and
malfunction messages in the multifunction
display.
Certain warning and malfunction messag-
es are accompanied by an audible signal.
Address these messages accordingly and
follow the additional instructions given in
this Operator’s Manual.
Selecting the malfunction memory menu in
the control system (
page 138) displays
both cleared and uncleared messages.
High-priority messages appear in the mul-
tifunction display in red color.
Certain messages of high priority cannot
be cleared from the multifunction display
using the reset button (page 126).
Other high priority messages and messag-
es of less immediate priority (regular dis-
play colors) can be cleared from the
multifunction display using the reset but-
ton and are then stored in the malfunction
message memory (
page 138).On the pages that follow, you will find a
compilation of the most important warning
and malfunction messages that may ap-
pe ar i n the di spl ay . High pr iori ty m es sa ge s
appear on a red background.
Warning!
G
All categories of messages contain impor-
tant information which should be taken note
of and, where a malfunction is indicated, ad-
dressed as soon as possible at an autho-
rized Mercedes-Benz Center.
Failure to repair the condition noted may
cause damage not covered by the
Mercedes-Benz Limited Warranty, or result
in property damage or personal injury.Warning!
G
No messages will be displayed if either the
instrument cluster or the multifunction dis-
play is inoperative.
Contact your nearest authorized
Mercedes-Benz Center.
iTurning the SmartKey in starter switch
to position2, or pressing the
KEYLESS-GO* start/stop button twice
to position2 causes all lamps as well
as the multifunction display to come
on. Ensure that they are all in working
order before starting your journey.
ProCarManuals.com
