MERCEDES-BENZ CLK-CLASS 2004 Owners Manual

351 Practical hints
Unlocking/locking in an emergency
3Battery
4Contact spring
Using a lint-free cloth, insert new bat-
teries under the contact spring with the
plus (+) side facing up.

Return battery compartment into hous-
ing until it locks into place.SmartKey with KEYLESS-GO*
1Battery
2Tilt battery up
3Mechanical key
Replacement batteries: Lithium, type
CR 2025 or equivalent.

Remove mechanical key (
page 348).

Insert the mechanical key in side open-
ing and push grey slide.
The battery compartment is unlatched.

Pull the battery compartment out of the
SmartKey housing in direction of ar-
row.

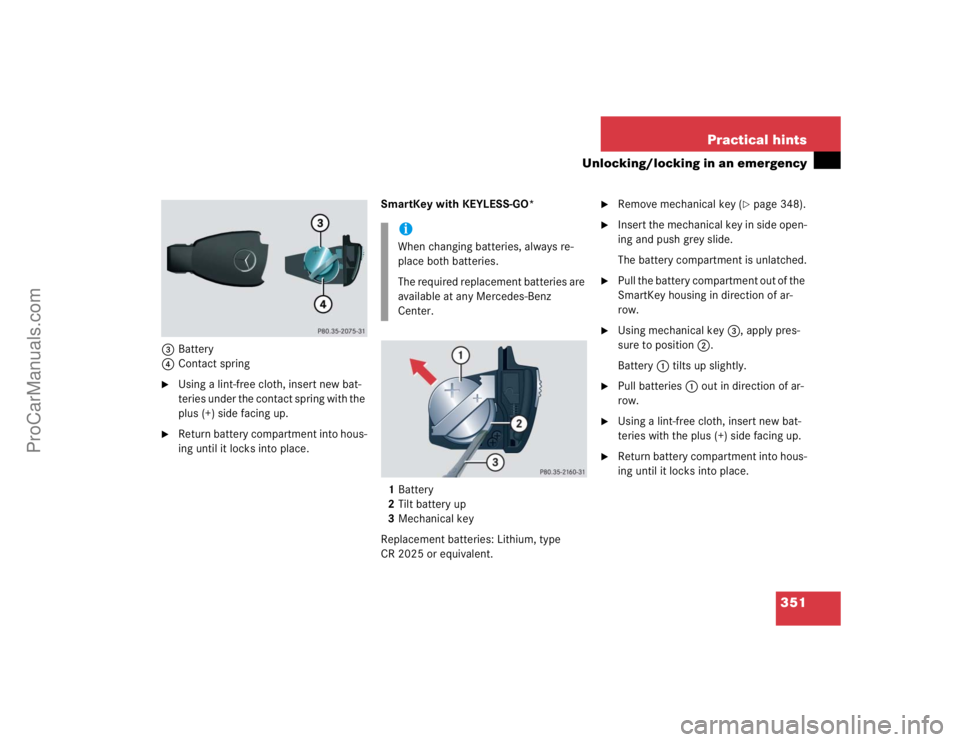

Using mechanical key3, apply pres-
sure to position2.
Battery1 tilts up slightly.

Pull batteries1 out in direction of ar-
row.

Using a lint-free cloth, insert new bat-
teries with the plus (+) side facing up.

Return battery compartment into hous-
ing until it locks into place.
iWhen changing batteries, always re-
place both batteries.
The required replacement batteries are
available at any Mercedes-Benz
Center.
ProCarManuals.com

352 Practical hintsUnlocking/locking in an emergencyFuel filler flap
In case the central locking system does
not release the fuel filler flap, you can open
it manually.
Open trunk lid.

Remove right side trim panel in the
trunk.

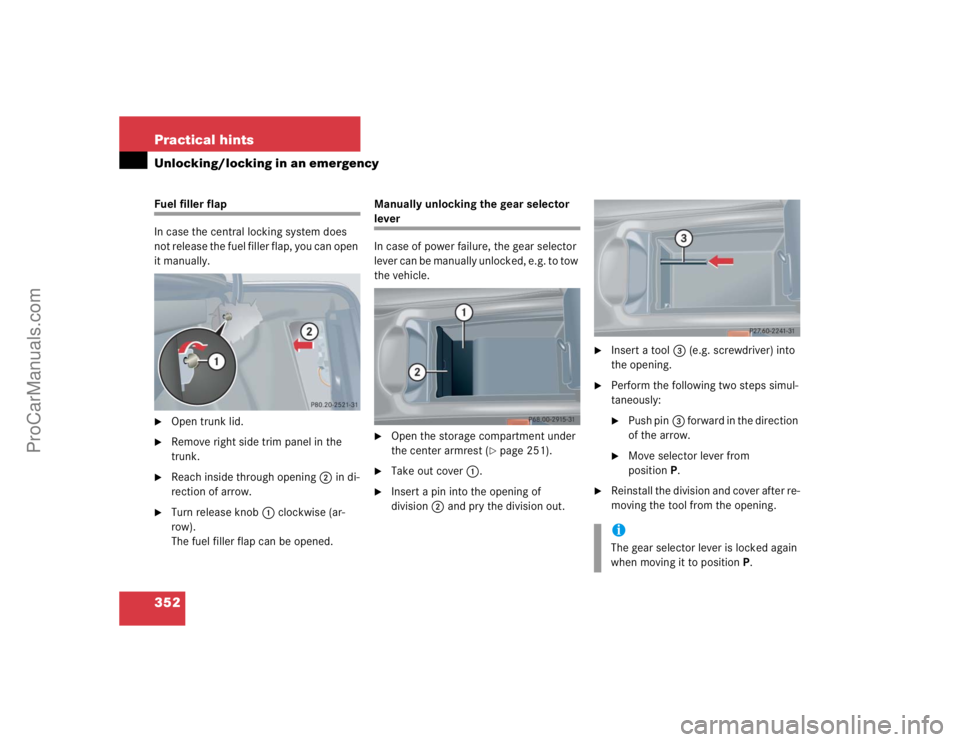

Reach inside through opening2 in di-
rection of arrow.

Turn release knob 1 clockwise (ar-
row).
The fuel filler flap can be opened.Manually unlocking the gear selector
lever
In case of power failure, the gear selector
lever can be manually unlocked, e.g. to tow
the vehicle.
Open the storage compartment under
the center armrest (
page 251).

Take out cover 1.

Insert a pin into the opening of
division2 and pry the division out.

Insert a tool3 (e.g. screwdriver) into
the opening.

Perform the following two steps simul-
taneously:
Push pin3 forward in the direction
of the arrow.

Move selector lever from
positionP.

Reinstall the division and cover after re-
moving the tool from the opening.iThe gear selector lever is locked again
when moving it to positionP.
ProCarManuals.com

353 Practical hints
Opening/closing in an emergency
Opening/closing in an emergency
Operating roll bars manually
Releasing roll bars manually
If the roll bar system is malfunctioning, you
can release the roll bars manually.

Close the soft top (
page 219)

Open the trunk (
page 98)

Fold back the luggage cover
(page 216).

Open ski sack roller blind
(page 217).

Take hex wrench out of the
Mercedes-Benz vehicle literature

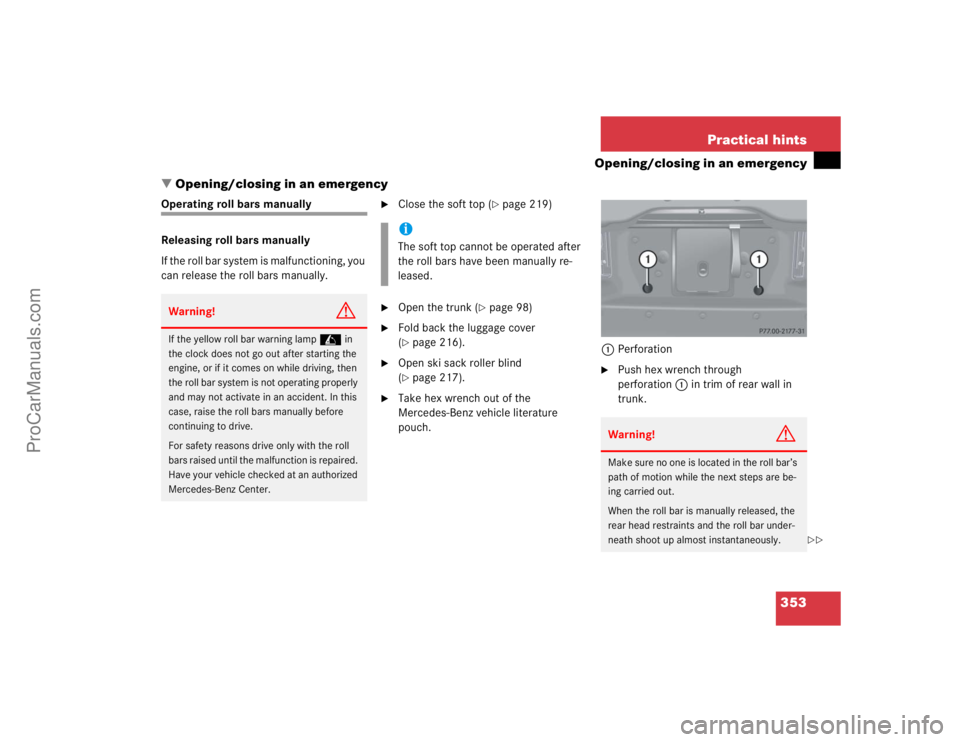

pouch.1Perforation

Push hex wrench through
perforation1 in trim of rear wall in
trunk.
Warning!
G
If the yellow roll bar warning lamp in
the clock does not go out after starting the
engine, or if it comes on while driving, then
the roll bar system is not operating properly
and may not activate in an accident. In this
case, raise the roll bars manually before
continuing to drive.
For safety reasons drive only with the roll
bars raised until the malfunction is repaired.
Have your vehicle checked at an authorized
Mercedes-Benz Center.
iThe soft top cannot be operated after
the roll bars have been manually re-
leased.
Warning!
G
Make sure no one is located in the roll bar’s
path of motion while the next steps are be-
ing carried out.
When the roll bar is manually released, the
rear head restraints and the roll bar under-
neath shoot up almost instantaneously.

ProCarManuals.com

354 Practical hintsOpening/closing in an emergency2Hex wrench
Insert long side of hex wrench2 into
opening.

Using hex wrench 2, press release
catch down in direction of arrow.
The roll bar extends with a loud sound.

Repeat this step for the second roll bar.
Have the systems checked at your autho-
rized Mercedes-Benz Center as soon as
possible.Lowering roll bars manually
You can lower the roll bars manually after
they have been released.

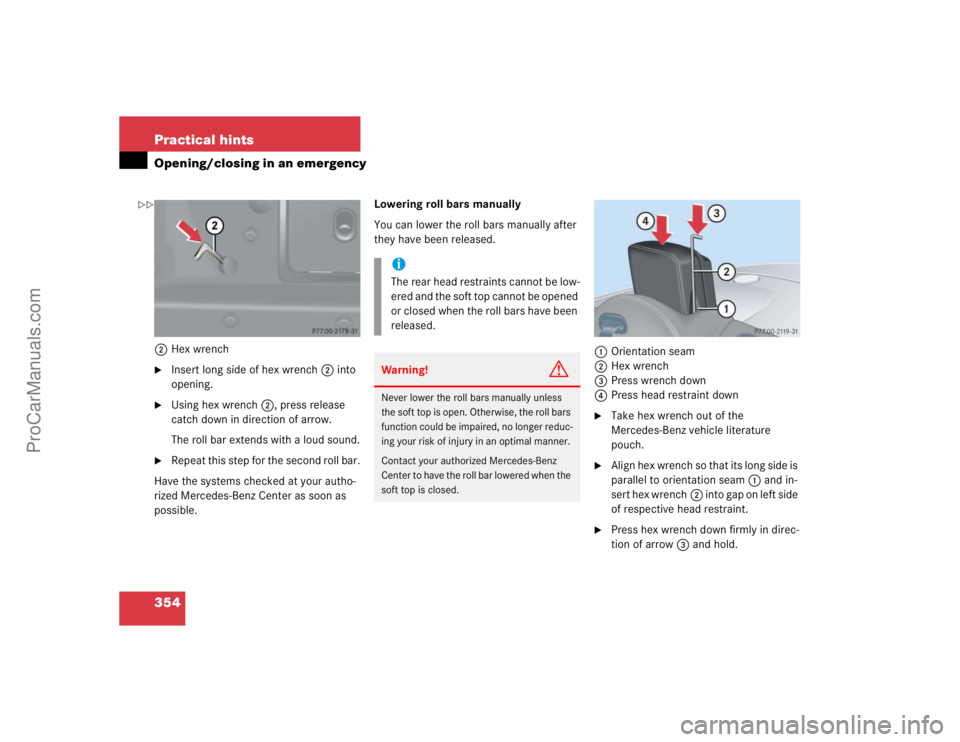

1Orientation seam
2Hex wrench
3Press wrench down
4Press head restraint down

Take hex wrench out of the
Mercedes-Benz vehicle literature
pouch.

Align hex wrench so that its long side is
parallel to orientation seam1 and in-
sert hex wrench2 into gap on left side
of respective head restraint.

Press hex wrench down firmly in direc-
tion of arrow3 and hold.
iThe rear head restraints cannot be low-
ered and the soft top cannot be opened
or closed when the roll bars have been
released.Warning!
G
Never lower the roll bars manually unless
the soft top is open. Otherwise, the roll bars
function could be impaired, no longer reduc-
ing your risk of injury in an optimal manner.
Contact your authorized Mercedes-Benz
Center to have the roll bar lowered when the
soft top is closed.

ProCarManuals.com

355 Practical hints
Opening/closing in an emergency

Press head restraint down in direction
of arrow4.

Pull hex wrench 2 out and take weight
off head restraint.

Repeat this procedure on roll bar for
second head restraint.
Soft top emergency operation
If the soft top cannot be automatically
closed, check the following:

Is the luggage cover engaged in place
(page 216)?


Is the ski sack roller blind closed
(page 217)?


Have the roll bars been released?


Is the trunk lid closed?


Is there sufficient on-board voltage?
Start the engine if necessary.
These messages will also appear in the
multifunction display (
page 342).
If automatic operation still does not func-
tion properly, you can close the soft top
manually.
This procedure should be performed with
great care by two persons.
!Manually closing the soft top is a com-
plicated and technically demanding
procedure. Close the soft top manually
in emergency cases only. Otherwise,
visit an authorized Mercedes-Benz
Center. Please read the instructions
fully before beginning operation and
only undertake it with another person
and if you feel fully capable of perform-
ing the tasks involved. Warning!
G


It is important that a second person
helps you. Otherwise, you could become
trapped or injured.


Remove any wristwatches or jewelry
such as rings or bracelets. Otherwise,
they could get caught in the vehicle
mechanism, causing personal injury to
yourself or damage to the vehicle.


Always use the grips provided and indi-
cated. Otherwise you could injure your-
self.
ProCarManuals.com

356 Practical hintsOpening/closing in an emergencyYour vehicle may be equipped with an ad-
ditional locking mechanism for soft top
emergency operation.
Before continuing, check whether your ve-
hicle is equipped with the additional lock-
ing mechanism:
Open the trunk.

Open the left side trim panel in the
trunk.

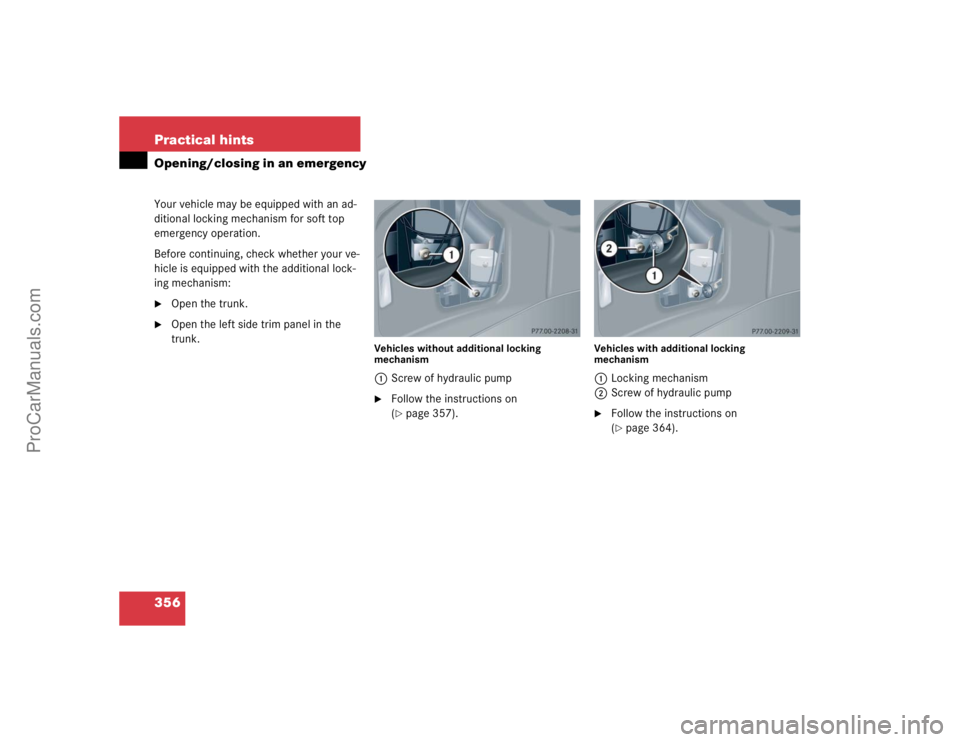

Vehicles without additional locking
mechanism1Screw of hydraulic pump
Follow the instructions on
(page 357).
Vehicles with additional locking
mechanism1Locking mechanism
2Screw of hydraulic pump
Follow the instructions on
(page 364).
ProCarManuals.com

357 Practical hints
Opening/closing in an emergency
Vehicles without additional locking
mechanism
Engage parking brake

Lower the side windows.

Lower rear head restraints
(page 111).

For safety reasons, remove SmartKey
from starter switch.

Open the trunk.

Lift the trunk floor cover.

Take the two straps for soft top emer-
gency operation out of vehicle tool kit
(page 343)

Take hex wrench out of the
Mercedes-Benz vehicle literature
pouch.

Open the left side trim panel in the
trunk.1Hex wrench
2Screw of hydraulic pump

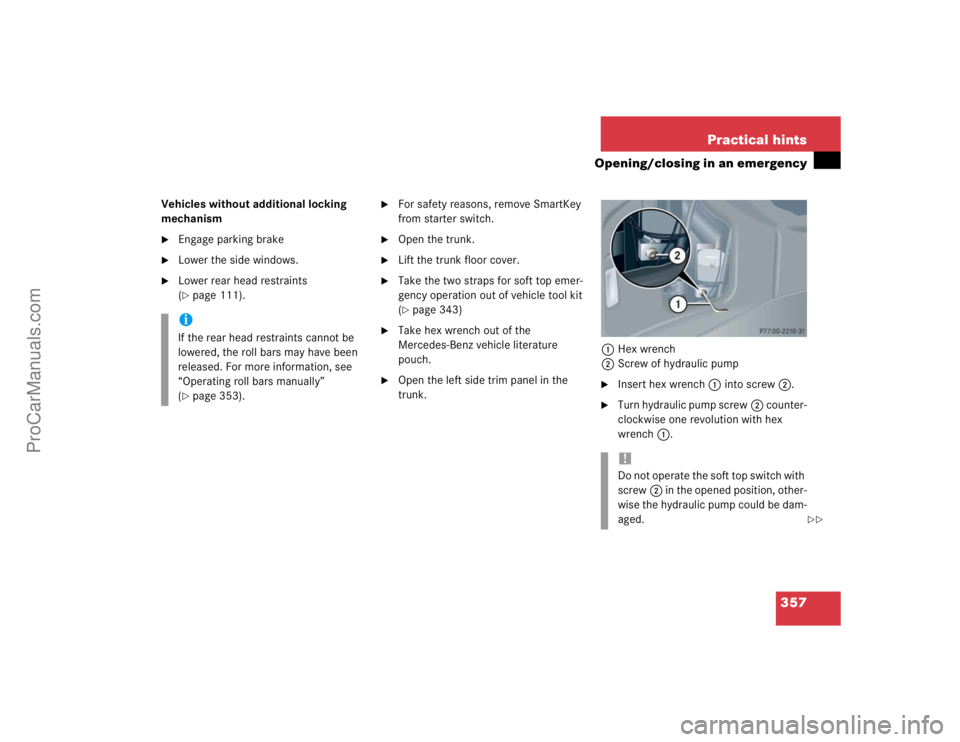

Insert hex wrench 1 into screw2.

Turn hydraulic pump screw2 counter-
clockwise one revolution with hex
wrench 1.
iIf the rear head restraints cannot be
lowered, the roll bars may have been
released. For more information, see
“Operating roll bars manually”
(page 353).
!Do not operate the soft top switch with
screw2 in the opened position, other-
wise the hydraulic pump could be dam-
aged.

ProCarManuals.com

358 Practical hintsOpening/closing in an emergency3Lever
4Soft top storage compartment hinge
The soft top storage compartment hinges
are located on the left and right of the
space between the soft top compartment
cover and the trunk seal.

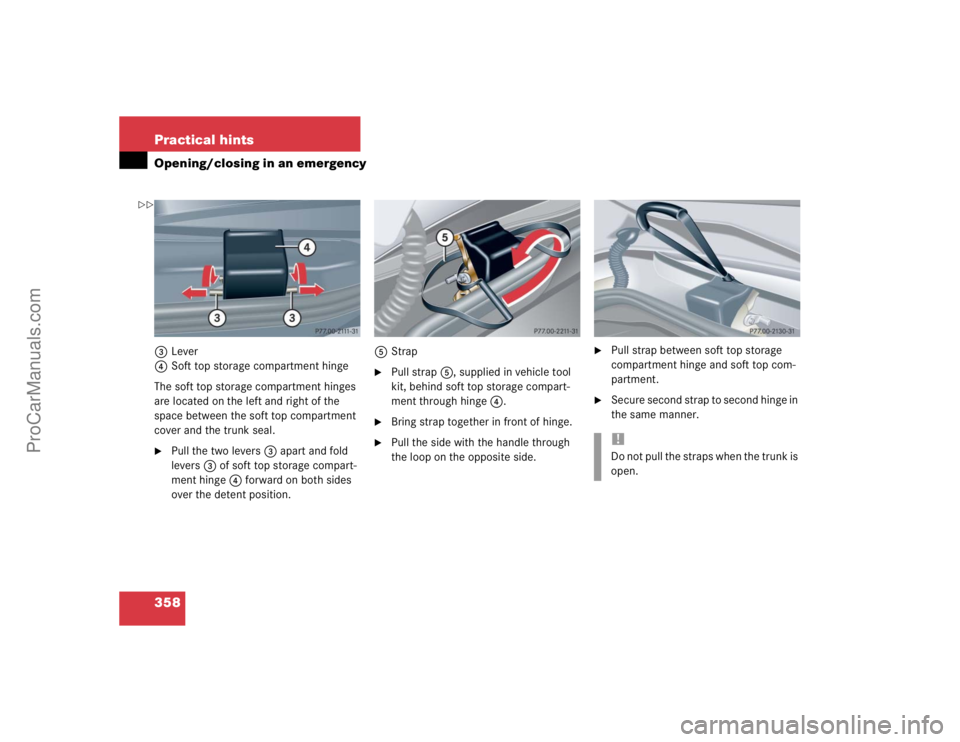

Pull the two levers3 apart and fold
levers3 of soft top storage compart-
ment hinge4 forward on both sides
over the detent position.5Strap

Pull strap5, supplied in vehicle tool
kit, behind soft top storage compart-
ment through hinge4.

Bring strap together in front of hinge.

Pull the side with the handle through
the loop on the opposite side.

Pull strap between soft top storage
compartment hinge and soft top com-
partment.

Secure second strap to second hinge in
the same manner.!Do not pull the straps when the trunk is
open.

ProCarManuals.com

359 Practical hints
Opening/closing in an emergency

Place both straps on soft top compart-
ment cover.

Take hex wrench out of trunk.

Close trunk lid.
You will only have access to the trunk
again when the emergency operation
has been completed.

You and your assistant should each
take one of the straps by the handle.

With a strong, simultaneous tug on the
loops, pull soft top compartment cover
upward and out to the rear.
iDo not place the SmartKey in the open
trunk. You may lock yourself out.
Vehicles with KEYLESS-GO*: To pre-
vent a possible inadvertent lockout, the
trunk lid will open automatically if a
SmartKey with KEYLESS-GO* is recog-
nized in the area of the rear shelf or in-
side the trunk.!The trunk lid must remain closed during
the next steps in the procedure. Other-
wise the trunk lid and the soft top com-
partment cover may come into contact
with one another and be damaged.Warning!
G
At this point, the remaining procedure
needs to be done by two people. Otherwise
you could be injured.

ProCarManuals.com

360 Practical hintsOpening/closing in an emergency6Soft top compartment cover

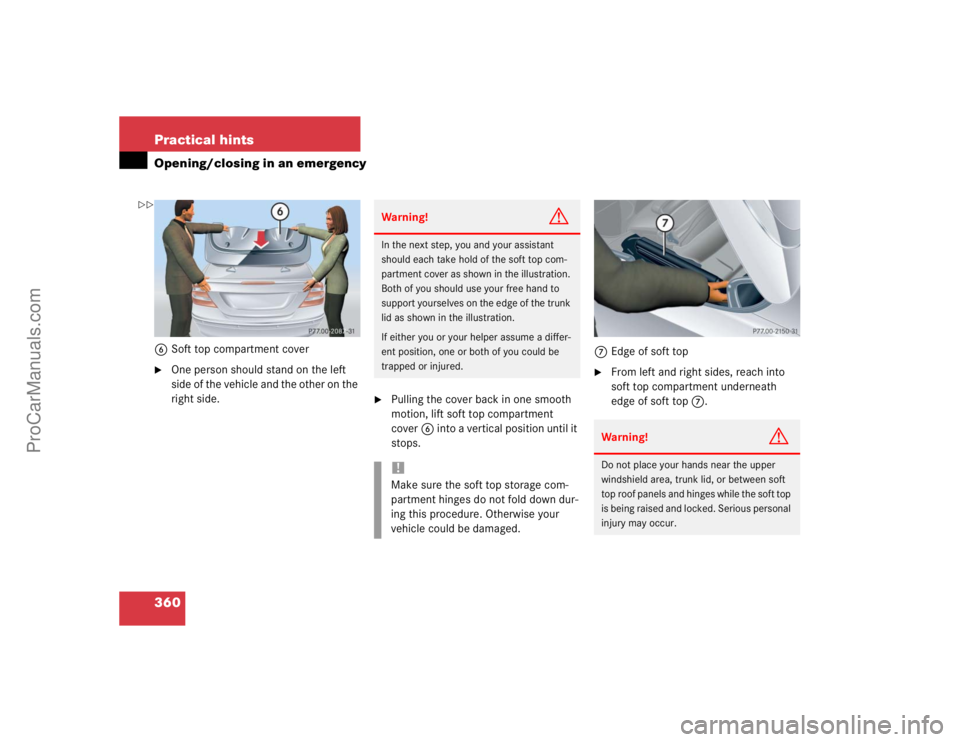

One person should stand on the left
side of the vehicle and the other on the
right side.

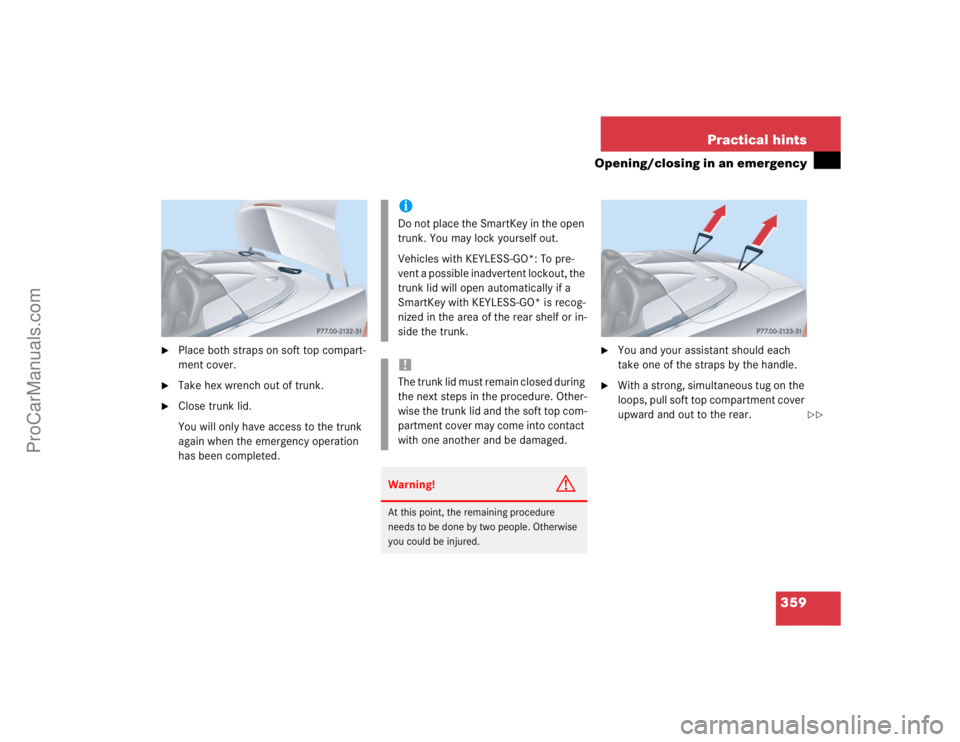

Pulling the cover back in one smooth
motion, lift soft top compartment
cover6 into a vertical position until it
stops.7Edge of soft top

From left and right sides, reach into
soft top compartment underneath
edge of soft top7.
Warning!
G
In the next step, you and your assistant
should each take hold of the soft top com-
partment cover as shown in the illustration.
Both of you should use your free hand to
support yourselves on the edge of the trunk
lid as shown in the illustration.
If either you or your helper assume a differ-
ent position, one or both of you could be
trapped or injured. !Make sure the soft top storage com-
partment hinges do not fold down dur-
ing this procedure. Otherwise your
vehicle could be damaged.
Warning!
G
Do not place your hands near the upper
windshield area, trunk lid, or between soft
top roof panels and hinges while the soft top
is being raised and locked. Serious personal
injury may occur.
