MERCEDES-BENZ CLK-CLASS 2004 Owners Manual

341 Practical hints

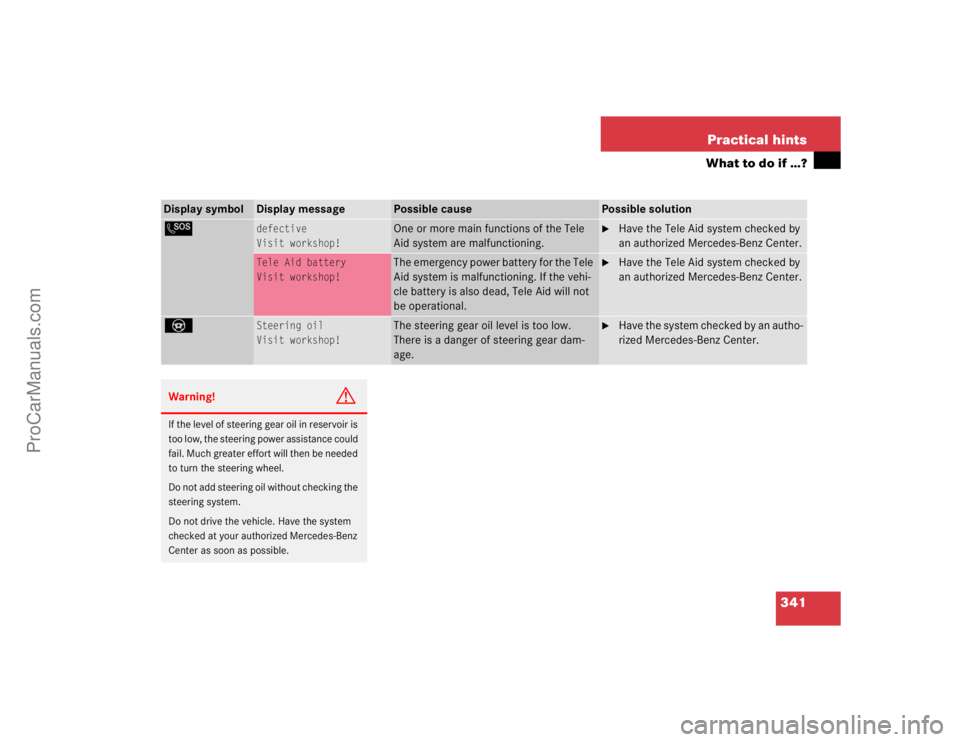

What to do if …?
Display symbol
Display message
Possible cause
Possible solution
L
defective
Visit workshop!
One or more main functions of the Tele
Aid system are malfunctioning.

Have the Tele Aid system checked by
an authorized Mercedes-Benz Center.
Tele Aid battery
Visit workshop!
The emergency power battery for the Tele
Aid system is malfunctioning. If the vehi-
cle battery is also dead, Tele Aid will not
be operational.

Have the Tele Aid system checked by
an authorized Mercedes-Benz Center.
_
Steering oil
Visit workshop!
The steering gear oil level is too low.
There is a danger of steering gear dam-
age.

Have the system checked by an autho-
rized Mercedes-Benz Center.
Warning!
G
If the level of steering gear oil in reservoir is
too low, the steering power assistance could
fail. Much greater effort will then be needed
to turn the steering wheel.
Do not add steering oil without checking the
steering system.
Do not drive the vehicle. Have the system
checked at your authorized Mercedes-Benz
Center as soon as possible.
ProCarManuals.com

342 Practical hintsWhat to do if …?Display symbol
Display message
Possible cause
Possible solution
ì
Function
Not available
This display appears if button ì or
í on the multifunction steering wheel
is pressed and the vehicle is not equipped
with a telephone.
Ê
Trunk open!
This message will appear whenever the
trunk lid is open.

Close the trunk lid.
Close trunk lid
This message will appear when the soft
top is operated with the trunk lid open.

Close the trunk lid.
Please close
trunk partition
This message will appear when the soft
top is operated with the luggage cover or
ski sack open.

Fold down and latch luggage cover
(page 216).

Close the ski sack roller blind
(page 217).
W
Washer fluid
Check level
The fluid level has dropped to about
1/3 of
total reservoir capacity.

Add washer fluid (
page 295).
ProCarManuals.com

343 Practical hints
Where will I find...?
Where will I find...?
First aid kit
The first aid kit is stored in right hand side
of the trunk underneath the trunk floor in
an separate storage space.
Lift cover1.

Remove first aid kit2.
Vehicle tool kit
The vehicle tool kit is stored in the com-
partment underneath the trunk floor.
The following is included:

Towing eye bolt


Vehicle jack


Wheel wrench


Alignment bolt


Wheel bolts


Fuse extractor


Straps for soft top emergency opera-
tion
iCheck expiration dates and contents
for completeness at least once a year
and replace missing/expired items.
iHex wrench:
You will find the hex wrench for
manually operating the roll bars
(page 353) or the soft top
(page 355) in the Mercedes-Benz
vehicle literature pouch.
ProCarManuals.com

344 Practical hintsWhere will I find...?Removing the vehicle tool kit
1Retaining screw
2Storage well casing
Lift trunk floor cover and engage trunk
floor handle in upper edge of trunk.

Loosen retaining screw 1 in the mid-
dle of storage well casing2.

Remove storage well casing2.3Arrow
4Minispare wheel
5Vehicle tool kit storage well casing
6Vehicle tool kit
Wheel wrench
Vehicle jack
Wheel bolts for Minispare wheel

Remove vehicle tool kit storage well
casing5.
!To prevent damage, always disengage
trunk floor handle from upper edge of
trunk and lower trunk floor before clos-
ing the trunk lid.
iArrow3 on vehicle tool kit storage
well casing 5 must point in the direc-
tion of travel. Otherwise you cannot
place the storage well casing on top
and secure the Minispare wheel with
retaining screw 1 (
page 344).
ProCarManuals.com

345 Practical hints
Where will I find...?

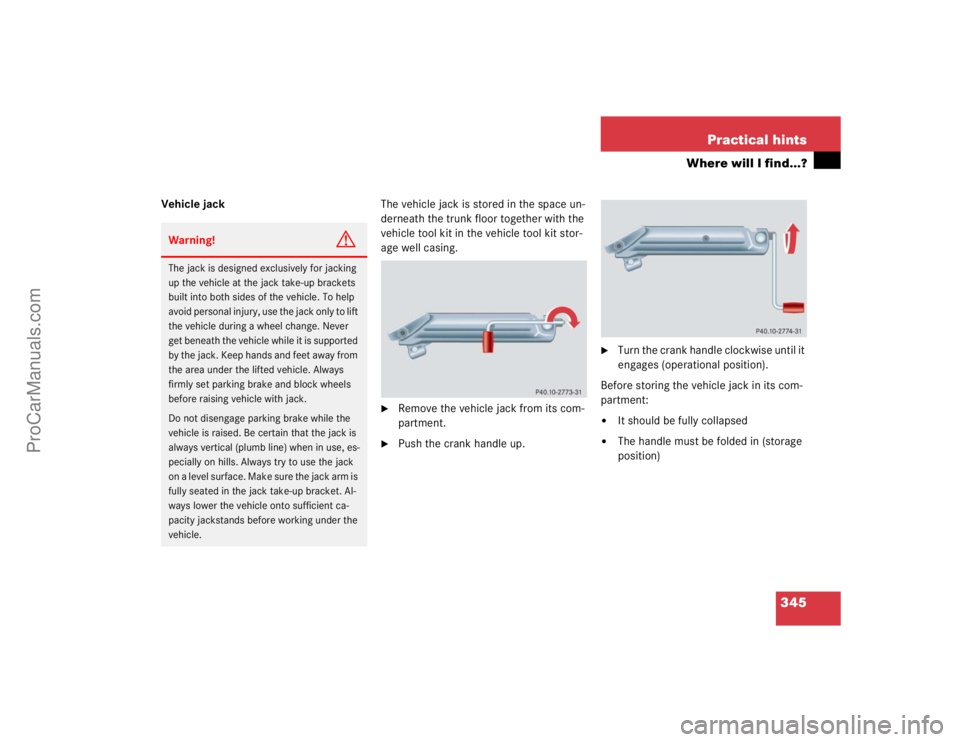

Vehicle jackThe vehicle jack is stored in the space un-
derneath the trunk floor together with the
vehicle tool kit in the vehicle tool kit stor-
age well casing.

Remove the vehicle jack from its com-
partment.

Push the crank handle up.

Turn the crank handle clockwise until it
engages (operational position).
Before storing the vehicle jack in its com-
partment:


It should be fully collapsed


The handle must be folded in (storage
position)
Warning!
G
The jack is designed exclusively for jacking
up the vehicle at the jack take-up brackets
built into both sides of the vehicle. To help
avoid personal injury, use the jack only to lift
the vehicle during a wheel change. Never
get beneath the vehicle while it is supported
by the jack. Keep hands and feet away from
the area under the lifted vehicle. Always
firmly set parking brake and block wheels
before raising vehicle with jack.
Do not disengage parking brake while the
vehicle is raised. Be certain that the jack is
always vertical (plumb line) when in use, es-
pecially on hills. Always try to use the jack
on a level surface. Make sure the jack arm is
fully seated in the jack take-up bracket. Al-
ways lower the vehicle onto sufficient ca-
pacity jackstands before working under the
vehicle.
ProCarManuals.com

346 Practical hintsWhere will I find...?Minispare wheel
The Minispare wheel is located in the com-
partment underneath the trunk floor.
1Vehicle tool kit
Wheel wrench
Jack
Wheel bolts for Minispare wheel
2Arrow
3Minispare wheel
4Vehicle tool kit storage well casingRemoving the Minispare wheel

Lift trunk floor cover and engage trunk
floor handle in upper edge of trunk.

Loosen the retaining screw
(page 344) in the middle of storage
well casing.

Remove the storage well casing
(page 344).

Remove vehicle tool kit storage well
casing4.

Remove Minispare wheel3.Storing the Minispare wheel

Place Minispare wheel3 in wheel
well.

Place vehicle tool kit storage well
casing4 over the Minispare wheel.
Make sure the arrow 2 on storage
well casing4 points in the direction of
travel.

Place storage well casing
(page 344) over the vehicle tool kit
storage well casing 4 and turn the re-
taining screw (
page 344) clockwise
as far as it will go to secure the
Minispare wheel.
iThe arrow2 on vehicle tool kit stor-
age well casing4 must point in the di-
rection of travel, otherwise you cannot
place the storage well casing
(page 344) on top and secure the
Minispare wheel with the retaining
screw (
page 344).
ProCarManuals.com

347 Practical hints
Where will I find...?
In the case of a flat tire, you may tempo-
rarily use the Minispare wheel when ob-
serving the following restrictions:

Do not exceed a vehicle speed of
50 mph (80 km/h).


Drive to the nearest tire repair facility
to have the flat tire repaired or re-
placed as appropriate.


Do not operate vehicle with more than
one Minispare wheel mounted.
More information can be found in the
“Technical data” section (
page 403).
Minispare wheel bolts
1Wheel bolt for light alloy rims
2Wheel bolt for Minispare wheel or other
steel rims (located in trunk with spare
wheel)
!To prevent damage, always disengage
trunk floor handle from upper edge of
trunk and lower trunk floor before clos-
ing the trunk lid.Warning!
G
The dimensions of the Minispare wheel are
different from those of the road wheels. As
a result, the vehicle handling characteristics
change when driving with a Minispare wheel
mounted.
The Minispare wheel should only be used
temporarily, and should be replaced with a
regular road wheel as quickly as possible.
!Wheel bolts2 must be used when
mounting the Minispare wheel. The use
of any wheel bolts other than wheel
bolts2 for the Minispare will physical-
ly damage the vehicle's brakes.Warning!
G
Make sure to use the original length wheel
bolts when remounting the original wheel af-
ter it has been repaired.
ProCarManuals.com

348 Practical hintsUnlocking/locking in an emergency
Unlocking/locking in an emergencyUnlocking the vehicle
If you are unable to unlock the vehicle with
the SmartKey or KEYLESS-GO*, open the
driver’s door and the trunk using the me-
chanical key.
1Mechanical key locking tab
2Mechanical key

Move locking tab1 in direction of ar-
row and slide the mechanical key2
out of the housing.Unlocking the driver’s door
1Unlocking
2Locking

Unlock the door with the mechanical
key. To do so, push the mechanical key
in the lock until it stops and turn it to
the left.
iUnlocking your vehicle with the me-
chanical key will trigger the anti-theft
alarm system. To cancel the alarm, do
one of the following:

Press button Œ or ‹ on the
SmartKey.


Insert the SmartKey in the starter
switch.
Vehicles with KEYLESS-GO*


Pull the outside door handle.


Press the KEYLESS-GO* start/stop
button (
page 33).
ProCarManuals.com

349 Practical hints
Unlocking/locking in an emergency
Unlocking the trunk
A minimum height clearance of 5.41 ft
(1.65 m) is required to open the trunk lid.
The lock is located next to the recessed
handle.
1Unlocking in an emergency
2Handle

Insert the mechanical key into the
trunk lid lock.

Turn the mechanical key counterclock-
wise to position1 and hold it in this
position.

Pull the trunk lid handle2 and lift the
trunk lid.
The trunk opens.
Locking the vehicle
If you are unable to lock the vehicle with
the SmartKey, lock it with the mechanical
key as follows:
Close the passenger door and the trunk
lid.

Press the central locking switch in the
cockpit (
page 108).

Check to see whether the locking knob
on the passenger door down. If neces-
sary push it down manually.

Lock the driver’s door with the me-
chanical key.

Lock the trunk lid if necessary with the
mechanical key (
page 106).
! Always make sure there is sufficient
overhead clearance.
ProCarManuals.com

350 Practical hintsUnlocking/locking in an emergencyChanging batteries in the SmartKey/ SmartKey with KEYLESS-GO*
If the batteries in the SmartKey or the
SmartKey with KEYLESS-GO* are dis-
charged, the vehicle can no longer be
locked or unlocked. It is recommended to
have the batteries replaced at an autho-
rized Mercedes-Benz Center.
Batteries contain materials that can harm
the environment if disposed of improperly.
Recycling of batteries is the preferred
method of disposal. Many states require
sellers of batteries to accept old batteries
for recycling.SmartKey
1Mechanical key
2Battery compartment
Replacement batteries: Lithium, type
CR 2025 or equivalent.

Remove mechanical key1
(page 348).

Insert the mechanical key in side open-
ing and push gray slide.
The battery compartment is unlatched.

Pull the battery compartment out of the
SmartKey housing in direction of ar-
row.

Remove the batteries.
Warning!
G
Keep the batteries out of reach of children.
If a battery is swallowed, seek medical help
immediately.
iWhen changing batteries, always re-
place both batteries.
The required replacement batteries are
available at any Mercedes-Benz
Center.
