MERCEDES-BENZ CLK COUPE 2006 C209 Owner's Guide

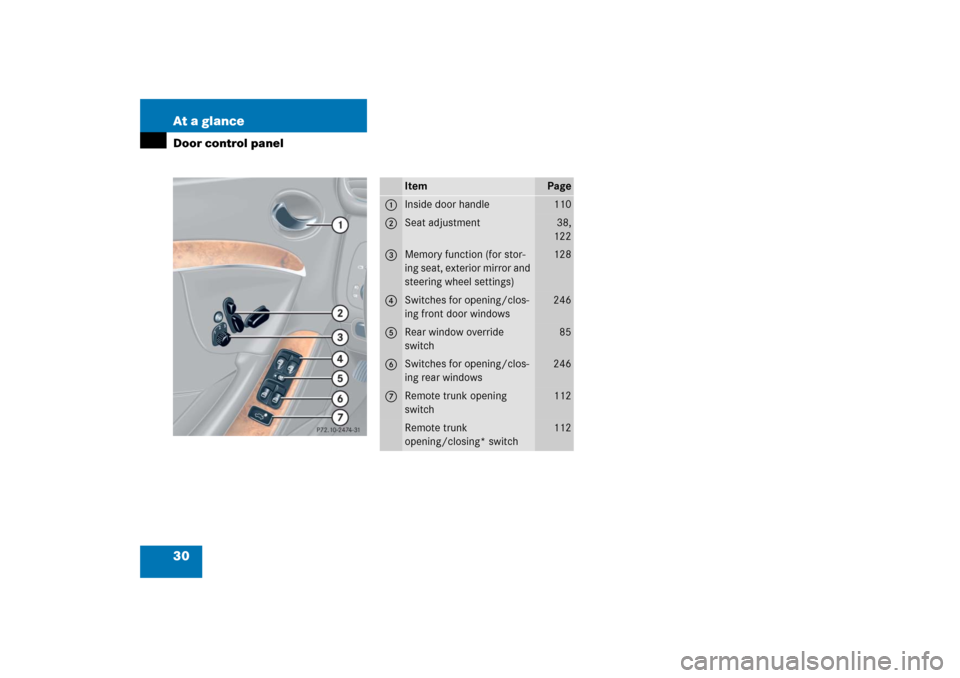

30 At a glanceDoor control panel
Item
Page
1
Inside door handle
110
2
Seat adjustment
38,
122
3
Memory function (for stor-
ing seat, exterior mirror and
steering wheel settings)
128
4
Switches for opening/clos-
ing front door windows
246
5
Rear window override
switch
85
6
Switches for opening/clos-
ing rear windows
246
7
Remote trunk opening
switch
112
Remote trunk
opening/closing* switch
112

31 Getting started
Unlocking
Adjusting
Driving
Parking and locking

32 Getting startedThe “Getting started” section provides an
overview of the vehicle’s most basic func-
tions. First-time Mercedes-Benz owners
should pay special attention to the infor-
mation given here.
If you are already familiar with the basic
functions described here, the “Controls in
detail” section will provide you with further
information. The corresponding page
references are located at the end of each
segment.Unlocking
Unlocking with the SmartKeySmartKey with remote control 1‹Lock button
2ŠOpening button for trunk
3ŒUnlock button
4ÂPanic button (
page 86)

Press unlock button Πon the
SmartKey.

All turn signal lamps flash once.


An acoustic signal sounds once (if
equipped and feature activated).
For more information, see “Factory
setting” (
page 106).


The locking knobs in the doors
move up.


The anti-theft alarm system is dis-
armed.

Enter the vehicle and insert the
SmartKey in the starter switch.

33 Getting started
Unlocking
For more information, see “SmartKey”
(page 98).
Unlocking with KEYLESS-GO*
With the KEYLESS-GO function, you can
lock and unlock the vehicle without using
the remote control buttons on the
SmartKey and start the engine without in-
serting the SmartKey in the starter switch.

Pull an outside door handle.

All turn signal lamps flash once.


An acoustic signal sounds once (if
equipped and feature activated).
For more information, see “Factory
setting” (
page 106).


The locking knobs in the doors
move up.


The anti-theft alarm system is dis-
armed.

Enter the vehicle.
For more information, see “SmartKey with
KEYLESS-GO*” (
page 103).
Warning!
G
When leaving the vehicle, always remove the
SmartKey from the starter switch, take it
with you, and lock the vehicle. Do not leave
children unattended in the vehicle, or with
access to an unlocked vehicle.
Unsupervised use of vehicle equipment may
cause an accident and/or serious personal
injury.iOpening a door causes the windows on
that side of the car to open slightly.
They will return to the up position when
the door is closed.
iTo unlock the vehicle, the SmartKey
with KEYLESS-GO must be outside the
vehicle, no further than approx. 3 feet
(1 meter) away from the door to be
opened.Warning!
G
When leaving the vehicle, always take the
SmartKey with KEYLESS-GO with you, and
lock the vehicle. Do not leave children unat-
tended in the vehicle, or with access to an
unlocked vehicle. Unsupervised use of vehi-
cle equipment may cause an accident
and/or serious personal injury.
iOpening a door causes the windows on
that side of the car to open slightly.
They will return to the up position when
the door is closed.

34 Getting startedUnlockingStarter switch positions
SmartKeyStarter switch
0For removing SmartKey
The steering is locked when the
SmartKey is removed from the starter
switch.
1Power supply for some electrical
consumers, such as seat adjustment.
2Ignition (power supply for all electrical
consumers) and driving position. All
lamps (except low beam headlamp in-
dicator lamp, high beam headlamp indi-
cator lamp, and turn signal indicator
lamps unless activated) in the instru-
ment cluster come on. If a lamp in the
instrument cluster fails to come on
when the ignition is switched on, have
it checked and replaced if necessary. If
a lamp in the instrument cluster re-
mains on after starting the engine or
comes on while driving, refer to “Lamps
in instrument cluster” (
page 360).
3Starting position.
Warning!
G
When leaving the vehicle, always remove the
SmartKey or SmartKey with KEYLESS-GO*
from the starter switch, take it with you, and
lock the vehicle. Do not leave children unat-
tended in the vehicle, or with access to an
unlocked vehicle. Unsupervised use of vehi-
cle equipment may cause an accident
and/or serious personal injury.
iWhen you switch on the ignition, the
indicator and warning lamps (except
low beam headlamp indicator lamp,
high beam headlamp indicator lamp,
and turn signal indicator lamps unless
activated) in the instrument cluster
come on. The indicator and warning
lamps (except low beam headlamp
indicator lamp, high beam headlamp
indicator lamp, and turn signal indica-
tor lamps if activated) will go out when
the engine is running. This indicates
that the respective systems are
operational.iThe SmartKey can only be removed
from the starter switch with the gear
selector lever in position P.

35 Getting started
Unlocking
For more information, see “SmartKey”
(page 98).
For information on starting the engine us-
ing the SmartKey, see “Starting with the
SmartKey” (
page 49).SmartKey with KEYLESS-GO*
Pressing the KEYLESS-GO start/stop but-
ton on the gear selector lever corresponds
to turning the SmartKey to the various
starter positions.
If you firmly depress the brake pedal dur-
ing pressing the KEYLESS-GO start/stop
button, the engine starts automatically.
You can also use the SmartKey with
KEYLESS-GO like a normal SmartKey.
KEYLESS-GO start/stop button1USA only
2Canada only
The SmartKey with KEYLESS-GO must be
located in the vehicle.
Make sure the gear selector lever is set
toP.

Do not depress the brake pedal.
!If the SmartKey cannot be turned in the
starter switch, the battery may not be
sufficiently charged.

Check the battery and charge it if
necessary (
page 426).


Get a jump start (
page 430).
To prevent accelerated battery dis-
charge or a completely discharged bat-
tery, always remove the SmartKey from
the starter switch when the engine is
not in operation.
iThe function of the SmartKey overrules
the KEYLESS-GO function.

36 Getting startedUnlockingPosition 0
Before you press the KEYLESS-GO
start/stop button, the vehicle’s on-board
electronics have status0 (as with
SmartKey removed).
Position 1
Press the KEYLESS-GO start/stop
button once.
This supplies power for some electrical
consumers, such as seat adjustment.Ignition (or position 2)

Press the KEYLESS-GO start/stop but-
ton twice.
This supplies power for all electrical
consumers. All the lamps (except low
beam headlamp indicator lamp, high
beam headlamp indicator lamp, and
turn signal indicator lamps unless acti-
vated) in the instrument cluster come
on. If a lamp in the instrument cluster
fails to come on when the ignition is
switched on, have it checked and re-
placed if necessary. If a lamp in the in-
strument cluster remains on after
starting the engine or comes on while
driving, refer to “Lamps in instrument
cluster” (
page 360).For more information, see “SmartKey with
KEYLESS-GO*” (
page 103).
For information on starting the engine
using the KEYLESS-GO start/stop button,
see “Starting with KEYLESS-GO*”
(
page 49).
iIf you now press the KEYLESS-GO
start/stop button

once again, the ignition (position2)
is switched on.


twice, the power supply is again
switched off.
iIf you now press the KEYLESS-GO
start/stop button once, the power sup-
ply is again switched off.
iWhen you switch on the ignition, the in-
dicator and warning lamps (except low
beam headlamp indicator lamp, high
beam headlamp indicator lamp, and
turn signal indicator lamps unless acti-
vated) in the instrument cluster come
on. The indicator and warning lamps
(except low beam headlamp indicator
lamp, high beam headlamp indicator
lamp, and turn signal indicator lamps if
activated) will go out when the engine
is running. This indicates that the re-
spective systems are operational.

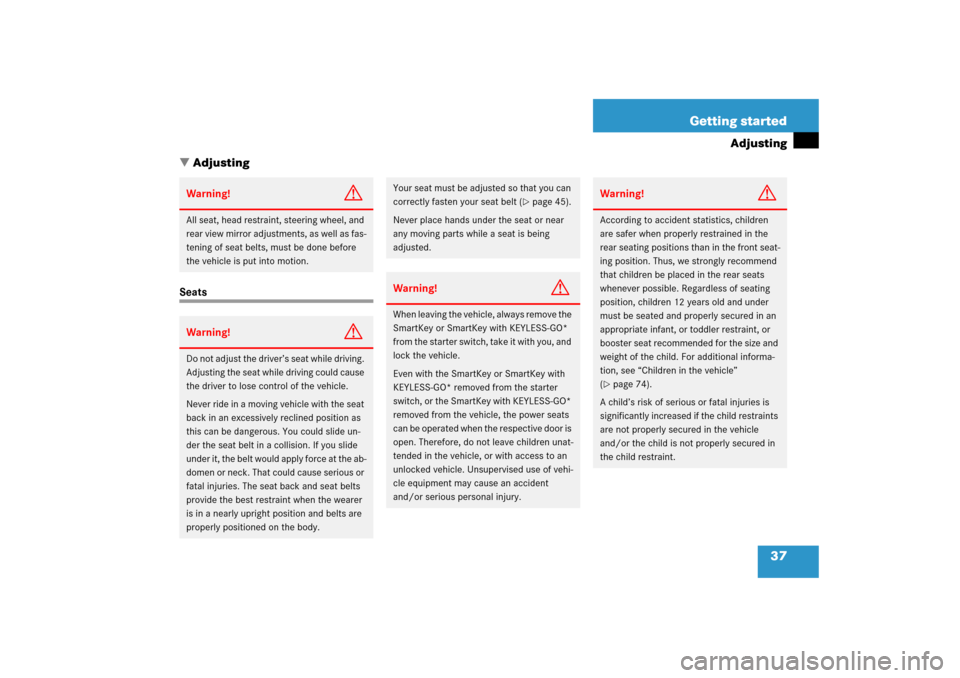

37 Getting started
Adjusting
Adjusting
SeatsWarning!
G
All seat, head restraint, steering wheel, and
rear view mirror adjustments, as well as fas-
tening of seat belts, must be done before
the vehicle is put into motion.Warning!
G
Do not adjust the driver’s seat while driving.
Adjusting the seat while driving could cause
the driver to lose control of the vehicle.
Never ride in a moving vehicle with the seat
back in an excessively reclined position as
this can be dangerous. You could slide un-
der the seat belt in a collision. If you slide
under it, the belt would apply force at the ab-
domen or neck. That could cause serious or
fatal injuries. The seat back and seat belts
provide the best restraint when the wearer
is in a nearly upright position and belts are
properly positioned on the body.
Your seat must be adjusted so that you can
correctly fasten your seat belt (
page 45).
Never place hands under the seat or near
any moving parts while a seat is being
adjusted.
Warning!
G
When leaving the vehicle, always remove the
SmartKey or SmartKey with KEYLESS-GO*
from the starter switch, take it with you, and
lock the vehicle.
Even with the SmartKey or SmartKey with
KEYLESS-GO* removed from the starter
switch, or the SmartKey with KEYLESS-GO*
removed from the vehicle, the power seats
can be operated when the respective door is
open. Therefore, do not leave children unat-
tended in the vehicle, or with access to an
unlocked vehicle. Unsupervised use of vehi-
cle equipment may cause an accident
and/or serious personal injury.
Warning!
G
According to accident statistics, children
are safer when properly restrained in the
rear seating positions than in the front seat-
ing position. Thus, we strongly recommend
that children be placed in the rear seats
whenever possible. Regardless of seating
position, children 12 years old and under
must be seated and properly secured in an
appropriate infant, or toddler restraint, or
booster seat recommended for the size and
weight of the child. For additional informa-
tion, see “Children in the vehicle”
(page 74).
A child’s risk of serious or fatal injuries is
significantly increased if the child restraints
are not properly secured in the vehicle
and/or the child is not properly secured in
the child restraint.

38 Getting startedAdjustingSeat adjustment
The seat adjustment switches are located
on the respective door.
1Head restraint height
2Seat height
3Seat cushion tilt
4Seat fore and aft adjustment
5Backrest tilt
Switch on the ignition (
page 34).
or

Open the respective door.Seat fore and aft adjustment

Press switch forward or backward in
the direction of arrow4.
Adjust seat to a comfortable seating
position that still allows you to reach
the accelerator / brake pedal safely.
The position should be as far to the rear
as possible, consistent with ability to
properly operate controls.Seat height

Press switch up or down in the direc-
tion of arrow2.
Seat cushion tilt

Press switch up or down in the direc-
tion of arrow3 until your upper legs
are lightly supported.
Seat backrest tilt

Press switch forward or backward in
the direction of arrow5 until your
arms are slightly angled when holding
the steering wheel.
Head restraint height

Press switch up or down in the direc-
tion of arrow1.
iThe memory function (
page 128) lets
you store the settings for the seat posi-
tion together with the settings for the
steering wheel and the exterior rear
view mirrors.
!When moving the seat, make sure
there are no items in the footwell or be-
hind the seats. Otherwise you could
damage the seats.

39 Getting started
Adjusting
Head restraint adjusting
Manually adjust the head restraint.
Push or pull the head restraint cushion
to the desired position.
For more information, see “Seats”
(
page 122).Folding front seat backrests forward
1Release lever
Folding backrests forward

Pull release lever1 forward and fold
the backrest forward.
The head restraint will automatically
move down.
Folding backrests back

Fold and press the backrest rearward
until it engages in driving position.
The head restraint returns to its previ-
ous position.
Warning!
G
For your protection, drive only with properly
positioned head restraints.
Adjust the head restraint so that it is as
close to the head as possible and the center
of the head restraint supports the back of
the head at eye level. This will reduce the po-
tential for injury to the head and neck in the
event of an accident or similar situation.
Do not drive the vehicle without the seat
head restraints. Head restraints are intend-
ed to help reduce injuries during an
accident.
