MERCEDES-BENZ CLK COUPE 2006 C209 Owner's Guide

20

21 At a glance
Cockpit
Instrument cluster
Multifunction steering wheel
Center console
Overhead control panel
Door control panel

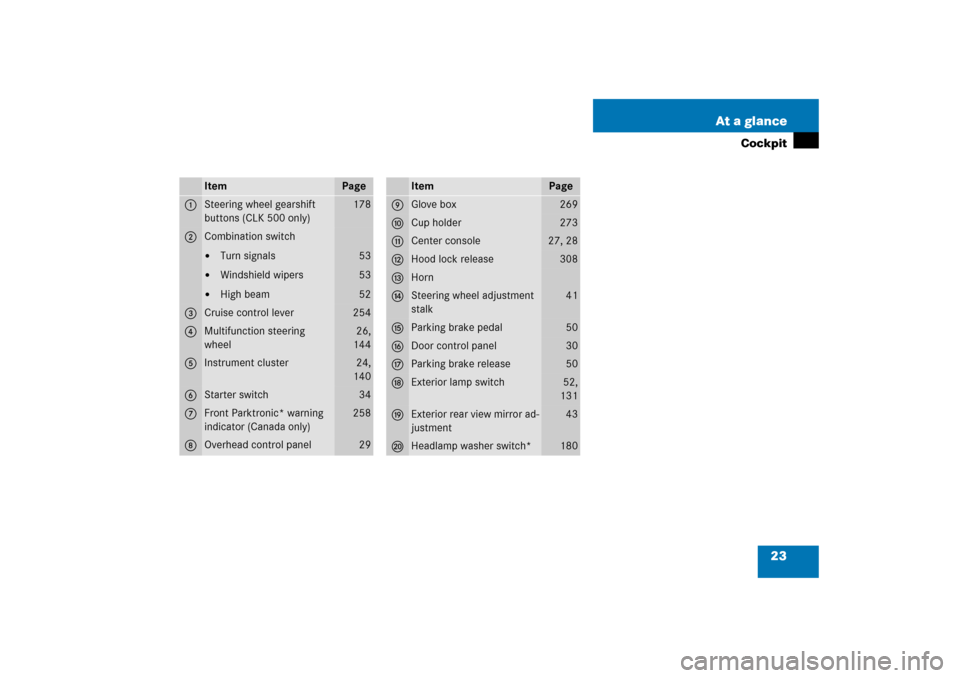

22 At a glanceCockpit

23 At a glance
Cockpit
Item
Page
1
Steering wheel gearshift
buttons (CLK 500 only)
178
2
Combination switch

Turn signals


Windshield wipers


High beam
53
53
52
3
Cruise control lever
254
4
Multifunction steering
wheel
26,
144
5
Instrument cluster
24,
140
6
Starter switch
34
7
Front Parktronic* warning
indicator (Canada only)
258
8
Overhead control panel
29
Item
Page
9
Glove box
269
a
Cup holder
273
b
Center console
27, 28
c
Hood lock release
308
d
Horn
e
Steering wheel adjustment
stalk
41
f
Parking brake pedal
50
g
Door control panel
30
h
Parking brake release
50
j
Exterior lamp switch
52,
131
k
Exterior rear view mirror ad-
justment
43
l
Headlamp washer switch*
180

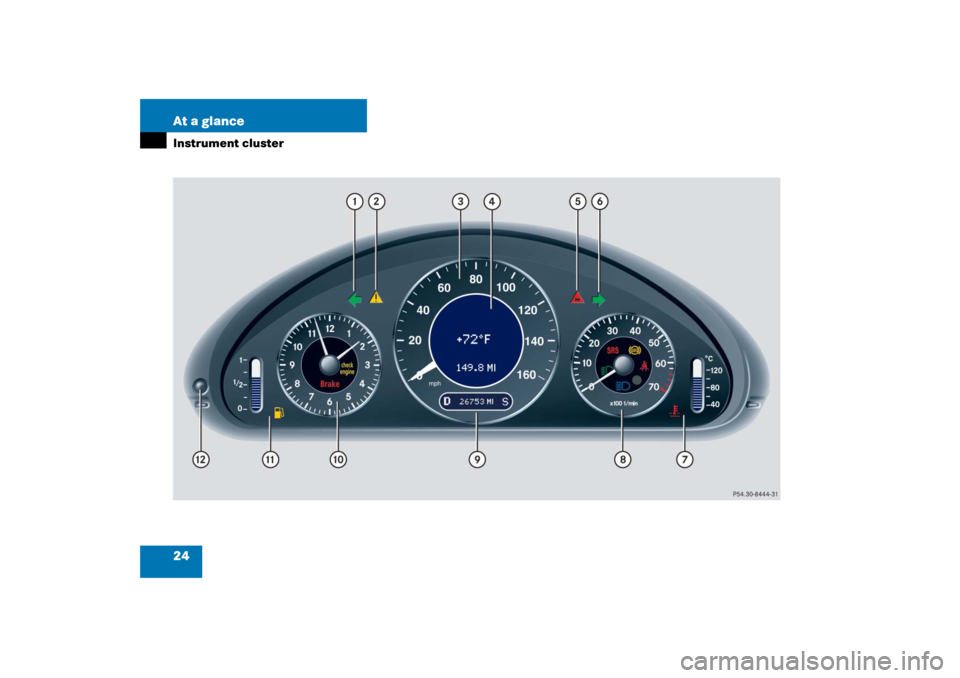

24 At a glanceInstrument cluster

25 At a glance
Instrument cluster
Item
Page
1
LLeft turn signal indica-
tor lamp
53
2
vESP
® warning lamp
365
3
Speedometer
4
Multifunction display
144
5
lDistance warning
lamp
Warning lamp without func-
tion. It illuminates with the ig-
nition on. It should go out
when the engine is running.
6
KRight turn signal indi-
cator lamp
53
7
Coolant temperature indi-
cator with:
141
•Coolant temperature
warning lamp
364,
385
Item
Page
8
Tachometer with:
142
1Supplemental
Restraint System
(SRS) indicator lamp
367,
395
-Antilock Brake Sys-
tem (ABS) indicator
lamp
360
71,
366
AHigh beam headlamp
indicator lamp
135
BLow beam headlamp
indicator lamp
135
9
Main odometer with:

Gear selector lever posi-
tion
171


Program mode
176
Item
Page
a
Clock with:
157
;Brake warning lamp,
USA only
361
3Brake warning lamp,
Canada onlyúEngine malfunction in-
dicator lamp,
USA only
362
±Engine malfunction in-
dicator lamp,
Canada only
362
b
Fuel display with:AFuel reserve warning
lamp
365
c
Reset button for:

Resetting trip odometer
141


Adjusting instrument
cluster illumination
140


Confirming new time set-
tings
157

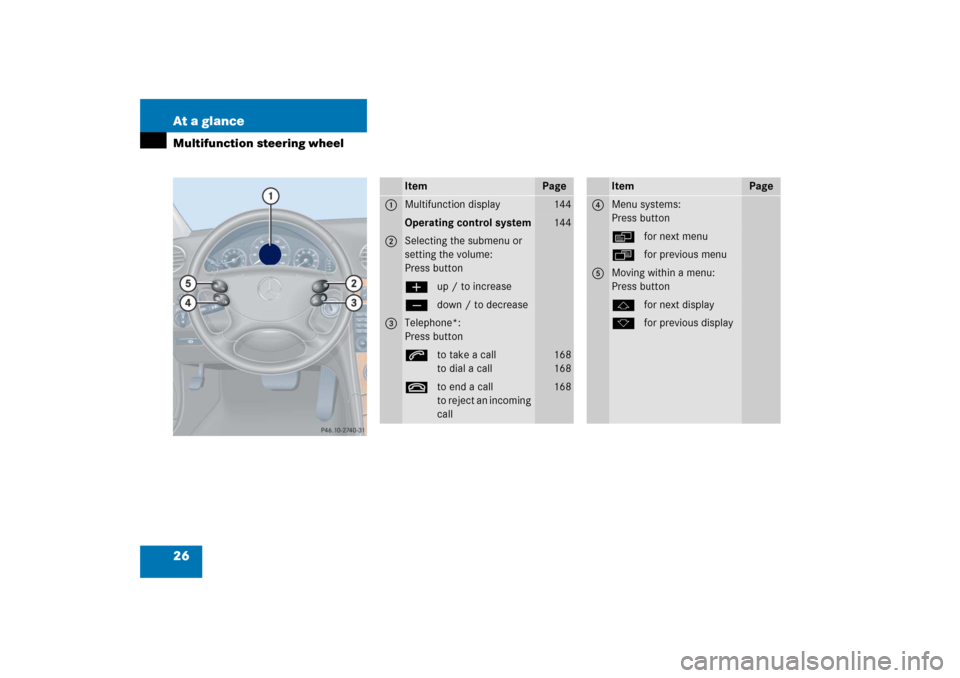

26 At a glanceMultifunction steering wheel
Item
Page
1
Multifunction display
144
Operating control system
144
2
Selecting the submenu or
setting the volume:
Press buttonæup / to increaseçdown / to decrease
3
Telephone*:
Press buttonsto take a call
to dial a call
168
168
tto end a call
to reject an incoming
call
168
Item
Page
4
Menu systems:
Press buttonèfor next menuÿfor previous menu
5
Moving within a menu:
Press buttonjfor next displaykfor previous display

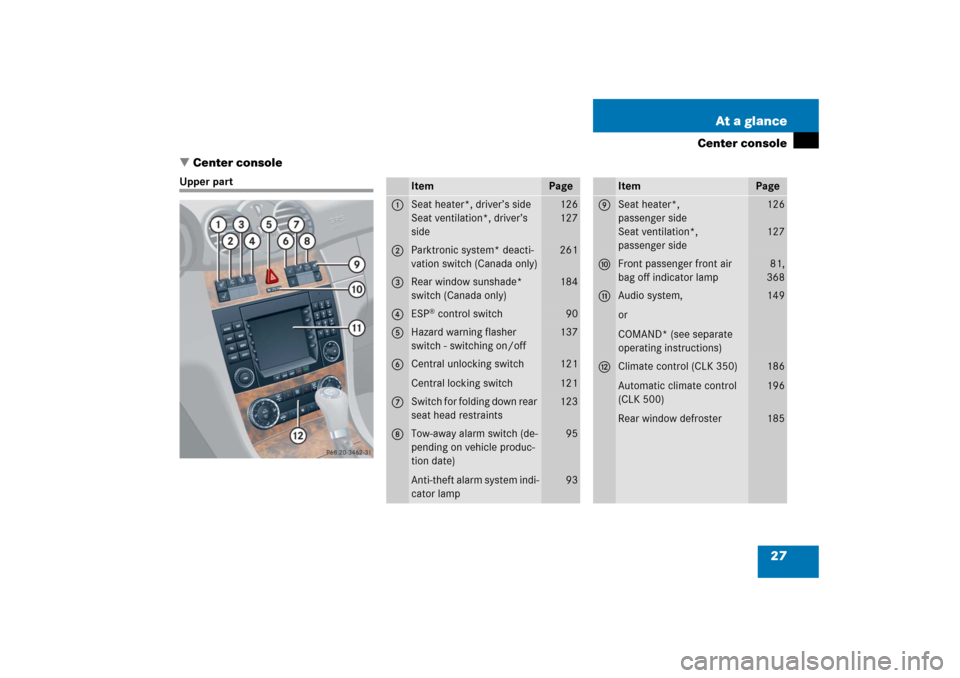

27 At a glance
Center console
Center console
Upper part
Item
Page
1
Seat heater*, driver’s side
Seat ventilation*, driver’s
side
126
127
2
Parktronic system* deacti-
vation switch (Canada only)
261
3
Rear window sunshade*
switch (Canada only)
184
4
ESP
® control switch
90
5
Hazard warning flasher
switch - switching on/off
137
6
Central unlocking switch
Central locking switch
121
121
7
Switch for folding down rear
seat head restraints
123
8
Tow-away alarm switch (de-
pending on vehicle produc-
tion date)
Anti-theft alarm system indi-
cator lamp
95
93
Item
Page
9
Seat heater*,
passenger side
Seat ventilation*,
passenger side
126
127
a
Front passenger front air
bag off indicator lamp
81,
368
b
Audio system,
or
COMAND* (see separate
operating instructions)
149
c
Climate control (CLK 350)
Automatic climate control
(CLK 500)
Rear window defroster
186
196
185

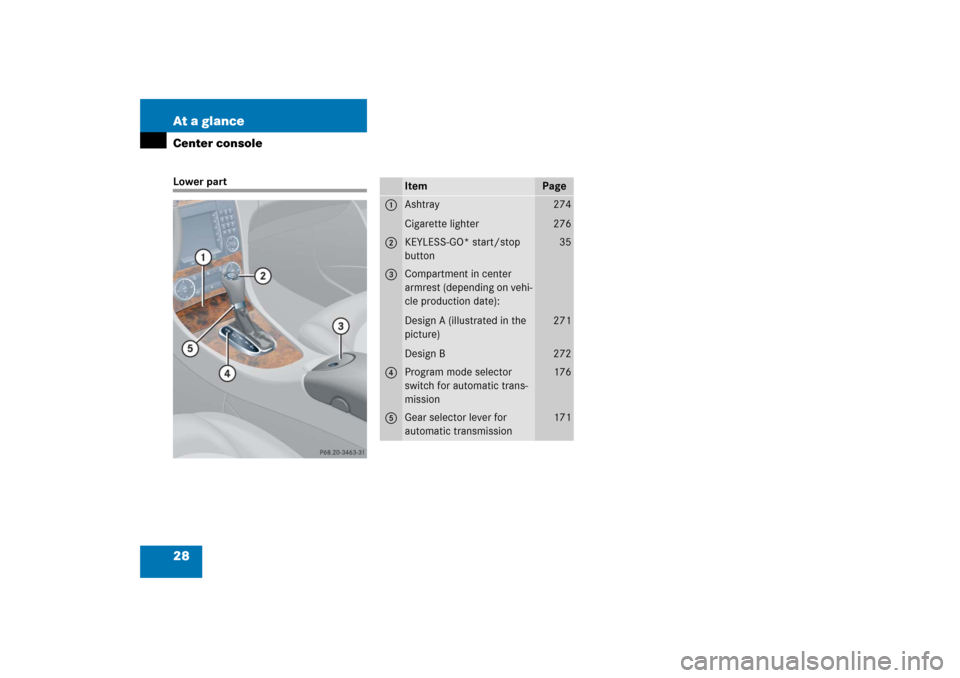

28 At a glanceCenter consoleLower part
Item
Page
1
Ashtray
Cigarette lighter
274
276
2
KEYLESS-GO* start/stop
button
35
3
Compartment in center
armrest (depending on vehi-
cle production date):
Design A (illustrated in the
picture)
Design B
271
272
4
Program mode selector
switch for automatic trans-
mission
176
5
Gear selector lever for
automatic transmission
171

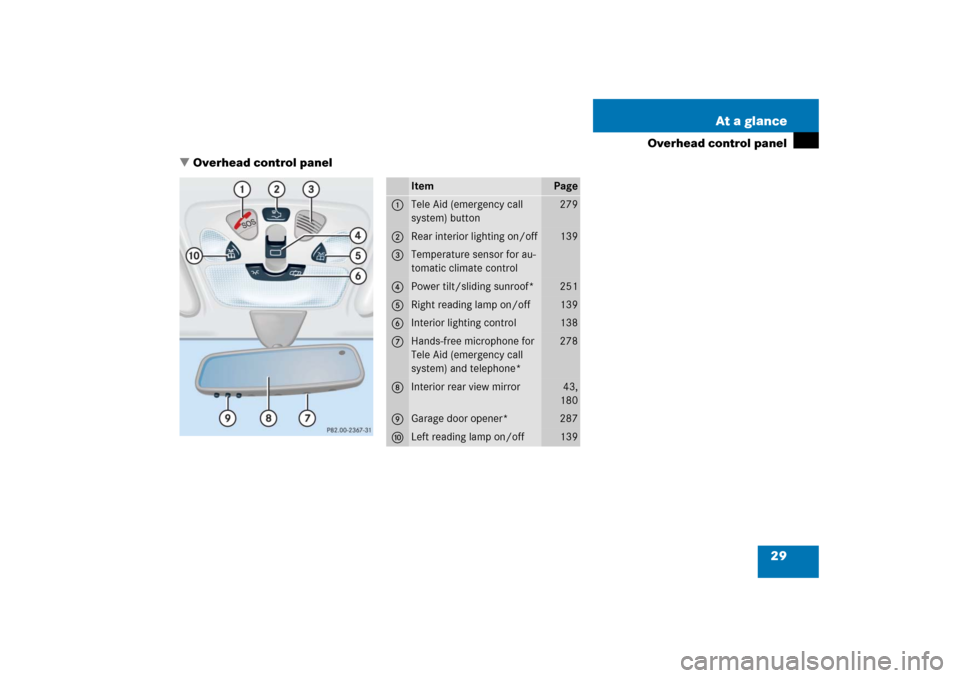

29 At a glance
Overhead control panel
Overhead control panel
Item
Page
1
Tele Aid (emergency call
system) button
279
2
Rear interior lighting on/off
139
3
Temperature sensor for au-
tomatic climate control
4
Power tilt/sliding sunroof*
251
5
Right reading lamp on/off
139
6
Interior lighting control
138
7
Hands-free microphone for
Tele Aid (emergency call
system) and telephone*
278
8
Interior rear view mirror
43,
180
9
Garage door opener*
287
a
Left reading lamp on/off
139
