40 Getting startedAdjusting
For information on additional convenience
features permitting easy entry and exit,
see “Easy-entry/exit feature” (
page 42).
iIn addition to the front seat backrests,
the front seat cushions can also be
shifted forward to permit easy access
to the rear whenever the seat is located
in the rear half of its adjustment range.
Pivot backrest forward by pulling the
release lever until the seat moves in a
combined forward and upward
movement.!When moving the seat, make sure
there are no items in the footwell or be-
hind the seats. Otherwise you could
damage the seats.
Warning!
G
The seat belts provide protection only with
the backrest locked in place. Therefore, the
backrest must be locked in place with the
vehicle in motion. Do not drive the vehicle
when the backrest is not locked in place.
If the warning message:Lock front
passenger seator Lock driver’s
seatis displayed in the multifunction display,
then the respective backrest is not engaged
in its lock. Carefully slow down, and drive
with caution to an area which is in a safe dis-
tance from the roadway. Always provide suf-
ficient room behind the backrest and fold
the backrest all the way back until it locks in
place.
The warning message is no longer displayed
as soon as the backrest is locked in place. If
both backrests are locked in place and the
warning message is still displayed, have the
system checked at an authorized
Mercedes-Benz Center immediately.
When leaving the vehicle, always remove the
SmartKey or SmartKey with KEYLESS-GO*
from the starter switch, take it with you, and
lock the vehicle.
The power seats can also be operated with
the driver’s or passenger door open. Do not
leave children unattended in the vehicle or
with access to an unlocked vehicle. Unsu-
pervised use of vehicle equipment may
cause an accident and/or serious personal
injury.
Never place hands under seat or near any
moving parts during a seat adjustment pro-
cedure.
Page 42 of 489
41 Getting started
Adjusting
Steering wheel Steering wheel adjustment
The stalk for steering wheel adjustment is
located on the lower left of steering
column.

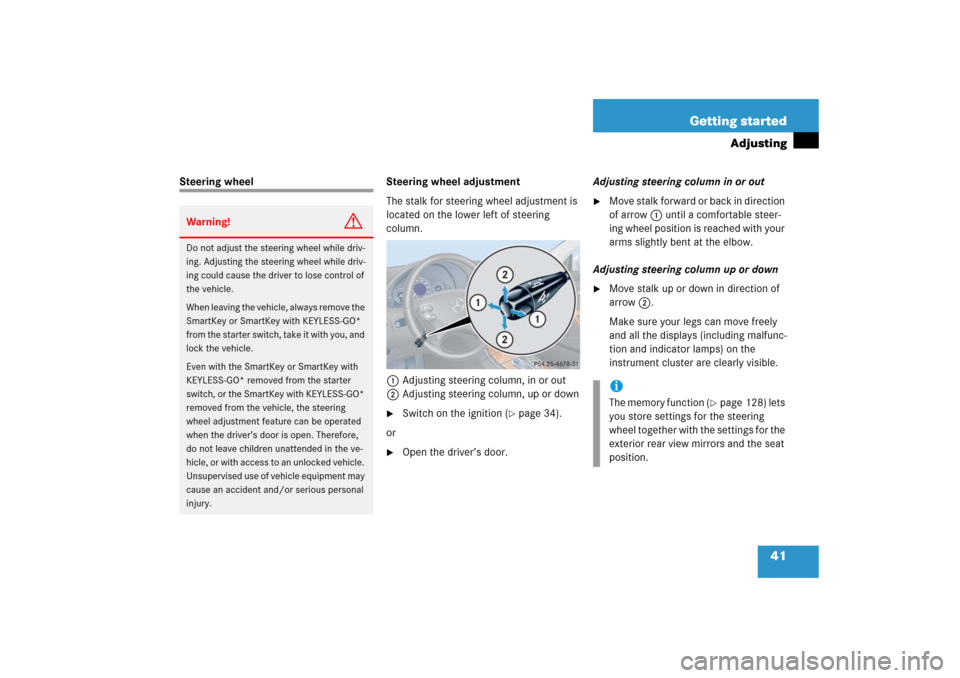

1Adjusting steering column, in or out
2Adjusting steering column, up or down
Switch on the ignition (
page 34).
or
Open the driver’s door.Adjusting steering column in or out
Move stalk forward or back in direction
of arrow 1 until a comfortable steer-
ing wheel position is reached with your
arms slightly bent at the elbow.
Adjusting steering column up or down
Move stalk up or down in direction of
arrow 2.
Make sure your legs can move freely
and all the displays (including malfunc-
tion and indicator lamps) on the
instrument cluster are clearly visible.
Warning!
G
Do not adjust the steering wheel while driv-
ing. Adjusting the steering wheel while driv-
ing could cause the driver to lose control of
the vehicle.
When leaving the vehicle, always remove the
SmartKey or SmartKey with KEYLESS-GO*
from the starter switch, take it with you, and
lock the vehicle.
Even with the SmartKey or SmartKey with
KEYLESS-GO* removed from the starter
switch, or the SmartKey with KEYLESS-GO*
removed from the vehicle, the steering
wheel adjustment feature can be operated
when the driver’s door is open. Therefore,
do not leave children unattended in the ve-
hicle, or with access to an unlocked vehicle.
Unsupervised use of vehicle equipment may
cause an accident and/or serious personal
injury.
iThe memory function (
page 128) lets
you store settings for the steering
wheel together with the settings for the
exterior rear view mirrors and the seat
position.
Page 43 of 489
42 Getting startedAdjustingEasy-entry/exit feature
This feature allows for easier entry into and
exit from the vehicle. When entering and
exiting the vehicle, the steering wheel is in
its uppermost position.
The easy-entry/exit feature can be
activated or deactivated in the Convenience
submenu of the control
system (
page 164).With the easy-entry/exit feature activated,
the steering wheel will return to its last set
position when you:
close the driver’s door with the ignition
switched on,
or
insert the SmartKey into the starter
switch or press the KEYLESS-GO*
start/stop button (
page 35) once
with the driver’s door closed.With the easy-entry/exit feature activated,
the steering wheel tilts upwards when you:
remove the SmartKey from the starter
switch,
or
open the driver’s door with the
SmartKey in starter switch position0
or1 or the KEYLESS-GO* start/stop
button (
page 35) in position1.
Warning!
G
You must make sure that no one can be-
come trapped or injured by the moving
steering wheel when the easy-entry / exit
feature is activated.
To stop steering wheel movement, do one of
the following:
Move the steering column stalk
(page 41).
Press the memory position switch
(page 128)
Do not leave children unattended in the ve-
hicle, or with access to an unlocked vehicle.
Children could open the driver’s door and
unintentionally activate the easy-entry/exit
feature, which could result in an accident
and/or serious personal injury.
iThe last set steering wheel position is
stored when
the ignition is switched off.
the position is stored in memory
(page 129).
Page 44 of 489
43 Getting started
Adjusting
Mirrors
Adjust the interior and exterior rear view
mirrors before driving so that you have a
good view of the road and traffic condi-
tions.Interior rear view mirror
Manually adjust the interior rear view
mirror.
For more information, see “Rear view mir-
rors” (
page 180).
Exterior rear view mirrors
iIf the current position for the steering
wheel is in the uppermost tilt position,
the steering wheel will no longer be
able to move upward when the
easy-entry/exit feature is activated.
Repositioning of the steering wheel:
will be halted briefly when you start
the vehicle.
will stop if you start the vehicle and
set off immediately.
Warning!
G
Let the system complete the adjustment
procedure before setting the vehicle in
motion. All steering wheel adjustment must
be completed before setting the vehicle in
motion. Driving off with the steering wheel
still adjusting could cause the driver to lose
control of the vehicle.
Warning!
G
In case of an accident, liquid electrolyte may
escape the mirror housing if the mirror glass
breaks.
Electrolyte has an irritating effect. Do not
allow the liquid to come into contact with
eyes, skin, clothing, or respiratory system.
In case it does, immediately flush affected
area with water, and seek medical help if
necessary.!Electrolyte drops coming into contact
with the vehicle paint finish can only be
completely removed while in their
liquid state and by applying plenty of
water.
Warning!
G
Exercise care when using the passen-
ger-side exterior rear view mirror. The mirror
surface is convex (outwardly curved surface
for a wider field of view). Objects in mirror
are closer than they appear. Check your
interior rear view mirror or glance over your
shoulder before changing lanes.
Page 45 of 489
44 Getting startedAdjustingThe buttons are located above the exterior
lamp switch.

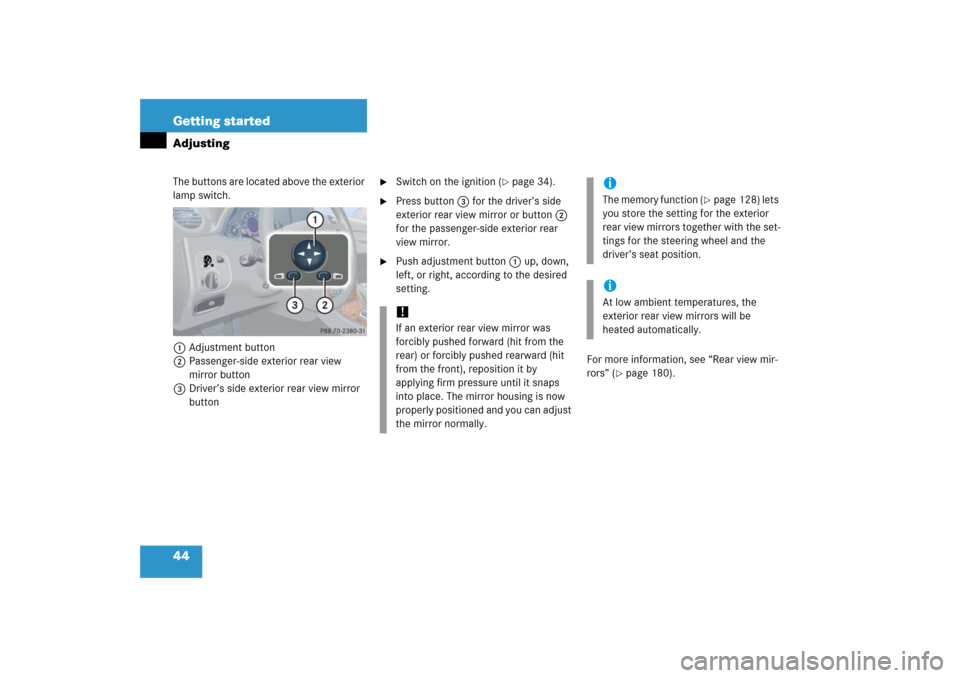

1Adjustment button
2Passenger-side exterior rear view
mirror button
3Driver’s side exterior rear view mirror
button
Switch on the ignition (
page 34).
Press button3 for the driver’s side
exterior rear view mirror or button2
for the passenger-side exterior rear
view mirror.
Push adjustment button1 up, down,
left, or right, according to the desired
setting.
For more information, see “Rear view mir-
rors” (
page 180).
!If an exterior rear view mirror was
forcibly pushed forward (hit from the
rear) or forcibly pushed rearward (hit
from the front), reposition it by
applying firm pressure until it snaps
into place. The mirror housing is now
properly positioned and you can adjust
the mirror normally.
iThe memory function (
page 128) lets
you store the setting for the exterior
rear view mirrors together with the set-
tings for the steering wheel and the
driver’s seat position.
iAt low ambient temperatures, the
exterior rear view mirrors will be
heated automatically.
Page 46 of 489
45 Getting started
Driving
Driving
Fastening the seat beltsWarning!
G
Make sure that absolutely no objects are ob-
structing the pedals’ range of movement.
Keep the driver’s footwell clear of all obsta-
cles. If there are any floormats or carpets in
the footwell, make sure that the pedals still
have sufficient clearance.
During sudden driving or braking maneu-
vers, the objects could get caught between
the pedals. You could then no longer brake
or accelerate.Warning!
G
Always fasten your seat belt before driving
off. Always make sure your passengers are
properly restrained, even those sitting in the
rear and pregnant women.
Failure to wear and properly fasten and po-
sition your seat belt greatly increases your
risk of injuries and their likely severity in an
accident. You and your passengers should
always wear seat belts.
If you are ever in an accident, your injuries
can be considerably more severe without
your seat belt properly buckled. Without
your seat belt buckled, you are much more
likely to hit the interior of the vehicle or be
ejected from it. You can be seriously injured
or killed.
In the same crash, the possibility of injury or
death is lessened if you are wearing your
seat belt. The air bags can only provide the
protection they where designed to afford if
the occupants are using their seat belts
(page 62).
Warning!
G
According to accident statistics, children
are safer when properly restrained in the
rear seating positions than in the front seat-
ing position. Thus, we strongly recommend
that children be placed in the rear seats.
Regardless of seating position, children
12 years old and under must be seated and
properly secured in an appropriate infant or
toddler restraint, or booster seat recom-
mended for the size and weight of the child.
For additional information, see “Children in
the vehicle” (
page 74).
A child’s risk of serious or fatal injuries is
significantly increased if the child restraints
are not properly secured in the vehicle
and/or the child is not properly secured in
the child restraint.
Page 47 of 489
46 Getting startedDriving

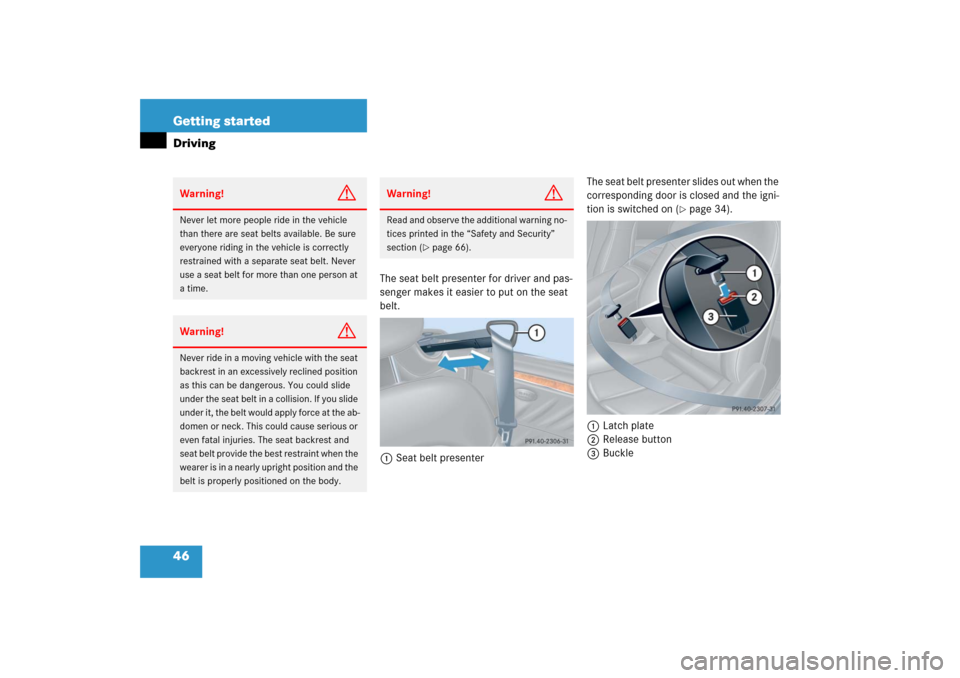

The seat belt presenter for driver and pas-
senger makes it easier to put on the seat
belt.
1Seat belt presenterThe seat belt presenter slides out when the
corresponding door is closed and the igni-
tion is switched on (
page 34).
1Latch plate
2Release button
3Buckle
Warning!
G
Never let more people ride in the vehicle
than there are seat belts available. Be sure
everyone riding in the vehicle is correctly
restrained with a separate seat belt. Never
use a seat belt for more than one person at
a time.Warning!
G
Never ride in a moving vehicle with the seat
backrest in an excessively reclined position
as this can be dangerous. You could slide
under the seat belt in a collision. If you slide
under it, the belt would apply force at the ab-
domen or neck. This could cause serious or
even fatal injuries. The seat backrest and
seat belt provide the best restraint when the
wearer is in a nearly upright position and the
belt is properly positioned on the body.
Warning!
G
Read and observe the additional warning no-
tices printed in the “Safety and Security”
section (
page 66).
Page 48 of 489
47 Getting started
Driving
With a smooth motion, pull the belt out
of the seat belt presenter.
Place the shoulder portion of the belt
across the top of your shoulder and the
lap portion across your hips.
Push latch plate1 into buckle3 until
it clicks.
If necessary, tighten the lap portion to
a snug fit by pulling shoulder portion
up.Proper use of seat belts
Do not twist the belt when fastening.
Adjust seat belt so that the shoulder
portion is located as close as possible
to the middle of the shoulder (it should
not touch the neck). Never pass the
shoulder portion of the belt under your
arm.
Position the lap belt as low as possible
on your hips (over hip joint) and not
across the abdomen.
Place the seat backrest in a nearly
upright position.
Never use a seat belt for more than one
person at a time.
Do not fasten a seat belt around a
person and another object at the same
time. When using a seat belt to secure
infant or toddler restraints or children
in booster seats, always follow the
child seat manufacturer’s instructions.
Check your seat belt periodically
during travel to make sure that it is
properly positioned.
Make sure that the seat belt is always
fitted snugly. Take special care of this
when wearing loose clothing.Warning!
G
Do not pass belts over sharp edges. They
could tear.
Do not allow the belt to get caught in the
door or in the seat adjustment mechanism.
This could damage the belt.
Never attempt to make modifications to
seat belts. This could impair the effective-
ness of the belts.
Do not bleach or dye seat belts as this may
severely weaken them. In a crash they may
not be able to provide adequate protection.
Damaged seat belts or belts that were highly
stressed in an accident must be replaced.
Contact an authorized Mercedes-Benz
Center.
Page 49 of 489
48 Getting startedDrivingThe seat belt presenter slides back:
right after you push the latch plate1
into buckle3 and hear it click.
after approximately 60 seconds if you
do not push latch plate 1 into
buckle3.
if your door is opened.
if you turn the SmartKey in the starter
switch to position 0.
if you release a front seat backrest and
fold it forward.
Starting the engine Automatic transmission

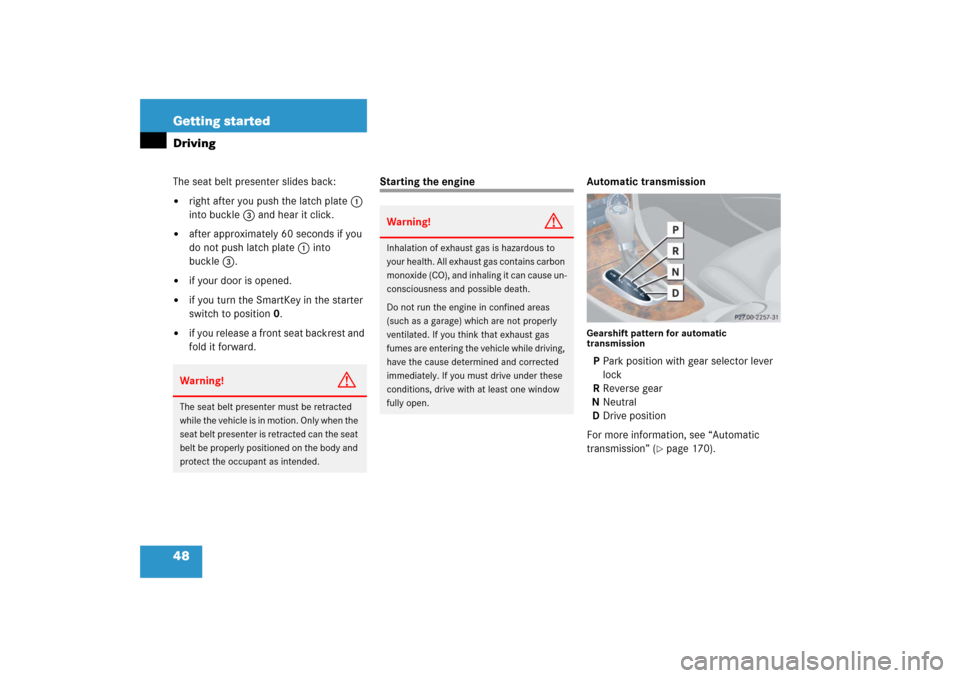

Gearshift pattern for automatic
transmissionPPark position with gear selector lever
lock
RReverse gear
NNeutral
DDrive position
For more information, see “Automatic
transmission” (
page 170).
Warning!
G
The seat belt presenter must be retracted
while the vehicle is in motion. Only when the
seat belt presenter is retracted can the seat
belt be properly positioned on the body and
protect the occupant as intended.
Warning!
G
Inhalation of exhaust gas is hazardous to
your health. All exhaust gas contains carbon
monoxide (CO), and inhaling it can cause un-
consciousness and possible death.
Do not run the engine in confined areas
(such as a garage) which are not properly
ventilated. If you think that exhaust gas
fumes are entering the vehicle while driving,
have the cause determined and corrected
immediately. If you must drive under these
conditions, drive with at least one window
fully open.
Page 50 of 489
49 Getting started
Driving
Starting with the SmartKey
Make sure the gear selector lever is set
toP.
Do not depress accelerator.
Turn the SmartKey in the starter switch
to position3 (
page 34) and release it
again immediately (“touch-start”).
The engine then starts automatically.
For information on turning off the engine
with the SmartKey, see (
page 58).Starting with KEYLESS-GO*
You can start your vehicle without the
SmartKey in the starter switch using the
KEYLESS-GO start/stop button on the
gear selector lever.
The SmartKey with KEYLESS-GO must be
located in the vehicle.
Make sure the gear selector lever is set
toP.
Do not depress accelerator.
Depress the brake pedal during the
starting procedure.
The gear selector lever lock is released.

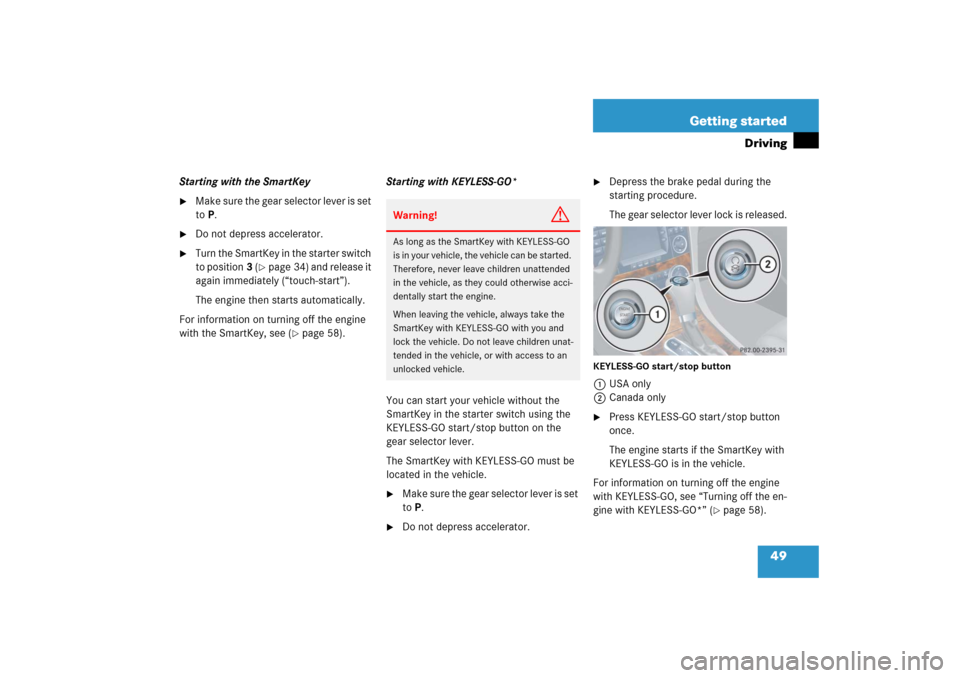

KEYLESS-GO start/stop button1USA only
2Canada only
Press KEYLESS-GO start/stop button
once.
The engine starts if the SmartKey with
KEYLESS-GO is in the vehicle.
For information on turning off the engine
with KEYLESS-GO, see “Turning off the en-
gine with KEYLESS-GO*” (
page 58).
Warning!
G
As long as the SmartKey with KEYLESS-GO
i s i n y o u r v e h i c l e , t h e v e h i c l e c a n b e s t a rt e d .
Therefore, never leave children unattended
in the vehicle, as they could otherwise acci-
dentally start the engine.
When leaving the vehicle, always take the
SmartKey with KEYLESS-GO with you and
lock the vehicle. Do not leave children unat-
tended in the vehicle, or with access to an
unlocked vehicle.
