MERCEDES-BENZ CLK320 CABRIOLET 2005 A209 Owner's Manual

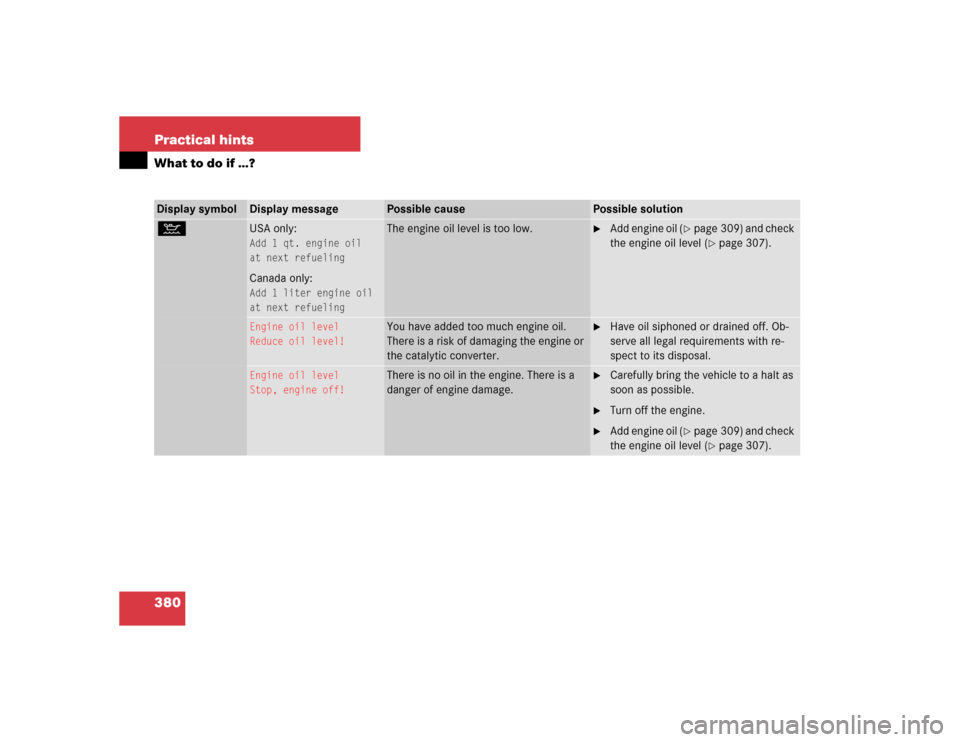

380 Practical hintsWhat to do if …?Display symbol
Display message
Possible cause
Possible solution
:
USA only:Add 1 qt. engine oil
at next refuelingCanada only:Add 1 liter engine oil
at next refueling
The engine oil level is too low.

Add engine oil (
page 309) and check
the engine oil level (
page 307).
Engine oil level
Reduce oil level!
You have added too much engine oil.
There is a risk of damaging the engine or
the catalytic converter.

Have oil siphoned or drained off. Ob-
serve all legal requirements with re-
spect to its disposal.
Engine oil level
Stop, engine off!
There is no oil in the engine. There is a
danger of engine damage.

Carefully bring the vehicle to a halt as
soon as possible.

Turn off the engine.

Add engine oil (
page 309) and check
the engine oil level (
page 307).

381 Practical hints
What to do if …?
When the message
Add 1 qt. engine oil
at next refueling (Canada:
1 liter
) ap-
pears while the engine is running and at
operating temperature, the engine oil level
has dropped to approximately the
minimum level.When this occurs, the warning will first
come on intermittently and then stay on if
the oil level drops further.
Visually check for oil leaks. If no obvious oil
leaks are noted, drive to the nearest ser-
vice station where the engine oil should be
topped to the required level with an
approved oil specified in the Factory
Approved Service Products pamphlet.
Display symbol
Display message
Possible cause
Possible solution
:
Engine oil
Visit workshop!
It may be that there is water in the engine
oil.

Have the engine oil checked.
Engine oil level
Visit workshop!
The engine oil has dropped to a critical
level.

Check the engine oil level
(page 307) and add oil as required
(page 309).

If you must add engine oil frequently,
have the engine checked for possible
leaks.
The measuring system is malfunctioning.

Have the measuring system checked
by an authorized Mercedes-Benz
Center.!The engine oil level warnings should
not be ignored. Extended driving with
the symbol displayed could result in
serious engine damage that is not
covered by the Mercedes-Benz Limited
Warranty.

382 Practical hintsWhat to do if …?Display symbol
Display message
Possible cause
Possible solution
A
Reserve fuel
The fuel level has dropped below the re-
serve mark.

Refuel at the next gas station
(page 302).
Y
Hood open!
You are driving with the hood open.

Close the hood (
page 306).
I
Remove key
You have forgotten to remove the
SmartKey.

Remove the SmartKey from the start-
er switch.
Replace key
No additional code available for SmartKey
or SmartKey with KEYLESS-GO*.

Visit an authorized Mercedes-Benz
Center as soon as possible.
Key
Check battery!
The SmartKey with KEYLESS-GO* batter-
ies are discharged.

Change the batteries (
page 412).
Key
not recognized!
The SmartKey with KEYLESS-GO* is not
recognized while the engine is running be-
cause

the SmartKey is not in the vehicle


there is strong radio-frequency inter-
ference

Stop the vehicle as soon as it is safe to
do so.

Search for the SmartKey.
Otherwise the vehicle cannot be centrally
locked nor can the engine be started
again after the engine has been stopped.
The SmartKey with KEYLESS-GO* is mo-
mentarily not recognized.

Change the position of the SmartKey
in the vehicle.

Operate the vehicle with the SmartKey
in the starter switch if necessary.
Keyless Go
Check system
The KEYLESS-GO* system is malfunction-
ing.

Visit an authorized Mercedes-Benz
Center as soon as possible.

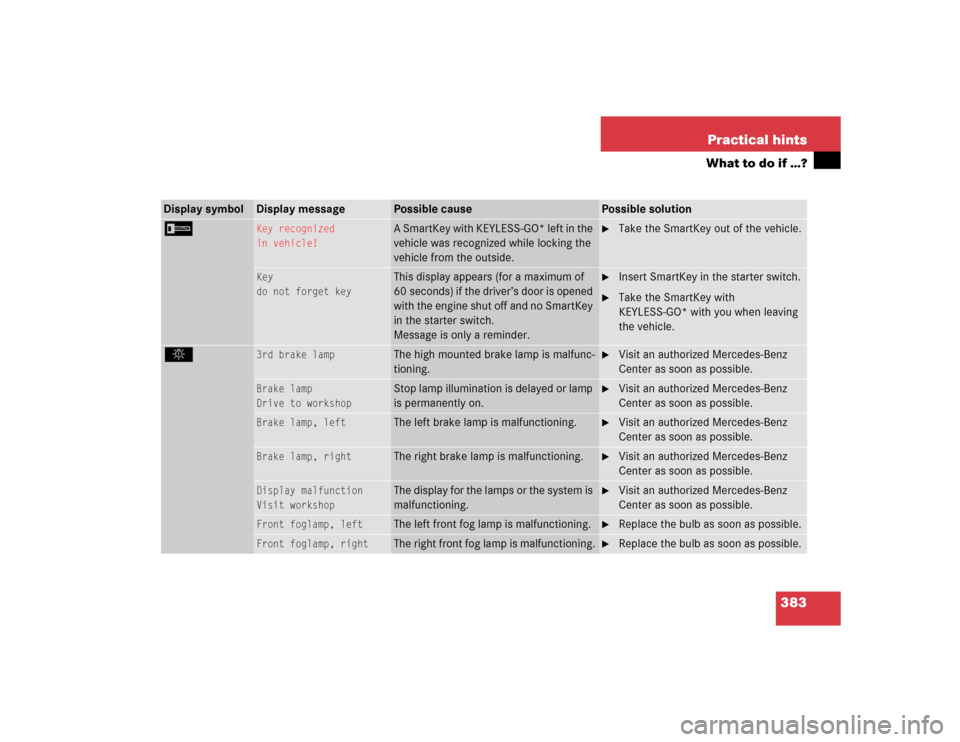

383 Practical hints
What to do if …?
Display symbol
Display message
Possible cause
Possible solution
I
Key recognized
in vehicle!
A SmartKey with KEYLESS-GO* left in the
vehicle was recognized while locking the
vehicle from the outside.

Take the SmartKey out of the vehicle.
Key
do not forget key
This display appears (for a maximum of
60 seconds) if the driver’s door is opened
with the engine shut off and no SmartKey
in the starter switch.
Message is only a reminder.

Insert SmartKey in the starter switch.

Take the SmartKey with
KEYLESS-GO* with you when leaving
the vehicle.
.
3rd brake lamp
The high mounted brake lamp is malfunc-
tioning.

Visit an authorized Mercedes-Benz
Center as soon as possible.
Brake lamp
Drive to workshop
Stop lamp illumination is delayed or lamp
is permanently on.

Visit an authorized Mercedes-Benz
Center as soon as possible.
Brake lamp, left
The left brake lamp is malfunctioning.

Visit an authorized Mercedes-Benz
Center as soon as possible.
Brake lamp, right
The right brake lamp is malfunctioning.

Visit an authorized Mercedes-Benz
Center as soon as possible.
Display malfunction
Visit workshop
The display for the lamps or the system is
malfunctioning.

Visit an authorized Mercedes-Benz
Center as soon as possible.
Front foglamp, left
The left front fog lamp is malfunctioning.

Replace the bulb as soon as possible.
Front foglamp, right
The right front fog lamp is malfunctioning.

Replace the bulb as soon as possible.

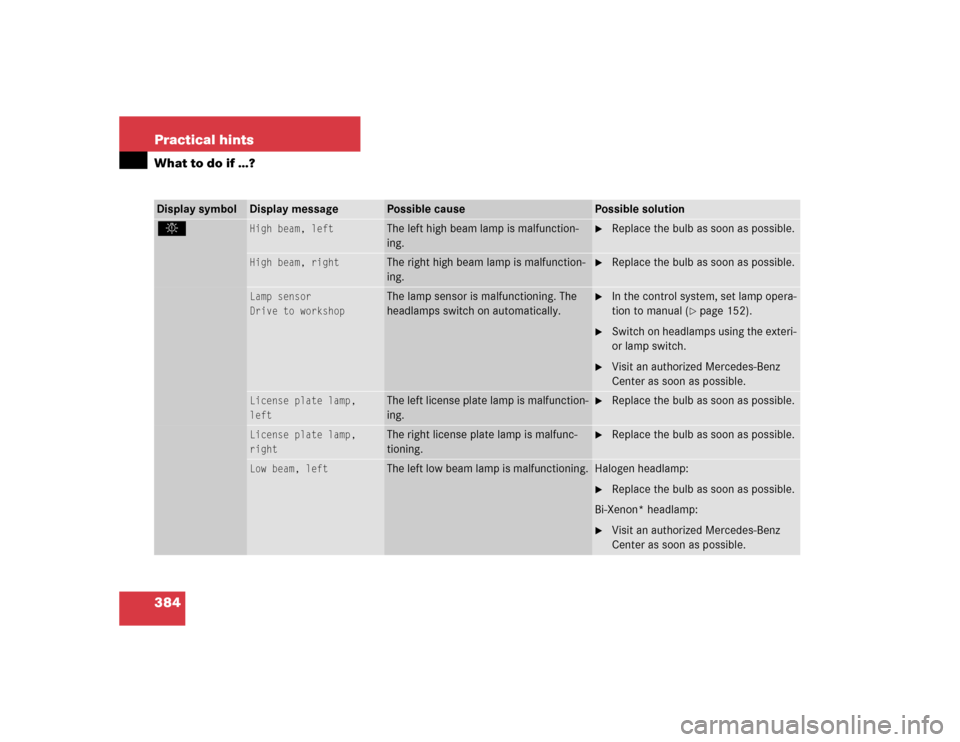

384 Practical hintsWhat to do if …?Display symbol
Display message
Possible cause
Possible solution
.
High beam, left
The left high beam lamp is malfunction-
ing.

Replace the bulb as soon as possible.
High beam, right
The right high beam lamp is malfunction-
ing.

Replace the bulb as soon as possible.
Lamp sensor
Drive to workshop
The lamp sensor is malfunctioning. The
headlamps switch on automatically.

In the control system, set lamp opera-
tion to manual (
page 152).

Switch on headlamps using the exteri-
or lamp switch.

Visit an authorized Mercedes-Benz
Center as soon as possible.
License plate lamp,
left
The left license plate lamp is malfunction-
ing.

Replace the bulb as soon as possible.
License plate lamp,
right

The right license plate lamp is malfunc-
tioning.

Replace the bulb as soon as possible.
Low beam, left
The left low beam lamp is malfunctioning.
Halogen headlamp:
Replace the bulb as soon as possible.
Bi-Xenon* headlamp:

Visit an authorized Mercedes-Benz
Center as soon as possible.

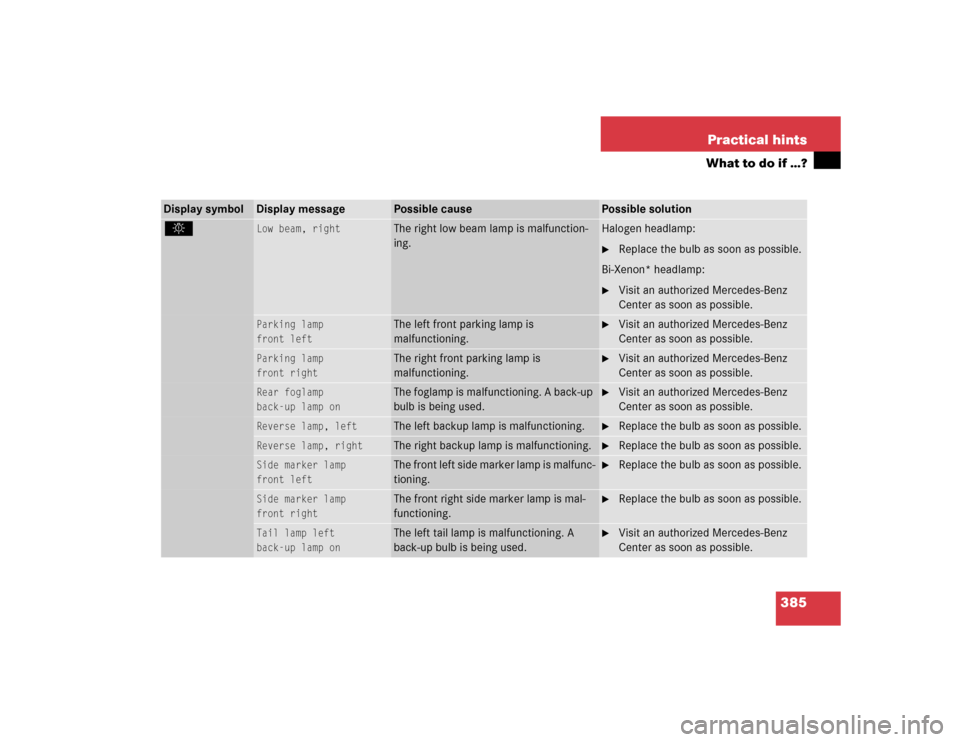

385 Practical hints
What to do if …?
Display symbol
Display message
Possible cause
Possible solution
.
Low beam, right
The right low beam lamp is malfunction-
ing.
Halogen headlamp:
Replace the bulb as soon as possible.
Bi-Xenon* headlamp:

Visit an authorized Mercedes-Benz
Center as soon as possible.
Parking lamp
front left

The left front parking lamp is
malfunctioning.

Visit an authorized Mercedes-Benz
Center as soon as possible.
Parking lamp
front right

The right front parking lamp is
malfunctioning.

Visit an authorized Mercedes-Benz
Center as soon as possible.
Rear foglamp
back-up lamp on

The foglamp is malfunctioning. A back-up
bulb is being used.

Visit an authorized Mercedes-Benz
Center as soon as possible.
Reverse lamp, left
The left backup lamp is malfunctioning.

Replace the bulb as soon as possible.
Reverse lamp, right
The right backup lamp is malfunctioning.

Replace the bulb as soon as possible.
Side marker lamp
front left
The front left side marker lamp is malfunc-
tioning.

Replace the bulb as soon as possible.
Side marker lamp
front right
The front right side marker lamp is mal-
functioning.

Replace the bulb as soon as possible.
Tail lamp left
back-up lamp on

The left tail lamp is malfunctioning. A
back-up bulb is being used.

Visit an authorized Mercedes-Benz
Center as soon as possible.

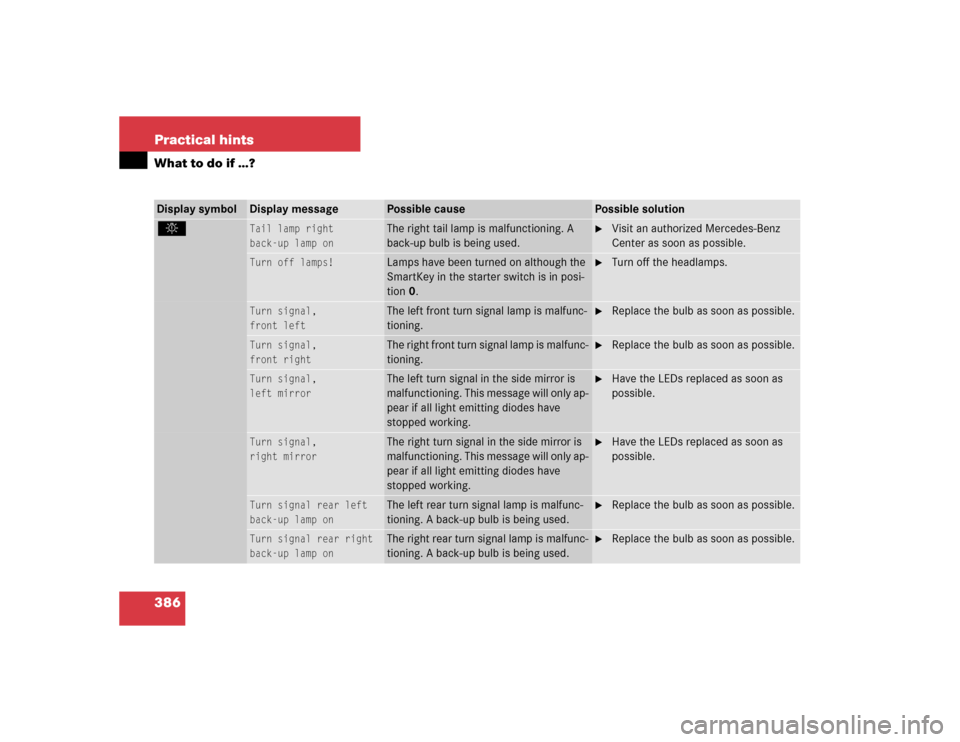

386 Practical hintsWhat to do if …?Display symbol
Display message
Possible cause
Possible solution
.
Tail lamp right
back-up lamp on

The right tail lamp is malfunctioning. A
back-up bulb is being used.

Visit an authorized Mercedes-Benz
Center as soon as possible.
Turn off lamps!
Lamps have been turned on although the
SmartKey in the starter switch is in posi-
tion 0.

Turn off the headlamps.
Turn signal,
front left
The left front turn signal lamp is malfunc-
tioning.

Replace the bulb as soon as possible.
Turn signal,
front right

T h e r i g h t f r o n t t u r n s i g n a l l a m p i s m a l f u n c-
tioning.

Replace the bulb as soon as possible.
Turn signal,
left mirror
The left turn signal in the side mirror is
malfunctioning. This message will only ap-
pear if all light emitting diodes have
stopped working.

Have the LEDs replaced as soon as
possible.
Turn signal,
right mirror
The right turn signal in the side mirror is
malfunctioning. This message will only ap-
pear if all light emitting diodes have
stopped working.

Have the LEDs replaced as soon as
possible.
Turn signal rear left
back-up lamp on

The left rear turn signal lamp is malfunc-
tioning. A back-up bulb is being used.

Replace the bulb as soon as possible.
Turn signal rear right
back-up lamp on

The right rear turn signal lamp is malfunc-
tioning. A back-up bulb is being used.

Replace the bulb as soon as possible.

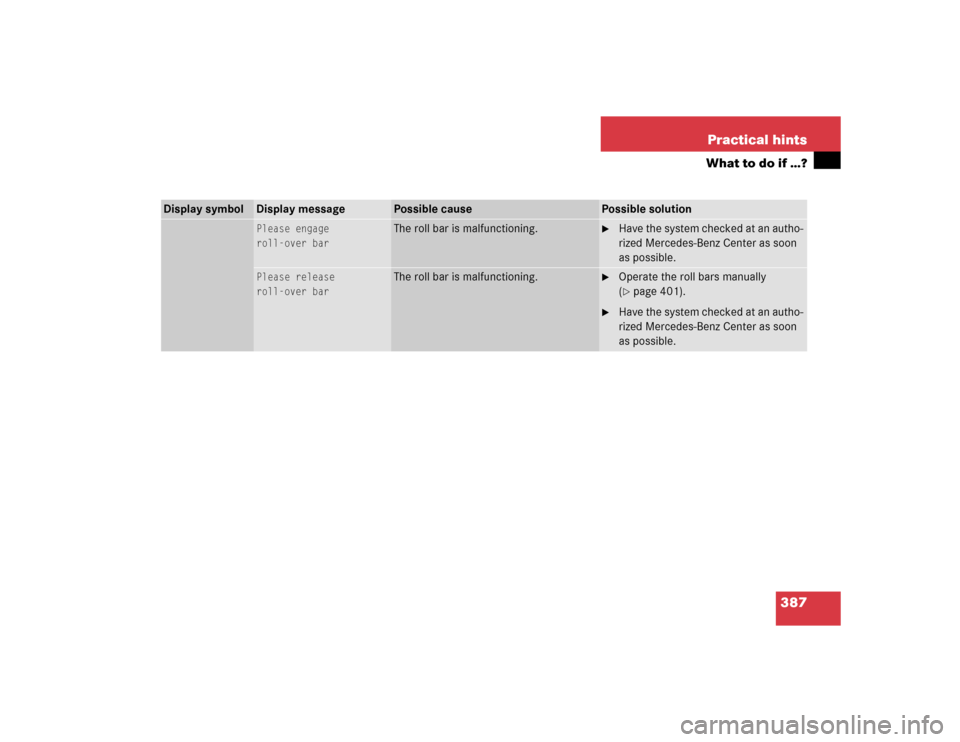

387 Practical hints
What to do if …?
Display symbol
Display message
Possible cause
Possible solution
Please engage
roll-over bar
The roll bar is malfunctioning.

Have the system checked at an autho-
rized Mercedes-Benz Center as soon
as possible.
Please release
roll-over bar
The roll bar is malfunctioning.

Operate the roll bars manually
(page 401).

Have the system checked at an autho-
rized Mercedes-Benz Center as soon
as possible.

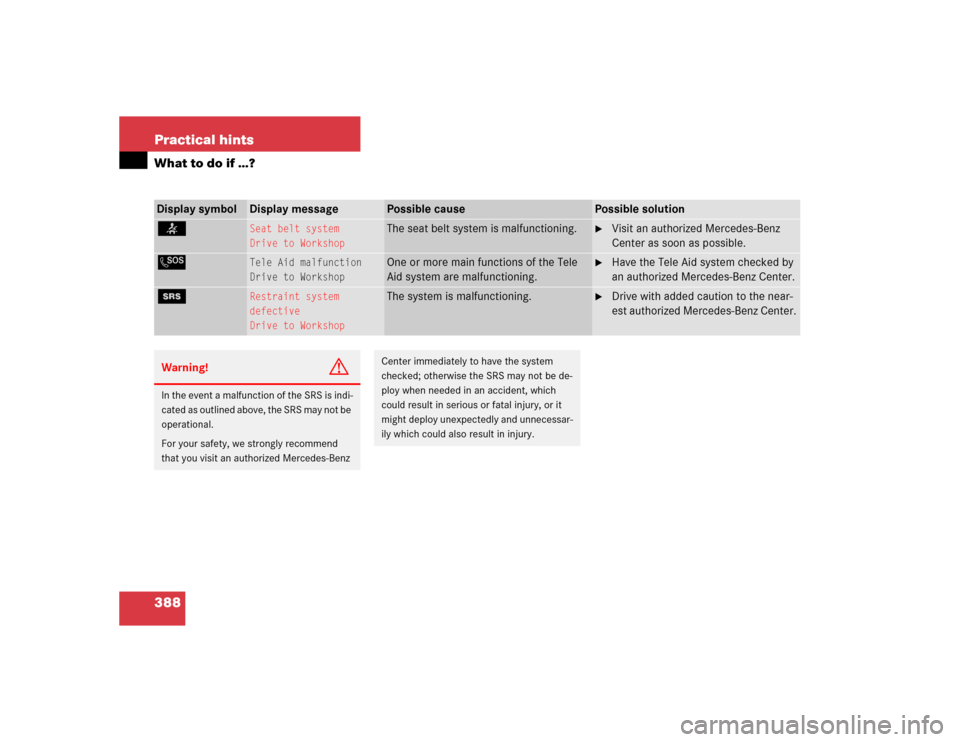

388 Practical hintsWhat to do if …?Display symbol
Display message
Possible cause
Possible solution
<
Seat belt system
Drive to Workshop
The seat belt system is malfunctioning.

Visit an authorized Mercedes-Benz
Center as soon as possible.
L
Tele Aid malfunction
Drive to Workshop
One or more main functions of the Tele
Aid system are malfunctioning.

Have the Tele Aid system checked by
an authorized Mercedes-Benz Center.
1
Restraint system
defective
Drive to Workshop
The system is malfunctioning.

Drive with added caution to the near-
est authorized Mercedes-Benz Center.
Warning!
G
In the event a malfunction of the SRS is indi-
cated as outlined above, the SRS may not be
operational.
For your safety, we strongly recommend
that you visit an authorized Mercedes-Benz
Center immediately to have the system
checked; otherwise the SRS may not be de-
ploy when needed in an accident, which
could result in serious or fatal injury, or it
might deploy unexpectedly and unnecessar-
ily which could also result in injury.

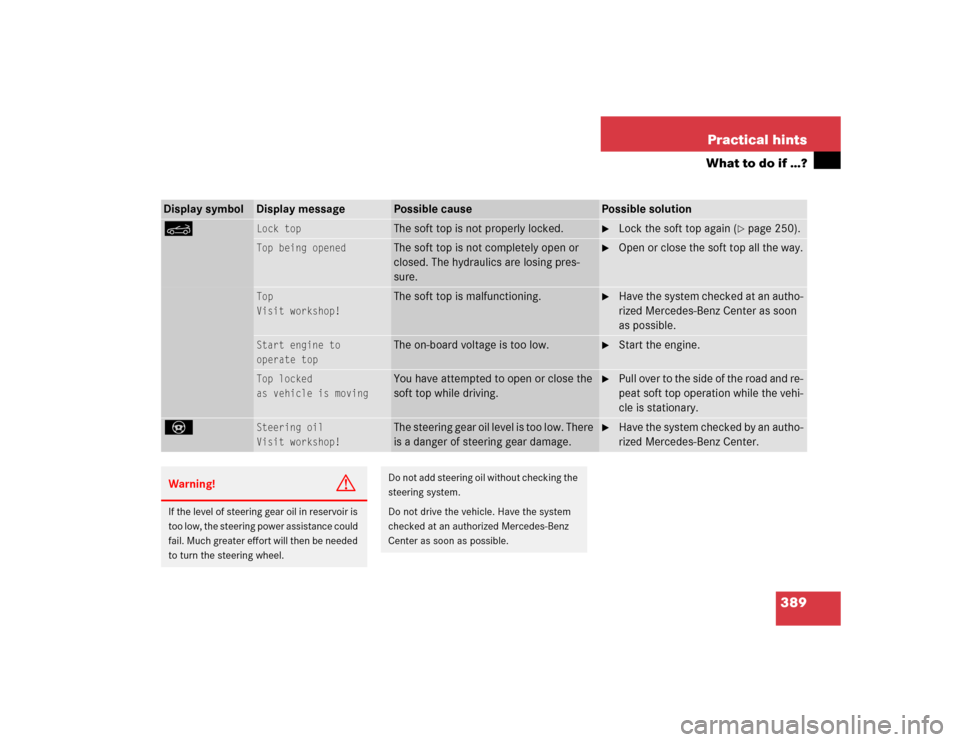

389 Practical hints
What to do if …?
Display symbol
Display message
Possible cause
Possible solution
K
Lock top
The soft top is not properly locked.

Lock the soft top again (
page 250).
Top being opened
The soft top is not completely open or
closed. The hydraulics are losing pres-
sure.

Open or close the soft top all the way.
Top
Visit workshop!
The soft top is malfunctioning.

Have the system checked at an autho-
rized Mercedes-Benz Center as soon
as possible.
Start engine to
operate top
The on-board voltage is too low.

Start the engine.
Top locked
as vehicle is moving
You have attempted to open or close the
soft top while driving.

Pull over to the side of the road and re-
peat soft top operation while the vehi-
cle is stationary.
_
Steering oil
Visit workshop!
The steering gear oil level is too low. There
is a danger of steering gear damage.

Have the system checked by an autho-
rized Mercedes-Benz Center.
Warning!
G
If the level of steering gear oil in reservoir is
too low, the steering power assistance could
fail. Much greater effort will then be needed
to turn the steering wheel.
Do not add steering oil without checking the
steering system.
Do not drive the vehicle. Have the system
checked at an authorized Mercedes-Benz
Center as soon as possible.
