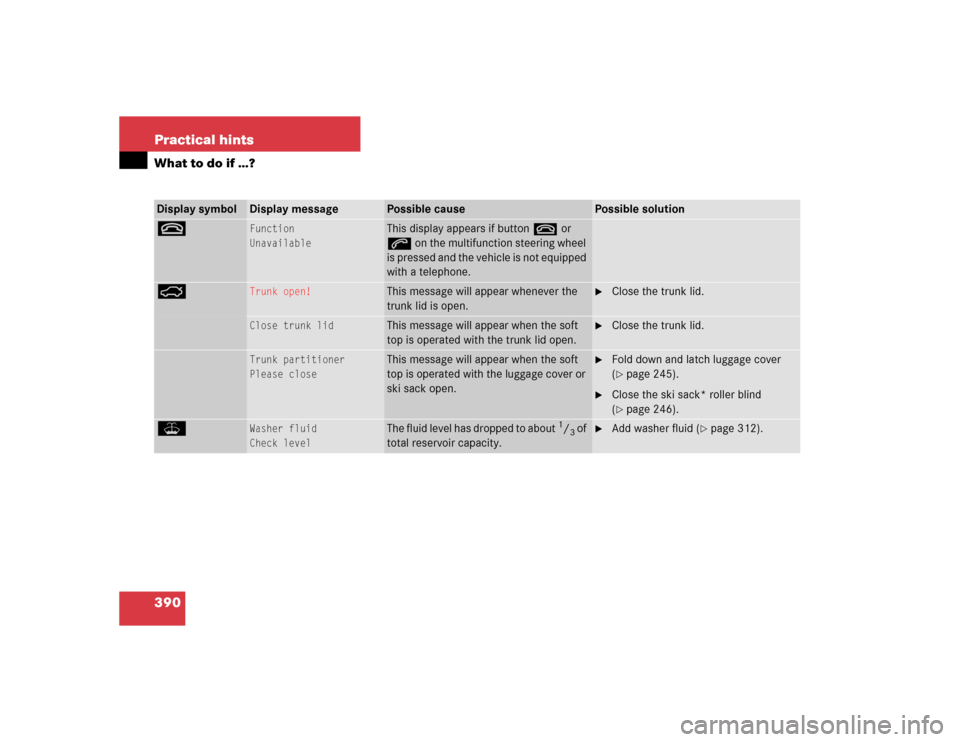

390 Practical hintsWhat to do if …?Display symbol
Display message
Possible cause
Possible solution
t
Function
Unavailable
This display appears if button t or
s on the multifunction steering wheel
is pressed and the vehicle is not equipped
with a telephone.
Ê
Trunk open!
This message will appear whenever the
trunk lid is open.

Close the trunk lid.
Close trunk lid
This message will appear when the soft
top is operated with the trunk lid open.

Close the trunk lid.
Trunk partitioner
Please close
This message will appear when the soft
top is operated with the luggage cover or
ski sack open.

Fold down and latch luggage cover
(page 245).

Close the ski sack* roller blind
(page 246).
W
Washer fluid
Check level
The fluid level has dropped to about
1/3 of
total reservoir capacity.

Add washer fluid (
page 312).

391 Practical hints
Where will I find...?
Where will I find...?

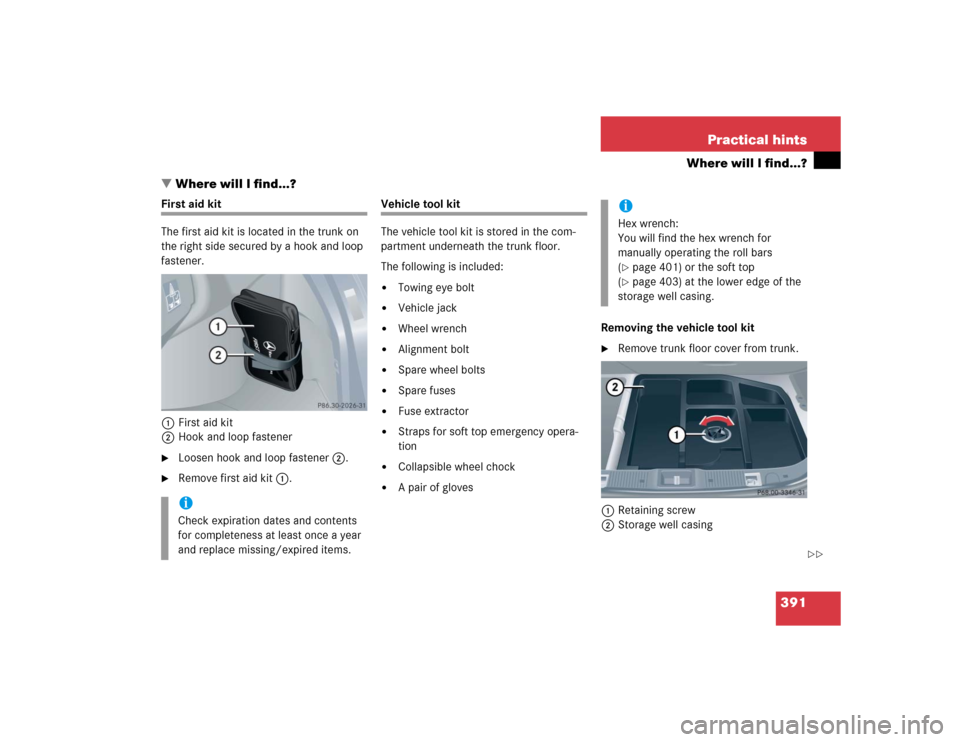

First aid kit
The first aid kit is located in the trunk on
the right side secured by a hook and loop
fastener.
1First aid kit
2Hook and loop fastener
Loosen hook and loop fastener2.

Remove first aid kit1.
Vehicle tool kit
The vehicle tool kit is stored in the com-
partment underneath the trunk floor.
The following is included:

Towing eye bolt


Vehicle jack


Wheel wrench


Alignment bolt


Spare wheel bolts


Spare fuses


Fuse extractor


Straps for soft top emergency opera-
tion


Collapsible wheel chock


A pair of gloves Removing the vehicle tool kit

Remove trunk floor cover from trunk.
1Retaining screw
2Storage well casing
iCheck expiration dates and contents
for completeness at least once a year
and replace missing/expired items.
iHex wrench:
You will find the hex wrench for
manually operating the roll bars
(page 401) or the soft top
(page 403) at the lower edge of the
storage well casing.


392 Practical hintsWhere will I find...?
Loosen retaining screw 1 in the mid-
dle of storage well casing 2 by turning
it counterclockwise.

Remove storage well casing2.
3Arrow
4Minispare wheel
5Vehicle tool kit storage well casing
6Vehicle tool kit

Remove vehicle tool kit6.Storing the vehicle tool kit

Place vehicle tool kit6 in vehicle tool
kit storage well casing5.

Place storage well casing2 over the
vehicle tool kit storage well casing5
and turn retaining screw1 clockwise
as far it will go to secure the Minispare
wheel.

Reinstall trunk floor cover in trunk.
iArrow3 on vehicle tool kit storage
well casing5 must point in the direc-
tion of travel. Otherwise you cannot
place the storage well casing2 on top
and secure the Minispare wheel with
retaining screw1.


393 Practical hints
Where will I find...?

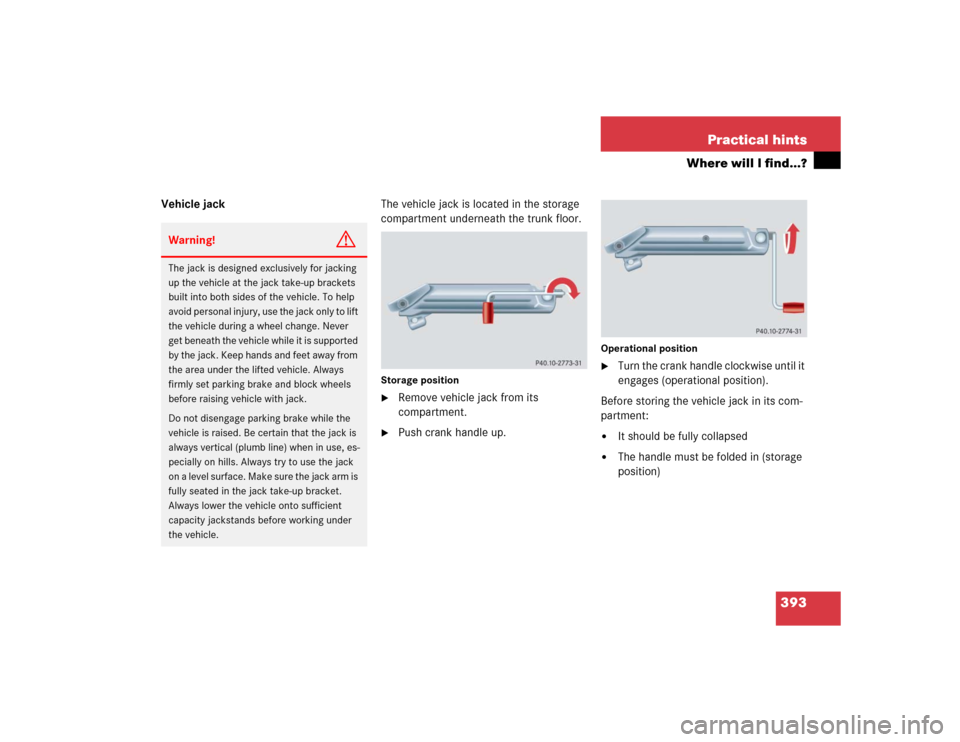

Vehicle jackThe vehicle jack is located in the storage
compartment underneath the trunk floor.
Storage position
Remove vehicle jack from its
compartment.

Push crank handle up.
Operational position
Turn the crank handle clockwise until it
engages (operational position).
Before storing the vehicle jack in its com-
partment:


It should be fully collapsed


The handle must be folded in (storage
position)
Warning!
G
The jack is designed exclusively for jacking
up the vehicle at the jack take-up brackets
built into both sides of the vehicle. To help
avoid personal injury, use the jack only to lift
the vehicle during a wheel change. Never
get beneath the vehicle while it is supported
by the jack. Keep hands and feet away from
the area under the lifted vehicle. Always
firmly set parking brake and block wheels
before raising vehicle with jack.
Do not disengage parking brake while the
vehicle is raised. Be certain that the jack is
always vertical (plumb line) when in use, es-
pecially on hills. Always try to use the jack
on a level surface. Make sure the jack arm is
fully seated in the jack take-up bracket.
Always lower the vehicle onto sufficient
capacity jackstands before working under
the vehicle.

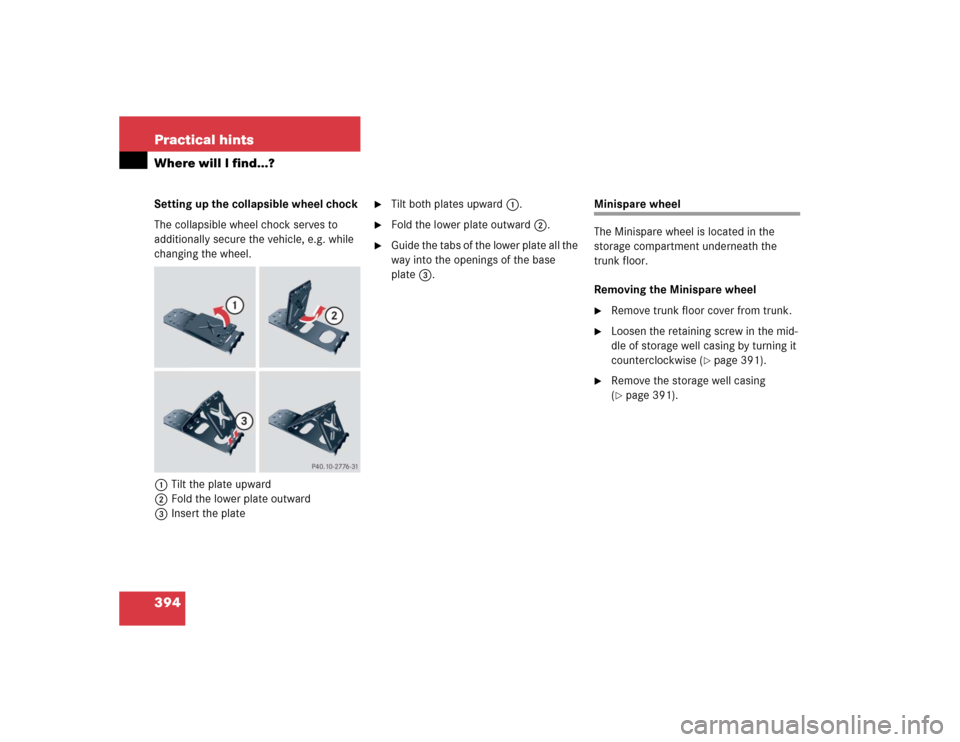

394 Practical hintsWhere will I find...?Setting up the collapsible wheel chock
The collapsible wheel chock serves to
additionally secure the vehicle, e.g. while
changing the wheel.
1Tilt the plate upward
2Fold the lower plate outward
3Insert the plate

Tilt both plates upward1.

Fold the lower plate outward2.

Guide the tabs of the lower plate all the
way into the openings of the base
plate3.
Minispare wheel
The Minispare wheel is located in the
storage compartment underneath the
trunk floor.
Removing the Minispare wheel
Remove trunk floor cover from trunk.

Loosen the retaining screw in the mid-
dle of storage well casing by turning it
counterclockwise (
page 391).

Remove the storage well casing
(page 391).

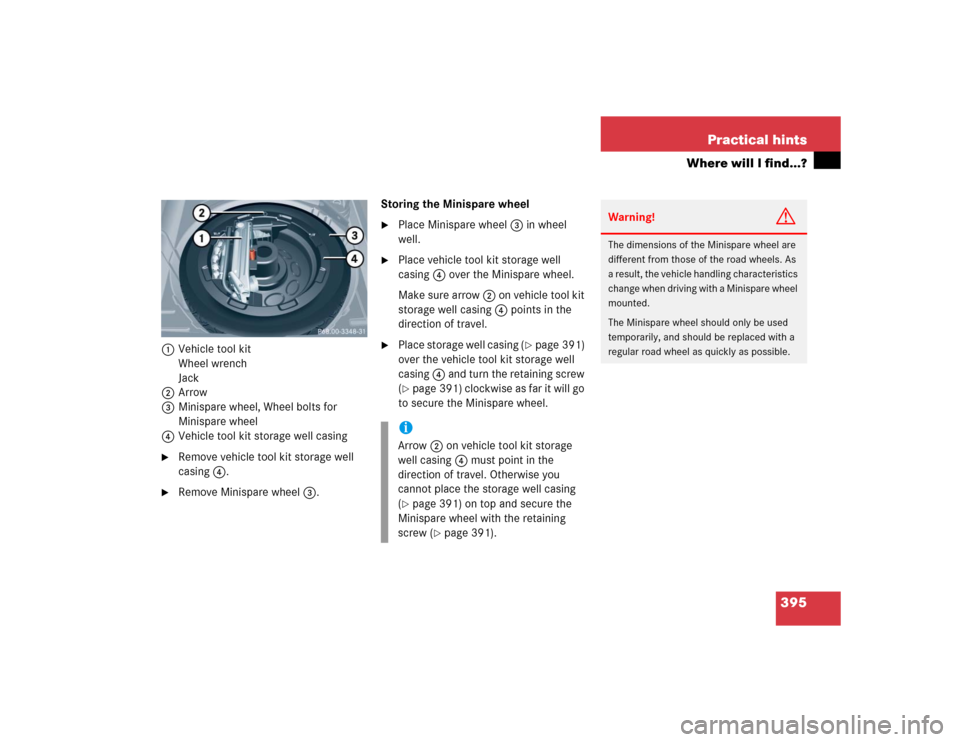

395 Practical hints
Where will I find...?
1Vehicle tool kit
Wheel wrench
Jack
2Arrow
3Minispare wheel, Wheel bolts for
Minispare wheel
4Vehicle tool kit storage well casing
Remove vehicle tool kit storage well
casing4.

Remove Minispare wheel3.Storing the Minispare wheel

Place Minispare wheel3 in wheel
well.

Place vehicle tool kit storage well
casing4 over the Minispare wheel.
Make sure arrow 2 on vehicle tool kit
storage well casing4 points in the
direction of travel.

Place storage well casing (
page 391)
over the vehicle tool kit storage well
casing 4 and turn the retaining screw
(
page 391) clockwise as far it will go
to secure the Minispare wheel.
iArrow2 on vehicle tool kit storage
well casing4 must point in the
direction of travel. Otherwise you
cannot place the storage well casing
(page 391) on top and secure the
Minispare wheel with the retaining
screw (
page 391).
Warning!
G
The dimensions of the Minispare wheel are
different from those of the road wheels. As
a result, the vehicle handling characteristics
change when driving with a Minispare wheel
mounted.
The Minispare wheel should only be used
temporarily, and should be replaced with a
regular road wheel as quickly as possible.

396 Practical hintsWhere will I find...?In the case of a flat tire, you may
temporarily use the Minispare wheel when
observing the following restrictions:

Do not exceed a vehicle speed of
50 mph (80 km/h).


Drive to the nearest tire repair facility
to have the flat tire repaired or
replaced as appropriate.


Do not operate vehicle with more than
one Minispare wheel mounted.
More information can be found in the
“Technical data” section (

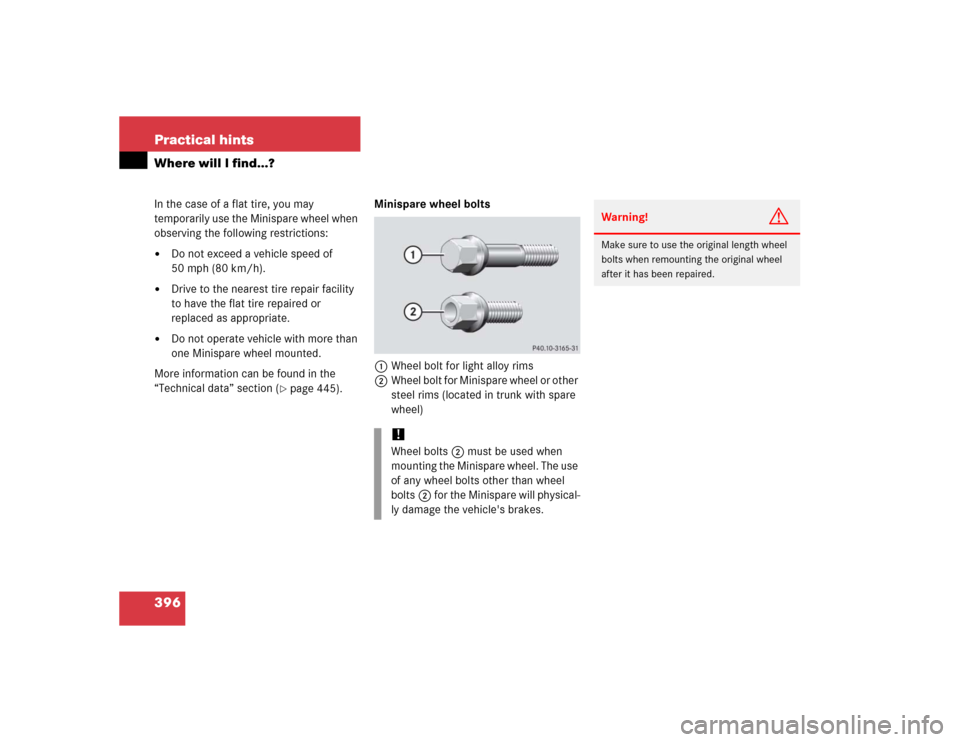

page 445).Minispare wheel bolts
1Wheel bolt for light alloy rims
2Wheel bolt for Minispare wheel or other
steel rims (located in trunk with spare
wheel)
!Wheel bolts2 must be used when
mounting the Minispare wheel. The use
of any wheel bolts other than wheel
bolts2 for the Minispare will physical-
ly damage the vehicle's brakes.
Warning!
G
Make sure to use the original length wheel
bolts when remounting the original wheel
after it has been repaired.

397 Practical hints
Unlocking/locking in an emergency
Unlocking/locking in an emergency

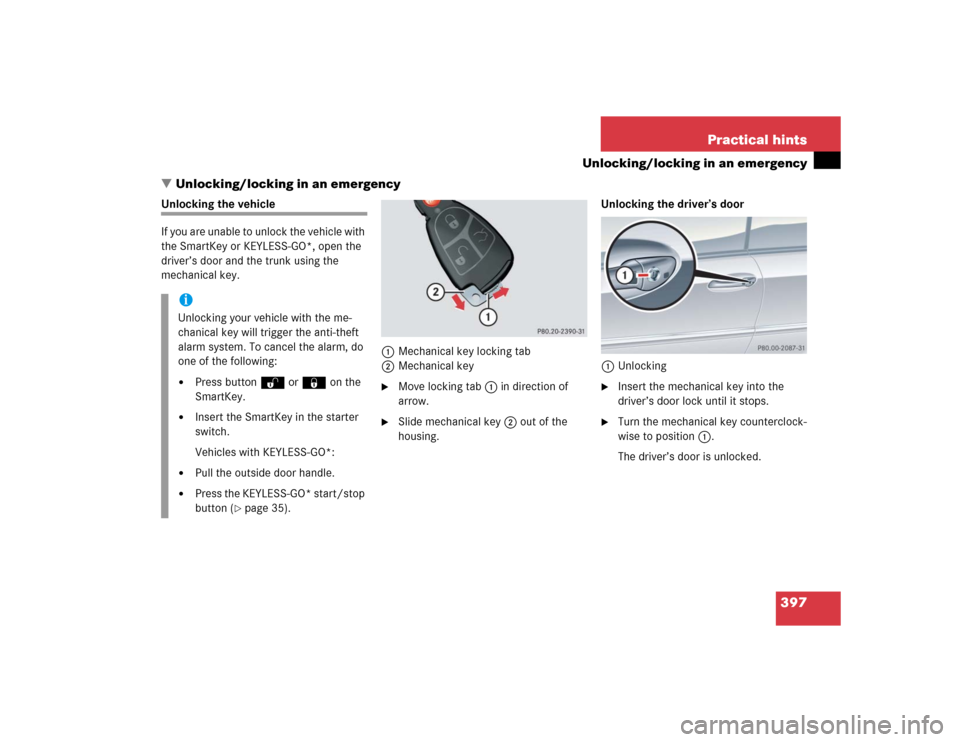

Unlocking the vehicle
If you are unable to unlock the vehicle with
the SmartKey or KEYLESS-GO*, open the
driver’s door and the trunk using the
mechanical key.
1Mechanical key locking tab
2Mechanical key

Move locking tab1 in direction of
arrow.

Slide mechanical key2 out of the
housing.Unlocking the driver’s door
1Unlocking

Insert the mechanical key into the
driver’s door lock until it stops.

Turn the mechanical key counterclock-
wise to position1.
The driver’s door is unlocked.
iUnlocking your vehicle with the me-
chanical key will trigger the anti-theft
alarm system. To cancel the alarm, do
one of the following:

Press button Œ or ‹ on the
SmartKey.


Insert the SmartKey in the starter
switch.
Vehicles with KEYLESS-GO*:


Pull the outside door handle.


Press the KEYLESS-GO* start/stop
button (
page 35).

398 Practical hintsUnlocking/locking in an emergencyUnlocking the trunk
A minimum height clearance of 5.41 ft
(1.65 m) is required to open the trunk lid.
The trunk lid lock is located next to the
handle above the rear license plate recess.
1Unlocking in an emergency
2Handle

Insert the mechanical key into the
trunk lid lock until it stops.

Turn the mechanical key
counterclockwise to position1 and
hold it in this position.

Pull the trunk lid handle2 and lift the
trunk lid.
The trunk opens.

Turn the mechanical key back and
remove it from the trunk lid lock.
Locking the vehicle
If you are unable to lock the vehicle with
the SmartKey, do the following:
Close the passenger door and the
trunk lid.

Press the central locking switch in the
center console (
page 110).

Check to see whether the locking knob
on the passenger door have moved
down.

If necessary push it down manually.
Except for the driver’s door, the vehicle
should now be locked.
! Always make sure there is sufficient
overhead clearance.

399 Practical hints
Unlocking/locking in an emergency
1Locking
Insert the mechanical key into the
driver’s door lock until it stops.

Turn the mechanical key clockwise to
position1.
The driver’s door is locked.

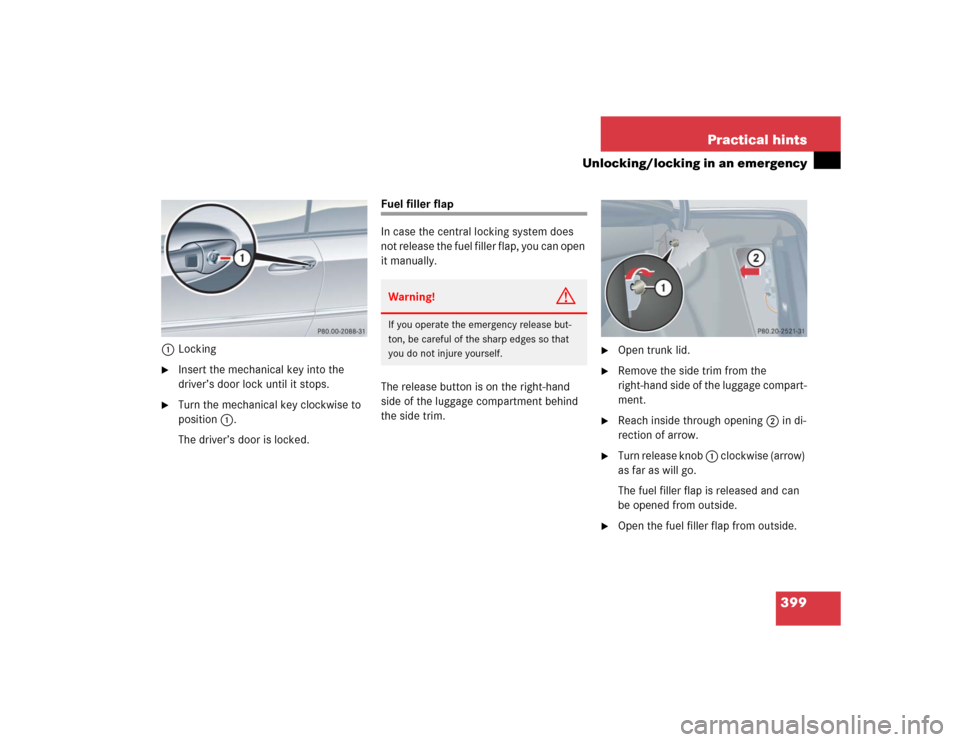

Fuel filler flap
In case the central locking system does
not release the fuel filler flap, you can open
it manually.
The release button is on the right-hand
side of the luggage compartment behind
the side trim.

Open trunk lid.

Remove the side trim from the
right-hand side of the luggage compart-
ment.

Reach inside through opening2 in di-
rection of arrow.

Turn release knob 1 clockwise (arrow)
as far as will go.
The fuel filler flap is released and can
be opened from outside.

Open the fuel filler flap from outside.
Warning!
G
If you operate the emergency release but-
ton, be careful of the sharp edges so that
you do not injure yourself.
