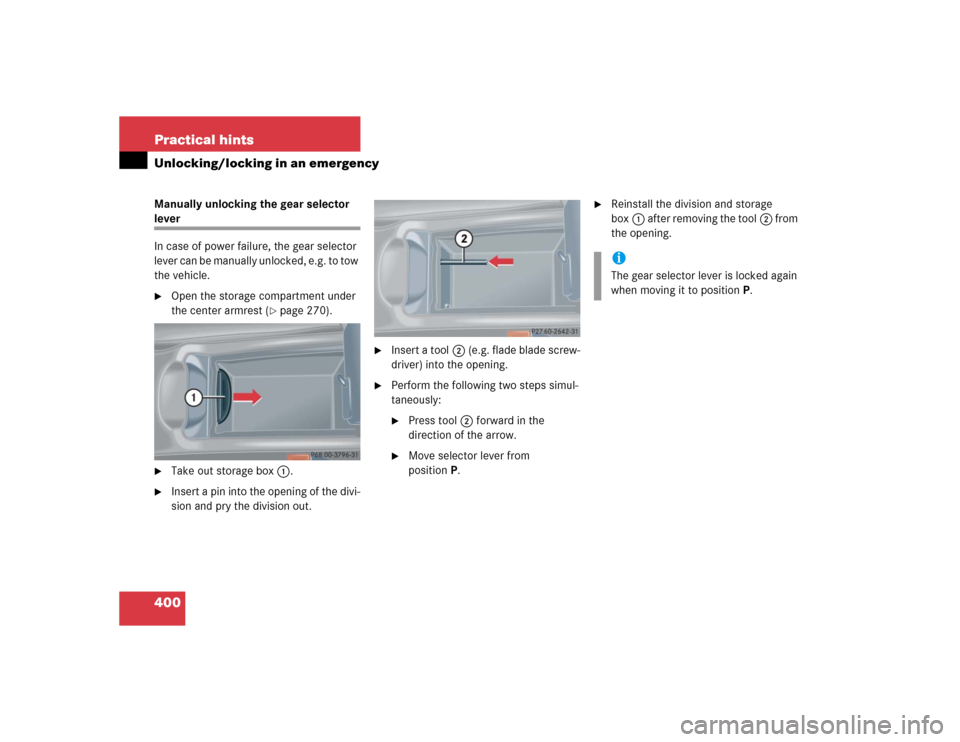

400 Practical hintsUnlocking/locking in an emergencyManually unlocking the gear selector lever
In case of power failure, the gear selector
lever can be manually unlocked, e.g. to tow
the vehicle.
Open the storage compartment under
the center armrest (
page 270).

Take out storage box1.

Insert a pin into the opening of the divi-
sion and pry the division out.

Insert a tool2 (e.g. flade blade screw-
driver) into the opening.

Perform the following two steps simul-
taneously:
Press tool2 forward in the
direction of the arrow.

Move selector lever from
positionP.

Reinstall the division and storage
box1 after removing the tool2 from
the opening.iThe gear selector lever is locked again
when moving it to positionP.

401 Practical hints
Opening/closing in an emergency
Opening/closing in an emergency
Operating roll bars manually
Releasing roll bars manually
If the roll bar system is malfunctioning, you
can release the roll bars manually.

Close the soft top (
page 248).

Open the trunk (
page 106).

Fold back the luggage cover
(page 245).

Open ski sack roller blind
(page 246).

Take hex wrench out of its storage

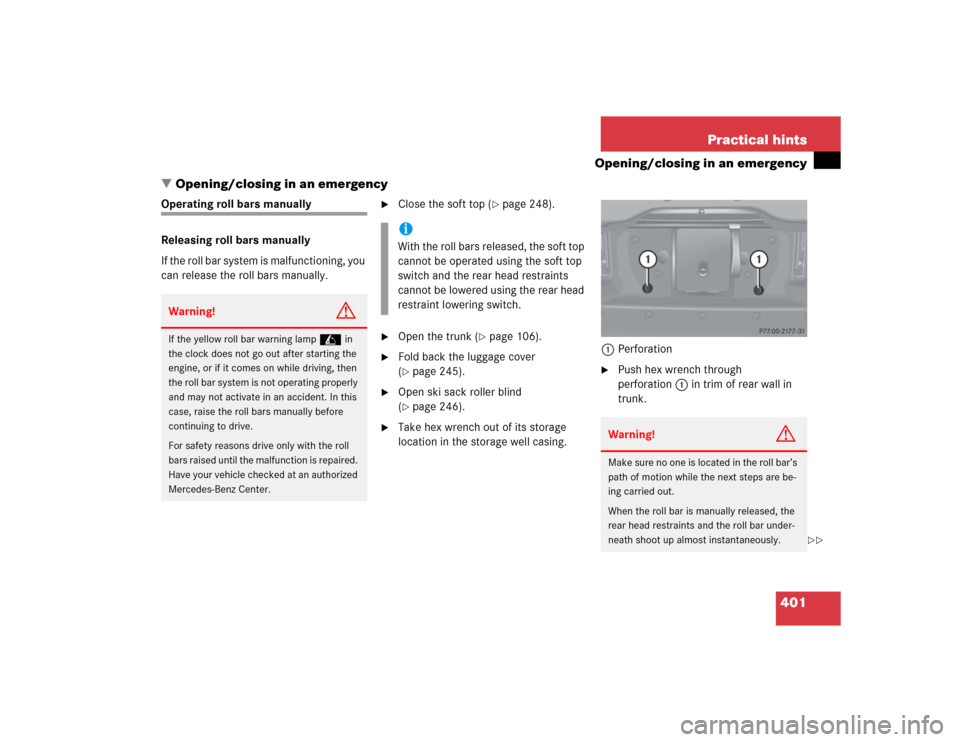

location in the storage well casing.1Perforation

Push hex wrench through
perforation1 in trim of rear wall in
trunk.
Warning!
G
If the yellow roll bar warning lamp in
the clock does not go out after starting the
engine, or if it comes on while driving, then
the roll bar system is not operating properly
and may not activate in an accident. In this
case, raise the roll bars manually before
continuing to drive.
For safety reasons drive only with the roll
bars raised until the malfunction is repaired.
Have your vehicle checked at an authorized
Mercedes-Benz Center.
iWith the roll bars released, the soft top
cannot be operated using the soft top
switch and the rear head restraints
cannot be lowered using the rear head
restraint lowering switch.
Warning!
G
Make sure no one is located in the roll bar’s
path of motion while the next steps are be-
ing carried out.
When the roll bar is manually released, the
rear head restraints and the roll bar under-
neath shoot up almost instantaneously.


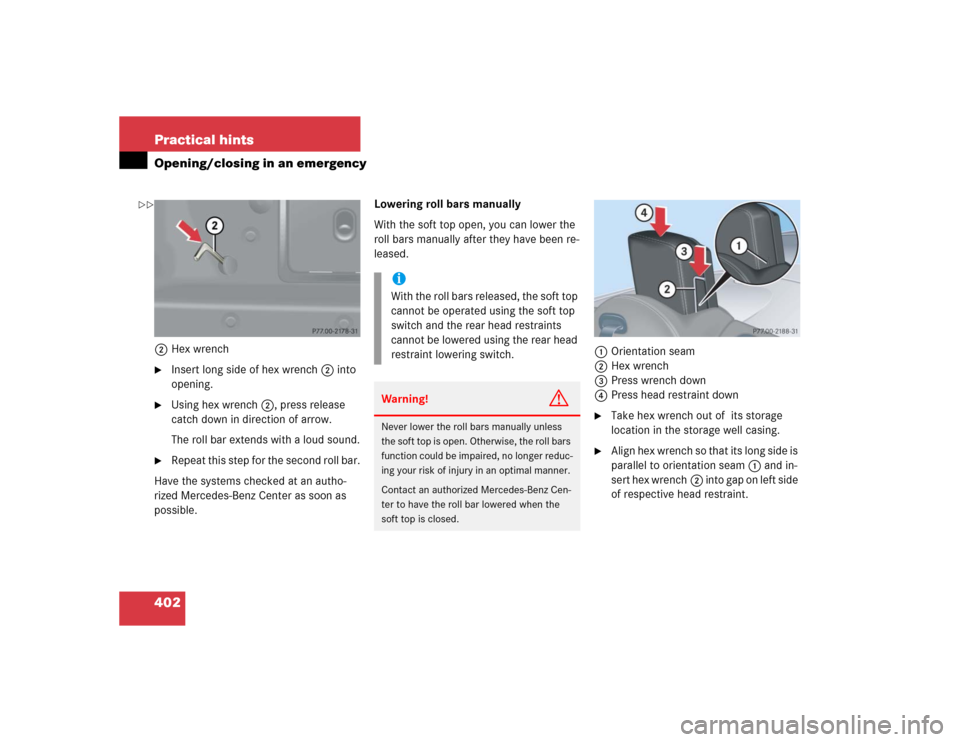

402 Practical hintsOpening/closing in an emergency2Hex wrench
Insert long side of hex wrench2 into
opening.

Using hex wrench 2, press release
catch down in direction of arrow.
The roll bar extends with a loud sound.

Repeat this step for the second roll bar.
Have the systems checked at an autho-
rized Mercedes-Benz Center as soon as
possible.Lowering roll bars manually
With the soft top open, you can lower the
roll bars manually after they have been re-
leased.
1Orientation seam
2Hex wrench
3Press wrench down
4Press head restraint down

Take hex wrench out of its storage
location in the storage well casing.

Align hex wrench so that its long side is
parallel to orientation seam1 and in-
sert hex wrench2 into gap on left side
of respective head restraint.
iWith the roll bars released, the soft top
cannot be operated using the soft top
switch and the rear head restraints
cannot be lowered using the rear head
restraint lowering switch.Warning!
G
Never lower the roll bars manually unless
the soft top is open. Otherwise, the roll bars
function could be impaired, no longer reduc-
ing your risk of injury in an optimal manner.
Contact an authorized Mercedes-Benz Cen-
ter to have the roll bar lowered when the
soft top is closed.


403 Practical hints
Opening/closing in an emergency

Press hex wrench down firmly in direc-
tion of arrow3 and hold.

Press head restraint down in direction
of arrow4.

Pull hex wrench 2 out and take weight
off head restraint.

Repeat this procedure on roll bar for
second head restraint.
Soft top emergency operation
If the soft top cannot be automatically
closed, check the following:

Is the luggage cover engaged in place
(page 245)?


Is the ski sack roller blind closed
(page 246)?


Have the roll bars been released? If so,
lower the roll bars manually
(page 402).


Is the trunk lid closed (
page 107)?


Is there sufficient on-board voltage?
Start the engine if necessary.
These messages will also appear in the
multifunction display (
page 390).
If automatic operation still does not func-
tion properly, you can close the soft top
manually.
This procedure should be performed with
great care by two persons.
!Manually closing the soft top is a com-
plicated and technically demanding
procedure. Close the soft top manually
in emergency cases only. Otherwise,
visit an authorized Mercedes-Benz
Center. Please read the instructions
fully before beginning operation and
only undertake it with another person
and if you feel fully capable of perform-
ing the tasks involved. Warning!
G


It is important that a second person
helps you. Otherwise, you could become
trapped or injured.


Remove any wristwatches or jewelry
such as rings or bracelets. Otherwise,
they could get caught in the vehicle
mechanism, causing personal injury to
yourself or damage to the vehicle.


Always use the grips provided and indi-
cated. Otherwise you could injure your-
self.

404 Practical hintsOpening/closing in an emergency
Engage parking brake.

Lower the side windows.

Lower rear head restraints
(page 115).

For safety reasons, remove SmartKey
from starter switch.

Open the trunk.

Remove the trunk floor cover.

Take the two straps for soft top emer-
gency operation out of vehicle tool kit
(page 391).

Take hex wrench out of its storage
location in the storage well casing.

Open the left side trim panel in the
trunk.1Locking mechanism

Pull locking mechanism1 out until it
stops and rotate it approx. one-quarter
of a turn.

Make sure the locking mechanism
does not retract again. If this happens,
pull the locking mechanism out again
and rotate it approx. one-quarter of a
turn.
iIf the rear head restraints cannot be
lowered using the rear head restraint
lowering switch, the roll bars may have
been released. For more information,
see “Operating roll bars manually”
(page 401).

405 Practical hints
Opening/closing in an emergency

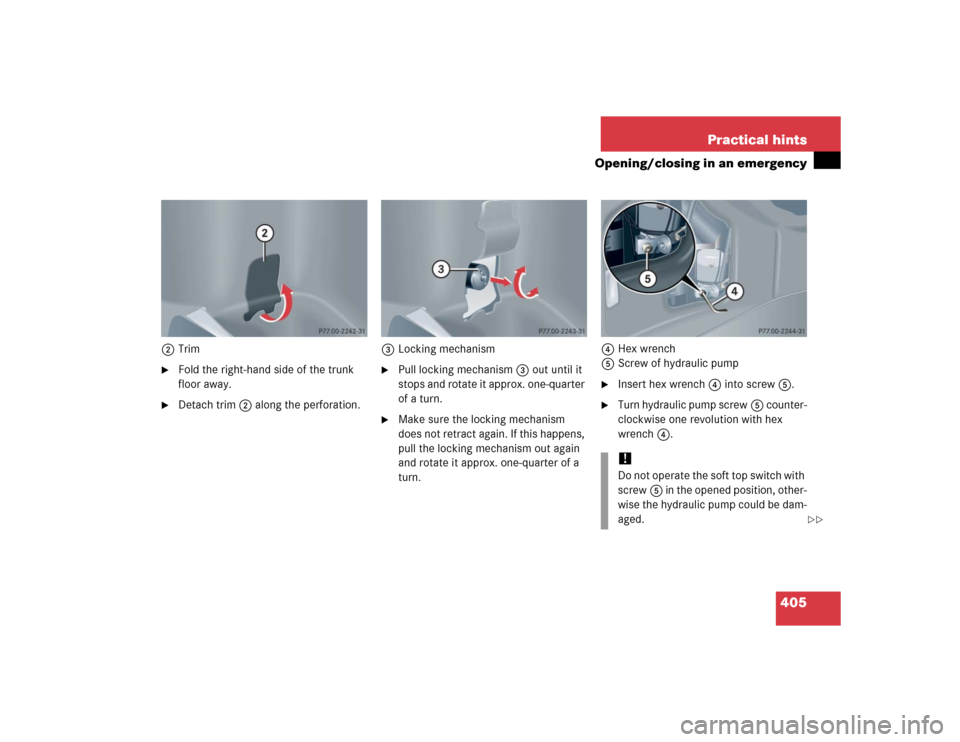

2Trim
Fold the right-hand side of the trunk
floor away.

Detach trim2 along the perforation.3Locking mechanism

Pull locking mechanism3 out until it
stops and rotate it approx. one-quarter
of a turn.

Make sure the locking mechanism
does not retract again. If this happens,
pull the locking mechanism out again
and rotate it approx. one-quarter of a
turn.4Hex wrench
5Screw of hydraulic pump

Insert hex wrench4 into screw5.

Turn hydraulic pump screw5 counter-
clockwise one revolution with hex
wrench4.!Do not operate the soft top switch with
screw5 in the opened position, other-
wise the hydraulic pump could be dam-
aged.


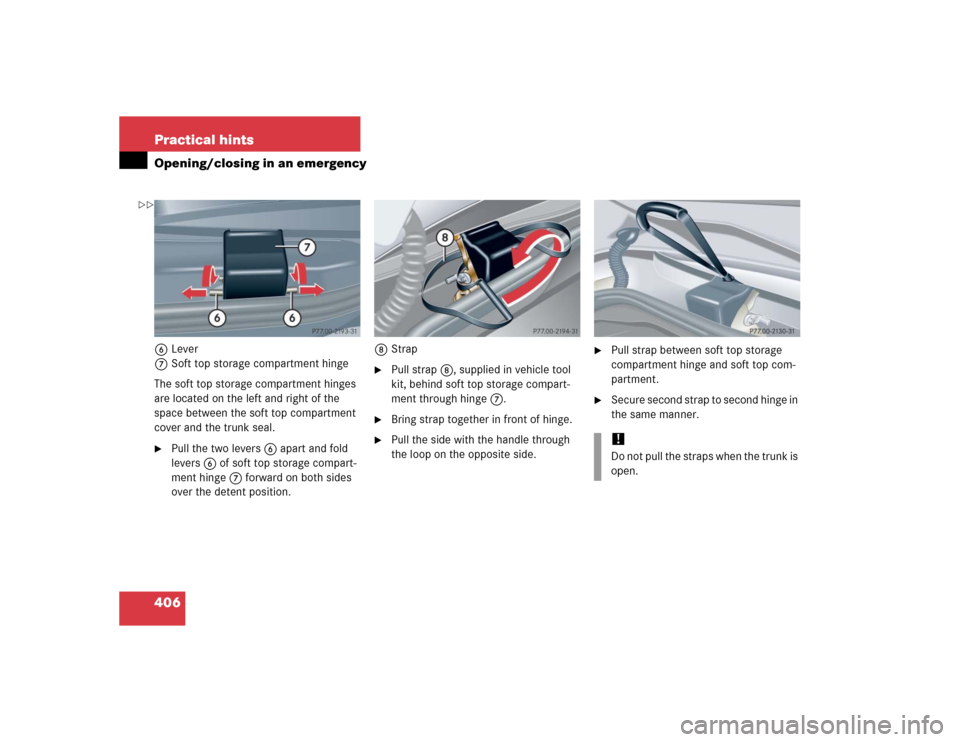

406 Practical hintsOpening/closing in an emergency6Lever
7Soft top storage compartment hinge
The soft top storage compartment hinges
are located on the left and right of the
space between the soft top compartment
cover and the trunk seal.
Pull the two levers6 apart and fold
levers6 of soft top storage compart-
ment hinge7 forward on both sides
over the detent position.8Strap

Pull strap8, supplied in vehicle tool
kit, behind soft top storage compart-
ment through hinge7.

Bring strap together in front of hinge.

Pull the side with the handle through
the loop on the opposite side.

Pull strap between soft top storage
compartment hinge and soft top com-
partment.

Secure second strap to second hinge in
the same manner.!Do not pull the straps when the trunk is
open.


407 Practical hints
Opening/closing in an emergency

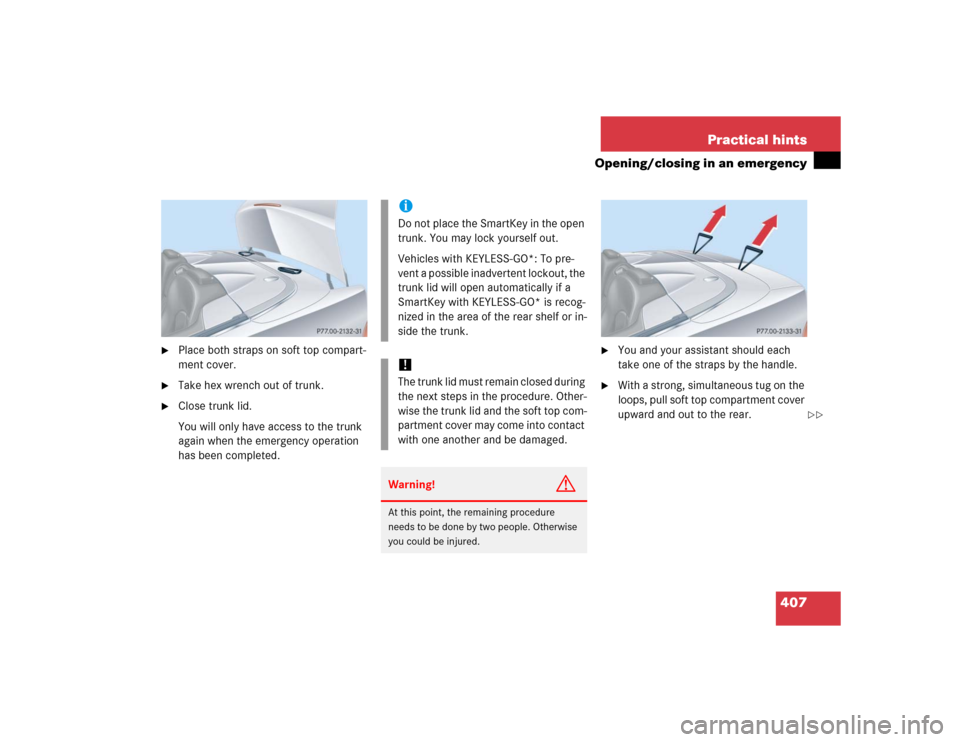

Place both straps on soft top compart-
ment cover.

Take hex wrench out of trunk.

Close trunk lid.
You will only have access to the trunk
again when the emergency operation
has been completed.

You and your assistant should each
take one of the straps by the handle.

With a strong, simultaneous tug on the
loops, pull soft top compartment cover
upward and out to the rear.
iDo not place the SmartKey in the open
trunk. You may lock yourself out.
Vehicles with KEYLESS-GO*: To pre-
vent a possible inadvertent lockout, the
trunk lid will open automatically if a
SmartKey with KEYLESS-GO* is recog-
nized in the area of the rear shelf or in-
side the trunk.!The trunk lid must remain closed during
the next steps in the procedure. Other-
wise the trunk lid and the soft top com-
partment cover may come into contact
with one another and be damaged.Warning!
G
At this point, the remaining procedure
needs to be done by two people. Otherwise
you could be injured.


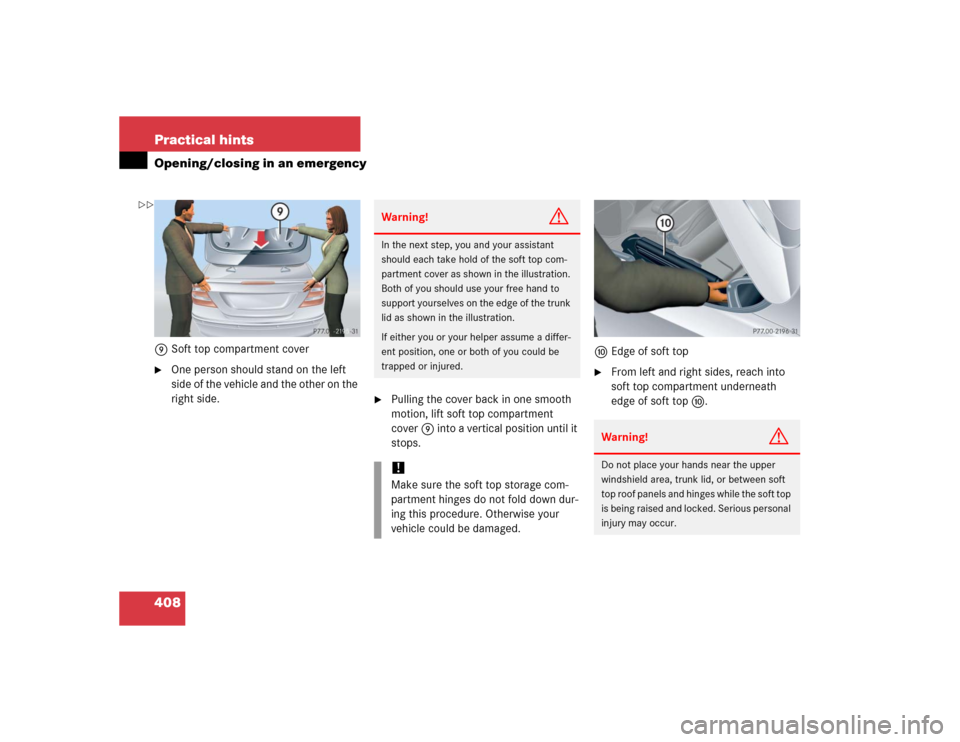

408 Practical hintsOpening/closing in an emergency9Soft top compartment cover
One person should stand on the left
side of the vehicle and the other on the
right side.

Pulling the cover back in one smooth
motion, lift soft top compartment
cover9 into a vertical position until it
stops.aEdge of soft top

From left and right sides, reach into
soft top compartment underneath
edge of soft topa.
Warning!
G
In the next step, you and your assistant
should each take hold of the soft top com-
partment cover as shown in the illustration.
Both of you should use your free hand to
support yourselves on the edge of the trunk
lid as shown in the illustration.
If either you or your helper assume a differ-
ent position, one or both of you could be
trapped or injured. !Make sure the soft top storage com-
partment hinges do not fold down dur-
ing this procedure. Otherwise your
vehicle could be damaged.
Warning!
G
Do not place your hands near the upper
windshield area, trunk lid, or between soft
top roof panels and hinges while the soft top
is being raised and locked. Serious personal
injury may occur.


409 Practical hints
Opening/closing in an emergency

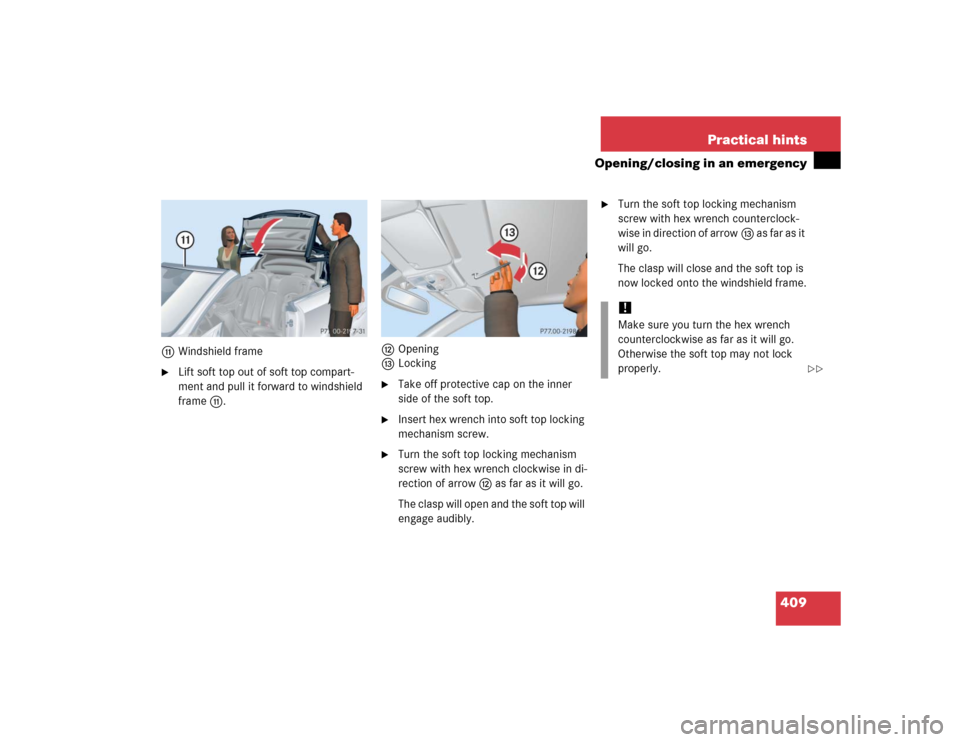

bWindshield frame
Lift soft top out of soft top compart-
ment and pull it forward to windshield
frameb.cOpening
dLocking

Take off protective cap on the inner
side of the soft top.

Insert hex wrench into soft top locking
mechanism screw.

Turn the soft top locking mechanism
screw with hex wrench clockwise in di-
rection of arrowc as far as it will go.
The clasp will open and the soft top will
engage audibly.

Turn the soft top locking mechanism
screw with hex wrench counterclock-
wise in direction of arrowd as far as it
will go.
The clasp will close and the soft top is
now locked onto the windshield frame.!Make sure you turn the hex wrench
counterclockwise as far as it will go.
Otherwise the soft top may not lock
properly.
