269 Controls in detail
Loading

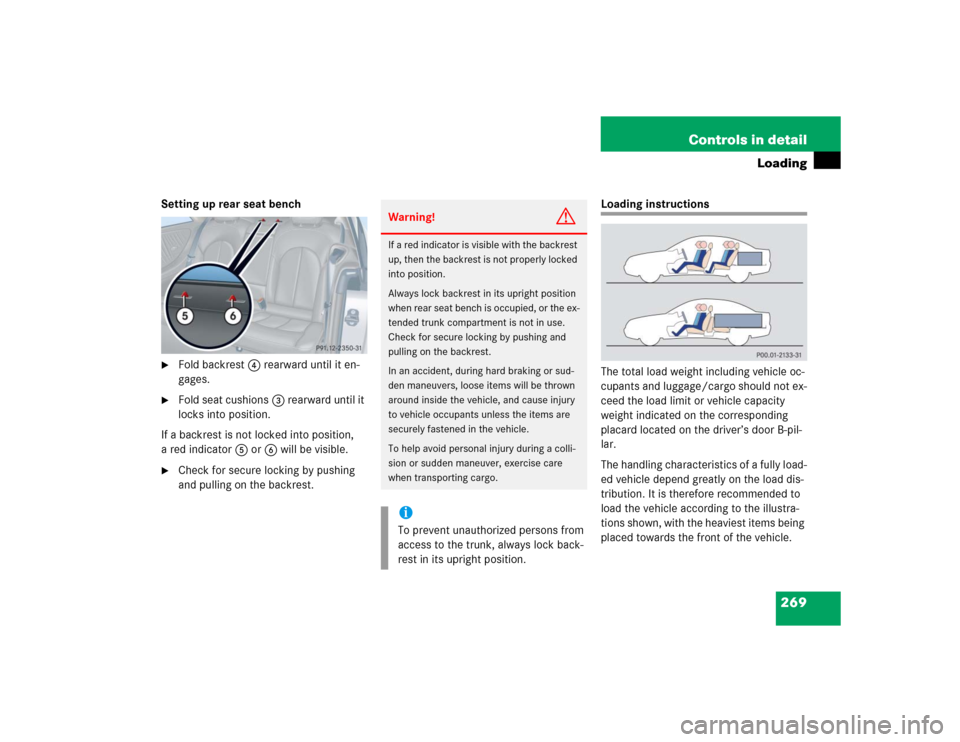

Setting up rear seat bench
Fold backrest4 rearward until it en-
gages.

Fold seat cushions3 rearward until it
locks into position.
If a backrest is not locked into position,
a red indicator5 or6 will be visible.

Check for secure locking by pushing
and pulling on the backrest.
Loading instructions
The total load weight including vehicle oc-
cupants and luggage/cargo should not ex-
ceed the load limit or vehicle capacity
weight indicated on the corresponding
placard located on the driver’s door B-pil-
lar.
The handling characteristics of a fully load-
ed vehicle depend greatly on the load dis-
tribution. It is therefore recommended to
load the vehicle according to the illustra-
tions shown, with the heaviest items being
placed towards the front of the vehicle.
Warning!
G
If a red indicator is visible with the backrest
up, then the backrest is not properly locked
into position.
Always lock backrest in its upright position
when rear seat bench is occupied, or the ex-
tended trunk compartment is not in use.
Check for secure locking by pushing and
pulling on the backrest.
In an accident, during hard braking or sud-
den maneuvers, loose items will be thrown
around inside the vehicle, and cause injury
to vehicle occupants unless the items are
securely fastened in the vehicle.
To help avoid personal injury during a colli-
sion or sudden maneuver, exercise care
when transporting cargo.iTo prevent unauthorized persons from
access to the trunk, always lock back-
rest in its upright position.

270 Controls in detailLoadingAlways place items being carried against
front or rear seat backrests, and fasten
them as securely as possible.
The heaviest portion of the cargo should al-
ways be kept as low as possible since it in-
fluences the handling characteristics of
the vehicle.
Warning!
G
Always fasten items being carried as secure-
ly as possible.
In an accident, during hard braking or sud-
den maneuvers, loose items will be thrown
around inside the vehicle and can cause in-
jury to vehicle occupants unless the items
are securely fastened in the vehicle.
To help avoid personal injury during a colli-
sion or sudden maneuver, exercise care
when transporting cargo. Put luggage or car-
go in the trunk if possible.
Never drive vehicle with trunk open. Deadly
carbon monoxide (CO) gases may enter ve-
hicle interior resulting in unconsciousness
and death.
iThe trunk is the preferred place to carry
objects.
The enlarged cargo area should only be
used for items which do not fit in the
trunk alone.

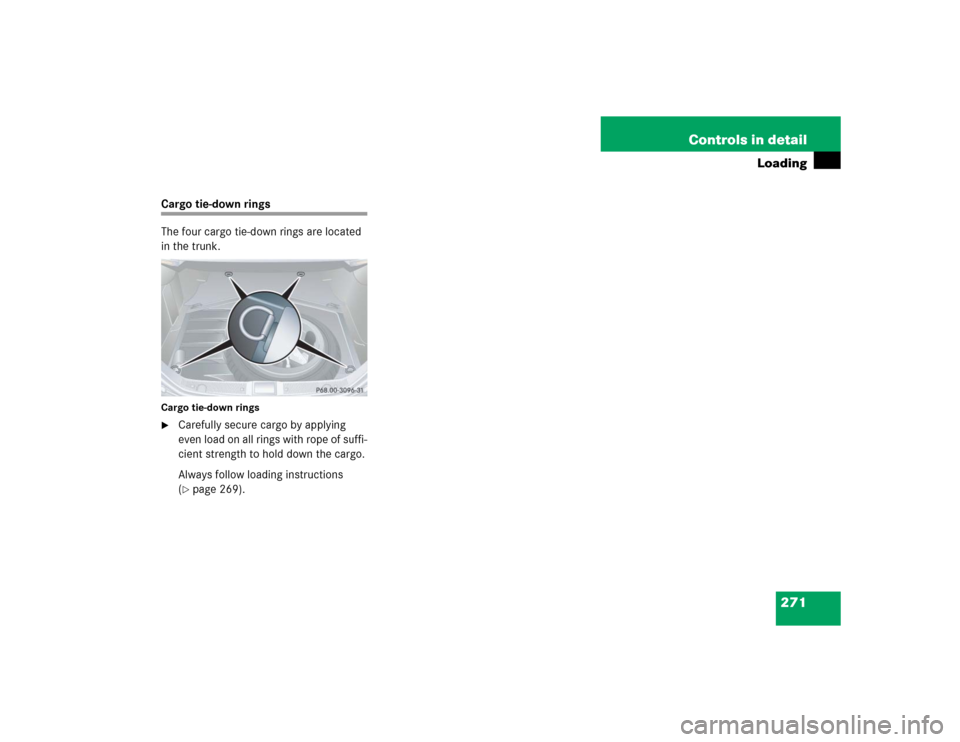

271 Controls in detail
Loading
Cargo tie-down rings
The four cargo tie-down rings are located
in the trunk.Cargo tie-down rings
Carefully secure cargo by applying
even load on all rings with rope of suffi-
cient strength to hold down the cargo.
Always follow loading instructions
(page 269).

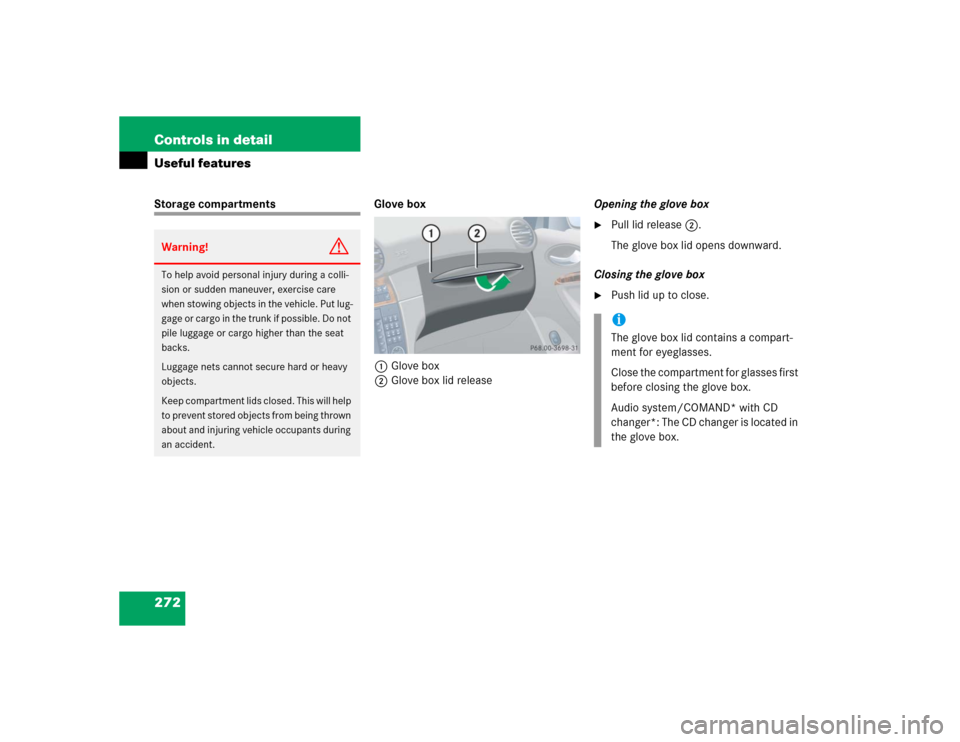

272 Controls in detailUseful featuresStorage compartments Glove box
1Glove box
2Glove box lid releaseOpening the glove box

Pull lid release2.
The glove box lid opens downward.
Closing the glove box

Push lid up to close.
Warning!
G
To help avoid personal injury during a colli-
sion or sudden maneuver, exercise care
when stowing objects in the vehicle. Put lug-
g a g e o r c a r g o i n t h e t r u n k i f p o s s i b l e . D o n o t
pile luggage or cargo higher than the seat
backs.
Luggage nets cannot secure hard or heavy
objects.
Keep compartment lids closed. This will help
to prevent stored objects from being thrown
about and injuring vehicle occupants during
an accident.
iThe glove box lid contains a compart-
ment for eyeglasses.
Close the compartment for glasses first
before closing the glove box.
Audio system/COMAND* with CD
changer*: The CD changer is located in
the glove box.

273 Controls in detail
Useful features

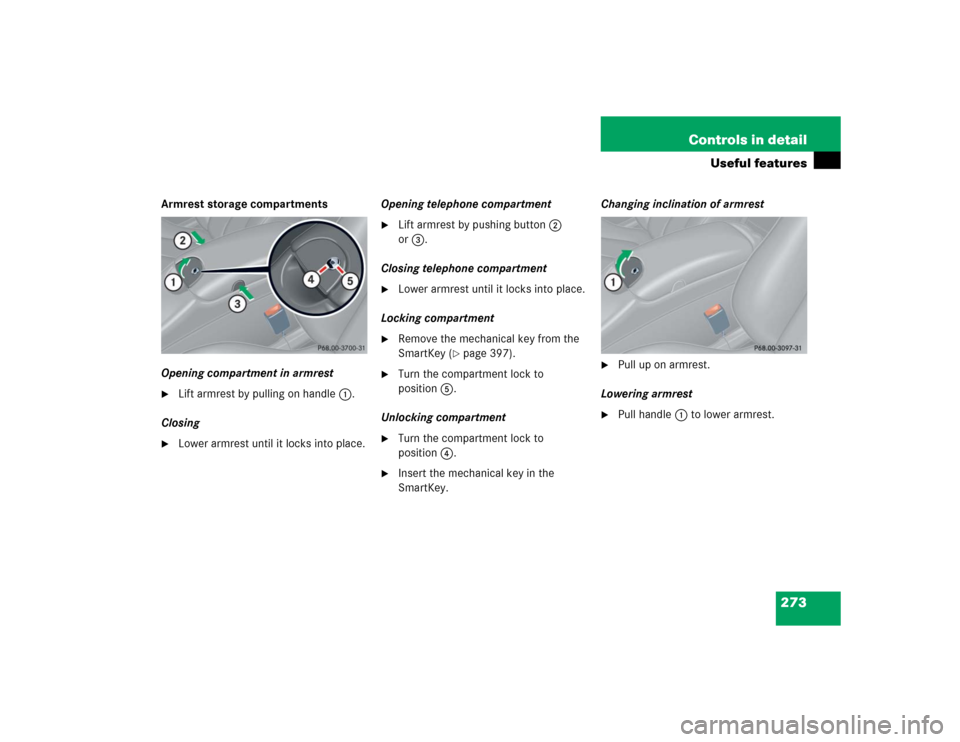

Armrest storage compartments
Opening compartment in armrest
Lift armrest by pulling on handle1.
Closing

Lower armrest until it locks into place.Opening telephone compartment

Lift armrest by pushing button2
or3.
Closing telephone compartment

Lower armrest until it locks into place.
Locking compartment

Remove the mechanical key from the
SmartKey (
page 397).

Turn the compartment lock to
position5.
Unlocking compartment

Turn the compartment lock to
position4.

Insert the mechanical key in the
SmartKey.Changing inclination of armrest

Pull up on armrest.
Lowering armrest

Pull handle1 to lower armrest.

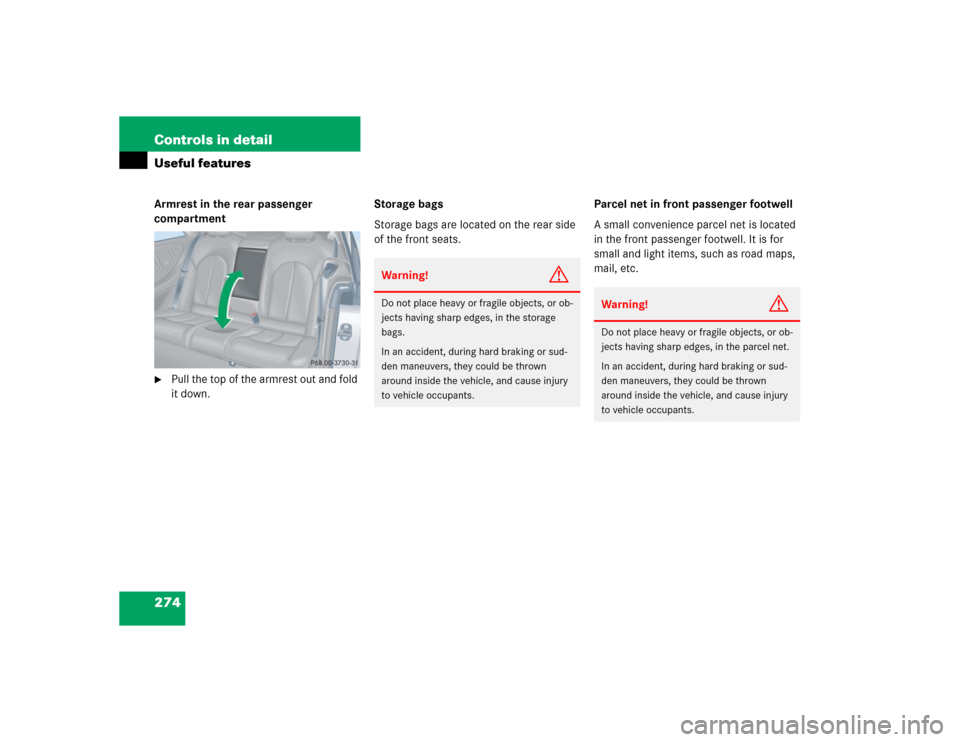

274 Controls in detailUseful featuresArmrest in the rear passenger
compartment
Pull the top of the armrest out and fold
it down.Storage bags
Storage bags are located on the rear side
of the front seats.Parcel net in front passenger footwell
A small convenience parcel net is located
in the front passenger footwell. It is for
small and light items, such as road maps,
mail, etc.
Warning!
G
Do not place heavy or fragile objects, or ob-
jects having sharp edges, in the storage
bags.
In an accident, during hard braking or sud-
den maneuvers, they could be thrown
around inside the vehicle, and cause injury
to vehicle occupants.
Warning!
G
Do not place heavy or fragile objects, or ob-
jects having sharp edges, in the parcel net.
In an accident, during hard braking or sud-
den maneuvers, they could be thrown
around inside the vehicle, and cause injury
to vehicle occupants.

275 Controls in detail
Useful features

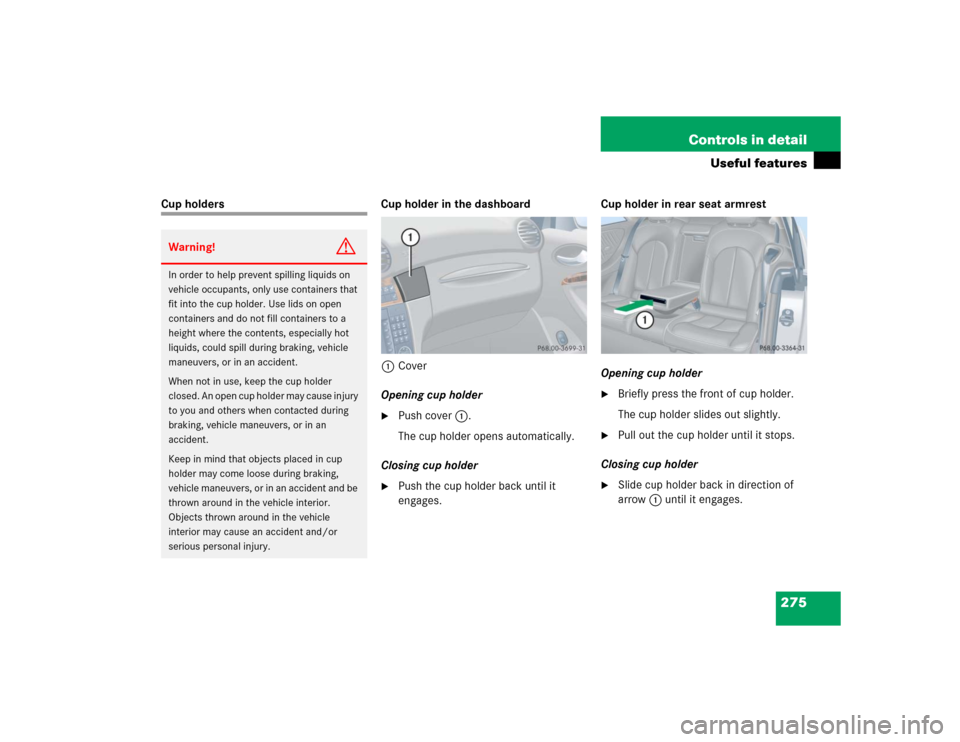

Cup holders Cup holder in the dashboard
1Cover
Opening cup holder

Push cover1.
The cup holder opens automatically.
Closing cup holder

Push the cup holder back until it
engages.Cup holder in rear seat armrest
Opening cup holder

Briefly press the front of cup holder.
The cup holder slides out slightly.

Pull out the cup holder until it stops.
Closing cup holder

Slide cup holder back in direction of
arrow1 until it engages.
Warning!
G
In order to help prevent spilling liquids on
vehicle occupants, only use containers that
fit into the cup holder. Use lids on open
containers and do not fill containers to a
height where the contents, especially hot
liquids, could spill during braking, vehicle
maneuvers, or in an accident.
When not in use, keep the cup holder
closed. An open cup holder may cause injury
to you and others when contacted during
braking, vehicle maneuvers, or in an
accident.
Keep in mind that objects placed in cup
holder may come loose during braking,
vehicle maneuvers, or in an accident and be
thrown around in the vehicle interior.
Objects thrown around in the vehicle
interior may cause an accident and/or
serious personal injury.

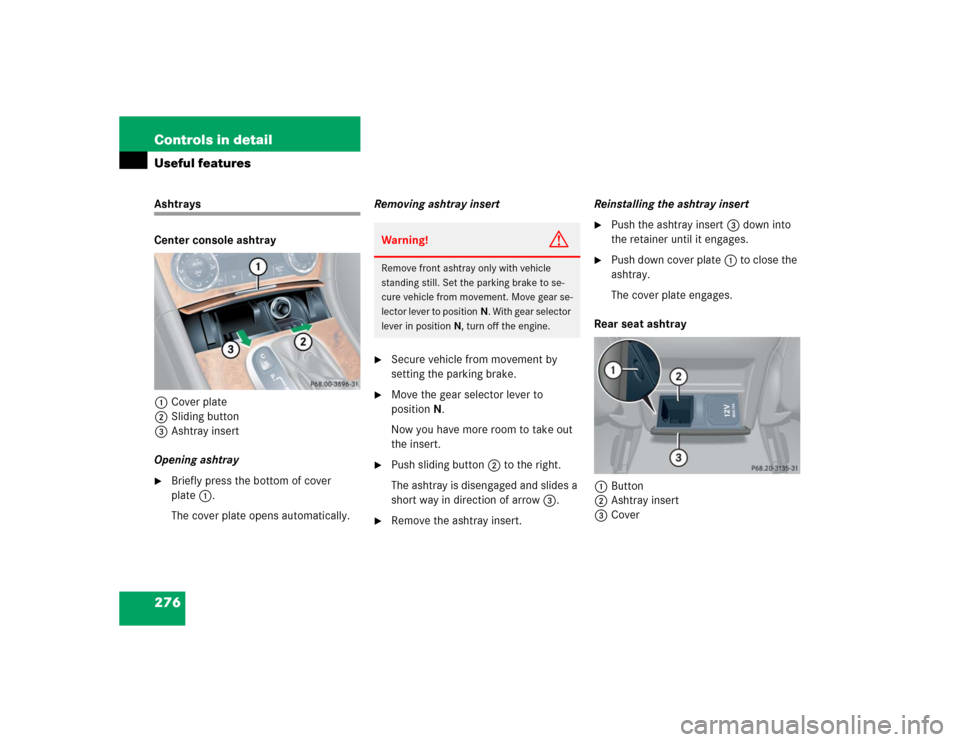

276 Controls in detailUseful featuresAshtrays
Center console ashtray
1Cover plate
2Sliding button
3Ashtray insert
Opening ashtray
Briefly press the bottom of cover
plate1.
The cover plate opens automatically.Removing ashtray insert

Secure vehicle from movement by
setting the parking brake.

Move the gear selector lever to
positionN.
Now you have more room to take out
the insert.

Push sliding button2 to the right.
The ashtray is disengaged and slides a
short way in direction of arrow3.

Remove the ashtray insert.Reinstalling the ashtray insert

Push the ashtray insert 3 down into
the retainer until it engages.

Push down cover plate 1 to close the
ashtray.
The cover plate engages.
Rear seat ashtray
1Button
2Ashtray insert
3Cover
Warning!
G
Remove front ashtray only with vehicle
standing still. Set the parking brake to se-
cure vehicle from movement. Move gear se-
lector lever to positionN. With gear selector
lever in positionN, turn off the engine.

277 Controls in detail
Useful features
Opening ashtray
Pull at top of cover3.
Removing ashtray insert

Push button1 to disengage ashtray
insert2 and remove it.
Reinstalling ashtray insert

Push the ashtray insert2 down into
the retainer until it engages.

Push at top of cover3 to close
ashtray.

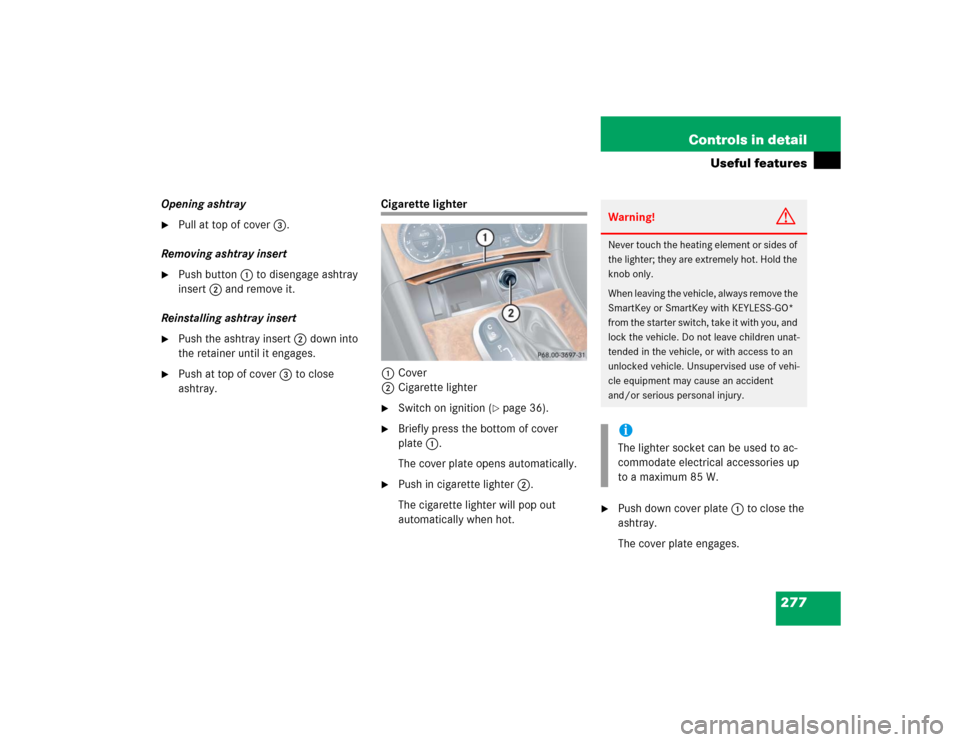

Cigarette lighter
1Cover
2Cigarette lighter
Switch on ignition (
page 36).

Briefly press the bottom of cover
plate1.
The cover plate opens automatically.

Push in cigarette lighter2.
The cigarette lighter will pop out
automatically when hot.

Push down cover plate 1 to close the
ashtray.
The cover plate engages.Warning!
G
Never touch the heating element or sides of
the lighter; they are extremely hot. Hold the
knob only.
When leaving the vehicle, always remove the
SmartKey or SmartKey with KEYLESS-GO*
from the starter switch, take it with you, and
lock the vehicle. Do not leave children unat-
tended in the vehicle, or with access to an
unlocked vehicle. Unsupervised use of vehi-
cle equipment may cause an accident
and/or serious personal injury.iThe lighter socket can be used to ac-
commodate electrical accessories up
to a maximum 85 W.

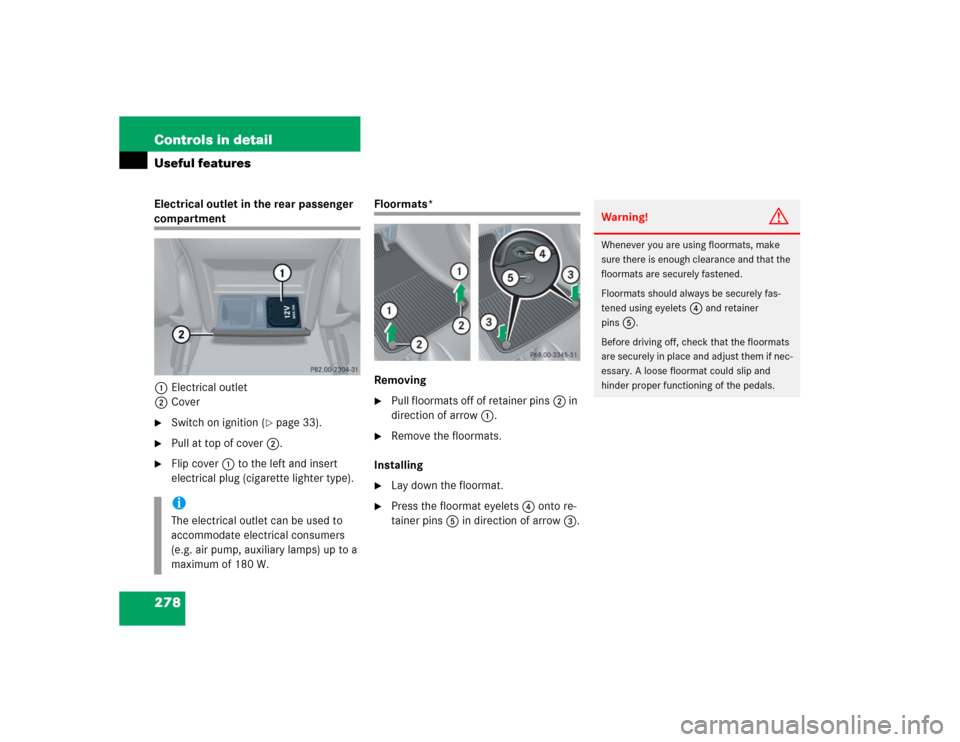

278 Controls in detailUseful featuresElectrical outlet in the rear passenger compartment
1Electrical outlet
2Cover
Switch on ignition (
page 33).

Pull at top of cover2.

Flip cover1 to the left and insert
electrical plug (cigarette lighter type).
Floormats*
Removing
Pull floormats off of retainer pins2 in
direction of arrow1.

Remove the floormats.
Installing

Lay down the floormat.

Press the floormat eyelets4 onto re-
tainer pins5 in direction of arrow3.
iThe electrical outlet can be used to
accommodate electrical consumers
(e.g. air pump, auxiliary lamps) up to a
maximum of 180 W.
Warning!
G
Whenever you are using floormats, make
sure there is enough clearance and that the
floormats are securely fastened.
Floormats should always be securely fas-
tened using eyelets
4
and retainer
pins
5
.
Before driving off, check that the floormats
are securely in place and adjust them if nec-
essary. A loose floormat could slip and
hinder proper functioning of the pedals.
