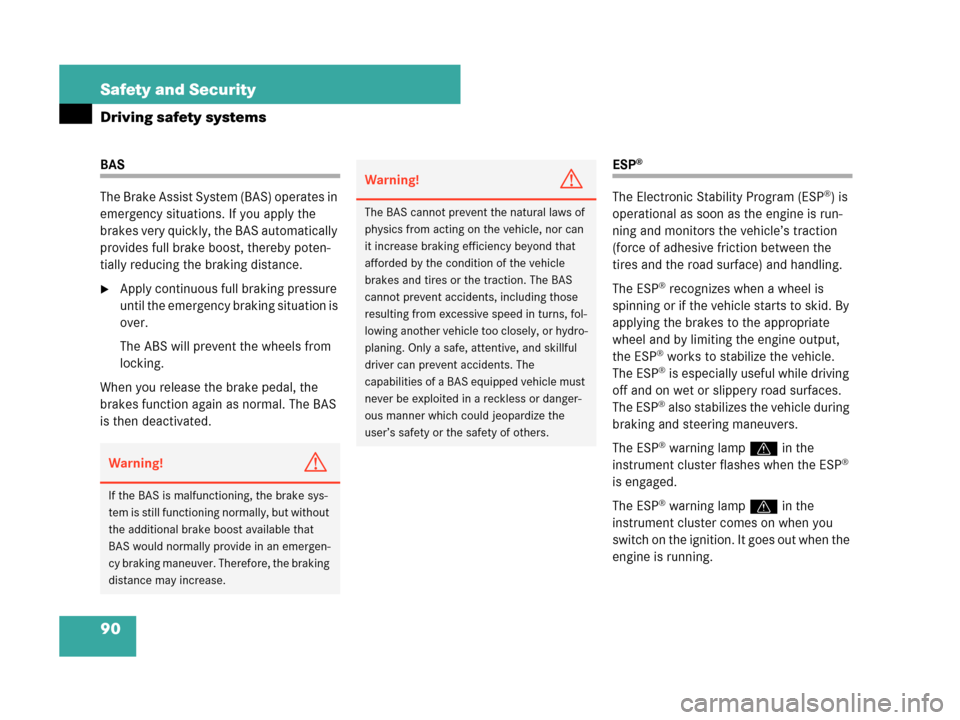

90 Safety and Security
Driving safety systems
BAS
The Brake Assist System (BAS) operates in
emergency situations. If you apply the
brakes very quickly, the BAS automatically
provides full brake boost, thereby poten-
tially reducing the braking distance.
Apply continuous full braking pressure
until the emergency braking situation is
over.
The ABS will prevent the wheels from
locking.
When you release the brake pedal, the
brakes function again as normal. The BAS
is then deactivated.
ESP®
The Electronic Stability Program (ESP®) is
operational as soon as the engine is run-
ning and monitors the vehicle’s traction
(force of adhesive friction between the
tires and the road surface) and handling.
The ESP
® recognizes when a wheel is
spinning or if the vehicle starts to skid. By
applying the brakes to the appropriate
wheel and by limiting the engine output,
the ESP
® works to stabilize the vehicle.
The ESP® is especially useful while driving
off and on wet or slippery road surfaces.
The ESP
® also stabilizes the vehicle during
braking and steering maneuvers.
The ESP
® warning lamp v in the
instrument cluster flashes when the ESP®
is engaged.
The ESP
® warning lamp v in the
instrument cluster comes on when you
switch on the ignition. It goes out when the
engine is running.
Warning!G
If the BAS is malfunctioning, the brake sys-
tem is still functioning normally, but without
the additional brake boost available that
BAS would normally provide in an emergen-
cy braking maneuver. Therefore, the braking
distance may increase.
Warning!G
The BAS cannot prevent the natural laws of
physics from acting on the vehicle, nor can
it increase braking efficiency beyond that
afforded by the condition of the vehicle
brakes and tires or the traction. The BAS
cannot prevent accidents, including those
resulting from excessive speed in turns, fol-
lowing another vehicle too closely, or hydro-
planing. Only a safe, attentive, and skillful
driver can prevent accidents. The
capabilities of a BAS equipped vehicle must
never be exploited in a reckless or danger-
ous manner which could jeopardize the
user’s safety or the safety of others.

91 Safety and Security
Driving safety systems
For more information, see the "Practical
hints" section (
page 372) and
(
page 380).
Warning!G
Never switch off the ESP® when you see the
ESP® warning lamp v flashing in the
instrument cluster. In this case, proceed as
follows:

While driving off, apply as little throttle
as possible.

While driving, ease upon the accelera-
tor.

Adapt your speed and driving style to
the prevailing road conditions.
Failure to observe these guidelines could
cause the vehicle to skid.
The ESP
® cannot prevent accidents result-
ing from excessive speed.
Warning!G
The ESP® cannot prevent the natural laws of
physics from acting on the vehicle, nor can
it increase the traction afforded by the exist-
ing road and tire conditions. The ESP
®
cannot prevent accidents, including those
resulting from excessive speed in turns or
hydroplaning. Only a safe, attentive, and
skillful driver can prevent accidents. The
capabilities of an ESP
® equipped vehicle
must never be exploited in a reckless or dan-
gerous manner which could jeopardize the
user’s safety or the safety of others.
!Because the ESP® operates automatically,
the engine must be turned off (SmartKey in
starter switch position0 or1 or KEYLESS-GO*
start/stop button in position0 or1) when

the parking brake is being tested on a brake
test dynamometer

the vehicle is being towed with the front axle
raised
Active braking action through the ESP
® may
otherwise seriously damage the brake system.
iThe ESP® will only function properly if
you use wheels of the recommended tire
size (
page 466).

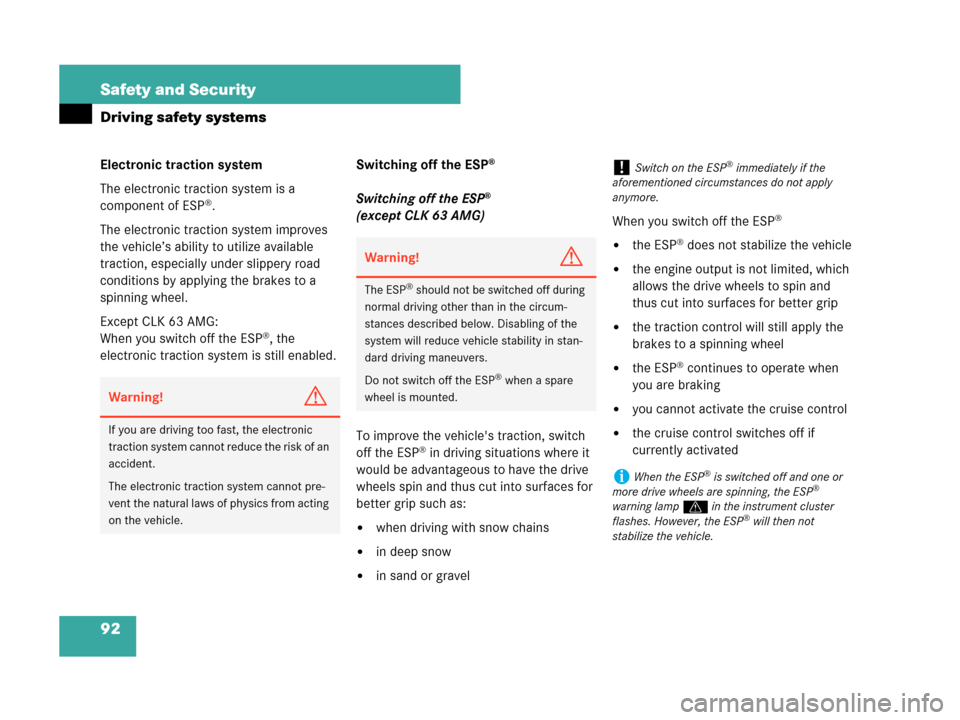

92 Safety and Security
Driving safety systems
Electronic traction system
The electronic traction system is a
component of ESP
®.
The electronic traction system improves
the vehicle’s ability to utilize available
traction, especially under slippery road
conditions by applying the brakes to a
spinning wheel.
Except CLK 63 AMG:
When you switch off the ESP
®, the
electronic traction system is still enabled.Switching off the ESP
®
Switching off the ESP®
(except CLK 63 AMG)
To improve the vehicle's traction, switch
off the ESP
® in driving situations where it
would be advantageous to have the drive
wheels spin and thus cut into surfaces for
better grip such as:

when driving with snow chains

in deep snow

in sand or gravelWhen you switch off the ESP
®

the ESP® does not stabilize the vehicle

the engine output is not limited, which
allows the drive wheels to spin and
thus cut into surfaces for better grip

the traction control will still apply the
brakes to a spinning wheel

the ESP® continues to operate when
you are braking

you cannot activate the cruise control

the cruise control switches off if
currently activated
Warning!G
If you are driving too fast, the electronic
traction system cannot reduce the risk of an
accident.
The electronic traction system cannot pre-
vent the natural laws of physics from acting
on the vehicle.
Warning!G
The ESP® should not be switched off during
normal driving other than in the circum-
stances described below. Disabling of the
system will reduce vehicle stability in stan-
dard driving maneuvers.
Do not switch off the ESP
® when a spare
wheel is mounted.
!Switch on the ESP® immediately if the
aforementioned circumstances do not apply
anymore.
iWhen the ESP® is switched off and one or
more drive wheels are spinning, the ESP®
warning lampv in the instrument cluster
flashes. However, the ESP
® will then not
stabilize the vehicle.

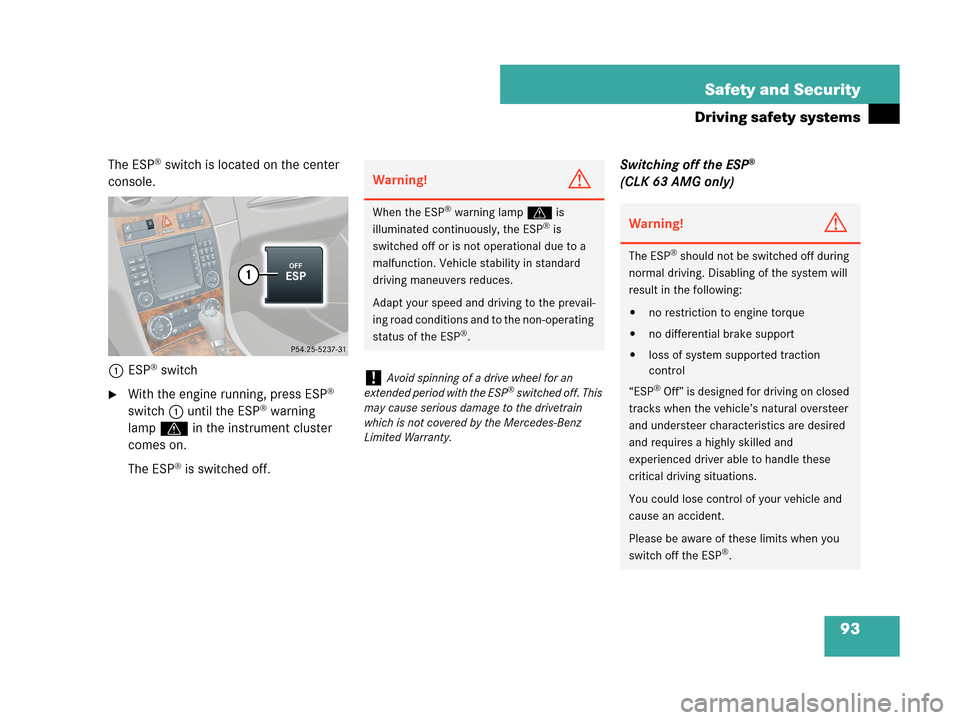

93 Safety and Security
Driving safety systems
The ESP® switch is located on the center
console.
1ESP
® switch
With the engine running, press ESP®
switch1 until the ESP® warning
lampv in the instrument cluster
comes on.
The ESP
® is switched off.Switching off the ESP
®
(CLK 63 AMG only)
Warning!G
When the ESP® warning lampv is
illuminated continuously, the ESP® is
switched off or is not operational due to a
malfunction. Vehicle stability in standard
driving maneuvers reduces.
Adapt your speed and driving to the prevail-
ing road conditions and to the non-operating
status of the ESP
®.
!Avoid spinning of a drive wheel for an
extended period with the ESP® switched off. This
may cause serious damage to the drivetrain
which is not covered by the Mercedes-Benz
Limited Warranty.
Warning!G
The ESP® should not be switched off during
normal driving. Disabling of the system will
result in the following:

no restriction to engine torque

no differential brake support

loss of system supported traction
control
“ESP
® Off” is designed for driving on closed
tracks when the vehicle’s natural oversteer
and understeer characteristics are desired
and requires a highly skilled and
experienced driver able to handle these
critical driving situations.
You could lose control of your vehicle and
cause an accident.
Please be aware of these limits when you
switch off the ESP
®.

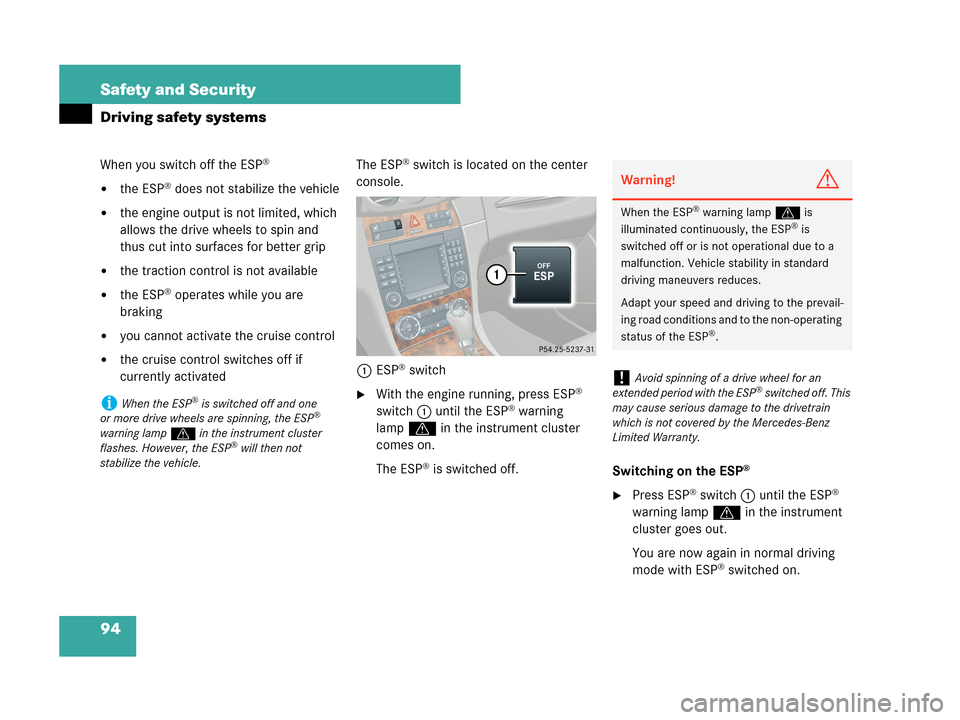

94 Safety and Security
Driving safety systems
When you switch off the ESP®

the ESP® does not stabilize the vehicle

the engine output is not limited, which
allows the drive wheels to spin and
thus cut into surfaces for better grip

the traction control is not available

the ESP® operates while you are
braking

you cannot activate the cruise control

the cruise control switches off if
currently activatedThe ESP
® switch is located on the center
console.
1ESP
® switch
With the engine running, press ESP®
switch1 until the ESP® warning
lampv in the instrument cluster
comes on.
The ESP
® is switched off.
Switching on the ESP®
Press ESP® switch1 until the ESP®
warning lampv in the instrument
cluster goes out.
You are now again in normal driving
mode with ESP
® switched on.
iWhen the ESP® is switched off and one
or more drive wheels are spinning, the ESP®
warning lampv in the instrument cluster
flashes. However, the ESP
® will then not
stabilize the vehicle.
Warning!G
When the ESP® warning lampv is
illuminated continuously, the ESP® is
switched off or is not operational due to a
malfunction. Vehicle stability in standard
driving maneuvers reduces.
Adapt your speed and driving to the prevail-
ing road conditions and to the non-operating
status of the ESP
®.
!Avoid spinning of a drive wheel for an
extended period with the ESP® switched off. This
may cause serious damage to the drivetrain
which is not covered by the Mercedes-Benz
Limited Warranty.

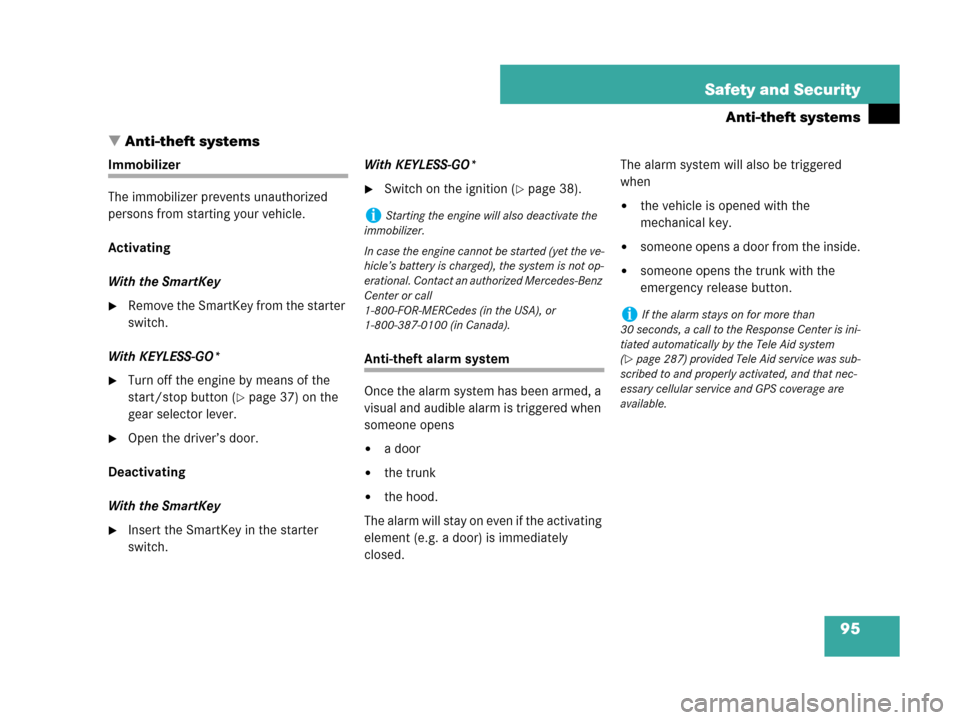

95 Safety and Security
Anti-theft systems
Anti-theft systems
Immobilizer
The immobilizer prevents unauthorized
persons from starting your vehicle.
Activating
With the SmartKey
Remove the SmartKey from the starter
switch.
With KEYLESS-GO*
Turn off the engine by means of the
start/stop button (
page 37) on the
gear selector lever.
Open the driver’s door.
Deactivating
With the SmartKey
Insert the SmartKey in the starter
switch.With KEYLESS-GO*
Switch on the ignition (page 38).
Anti-theft alarm system
Once the alarm system has been armed, a
visual and audible alarm is triggered when
someone opens

a door

the trunk

the hood.
The alarm will stay on even if the activating
element (e.g. a door) is immediately
closed.The alarm system will also be triggered
when

the vehicle is opened with the
mechanical key.

someone opens a door from the inside.

someone opens the trunk with the
emergency release button.
iStarting the engine will also deactivate the
immobilizer.
In case the engine cannot be started (yet the ve-
hicle’s battery is charged), the system is not op-
erational. Contact an authorized Mercedes-Benz
Center or call
1-800-FOR-MERCedes (in the USA), or
1-800-387-0100 (in Canada).
iIf the alarm stays on for more than
30 seconds, a call to the Response Center is ini-
tiated automatically by the Tele Aid system
(
page 287) provided Tele Aid service was sub-
scribed to and properly activated, and that nec-
essary cellular service and GPS coverage are
available.

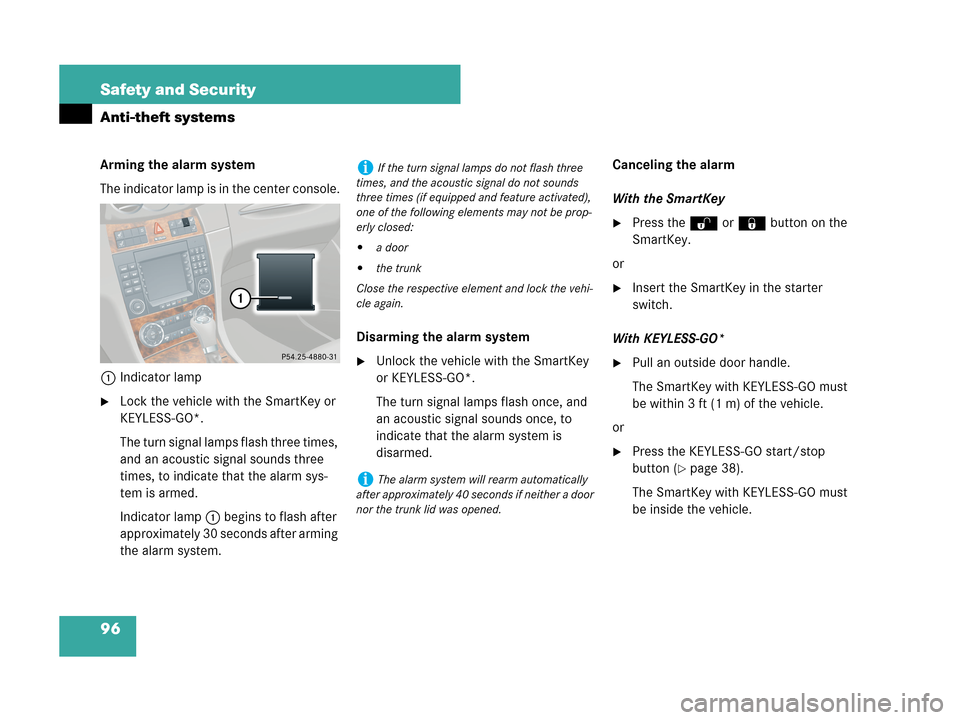

96 Safety and Security
Anti-theft systems
Arming the alarm system
The indicator lamp is in the center console.
1Indicator lamp
Lock the vehicle with the SmartKey or
KEYLESS-GO*.
The turn signal lamps flash three times,
and an acoustic signal sounds three
times, to indicate that the alarm sys-
tem is armed.
Indicator lamp1 begins to flash after
approximately 30 seconds after arming
the alarm system.Disarming the alarm system
Unlock the vehicle with the SmartKey
or KEYLESS-GO*.
The turn signal lamps flash once, and
an acoustic signal sounds once, to
indicate that the alarm system is
disarmed.Canceling the alarm
With the SmartKey
Press the Œ or ‹button on the
SmartKey.
or
Insert the SmartKey in the starter
switch.
With KEYLESS-GO*
Pull an outside door handle.
The SmartKey with KEYLESS-GO must
be within 3 ft (1 m) of the vehicle.
or
Press the KEYLESS-GO start/stop
button (
page 38).
The SmartKey with KEYLESS-GO must
be inside the vehicle.
iIf the turn signal lamps do not flash three
times, and the acoustic signal do not sounds
three times (if equipped and feature activated),
one of the following elements may not be prop-
erly closed:

a door

the trunk
Close the respective element and lock the vehi-
cle again.
iThe alarm system will rearm automatically
after approximately 40 seconds if neither a door
nor the trunk lid was opened.

97 Controls in detail
Locking and unlocking
Seats
Memory function
Lighting
Instrument cluster
Control system
Automatic transmission
Good visibility
Climate control
Automatic climate control
Audio system
Power windows
Soft top
Driving systems
Loading
Useful features

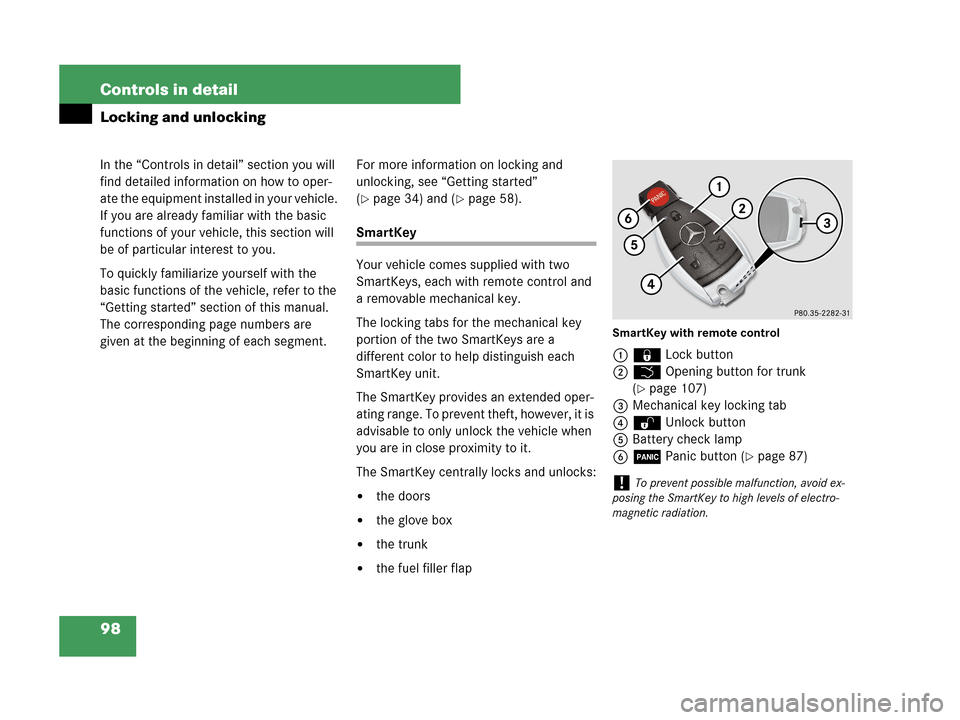

98 Controls in detail
In the “Controls in detail” section you will
find detailed information on how to oper-
ate the equipment installed in your vehicle.
If you are already familiar with the basic
functions of your vehicle, this section will
be of particular interest to you.
To quickly familiarize yourself with the
basic functions of the vehicle, refer to the
“Getting started” section of this manual.
The corresponding page numbers are
given at the beginning of each segment.
Locking and unlocking
For more information on locking and
unlocking, see “Getting started”
(
page 34) and (page 58).
SmartKey
Your vehicle comes supplied with two
SmartKeys, each with remote control and
a removable mechanical key.
The locking tabs for the mechanical key
portion of the two SmartKeys are a
different color to help distinguish each
SmartKey unit.
The SmartKey provides an extended oper-
ating range. To prevent theft, however, it is
advisable to only unlock the vehicle when
you are in close proximity to it.
The SmartKey centrally locks and unlocks:

the doors

the glove box

the trunk

the fuel filler flap
SmartKey with remote control
1‹Lock button
2Š Opening button for trunk
(
page 107)
3Mechanical key locking tab
4ΠUnlock button
5Battery check lamp
6Â Panic button (
page 87)
!To prevent possible malfunction, avoid ex-
posing the SmartKey to high levels of electro-
magnetic radiation.

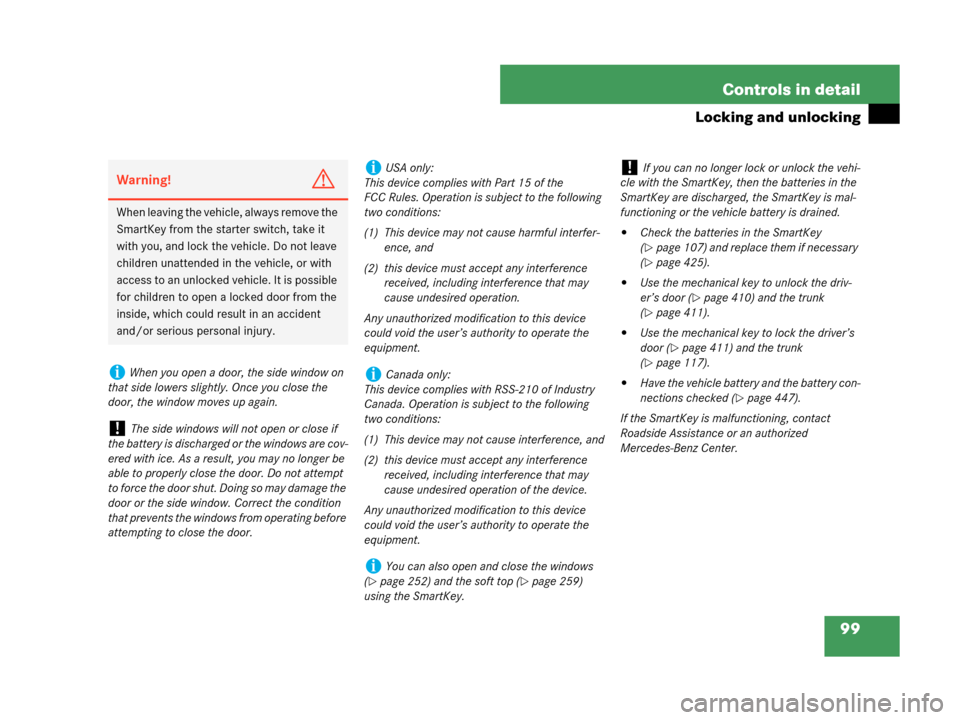

99 Controls in detail
Locking and unlocking
Warning!G
When leaving the vehicle, always remove the
SmartKey from the starter switch, take it
with you, and lock the vehicle. Do not leave
children unattended in the vehicle, or with
access to an unlocked vehicle. It is possible
for children to open a locked door from the
inside, which could result in an accident
and/or serious personal injury.
iWhen you open a door, the side window on
that side lowers slightly. Once you close the
door, the window moves up again.
!The side windows will not open or close if
the battery is discharged or the windows are cov-
ered with ice. As a result, you may no longer be
able to properly close the door. Do not attempt
to force the door shut. Doing so may damage the
door or the side window. Correct the condition
that prevents the windows from operating before
attempting to close the door.
iUSA only:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful interfer-
ence, and
(2) this device must accept any interference
received, including interference that may
cause undesired operation.
Any unauthorized modification to this device
could void the user’s authority to operate the
equipment.
iCanada only:
This device complies with RSS-210 of Industry
Canada. Operation is subject to the following
two conditions:
(1) This device may not cause interference, and
(2) this device must accept any interference
received, including interference that may
cause undesired operation of the device.
Any unauthorized modification to this device
could void the user’s authority to operate the
equipment.
iYou can also open and close the windows
(
page 252) and the soft top (page 259)
using the SmartKey.
!If you can no longer lock or unlock the vehi-
cle with the SmartKey, then the batteries in the
SmartKey are discharged, the SmartKey is mal-
functioning or the vehicle battery is drained.

Check the batteries in the SmartKey
(
page 107) and replace them if necessary
(
page 425).

Use the mechanical key to unlock the driv-
er’s door (
page 410) and the trunk
(
page 411).

Use the mechanical key to lock the driver’s
door (
page 411) and the trunk
(
page 117).

Have the vehicle battery and the battery con-
nections checked (
page 447).
If the SmartKey is malfunctioning, contact
Roadside Assistance or an authorized
Mercedes-Benz Center.
