MERCEDES-BENZ CLK350 2007 A209 Owner's Manual

110 Controls in detail
Locking and unlocking
Vehicles with trunk opening/closing
system*
1Remote trunk opening switch*
2Remote trunk closing switch*
Press remote trunk opening switch1
until the trunk begins to open.
The trunk opens. The indicator lamp
comes on and remains lit until the
trunk is closed.
Closing the trunk
Closing the trunk from the inside
automatically*
In vehicles with trunk opening/closing sys-
tem* you can close the trunk from the in-
side using the remote trunk closing*
switch.
Press the remote trunk closing*
switch2 (
page 110) until the indi-
cator lamp in the switch goes out and
the trunk lid is closed.
To interrupt the closing procedure:
Release remote trunk closing*
switch2.
iIf the trunk does not open, it is still locked
separately (
page 117).
!Vehicles with trunk opening/closing sys-
tem*: To stop the opening procedure, press
switch1 or2.
iThe trunk can also be opened using
buttonŠ on the SmartKey or SmartKey with
KEYLESS-GO* or from its inside in an emergen-
cy, see “Trunk emergency release”
(
page 116).
iYou can also close the trunk by hand
(
page 111).

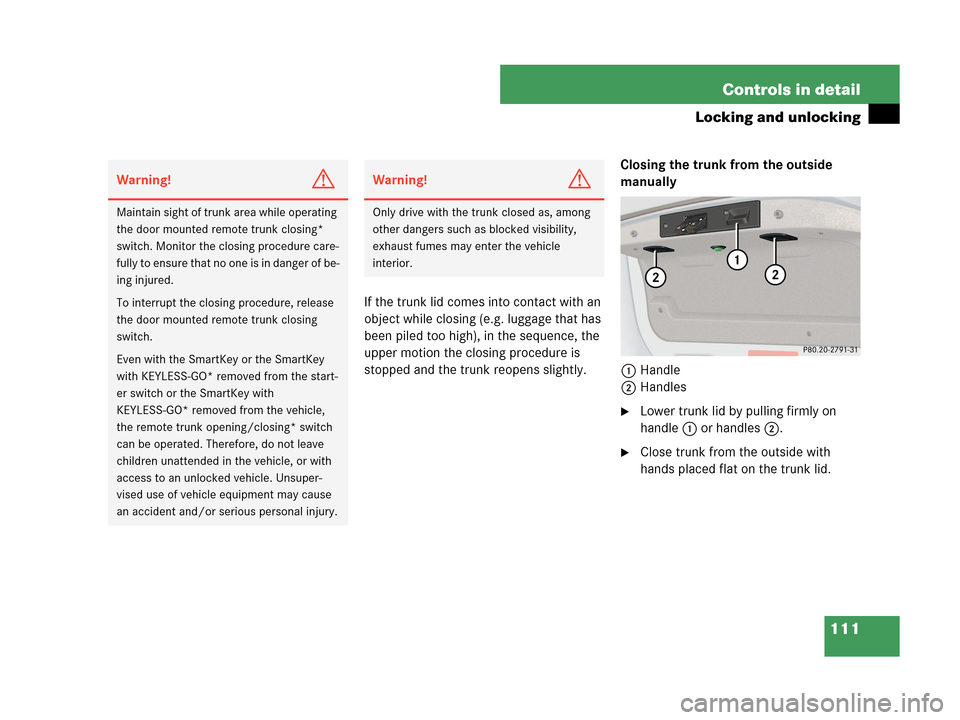

111 Controls in detail
Locking and unlocking
If the trunk lid comes into contact with an
object while closing (e.g. luggage that has
been piled too high), in the sequence, the
upper motion the closing procedure is
stopped and the trunk reopens slightly.Closing the trunk from the outside
manually
1Handle
2Handles
Lower trunk lid by pulling firmly on
handle1 or handles2.
Close trunk from the outside with
hands placed flat on the trunk lid.
Warning!G
Maintain sight of trunk area while operating
the door mounted remote trunk closing*
switch. Monitor the closing procedure care-
fully to ensure that no one is in danger of be-
ing injured.
To interrupt the closing procedure, release
the door mounted remote trunk closing
switch.
Even with the SmartKey or the SmartKey
with KEYLESS-GO* removed from the start-
er switch or the SmartKey with
KEYLESS-GO* removed from the vehicle,
the remote trunk opening/closing* switch
can be operated. Therefore, do not leave
children unattended in the vehicle, or with
access to an unlocked vehicle. Unsuper-
vised use of vehicle equipment may cause
an accident and/or serious personal injury.
Warning!G
Only drive with the trunk closed as, among
other dangers such as blocked visibility,
exhaust fumes may enter the vehicle
interior.

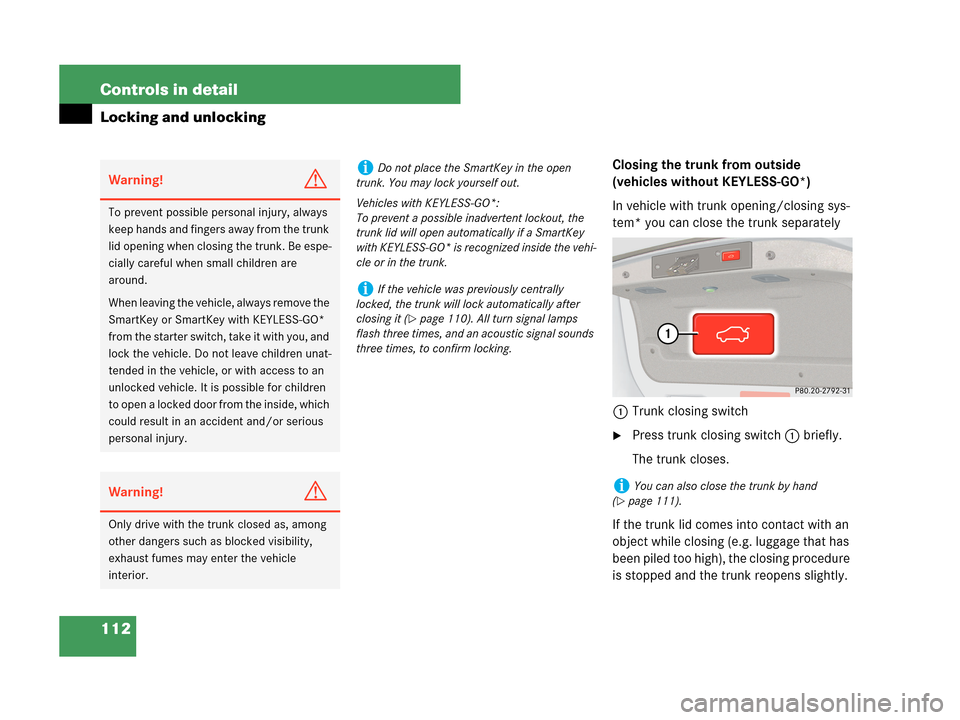

112 Controls in detail
Locking and unlocking
Closing the trunk from outside
(vehicles without KEYLESS-GO*)
In vehicle with trunk opening/closing sys-
tem* you can close the trunk separately
1Trunk closing switch
Press trunk closing switch1 briefly.
The trunk closes.
If the trunk lid comes into contact with an
object while closing (e.g. luggage that has
been piled too high), the closing procedure
is stopped and the trunk reopens slightly.
Warning!G
To prevent possible personal injury, always
keep hands and fingers away from the trunk
lid opening when closing the trunk. Be espe-
cially careful when small children are
around.
When leaving the vehicle, always remove the
SmartKey or SmartKey with KEYLESS-GO*
from the starter switch, take it with you, and
lock the vehicle. Do not leave children unat-
tended in the vehicle, or with access to an
unlocked vehicle. It is possible for children
to open a locked door from the inside, which
could result in an accident and/or serious
personal injury.
Warning!G
Only drive with the trunk closed as, among
other dangers such as blocked visibility,
exhaust fumes may enter the vehicle
interior.
iDo not place the SmartKey in the open
trunk. You may lock yourself out.
Vehicles with KEYLESS-GO*:
To prevent a possible inadvertent lockout, the
trunk lid will open automatically if a SmartKey
with KEYLESS-GO* is recognized inside the vehi-
cle or in the trunk.
iIf the vehicle was previously centrally
locked, the trunk will lock automatically after
closing it (
page 110). All turn signal lamps
flash three times, and an acoustic signal sounds
three times, to confirm locking.
iYou can also close the trunk by hand
(
page 111).

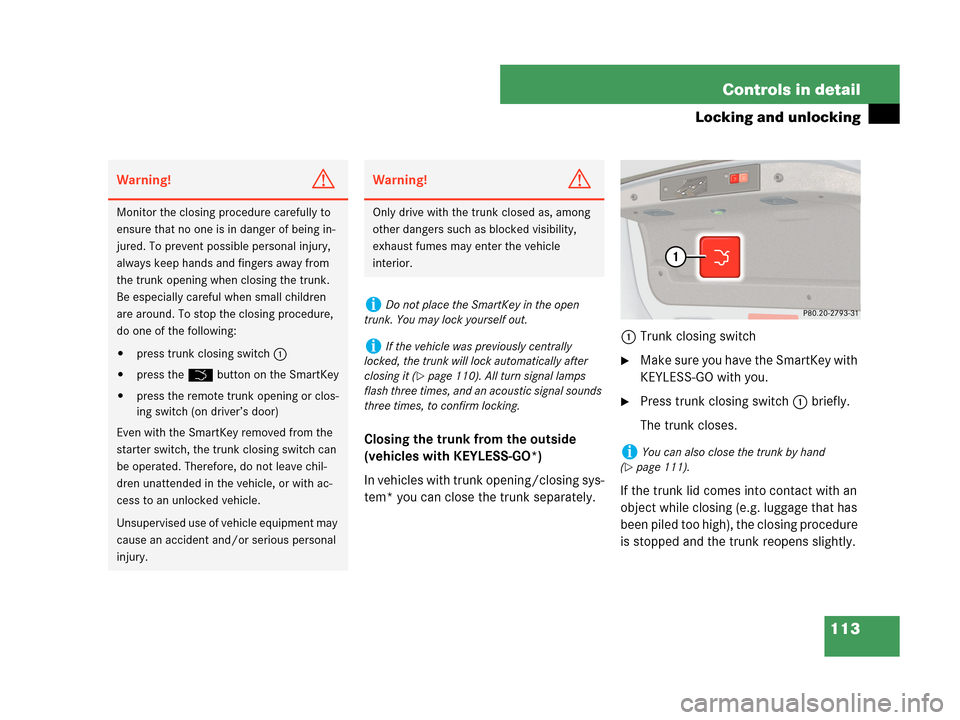

113 Controls in detail
Locking and unlocking
Closing the trunk from the outside
(vehicles with KEYLESS-GO*)
In vehicles with trunk opening/closing sys-
tem* you can close the trunk separately.1Trunk closing switch
Make sure you have the SmartKey with
KEYLESS-GO with you.
Press trunk closing switch1 briefly.
The trunk closes.
If the trunk lid comes into contact with an
object while closing (e.g. luggage that has
been piled too high), the closing procedure
is stopped and the trunk reopens slightly.
Warning!G
Monitor the closing procedure carefully to
ensure that no one is in danger of being in-
jured. To prevent possible personal injury,
always keep hands and fingers away from
the trunk opening when closing the trunk.
Be especially careful when small children
are around. To stop the closing procedure,
do one of the following:

press trunk closing switch1

press the Š button on the SmartKey

press the remote trunk opening or clos-
ing switch (on driver’s door)
Even with the SmartKey removed from the
starter switch, the trunk closing switch can
be operated. Therefore, do not leave chil-
dren unattended in the vehicle, or with ac-
cess to an unlocked vehicle.
Unsupervised use of vehicle equipment may
cause an accident and/or serious personal
injury.
Warning!G
Only drive with the trunk closed as, among
other dangers such as blocked visibility,
exhaust fumes may enter the vehicle
interior.
iDo not place the SmartKey in the open
trunk. You may lock yourself out.
iIf the vehicle was previously centrally
locked, the trunk will lock automatically after
closing it (
page 110). All turn signal lamps
flash three times, and an acoustic signal sounds
three times, to confirm locking.
iYou can also close the trunk by hand
(
page 111).

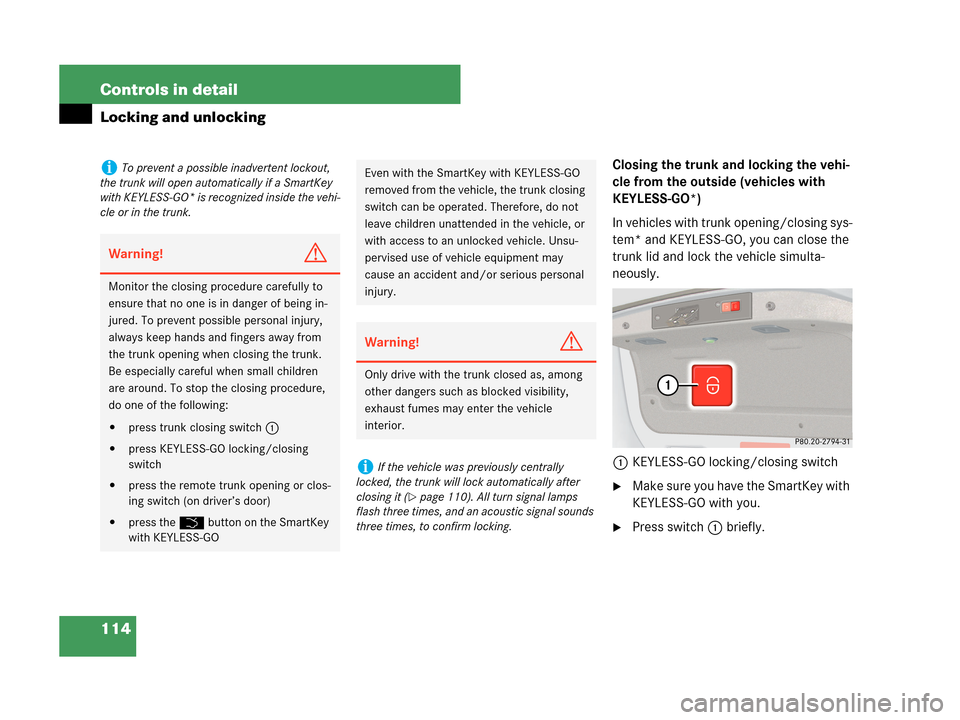

114 Controls in detail
Locking and unlocking
Closing the trunk and locking the vehi-
cle from the outside (vehicles with
KEYLESS-GO*)
In vehicles with trunk opening/closing sys-
tem* and KEYLESS-GO, you can close the
trunk lid and lock the vehicle simulta-
neously.
1KEYLESS-GO locking/closing switch
Make sure you have the SmartKey with
KEYLESS-GO with you.
Press switch1 briefly.
iTo prevent a possible inadvertent lockout,
the trunk will open automatically if a SmartKey
with KEYLESS-GO* is recognized inside the vehi-
cle or in the trunk.
Warning!G
Monitor the closing procedure carefully to
ensure that no one is in danger of being in-
jured. To prevent possible personal injury,
always keep hands and fingers away from
the trunk opening when closing the trunk.
Be especially careful when small children
are around. To stop the closing procedure,
do one of the following:

press trunk closing switch1

press KEYLESS-GO locking/closing
switch

press the remote trunk opening or clos-
ing switch (on driver’s door)

press the Š button on the SmartKey
with KEYLESS-GO
Even with the SmartKey with KEYLESS-GO
removed from the vehicle, the trunk closing
switch can be operated. Therefore, do not
leave children unattended in the vehicle, or
with access to an unlocked vehicle. Unsu-
pervised use of vehicle equipment may
cause an accident and/or serious personal
injury.
Warning!G
Only drive with the trunk closed as, among
other dangers such as blocked visibility,
exhaust fumes may enter the vehicle
interior.
iIf the vehicle was previously centrally
locked, the trunk will lock automatically after
closing it (
page 110). All turn signal lamps
flash three times, and an acoustic signal sounds
three times, to confirm locking.

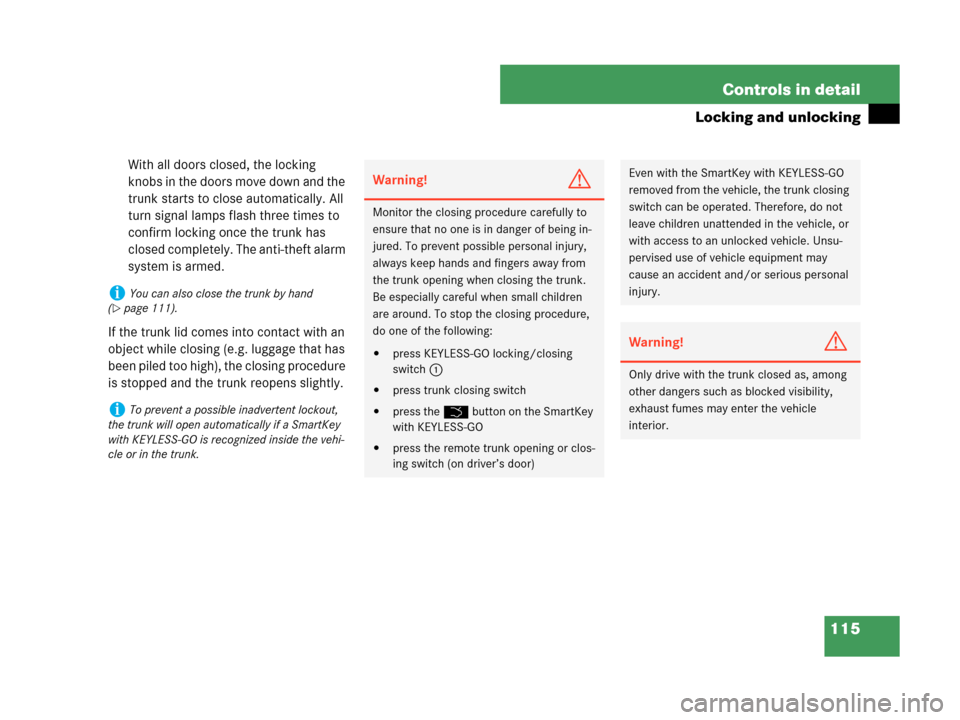

115 Controls in detail
Locking and unlocking
With all doors closed, the locking
knobs in the doors move down and the
trunk starts to close automatically. All
turn signal lamps flash three times to
confirm locking once the trunk has
closed completely. The anti-theft alarm
system is armed.
If the trunk lid comes into contact with an
object while closing (e.g. luggage that has
been piled too high), the closing procedure
is stopped and the trunk reopens slightly.
iYou can also close the trunk by hand
(
page 111).
iTo prevent a possible inadvertent lockout,
the trunk will open automatically if a SmartKey
with KEYLESS-GO is recognized inside the vehi-
cle or in the trunk.
Warning!G
Monitor the closing procedure carefully to
ensure that no one is in danger of being in-
jured. To prevent possible personal injury,
always keep hands and fingers away from
the trunk opening when closing the trunk.
Be especially careful when small children
are around. To stop the closing procedure,
do one of the following:

press KEYLESS-GO locking/closing
switch1

press trunk closing switch

press the Š button on the SmartKey
with KEYLESS-GO

press the remote trunk opening or clos-
ing switch (on driver’s door)
Even with the SmartKey with KEYLESS-GO
removed from the vehicle, the trunk closing
switch can be operated. Therefore, do not
leave children unattended in the vehicle, or
with access to an unlocked vehicle. Unsu-
pervised use of vehicle equipment may
cause an accident and/or serious personal
injury.
Warning!G
Only drive with the trunk closed as, among
other dangers such as blocked visibility,
exhaust fumes may enter the vehicle
interior.

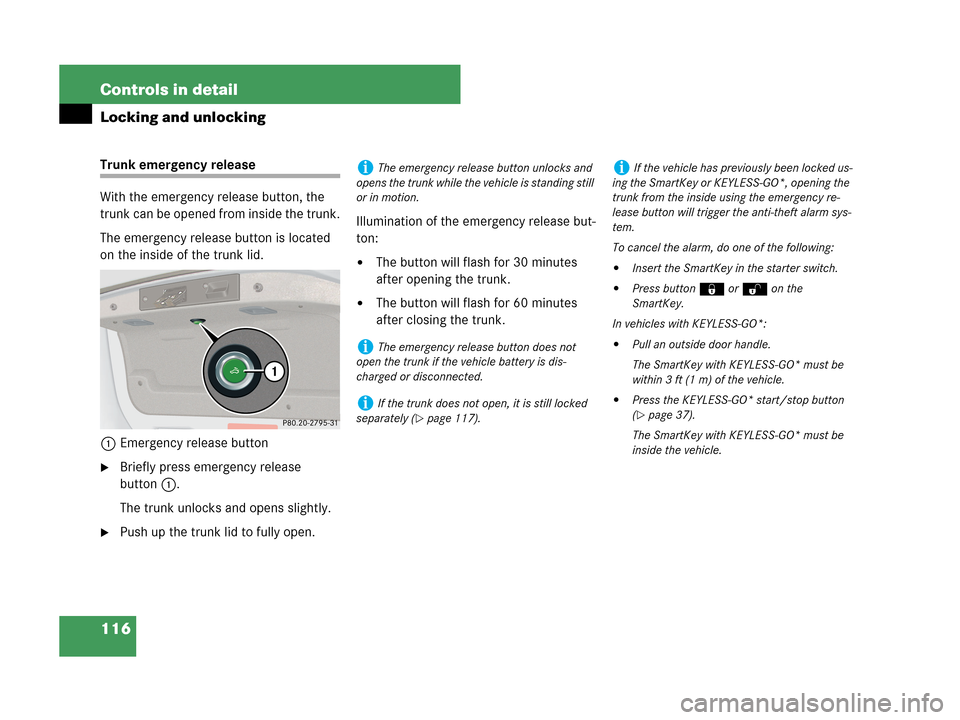

116 Controls in detail
Locking and unlocking
Trunk emergency release
With the emergency release button, the
trunk can be opened from inside the trunk.
The emergency release button is located
on the inside of the trunk lid.
1Emergency release button
Briefly press emergency release
button1.
The trunk unlocks and opens slightly.
Push up the trunk lid to fully open.Illumination of the emergency release but-
ton:

The button will flash for 30 minutes
after opening the trunk.

The button will flash for 60 minutes
after closing the trunk.
iThe emergency release button unlocks and
opens the trunk while the vehicle is standing still
or in motion.
iThe emergency release button does not
open the trunk if the vehicle battery is dis-
charged or disconnected.
iIf the trunk does not open, it is still locked
separately (
page 117).
iIf the vehicle has previously been locked us-
ing the SmartKey or KEYLESS-GO*, opening the
trunk from the inside using the emergency re-
lease button will trigger the anti-theft alarm sys-
tem.
To cancel the alarm, do one of the following:

Insert the SmartKey in the starter switch.

Press button‹orŒ on the
SmartKey.
In vehicles with KEYLESS-GO*:

Pull an outside door handle.
The SmartKey with KEYLESS-GO* must be
within 3 ft (1 m) of the vehicle.

Press the KEYLESS-GO* start/stop button
(
page 37).
The SmartKey with KEYLESS-GO* must be
inside the vehicle.

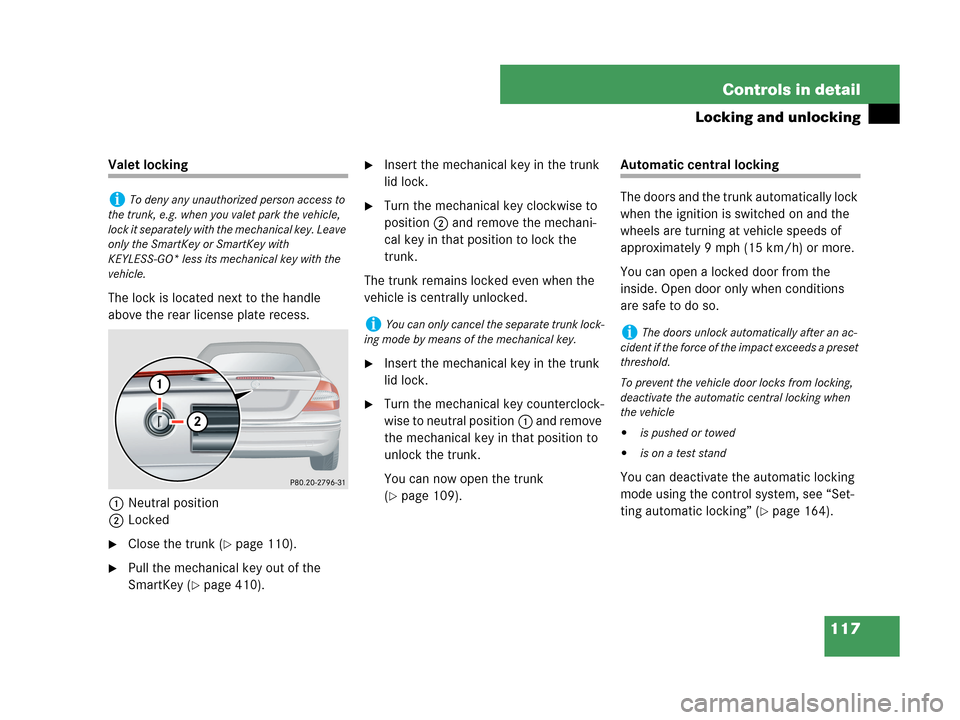

117 Controls in detail
Locking and unlocking
Valet locking
The lock is located next to the handle
above the rear license plate recess.
1Neutral position
2Locked
Close the trunk (page 110).
Pull the mechanical key out of the
SmartKey (
page 410).
Insert the mechanical key in the trunk
lid lock.
Turn the mechanical key clockwise to
position2 and remove the mechani-
cal key in that position to lock the
trunk.
The trunk remains locked even when the
vehicle is centrally unlocked.
Insert the mechanical key in the trunk
lid lock.
Turn the mechanical key counterclock-
wise to neutral position1 and remove
the mechanical key in that position to
unlock the trunk.
You can now open the trunk
(
page 109).
Automatic central locking
The doors and the trunk automatically lock
when the ignition is switched on and the
wheels are turning at vehicle speeds of
approximately 9 mph (15 km/h) or more.
You can open a locked door from the
inside. Open door only when conditions
are safe to do so.
You can deactivate the automatic locking
mode using the control system, see “Set-
ting automatic locking” (
page 164).
iTo deny any unauthorized person access to
the trunk, e.g. when you valet park the vehicle,
lock it separately with the mechanical key. Leave
only the SmartKey or SmartKey with
KEYLESS-GO* less its mechanical key with the
vehicle.
iYou can only cancel the separate trunk lock-
ing mode by means of the mechanical key.iThe doors unlock automatically after an ac-
cident if the force of the impact exceeds a preset
threshold.
To prevent the vehicle door locks from locking,
deactivate the automatic central locking when
the vehicle

is pushed or towed

is on a test stand

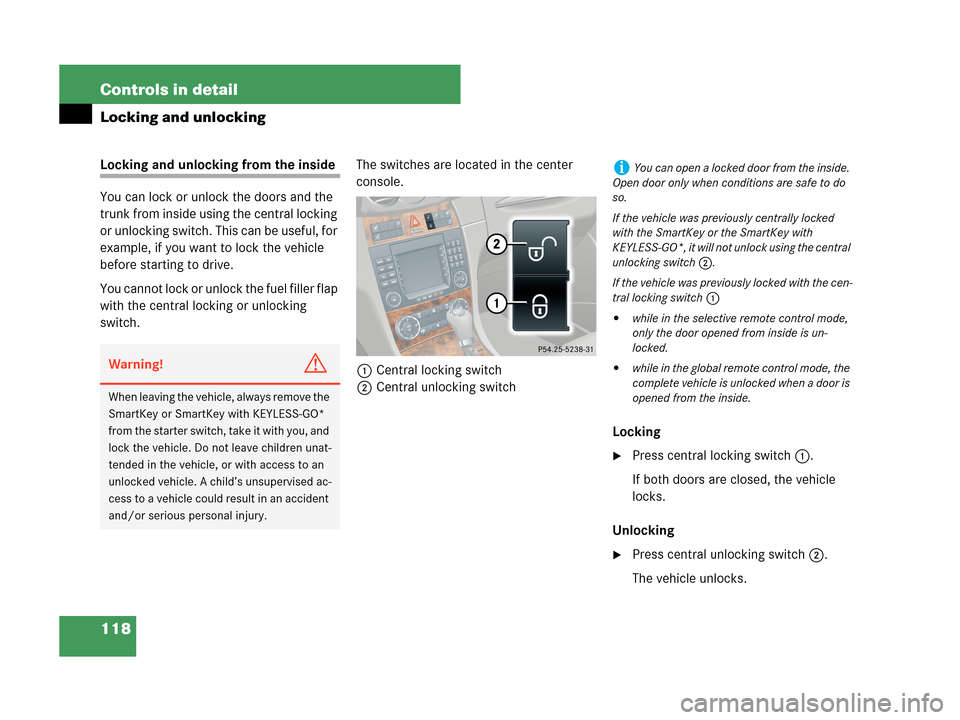

118 Controls in detail
Locking and unlocking
Locking and unlocking from the inside
You can lock or unlock the doors and the
trunk from inside using the central locking
or unlocking switch. This can be useful, for
example, if you want to lock the vehicle
before starting to drive.
You cannot lock or unlock the fuel filler flap
with the central locking or unlocking
switch.The switches are located in the center
console.
1Central locking switch
2Central unlocking switch
Locking
Press central locking switch1.
If both doors are closed, the vehicle
locks.
Unlocking
Press central unlocking switch2.
The vehicle unlocks.
Warning!G
When leaving the vehicle, always remove the
SmartKey or SmartKey with KEYLESS-GO*
from the starter switch, take it with you, and
lock the vehicle. Do not leave children unat-
tended in the vehicle, or with access to an
unlocked vehicle. A child’s unsupervised ac-
cess to a vehicle could result in an accident
and/or serious personal injury.
iYou can open a locked door from the inside.
Open door only when conditions are safe to do
so.
If the vehicle was previously centrally locked
with the SmartKey or the SmartKey with
KEYLESS-GO*, it will not unlock using the central
unlocking switch2.
If the vehicle was previously locked with the cen-
tral locking switch1

while in the selective remote control mode,
only the door opened from inside is un-
locked.

while in the global remote control mode, the
complete vehicle is unlocked when a door is
opened from the inside.

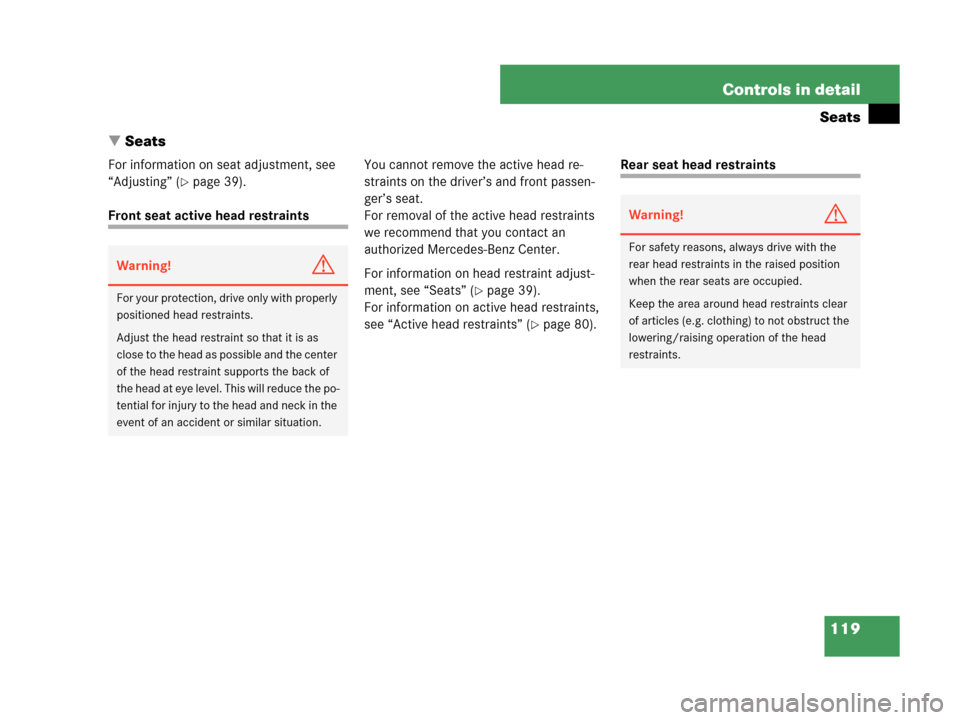

119 Controls in detail
Seats
Seats
For information on seat adjustment, see
“Adjusting” (
page 39).
Front seat active head restraintsYou cannot remove the active head re-
straints on the driver’s and front passen-
ger’s seat.
For removal of the active head restraints
we recommend that you contact an
authorized Mercedes-Benz Center.
For information on head restraint adjust-
ment, see “Seats” (
page 39).
For information on active head restraints,
see “Active head restraints” (
page 80).
Rear seat head restraints
Warning!G
For your protection, drive only with properly
positioned head restraints.
Adjust the head restraint so that it is as
close to the head as possible and the center
of the head restraint supports the back of
the head at eye level. This will reduce the po-
tential for injury to the head and neck in the
event of an accident or similar situation.
Warning!G
For safety reasons, always drive with the
rear head restraints in the raised position
when the rear seats are occupied.
Keep the area around head restraints clear
of articles (e.g. clothing) to not obstruct the
lowering/raising operation of the head
restraints.
