MERCEDES-BENZ CLK350 COUPE 2007 C209 Owner's Manual

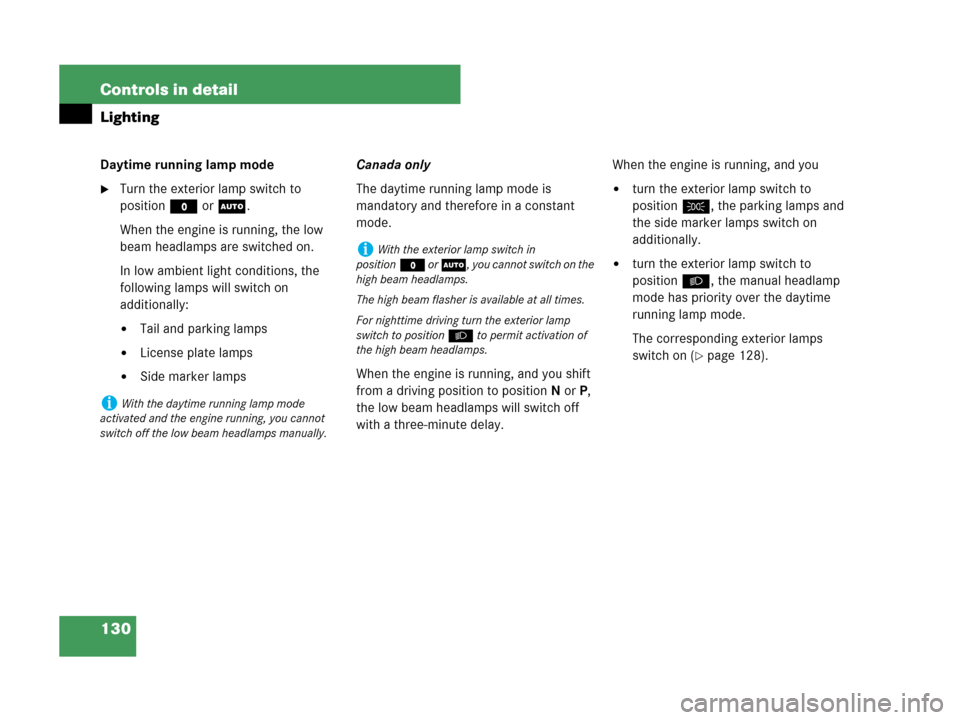

130 Controls in detail
Lighting
Daytime running lamp mode
Turn the exterior lamp switch to
positionM orU.
When the engine is running, the low
beam headlamps are switched on.
In low ambient light conditions, the
following lamps will switch on
additionally:

Tail and parking lamps

License plate lamps

Side marker lampsCanada only
The daytime running lamp mode is
mandatory and therefore in a constant
mode.
When the engine is running, and you shift
from a driving position to positionN orP,
the low beam headlamps will switch off
with a three-minute delay.When the engine is running, and you

turn the exterior lamp switch to
positionC, the parking lamps and
the side marker lamps switch on
additionally.

turn the exterior lamp switch to
positionB, the manual headlamp
mode has priority over the daytime
running lamp mode.
The corresponding exterior lamps
switch on (
page 128).
iWith the daytime running lamp mode
activated and the engine running, you cannot
switch off the low beam headlamps manually.
iWith the exterior lamp switch in
positionM or U, you cannot switch on the
high beam headlamps.
The high beam flasher is available at all times.
For nighttime driving turn the exterior lamp
switch to positionB to permit activation of
the high beam headlamps.

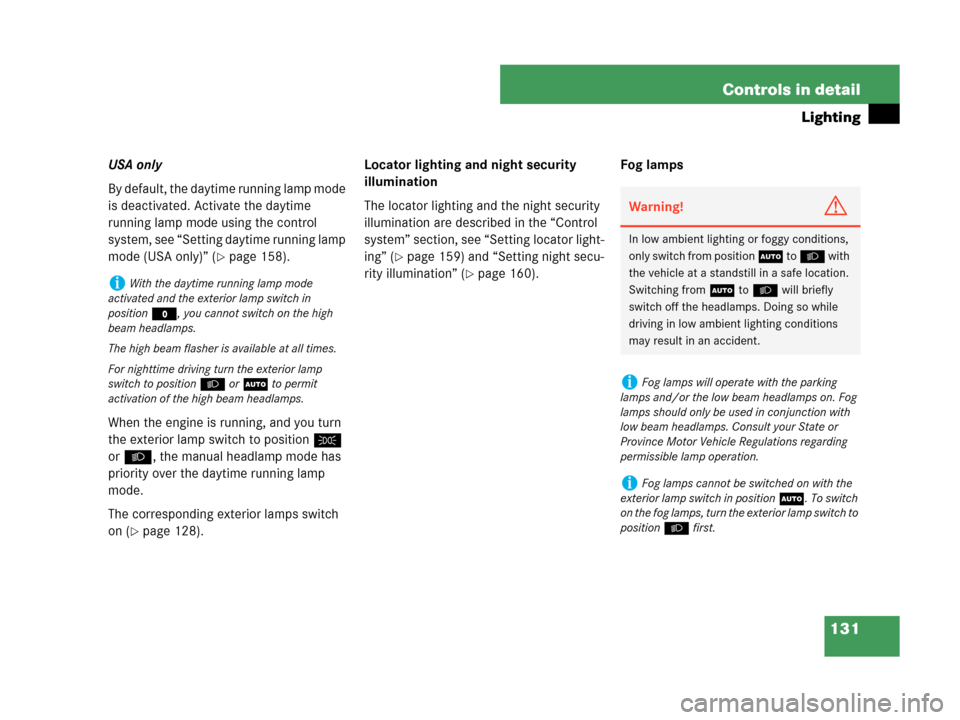

131 Controls in detail
Lighting
USA only
By default, the daytime running lamp mode
is deactivated. Activate the daytime
running lamp mode using the control
system, see “Setting daytime running lamp
mode (USA only)” (
page 158).
When the engine is running, and you turn
the exterior lamp switch to positionC
orB, the manual headlamp mode has
priority over the daytime running lamp
mode.
The corresponding exterior lamps switch
on (
page 128).Locator lighting and night security
illumination
The locator lighting and the night security
illumination are described in the “Control
system” section, see “Setting locator light-
ing” (
page 159) and “Setting night secu-
rity illumination” (
page 160).Fog lampsiWith the daytime running lamp mode
activated and the exterior lamp switch in
positionM, you cannot switch on the high
beam headlamps.
The high beam flasher is available at all times.
For nighttime driving turn the exterior lamp
switch to positionB or U to permit
activation of the high beam headlamps.
Warning!G
In low ambient lighting or foggy conditions,
only switch from position U to B with
the vehicle at a standstill in a safe location.
Switching fromU to B will briefly
switch off the headlamps. Doing so while
driving in low ambient lighting conditions
may result in an accident.
iFog lamps will operate with the parking
lamps and/or the low beam headlamps on. Fog
lamps should only be used in conjunction with
low beam headlamps. Consult your State or
Province Motor Vehicle Regulations regarding
permissible lamp operation.
iFog lamps cannot be switched on with the
exterior lamp switch in positionU. To switch
on the fog lamps, turn the exterior lamp switch to
positionB first.

132 Controls in detail
Lighting
Front fog lamps
Switch on the low beam
headlampsB (
page 55).
Pull out the exterior lamp switch to first
stop.
The front fog lamps switch on.
The green indicator lamp‡ in the
exterior lamp switch comes on
(
page 128).
Push in the exterior lamp switch.
The front fog lamps switch off.
The green indicator lamp‡ in the
exterior lamp switch goes out.Rear fog lamp (driver’s side only)
Switch on the low beam
headlampsB (
page 55).
Pull out the exterior lamp switch to
second stop.
The front fog lamps and the rear fog
lamp switch on.
The yellow indicator lamp† in the
exterior lamp switch comes on
(
page 128).
Push in the exterior lamp switch to first
stop.
The rear fog lamp switches off.
The yellow indicator lamp† in the
exterior lamp switch goes out.
The front fog lamps remain lit.
Combination switch
Combination switch
1High beam
2High beam flasher

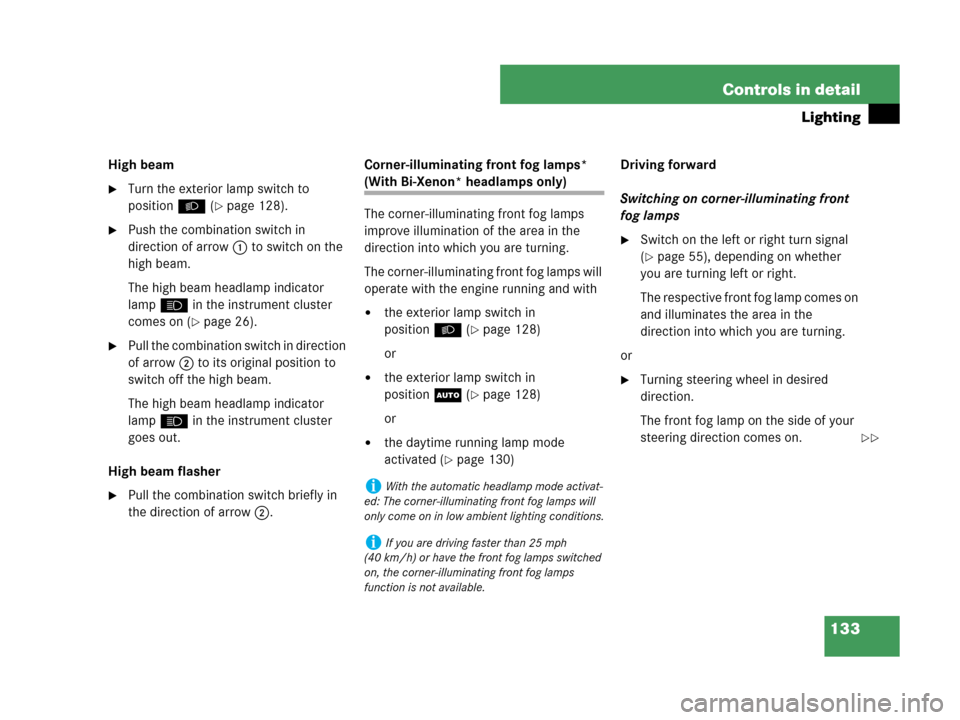

133 Controls in detail
Lighting
High beam
Turn the exterior lamp switch to
positionB (
page 128).
Push the combination switch in
direction of arrow1 to switch on the
high beam.
The high beam headlamp indicator
lampA in the instrument cluster
comes on (
page 26).
Pull the combination switch in direction
of arrow2 to its original position to
switch off the high beam.
The high beam headlamp indicator
lampA in the instrument cluster
goes out.
High beam flasher
Pull the combination switch briefly in
the direction of arrow2.Corner-illuminating front fog lamps*
(With Bi-Xenon* headlamps only)
The corner-illuminating front fog lamps
improve illumination of the area in the
direction into which you are turning.
The corner-illuminating front fog lamps will
operate with the engine running and with

the exterior lamp switch in
positionB (
page 128)
or

the exterior lamp switch in
positionU (
page 128)
or

the daytime running lamp mode
activated (
page 130)Driving forward
Switching on corner-illuminating front
fog lamps
Switch on the left or right turn signal
(
page 55), depending on whether
you are turning left or right.
The respective front fog lamp comes on
and illuminates the area in the
direction into which you are turning.
or
Turning steering wheel in desired
direction.
The front fog lamp on the side of your
steering direction comes on.
iWith the automatic headlamp mode activat-
ed: The corner-illuminating front fog lamps will
only come on in low ambient lighting conditions.
iIf you are driving faster than 25 mph
(40 km/h) or have the front fog lamps switched
on, the corner-illuminating front fog lamps
function is not available.

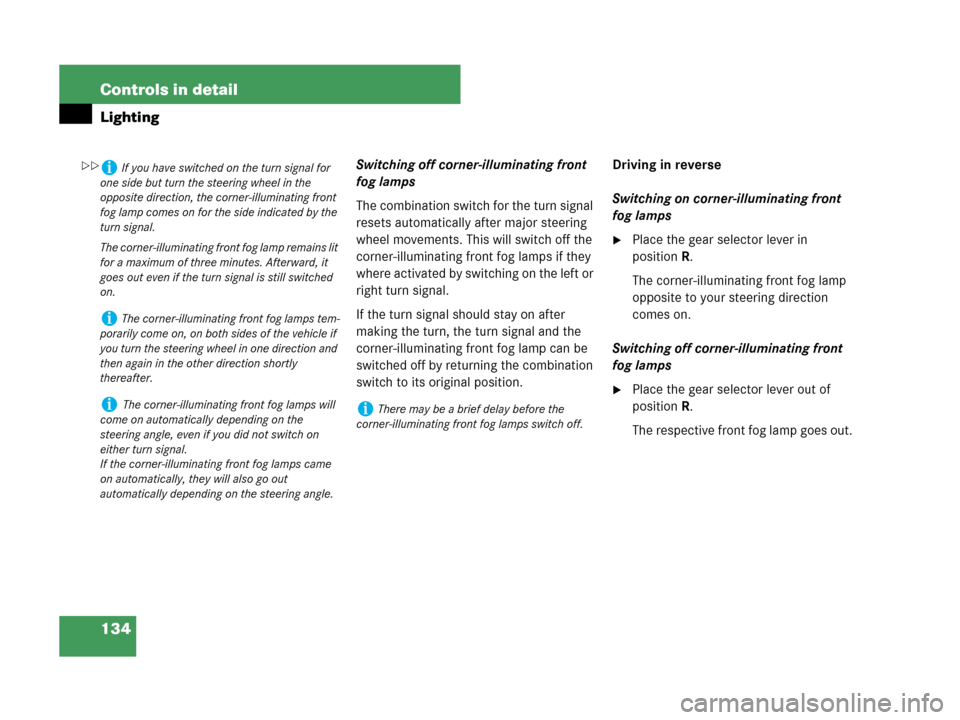

134 Controls in detail
Lighting
Switching off corner-illuminating front
fog lamps
The combination switch for the turn signal
resets automatically after major steering
wheel movements. This will switch off the
corner-illuminating front fog lamps if they
where activated by switching on the left or
right turn signal.
If the turn signal should stay on after
making the turn, the turn signal and the
corner-illuminating front fog lamp can be
switched off by returning the combination
switch to its original position.Driving in reverse
Switching on corner-illuminating front
fog lamps
Place the gear selector lever in
positionR.
The corner-illuminating front fog lamp
opposite to your steering direction
comes on.
Switching off corner-illuminating front
fog lamps
Place the gear selector lever out of
positionR.
The respective front fog lamp goes out.
iIf you have switched on the turn signal for
one side but turn the steering wheel in the
opposite direction, the corner-illuminating front
fog lamp comes on for the side indicated by the
turn signal.
The corner-illuminating front fog lamp remains lit
for a maximum of three minutes. Afterward, it
goes out even if the turn signal is still switched
on.
iThe corner-illuminating front fog lamps tem-
porarily come on, on both sides of the vehicle if
you turn the steering wheel in one direction and
then again in the other direction shortly
thereafter.
iThe corner-illuminating front fog lamps will
come on automatically depending on the
steering angle, even if you did not switch on
either turn signal.
If the corner-illuminating front fog lamps came
on automatically, they will also go out
automatically depending on the steering angle.iThere may be a brief delay before the
corner-illuminating front fog lamps switch off.

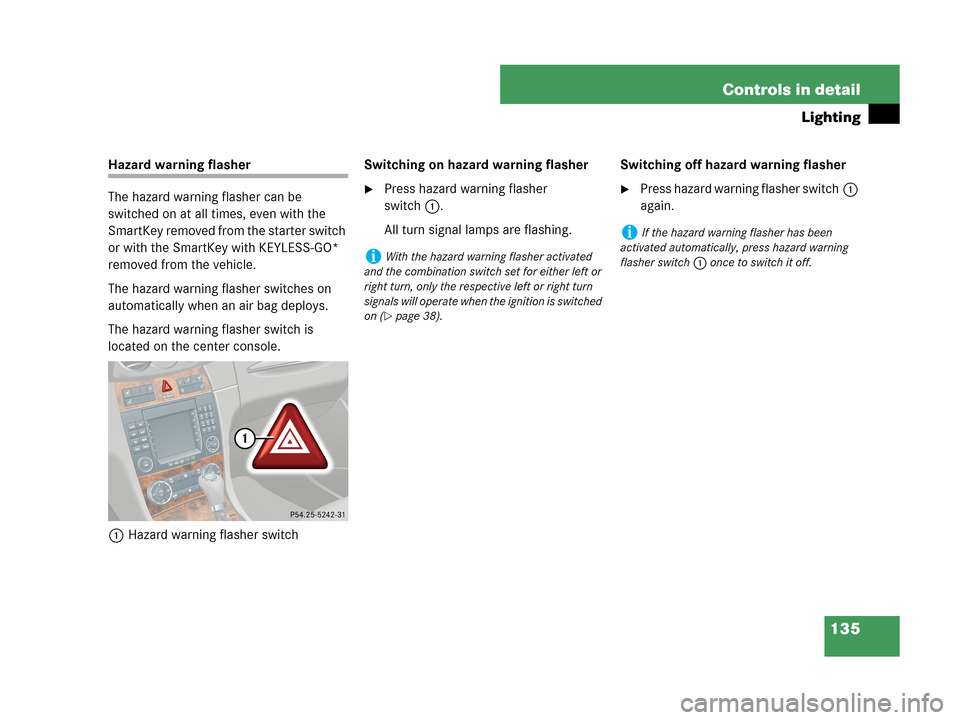

135 Controls in detail
Lighting
Hazard warning flasher
The hazard warning flasher can be
switched on at all times, even with the
SmartKey removed from the starter switch
or with the SmartKey with KEYLESS-GO*
removed from the vehicle.
The hazard warning flasher switches on
automatically when an air bag deploys.
The hazard warning flasher switch is
located on the center console.
1Hazard warning flasher switchSwitching on hazard warning flasher
Press hazard warning flasher
switch1.
All turn signal lamps are flashing.Switching off hazard warning flasherPress hazard warning flasher switch1
again.
iWith the hazard warning flasher activated
and the combination switch set for either left or
right turn, only the respective left or right turn
signals will operate when the ignition is switched
on (
page 38).
iIf the hazard warning flasher has been
activated automatically, press hazard warning
flasher switch1 once to switch it off.

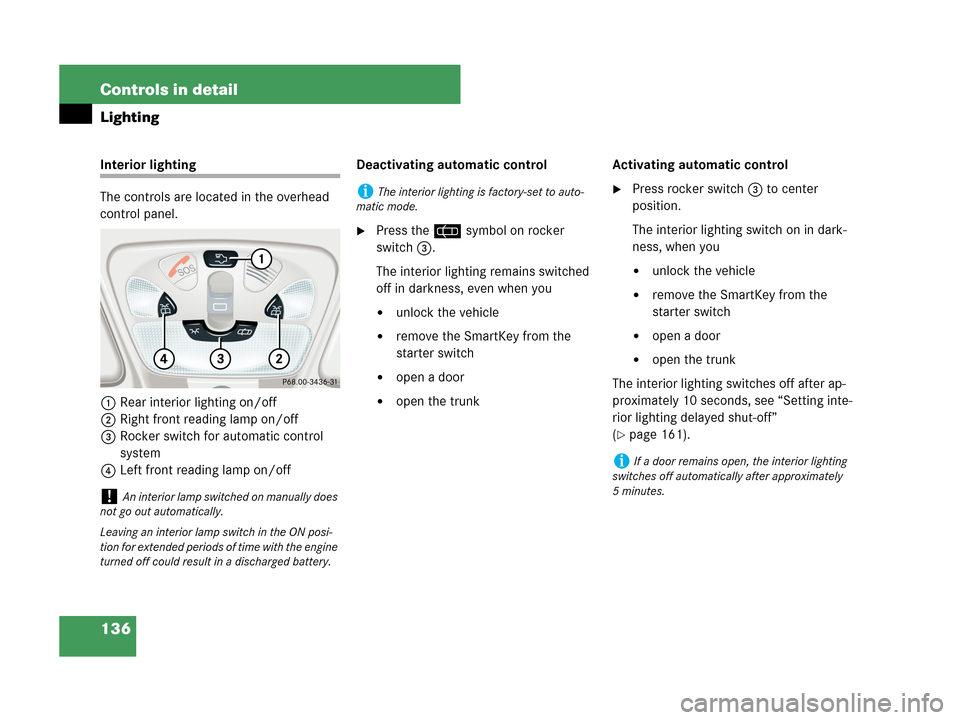

136 Controls in detail
Lighting
Interior lighting
The controls are located in the overhead
control panel.
1Rear interior lighting on/off
2Right front reading lamp on/off
3Rocker switch for automatic control
system
4Left front reading lamp on/offDeactivating automatic control
Press the = symbol on rocker
switch3.
The interior lighting remains switched
off in darkness, even when you

unlock the vehicle

remove the SmartKey from the
starter switch

open a door

open the trunkActivating automatic control
Press rocker switch3 to center
position.
The interior lighting switch on in dark-
ness, when you

unlock the vehicle

remove the SmartKey from the
starter switch

open a door

open the trunk
The interior lighting switches off after ap-
proximately 10 seconds, see “Setting inte-
rior lighting delayed shut-off”
(
page 161).
!An interior lamp switched on manually does
not go out automatically.
Leaving an interior lamp switch in the ON posi-
tion for extended periods of time with the engine
turned off could result in a discharged battery.
iThe interior lighting is factory-set to auto-
matic mode.
iIf a door remains open, the interior lighting
switches off automatically after approximately
5minutes.

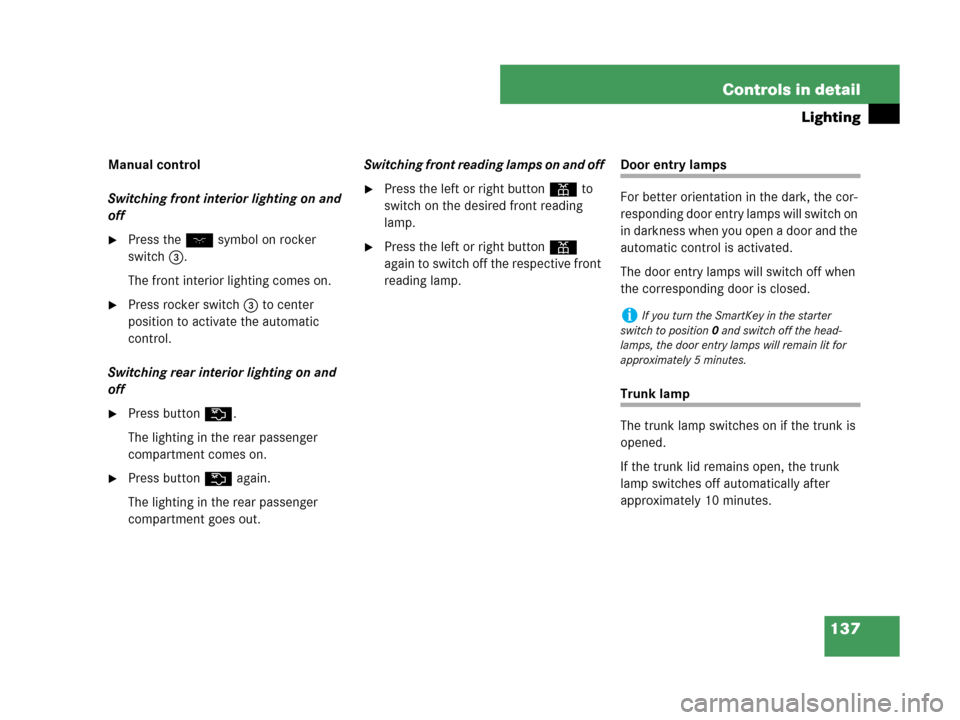

137 Controls in detail
Lighting
Manual control
Switching front interior lighting on and
off
Press the W symbol on rocker
switch3.
The front interior lighting comes on.
Press rocker switch3 to center
position to activate the automatic
control.
Switching rear interior lighting on and
off
Press button V.
The lighting in the rear passenger
compartment comes on.
Press button V again.
The lighting in the rear passenger
compartment goes out.Switching front reading lamps on and off
Press the left or right button X to
switch on the desired front reading
lamp.
Press the left or right button X
again to switch off the respective front
reading lamp.
Door entry lamps
For better orientation in the dark, the cor-
responding door entry lamps will switch on
in darkness when you open a door and the
automatic control is activated.
The door entry lamps will switch off when
the corresponding door is closed.
Trunk lamp
The trunk lamp switches on if the trunk is
opened.
If the trunk lid remains open, the trunk
lamp switches off automatically after
approximately 10 minutes.
iIf you turn the SmartKey in the starter
switch to position0 and switch off the head-
lamps, the door entry lamps will remain lit for
approximately 5 minutes.

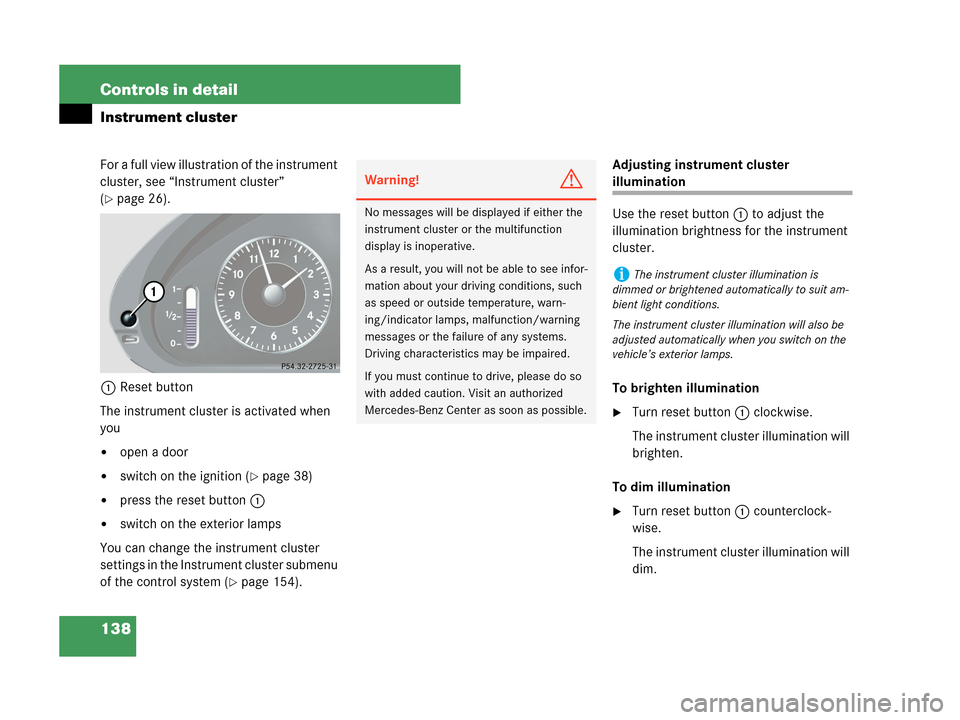

138 Controls in detail
Instrument cluster
For a full view illustration of the instrument
cluster, see “Instrument cluster”
(
page 26).
1Reset button
The instrument cluster is activated when
you

open a door

switch on the ignition (page 38)

press the reset button1

switch on the exterior lamps
You can change the instrument cluster
settings in the Instrument cluster submenu
of the control system (
page 154).Adjusting instrument cluster
illumination
Use the reset button1 to adjust the
illumination brightness for the instrument
cluster.
To brighten illumination
Turn reset button1 clockwise.
The instrument cluster illumination will
brighten.
To dim illumination
Turn reset button1 counterclock-
wise.
The instrument cluster illumination will
dim.
Warning!G
No messages will be displayed if either the
instrument cluster or the multifunction
display is inoperative.
As a result, you will not be able to see infor-
mation about your driving conditions, such
as speed or outside temperature, warn-
ing/indicator lamps, malfunction/warning
messages or the failure of any systems.
Driving characteristics may be impaired.
If you must continue to drive, please do so
with added caution. Visit an authorized
Mercedes-Benz Center as soon as possible.
iThe instrument cluster illumination is
dimmed or brightened automatically to suit am-
bient light conditions.
The instrument cluster illumination will also be
adjusted automatically when you switch on the
vehicle’s exterior lamps.

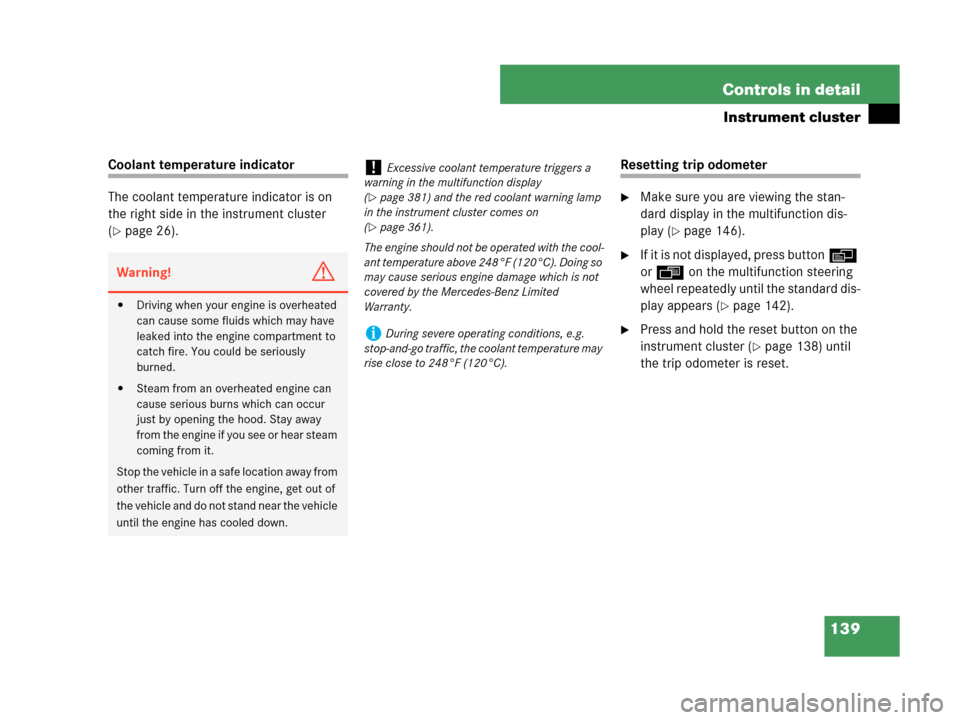

139 Controls in detail
Instrument cluster
Coolant temperature indicator
The coolant temperature indicator is on
the right side in the instrument cluster
(
page 26).
Resetting trip odometer
Make sure you are viewing the stan-
dard display in the multifunction dis-
play (
page 146).
If it is not displayed, press buttonè
orÿ on the multifunction steering
wheel repeatedly until the standard dis-
play appears (
page 142).
Press and hold the reset button on the
instrument cluster (
page 138) until
the trip odometer is reset.
Warning!G

Driving when your engine is overheated
can cause some fluids which may have
leaked into the engine compartment to
catch fire. You could be seriously
burned.

Steam from an overheated engine can
cause serious burns which can occur
just by opening the hood. Stay away
from the engine if you see or hear steam
coming from it.
Stop the vehicle in a safe location away from
other traffic. Turn off the engine, get out of
the vehicle and do not stand near the vehicle
until the engine has cooled down.
!Excessive coolant temperature triggers a
warning in the multifunction display
(
page 381) and the red coolant warning lamp
in the instrument cluster comes on
(
page 361).
The engine should not be operated with the cool-
ant temperature above 248°F (120°C). Doing so
may cause serious engine damage which is not
covered by the Mercedes-Benz Limited
Warranty.
iDuring severe operating conditions, e.g.
stop-and-go traffic, the coolant temperature may
rise close to 248°F (120°C).
