MERCEDES-BENZ CLK350 COUPE 2007 C209 Owner's Manual

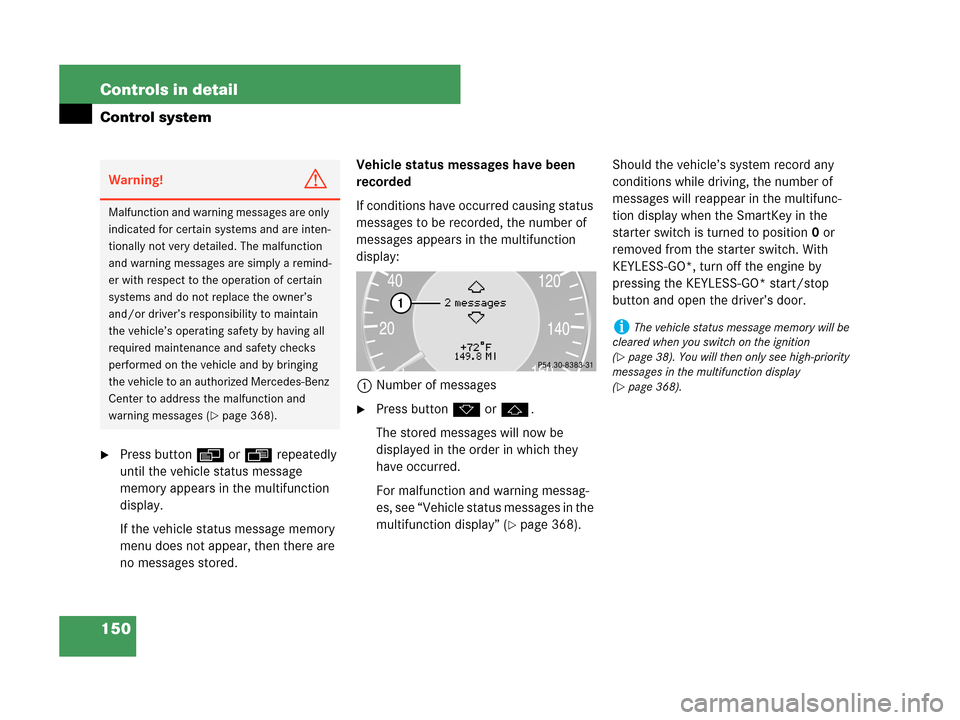

150 Controls in detail
Control system
Press buttonè orÿ repeatedly
until the vehicle status message
memory appears in the multifunction
display.
If the vehicle status message memory
menu does not appear, then there are
no messages stored.Vehicle status messages have been
recorded
If conditions have occurred causing status
messages to be recorded, the number of
messages appears in the multifunction
display:
1Number of messages
Press buttonk orj.
The stored messages will now be
displayed in the order in which they
have occurred.
For malfunction and warning messag-
es, see “Vehicle status messages in the
multifunction display” (
page 368).Should the vehicle’s system record any
conditions while driving, the number of
messages will reappear in the multifunc-
tion display when the SmartKey in the
starter switch is turned to position0 or
removed from the starter switch. With
KEYLESS-GO*, turn off the engine by
pressing the KEYLESS-GO* start/stop
button and open the driver’s door.
Warning!G
Malfunction and warning messages are only
indicated for certain systems and are inten-
tionally not very detailed. The malfunction
and warning messages are simply a remind-
er with respect to the operation of certain
systems and do not replace the owner’s
and/or driver’s responsibility to maintain
the vehicle’s operating safety by having all
required maintenance and safety checks
performed on the vehicle and by bringing
the vehicle to an authorized Mercedes-Benz
Center to address the malfunction and
warning messages (
page 368).
iThe vehicle status message memory will be
cleared when you switch on the ignition
(
page 38). You will then only see high-priority
messages in the multifunction display
(
page 368).

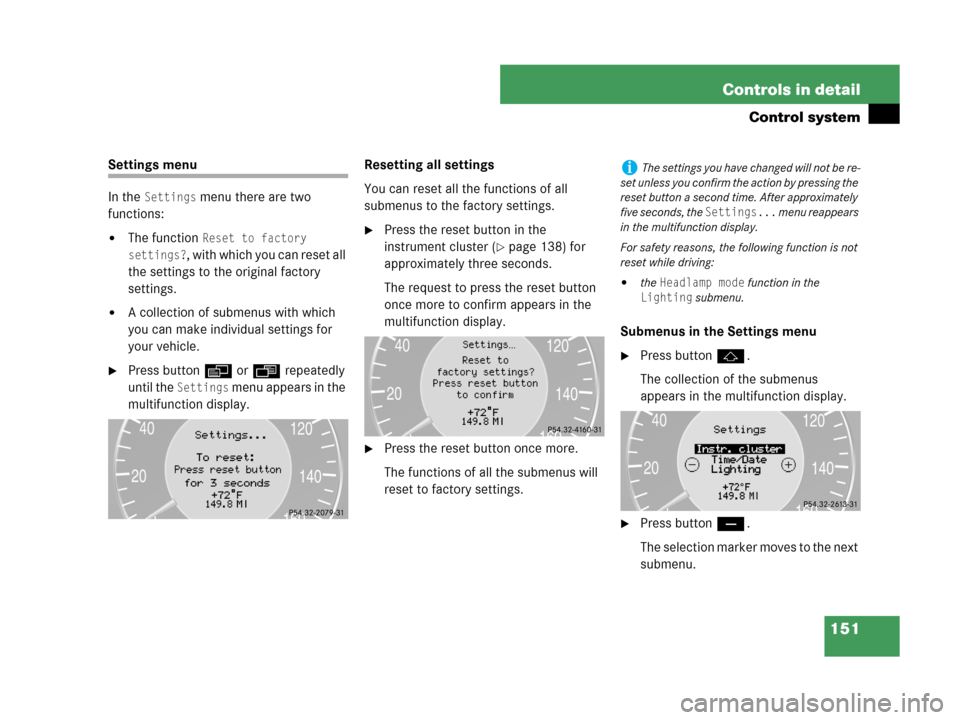

151 Controls in detail
Control system
Settings menu
In the
Settings menu there are two
functions:

The function Reset to factory
settings?
, with which you can reset all
the settings to the original factory
settings.

A collection of submenus with which
you can make individual settings for
your vehicle.
Press buttonè orÿ repeatedly
until the
Settings menu appears in the
multifunction display.Resetting all settings
You can reset all the functions of all
submenus to the factory settings.
Press the reset button in the
instrument cluster (
page 138) for
approximately three seconds.
The request to press the reset button
once more to confirm appears in the
multifunction display.
Press the reset button once more.
The functions of all the submenus will
reset to factory settings.Submenus in the Settings menu
Press buttonj.
The collection of the submenus
appears in the multifunction display.
Press buttonç.
The selection marker moves to the next
submenu.
iThe settings you have changed will not be re-
set unless you confirm the action by pressing the
reset button a second time. After approximately
five seconds, the
Settings... menu reappears
in the multifunction display.
For safety reasons, the following function is not
reset while driving:

the Headlamp mode function in the
Lighting submenu.

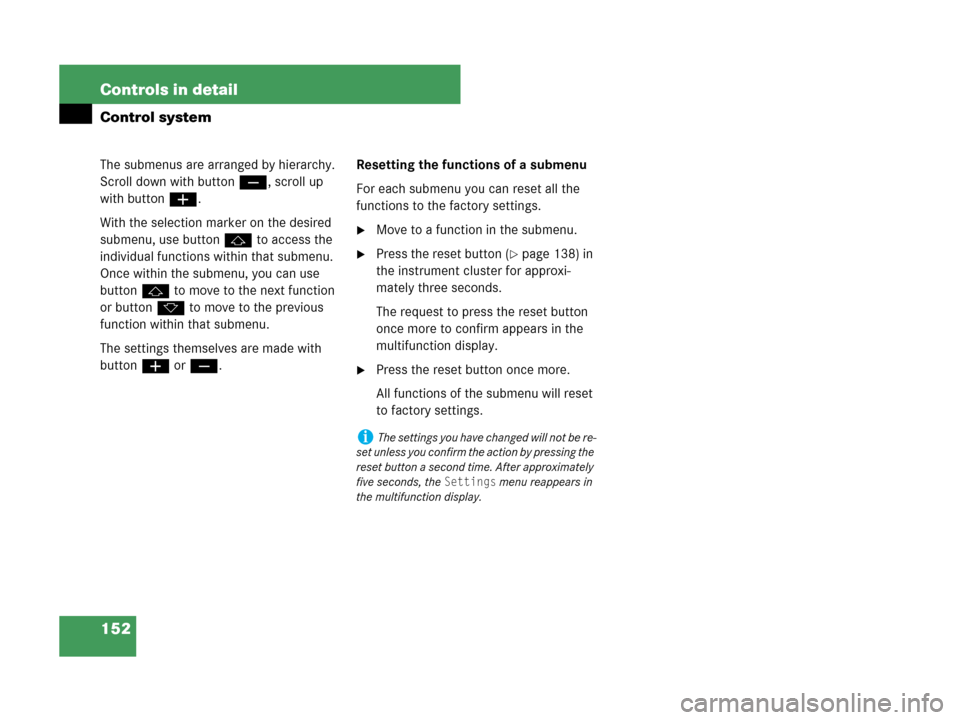

152 Controls in detail
Control system
The submenus are arranged by hierarchy.
Scroll down with buttonç, scroll up
with buttonæ.
With the selection marker on the desired
submenu, use buttonj to access the
individual functions within that submenu.
Once within the submenu, you can use
buttonj to move to the next function
or buttonk to move to the previous
function within that submenu.
The settings themselves are made with
buttonæ orç.Resetting the functions of a submenu
For each submenu you can reset all the
functions to the factory settings.
Move to a function in the submenu.
Press the reset button (page 138) in
the instrument cluster for approxi-
mately three seconds.
The request to press the reset button
once more to confirm appears in the
multifunction display.
Press the reset button once more.
All functions of the submenu will reset
to factory settings.
iThe settings you have changed will not be re-
set unless you confirm the action by pressing the
reset button a second time. After approximately
five seconds, the
Settings menu reappears in
the multifunction display.

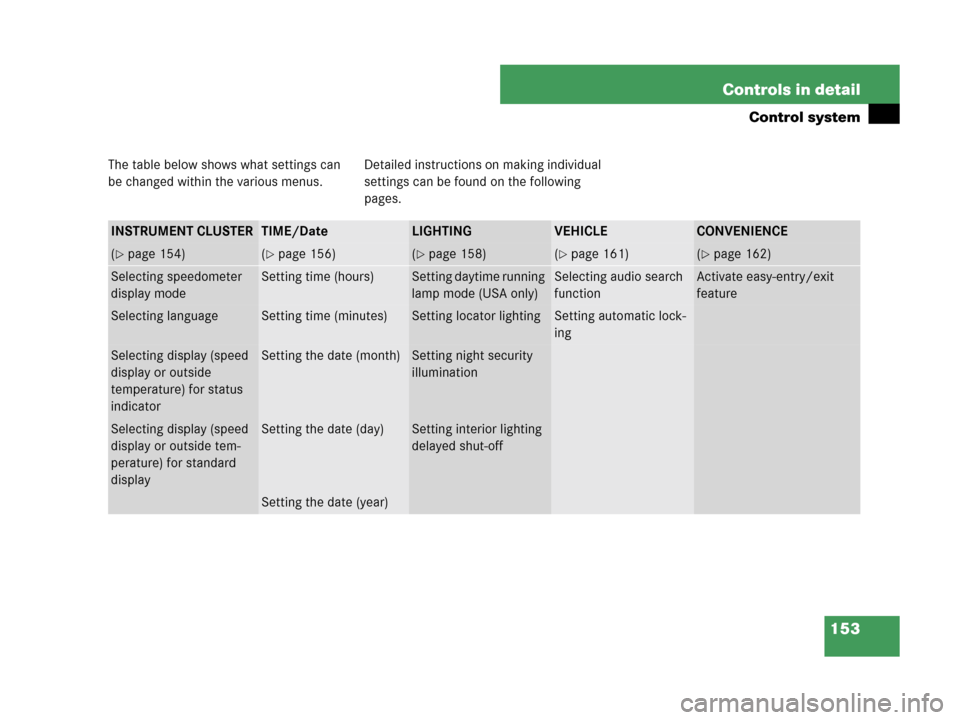

153 Controls in detail
Control system
The table below shows what settings can
be changed within the various menus. Detailed instructions on making individual
settings can be found on the following
pages.
INSTRUMENT CLUSTERTIME/DateLIGHTINGVEHICLECONVENIENCE
(page 154)(page 156)(page 158)(page 161)(page 162)
Selecting speedometer
display modeSetting time (hours)Setting daytime running
lamp mode (USA only)Selecting audio search
functionActivate easy-entry/exit
feature
Selecting languageSetting time (minutes)Setting locator lightingSetting automatic lock-
ing
Selecting display (speed
display or outside
temperature) for status
indicatorSetting the date (month)Setting night security
illumination
Selecting display (speed
display or outside tem-
perature) for standard
displaySetting the date (day)Setting interior lighting
delayed shut-off
Setting the date (year)

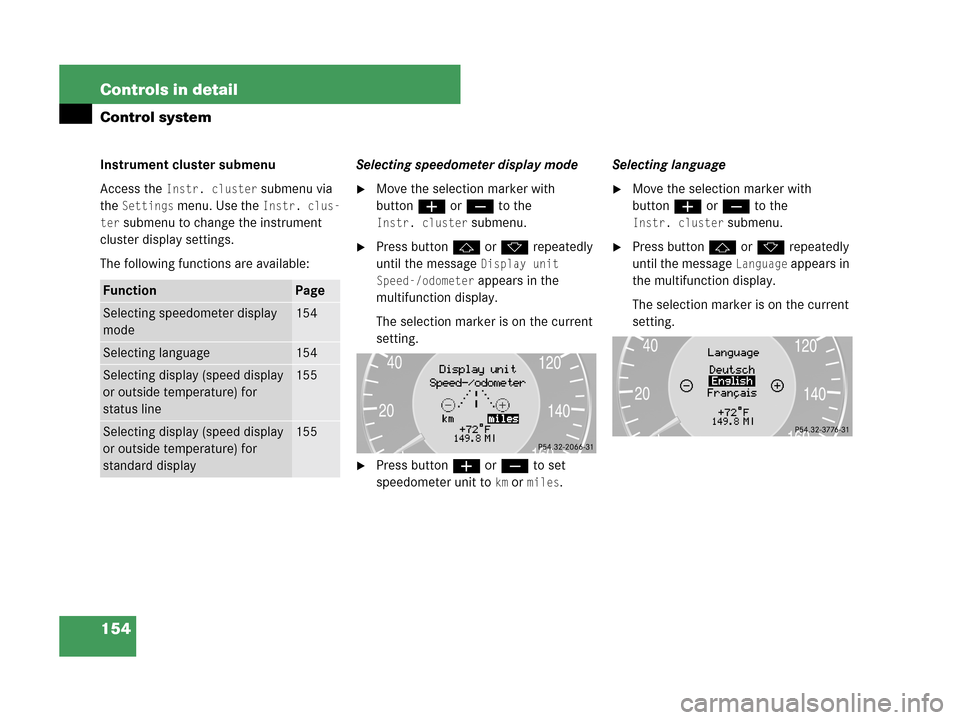

154 Controls in detail
Control system
Instrument cluster submenu
Access the
Instr. cluster submenu via
the
Settings menu. Use the Instr. clus-
ter
submenu to change the instrument
cluster display settings.
The following functions are available:Selecting speedometer display mode
Move the selection marker with
buttonæ orç to the
Instr. cluster submenu.
Press buttonj ork repeatedly
until the message
Display unit
Speed-/odometer
appears in the
multifunction display.
The selection marker is on the current
setting.
Press buttonæ or ç to set
speedometer unit to
km or miles.Selecting language
Move the selection marker with
buttonæ orç to the
Instr. cluster submenu.
Press buttonj ork repeatedly
until the message
Language appears in
the multifunction display.
The selection marker is on the current
setting.
FunctionPage
Selecting speedometer display
mode154
Selecting language154
Selecting display (speed display
or outside temperature) for
status line155
Selecting display (speed display
or outside temperature) for
standard display155

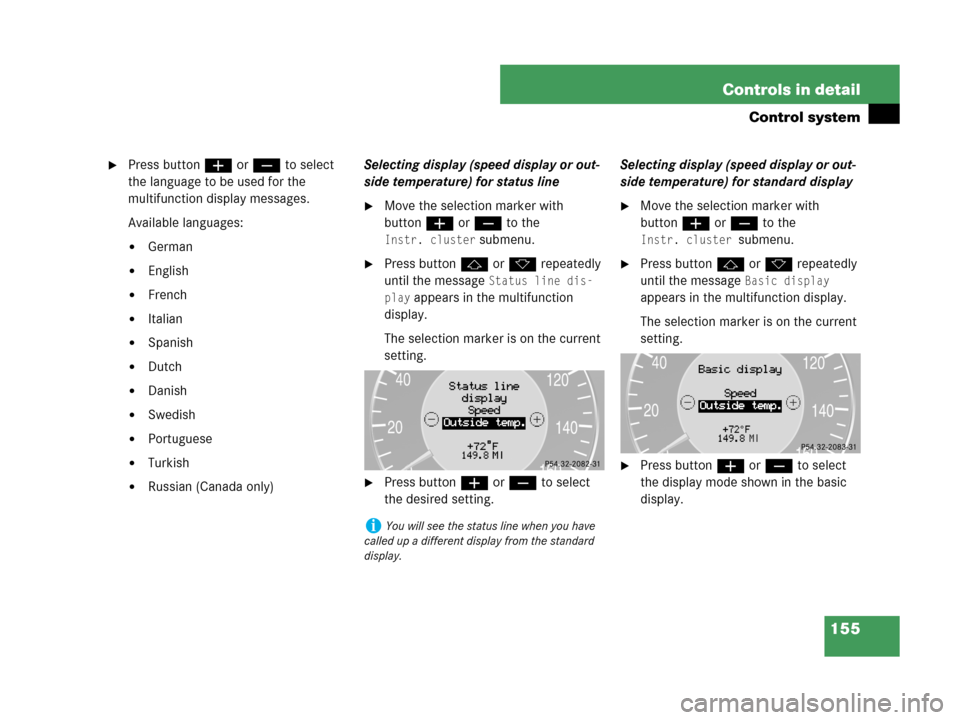

155 Controls in detail
Control system
Press buttonæ orç to select
the language to be used for the
multifunction display messages.
Available languages:

German

English

French

Italian

Spanish

Dutch

Danish

Swedish

Portuguese

Turkish

Russian (Canada only)Selecting display (speed display or out-
side temperature) for status line
Move the selection marker with
buttonæ orç to the
Instr. cluster submenu.
Press buttonj ork repeatedly
until the message
Status line dis-
play
appears in the multifunction
display.
The selection marker is on the current
setting.
Press buttonæ orç to select
the desired setting.Selecting display (speed display or out-
side temperature) for standard display
Move the selection marker with
buttonæ orç to the
Instr. cluster submenu.
Press buttonj ork repeatedly
until the message
Basic display
appears in the multifunction display.
The selection marker is on the current
setting.
Press buttonæ orç to select
the display mode shown in the basic
display.
iYou will see the status line when you have
called up a different display from the standard
display.

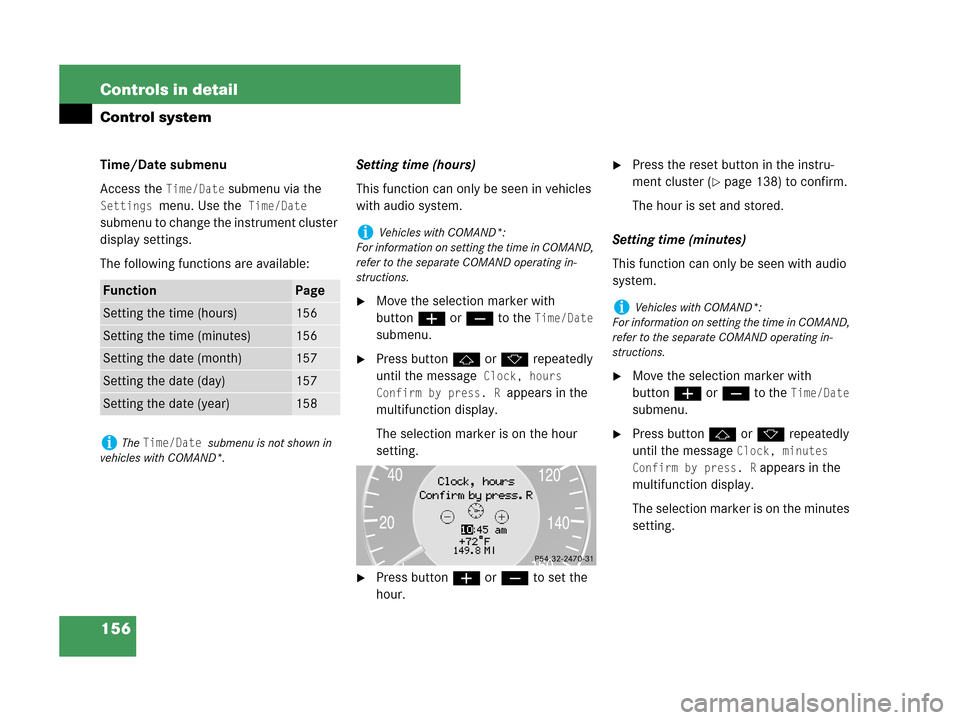

156 Controls in detail
Control system
Time/Date submenu
Access the
Time/Date submenu via the
Settings menu. Use the Time/Date
submenu to change the instrument cluster
display settings.
The following functions are available:Setting time (hours)
This function can only be seen in vehicles
with audio system.
Move the selection marker with
buttonæ orç to the
Time/Date
submenu.
Press buttonj ork repeatedly
until the message
Clock, hours
Confirm by press. R
appears in the
multifunction display.
The selection marker is on the hour
setting.
Press buttonæ orç to set the
hour.
Press the reset button in the instru-
ment cluster (
page 138) to confirm.
The hour is set and stored.
Setting time (minutes)
This function can only be seen with audio
system.
Move the selection marker with
buttonæ orç to the
Time/Date
submenu.
Press buttonj ork repeatedly
until the message
Clock, minutes
Confirm by press. R
appears in the
multifunction display.
The selection marker is on the minutes
setting.
FunctionPage
Setting the time (hours)156
Setting the time (minutes)156
Setting the date (month)157
Setting the date (day)157
Setting the date (year)158
iThe Time/Date submenu is not shown in
vehicles with COMAND*.
iVehicles with COMAND*:
For information on setting the time in COMAND,
refer to the separate COMAND operating in-
structions.
iVehicles with COMAND*:
For information on setting the time in COMAND,
refer to the separate COMAND operating in-
structions.

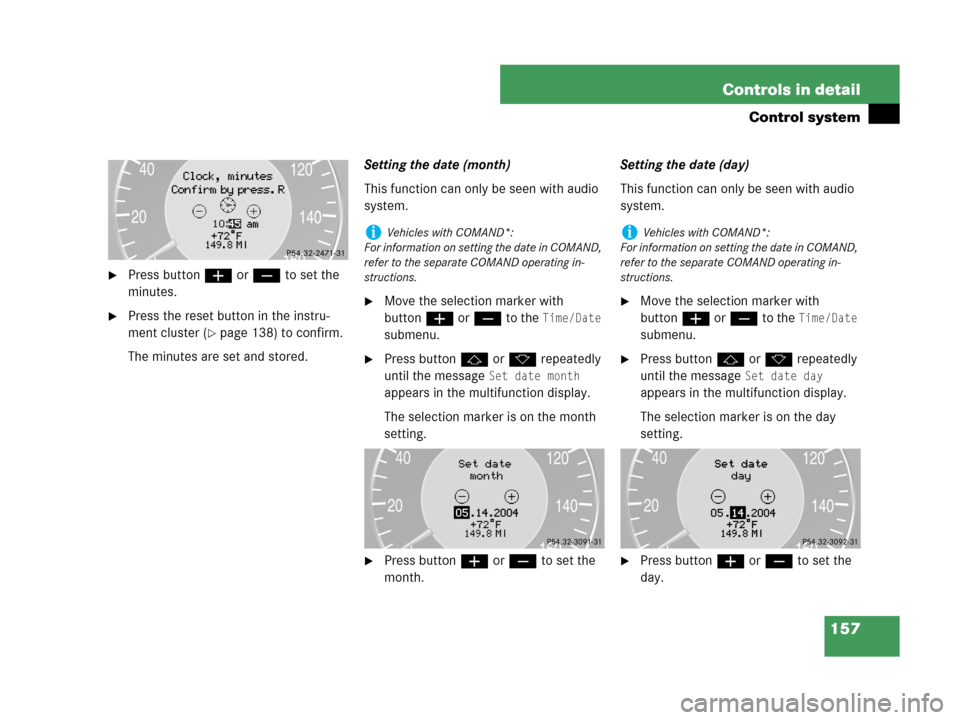

157 Controls in detail
Control system
Press buttonæ orç to set the
minutes.
Press the reset button in the instru-
ment cluster (
page 138) to confirm.
The minutes are set and stored.Setting the date (month)
This function can only be seen with audio
system.
Move the selection marker with
buttonæ orç to the
Time/Date
submenu.
Press buttonj ork repeatedly
until the message
Set date month
appears in the multifunction display.
The selection marker is on the month
setting.
Press buttonæ orç to set the
month.Setting the date (day)
This function can only be seen with audio
system.
Move the selection marker with
buttonæ orç to the
Time/Date
submenu.
Press buttonj ork repeatedly
until the message
Set date day
appears in the multifunction display.
The selection marker is on the day
setting.
Press buttonæ orç to set the
day.
iVehicles with COMAND*:
For information on setting the date in COMAND,
refer to the separate COMAND operating in-
structions.iVehicles with COMAND*:
For information on setting the date in COMAND,
refer to the separate COMAND operating in-
structions.

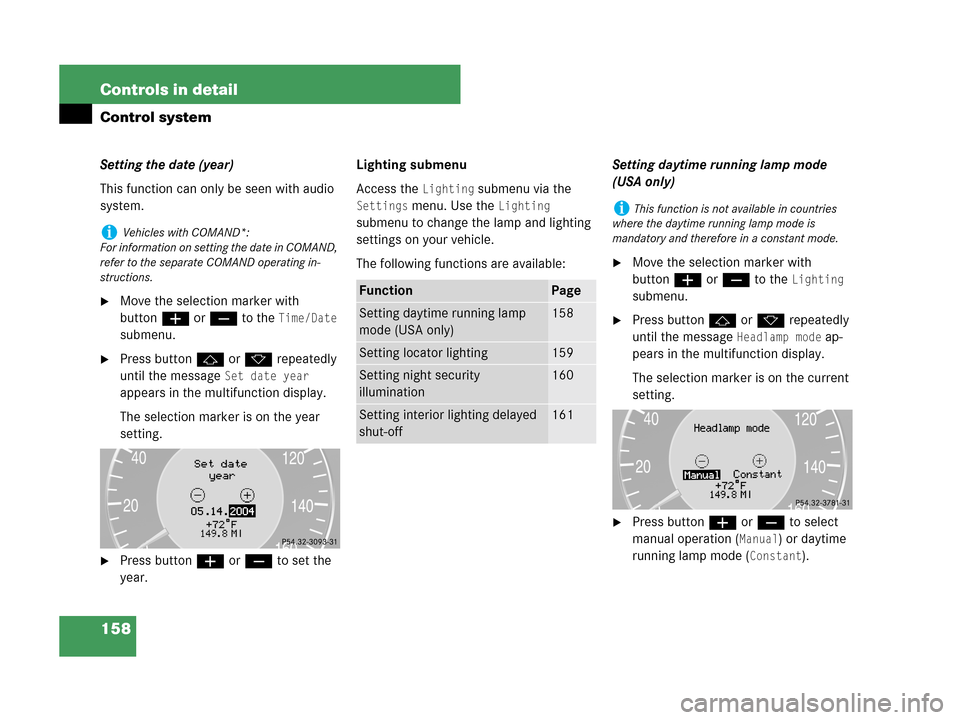

158 Controls in detail
Control system
Setting the date (year)
This function can only be seen with audio
system.
Move the selection marker with
buttonæ orç to the
Time/Date
submenu.
Press buttonj ork repeatedly
until the message
Set date year
appears in the multifunction display.
The selection marker is on the year
setting.
Press buttonæ orç to set the
year.Lighting submenu
Access the
Lighting submenu via the
Settings menu. Use the Lighting
submenu to change the lamp and lighting
settings on your vehicle.
The following functions are available:Setting daytime running lamp mode
(USA only)
Move the selection marker with
buttonæ orç to the
Lighting
submenu.
Press buttonj ork repeatedly
until the message
Headlamp mode ap-
pears in the multifunction display.
The selection marker is on the current
setting.
Press buttonæ orç to select
manual operation (
Manual) or daytime
running lamp mode (
Constant).
iVehicles with COMAND*:
For information on setting the date in COMAND,
refer to the separate COMAND operating in-
structions.
FunctionPage
Setting daytime running lamp
mode (USA only)158
Setting locator lighting159
Setting night security
illumination160
Setting interior lighting delayed
shut-off161
iThis function is not available in countries
where the daytime running lamp mode is
mandatory and therefore in a constant mode.

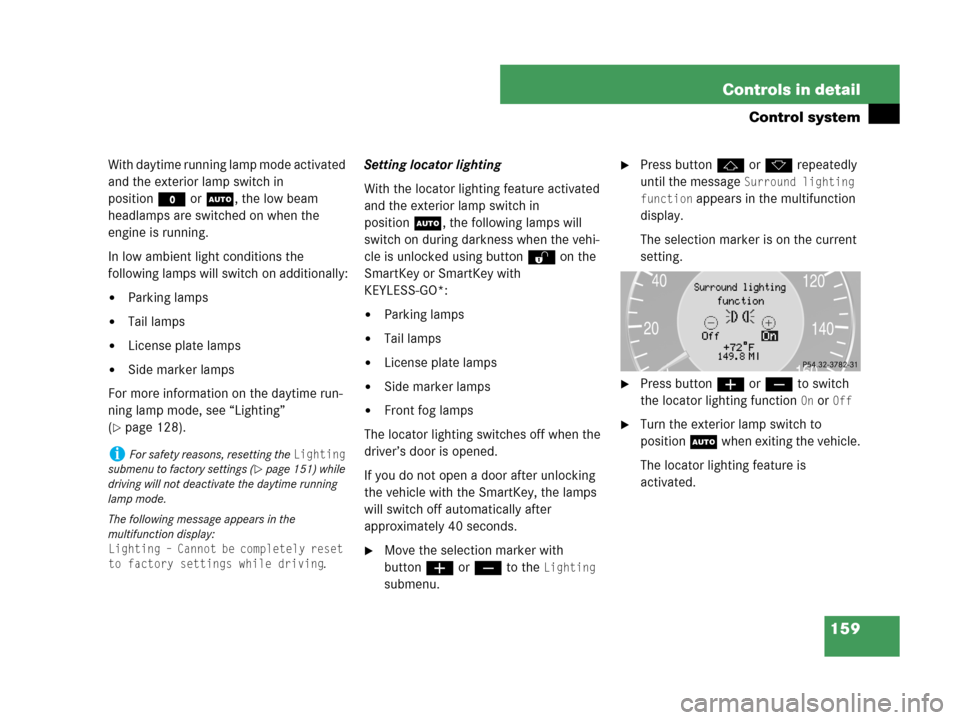

159 Controls in detail
Control system
With daytime running lamp mode activated
and the exterior lamp switch in
positionM or U, the low beam
headlamps are switched on when the
engine is running.
In low ambient light conditions the
following lamps will switch on additionally:

Parking lamps

Tail lamps

License plate lamps

Side marker lamps
For more information on the daytime run-
ning lamp mode, see “Lighting”
(
page 128).Setting locator lighting
With the locator lighting feature activated
and the exterior lamp switch in
positionU, the following lamps will
switch on during darkness when the vehi-
cle is unlocked using buttonΠon the
SmartKey or SmartKey with
KEYLESS-GO*:

Parking lamps

Tail lamps

License plate lamps

Side marker lamps

Front fog lamps
The locator lighting switches off when the
driver’s door is opened.
If you do not open a door after unlocking
the vehicle with the SmartKey, the lamps
will switch off automatically after
approximately 40 seconds.
Move the selection marker with
buttonæ orç to the
Lighting
submenu.
Press buttonj ork repeatedly
until the message
Surround lighting
function
appears in the multifunction
display.
The selection marker is on the current
setting.
Press buttonæ orç to switch
the locator lighting function
On or Off
Turn the exterior lamp switch to
position U when exiting the vehicle.
The locator lighting feature is
activated.
iFor safety reasons, resetting the Lighting
submenu to factory settings (
page 151) while
driving will not deactivate the daytime running
lamp mode.
The following message appears in the
multifunction display:
Lighting – Cannot be completely reset
to factory settings while driving
.
