MERCEDES-BENZ CLK350 COUPE 2007 C209 Owner's Manual

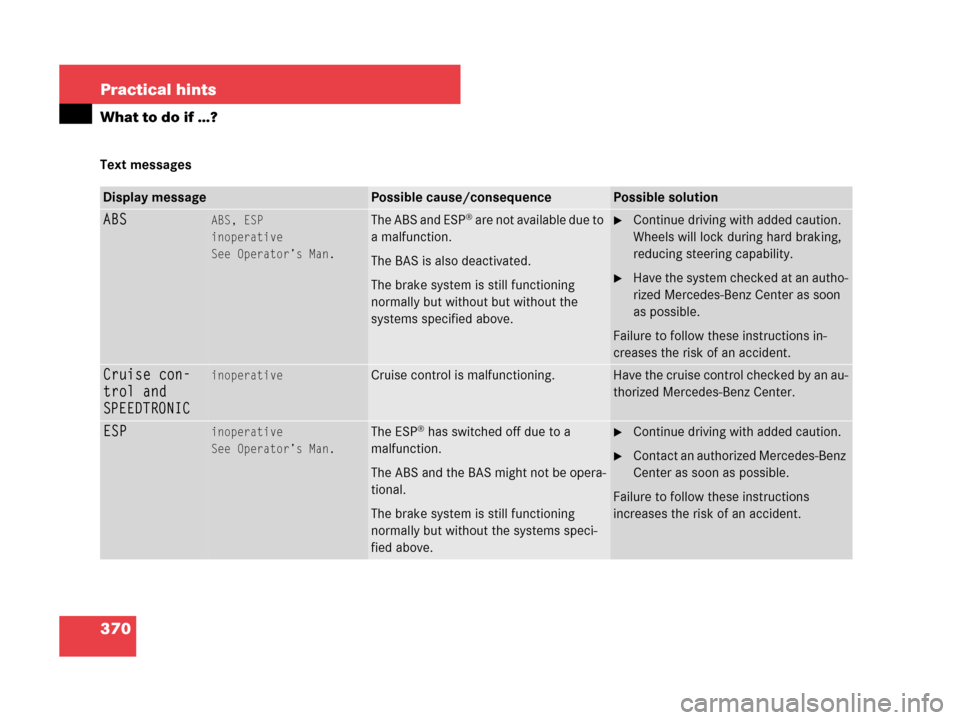

370 Practical hints
What to do if …?
Text messages
Display messagePossible cause/consequencePossible solution
ABSABS, ESP
inoperative
See Operator’s Man.The ABS and ESP® are not available due to
a malfunction.
The BAS is also deactivated.
The brake system is still functioning
normally but without but without the
systems specified above.Continue driving with added caution.
Wheels will lock during hard braking,
reducing steering capability.
Have the system checked at an autho-
rized Mercedes-Benz Center as soon
as possible.
Failure to follow these instructions in-
creases the risk of an accident.
Cruise con-
trol and
SPEEDTRONICinoperativeCruise control is malfunctioning.Have the cruise control checked by an au-
thorized Mercedes-Benz Center.
ESPinoperative
See Operator’s Man.The ESP® has switched off due to a
malfunction.
The ABS and the BAS might not be opera-
tional.
The brake system is still functioning
normally but without the systems speci-
fied above.Continue driving with added caution.
Contact an authorized Mercedes-Benz
Center as soon as possible.
Failure to follow these instructions
increases the risk of an accident.

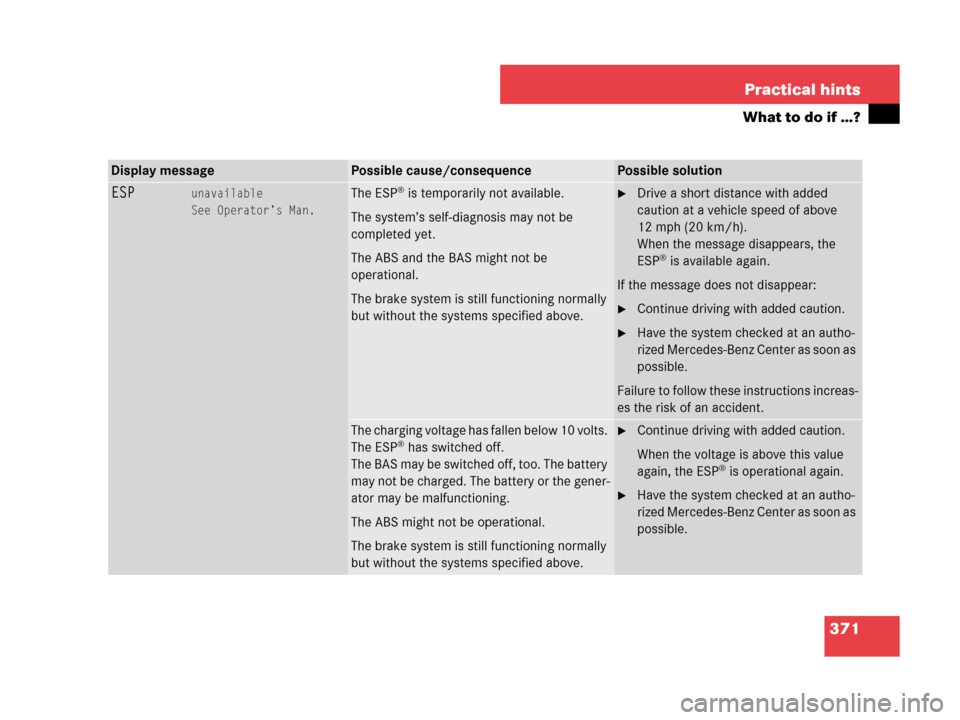

371 Practical hints
What to do if …?
Display messagePossible cause/consequencePossible solution
ESPunavailable
See Operator’s Man.The ESP® is temporarily not available.
The system’s self-diagnosis may not be
completed yet.
The ABS and the BAS might not be
operational.
The brake system is still functioning normally
but without the systems specified above.Drive a short distance with added
caution at a vehicle speed of above
12 mph (20 km/h).
When the message disappears, the
ESP
® is available again.
If the message does not disappear:
Continue driving with added caution.
Have the system checked at an autho-
rized Mercedes-Benz Center as soon as
possible.
Failure to follow these instructions increas-
es the risk of an accident.
The charging voltage has fallen below 10 volts.
The ESP® has switched off.
The BAS may be switched off, too. The battery
may not be charged. The battery or the gener-
ator may be malfunctioning.
The ABS might not be operational.
The brake system is still functioning normally
but without the systems specified above.
Continue driving with added caution.
When the voltage is above this value
again, the ESP
® is operational again.
Have the system checked at an autho-
rized Mercedes-Benz Center as soon as
possible.

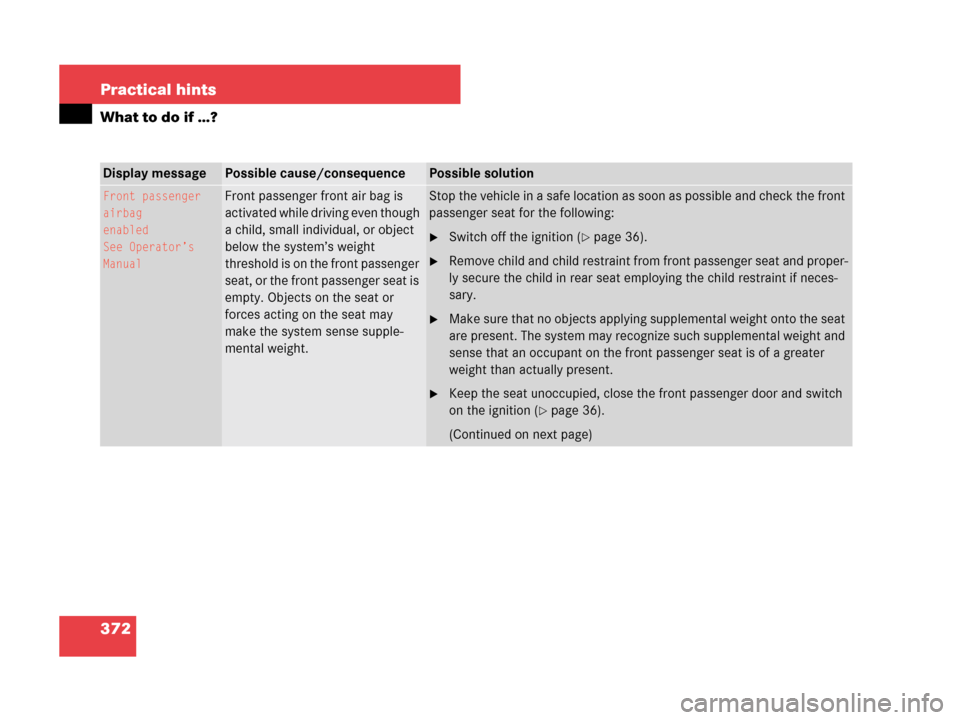

372 Practical hints
What to do if …?
Display messagePossible cause/consequencePossible solution
Front passenger
airbag
enabled
See Operator’s
ManualFront passenger front air bag is
activated while driving even though
a child, small individual, or object
below the system’s weight
threshold is on the front passenger
seat, or the front passenger seat is
empty. Objects on the seat or
forces acting on the seat may
make the system sense supple-
mental weight.Stop the vehicle in a safe location as soon as possible and check the front
passenger seat for the following:
Switch off the ignition (page 36).
Remove child and child restraint from front passenger seat and proper-
ly secure the child in rear seat employing the child restraint if neces-
sary.
Make sure that no objects applying supplemental weight onto the seat
are present. The system may recognize such supplemental weight and
sense that an occupant on the front passenger seat is of a greater
weight than actually present.
Keep the seat unoccupied, close the front passenger door and switch
on the ignition (
page 36).
(Continued on next page)

373 Practical hints
What to do if …?
Display messagePossible cause/
consequencePossible solution
Monitor the 56indicator lamp on the center console (page 29) and the mul-
tifunction display in the instrument cluster (
page 26) for the following:
With the seat unoccupied and the ignition turned on,

the 56indicator lamp on the center console should illuminate and remain
illuminated, indicating that the OCS (
page 70) has deactivated the air bag.

the message Front passenger airbag enabled See Operator’s Manual or the
message
Front passenger airbag disabled See Operator’s Manual should not
appear in the multifunction display at any time the seat is unoccupied. Wait at last
60 seconds for the system to complete the necessary check cycles and to make
sure neither message appears in the multifunction display.
If above conditions are met, you can occupy the front passenger seat again. Depend-
ing on the front passenger classification sensed by the OCS (
page 70), the
56indicator lamp will remain illuminated or go out.
If above conditions are not met, the system is not working properly. Have the system
checked as soon as possible by an authorized Mercedes-Benz Center.
Warning!G
If the 56indicator lamp remains
out even after performing the above correc-
tive steps, do not have any children 12 years
old and under and other small individuals use the front passenger seat until the sys-
tem has been repaired.

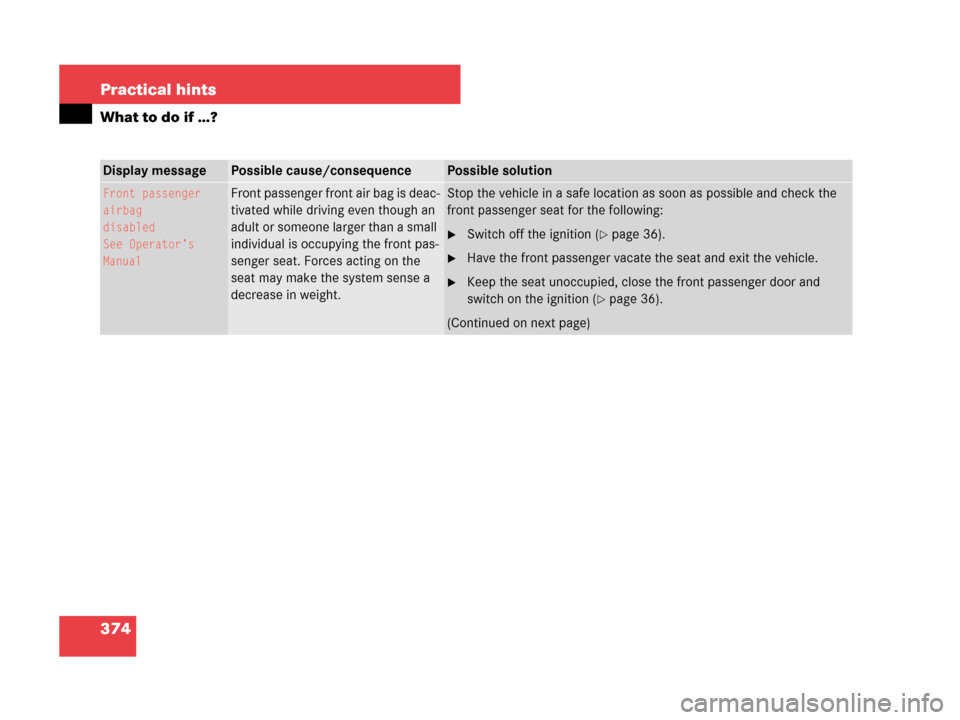

374 Practical hints
What to do if …?
Display messagePossible cause/consequencePossible solution
Front passenger
airbag
disabled
See Operator’s
ManualFront passenger front air bag is deac-
tivated while driving even though an
adult or someone larger than a small
individual is occupying the front pas-
senger seat. Forces acting on the
seat may make the system sense a
decrease in weight.Stop the vehicle in a safe location as soon as possible and check the
front passenger seat for the following:
Switch off the ignition (page 36).
Have the front passenger vacate the seat and exit the vehicle.
Keep the seat unoccupied, close the front passenger door and
switch on the ignition (
page 36).
(Continued on next page)

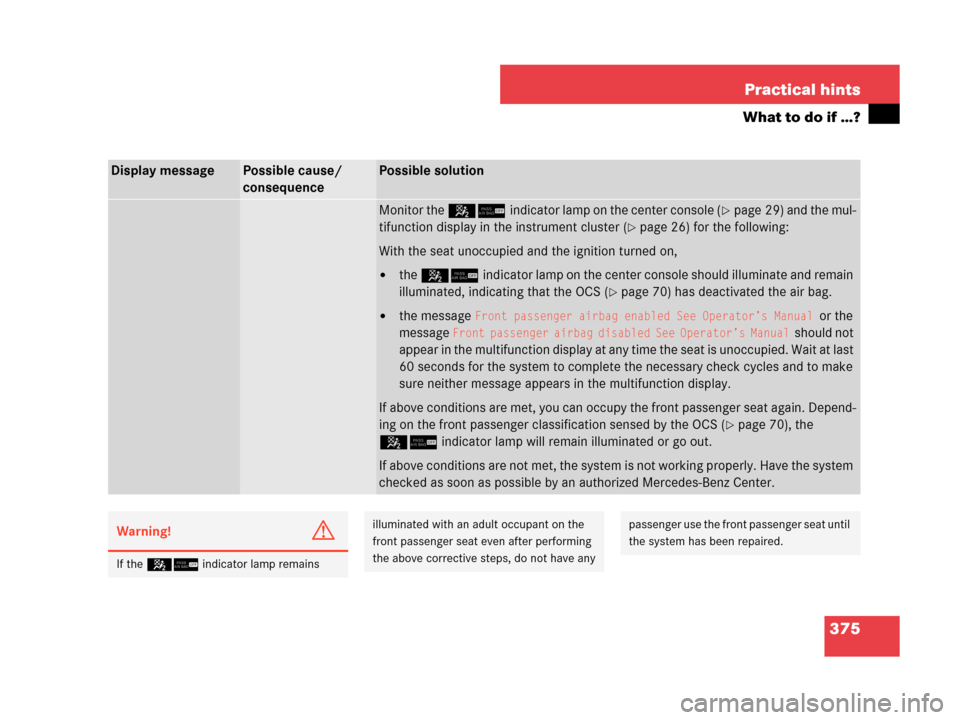

375 Practical hints
What to do if …?
Display messagePossible cause/
consequencePossible solution
Monitor the 56indicator lamp on the center console (page 29) and the mul-
tifunction display in the instrument cluster (
page 26) for the following:
With the seat unoccupied and the ignition turned on,

the 56indicator lamp on the center console should illuminate and remain
illuminated, indicating that the OCS (
page 70) has deactivated the air bag.

the message Front passenger airbag enabled See Operator’s Manual or the
message
Front passenger airbag disabled See Operator’s Manual should not
appear in the multifunction display at any time the seat is unoccupied. Wait at last
60 seconds for the system to complete the necessary check cycles and to make
sure neither message appears in the multifunction display.
If above conditions are met, you can occupy the front passenger seat again. Depend-
ing on the front passenger classification sensed by the OCS (
page 70), the
56indicator lamp will remain illuminated or go out.
If above conditions are not met, the system is not working properly. Have the system
checked as soon as possible by an authorized Mercedes-Benz Center.
Warning!G
If the 56indicator lamp remains
illuminated with an adult occupant on the
front passenger seat even after performing
the above corrective steps, do not have anypassenger use the front passenger seat until
the system has been repaired.

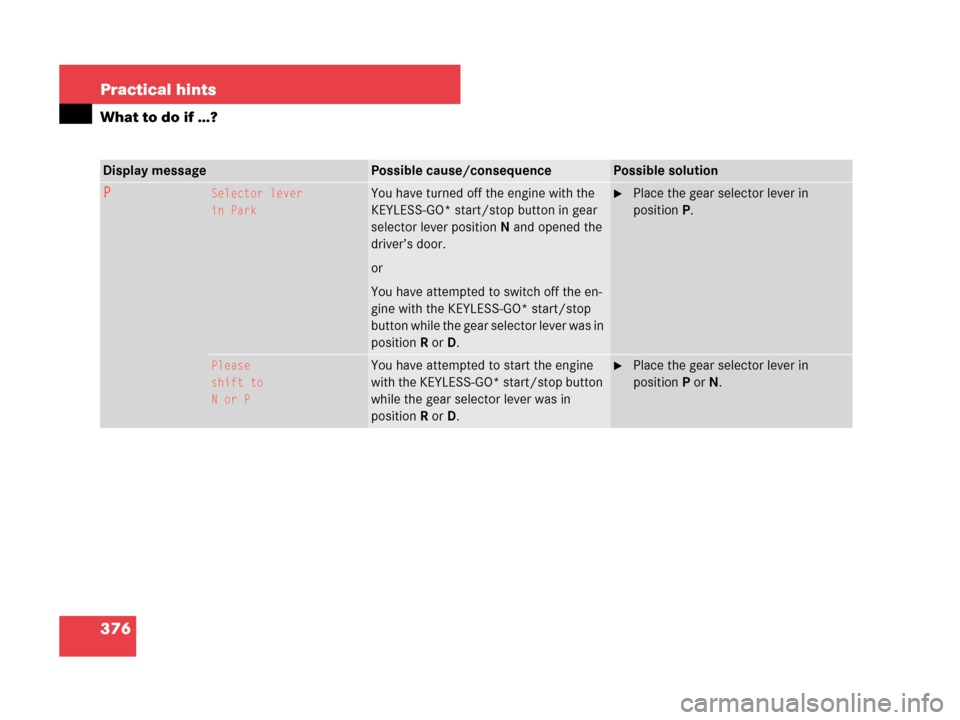

376 Practical hints
What to do if …?
Display messagePossible cause/consequencePossible solution
PSelector lever
in ParkYou have turned off the engine with the
KEYLESS-GO* start/stop button in gear
selector lever positionN and opened the
driver’s door.
or
You have attempted to switch off the en-
gine with the KEYLESS-GO* start/stop
button while the gear selector lever was in
positionR orD.Place the gear selector lever in
positionP.
Please
shift to
N or PYou have attempted to start the engine
with the KEYLESS-GO* start/stop button
while the gear selector lever was in
positionR orD.Place the gear selector lever in
positionP or N.

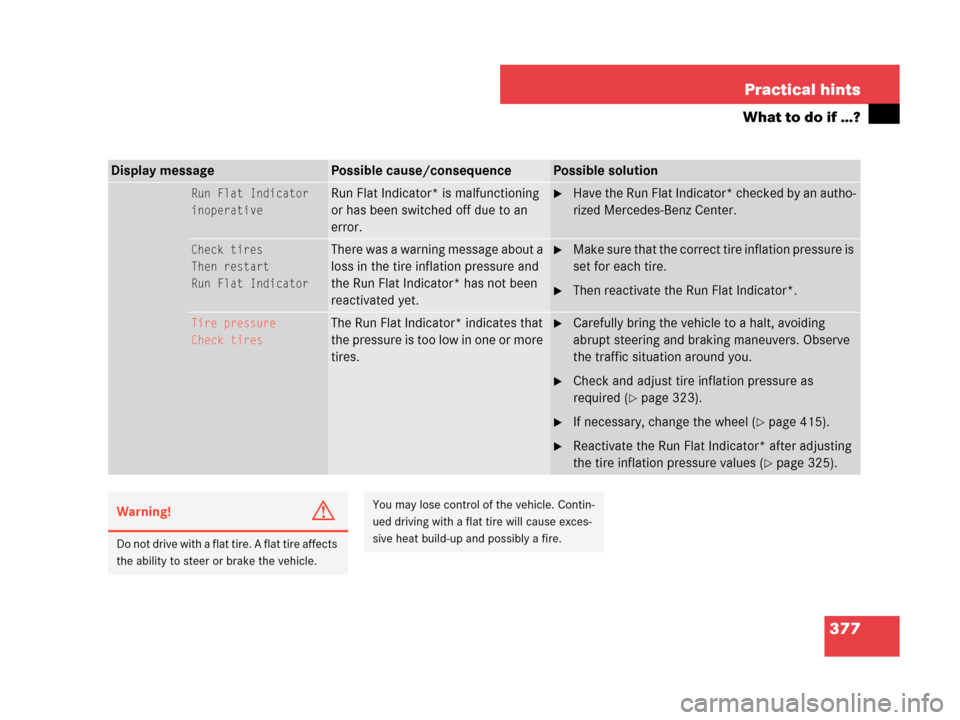

377 Practical hints
What to do if …?
Display messagePossible cause/consequencePossible solution
Run Flat Indicator
inoperativeRun Flat Indicator* is malfunctioning
or has been switched off due to an
error.Have the Run Flat Indicator* checked by an autho-
rized Mercedes-Benz Center.
Check tires
Then restart
Run Flat IndicatorThere was a warning message about a
loss in the tire inflation pressure and
the Run Flat Indicator* has not been
reactivated yet.Make sure that the correct tire inflation pressure is
set for each tire.
Then reactivate the Run Flat Indicator*.
Tire pressure
Check tiresThe Run Flat Indicator* indicates that
the pressure is too low in one or more
tires.Carefully bring the vehicle to a halt, avoiding
abrupt steering and braking maneuvers. Observe
the traffic situation around you.
Check and adjust tire inflation pressure as
required (
page 323).
If necessary, change the wheel (page 415).
Reactivate the Run Flat Indicator* after adjusting
the tire inflation pressure values (
page 325).
Warning!G
Do not drive with a flat tire. A flat tire affects
the ability to steer or brake the vehicle.
You may lose control of the vehicle. Contin-
ued driving with a flat tire will cause exces-
sive heat build-up and possibly a fire.

378 Practical hints
What to do if …?
Symbol messages
Display symbolDisplay messagePossible cause/consequencePossible solution
#The battery is no longer charging.
Possible causes:

broken poly-V-belt

alternator malfunctioning
Stop immediately in a safe location or
as soon as it is safe to do so and check
the poly-V-belt.
If it is broken:
Do not continue to drive. Otherwise
the engine will overheat due to an
inoperative water pump which may
result in damage to the engine. Notify
an authorized Mercedes-Benz Center.
If it is intact:
Drive immediately to the nearest
authorized Mercedes-Benz Center.
Low voltage
Charge batteryThe battery has insufficient voltage.Start the engine (page 50).
Low voltage
Switch off
consumersThe battery has insufficient voltage.Turn off unnecessary electrical con-
sumers.

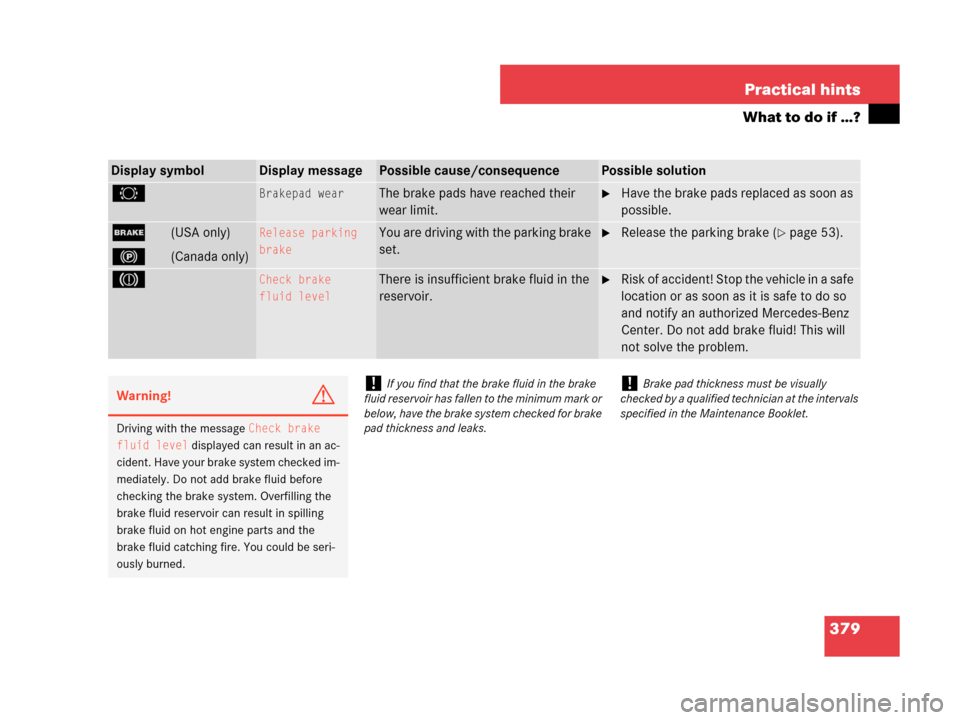

379 Practical hints
What to do if …?
Display symbolDisplay messagePossible cause/consequencePossible solution
2Brakepad wearThe brake pads have reached their
wear limit.Have the brake pads replaced as soon as
possible.
;(USA only)
!(Canada only)
Release parking
brakeYou are driving with the parking brake
set.Release the parking brake (page 53).
3 Check brake
fluid levelThere is insufficient brake fluid in the
reservoir.Risk of accident! Stop the vehicle in a safe
location or as soon as it is safe to do so
and notify an authorized Mercedes-Benz
Center. Do not add brake fluid! This will
not solve the problem.
Warning!G
Driving with the message Check brake
fluid level
displayed can result in an ac-
cident. Have your brake system checked im-
mediately. Do not add brake fluid before
checking the brake system. Overfilling the
brake fluid reservoir can result in spilling
brake fluid on hot engine parts and the
brake fluid catching fire. You could be seri-
ously burned.
!If you find that the brake fluid in the brake
fluid reservoir has fallen to the minimum mark or
below, have the brake system checked for brake
pad thickness and leaks.!Brake pad thickness must be visually
checked by a qualified technician at the intervals
specified in the Maintenance Booklet.
