340 Operation
Tires and wheels
Rotating tires
Tire rotation can be performed on vehicles
with tires of the same dimension all
around. If your vehicle is equipped with
tires of the same dimension all around,
tires can be rotated, observing a a
front-to-rear rotation pattern that will
maintain the intended rotation (spinning)
direction of the tire (
page 316).
In some cases, such as when your vehicle
is equipped with mixed-size tires (different
tire dimension front vs. rear), tire rotation
is not possible.If applicable to your vehicle’s tire configu-
ration, tires can be rotated according to
the tire manufacturer’s recommended in-
tervals in the tire manufacturer’s warranty
pamphlet located in your vehicle literature
portfolio. If none is available, tires should
be rotated every 3 000 to 6 000 miles
(5 000 to 10 000 km), or sooner if neces-
sary, according to the degree of tire wear.
The same rotation (spinning) direction
must be maintained (
page 316).
Rotate tires before the characteristic tire
wear pattern becomes visible (shoulder
wear on front tires and tread center wear
on rear tires).
Thoroughly clean the mounting face of
wheels and brake disks, i.e. the inner side
of the wheels/tires, during each rotation.
Check for and ensure proper tire inflation
pressure.For information on wheel change, see the
“Practical hints” section (
page 394) and
(
page 415).
Warning!G
Rotate front and rear wheels only if the tires
are of the same dimension.
If your vehicle is equipped with mixed-size
tires (different tire dimensions front vs.
rear), tire rotation is not possible.
Warning!G
Have the tightening torque checked after
changing a wheel. Wheels could become
loose if not tightened with a torque of
80 lb-ft (110 Nm).
Only use Genuine Mercedes-Benz wheel
bolts specified for your vehicle’s rims.

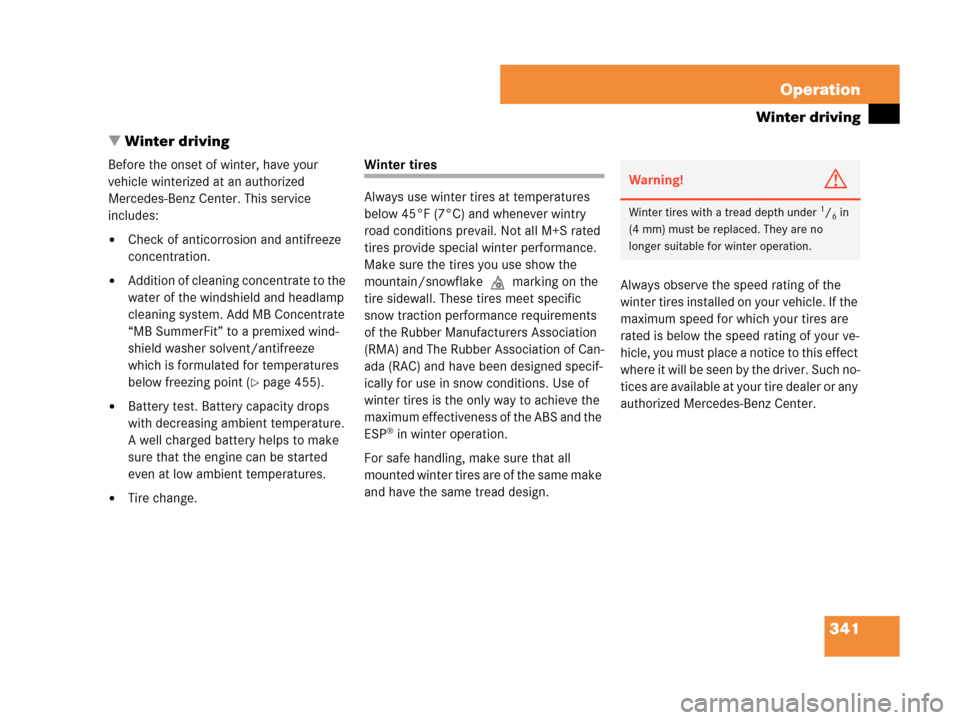

341 Operation
Winter driving
Winter driving
Before the onset of winter, have your
vehicle winterized at an authorized
Mercedes-Benz Center. This service
includes:

Check of anticorrosion and antifreeze
concentration.

Addition of cleaning concentrate to the
water of the windshield and headlamp
cleaning system. Add MB Concentrate
“MB SummerFit” to a premixed wind-
shield washer solvent/antifreeze
which is formulated for temperatures
below freezing point (
page 455).

Battery test. Battery capacity drops
with decreasing ambient temperature.
A well charged battery helps to make
sure that the engine can be started
even at low ambient temperatures.

Tire change.
Winter tires
Always use winter tires at temperatures
below 45°F (7°C) and whenever wintry
road conditions prevail. Not all M+S rated
tires provide special winter performance.
Make sure the tires you use show the
mountain/snowflake.marking on the
tire sidewall. These tires meet specific
snow traction performance requirements
of the Rubber Manufacturers Association
(RMA) and The Rubber Association of Can-
ada (RAC) and have been designed specif-
ically for use in snow conditions. Use of
winter tires is the only way to achieve the
maximum effectiveness of the ABS and the
ESP
® in winter operation.
For safe handling, make sure that all
mounted winter tires are of the same make
and have the same tread design.Always observe the speed rating of the
winter tires installed on your vehicle. If the
maximum speed for which your tires are
rated is below the speed rating of your ve-
hicle, you must place a notice to this effect
where it will be seen by the driver. Such no-
tices are available at your tire dealer or any
authorized Mercedes-Benz Center.
Warning!G
Winter tires with a tread depth under 1/6in
(4 mm) must be replaced. They are no
longer suitable for winter operation.

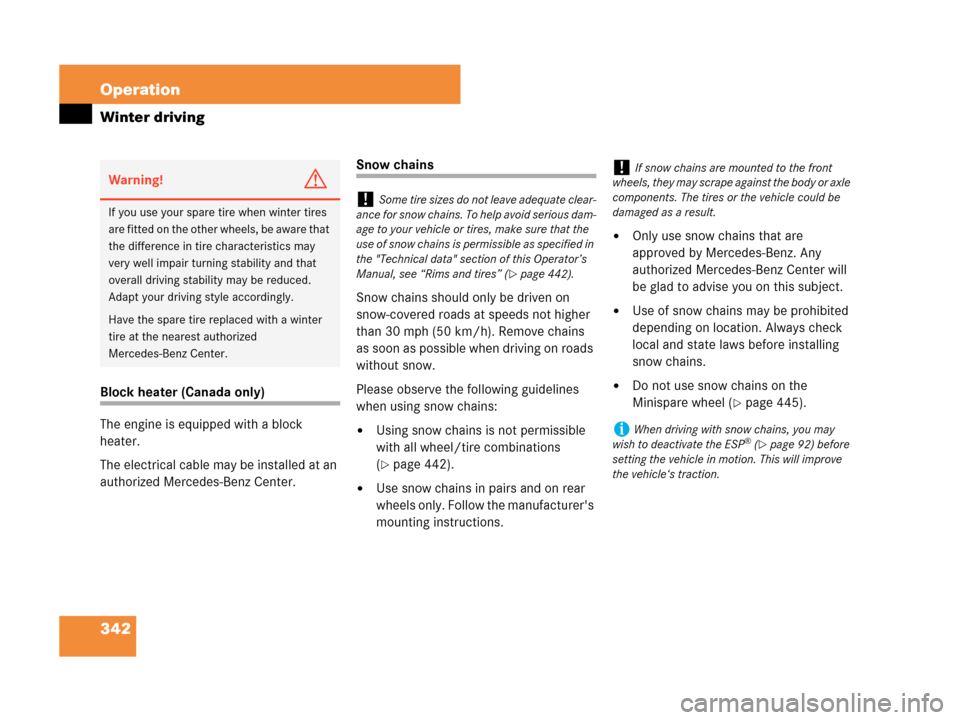

342 Operation
Winter driving
Block heater (Canada only)
The engine is equipped with a block
heater.
The electrical cable may be installed at an
authorized Mercedes-Benz Center.
Snow chains
Snow chains should only be driven on
snow-covered roads at speeds not higher
than 30 mph (50 km/h). Remove chains
as soon as possible when driving on roads
without snow.
Please observe the following guidelines
when using snow chains:

Using snow chains is not permissible
with all wheel/tire combinations
(
page 442).

Use snow chains in pairs and on rear
wheels only. Follow the manufacturer's
mounting instructions.

Only use snow chains that are
approved by Mercedes-Benz. Any
authorized Mercedes-Benz Center will
be glad to advise you on this subject.

Use of snow chains may be prohibited
depending on location. Always check
local and state laws before installing
snow chains.

Do not use snow chains on the
Minispare wheel (
page 445).
Warning!G
If you use your spare tire when winter tires
are fitted on the other wheels, be aware that
the difference in tire characteristics may
very well impair turning stability and that
overall driving stability may be reduced.
Adapt your driving style accordingly.
Have the spare tire replaced with a winter
tire at the nearest authorized
Mercedes-Benz Center.!Some tire sizes do not leave adequate clear-
ance for snow chains. To help avoid serious dam-
age to your vehicle or tires, make sure that the
use of snow chains is permissible as specified in
the "Technical data" section of this Operator’s
Manual, see “Rims and tires” (
page 442).
!If snow chains are mounted to the front
wheels, they may scrape against the body or axle
components. The tires or the vehicle could be
damaged as a result.
iWhen driving with snow chains, you may
wish to deactivate the ESP® (page 92) before
setting the vehicle in motion. This will improve
the vehicle‘s traction.

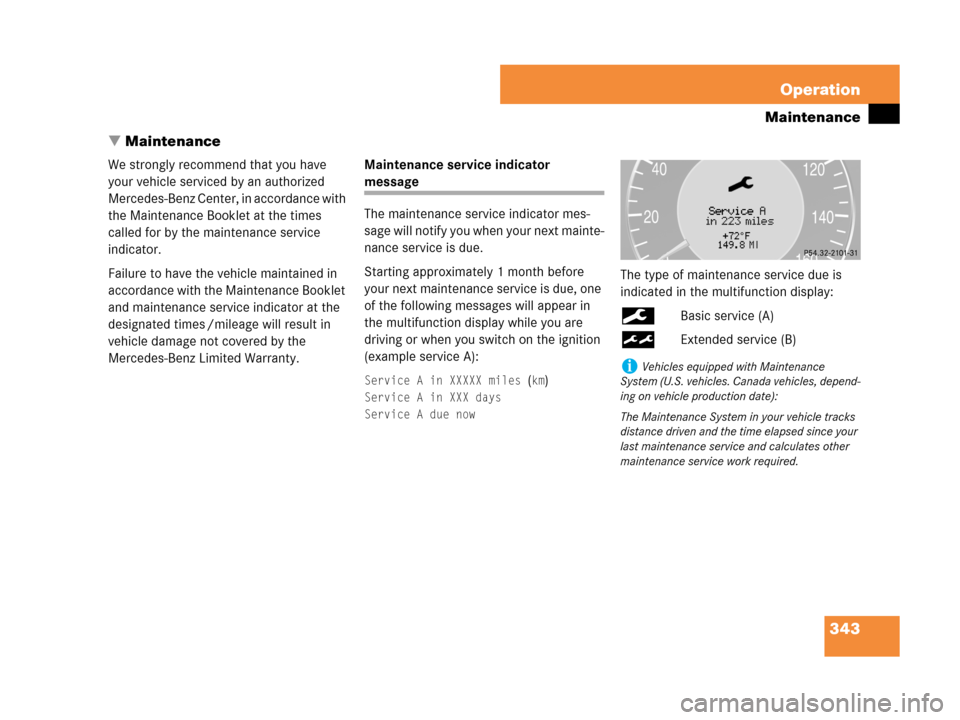

343 Operation
Maintenance
Maintenance
We strongly recommend that you have
your vehicle serviced by an authorized
Mercedes-Benz Center, in accordance with
the Maintenance Booklet at the times
called for by the maintenance service
indicator.
Failure to have the vehicle maintained in
accordance with the Maintenance Booklet
and maintenance service indicator at the
designated times /mileage will result in
vehicle damage not covered by the
Mercedes-Benz Limited Warranty.Maintenance service indicator
message
The maintenance service indicator mes-
sage will notify you when your next mainte-
nance service is due.
Starting approximately 1 month before
your next maintenance service is due, one
of the following messages will appear in
the multifunction display while you are
driving or when you switch on the ignition
(example service A):
Service A in XXXXX miles (km)
Service A in XXX days
Service A due now
The type of maintenance service due is
indicated in the multifunction display:
9Basic service (A)
½Extended service (B)
iVehicles equipped with Maintenance
System (U.S. vehicles. Canada vehicles, depend-
ing on vehicle production date):
The Maintenance System in your vehicle tracks
distance driven and the time elapsed since your
last maintenance service and calculates other
maintenance service work required.

344 Operation
Maintenance
Clearing the maintenance service
indicator message
The maintenance service indicator mes-
sage is automatically cleared after approx-
imately 30 seconds when you switch on
the ignition or when reaching the mainte-
nance service threshold while driving.
You can also clear it yourself.
1Reset button
Press reset button 1 on the
instrument cluster.The maintenance service indicator
message is cleared and the standard
display appears in the multifunction
display (
page 146).
Maintenance service term exceeded
If you have exceeded the suggested
maintenance service term, you will see the
following message in the multifunction
display:
Service A exceeded by XXXXX miles (km)
Service A exceeded by XXX days
In addition, a signal sounds when the
message appears.
Any authorized Mercedes-Benz Center will
reset the maintenance service indicator
following a completed maintenance
service.
iVehicles equipped with FSS (Flexible Ser-
vice S
ystem) only (Canada vehicles, depending
on vehicle production date):

FSS evaluates engine temperature, oil level,
vehicle speed, engine speed, distance driven
and the time elapsed since your last service
and calculates other maintenance service
work required.

The interval between maintenance services
depends on your driving habits. A gentle
driving style, moderate engine speeds and
the avoidance of short-distance trips will
lengthen the interval between services.

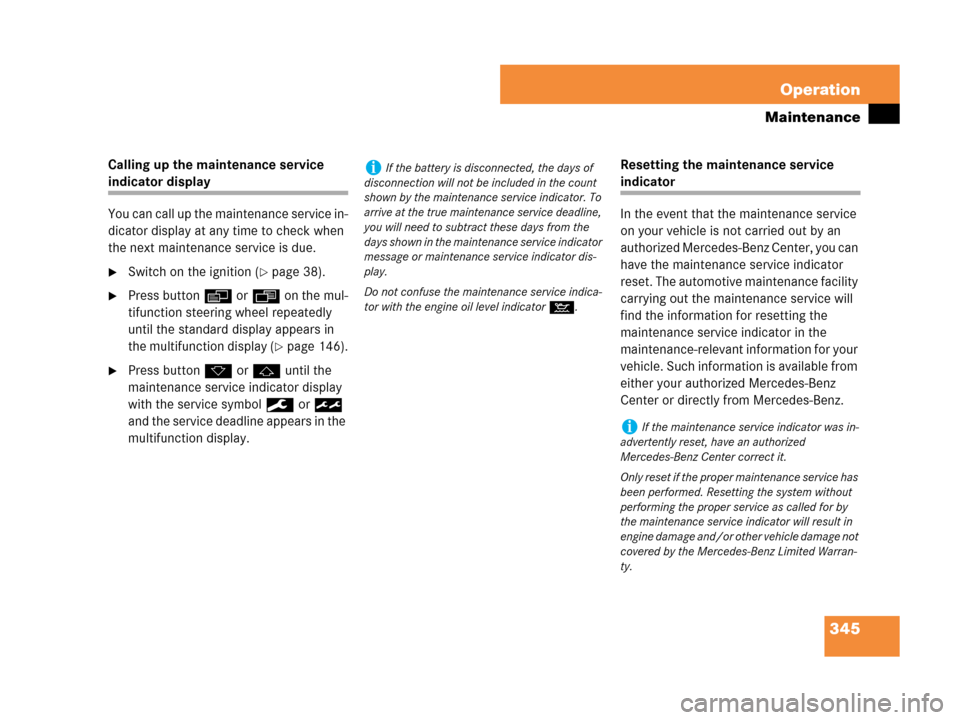

345 Operation
Maintenance
Calling up the maintenance service
indicator display
You can call up the maintenance service in-
dicator display at any time to check when
the next maintenance service is due.
Switch on the ignition (page 38).
Press buttonè orÿ on the mul-
tifunction steering wheel repeatedly
until the standard display appears in
the multifunction display (
page 146).
Press buttonkorjuntil the
maintenance service indicator display
with the service symbol9or½
and the service deadline appears in the
multifunction display.Resetting the maintenance service
indicator
In the event that the maintenance service
on your vehicle is not carried out by an
authorized Mercedes-Benz Center, you can
have the maintenance service indicator
reset. The automotive maintenance facility
carrying out the maintenance service will
find the information for resetting the
maintenance service indicator in the
maintenance-relevant information for your
vehicle. Such information is available from
either your authorized Mercedes-Benz
Center or directly from Mercedes-Benz.iIf the battery is disconnected, the days of
disconnection will not be included in the count
shown by the maintenance service indicator. To
arrive at the true maintenance service deadline,
you will need to subtract these days from the
days shown in the maintenance service indicator
message or maintenance service indicator dis-
play.
Do not confuse the maintenance service indica-
tor with the engine oil level indicator:.
iIf the maintenance service indicator was in-
advertently reset, have an authorized
Mercedes-Benz Center correct it.
Only reset if the proper maintenance service has
been performed. Resetting the system without
performing the proper service as called for by
the maintenance service indicator will result in
engine damage and/or other vehicle damage not
covered by the Mercedes-Benz Limited Warran-
ty.

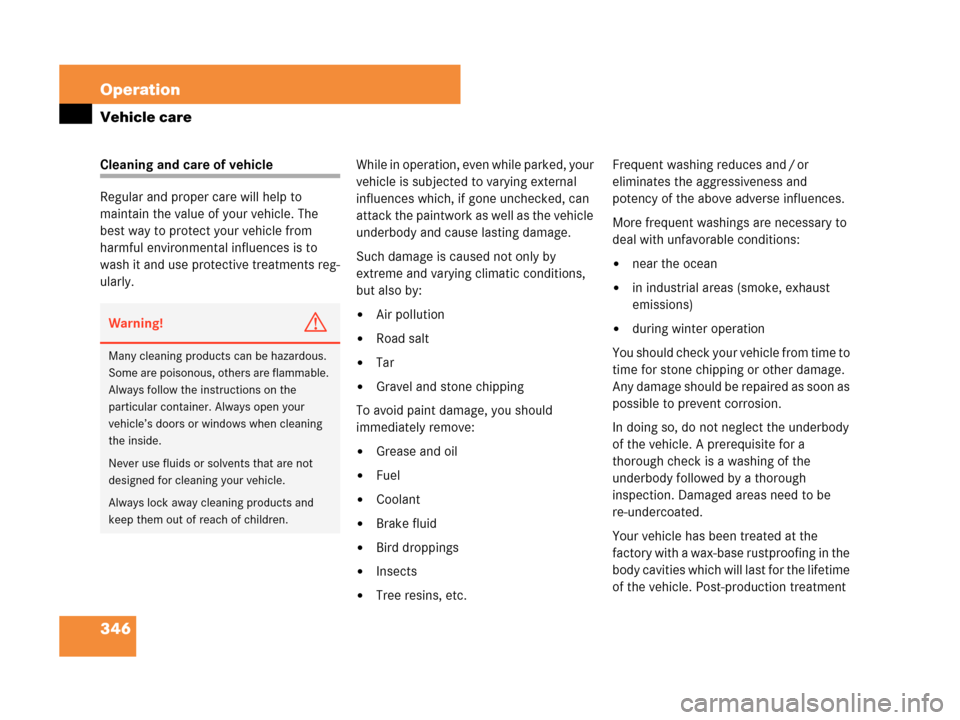

346 Operation
Vehicle care
Cleaning and care of vehicle
Regular and proper care will help to
maintain the value of your vehicle. The
best way to protect your vehicle from
harmful environmental influences is to
wash it and use protective treatments reg-
ularly.While in operation, even while parked, your
vehicle is subjected to varying external
influences which, if gone unchecked, can
attack the paintwork as well as the vehicle
underbody and cause lasting damage.
Such damage is caused not only by
extreme and varying climatic conditions,
but also by:

Air pollution

Road salt

Tar

Gravel and stone chipping
To avoid paint damage, you should
immediately remove:

Grease and oil

Fuel

Coolant

Brake fluid

Bird droppings

Insects

Tree resins, etc.Frequent washing reduces and / or
eliminates the aggressiveness and
potency of the above adverse influences.
More frequent washings are necessary to
deal with unfavorable conditions:

near the ocean

in industrial areas (smoke, exhaust
emissions)

during winter operation
You should check your vehicle from time to
time for stone chipping or other damage.
Any damage should be repaired as soon as
possible to prevent corrosion.
In doing so, do not neglect the underbody
of the vehicle. A prerequisite for a
thorough check is a washing of the
underbody followed by a thorough
inspection. Damaged areas need to be
re-undercoated.
Your vehicle has been treated at the
factory with a wax-base rustproofing in the
body cavities which will last for the lifetime
of the vehicle. Post-production treatment Warning!G
Many cleaning products can be hazardous.
Some are poisonous, others are flammable.
Always follow the instructions on the
particular container. Always open your
vehicle’s doors or windows when cleaning
the inside.
Never use fluids or solvents that are not
designed for cleaning your vehicle.
Always lock away cleaning products and
keep them out of reach of children.

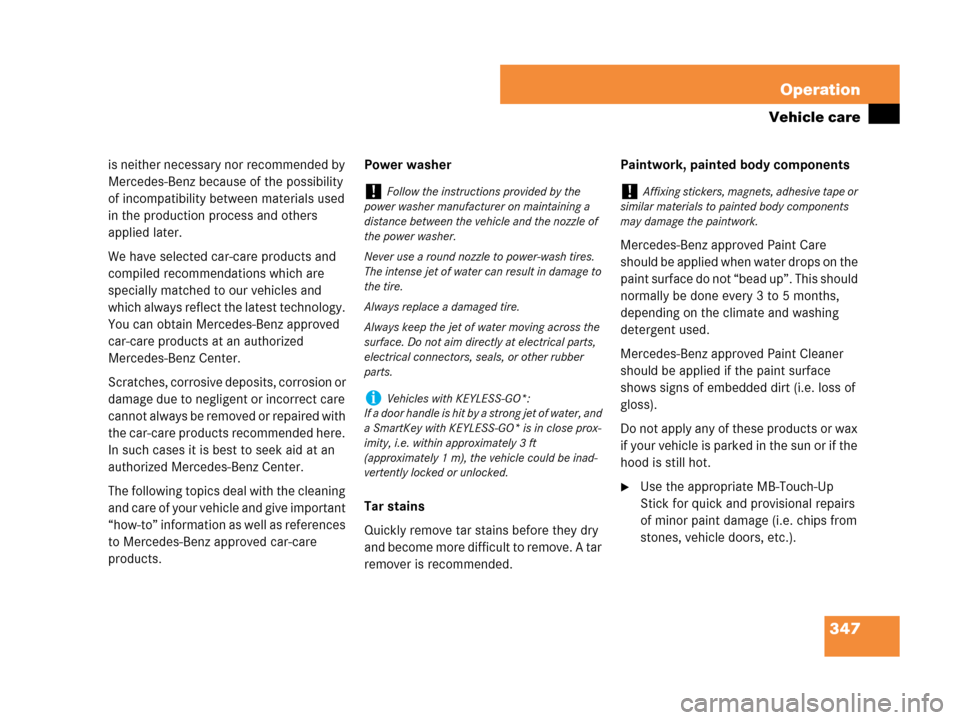

347 Operation
Vehicle care
is neither necessary nor recommended by
Mercedes-Benz because of the possibility
of incompatibility between materials used
in the production process and others
applied later.
We have selected car-care products and
compiled recommendations which are
specially matched to our vehicles and
which always reflect the latest technology.
You can obtain Mercedes-Benz approved
car-care products at an authorized
Mercedes-Benz Center.
Scratches, corrosive deposits, corrosion or
damage due to negligent or incorrect care
cannot always be removed or repaired with
the car-care products recommended here.
In such cases it is best to seek aid at an
authorized Mercedes-Benz Center.
The following topics deal with the cleaning
and care of your vehicle and give important
“how-to” information as well as references
to Mercedes-Benz approved car-care
products.Power washer
Tar stains
Quickly remove tar stains before they dry
and become more difficult to remove. A tar
remover is recommended.Paintwork, painted body components
Mercedes-Benz approved Paint Care
should be applied when water drops on the
paint surface do not “bead up”. This should
normally be done every 3 to 5 months,
depending on the climate and washing
detergent used.
Mercedes-Benz approved Paint Cleaner
should be applied if the paint surface
shows signs of embedded dirt (i.e. loss of
gloss).
Do not apply any of these products or wax
if your vehicle is parked in the sun or if the
hood is still hot.
Use the appropriate MB-Touch-Up
Stick for quick and provisional repairs
of minor paint damage (i.e. chips from
stones, vehicle doors, etc.).
!Follow the instructions provided by the
power washer manufacturer on maintaining a
distance between the vehicle and the nozzle of
the power washer.
Never use a round nozzle to power-wash tires.
The intense jet of water can result in damage to
the tire.
Always replace a damaged tire.
Always keep the jet of water moving across the
surface. Do not aim directly at electrical parts,
electrical connectors, seals, or other rubber
parts.
iVehicles with KEYLESS-GO*:
If a door handle is hit by a strong jet of water, and
a SmartKey with KEYLESS-GO* is in close prox-
imity, i.e. within approximately 3 ft
(approximately 1 m), the vehicle could be inad-
vertently locked or unlocked.
!Affixing stickers, magnets, adhesive tape or
similar materials to painted body components
may damage the paintwork.

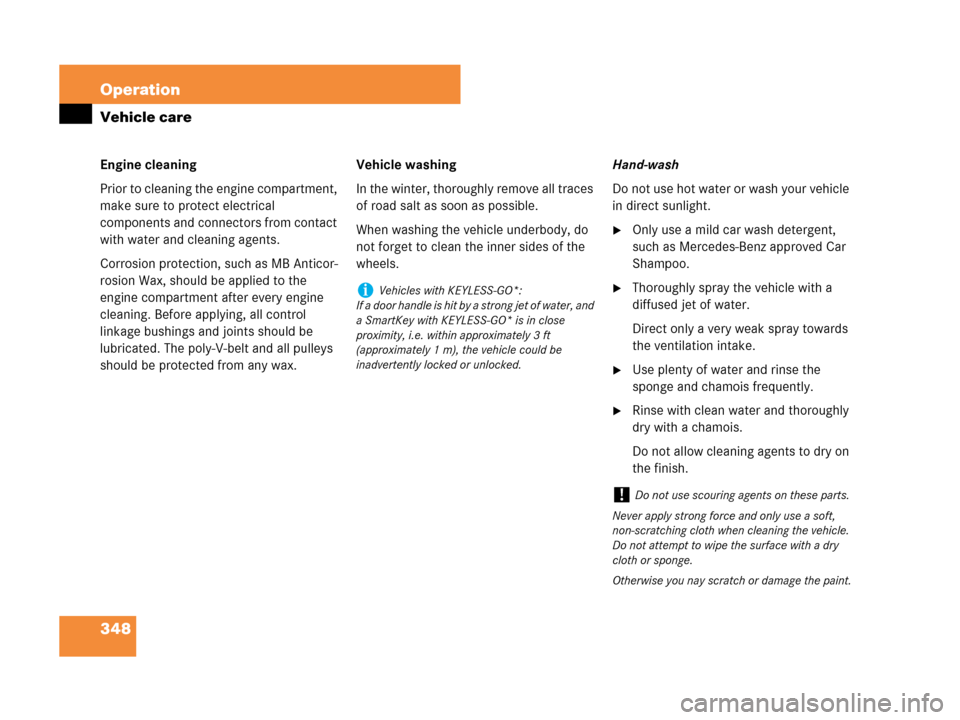

348 Operation
Vehicle care
Engine cleaning
Prior to cleaning the engine compartment,
make sure to protect electrical
components and connectors from contact
with water and cleaning agents.
Corrosion protection, such as MB Anticor-
rosion Wax, should be applied to the
engine compartment after every engine
cleaning. Before applying, all control
linkage bushings and joints should be
lubricated. The poly-V-belt and all pulleys
should be protected from any wax. Vehicle washing
In the winter, thoroughly remove all traces
of road salt as soon as possible.
When washing the vehicle underbody, do
not forget to clean the inner sides of the
wheels.Hand-wash
Do not use hot water or wash your vehicle
in direct sunlight.
Only use a mild car wash detergent,
such as Mercedes-Benz approved Car
Shampoo.
Thoroughly spray the vehicle with a
diffused jet of water.
Direct only a very weak spray towards
the ventilation intake.
Use plenty of water and rinse the
sponge and chamois frequently.
Rinse with clean water and thoroughly
dry with a chamois.
Do not allow cleaning agents to dry on
the finish.
iVehicles with KEYLESS-GO*:
If a door handle is hit by a strong jet of water, and
a SmartKey with KEYLESS-GO* is in close
proximity, i.e. within approximately 3 ft
(approximately 1 m), the vehicle could be
inadvertently locked or unlocked.
!Do not use scouring agents on these parts.
Never apply strong force and only use a soft,
non-scratching cloth when cleaning the vehicle.
Do not attempt to wipe the surface with a dry
cloth or sponge.
Otherwise you nay scratch or damage the paint.

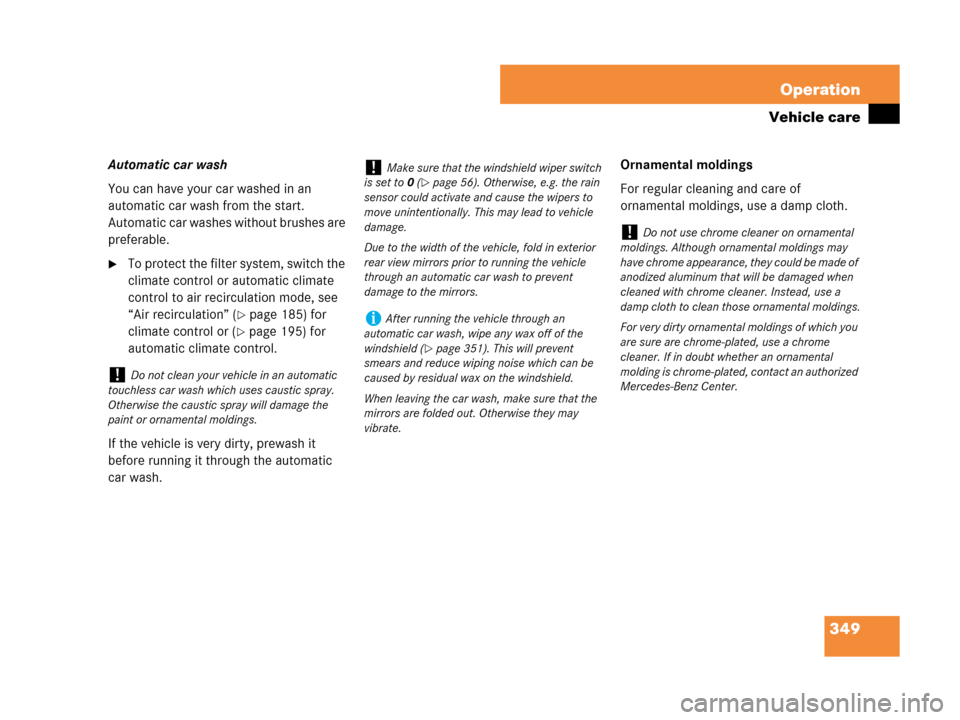

349 Operation
Vehicle care
Automatic car wash
You can have your car washed in an
automatic car wash from the start.
Automatic car washes without brushes are
preferable.
To protect the filter system, switch the
climate control or automatic climate
control to air recirculation mode, see
“Air recirculation” (
page 185) for
climate control or (
page 195) for
automatic climate control.
If the vehicle is very dirty, prewash it
before running it through the automatic
car wash.Ornamental moldings
For regular cleaning and care of
ornamental moldings, use a damp cloth.
!Do not clean your vehicle in an automatic
touchless car wash which uses caustic spray.
Otherwise the caustic spray will damage the
paint or ornamental moldings.
!Make sure that the windshield wiper switch
is set to0 (
page 56). Otherwise, e.g. the rain
sensor could activate and cause the wipers to
move unintentionally. This may lead to vehicle
damage.
Due to the width of the vehicle, fold in exterior
rear view mirrors prior to running the vehicle
through an automatic car wash to prevent
damage to the mirrors.
iAfter running the vehicle through an
automatic car wash, wipe any wax off of the
windshield (
page 351). This will prevent
smears and reduce wiping noise which can be
caused by residual wax on the windshield.
When leaving the car wash, make sure that the
mirrors are folded out. Otherwise they may
vibrate.
!Do not use chrome cleaner on ornamental
moldings. Although ornamental moldings may
have chrome appearance, they could be made of
anodized aluminum that will be damaged when
cleaned with chrome cleaner. Instead, use a
damp cloth to clean those ornamental moldings.
For very dirty ornamental moldings of which you
are sure are chrome-plated, use a chrome
cleaner. If in doubt whether an ornamental
molding is chrome-plated, contact an authorized
Mercedes-Benz Center.
