MERCEDES-BENZ CLK350 COUPE 2007 C209 Owner's Manual

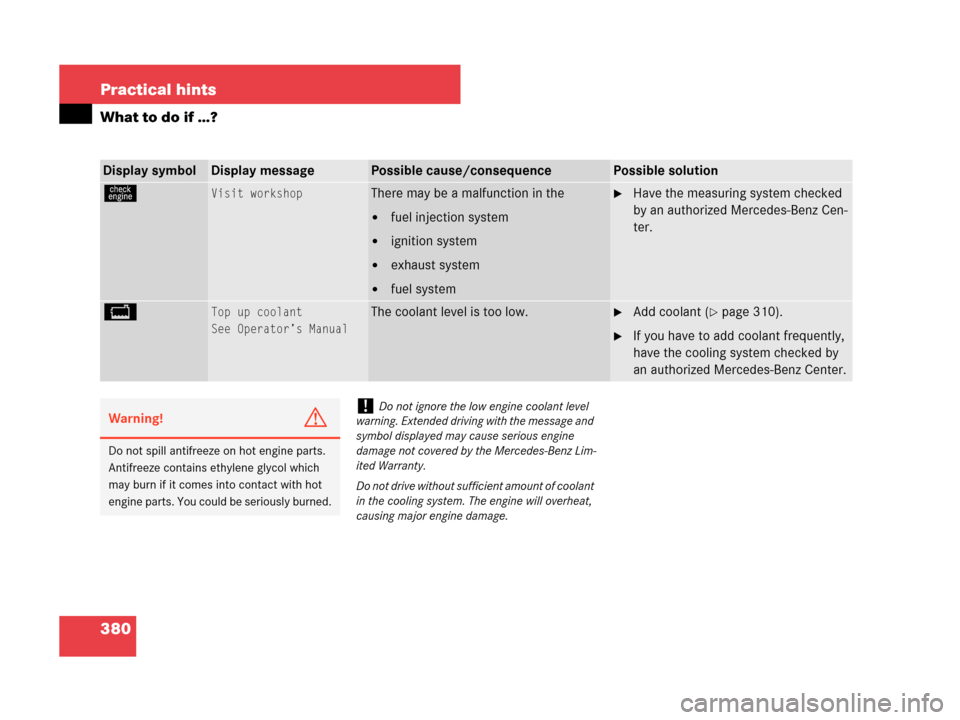

380 Practical hints
What to do if …?
Display symbolDisplay messagePossible cause/consequencePossible solution
úVisit workshopThere may be a malfunction in the

fuel injection system

ignition system

exhaust system

fuel system
Have the measuring system checked
by an authorized Mercedes-Benz Cen-
ter.
B Top up coolant
See Operator’s ManualThe coolant level is too low.Add coolant (page 310).
If you have to add coolant frequently,
have the cooling system checked by
an authorized Mercedes-Benz Center.
Warning!G
Do not spill antifreeze on hot engine parts.
Antifreeze contains ethylene glycol which
may burn if it comes into contact with hot
engine parts. You could be seriously burned.
!Do not ignore the low engine coolant level
warning. Extended driving with the message and
symbol displayed may cause serious engine
damage not covered by the Mercedes-Benz Lim-
ited Warranty.
Do not drive without sufficient amount of coolant
in the cooling system. The engine will overheat,
causing major engine damage.

381 Practical hints
What to do if …?
Display symbolDisplay messagePossible cause/consequencePossible solution
•Coolant
Stop, turn engine offThe coolant is too hot.
Among other possible causes, the
poly-V-belt could be broken.Stop the vehicle in a safe location or
as soon as it is safe to do so.
Apply the parking brake (page 59).
Turn off the engine.
Check the poly-V-belt.
If it is broken:
Do not continue to drive. Otherwise
the engine will overheat due to an in-
operative water pump which may re-
sult in damage to the engine. Contact
an authorized Mercedes-Benz Center.
If it is intact:
Wait for the message to disappear be-
fore restarting the engine.
Doing otherwise could result in seri-
ous engine damage that is not covered
by the Mercedes-Benz Limited War-
ranty.
(Continued on next page)

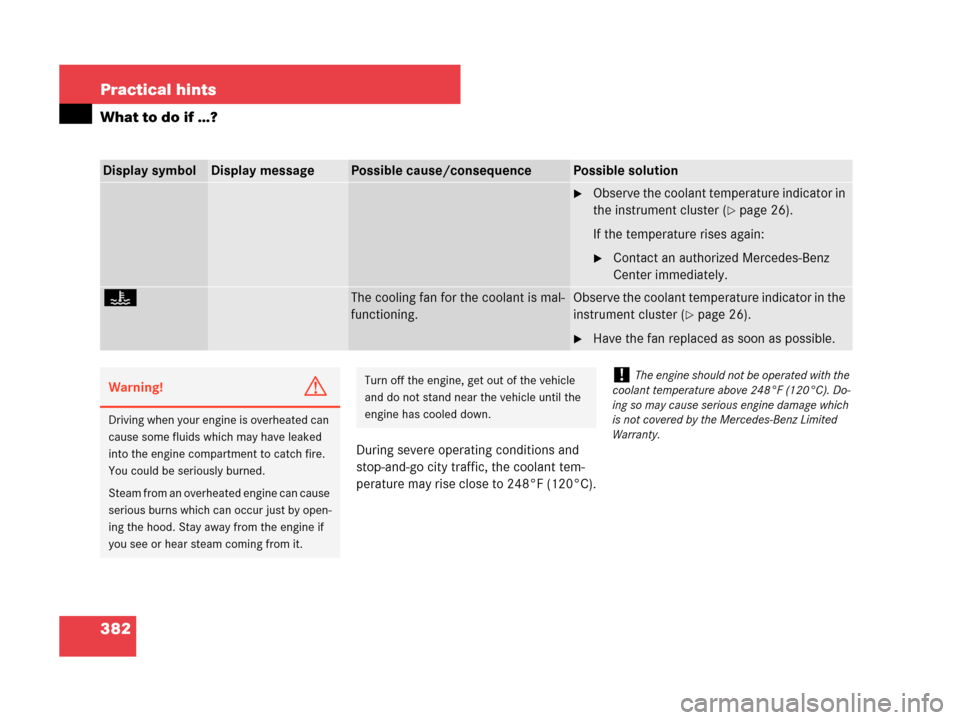

382 Practical hints
What to do if …?
During severe operating conditions and
stop-and-go city traffic, the coolant tem-
perature may rise close to 248°F (120°C).
Display symbolDisplay messagePossible cause/consequencePossible solution
Observe the coolant temperature indicator in
the instrument cluster (
page 26).
If the temperature rises again:
Contact an authorized Mercedes-Benz
Center immediately.
•The cooling fan for the coolant is mal-
functioning.Observe the coolant temperature indicator in the
instrument cluster (
page 26).
Have the fan replaced as soon as possible.
Warning!G
Driving when your engine is overheated can
cause some fluids which may have leaked
into the engine compartment to catch fire.
You could be seriously burned.
Steam from an overheated engine can cause
serious burns which can occur just by open-
ing the hood. Stay away from the engine if
you see or hear steam coming from it.
Turn off the engine, get out of the vehicle
and do not stand near the vehicle until the
engine has cooled down.!The engine should not be operated with the
coolant temperature above 248°F (120°C). Do-
ing so may cause serious engine damage which
is not covered by the Mercedes-Benz Limited
Warranty.

383 Practical hints
What to do if …?
Display symbolDisplay messagePossible cause/consequencePossible solution
4Gas cap is openA loss of pressure has been detected in
the fuel system. The fuel cap may not be
closed properly or the fuel system may be
leaky.Check the fuel cap (page 303).
If it is not closed properly:
Close the fuel cap.
If it is closed properly:
Have the fuel system checked by an
authorized Mercedes-Benz Center.
± Certain electronic systems are unable to
relay information to the control system.
The following systems may have failed:

Coolant temperature display

Tachometer

Cruise control display
Have the electronic systems checked
by an authorized Mercedes-Benz Cen-
ter.

384 Practical hints
What to do if …?
When the message Check oil level at
next refueling
appears while the engine
is running and at operating temperature,
the engine oil level has dropped to
approximately the minimum level.When this occurs, the warning will first
come on intermittently and then stay on if
the oil level drops further.
Visually check for oil leaks. If no obvious oil
leaks are noted, drive to the nearest ser-
vice station where the engine oil should be
topped to the required level with an
approved oil specified in the Factory
Approved Service Products pamphlet.
Display symbolDisplay messagePossible cause/consequencePossible solution
:Check oil level
at next refuelingThe engine oil level has dropped to a
critical level.Check the engine oil level
(
page 308) and add oil as required
(
page 309).
If you must add engine oil frequently,
have the engine checked for possible
leaks.
!The engine oil level warnings should not be
ignored. Extended driving with the symbol dis-
played could result in serious engine damage
that is not covered by the Mercedes-Benz Limit-
ed Warranty.

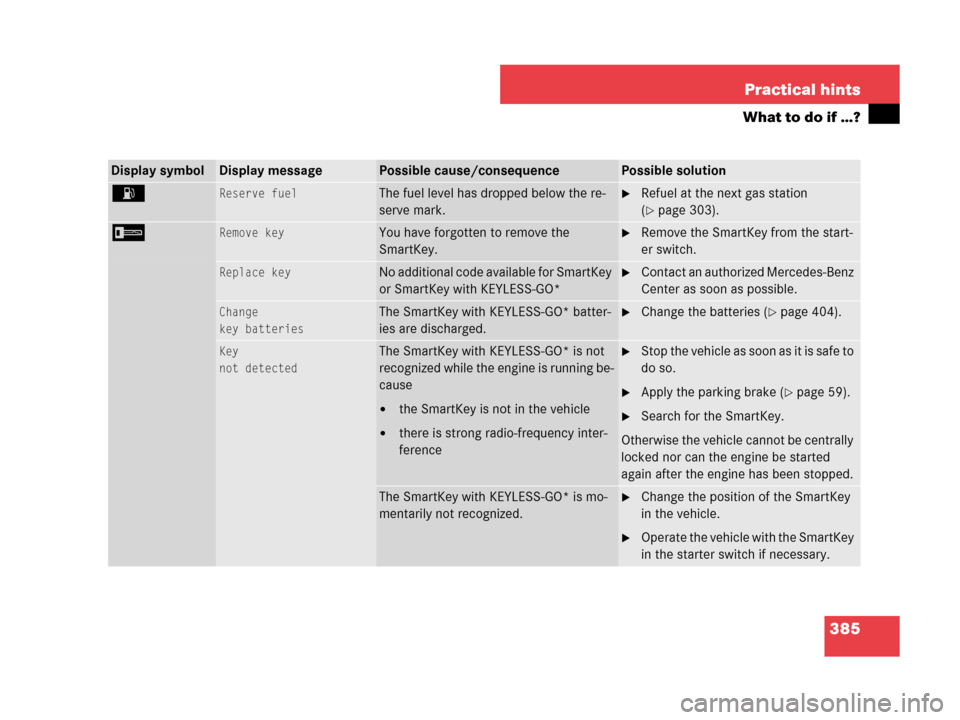

385 Practical hints
What to do if …?
Display symbolDisplay messagePossible cause/consequencePossible solution
A Reserve fuelThe fuel level has dropped below the re-
serve mark.Refuel at the next gas station
(
page 303).
I Remove keyYou have forgotten to remove the
SmartKey.Remove the SmartKey from the start-
er switch.
Replace keyNo additional code available for SmartKey
or SmartKey with KEYLESS-GO*Contact an authorized Mercedes-Benz
Center as soon as possible.
Change
key batteriesThe SmartKey with KEYLESS-GO* batter-
ies are discharged.Change the batteries (page 404).
Key
not detectedThe SmartKey with KEYLESS-GO* is not
recognized while the engine is running be-
cause

the SmartKey is not in the vehicle

there is strong radio-frequency inter-
ference
Stop the vehicle as soon as it is safe to
do so.
Apply the parking brake (page 59).
Search for the SmartKey.
Otherwise the vehicle cannot be centrally
locked nor can the engine be started
again after the engine has been stopped.
The SmartKey with KEYLESS-GO* is mo-
mentarily not recognized.Change the position of the SmartKey
in the vehicle.
Operate the vehicle with the SmartKey
in the starter switch if necessary.

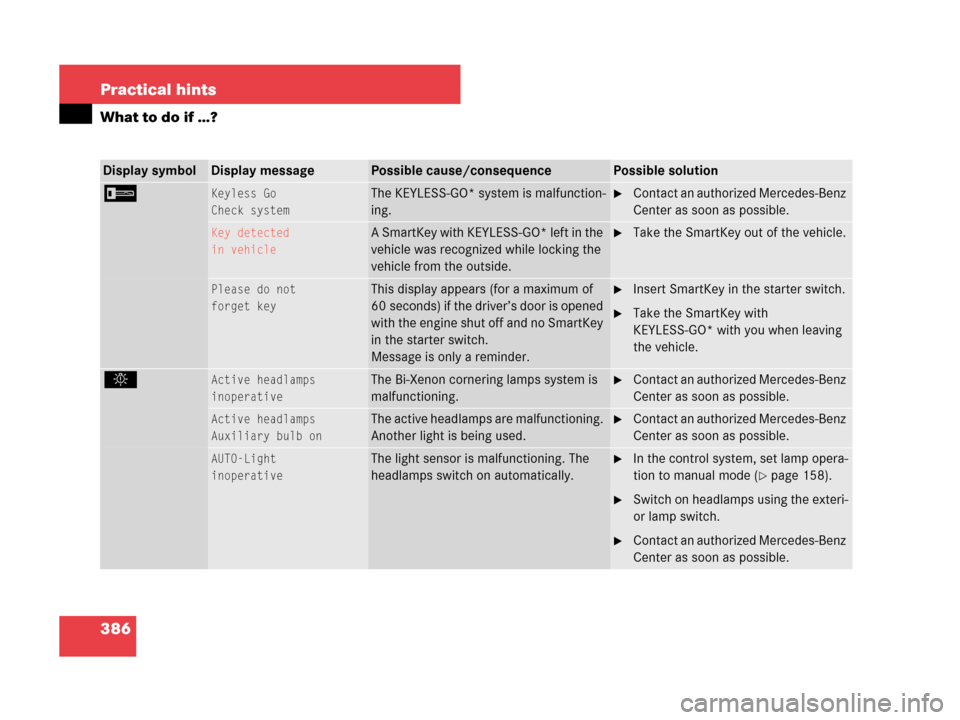

386 Practical hints
What to do if …?
Display symbolDisplay messagePossible cause/consequencePossible solution
I Keyless Go
Check systemThe KEYLESS-GO* system is malfunction-
ing.Contact an authorized Mercedes-Benz
Center as soon as possible.
Key detected
in vehicleA SmartKey with KEYLESS-GO* left in the
vehicle was recognized while locking the
vehicle from the outside.Take the SmartKey out of the vehicle.
Please do not
forget keyThis display appears (for a maximum of
60 seconds) if the driver’s door is opened
with the engine shut off and no SmartKey
in the starter switch.
Message is only a reminder.Insert SmartKey in the starter switch.
Take the SmartKey with
KEYLESS-GO* with you when leaving
the vehicle.
. Active headlamps
inoperativeThe Bi-Xenon cornering lamps system is
malfunctioning.Contact an authorized Mercedes-Benz
Center as soon as possible.
Active headlamps
Auxiliary bulb onThe active headlamps are malfunctioning.
Another light is being used.Contact an authorized Mercedes-Benz
Center as soon as possible.
AUTO-Light
inoperativeThe light sensor is malfunctioning. The
headlamps switch on automatically.In the control system, set lamp opera-
tion to manual mode (
page 158).
Switch on headlamps using the exteri-
or lamp switch.
Contact an authorized Mercedes-Benz
Center as soon as possible.

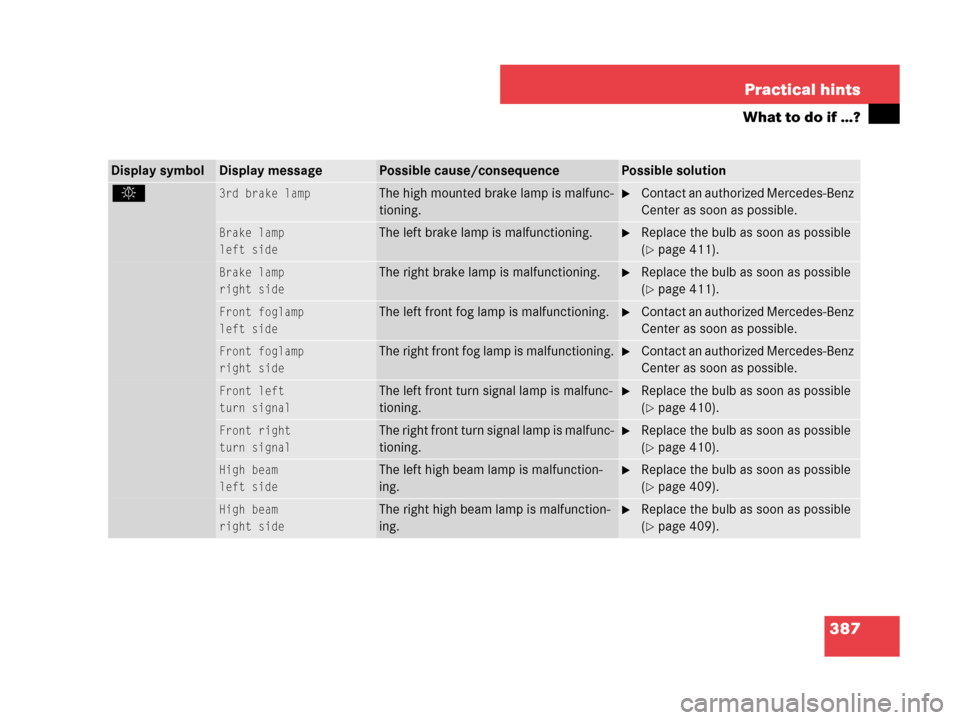

387 Practical hints
What to do if …?
Display symbolDisplay messagePossible cause/consequencePossible solution
. 3rd brake lampThe high mounted brake lamp is malfunc-
tioning.Contact an authorized Mercedes-Benz
Center as soon as possible.
Brake lamp
left sideThe left brake lamp is malfunctioning.Replace the bulb as soon as possible
(
page 411).
Brake lamp
right sideThe right brake lamp is malfunctioning.Replace the bulb as soon as possible
(
page 411).
Front foglamp
left sideThe left front fog lamp is malfunctioning.Contact an authorized Mercedes-Benz
Center as soon as possible.
Front foglamp
right sideThe right front fog lamp is malfunctioning.Contact an authorized Mercedes-Benz
Center as soon as possible.
Front left
turn signalThe left front turn signal lamp is malfunc-
tioning.Replace the bulb as soon as possible
(
page 410).
Front right
turn signalThe right front turn signal lamp is malfunc-
tioning.Replace the bulb as soon as possible
(
page 410).
High beam
left sideThe left high beam lamp is malfunction-
ing.Replace the bulb as soon as possible
(
page 409).
High beam
right sideThe right high beam lamp is malfunction-
ing.Replace the bulb as soon as possible
(
page 409).

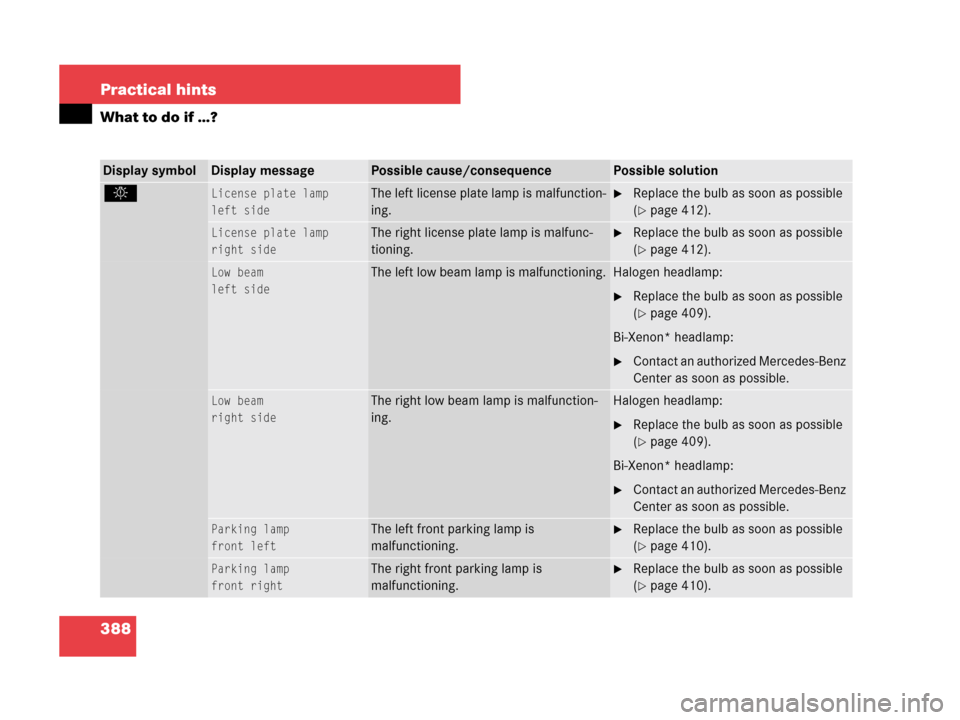

388 Practical hints
What to do if …?
Display symbolDisplay messagePossible cause/consequencePossible solution
. License plate lamp
left sideThe left license plate lamp is malfunction-
ing.Replace the bulb as soon as possible
(
page 412).
License plate lamp
right sideThe right license plate lamp is malfunc-
tioning.Replace the bulb as soon as possible
(
page 412).
Low beam
left sideThe left low beam lamp is malfunctioning.Halogen headlamp:
Replace the bulb as soon as possible
(
page 409).
Bi-Xenon* headlamp:
Contact an authorized Mercedes-Benz
Center as soon as possible.
Low beam
right sideThe right low beam lamp is malfunction-
ing.Halogen headlamp:
Replace the bulb as soon as possible
(
page 409).
Bi-Xenon* headlamp:
Contact an authorized Mercedes-Benz
Center as soon as possible.
Parking lamp
front left

The left front parking lamp is
malfunctioning. Replace the bulb as soon as possible
(
page 410).
Parking lamp
front right

The right front parking lamp is
malfunctioning.Replace the bulb as soon as possible
(
page 410).

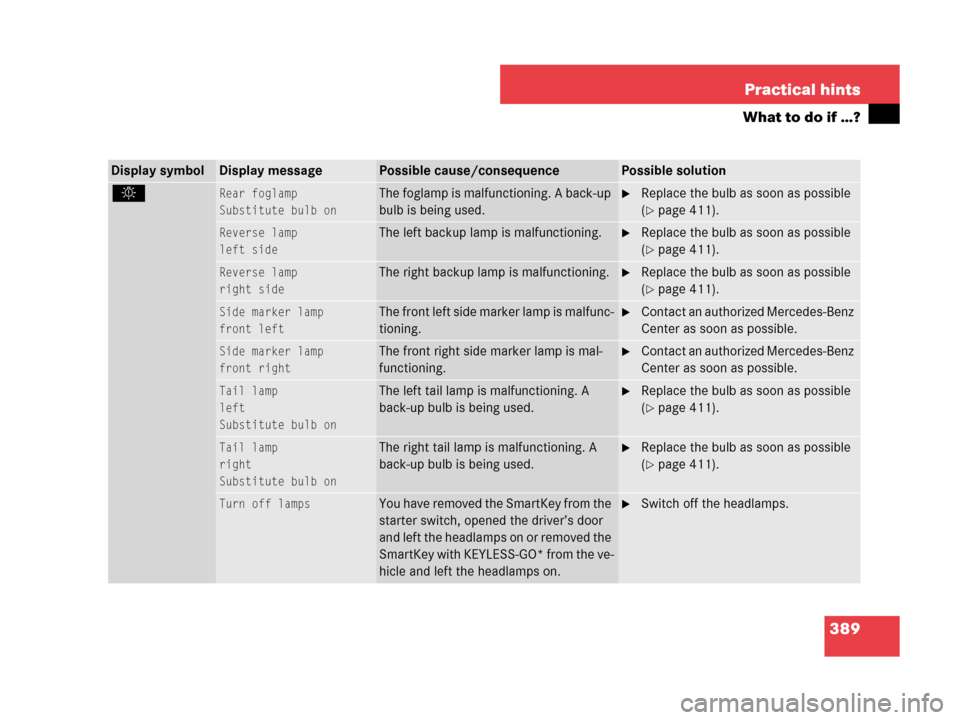

389 Practical hints
What to do if …?
Display symbolDisplay messagePossible cause/consequencePossible solution
. Rear foglamp
Substitute bulb on

The foglamp is malfunctioning. A back-up
bulb is being used.Replace the bulb as soon as possible
(
page 411).
Reverse lamp
left sideThe left backup lamp is malfunctioning.Replace the bulb as soon as possible
(
page 411).
Reverse lamp
right sideThe right backup lamp is malfunctioning.Replace the bulb as soon as possible
(
page 411).
Side marker lamp
front leftThe front left side marker lamp is malfunc-
tioning.Contact an authorized Mercedes-Benz
Center as soon as possible.
Side marker lamp
front rightThe front right side marker lamp is mal-
functioning.Contact an authorized Mercedes-Benz
Center as soon as possible.
Tail lamp
left
Substitute bulb on

The left tail lamp is malfunctioning. A
back-up bulb is being used.Replace the bulb as soon as possible
(
page 411).
Tail lamp
right
Substitute bulb on

The right tail lamp is malfunctioning. A
back-up bulb is being used.Replace the bulb as soon as possible
(
page 411).
Turn off lampsYou have removed the SmartKey from the
starter switch, opened the driver’s door
and left the headlamps on or removed the
SmartKey with KEYLESS-GO* from the ve-
hicle and left the headlamps on.Switch off the headlamps.
