MERCEDES-BENZ CLK55AMG COUPE 2003 C209 Owner's Manual

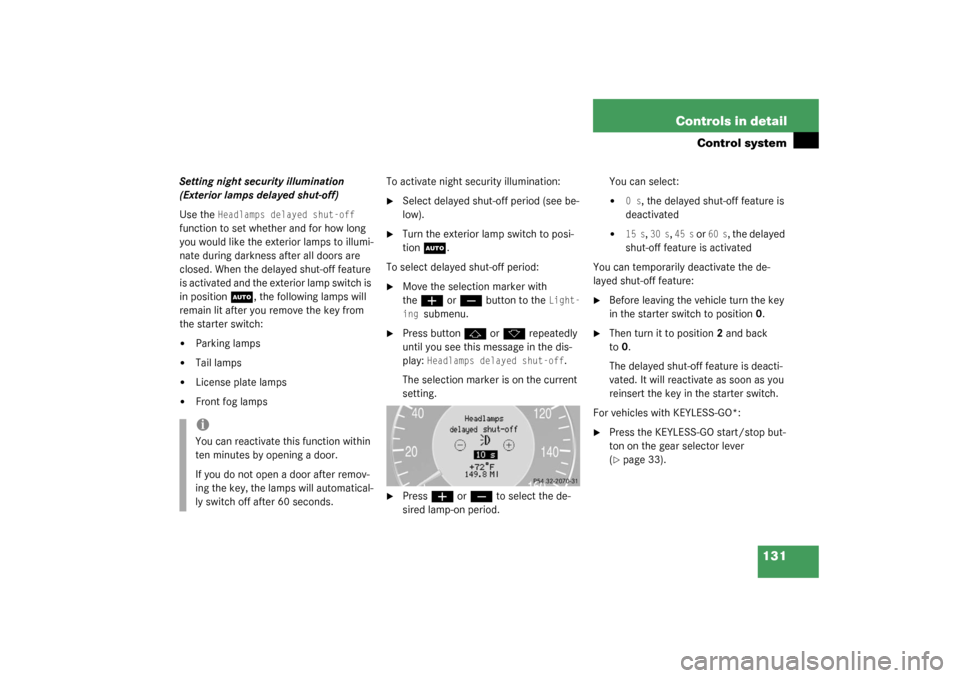

131 Controls in detail
Control system
Setting night security illumination
(Exterior lamps delayed shut-off)
Use the
Headlamps delayed shut-off

function to set whether and for how long
you would like the exterior lamps to illumi-
nate during darkness after all doors are
closed. When the delayed shut-off feature
is activated and the exterior lamp switch is
in position
U
, the following lamps will
remain lit after you remove the key from
the starter switch:


Parking lamps


Tail lamps


License plate lamps


Front fog lampsTo activate night security illumination:

Select delayed shut-off period (see be-
low).

Turn the exterior lamp switch to posi-
tion
U
.
To select delayed shut-off period:

Move the selection marker with
the
æ
or
ç
button to the
Light-
ing
submenu.

Press button
j
or
k
repeatedly
until you see this message in the dis-
play:
Headlamps delayed shut-off
.
The selection marker is on the current
setting.

Press
æ
or
ç
to select the de-
sired lamp-on period.You can select:


0 s
, the delayed shut-off feature is
deactivated


15 s
, 30 s
, 45 s
or
60 s
, the delayed
shut-off feature is activated
You can temporarily deactivate the de-
layed shut-off feature:

Before leaving the vehicle turn the key
in the starter switch to position0.

Then turn it to position2 and back
to0.
The delayed shut-off feature is deacti-
vated. It will reactivate as soon as you
reinsert the key in the starter switch.
For vehicles with KEYLESS-GO*:

Press the KEYLESS-GO start/stop but-
ton on the gear selector lever
(page 33).
iYou can reactivate this function within
ten minutes by opening a door.
If you do not open a door after remov-
ing the key, the lamps will automatical-
ly switch off after 60 seconds.

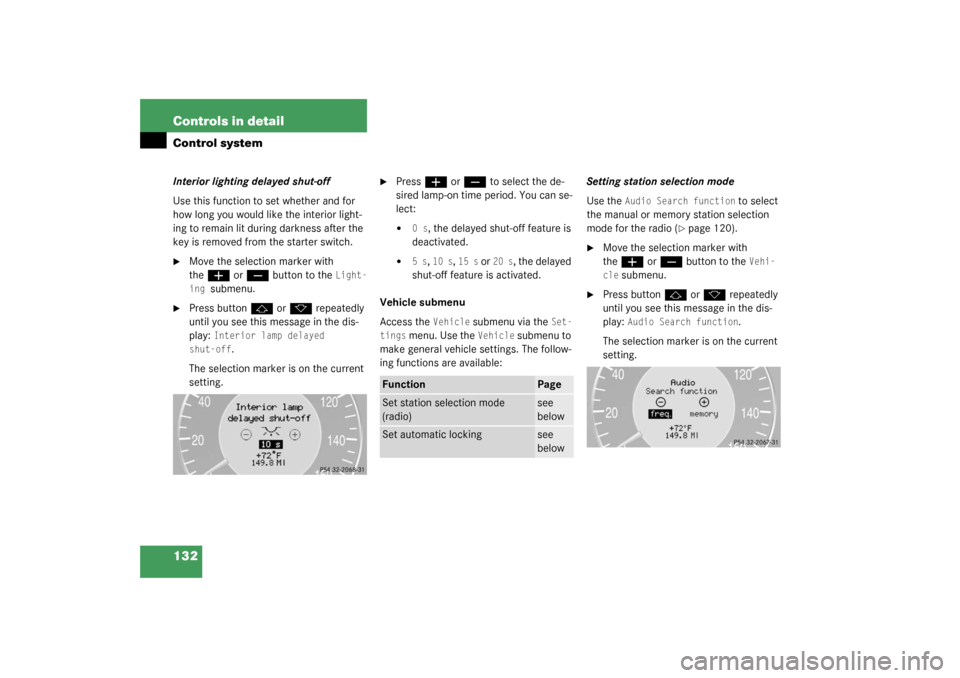

132 Controls in detailControl systemInterior lighting delayed shut-off
Use this function to set whether and for
how long you would like the interior light-
ing to remain lit during darkness after the
key is removed from the starter switch.
Move the selection marker with
the
æ
or
ç
button to the
Light-
ing
submenu.

Press button
j
or
k
repeatedly
until you see this message in the dis-
play:
Interior lamp delayed
shut-off
.
The selection marker is on the current
setting.

Press
æ
or
ç
to select the de-
sired lamp-on time period. You can se-
lect:


0 s
, the delayed shut-off feature is
deactivated.


5 s
, 10 s
, 15 s
or
20 s
, the delayed
shut-off feature is activated.
Vehicle submenu
Access the
Vehicle
submenu via the
Set-
tings
menu. Use the
Vehicle
submenu to
make general vehicle settings. The follow-
ing functions are available:Setting station selection mode
Use the
Audio Search function
to select
the manual or memory station selection
mode for the radio (
page 120).

Move the selection marker with
the
æ
or
ç
button to the
Vehi-
cle
submenu.

Press button
j
or
k
repeatedly
until you see this message in the dis-
play:
Audio Search function
.
The selection marker is on the current
setting.
Function
Page
Set station selection mode
(radio)
see
below
Set automatic locking
see
below

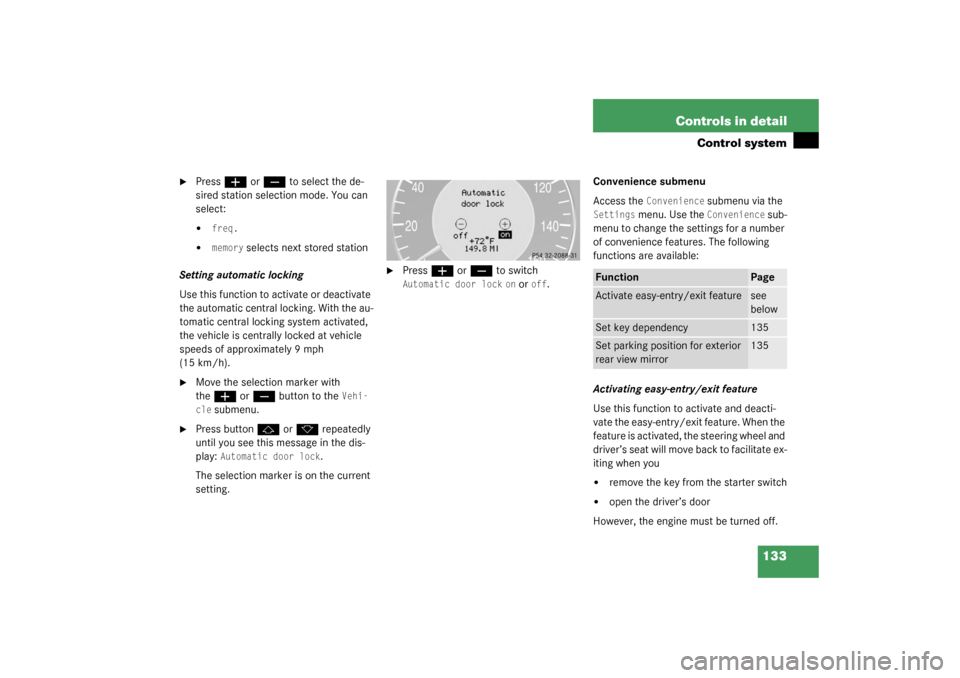

133 Controls in detail
Control system

Press
æ
or
ç
to select the de-
sired station selection mode. You can
select:


freq.


memory
selects next stored station
Setting automatic locking
Use this function to activate or deactivate
the automatic central locking. With the au-
tomatic central locking system activated,
the vehicle is centrally locked at vehicle
speeds of approximately 9 mph
(15 km/h).

Move the selection marker with
the
æ
or
ç
button to the
Vehi-
cle
submenu.

Press button
j
or
k
repeatedly
until you see this message in the dis-
play:
Automatic door lock
.
The selection marker is on the current
setting.

Press
æ
or
ç
to switch
Automatic door lock
on or
off
.Convenience submenu
Access the
Convenience
submenu via the
Settings
menu. Use the
Convenience
sub-
menu to change the settings for a number
of convenience features. The following
functions are available:
Activating easy-entry/exit feature
Use this function to activate and deacti-
vate the easy-entry/exit feature. When the
feature is activated, the steering wheel and
driver’s seat will move back to facilitate ex-
iting when you


remove the key from the starter switch


open the driver’s door
However, the engine must be turned off.
Function
Page
Activate easy-entry/exit feature
see
below
Set key dependency
135
Set parking position for exterior
rear view mirror
135

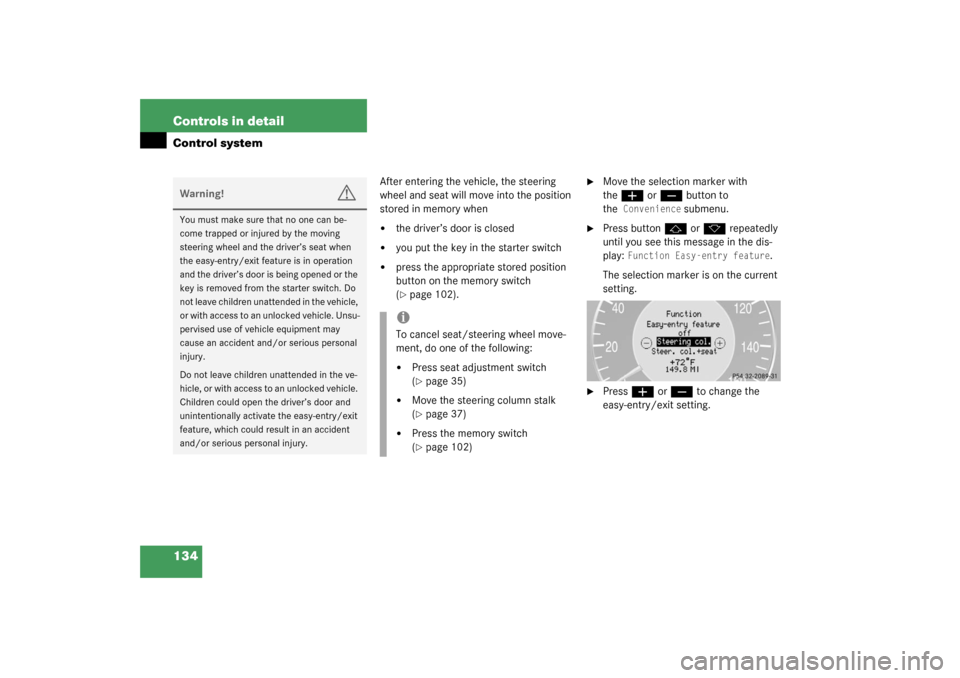

134 Controls in detailControl system
After entering the vehicle, the steering
wheel and seat will move into the position
stored in memory when

the driver’s door is closed


you put the key in the starter switch


press the appropriate stored position
button on the memory switch
(page 102).

Move the selection marker with
the
æ
or
ç
button to
the
Convenience
submenu.

Press button
j
or
k
repeatedly
until you see this message in the dis-
play:
Function Easy-entry feature
.
The selection marker is on the current
setting.

Press
æ
or
ç
to change the
easy-entry/exit setting.
Warning!
G
You must make sure that no one can be-
come trapped or injured by the moving
steering wheel and the driver’s seat when
the easy-entry/exit feature is in operation
and the driver’s door is being opened or the
key is removed from the starter switch. Do
not leave children unattended in the vehicle,
or with access to an unlocked vehicle. Unsu-
pervised use of vehicle equipment may
cause an accident and/or serious personal
injury.
Do not leave children unattended in the ve-
hicle, or with access to an unlocked vehicle.
Children could open the driver’s door and
unintentionally activate the easy-entry/exit
feature, which could result in an accident
and/or serious personal injury.
iTo cancel seat/steering wheel move-
ment, do one of the following:

Press seat adjustment switch
(page 35)


Move the steering column stalk
(page 37)


Press the memory switch
(page 102)

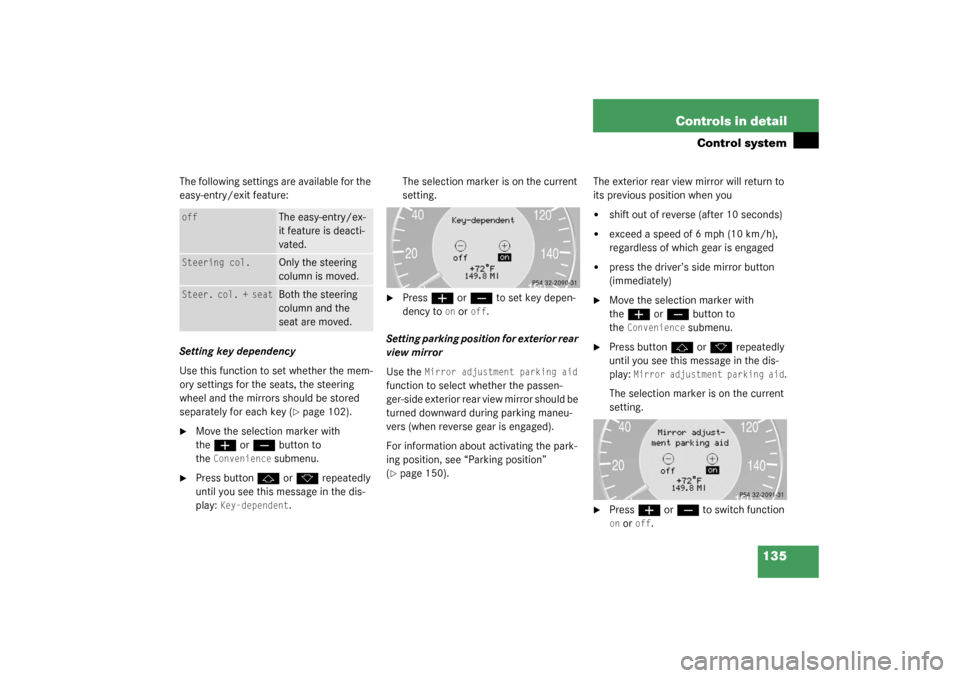

135 Controls in detail
Control system
The following settings are available for the
easy-entry/exit feature:
Setting key dependency
Use this function to set whether the mem-
ory settings for the seats, the steering
wheel and the mirrors should be stored
separately for each key (
page 102).

Move the selection marker with
the
æ
or
ç
button to
the
Convenience
submenu.

Press button
j
or
k
repeatedly
until you see this message in the dis-
play:
Key-dependent
.The selection marker is on the current
setting.

Press
æ
or
ç
to set key depen-
dency to
on or
off
.
Setting parking position for exterior rear
view mirror
Use the
Mirror adjustment parking aid

function to select whether the passen-
ger-side exterior rear view mirror should be
turned downward during parking maneu-
vers (when reverse gear is engaged).
For information about activating the park-
ing position, see “Parking position”
(
page 150).The exterior rear view mirror will return to
its previous position when you


shift out of reverse (after 10 seconds)


exceed a speed of 6 mph (10 km/h),
regardless of which gear is engaged


press the driver’s side mirror button
(immediately)

Move the selection marker with
the
æ
or
ç
button to
the
Convenience
submenu.

Press button
j
or
k
repeatedly
until you see this message in the dis-
play:
Mirror adjustment parking aid
.
The selection marker is on the current
setting.

Press
æ
or
ç
to switch function
on or
off
.
off
The easy-entry/ex-
it feature is deacti-
vated.
Steering col.
Only the steering
column is moved.
Steer. col. + seat
Both the steering
column and the
seat are moved.

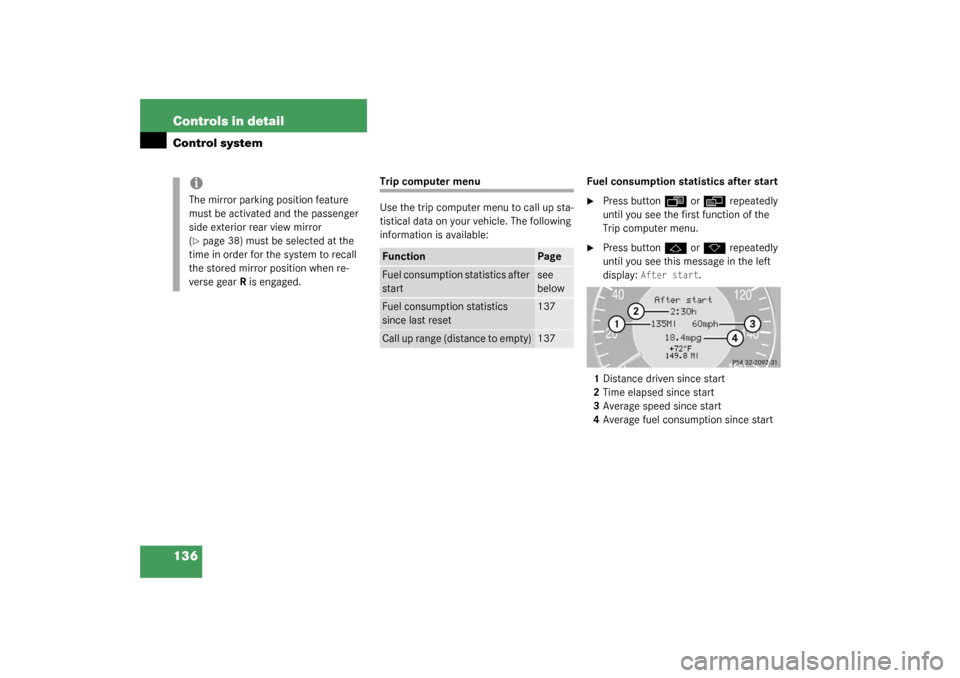

136 Controls in detailControl system
Trip computer menu
Use the trip computer menu to call up sta-
tistical data on your vehicle. The following
information is available:Fuel consumption statistics after start

Press button
ÿ
or
è
repeatedly
until you see the first function of the
Trip computer menu.

Press button
j
or
k
repeatedly
until you see this message in the left
display:
After start
.
1Distance driven since start
2Time elapsed since start
3Average speed since start
4Average fuel consumption since start
iThe mirror parking position feature
must be activated and the passenger
side exterior rear view mirror
(page 38) must be selected at the
time in order for the system to recall
the stored mirror position when re-
verse gearR is engaged.
Function
Page
Fuel consumption statistics after
start
see
below
Fuel consumption statistics
since last reset
137
Call up range (distance to empty)
137

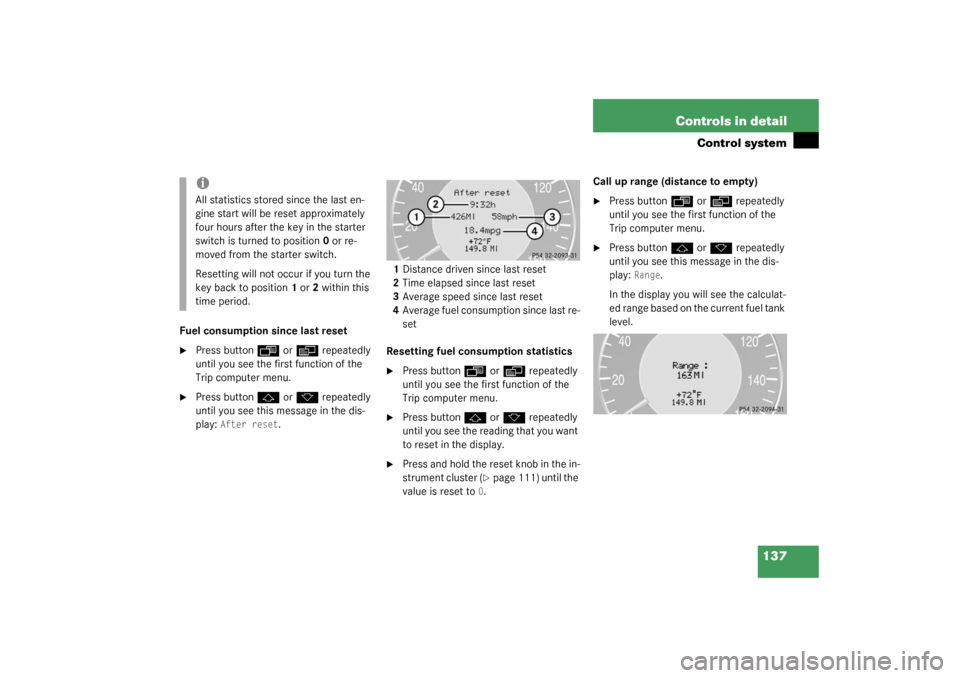

137 Controls in detail
Control system
Fuel consumption since last reset
Press button
ÿ
or
è
repeatedly
until you see the first function of the
Trip computer menu.

Press button
j
or
k
repeatedly
until you see this message in the dis-
play:
After reset
.1Distance driven since last reset
2Time elapsed since last reset
3Average speed since last reset
4Average fuel consumption since last re-
set
Resetting fuel consumption statistics

Press button
ÿ
or
è
repeatedly
until you see the first function of the
Trip computer menu.

Press button
j
or
k
repeatedly
until you see the reading that you want
to reset in the display.

Press and hold the reset knob in the in-
strument cluster (
page 111) until the
value is reset to
0.Call up range (distance to empty)

Press button
ÿ
or
è
repeatedly
until you see the first function of the
Trip computer menu.

Press button
j
or
k
repeatedly
until you see this message in the dis-
play:
Range
.
In the display you will see the calculat-
ed range based on the current fuel tank
level.
iAll statistics stored since the last en-
gine start will be reset approximately
four hours after the key in the starter
switch is turned to position0 or re-
moved from the starter switch.
Resetting will not occur if you turn the
key back to position1 or2 within this
time period.

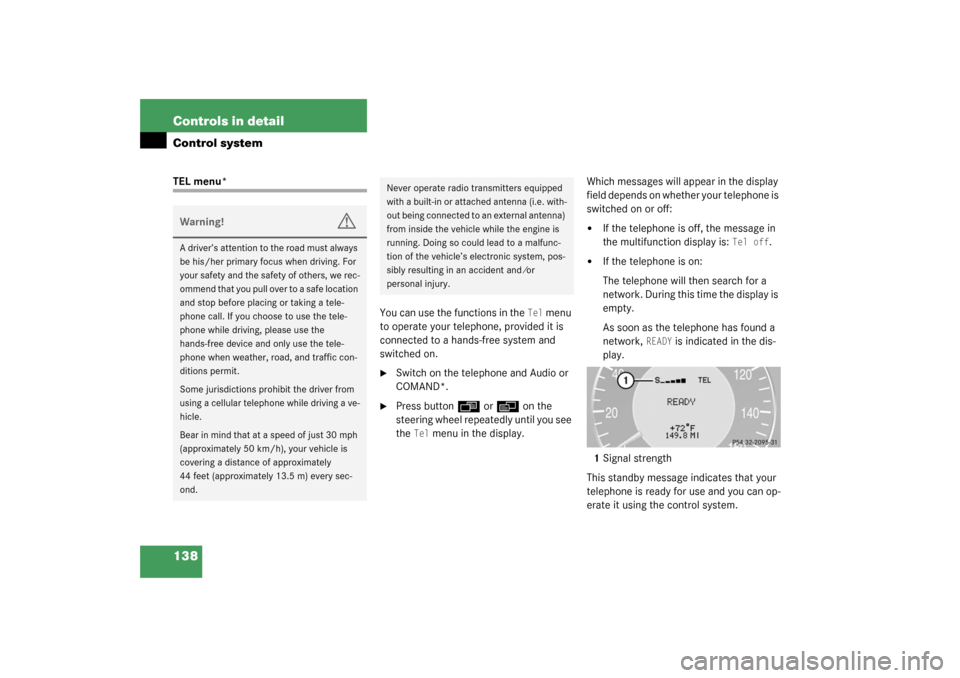

138 Controls in detailControl systemTEL menu*
You can use the functions in the
Tel
menu
to operate your telephone, provided it is
connected to a hands-free system and
switched on.

Switch on the telephone and Audio or
COMAND*.

Press button
ÿ
or
è
on the
steering wheel repeatedly until you see
the
Tel
menu in the display.Which messages will appear in the display
field depends on whether your telephone is
switched on or off:


If the telephone is off, the message in
the multifunction display is:
Tel off
.


If the telephone is on:
The telephone will then search for a
network. During this time the display is
empty.
As soon as the telephone has found a
network,
READY
is indicated in the dis-
play.
1Signal strength
This standby message indicates that your
telephone is ready for use and you can op-
erate it using the control system.
Warning!
G
A driver’s attention to the road must always
be his/her primary focus when driving. For
your safety and the safety of others, we rec-
o m m e n d t h a t y o u p u l l o v e r t o a s a f e l o c a t i o n
and stop before placing or taking a tele-
phone call. If you choose to use the tele-
phone while driving, please use the
hands-free device and only use the tele-
phone when weather, road, and traffic con-
ditions permit.
Some jurisdictions prohibit the driver from
using a cellular telephone while driving a ve-
hicle.
Bear in mind that at a speed of just 30 mph
(approximately 50 km/h), your vehicle is
covering a distance of approximately
44 feet (approximately 13.5 m) every sec-
ond.
Never operate radio transmitters equipped
with a built-in or attached antenna (i.e. with-
out being connected to an external antenna)
from inside the vehicle while the engine is
running. Doing so could lead to a malfunc-
tion of the vehicle’s electronic system, pos-
sibly resulting in an accident and ⁄or
personal injury.

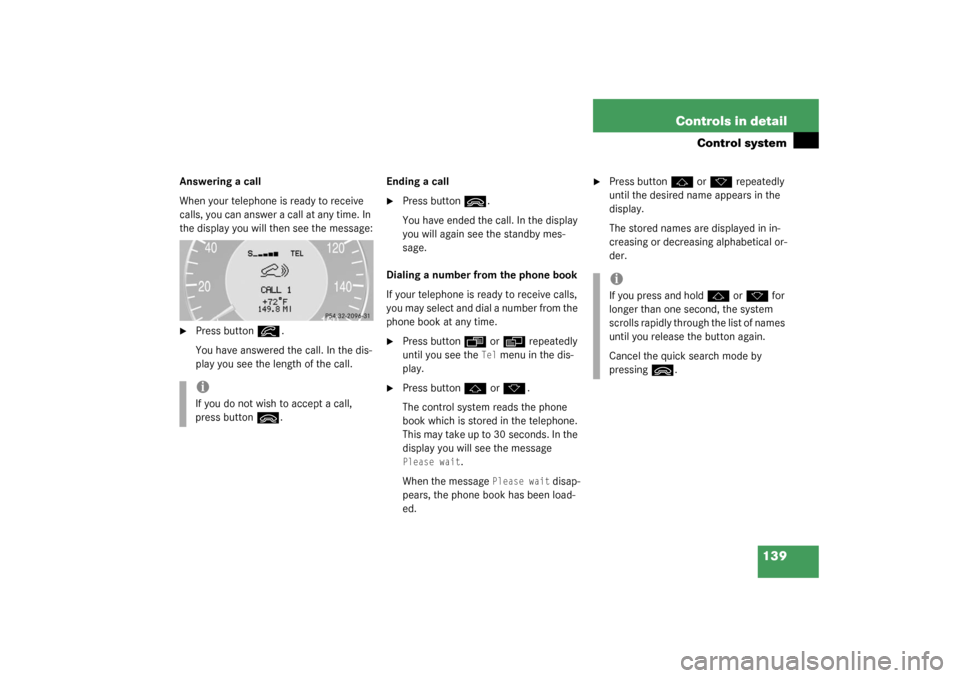

139 Controls in detail
Control system
Answering a call
When your telephone is ready to receive
calls, you can answer a call at any time. In
the display you will then see the message:
Press button
í
.
You have answered the call. In the dis-
play you see the length of the call.Ending a call

Press button
ì
.
You have ended the call. In the display
you will again see the standby mes-
sage.
Dialing a number from the phone book
If your telephone is ready to receive calls,
you may select and dial a number from the
phone book at any time.

Press button
ÿ
or
è
repeatedly
until you see the
Tel
menu in the dis-
play.

Press button
j
or
k
.
The control system reads the phone
book which is stored in the telephone.
This may take up to 30 seconds. In the
display you will see the message
Please wait
.
When the message
Please wait
disap-
pears, the phone book has been load-
ed.

Press button
j
or
k
repeatedly
until the desired name appears in the
display.
The stored names are displayed in in-
creasing or decreasing alphabetical or-
der.
iIf you do not wish to accept a call,
press button
ì
.
iIf you press and hold
j
or
k
for
longer than one second, the system
scrolls rapidly through the list of names
until you release the button again.
Cancel the quick search mode by
pressing
ì
.

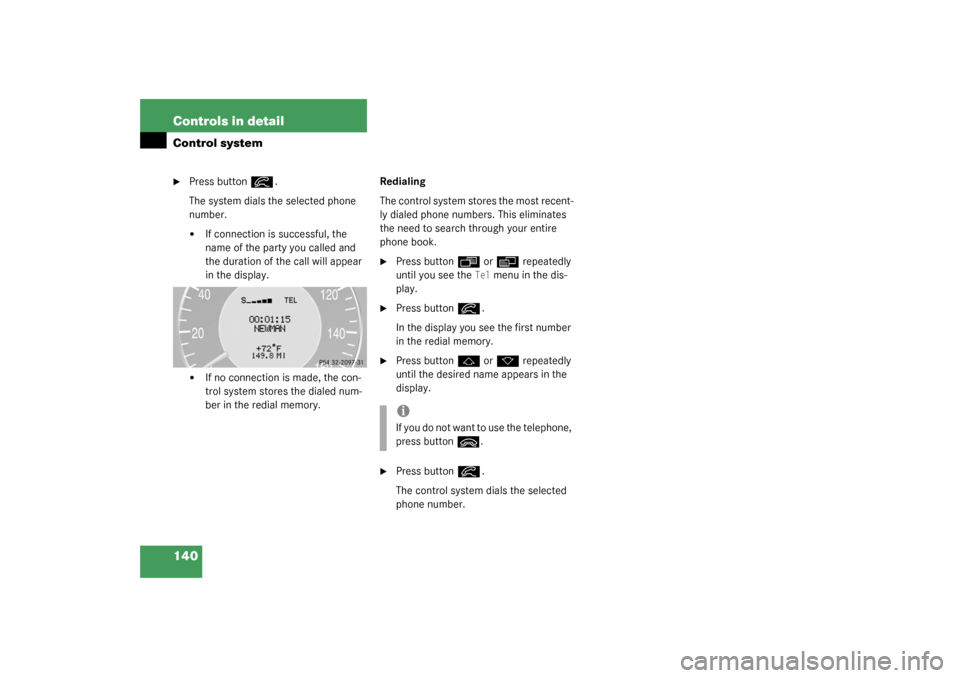

140 Controls in detailControl system
Press button
í
.
The system dials the selected phone
number.


If connection is successful, the
name of the party you called and
the duration of the call will appear
in the display.


If no connection is made, the con-
trol system stores the dialed num-
ber in the redial memory.Redialing
The control system stores the most recent-
ly dialed phone numbers. This eliminates
the need to search through your entire
phone book.

Press button
ÿ
or
è
repeatedly
until you see the
Tel
menu in the dis-
play.

Press button
í
.
In the display you see the first number
in the redial memory.

Press button
j
or
k
repeatedly
until the desired name appears in the
display.

Press button
í
.
The control system dials the selected
phone number.
iIf you do not want to use the telephone,
press button
ì
.
