MERCEDES-BENZ CLK55AMG COUPE 2003 C209 Owner's Manual

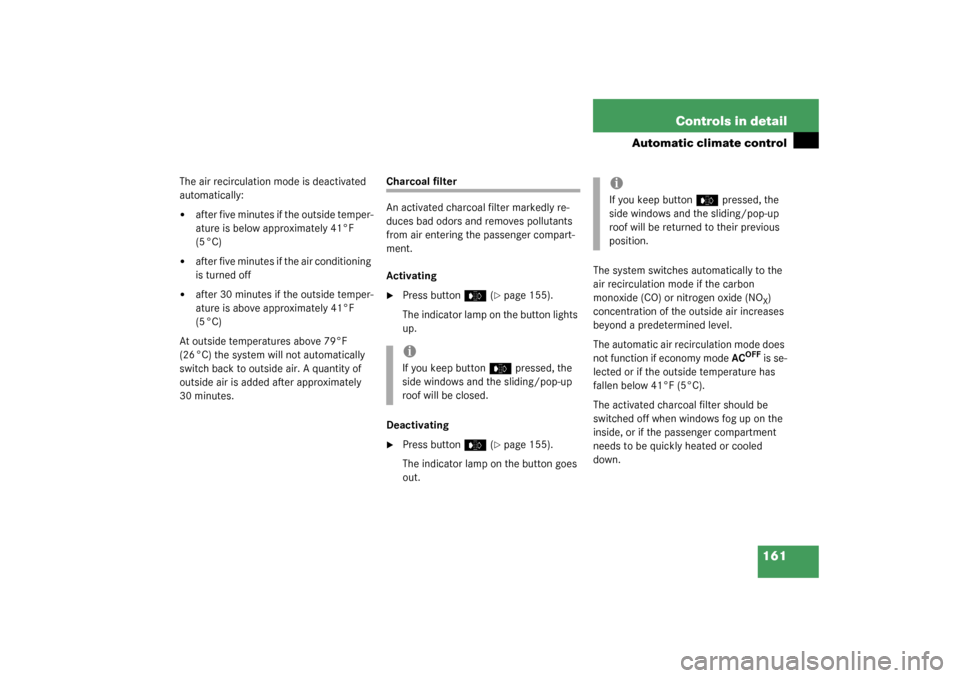

161 Controls in detail
Automatic climate control
The air recirculation mode is deactivated
automatically:

after five minutes if the outside temper-
ature is below approximately 41°F
(5 °C)


after five minutes if the air conditioning
is turned off


after 30 minutes if the outside temper-
ature is above approximately 41°F
(5 °C)
At outside temperatures above 79°F
(26 °C) the system will not automatically
switch back to outside air. A quantity of
outside air is added after approximately
30 minutes.
Charcoal filter
An activated charcoal filter markedly re-
duces bad odors and removes pollutants
from air entering the passenger compart-
ment.
Activating
Press button
e
(page 155).
The indicator lamp on the button lights
up.
Deactivating

Press button
e
(page 155).
The indicator lamp on the button goes
out.The system switches automatically to the
air recirculation mode if the carbon
monoxide (CO) or nitrogen oxide (NO
X)
concentration of the outside air increases
beyond a predetermined level.
The automatic air recirculation mode does
not function if economy mode AC
OFF
is se-
lected or if the outside temperature has
fallen below 41°F (5°C).
The activated charcoal filter should be
switched off when windows fog up on the
inside, or if the passenger compartment
needs to be quickly heated or cooled
down.
iIf you keep button
e
pressed, the
side windows and the sliding/pop-up
roof will be closed.
iIf you keep button
e
pressed, the
side windows and the sliding/pop-up
roof will be returned to their previous
position.

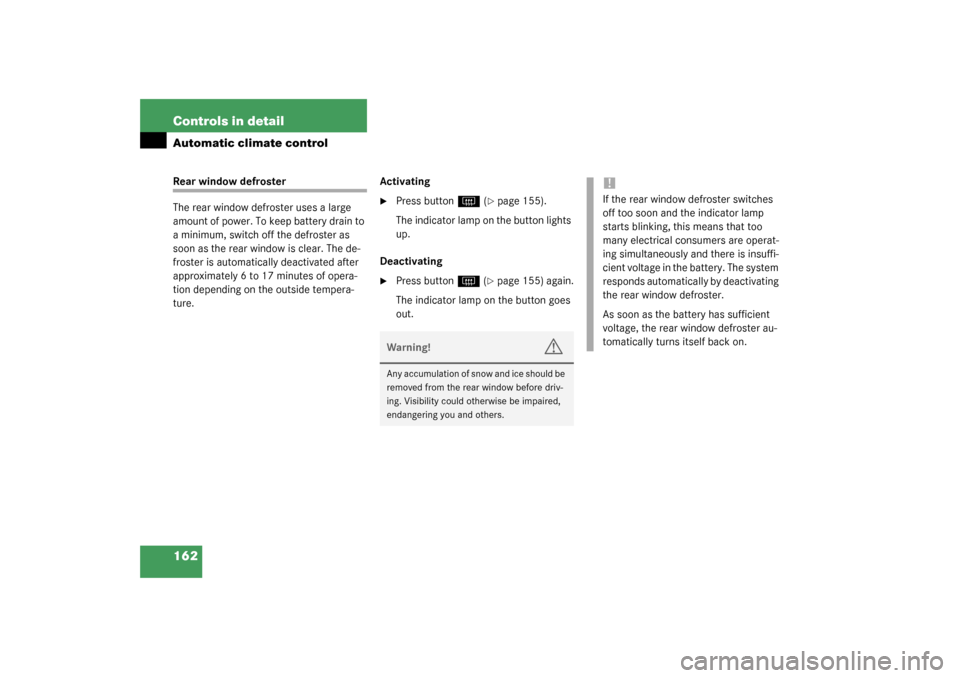

162 Controls in detailAutomatic climate controlRear window defroster
The rear window defroster uses a large
amount of power. To keep battery drain to
a minimum, switch off the defroster as
soon as the rear window is clear. The de-
froster is automatically deactivated after
approximately 6 to 17 minutes of opera-
tion depending on the outside tempera-
ture.Activating

Press button
F
(page 155).
The indicator lamp on the button lights
up.
Deactivating

Press button
F
(page 155) again.
The indicator lamp on the button goes
out.
Warning!
G
Any accumulation of snow and ice should be
removed from the rear window before driv-
ing. Visibility could otherwise be impaired,
endangering you and others.
!If the rear window defroster switches
off too soon and the indicator lamp
starts blinking, this means that too
many electrical consumers are operat-
ing simultaneously and there is insuffi-
cient voltage in the battery. The system
responds automatically by deactivating
the rear window defroster.
As soon as the battery has sufficient
voltage, the rear window defroster au-
tomatically turns itself back on.

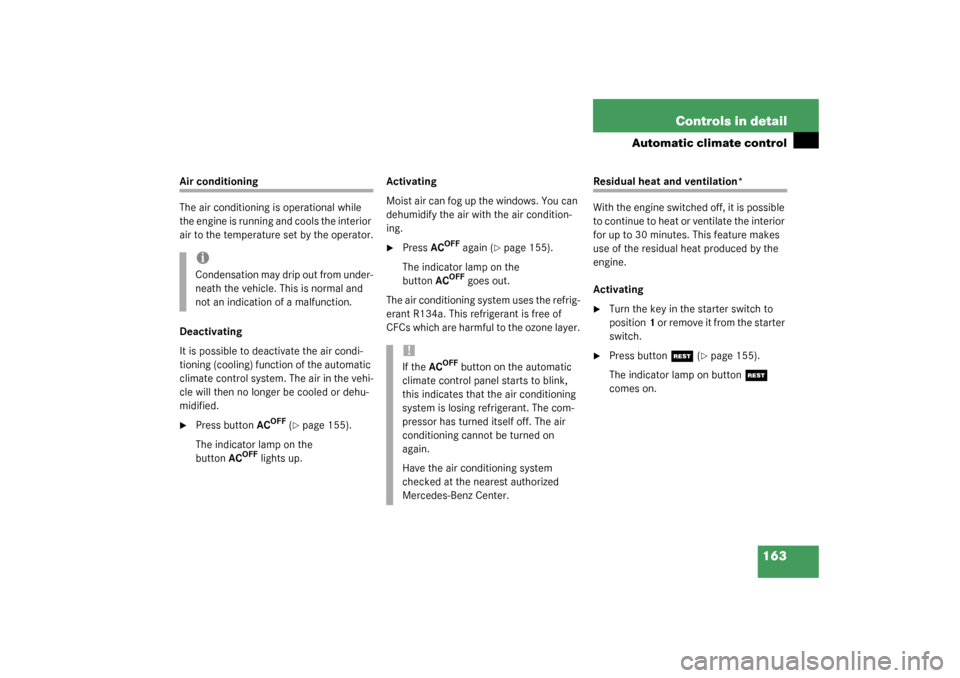

163 Controls in detail
Automatic climate control
Air conditioning
The air conditioning is operational while
the engine is running and cools the interior
air to the temperature set by the operator.
Deactivating
It is possible to deactivate the air condi-
tioning (cooling) function of the automatic
climate control system. The air in the vehi-
cle will then no longer be cooled or dehu-
midified.
Press buttonAC
OFF
(page 155).
The indicator lamp on the
buttonAC
OFF
lights up.Activating
Moist air can fog up the windows. You can
dehumidify the air with the air condition-
ing.

PressAC
OFF
again (
page 155).
The indicator lamp on the
buttonAC
OFF
goes out.
The air conditioning system uses the refrig-
erant R134a. This refrigerant is free of
CFCs which are harmful to the ozone layer.
Residual heat and ventilation*
With the engine switched off, it is possible
to continue to heat or ventilate the interior
for up to 30 minutes. This feature makes
use of the residual heat produced by the
engine.
Activating
Turn the key in the starter switch to
position1 o r r e m o v e i t f r o m t h e s t a r t e r
switch.

Press button
T
(page 155).
The indicator lamp on button
T

comes on.
iCondensation may drip out from under-
neath the vehicle. This is normal and
not an indication of a malfunction.
!If theAC
OFF
button on the automatic
climate control panel starts to blink,
this indicates that the air conditioning
system is losing refrigerant. The com-
pressor has turned itself off. The air
conditioning cannot be turned on
again.
Have the air conditioning system
checked at the nearest authorized
Mercedes-Benz Center.

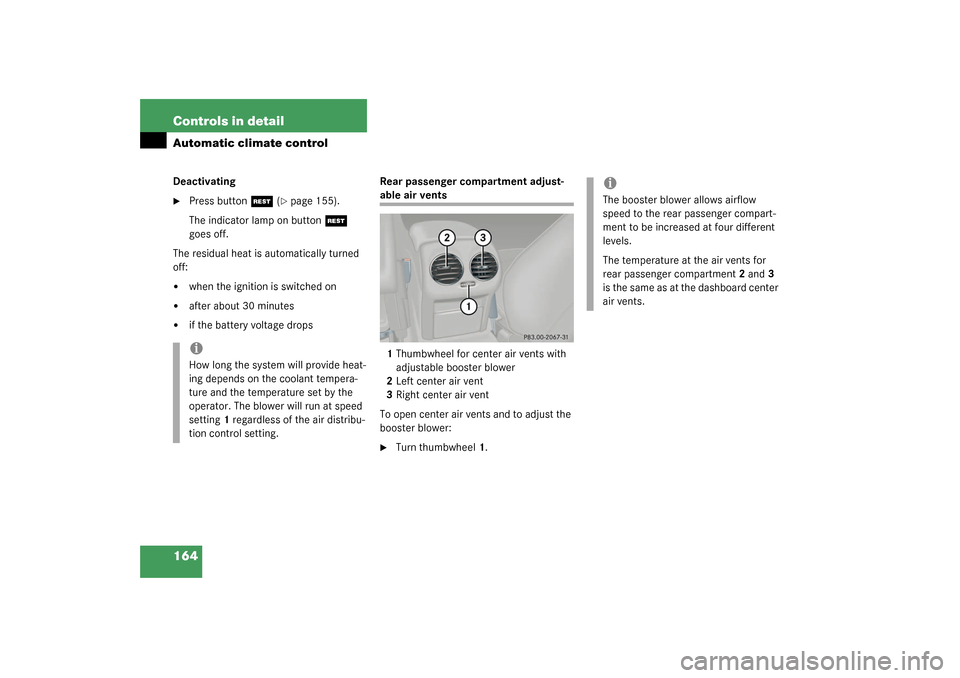

164 Controls in detailAutomatic climate controlDeactivating
Press button
T
(page 155).
The indicator lamp on button
T

goes off.
The residual heat is automatically turned
off:


when the ignition is switched on


after about 30 minutes


if the battery voltage dropsRear passenger compartment adjust-
able air vents
1Thumbwheel for center air vents with
adjustable booster blower
2Left center air vent
3Right center air vent
To open center air vents and to adjust the
booster blower:
Turn thumbwheel1.
iHow long the system will provide heat-
ing depends on the coolant tempera-
ture and the temperature set by the
operator. The blower will run at speed
setting1 regardless of the air distribu-
tion control setting.
iThe booster blower allows airflow
speed to the rear passenger compart-
ment to be increased at four different
levels.
The temperature at the air vents for
rear passenger compartment2 and3
is the same as at the dashboard center
air vents.

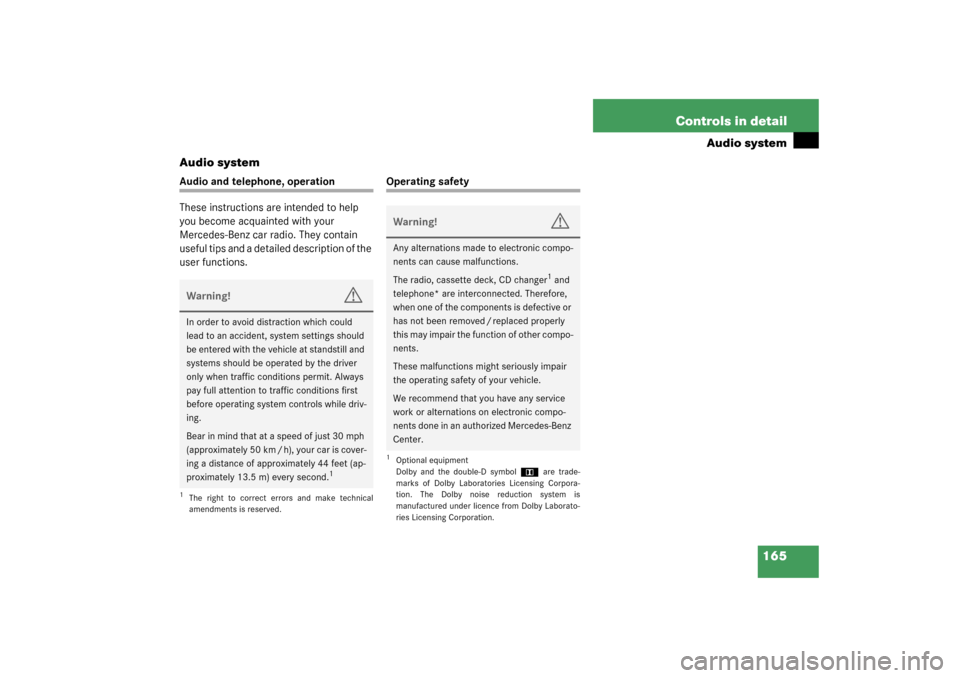

165 Controls in detail
Audio system
Audio system
Audio and telephone, operation
These instructions are intended to help
you become acquainted with your
Mercedes-Benz car radio. They contain
useful tips and a detailed description of the
user functions.
Operating safety
Warning!
G
In order to avoid distraction which could
lead to an accident, system settings should
be entered with the vehicle at standstill and
systems should be operated by the driver
only when traffic conditions permit. Always
pay full attention to traffic conditions first
before operating system controls while driv-
ing.
Bear in mind that at a speed of just 30 mph
(approximately 50 km / h), your car is cover-
ing a distance of approximately 44 feet (ap-
proximately 13.5 m) every second.
1
1The right to correct errors and make technical
amendments is reserved.
Warning!
G
Any alternations made to electronic compo-
nents can cause malfunctions.
The radio, cassette deck, CD changer
1 and
telephone* are interconnected. Therefore,
when one of the components is defective or
has not been removed / replaced properly
this may impair the function of other compo-
nents.
These malfunctions might seriously impair
the operating safety of your vehicle.
We recommend that you have any service
work or alternations on electronic compo-
nents done in an authorized Mercedes-Benz
Center.
1Optional equipment
Dolby and the double-D symbol
Ù
are trade-
marks of Dolby Laboratories Licensing Corpora-
tion. The Dolby noise reduction system is
manufactured under licence from Dolby Laborato-
ries Licensing Corporation.

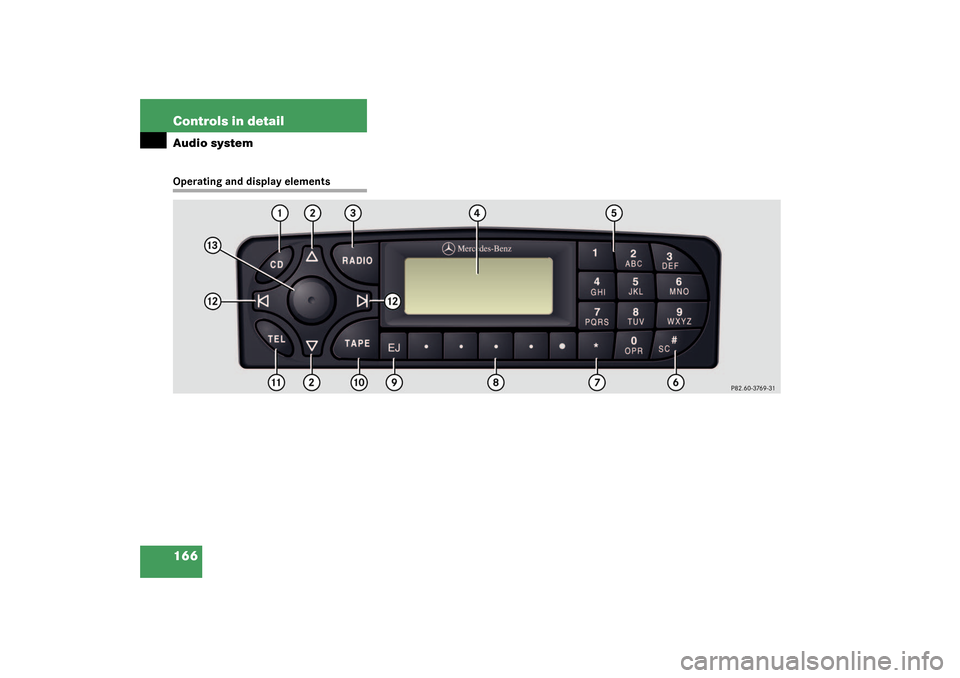

166 Controls in detailAudio systemOperating and display elements

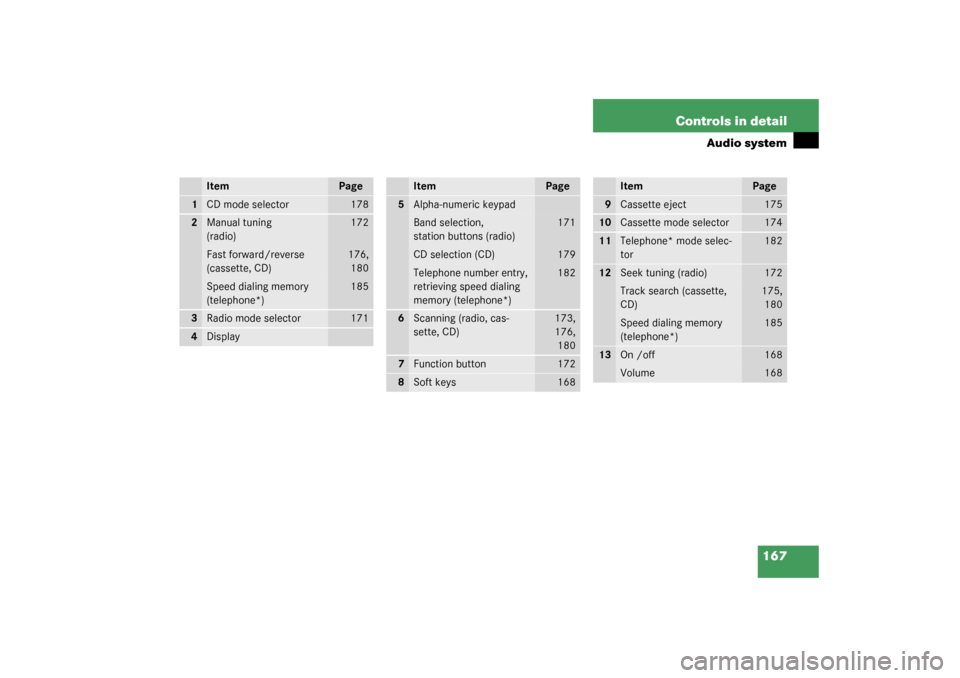

167 Controls in detail
Audio system
Item
Page
1
CD mode selector
178
2
Manual tuning
(radio)
172
Fast forward/reverse
(cassette, CD)
176,
180
Speed dialing memory
(telephone*)
185
3
Radio mode selector
171
4
Display
Item
Page
5
Alpha-numeric keypadBand selection,
station buttons (radio)
171
CD selection (CD)
179
Telephone number entry,
retrieving speed dialing
memory (telephone*)
182
6
Scanning (radio, cas-
sette, CD)
173,
176,
180
7
Function button
172
8
Soft keys
168
Item
Page
9
Cassette eject
175
10
Cassette mode selector
174
11
Telephone* mode selec-
tor
182
12
Seek tuning (radio)
172
Track search (cassette,
CD)
175,
180
Speed dialing memory
(telephone*)
185
13
On /off
168
Volume
168

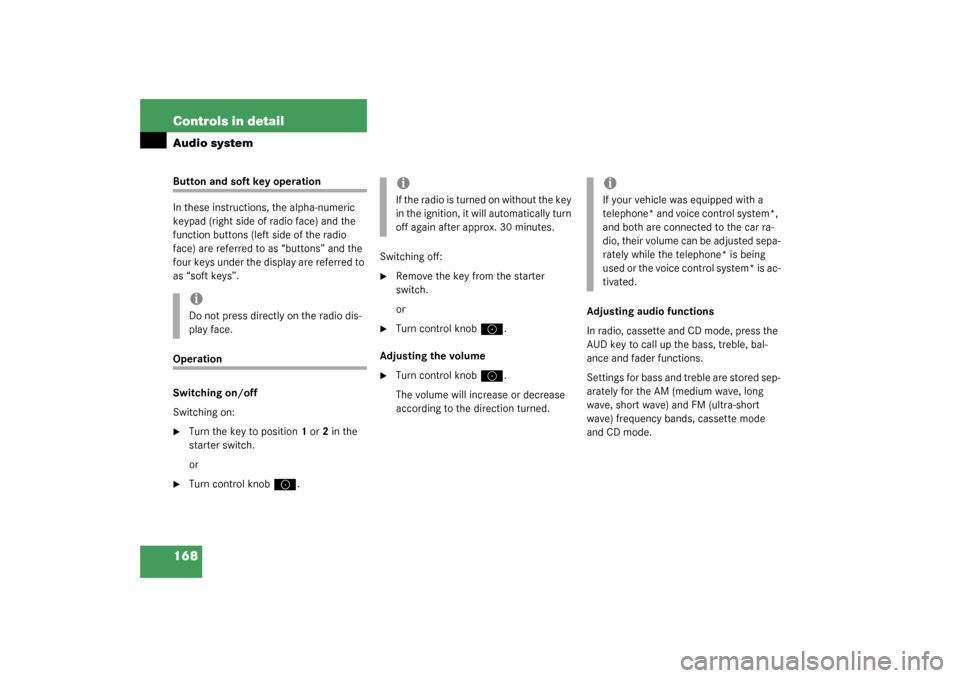

168 Controls in detailAudio systemButton and soft key operation
In these instructions, the alpha-numeric
keypad (right side of radio face) and the
function buttons (left side of the radio
face) are referred to as “buttons” and the
four keys under the display are referred to
as “soft keys”.Operation
Switching on/off
Switching on:
Turn the key to position 1 or 2 in the
starter switch.
or

Turn control knob
a
.Switching off:

Remove the key from the starter
switch.
or

Turn control knob
a
.
Adjusting the volume

Turn control knob
a
.
The volume will increase or decrease
according to the direction turned.Adjusting audio functions
In radio, cassette and CD mode, press the
AUD key to call up the bass, treble, bal-
ance and fader functions.
Settings for bass and treble are stored sep-
arately for the AM (medium wave, long
wave, short wave) and FM (ultra-short
wave) frequency bands, cassette mode
and CD mode.
iDo not press directly on the radio dis-
play face.
iIf the radio is turned on without the key
in the ignition, it will automatically turn
off again after approx. 30 minutes.
iIf your vehicle was equipped with a
telephone* and voice control system*,
and both are connected to the car ra-
dio, their volume can be adjusted sepa-
rately while the telephone* is being
used or the voice control system* is ac-
tivated.

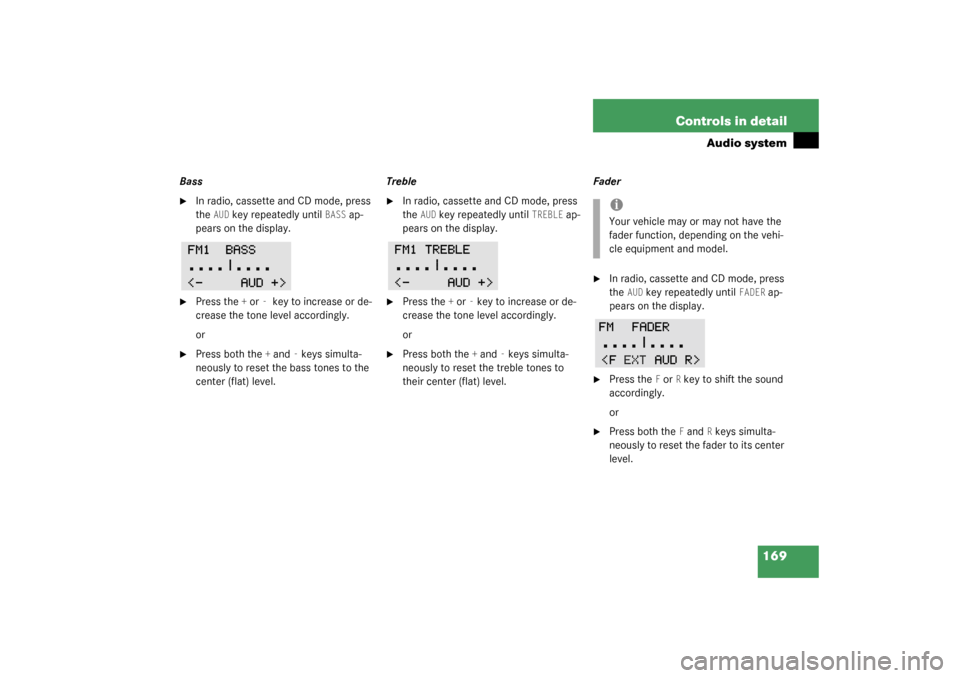

169 Controls in detail
Audio system
Bass
In radio, cassette and CD mode, press
the
AUD
key repeatedly until
BASS
ap-
pears on the display.

Press the
+ or
- key to increase or de-
crease the tone level accordingly.
or

Press both the
+ and
- keys simulta-
neously to reset the bass tones to the
center (flat) level.Treble

In radio, cassette and CD mode, press
the
AUD
key repeatedly until
TREBLE
ap-
pears on the display.

Press the
+ or
- key to increase or de-
crease the tone level accordingly.
or

Press both the
+ and
- keys simulta-
neously to reset the treble tones to
their center (flat) level.Fader

In radio, cassette and CD mode, press
the
AUD
key repeatedly until
FADER
ap-
pears on the display.

Press the
F or
R key to shift the sound
accordingly.
or

Press both the
F and
R keys simulta-
neously to reset the fader to its center
level.
iYour vehicle may or may not have the
fader function, depending on the vehi-
cle equipment and model.

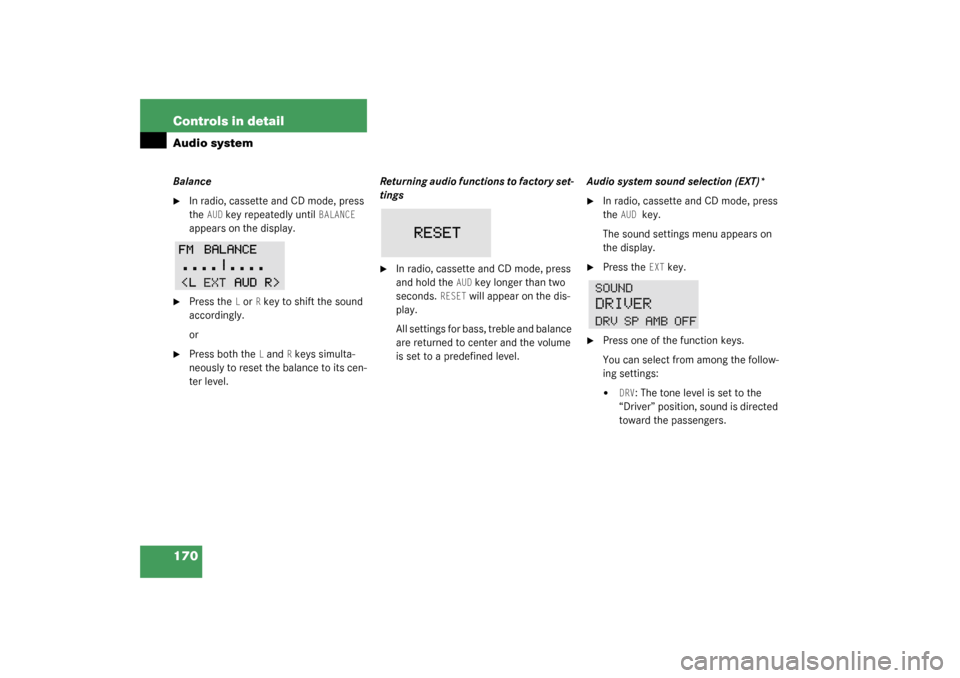

170 Controls in detailAudio systemBalance
In radio, cassette and CD mode, press
the
AUD
key repeatedly until
BALANCE

appears on the display.

Press the
L or
R key to shift the sound
accordingly.
or

Press both the
L and
R keys simulta-
neously to reset the balance to its cen-
ter level.Returning audio functions to factory set-
tings

In radio, cassette and CD mode, press
and hold the
AUD
key longer than two
seconds.
RESET
will appear on the dis-
play.
All settings for bass, treble and balance
are returned to center and the volume
is set to a predefined level.Audio system sound selection (EXT)*

In radio, cassette and CD mode, press
the
AUD
key.
The sound settings menu appears on
the display.

Press the
EXT
key.

Press one of the function keys.
You can select from among the follow-
ing settings:

DRV
: The tone level is set to the
“Driver” position, sound is directed
toward the passengers.
