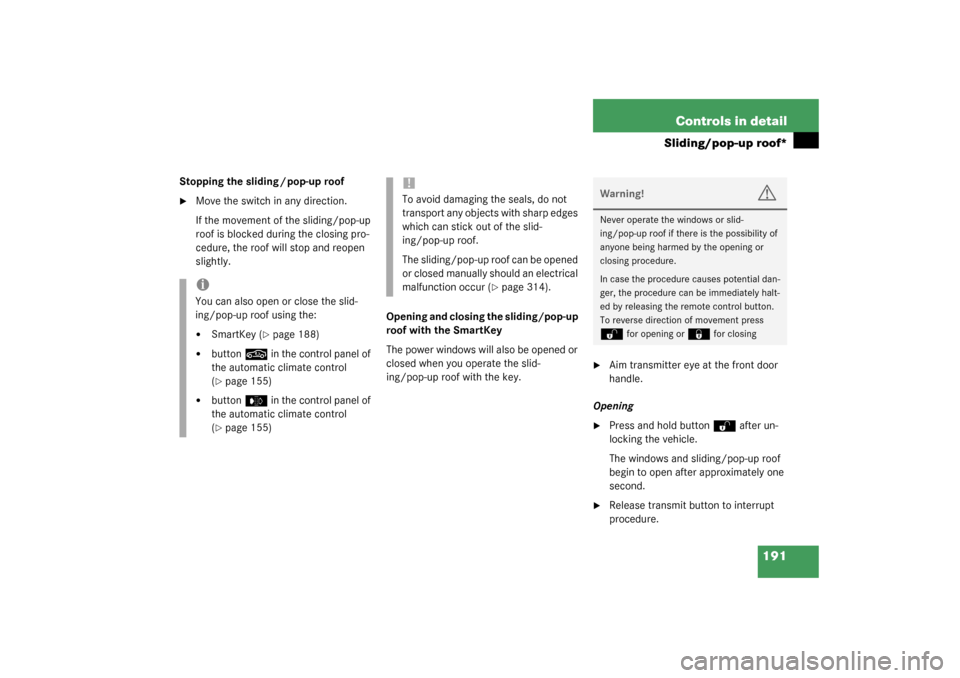

191 Controls in detail
Sliding/pop-up roof*
Stopping the sliding / pop-up roof
Move the switch in any direction.
If the movement of the sliding/pop-up
roof is blocked during the closing pro-
cedure, the roof will stop and reopen
slightly.
Opening and closing the sliding/pop-up
roof with the SmartKey
The power windows will also be opened or
closed when you operate the slid-
ing/pop-up roof with the key.

Aim transmitter eye at the front door
handle.
Opening

Press and hold button
Œ
after un-
locking the vehicle.
The windows and sliding/pop-up roof
begin to open after approximately one
second.

Release transmit button to interrupt
procedure.
iYou can also open or close the slid-
ing/pop-up roof using the:

SmartKey (
page 188)


button
,
in the control panel of
the automatic climate control
(
page 155)


button
e
in the control panel of
the automatic climate control
(
page 155)
!To avoid damaging the seals, do not
transport any objects with sharp edges
which can stick out of the slid-
ing/pop-up roof.
The sliding/pop-up roof can be opened
or closed manually should an electrical
malfunction occur (
page 314).
Warning!
G
Never operate the windows or slid-
ing/pop-up roof if there is the possibility of
anyone being harmed by the opening or
closing procedure.
In case the procedure causes potential dan-
ger, the procedure can be immediately halt-
ed by releasing the remote control button.
To reverse direction of movement press

Œ
for opening or
‹
for closing

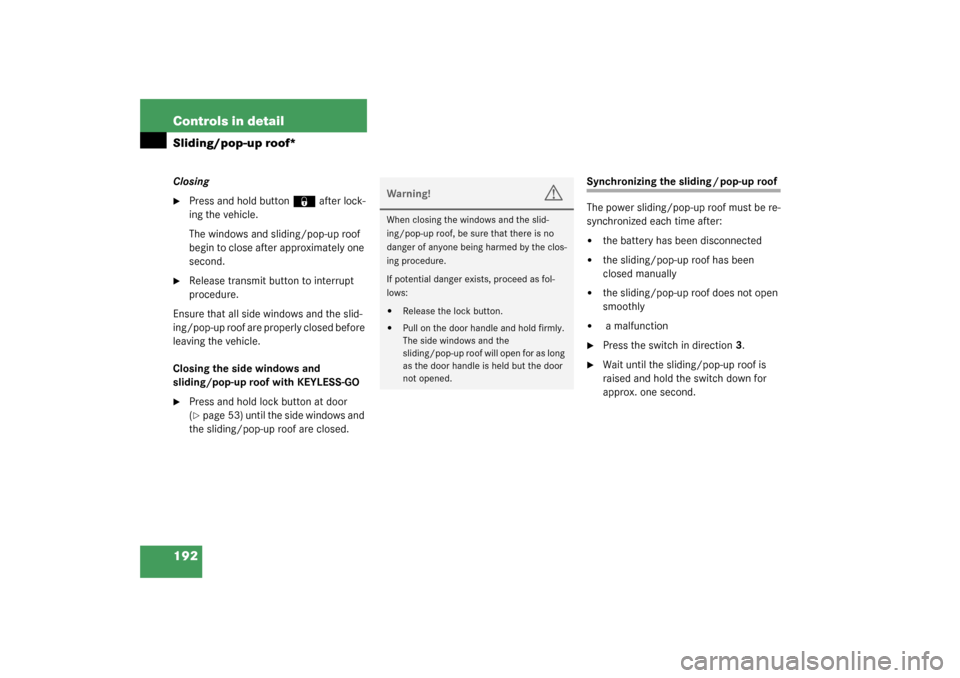

192 Controls in detailSliding/pop-up roof*Closing
Press and hold button
‹
after lock-
ing the vehicle.
The windows and sliding/pop-up roof
begin to close after approximately one
second.

Release transmit button to interrupt
procedure.
Ensure that all side windows and the slid-
ing/pop-up roof are properly closed before
leaving the vehicle.
Closing the side windows and
sliding/pop-up roof with KEYLESS-GO

Press and hold lock button at door
(page 53) until the side windows and
the sliding/pop-up roof are closed.
Synchronizing the sliding / pop-up roof
The power sliding/pop-up roof must be re-
synchronized each time after:

the battery has been disconnected


the sliding/pop-up roof has been
closed manually


the sliding/pop-up roof does not open
smoothly


a malfunction

Press the switch in direction3.

Wait until the sliding/pop-up roof is
raised and hold the switch down for
approx. one second.
Warning!
G
When closing the windows and the slid-
ing/pop-up roof, be sure that there is no
danger of anyone being harmed by the clos-
ing procedure.
If potential danger exists, proceed as fol-
lows:

Release the lock button.


Pull on the door handle and hold firmly.
The side windows and the
sliding/pop-up roof will open for as long
as the door handle is held but the door
not opened.

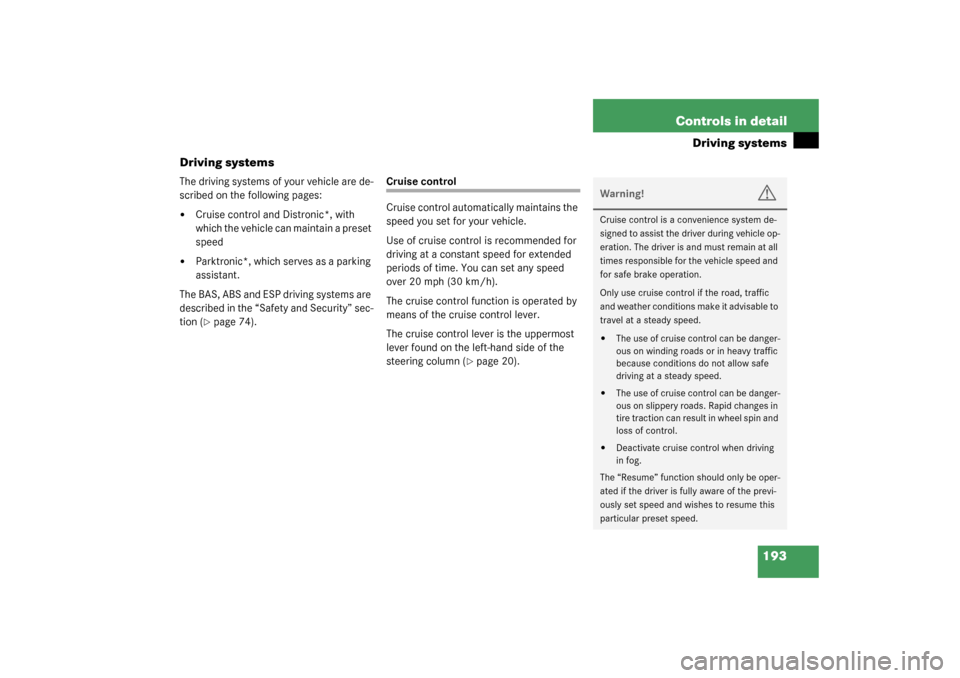

193 Controls in detail
Driving systems
Driving systems
The driving systems of your vehicle are de-
scribed on the following pages:

Cruise control and Distronic*, with
which the vehicle can maintain a preset
speed


Parktronic*, which serves as a parking
assistant.
The BAS, ABS and ESP driving systems are
described in the “Safety and Security” sec-
tion (page 74).
Cruise control
Cruise control automatically maintains the
speed you set for your vehicle.
Use of cruise control is recommended for
driving at a constant speed for extended
periods of time. You can set any speed
over 20 mph (30 km/h).
The cruise control function is operated by
means of the cruise control lever.
The cruise control lever is the uppermost
lever found on the left-hand side of the
steering column (
page 20).
Warning!
G
Cruise control is a convenience system de-
signed to assist the driver during vehicle op-
eration. The driver is and must remain at all
times responsible for the vehicle speed and
for safe brake operation.
Only use cruise control if the road, traffic
and weather conditions make it advisable to
travel at a steady speed.

The use of cruise control can be danger-
ous on winding roads or in heavy traffic
because conditions do not allow safe
driving at a steady speed.


The use of cruise control can be danger-
ous on slippery roads. Rapid changes in
tire traction can result in wheel spin and
loss of control.


Deactivate cruise control when driving
in fog.
The “Resume” function should only be oper-
ated if the driver is fully aware of the previ-
ously set speed and wishes to resume this
particular preset speed.

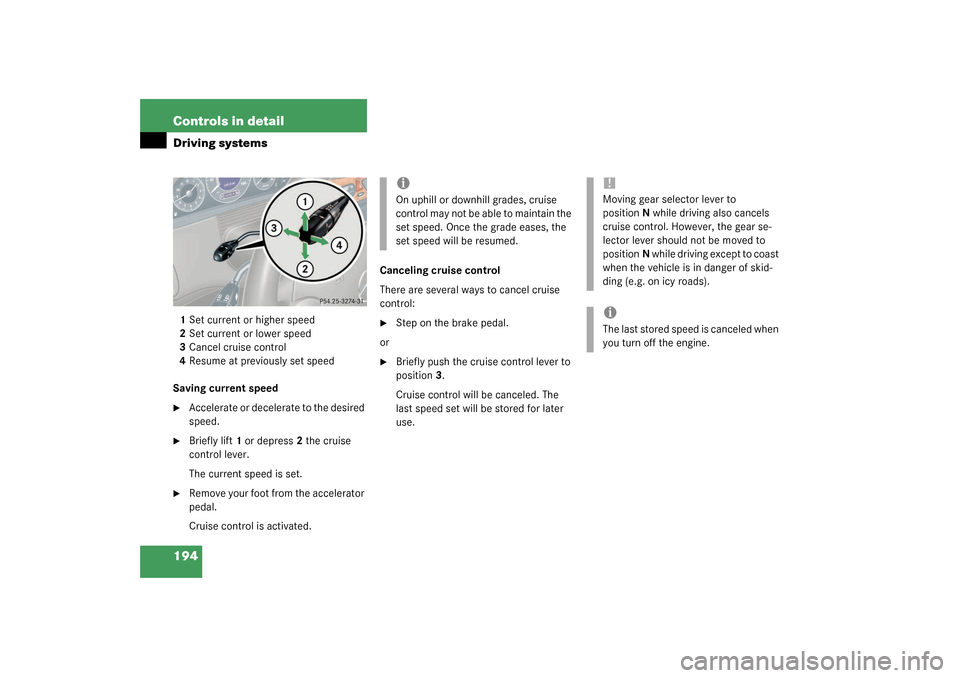

194 Controls in detailDriving systems1Set current or higher speed
2Set current or lower speed
3Cancel cruise control
4Resume at previously set speed
Saving current speed
Accelerate or decelerate to the desired
speed.

Briefly lift1 or depress2 the cruise
control lever.
The current speed is set.

Remove your foot from the accelerator
pedal.
Cruise control is activated.Canceling cruise control
There are several ways to cancel cruise
control:

Step on the brake pedal.
or

Briefly push the cruise control lever to
position3.
Cruise control will be canceled. The
last speed set will be stored for later
use.iOn uphill or downhill grades, cruise
control may not be able to maintain the
set speed. Once the grade eases, the
set speed will be resumed.
!Moving gear selector lever to
positionN while driving also cancels
cruise control. However, the gear se-
lector lever should not be moved to
positionN while driving except to coast
when the vehicle is in danger of skid-
ding (e.g. on icy roads).iThe last stored speed is canceled when
you turn off the engine.

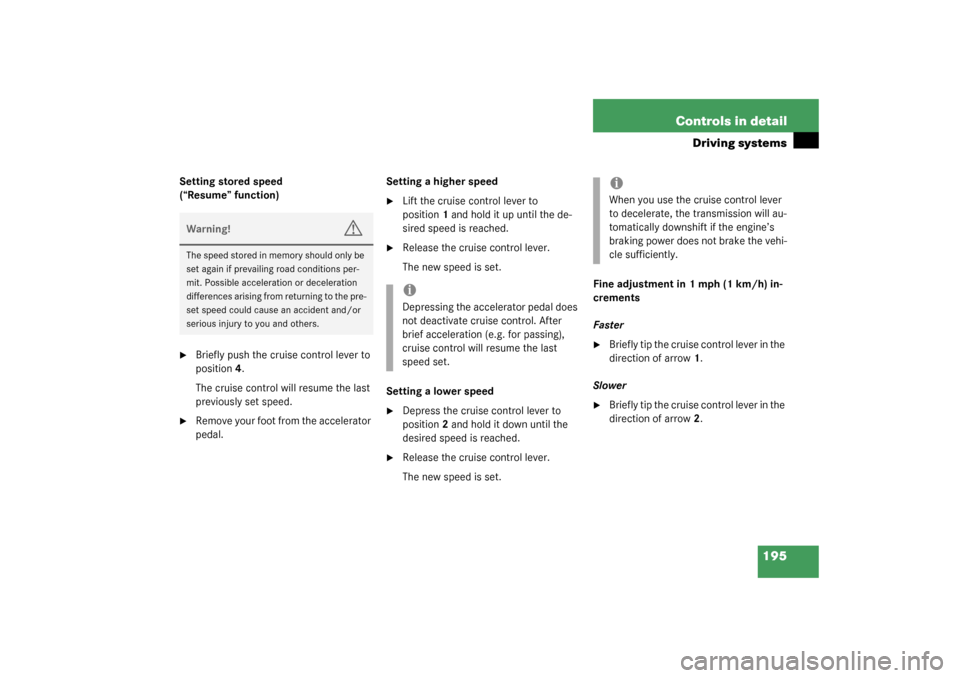

195 Controls in detail
Driving systems
Setting stored speed
(“Resume” function)
Briefly push the cruise control lever to
position4.
The cruise control will resume the last
previously set speed.

Remove your foot from the accelerator
pedal.Setting a higher speed

Lift the cruise control lever to
position1 and hold it up until the de-
sired speed is reached.

Release the cruise control lever.
The new speed is set.
Setting a lower speed

Depress the cruise control lever to
position2 and hold it down until the
desired speed is reached.

Release the cruise control lever.
The new speed is set.Fine adjustment in 1 mph (1 km/h) in-
crements
Faster

Briefly tip the cruise control lever in the
direction of arrow1.
Slower

Briefly tip the cruise control lever in the
direction of arrow2.
Warning!
G
The speed stored in memory should only be
set again if prevailing road conditions per-
mit. Possible acceleration or deceleration
differences arising from returning to the pre-
set speed could cause an accident and/or
serious injury to you and others.
iDepressing the accelerator pedal does
not deactivate cruise control. After
brief acceleration (e.g. for passing),
cruise control will resume the last
speed set.
iWhen you use the cruise control lever
to decelerate, the transmission will au-
tomatically downshift if the engine’s
braking power does not brake the vehi-
cle sufficiently.

196 Controls in detailDriving systemsDistronic*
When activated, the Distronic adaptive
cruise control system increases the driving
convenience afforded by the cruise control
during travel on expressways and other
major roads.

If the Distronic distance sensor detects
a slower moving vehicle directly ahead,
your vehicle speed will be reduced so
that you follow that vehicle at a preset
distance.


If there is no vehicle directly ahead of
you, Distronic will function in the same
way as cruise control (
page 193).
Warning!
G
Distronic adaptive cruise control is no sub-
stitute for active driving involvement. It does
not react to stationary objects, nor recog-
nize or predict the curvature and lane layout
or the movement of vehicles ahead. Distron-
ic can only apply a maximum of 20% of the
vehicle’s braking power.
It is the driver’s responsibility at all times to
be attentive to traffic and road conditions
and to provide the steering, braking and oth-
er driving inputs necessary to retain control
of the vehicle.Warning!
G
Distronic is a convenience system. Its speed
adjustment reduction capability is intended
to make cruise control more effective and
usable when traffic speeds vary. However, it
is not intended to, nor does it, replace the
need for extreme care. The responsibility for
the vehicle speed and the distance to the ve-
hicle ahead, including most importantly
brake operation to assure safe stopping dis-
tance, always rests with the driver.
Distronic cannot take street and traffic con-
ditions into account.
Warning!
G
Distronic requires familiarity with its opera-
tional characteristics. We strongly recom-
mend that you review the following
information carefully before operating the
system.iFor operation in the USA only: This de-
vice complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:

This device may not cause harmful
interference, and


this device must accept any inter-
ference received, including interfer-
ence that may cause undesired
operation.
Any unauthorized modification to this
device could void the user’s authority
to operate the equipment.

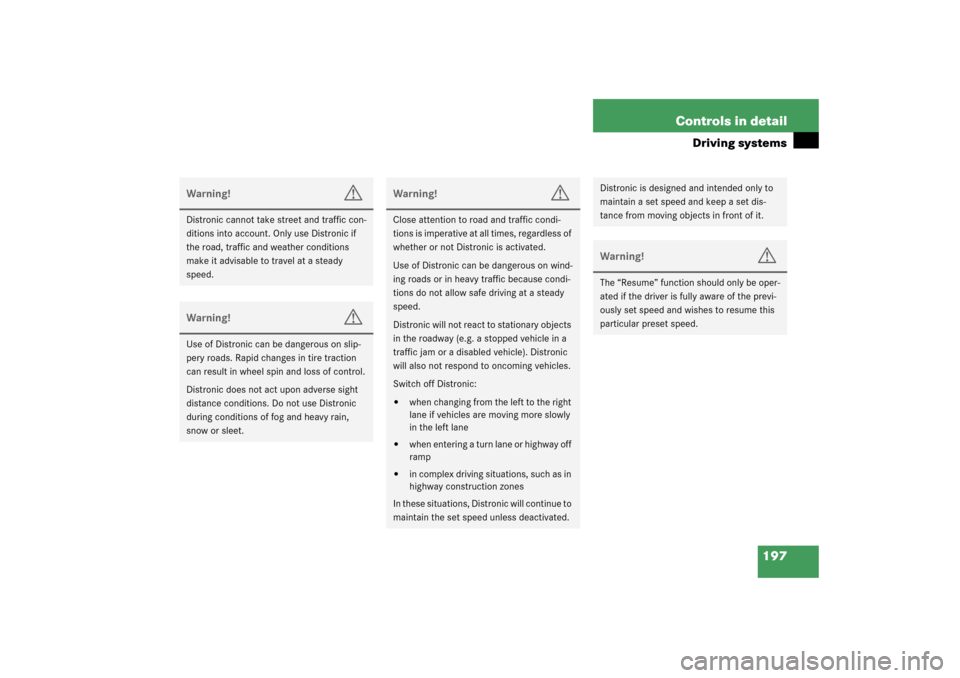

197 Controls in detail
Driving systems
Warning!
G
Distronic cannot take street and traffic con-
ditions into account. Only use Distronic if
the road, traffic and weather conditions
make it advisable to travel at a steady
speed.Warning!
G
Use of Distronic can be dangerous on slip-
pery roads. Rapid changes in tire traction
can result in wheel spin and loss of control.
Distronic does not act upon adverse sight
distance conditions. Do not use Distronic
during conditions of fog and heavy rain,
snow or sleet.
Warning!
G
Close attention to road and traffic condi-
tions is imperative at all times, regardless of
whether or not Distronic is activated.
Use of Distronic can be dangerous on wind-
ing roads or in heavy traffic because condi-
tions do not allow safe driving at a steady
speed.
Distronic will not react to stationary objects
in the roadway (e.g. a stopped vehicle in a
traffic jam or a disabled vehicle). Distronic
will also not respond to oncoming vehicles.
Switch off Distronic:

when changing from the left to the right
lane if vehicles are moving more slowly
in the left lane


when entering a turn lane or highway off
ramp


in complex driving situations, such as in
highway construction zones
In these situations, Distronic will continue to
maintain the set speed unless deactivated.
Distronic is designed and intended only to
maintain a set speed and keep a set dis-
tance from moving objects in front of it.Warning!
G
The “Resume” function should only be oper-
ated if the driver is fully aware of the previ-
ously set speed and wishes to resume this
particular preset speed.

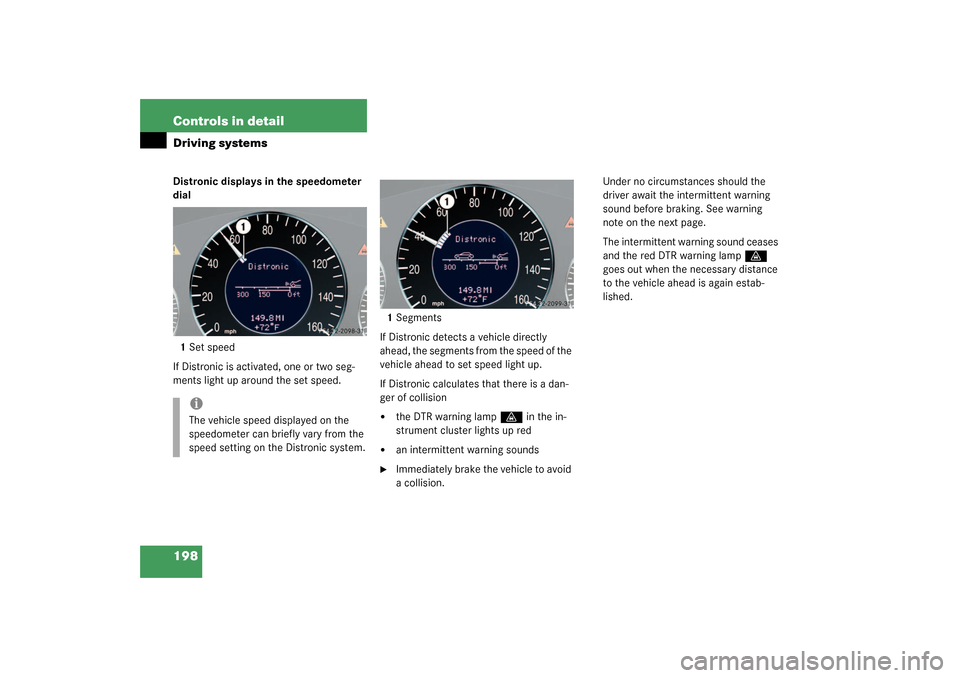

198 Controls in detailDriving systemsDistronic displays in the speedometer
dial
1Set speed
If Distronic is activated, one or two seg-
ments light up around the set speed.1Segments
If Distronic detects a vehicle directly
ahead, the segments from the speed of the
vehicle ahead to set speed light up.
If Distronic calculates that there is a dan-
ger of collision


the DTR warning lamp
l
in the in-
strument cluster lights up red


an intermittent warning sounds

Immediately brake the vehicle to avoid
a collision.Under no circumstances should the
driver await the intermittent warning
sound before braking. See warning
note on the next page.
The intermittent warning sound ceases
and the red DTR warning lamp
l

goes out when the necessary distance
to the vehicle ahead is again estab-
lished.
iThe vehicle speed displayed on the
speedometer can briefly vary from the
speed setting on the Distronic system.

199 Controls in detail
Driving systems
Distronic menu in the control system
In the Distronic menu you can read the cur-
rent settings for Distronic. What appears in
the display depends on whether Distronic
and the distance warning function are
turned on or off.
Press button
è
or
ÿ
repeatedly
until you see one of the following dis-
plays.
Warning!
G
An intermittent warning sounds and the
DTR warning lamp in the instrument cluster
is illuminated if the Distronic system calcu-
lates that the distance to the vehicle ahead
and your vehicle’s current speed indicate
that Distronic will not be capable of slowing
the vehicle sufficiently to maintain the pre-
set following distance, which creates a dan-
ger of a collision.
Immediately brake the vehicle to increase
the distance to the vehicle in front of you.
The warning sound is intended as a final cau-
tion that you have not interceded with your
own braking inputs to avoid a potentially
dangerous situation. Do not wait for the op-
eration of the warning signal to intercede
with your own braking, as that will result in
potentially dangerous emergency braking
which will not always result in an impact be-
ing avoided.
Tailgating increases the risk of an accident.
Warning!
G
Distronic brakes your vehicle with a maxi-
mum of 6.5 ft/s
2 (2 m/s
2). This corre-
sponds to about 20% of the maximum
deceleration ability of your vehicle.
Distronic brakes the vehicle in an effort to
restore the preset distance or to maintain
the speed. The brake pedal is automatically
applied as this happens which results in the
brake pedal moving.
Keep driver’s foot area clear at all times, in-
cluding the area under the brake pedal. Ob-
jects stored in this area may impair pedal
movement which could interfere with the
braking ability of the Distronic system.
Do not place your foot under the brake pedal
– your foot could become caught.

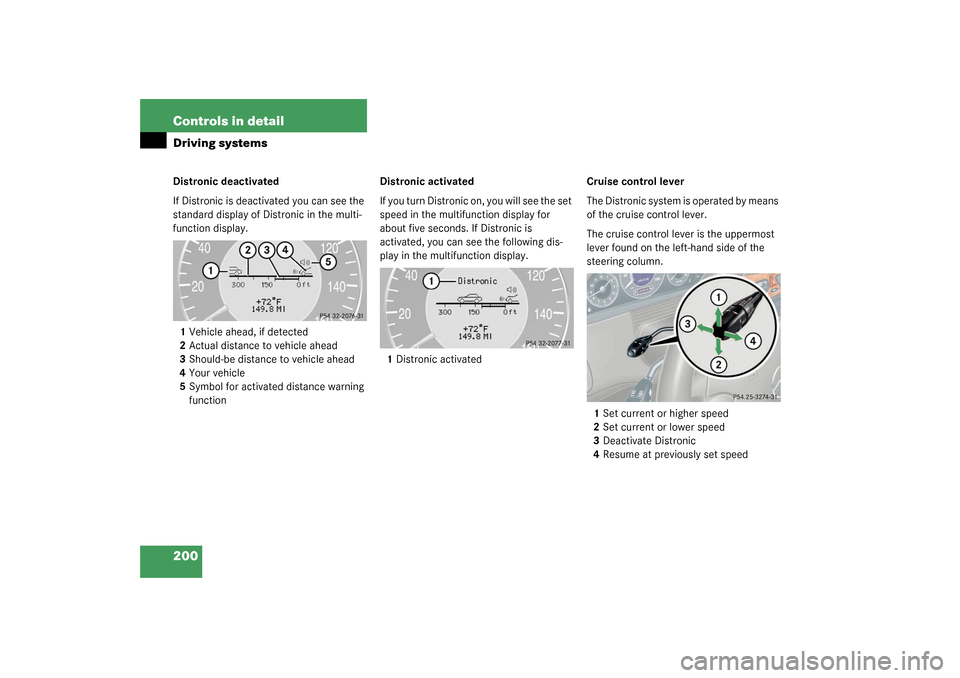

200 Controls in detailDriving systemsDistronic deactivated
If Distronic is deactivated you can see the
standard display of Distronic in the multi-
function display.
1Vehicle ahead, if detected
2Actual distance to vehicle ahead
3Should-be distance to vehicle ahead
4Your vehicle
5Symbol for activated distance warning
functionDistronic activated
If you turn Distronic on, you will see the set
speed in the multifunction display for
about five seconds. If Distronic is
activated, you can see the following dis-
play in the multifunction display.
1Distronic activatedCruise control lever
The Distronic system is operated by means
of the cruise control lever.
The cruise control lever is the uppermost
lever found on the left-hand side of the
steering column.
1Set current or higher speed
2Set current or lower speed
3Deactivate Distronic
4Resume at previously set speed
