MERCEDES-BENZ CLS 2014 Owner's Guide

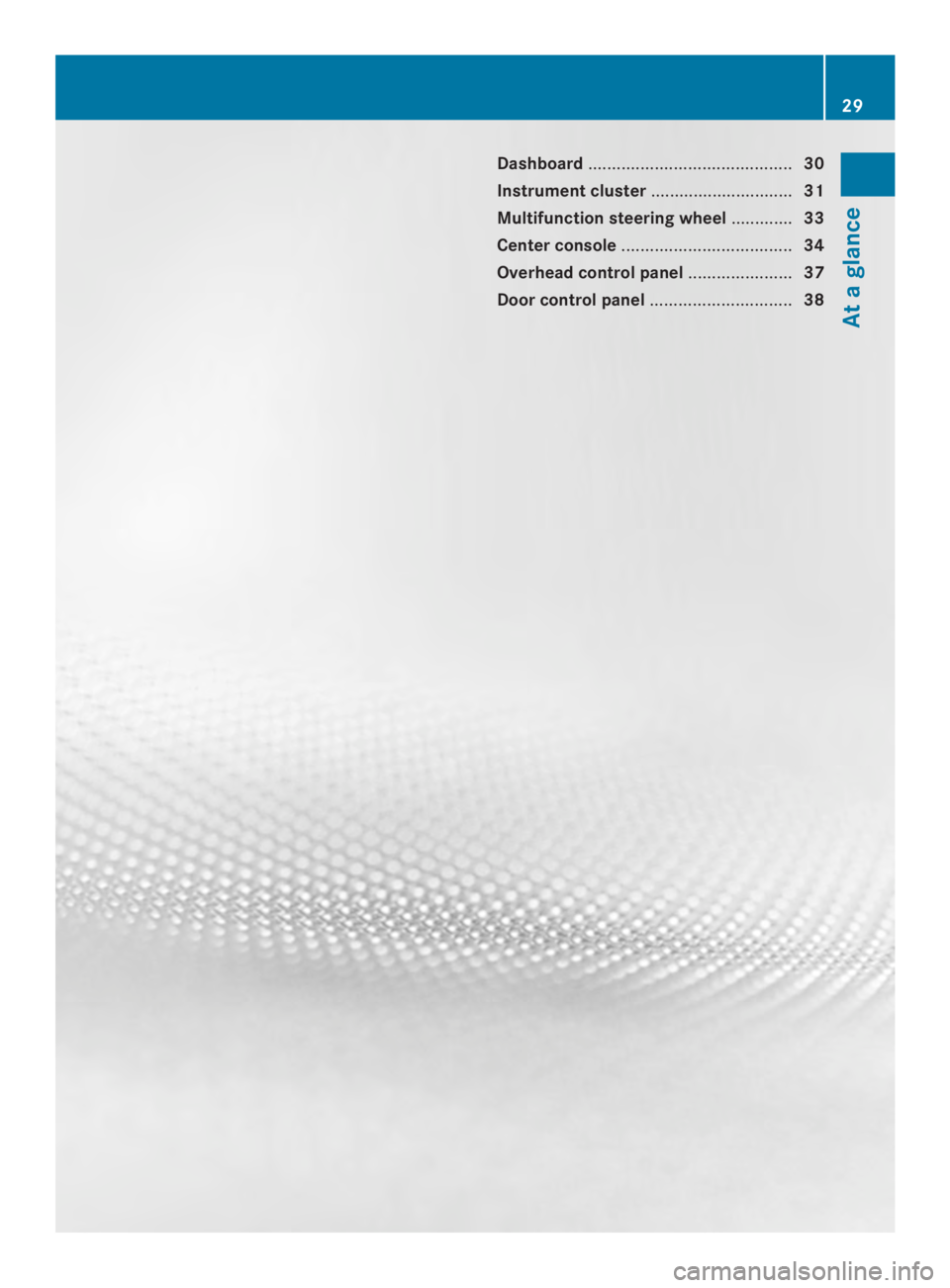

Dashboard...........................................30
Instrument cluster..............................31
Multifunction steering wheel.............33
Center console....................................34
Overheadcontrol panel......................37
Door control panel..............................38
29
At ag lance

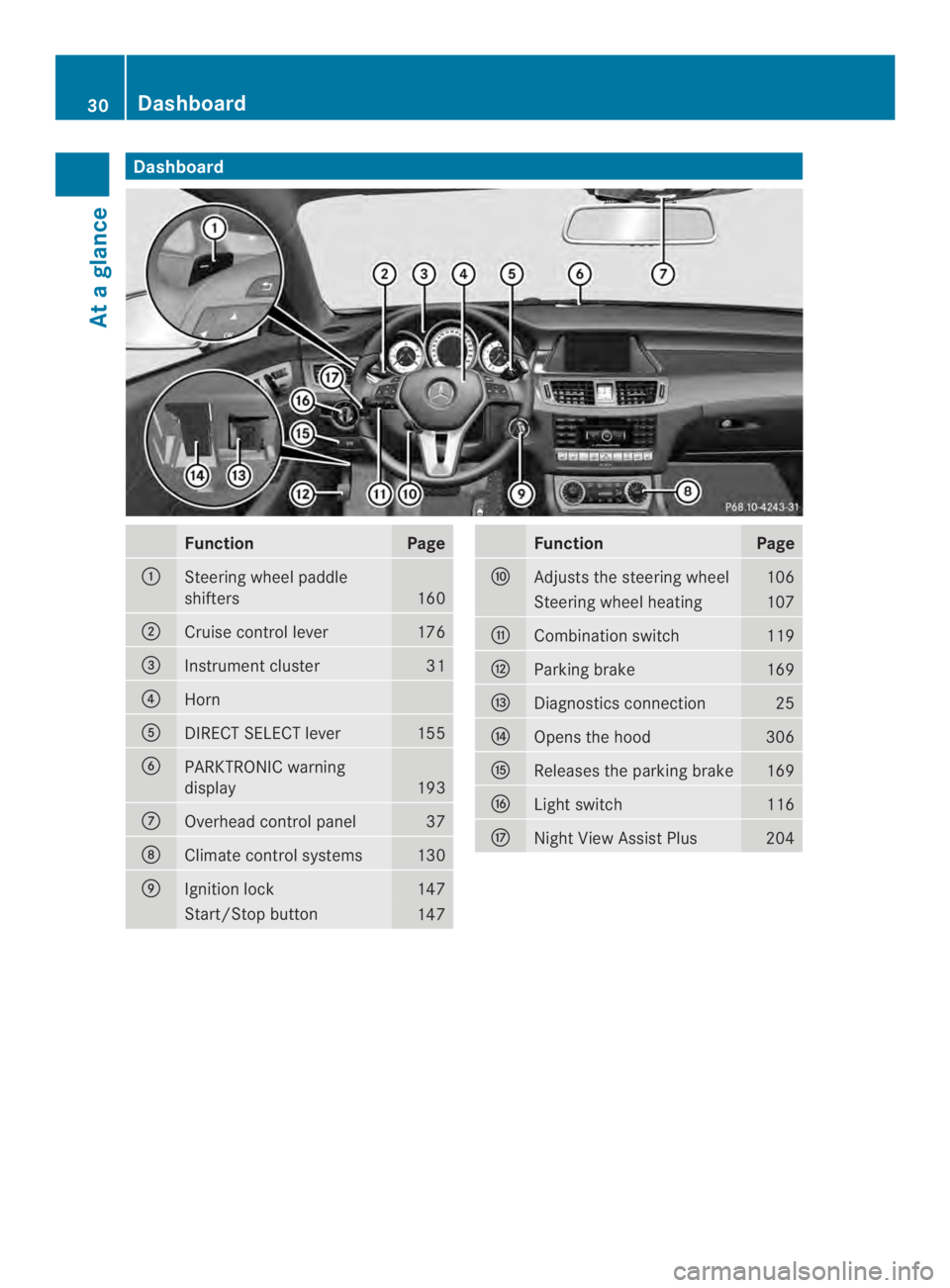

Dashboard
FunctionPage
Steeringwheelpaddle
shifters160
Cruisecontrollever176
$Instrumentcluster31
!Horn
DIRECTSELECTlever155
%PARKTRONIC warning
display193
Overhead controlpanel37
Climatecontrolsystems130
Ignition lock147
Start/Stopbutton147
FunctionPage
Adjuststhesteeringwheel106
Steeringwheelheating107
Combination switch119
Parking brake169
Diagnosticsconnection25
Opens thehood306
Releases theparking brake169
Light switch116
Night ViewAssistPlus204
30Dashboard
At ag lance

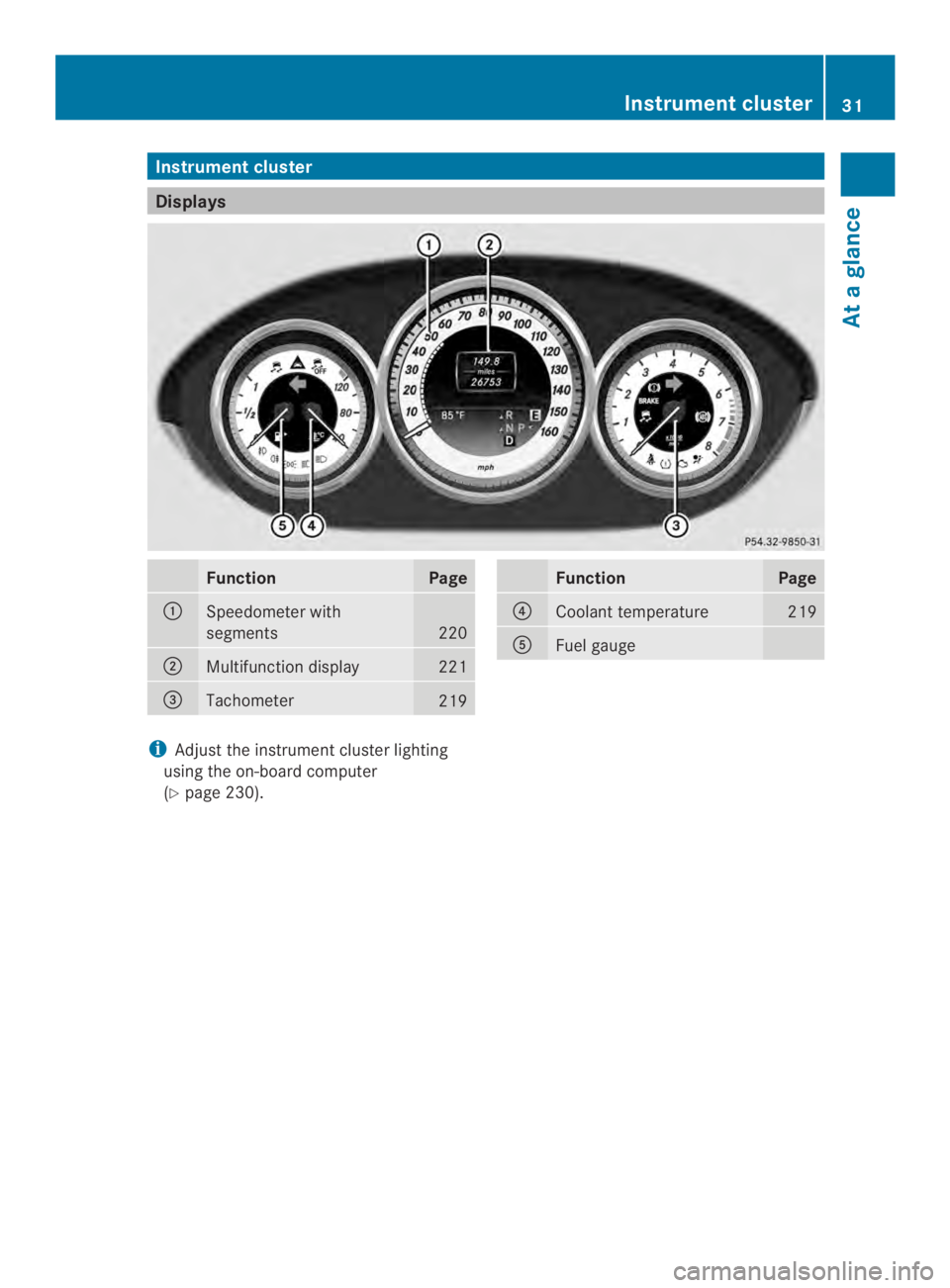

Instrumentcluster
Displays
FunctionPage
Speedometer with
segments220
Multifunction display221
$Tachometer219
FunctionPage
!Coolant temperature219
Fuel gauge
iAdjust the instrumentcluster lighting
using the on-board computer
(Ypage 230).
Instrument cluster31
At ag lance

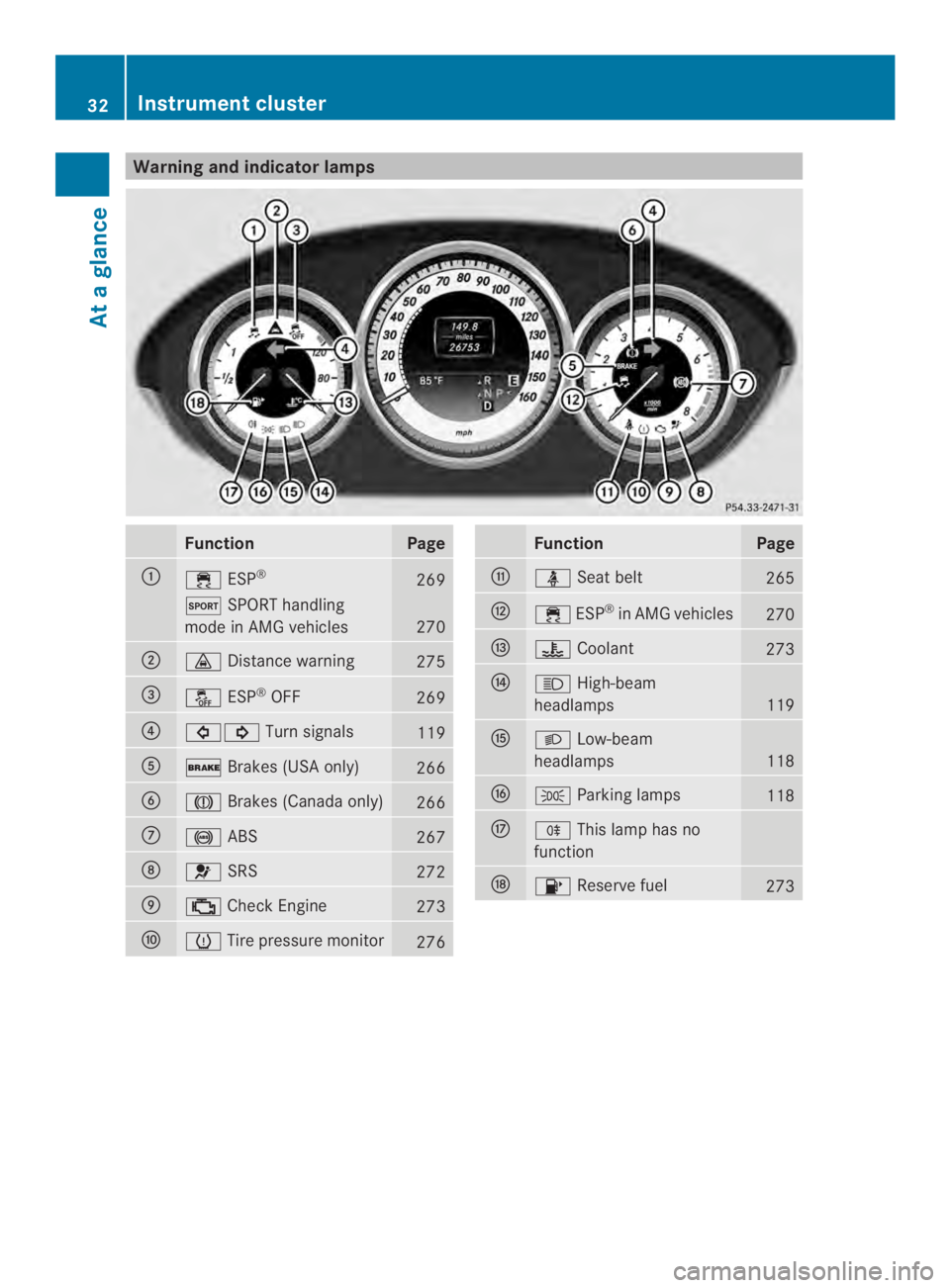

Warning and indicator lamps
FunctionPage
ESP®269
SPORT handling
mode in AMG vehicles270
Distance warning275
$ ESP®OFF269
!
Turn signals119
Brakes (USA only)266
%
Brakes (Canada only)266
ABS267
SRS272
\nCheck Engine273
Tire pressure monitor276
FunctionPage
Seat belt265
ESP®in AMG vehicles270
Coolant273
High-beam
headlamps119
Low-beam
headlamps118
Parking lamps118
This lamp has no
function
Reserve fuel273
32Instrument cluster
At ag lance

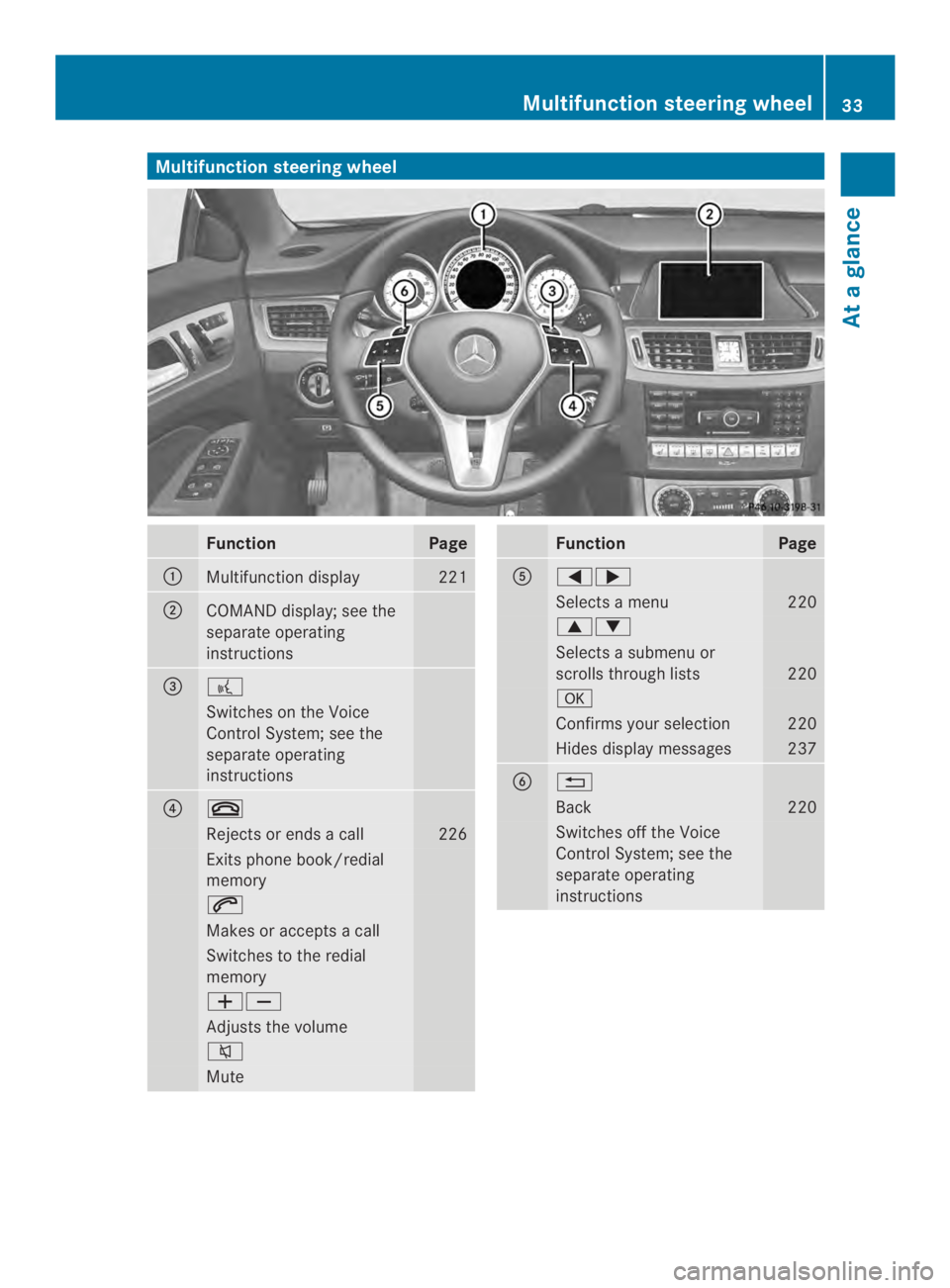

Multifunction steering wheel
FunctionPage
Multifunction display221
COMAND display;see the
separate operating
instructions
$
Switches on the Voice
Control System; see the
separate operating
instructions
!
Rejects or endsacall226
Exits phone book/redial
memory

Makes or acceptsacall
Switches to the redial
memory

Adjusts the volume


Mute
FunctionPage
\n
Selectsamenu220

Selectsasubmenu or
scrollsthrough lists220

Confirmsyourselection220
Hides display messages237
%
Back220
Switches off the Voice
Control System;see the
separate operating
instructions
Multifunction steering wheel33
At ag lance

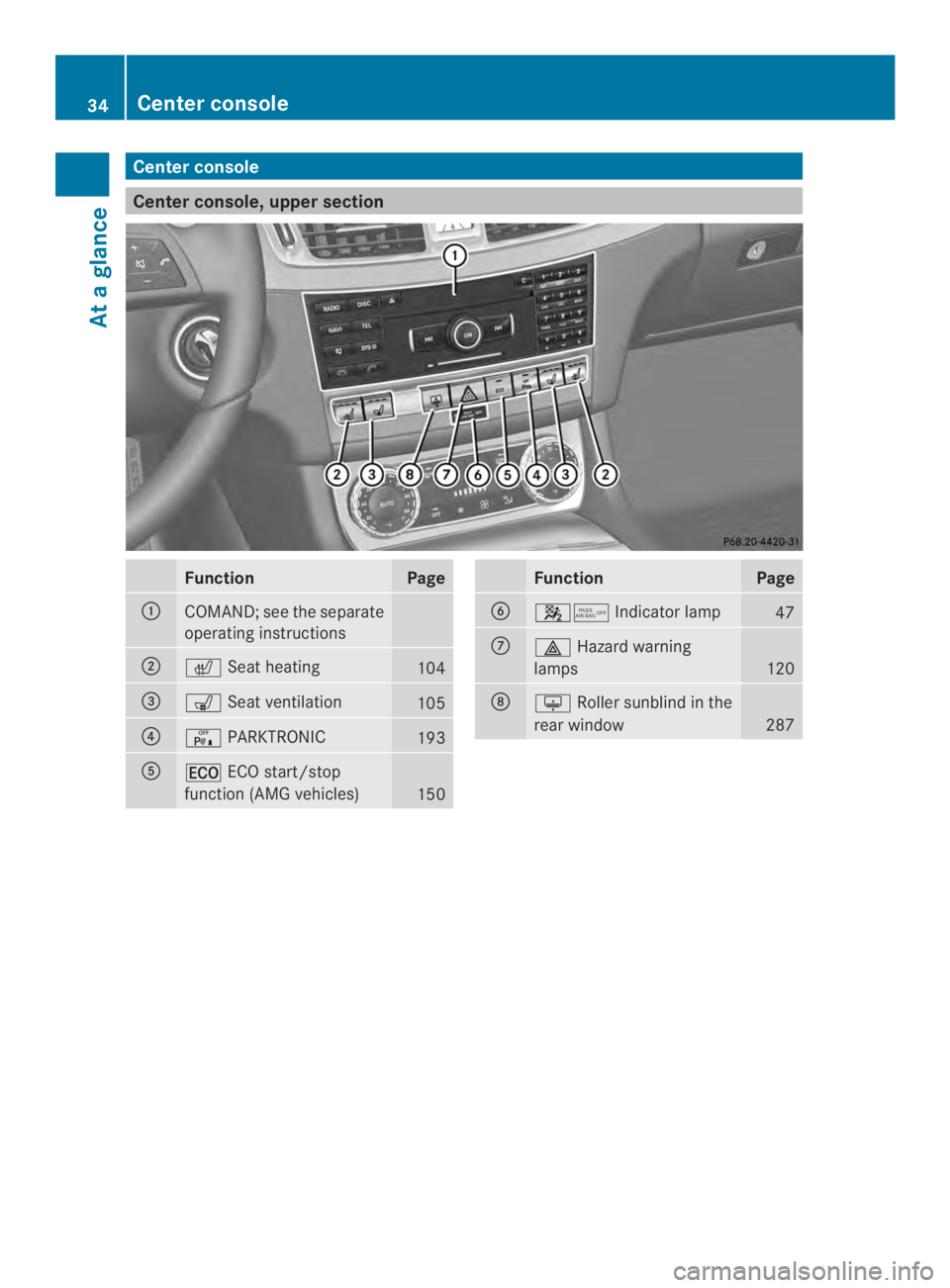

Center console
Center console, upper section
FunctionPage
COMAND;see theseparate
operatinginstructions
Seat heating104
$Seat ventilation105
!PARKTRONIC193
ECO start/stop
function (AMGvehicles)150
FunctionPage
%Indicatorlamp47
Hazard warning
lamps120
Roller sunblindinthe
rear window287
34Center console
At ag lance

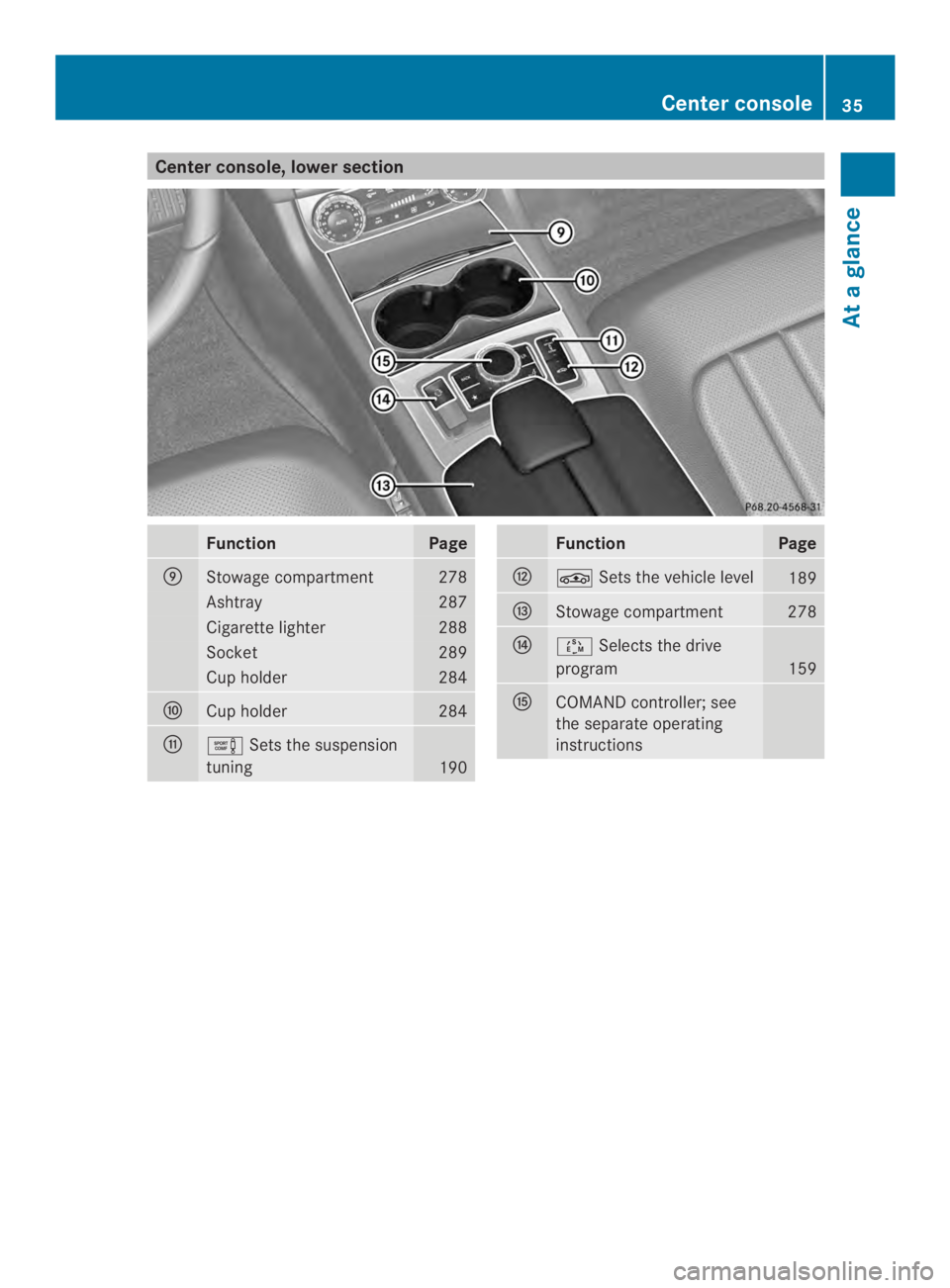

Center console, lower section
FunctionPage
Stowage compartment278
Ashtray287
Cigarettelighter288
Socket289
Cup holder284
Cup holder284

Setsthesuspension
tuning190
FunctionPage
Setsthevehicle level189
Stowage compartment278
Selectsthedrive
program159
COMAND controller; see
theseparate operating
instructions
Center console35
At ag lance

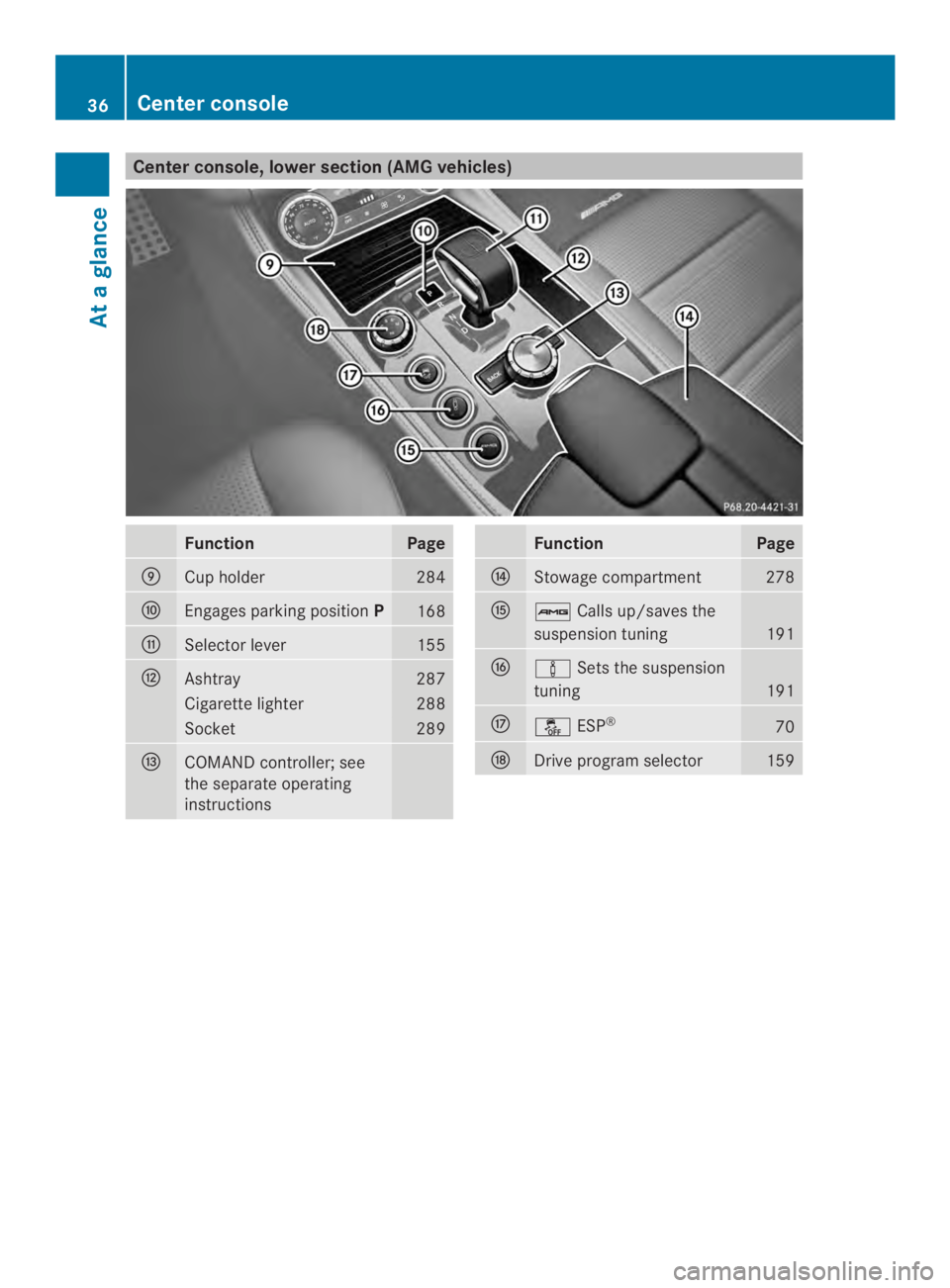

Center console, lower section (AMG vehicles)
FunctionPage
Cup holder284
Engages parking positionP168
Selector lever155
Ashtray287
Cigarettelighter288
Socket289
COMAND controller; see
theseparate operating
instructions
FunctionPage
Stowage compartment278
\rCalls up/saves the
suspension tuning191
Setsthesuspension
tuning191
 ESP®70
Drive program selector159
36Center console
At ag lance

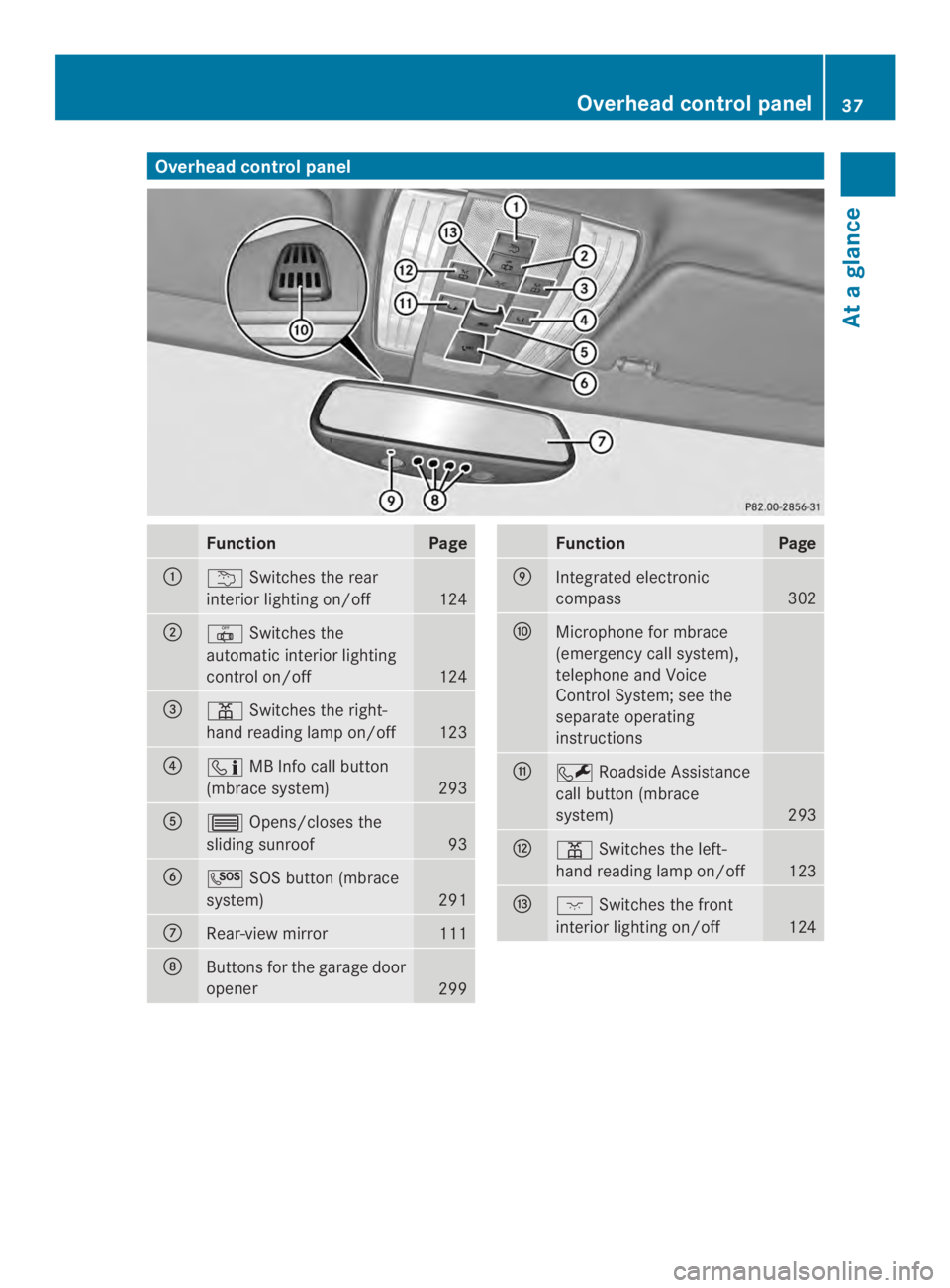

Overheadcontrol panel
FunctionPage
Switchestherear
interiorlighting on/off124
Switches the
automatic interior lighting
control on/off124
$Switches the right-
hand readinglamp on/off123
!MB Info call button
(mbracesystem)293
Opens/closes the
slidingsunroof93
%SOS button (mbrace
system)291
Rear-view mirror111
Buttonsfor the garage door
opener299
FunctionPage
Integrated electronic
compass302
Microphonefor mbrace
(emergency call system),
telephoneand Voice
Control System; see the
separateoperating
instructions
Roadside Assistance
call button (mbrace
system)293
Switches the left-
hand readinglamp on/off123
\rSwitches the front
interior lighting on/off124
Overhead control panel37
At ag lance

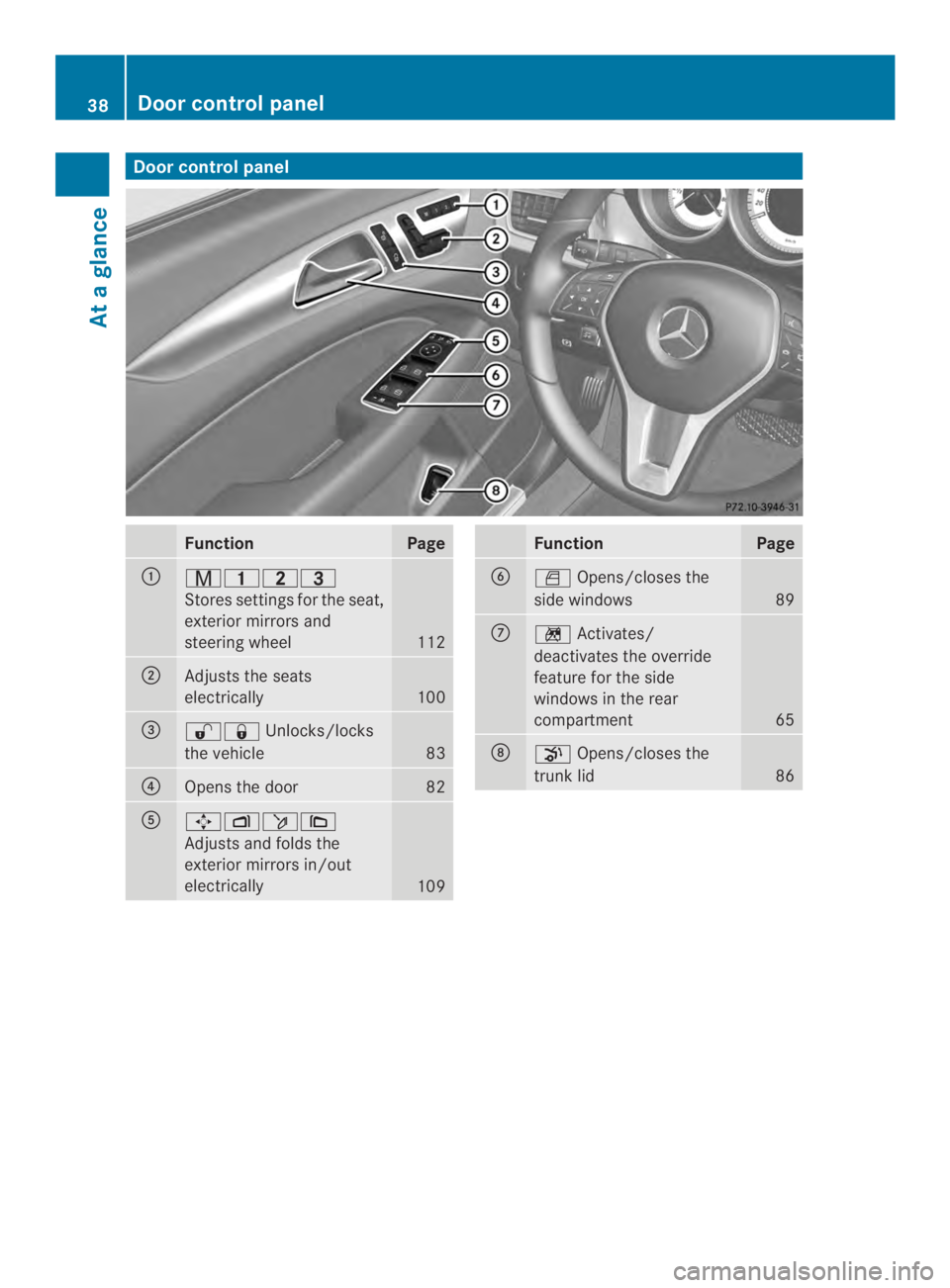

Door controlpanel
FunctionPage
\n
Stores settingsfor the seat,
exterior mirrorsand
steering wheel112
Adjusts the seats
electrically100
$Unlocks/locks
the vehicle83
!Opens the door82

Adjusts and folds the
exterior mirrors in/out
electrically109
FunctionPage
%\nOpens/closes the
side windows89
Activates/
deactivates the override
feature for the side
windows in the rear
compartment65
 Opens/closes the
trunk lid86
38Doorcontrol panel
At ag lance
