Page 11 of 376
Driving in winter ............................. 164
Driving on flooded roads
................164
Driving on wet roads ...................... 164
Exhaust check
............................... 160
Fuel ................................................ 159
General .......................................... 159
Hydroplaning ................................. 164
Icy road surfaces ........................... 164
Limited braking efficiency on
salted roads ................................... 162
Pedals ............................................ 160
Snow chains .................................. 329
Symmetrical low beam .................. 110
Wet road surface ........................... 162
Drowsiness detection assistance
system
see ATTENTION ASSIST
DVD audio
Operating (on-board computer) ..... 215
DVD video
Operating (on-board computer) ..... 216E
EASY-ENTRY feature Activating/deactivating
.................223
Function/notes ............................. 104
EASY-EXIT feature
Crash-responsive ........................... 105
Function/notes ............................. 104
Switching on/off ........................... 223
EBD (electronic brake force
distribution)
Display message ............................ 231
Function/notes ................................ 69
ECO display
Function/notes ............................. 160
On-board computer ....................... 213
ECO start/stop function
Deactivating/activating ................. 143
General information ....................... 142
Electronic Stability Program
see ESP ®
(Electronic Stability Program)
Electronic Traction System
see ETS/4ETS (Electronic
Traction System) Emergency release
Driver's door .................................... 82
Fuel filler flap
................................. 155
Trunk ............................................... 86
Vehicle ............................................. 82
Emergency spare wheel
Important safety notes .................. 357
Points to remember .......................358
Removing ....................................... 358
Storage location ............................ 358
Stowing .......................................... 359
Technical data ............................... 361
Emergency Tensioning Devices
Function ........................................... 57
Safety guidelines ............................. 40
Emissions control
Service and warranty information .... 21
Engine
Check Engine warning lamp ........... 264
Display message ............................ 239
ECO start/stop function ................ 142
Engine number ............................... 366
Irregular running ............................ 145
Jump-starting ................................. 317
Starting problems .......................... 145
Starting the engine with the
SmartKey ....................................... 141
Starting with KEYLESS-GO ............. 141
Switching off .................................. 158
Tow-starting (vehicle) ..................... 321
Engine electronics
Problem (malfunction) ...................145
Engine oil
Adding ........................................... 300
Additives ........................................ 369
Checking the oil level ..................... 299
Checking the oil level using the
dipstick .......................................... 299
Display message ............................ 241
Filling capacity ............................... 369
Notes about oil grades ................... 368
Notes on oil level/consumption .... 299
Temperature (on-board computer) . 224
Viscosity ........................................ 369 Index
9
Page 12 of 376
ESP
®
(Electronic Stability
Program) AMG menu (on-board computer) ... 225
Deactivating/activating (AMG
vehicles) .......................................... 67
Deactivating/activating (except
AMG vehicles) ................................ 218
Deactivating/activating (notes;
except AMG vehicles) ...................... 67
Display message
............................ 229
ETS/4ETS ........................................ 66
Function/notes ................................ 66
Important safety information ........... 66
Warning lamp ................................. 260
ETS/4ETS (Electronic Traction
System) ................................................ 66
Exhaust check ................................... 160
Exhaust tail pipe (cleaning
instructions) ...................................... 307
Exterior lighting Setting options .............................. 110
see Lights
Exterior mirrors
Adjusting ....................................... 105
Dipping (automatic) .......................106
Folding in/out (automatically) ....... 106
Folding in/out (electrically) ........... 105
Folding in when locking (on-board
computer) ...................................... 223
Out of position (troubleshooting) ...106
Setting ........................................... 105
Storing settings (memory
function) ........................................ 107
Storing the parking position .......... 106
Eyeglasses compartment ................. 271F
Filler cap see Fuel filler flap
First-aid kit ......................................... 312
Flat tire MOExtended tires .......................... 313
Preparing the vehicle .....................313
Floormat ............................................. 295
Fuel Additives ........................................ 368
Consumption statistics ..................212Displaying the current
consumption
.................................. 213
Displaying the range
......................213
Driving tips .................................... 159
Fuel gauge ............................... 29, 209
Grade (gasoline) ............................ 367
Important safety notes .................. 366
Premium-grade unleaded gasoline . 367
Problem (malfunction) ...................157
Refueling ........................................ 154
Tank content/reserve fuel .............367
Fuel filler flap
Emergency release ........................ 155
Opening/closing ............................ 155
Fuel level
Calling up the range (on-board
computer) ...................................... 213
Fuel tank
Capacity ........................................ 367
Problem (malfunction) ...................157
Fuse allocation chart (vehicle tool
kit) ...................................................... 312
Fuses Allocation chart ............................. 322
Before changing ............................. 322
Fuse box in the engine
compartment ................................. 322
Fuse box in the trunk ..................... 323
Important safety notes .................. 322 G
Garage door opener Clearing the memory
.....................294
Important safety notes .................. 291
Opening/closing the garage door ..294
Programming (button in the rear-
view mirror) ................................... 292
Gear indicator (on-board
computer) .......................................... 224
Genuine Mercedes-Benz parts ......... 364
Glove box ........................................... 271 H
Handbrake see Parking brake
Hazard warning lamps ......................11410
Index
Page 144 of 376
i
It is only possible to shift the transmission
from position P to the desired position if
you depress the brake pedal. Only then is
the parking lock released. If you do not
depress the brake pedal, you can move the
DIRECT SELECT lever but the parking lock
remains engaged.
i The vehicle locks centrally once you have
pulled away. The locking knobs in the doors
drop down.
You can open the doors from the inside at
any time.
You can also deactivate the automatic
locking feature (Y page 222).
i Upshifts take place at higher engine
speeds after a cold start. This helps the
catalytic converter to reach its operating
temperature more quickly.
Hill start assist G
WARNING
After a short time, hill start assist will no
longer brake your vehicle and it could roll
away.
There is a risk of an accident and injury.
Therefore, quickly move your foot from the
brake pedal to the accelerator pedal. Never
leave the vehicle when it is held by hill start
assist.
Hill start assist helps you when pulling away
forwards or in reverse on an uphill gradient.
It holds the vehicle for a short time after you
have removed your foot from the brake pedal.
This gives you enough time to move your foot
from the brake pedal to the accelerator pedal
and to depress it before the vehicle begins to
roll.
X Take your foot off the brake pedal.
The
vehicle is then held for about a second.
X Pull away.
Hill start assist will not function if:
R you are pulling away on a level road or on
a downhill gradient.
R the transmission is in position N. R
the parking brake is applied.
R ESP ®
is malfunctioning. ECO start/stop function
Important safety notes G
WARNING
If the engine is switched off automatically and
you exit the vehicle, the engine is restarted
automatically.
The vehicle may begin moving.
There is a risk of accident and injury.
If you wish to exit the vehicle, always turn off
the ignition and secure the vehicle against
rolling away.
General notes The ECO start/stop function switches the
engine off automatically when the vehicle
stops moving.
The engine starts automatically when the
driver wants to pull away again. The ECO
start/stop function thereby helps you to
reduce the fuel consumption and emissions
of your vehicle.
Every
time you switch on the engine using the
SmartKey or the Start/Stop button, the ECO
start/stop function is activated.
AMG vehicles: the ECO start/stop function
is only available in drive program C.
The system is operational when ECO symbol
¤ is shown in green in the multifunction
display.
AMG vehicles: the AMG menu in the
multifunction display additionally shows the
Stop/Start active message.
If conditions for automatic engine switch-off
have not been fulfilled ( Y page 143), the
¤ symbol will be shown in yellow.
AMG vehicles: the AMG menu in the
multifunction display additionally shows the
Stop/Start inactive message.
If the ECO start/stop function has been
manually deactivated ( Y page 143) or a142
Driving
Driving and parking
Page 157 of 376

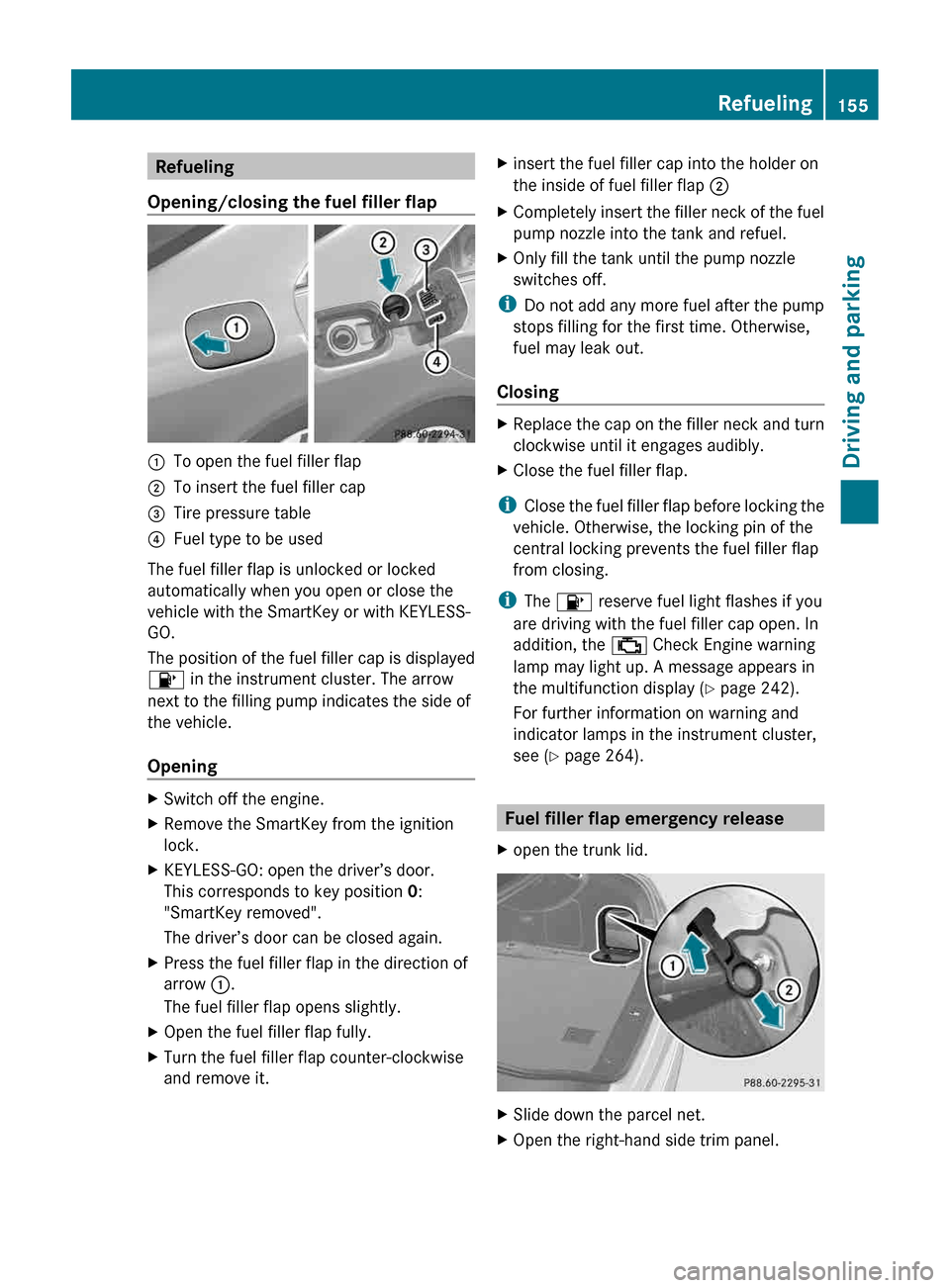

Refueling
Opening/closing the fuel filler flap :
To open the fuel filler flap
; To insert the fuel filler cap
= Tire pressure table
? Fuel type to be used
The fuel filler flap is unlocked or locked
automatically when you open or close the
vehicle with the SmartKey or with KEYLESS-
GO.
The position of the fuel filler cap is displayed
8 in the instrument cluster. The arrow
next to the filling pump indicates the side of
the vehicle.
Opening X
Switch off the engine.
X Remove the SmartKey from the ignition
lock.
X KEYLESS-GO: open the driver’s door.
This corresponds to key position 0:
"SmartKey removed".
The driver’s door can be closed again.
X Press the fuel filler flap in the direction of
arrow :.
The fuel filler flap opens slightly.
X Open the fuel filler flap fully.
X Turn the fuel filler flap counter-clockwise
and remove it. X
insert the fuel filler cap into the holder on
the inside of fuel filler flap ;
X Completely insert the filler neck of the fuel
pump nozzle into the tank and refuel.
X Only fill the tank until the pump nozzle
switches off.
i Do not add any more fuel after the pump
stops filling for the first time. Otherwise,
fuel may leak out.
Closing X
Replace the cap on the filler neck and turn
clockwise until it engages audibly.
X Close the fuel filler flap.
i Close the fuel filler flap before locking the
vehicle. Otherwise, the locking pin of the
central locking prevents the fuel filler flap
from closing.
i The 8 reserve fuel light flashes if you
are driving with the fuel filler cap open. In
addition, the ; Check Engine warning
lamp may light up. A message appears in
the multifunction display (Y page 242).
For further information on warning and
indicator lamps in the instrument cluster,
see ( Y page 264). Fuel filler flap emergency release
X open the trunk lid. X
Slide down the parcel net.
X Open the right-hand side trim panel. Refueling
155
Driving and parking Z
