MERCEDES-BENZ CLS-Class 2014 W218 Owner's Manual

!

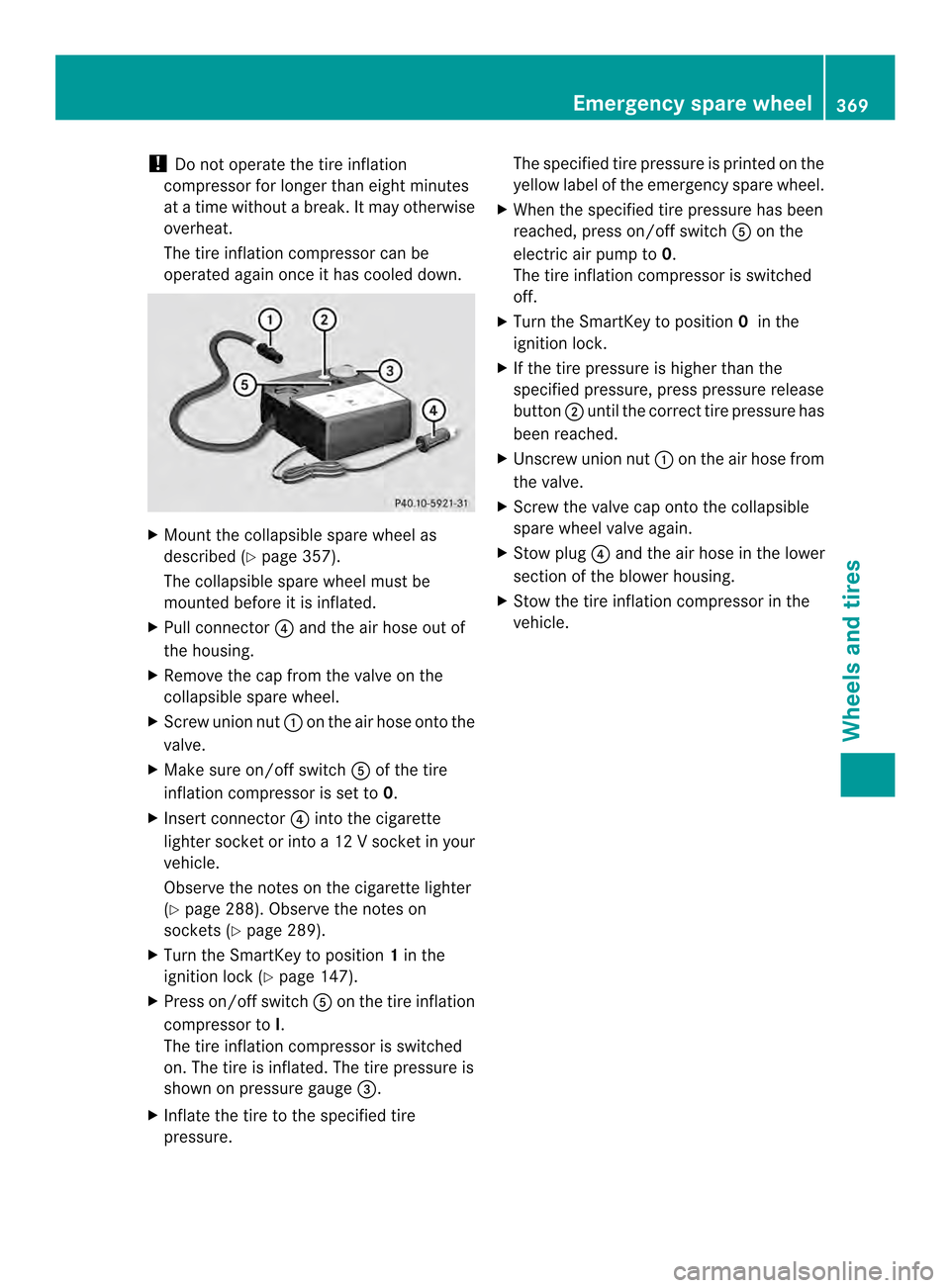

Do not operate the tire inflation
compressor for longer than eight minutes
at at ime without abreak. It may otherwise
overheat.
The tire inflation compressor can be
operated againo nce it hascoole ddown. X
Mount the collapsibl espare whee las
described (Y page 357).
The collapsible spare wheel must be
mounted before it is inflated.
X Pull connector 0021and the air hose out of
the housing.
X Remove the cap from the valve on the
collapsible spare wheel.
X Screw union nut 001Aon the air hose ont othe
valve.
X Make sure on/off switch 001Eof the tire
inflation compressor is set to 0.
X Insert connector 0021intot he cigarette
lighter socket or int oa12Vsocket in your
vehicle.
Observe the notes on the cigarett elighter
(Y page 288). Observe the notes on
socket s(Ypage 289).
X Turn the SmartKey to position 1in the
ignition lock (Y page 147).
X Press on/offs witch001Eon th etirei nflation
compressor to I.
The tir einflatio ncompressor is switched
on. The tire is inflated. The tire pressure is
shown on pressure gauge 0024.
X Inflate the tire to the specified tire
pressure. The specified tire pressure is printed on the
yellow label of the emergenc
yspare wheel.
X When the specified tire pressure has been
reached, press on/offs witch001Eon the
electric air pump to 0.
The tir einflatio ncompressor is switched
off.
X Turn the SmartKey to position 0in the
ignition lock.
X If the tire pressure is higher than the
specified pressure, press pressure release
button 0010until the correc ttire pressure has
been reached.
X Unscrew union nut 001Aon the air hose from
the valve.
X Screw the valve cap ont othe collapsible
spare wheel valve again.
X Stow plug 0021and the air hose in the lower
section of the blower housing.
X Stow the tire inflation compressor in the
vehicle. Emergency sparew
heel

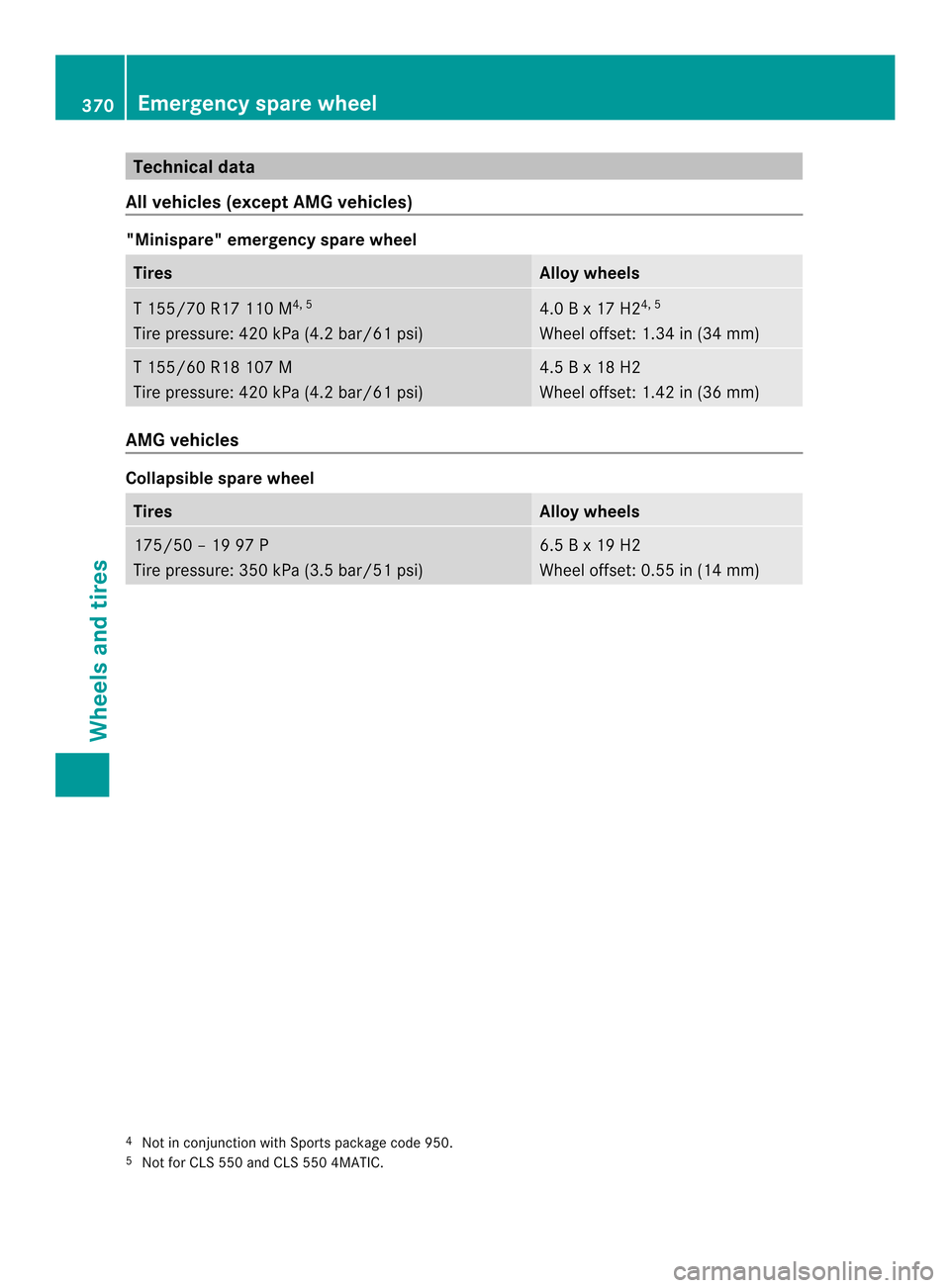

369Wheels and tires Z

Technica
ldata
Al lv eh icle s(exce pt AM Gvehicles) "Minispare" emergency spare wheel
Tires Alloy wheels
T1
55/70 R17 110M4, 5
Tire pressure: 42 0kPa(4.2b ar/61 psi) 4.
0Bx17H2 4, 5
Wheel offset :1.34i n( 34 mm) T1
55/60 R18 107M
Tire pressure: 42 0kPa(4.2b ar/61 psi) 4.
5Bx18H2
Wheel offset :1.42i n( 36 mm) AMG vehicles
Collapsible spare wheel
Tires Alloy wheels
175/50
–1997P
Tire pressure: 35 0kPa(3.5b ar/51 psi) 6.
5Bx19H2
Wheel offset :0.55i n( 14 mm) 4
Not in conjunction with Sport spackage cod e950.
5 Not for CLS 55 0and CLS 55 04MATIC. 370
Emergency spare wheelWheels and tires

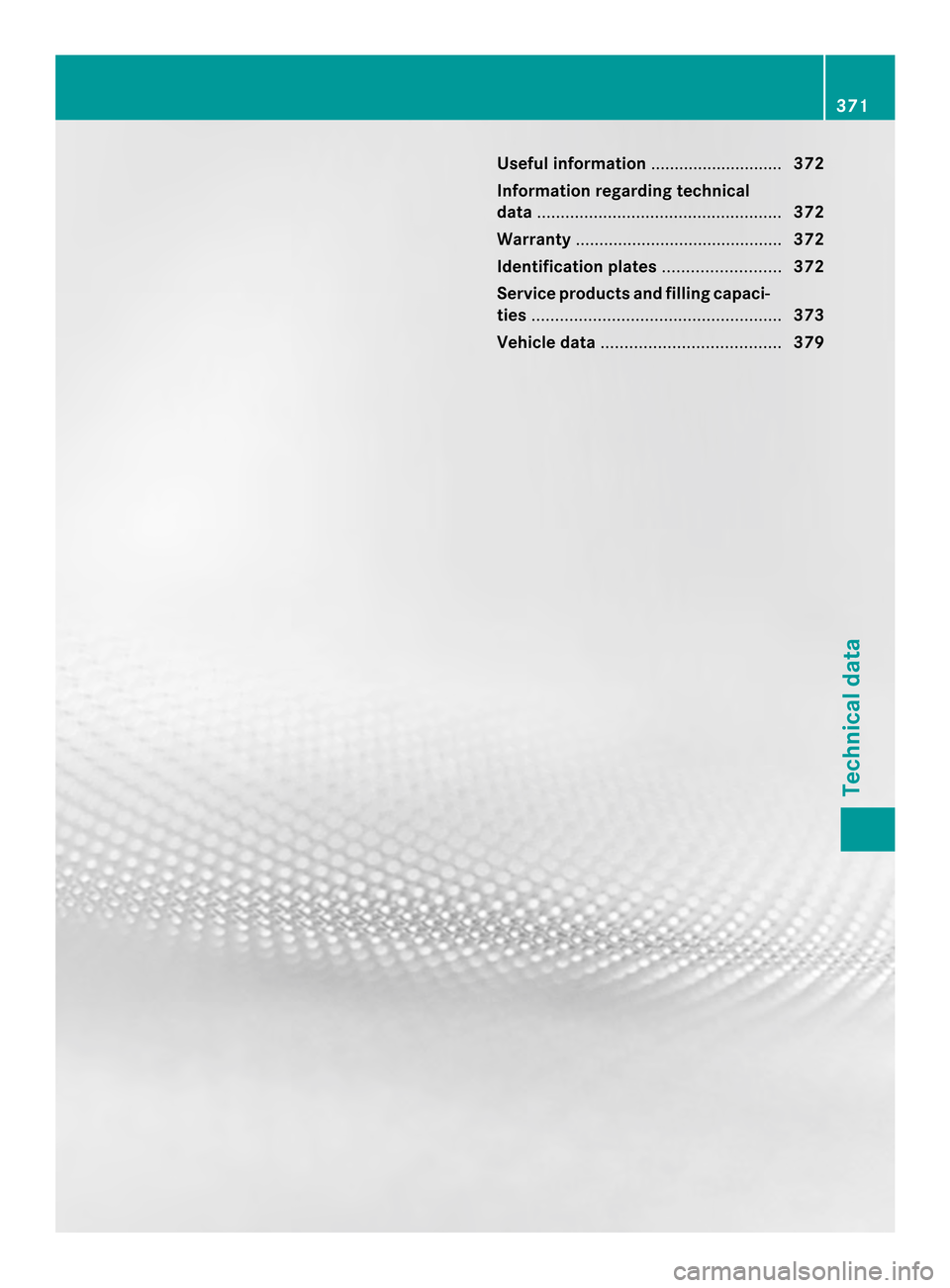

Useful information
............................372
Information regarding technical
data .................................................... 372
Warranty ............................................ 372
Identification plates .........................372
Service products and filling capaci-
ties ..................................................... 373
Vehicle data ...................................... 379 371Technical data

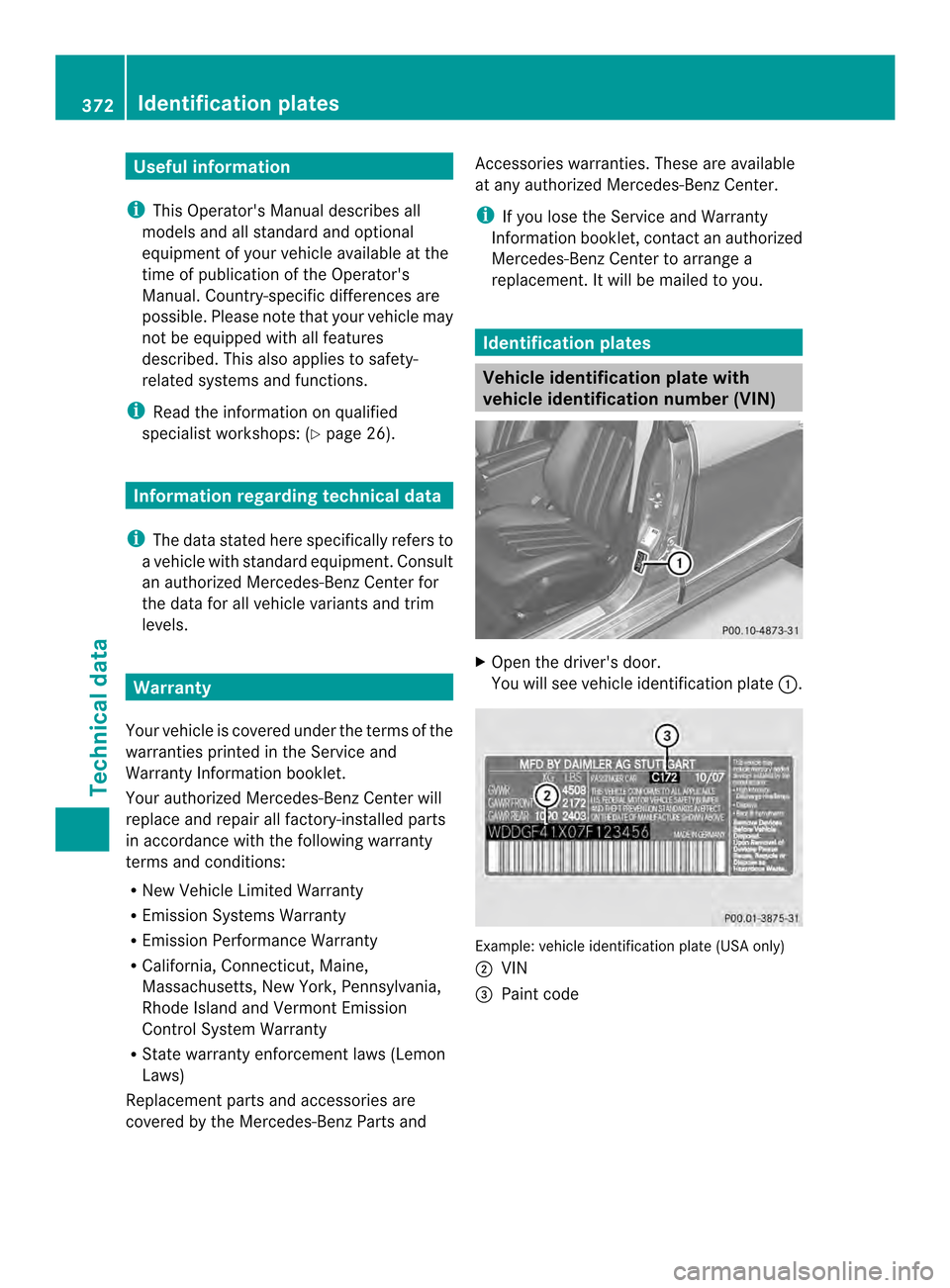

Useful information
i This Operator's Manual describes all
models and all standard and optional
equipment of your vehicle available at the
time of publication of the Operator's
Manual. Country-specific differences are
possible. Please not ethat your vehicle may
not be equipped with all features
described. This also applies to safety-
related system sand functions.
i Read the information on qualified
specialist workshops: (Y page 26).Information regarding technical data
i The data stated here specifically refer sto
av ehicle with standard equipment .Consult
an authorized Mercedes-Benz Center for
the data for all vehicle variants and trim
levels. Warranty
Your vehicle is covered under the terms of the
warranties printed in the Servic eand
Warranty Information booklet.
Your authorized Mercedes-Benz Center will
replace and repair all factory-installed parts
in accordanc ewith the following warranty
terms and conditions:
R New Vehicle Limited Warranty
R Emission Systems Warranty
R Emission Performance Warranty
R California, Connecticut, Maine,
Massachusetts, New York, Pennsylvania,
Rhode Island and Vermont Emission
Control System Warranty
R Statew arranty enforcement laws (Lemon
Laws)
Replacement parts and accessories are
covered by the Mercedes-Benz Parts and Accessories warranties. These are available
at any authorized Mercedes-Benz Center.
i
If you lose the Servic eand Warranty
Information booklet, contact an authorized
Mercedes-Benz Center to arrange a
replacement .Itwill be mailed to you. Identification plates
Vehicle identification plate with
vehicle identification number (VIN)
X
Open the driver's door.
You will see vehicle identification plate 001A. Example: vehicle identification plate (USA only)
0010
VIN
0024 Paint code 372
Identification platesTechnica
ldata

Example: vehicl
eide ntification plate (Canada only)
0010 VIN
0024 Paint code
i The data shown on the vehicle
identificatio nplate is used only as an
example. This data is differen tfor every
vehicle and can deviate from the data
shown here. You can find the data
applicabl etoyour vehicle on the vehicle
identification plate. VIN
X
Slide the right-hand front seat to its
rearmost position.
X Fold floor covering 001Aupwards.
You will see VIN 0010.
The VIN can also be found in the following
locations:
R on the lower edge of the windshield
(Y page 373)
R on the vehicle identification plate
(Y page 372) Engine number
001A
Emission control information plate,
including the certification of both federal
and Californian emissions standards
0010 Engine number (stamped into the
crankcase)
0024 VIN (on the lower edge of the windshield) Service products and filling
capacities
Important safety notes
G
WARNING
Servic eproducts may be poisonous and
hazardous to health. There is arisk of injury.
Comply with instructions on the use, storage
and disposal of service products on the labels
of the respective original containers. Always
store service products sealed in their original
containers. Always keep service products out
of the reach of children. H
Environmental note
Dispose of service products in an
environmentally responsible manner.
Servic eproducts include the following:
R Fuels
R Lubricants (e.g. engine oil, transmission oil)
R Coolant
R Brake fluid
R Windshield washer fluid
R Climate control system refrigerant Service products and filling capacities
373Technical data Z

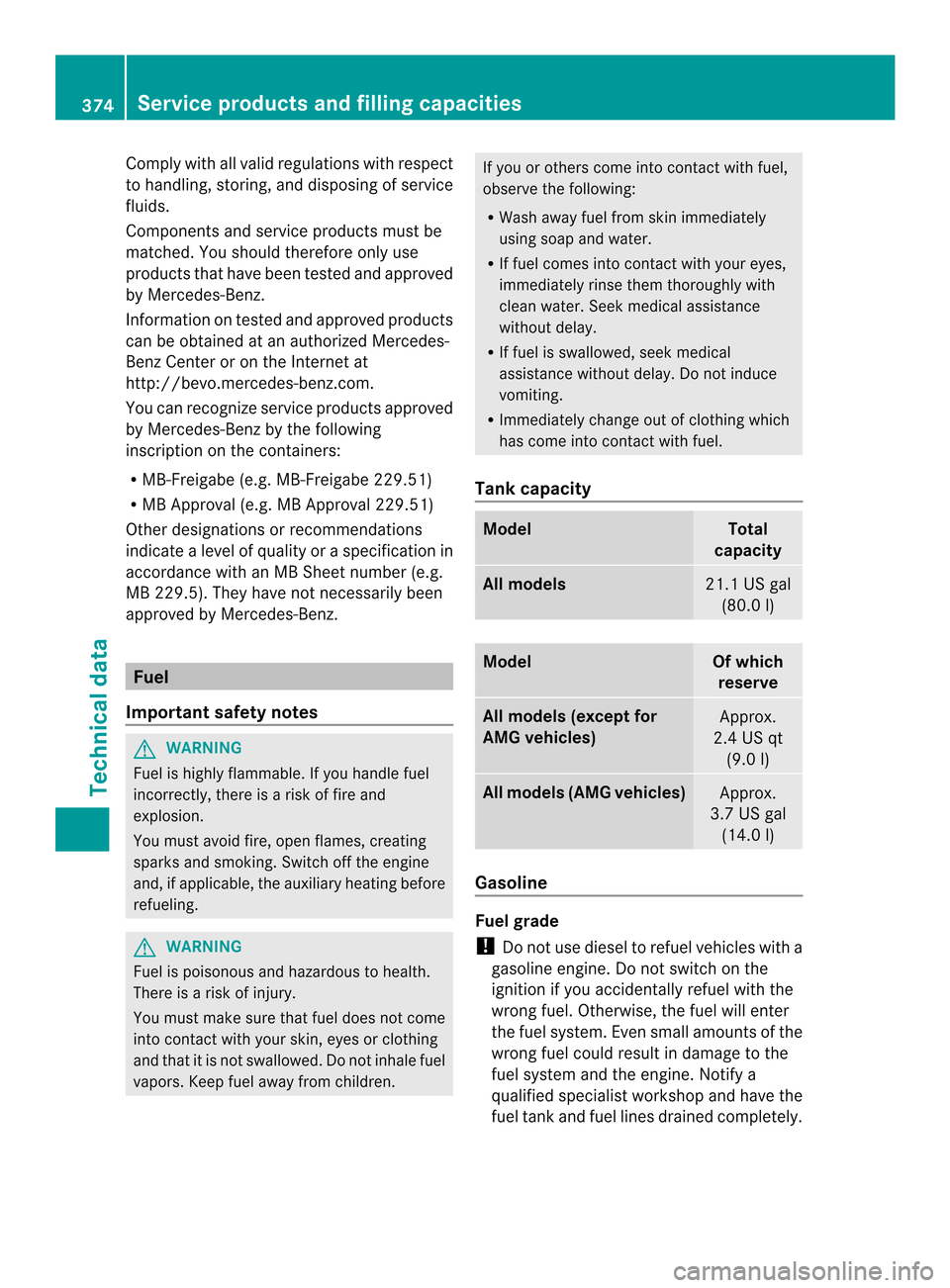

Comply wit
hall valid regulation swithr espect
to handling, storing ,and disposin gofservice
fluids.
Components and servic eproduct smust be
matched. You should therefor eonly use
products tha thave been tested and approved
by Mercedes-Benz.
Information on tested and approved products
can be obtaine datanauthorized Mercedes-
Ben zCente roront heInternet at
http://bevo.mercedes-benz.co m.
You can recognize service products approved
by Mercedes-Ben zbythefollowing
inscription on th econtaine rs:
R MB-Freigabe (e.g. MB-Freigabe 229.51)
R MB Approval (e.g. MB Approval 229.51)
Other designation sorrecommendations
indicat ealevel of qualit yoras pecification in
accordance wit hanMBSheet number (e.g.
MB 229.5). The yhave no tnecessarily been
approved by Mercedes-Benz. Fuel
Important safet ynotes G
WARNING
Fuel is highly flammable. If you handle fuel
incorrectly, there is arisk of fire and
explosion.
You must avoid fire, open flames, creating
sparks and smoking. Switc hoff the engine
and, if applicable, the auxiliary heating before
refueling. G
WARNING
Fuel is poisonous and hazardous to health.
There is arisk of injury.
You must make sure that fuel does not come
into contact with your skin ,eyes or clothing
and that it is not swallowed. Do not inhale fuel
vapors. Keep fuel away from children. If you or other
scome into contact with fuel,
observe the following:
R Wash away fuel from skin immediately
using soap and water.
R If fuel comes into contact with your eyes,
immediately rinse them thoroughly with
clean water. Seek medical assistance
without delay.
R If fuel is swallowed, seek medical
assistanc ewithout delay. Do not induce
vomiting.
R Immediately change out of clothing which
has come into contact with fuel.
Tank capacity Model Total
capacity All models
21.1USg
al
(80. 0l) Model Of which
reserve All models (except for
AMG vehicles)
Approx.
2.4 US qt (9.0 l) All models (AMG vehicles)
Approx.
3.7 US gal (14. 0l) Gasoline
Fuel grade
!
Do not use diesel to refuel vehicles with a
gasoline engine. Do not switch on the
ignition if you accidentally refuel with the
wrong fuel. Otherwise, the fuel will enter
the fuel system. Even small amounts of the
wrong fuel could result in damage to the
fuel system and the engine. Notif ya
qualified specialist worksho pand have the
fuel tank and fuel lines drained completely. 374
Service products and filling capacitiesTechnical data

!

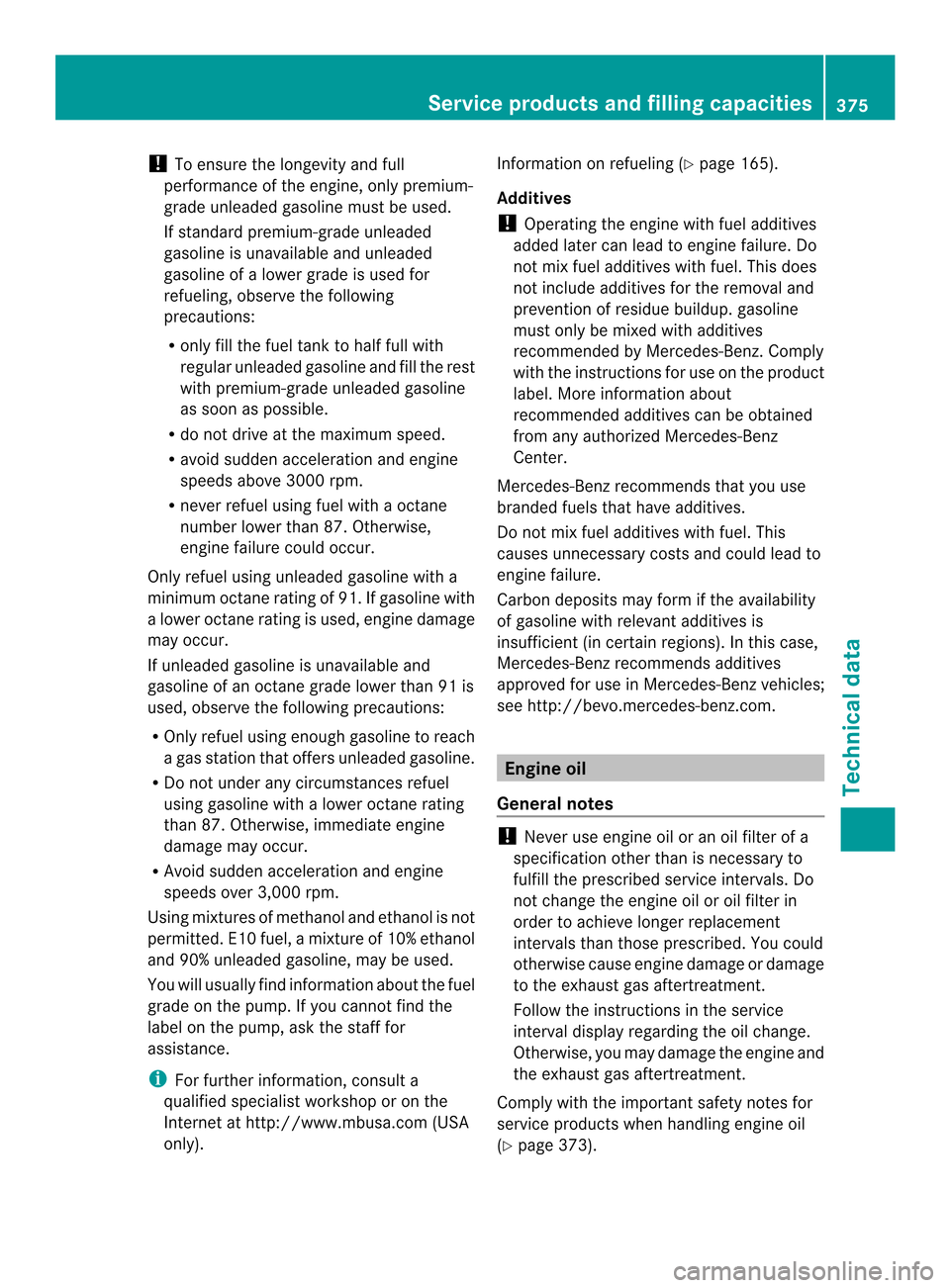

To ensure the longevity and full
performance of the engine, only premium-
grade unleaded gasoline must be used.
If standard premium-grade unleaded
gasoline is unavailable and unleaded
gasoline of alower grade is used for
refueling, observe the following
precautions:
R only fill the fuel tank to half full with
regularu nleaded gasoline and fil lthe rest
with premium-grad eunleade dgasoline
as soo naspossible.
R do not drive at the maximum speed.
R avoid sudden acceleration and engine
speeds above 3000 rpm.
R never refuel using fuel with aoctane
number lower than 87. Otherwise,
engine failure could occur.
Only refuel using unleadedg asoline with a
minimum octane rating of 91. If gasoline with
al ower octane rating is used, engine damage
may occur.
If unleadedg asoline is unavailable and
gasoline of an octane grade lower than 91 is
used, observe the following precautions:
R Only refuel using enough gasoline to reach
ag as station that offers unleadedg asoline.
R Do not under any circumstances refuel
using gasoline with alower octane rating
than 87. Otherwise, immediate engine
damage may occur.
R Avoid sudden acceleration and engine
speeds over 3,000 rpm.
Using mixtures of methanol and ethanol is not
permitted. E10 fuel, amixture of 10% ethanol
and 90% unleadedg asoline, may be used.
You will usually find information aboutt he fuel
grade on the pump. If you cannot find the
label on the pump, ask the staff for
assistance.
i For further information ,consult a
qualified specialist workshop or on the
Internet at http://www.mbusa.com (USA
only). Information on refueling (Y
page 165).
Additives
! Operating the engine with fuel additives
added later can lead to engine failure. Do
not mix fuel additives with fuel. This does
not include additives for the removal and
prevention of residue buildup. gasoline
must only be mixed with additives
recommended by Mercedes-Benz. Comply
with the instructions for use on the product
label.M ore information about
recommended additives can be obtained
from any authorized Mercedes-Benz
Center.
Mercedes-Benz recommends that you use
branded fuels that have additives.
Do not mix fuel additives with fuel. This
causes unnecessary costsa nd could lead to
engine failure.
Carbon deposits may form if the availability
of gasoline with relevant additives is
insufficient (in certain regions). In this case,
Mercedes-Benz recommends additives
approved for use in Mercedes-Benz vehicles;
see http://bevo.mercedes-benz.com. Engine oil
General notes !
Never use engine oil or an oil filter of a
specification other than is necessary to
fulfill the prescribed service intervals. Do
not change the engine oil or oil filter in
order to achieve longer replacement
intervals than those prescribed. You could
otherwise cause engine damage or damage
to the exhaust gas aftertreatment.
Follow the instructions in the service
interval display regarding the oil change.
Otherwise, you may damage the engine and
the exhaust gas aftertreatment.
Comply with the important safety notes for
service products when handling engine oil
(Y page 373). Service products and filling capacities
375Technical data Z

The engine oils are matched to the
performance of Mercedes-Benz engines and
service intervals. You should therefore only
use engine oils and oil filters that are
approved for vehicles with maintenance
systems.
For alist of approved engine oils and oil filters,
consult an authorized Mercedes-Benz
Center. Or visit the website
http://bevo.mercedes-benz.com.
The table shows which engine oils have been
approved for your vehicle. Model Engine
model MB
Approval CLS 550
CLS 550 4MATIC
278 229.5
CLS 63 AMG
CLS 63 AMG
4MATIC
157 229.5
Use only SAE 0W-40orS
AE 5W-40 engine oils
for AMG vehicles.
i MB approval is indicated on the oil
containers.
Fillingc apacities The following values refer to an oil change
including the oil filter. Model Capacity
All models (except
for AMG vehicles)
8.5 US qt (8.0 l)
All models (AMG
vehicles)
With external oil
cooler: 9.0 US qt (8.5 l) Additives
!
Do not use any additives in the engine oil.
This coul ddamage the engine. Engine oil viscosity
Viscosity describes the flow characteristics
of
afluid. If an engine oil has ahigh viscosity,
this means that it is thick; alow viscosity
means that it is thin.
Select an engine oil with an SAE classification
(viscosity) suitable for the prevailing outside
temperatures. The table show syou which
SAE classifications are to be used. The low-
temperature characteristics of engine oils
can deteriorate significantly, e.g. as aresult
of aging, soot and fuel deposits. It is therefore
strongly recommende dthat you carry out
regular oil changes using an approved engine
oil with the appropriate SAE classification. Brake fluid
G
WARNING
The brake flui dconstantly absorbs moisture
from the air. This lowers the boiling point of
the brake fluid. If the boiling point of the brake
flui dist oo low,v aporpocketsm ay form in the
brake system when the brakes are applied
hard. This would impair braking efficiency.
There is arisk of an accident.
You should have the brake fluid renewed at
the specified intervals.
Comply with the important safety notes for
service products when handling brake fluid
(Y page 373).
The brake fluid change intervals can be found
in the Maintenance Booklet. 376
Service products and filling capacitiesTechnical data

Only use brake fluid approved by Mercedes-
Benz according to MB Approval 331.0.
Information abouta
pproved brake fluid can
be obtaine datany qualified specialist
workshop or on the Internet at
http://bevo.mercedes-benz.com.
i Have the brake fluid regularly replaced at
aq ualified specialist workshop and the
replacemen tconfirmed in the Maintenance
Booklet. Coolant
Important safety notes G
WARNING
If antifreez ecomes into contact with hot
components in the engine compartment, it
may ignite. There is arisk of fire and injury.
Let the engine cool down before you add
antifreeze. Make sure that antifreez eisnot
spilled next to the filler neck.T horoughly
clean the antifreeze from components before
startingt he engine.
! Only add coolant that has been premixed
with the desired antifreezep rotection. You
coul dotherwise damage the engine.
Further information on coolants can be
found in the Mercedes-Benz Specifications
for Service Products, MB Specifications for
Service Products 310.1, e.g. on the
Internet at
http://bevo.mercedes-benz.com .Or
contact aqualified specialist workshop.
! Always use asuitable coolant mixture,
even in countries where high temperatures
prevail.
Otherwise, the engine cooling system is not
sufficiently protected from corrosio nand
overheating.
Comply with the important safety precautions
for service products when handling coolant
(Y page3 73). The coolant is
amixture of water and
antifreeze/corrosion inhibitor. It performs
the following tasks:
R corrosio nprotection
R antifreeze protection
R raising the boiling point
If the coolant has antifreeze protection down
to -35 ‡(-37 †), the boiling point of the
coolant during operatio nisapproximately
266 ‡(130 †).
The antifreeze/corrosion inhibitor
concentration in the engine cooling system
should:
R be at least 50%. This will protect the engine
cooling system against freezing down to
approximately -35 ‡(-37 †).
R not exceed 55% (antifreeze protection
down to -49 ‡[-45 †]). Otherwise, heat
will not be dissipated as effectively.
If the vehicle has lost coolant, add equal
amounts of water and antifreeze/corrosion
inhibitor.
Mercedes-Benz recommends an antifreeze/
corrosion inhibitor concentrate in
accordance with MB Specifications for
Service Products 310.1.
The coolant is checked with every
maintenance interval at aqualified specialist
workshop.
i When the vehicle is first delivered, it is
filled with acoolant mixture that ensures
adequate antifreeze and corrosion
protection.
Filling capacities Model Capacity
All models (except
for AMG vehicles)
Approx. 13.0 US qt
(12.3 l) All models (AMG
vehicles) Approx. 11.5 US qt
(10.9 l) i
Use MB 325.0 or MB 326.0 corrosion
inhibitor/antifreeze. Service products and filling capacities
377Technical data Z

Windshield washe
rsyste mand
headlamp cleaning system
Important safety notes G
WARNING
Windshiel dwasher concentrate is highly
flammable. If it comes into contact with hot
engine components or the exhaust syste mit
could ignite. There is ariskoff ire and injury.
Make sure that no windshield washer
concentrate is spilled nex ttothe filler neck.
! Only use washer fluid that is suitable for
plastic lamp lenses, e.g. MB SummerFit or
MB WinterFit. Unsuitable washer fluid
could damage the plastic lenses of the
headlamps.
! Do not add distilled or de-ionized water to
the washer fluid container. Otherwise, the
level sensor may be damaged.
! Only MB SummerFit and MB WinterFit
washer fluid should be mixed together. The
spray nozzles may otherwise become
blocked.
Comply with the importan tsafet ynotes for
servic eproduct swhen handlin gwasher fluid
(Y page 373).
At temperatures abov efreezing:
X Fill th ewashe rfluid reservoir with amixture
of water and windshield washer fluid, e.g.
MB SummerFit.
Add 1part MB SummerFit to 100 part swater. At temperatures below freezing:
X
Fill th ewashe rfluid reservoir with amixture
of water and washer fluid, e.g. MB
WinterFit.
Adapt the mixing ratio to the outside
temperature.
R Down to 14 ‡(002210 †): mix 1part MB
WinterFit to 2partsw ater.
R Down to 00224‡(002220 †): mix 1part MB
WinterFit to 1part water.
R Down to 002220.2‡(002229 †): mix 2partsMB
WinterFit to 1part water.
i Add windshield washer fluid, e.g. MB
SummerFit or MB WinterFit, to the washer
fluid all year round. Climate control system refrigerant
Important safety notes Typ
eofr efrigerant
The climate control system of your vehicle is
The instruction label regarding the refrigerant
type used can be foun donthe radiator cross
member.
Refrigerant R-134a !
Only the refrigeran tR-134a and the PAG
oil approved by Mercedes-Ben zmay be
used. The approved PA Goil may no tbe
mixed with any other PAG oil that is not
approved for R-134a refrigerant.
Otherwise, the climate control system may
be damaged.
Service work, such as topping-u prefrigerant
or replacing components, may only be carried
out by aqualified specialist workshop .All
applicable regulations must be adhered to,
SA Es tandard J639 included.
Always have work on the climate control
system carried out at aqualified specialist
workshop. 378
Service products and filling capacitiesTechnica
ldata
filled with refrigerant sR-134a.
