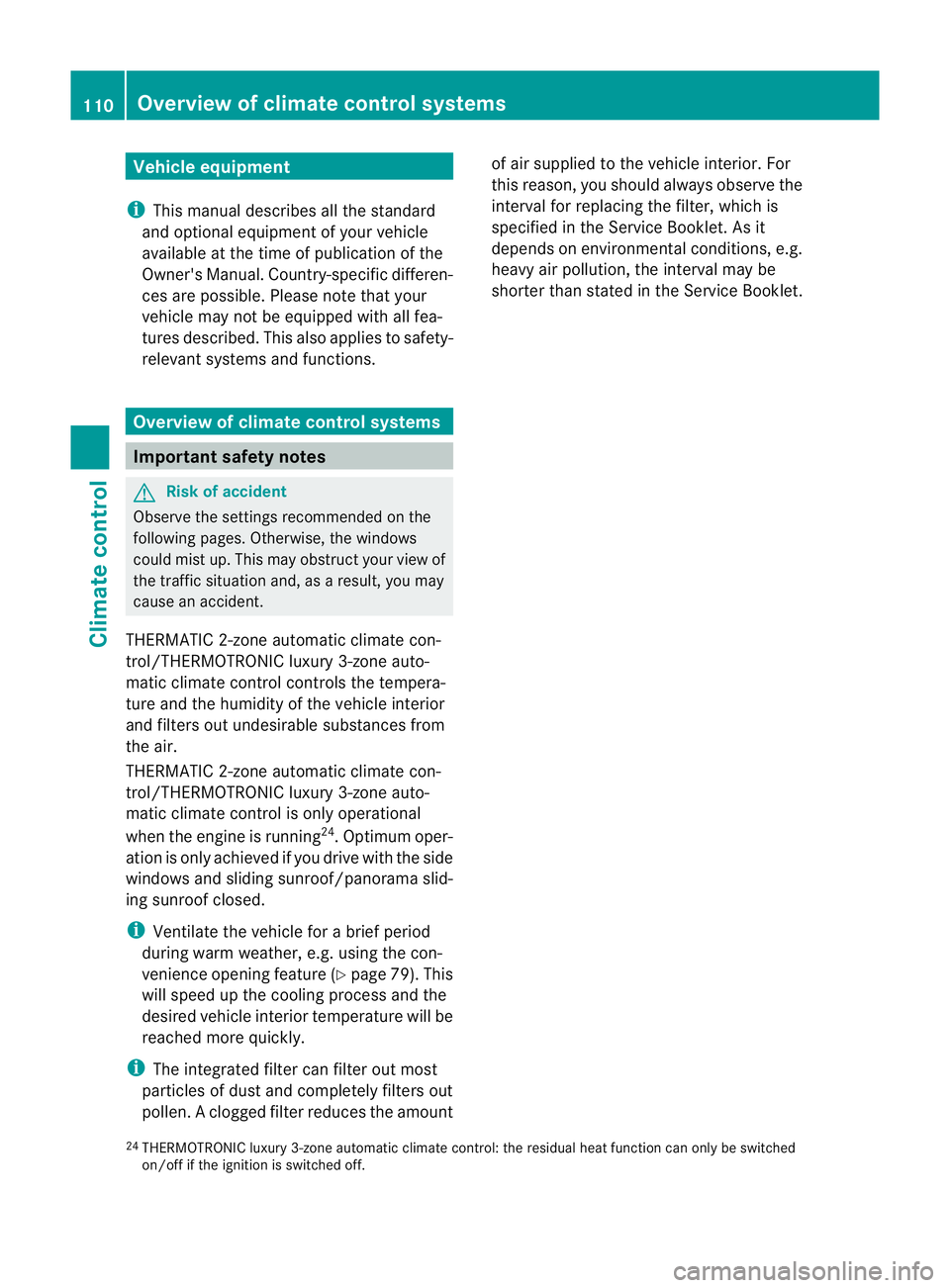

Vehicle equipment
i This manual describes all the standard
and optional equipment of your vehicle
available at the time of publicatio nofthe
Owner's Manual. Country-specific differen-
ces are possible. Please note that your
vehicle may not be equipped with all fea-
tures described. This also applies to safety-
relevant systems and functions. Overview of climate control systems
Important safety notes
G
Risk of accident
Observe the settings recommended on the
following pages. Otherwise, the windows
could mist up. This may obstruct your view of
the traffic situation and, as a result, you may
cause an accident.
THERMATIC 2-zone automatic climate con-
trol/THERMOTRONIC luxury 3-zone auto-
matic climate control controls the tempera-
ture and the humidity of the vehicle interior
and filters out undesirable substances from
the air.
THERMATIC 2-zone automatic climate con-
trol/THERMOTRONIC luxury 3-zone auto-
matic climate control is only operational
when the engine is running 24
.O ptimum oper-
ation is only achieved if you drive with the side
windows and sliding sunroof/panorama slid-
ing sunroof closed.
i Ventilate the vehicle for a brief period
during warm weather, e.g. using the con-
venience opening feature (Y page 79). This
will speed up the cooling process and the
desired vehicle interior temperature will be
reached more quickly.
i The integrated filter can filter out most
particles of dust and completely filters out
pollen. Aclogged filter reduces the amount of air supplied to the vehicle interior
.For
this reason, you should always observe the
interval for replacing the filter, which is
specified in the Service Booklet .As it
depends on environmental conditions, e.g.
heavy air pollution, the interval may be
shorter than stated in the Service Booklet.
24 THERMOTRONIC luxury 3-zone automatic climate control: the residual heat function can only be switched
on/off if the ignition is switched off. 110
Overview of climate control systemsClimate control

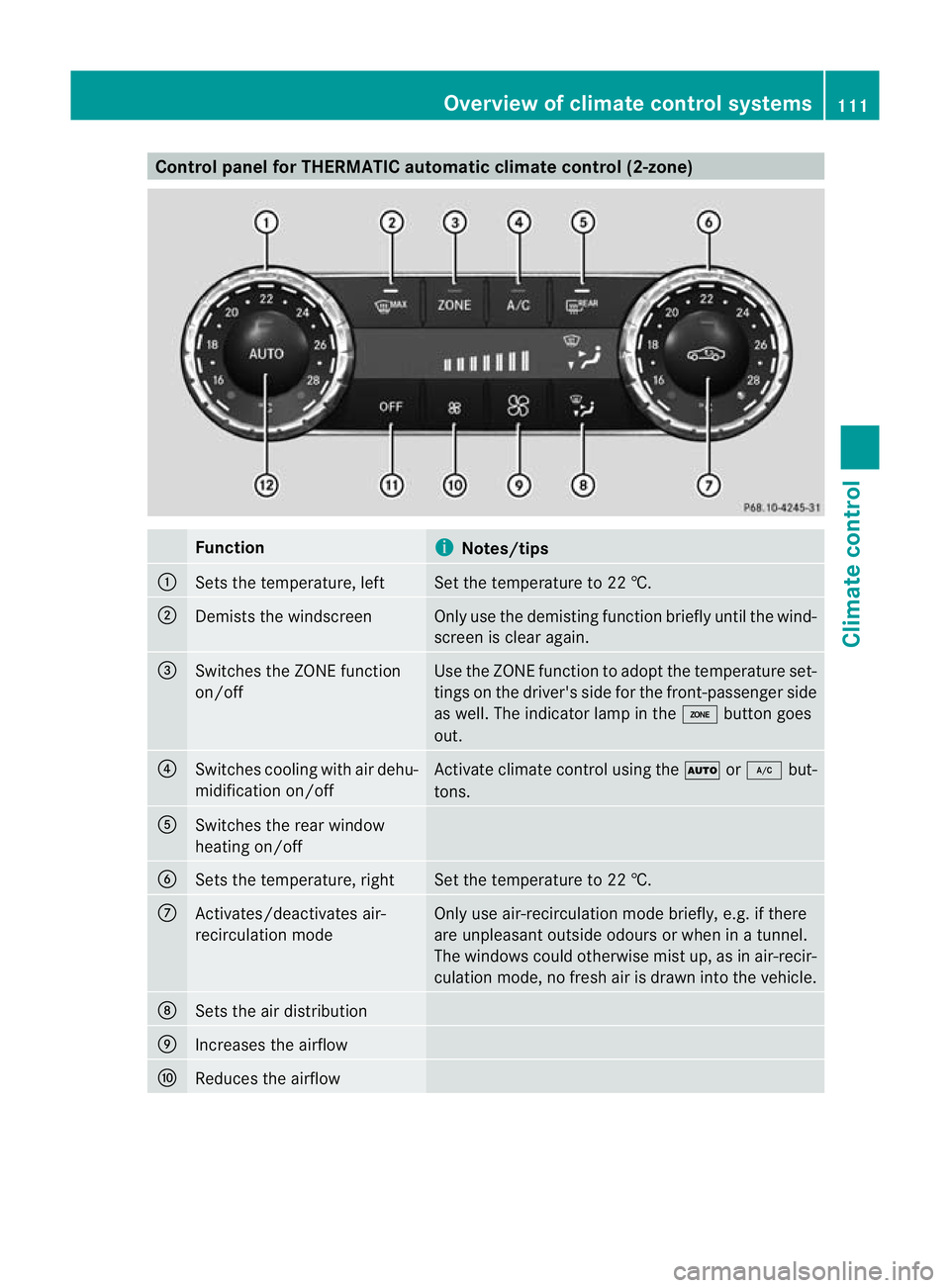

Control panel for THERMATIC automatic climate control (2-zone)
Function
i
Notes/tips
:
Sets the temperature, left Set the temperature to 22 †.
;
Demists the windscreen Only use the demisting function briefly until the wind-
scree nis clear again. =
Switches the ZONE function
on/off Use the ZONE function to adopt the temperature set-
tings on the driver's side for the front-passenger side
as well.T he indicator lamp in the ábutton goes
out. ?
Switches cooling with air dehu-
midification on/off Activate climate control using the
Ãor¿ but-
tons. A
Switches the rear window
heating on/off
B
Sets the temperature, right Set the temperature to 22 †.
C
Activates/deactivates air-
recirculation mode Only use air-recirculation mode briefly, e.g. if there
are unpleasant outside odours or when in a tunnel.
The windows could otherwise mist up, as in air-recir-
culation mode, no fresh air is drawn into the vehicle. D
Sets the air distribution
E
Increases the airflow
F
Reduces the airflow Overview of climate control systems
111Climate control Z

Function
i
Notes/tips
G
Switches climate control on/
off Activate climate control primarily using the
Ã
or ¿ buttons. H
Sets climate control to auto-
matic Activate climate control using the
Ãor¿ but-
tons .The indicator lamps in the Ãand¿ but-

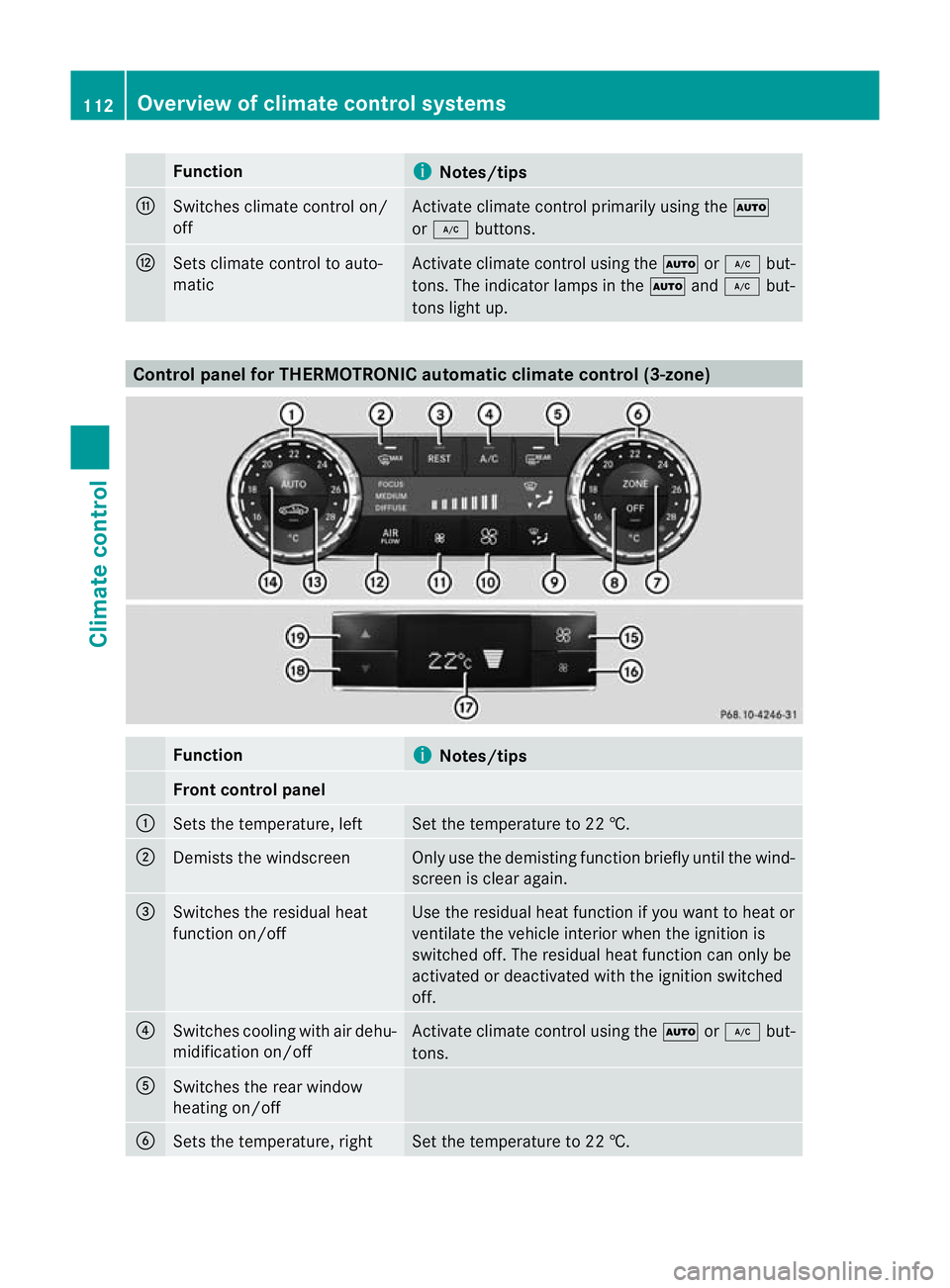

tons light up. Control panel for THERMOTRONIC automatic climate control (3-zone)
Function
i
Notes/tips
Front control panel
:
Sets the temperature, left Set the temperature to 22 †.
;
Demists the windscreen Only use the demisting function briefly until the wind-
screen is clear again.
=
Switches the residual heat
function on/off Use the residual heat function if you want to heat or
ventilate the vehicle interior when the ignition is
switched off. The residual heat function can only be
activated or deactivated with the ignition switched
off.
?
Switches cooling with air dehu-
midification on/off Activate climate control using the
Ãor¿ but-
tons. A
Switches the rear window
heating on/off
B
Sets the temperature, right Set the temperature to 22 †.112
Overview of climate control systemsClimate control

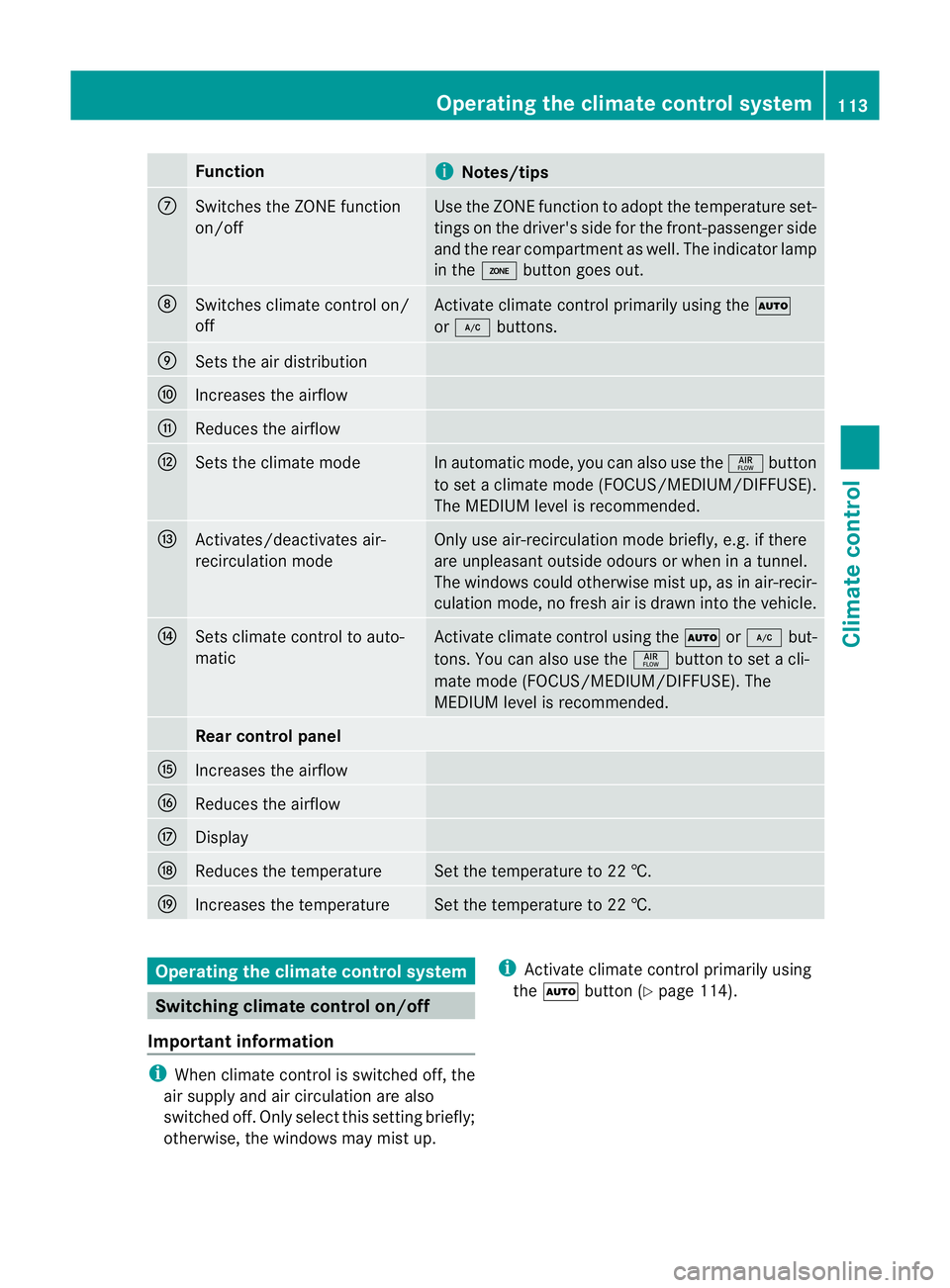

Function
i
Notes/tips
C
Switches the ZONE function
on/off Use the ZONE function to adopt the temperature set-
tings on the driver's side for the front-passenger side
and the rear compartmen tas well.T he indicator lamp
in the ábutton goes out. D
Switches climate control on/
off Activate climate control primarily using the
Ã
or ¿ buttons. E
Sets the air distribution
F
Increases the airflow
G
Reduces the airflow
H
Sets the climate mode In automatic mode, you can also use the
ñbutton
to set a climate mode (FOCUS/MEDIUM/DIFFUSE).
The MEDIUM level is recommended. I
Activates/deactivates air-
recirculation mode Only use air-recirculation mode briefly, e.g. if there
are unpleasant outside odours or when in a tunnel.
The windows could otherwise mist up, as in air-recir-
culation mode, no fresh air is drawn into the vehicle. J
Sets climate control to auto-
matic Activate climate control using the
Ãor¿ but-
tons. You can also use the ñbutton to set a cli-
mate mode (FOCUS/MEDIUM/DIFFUSE). The
MEDIUM level is recommended. Rear control panel
K
Increases the airflow
L
Reduces the airflow
M
Display
N
Reduces the temperature Set the temperature to 22 †.
O
Increases the temperature Set the temperature to 22 †.
Operating the climate control system
Switching climate control on/off
Important information i
When climate control is switched off, the
air supply and air circulation are also
switched off. Only select this setting briefly;
otherwise, the windows may mist up. i
Activate climate control primarily using
the à button (Y page 114). Operating the climate control system
113Climate control Z

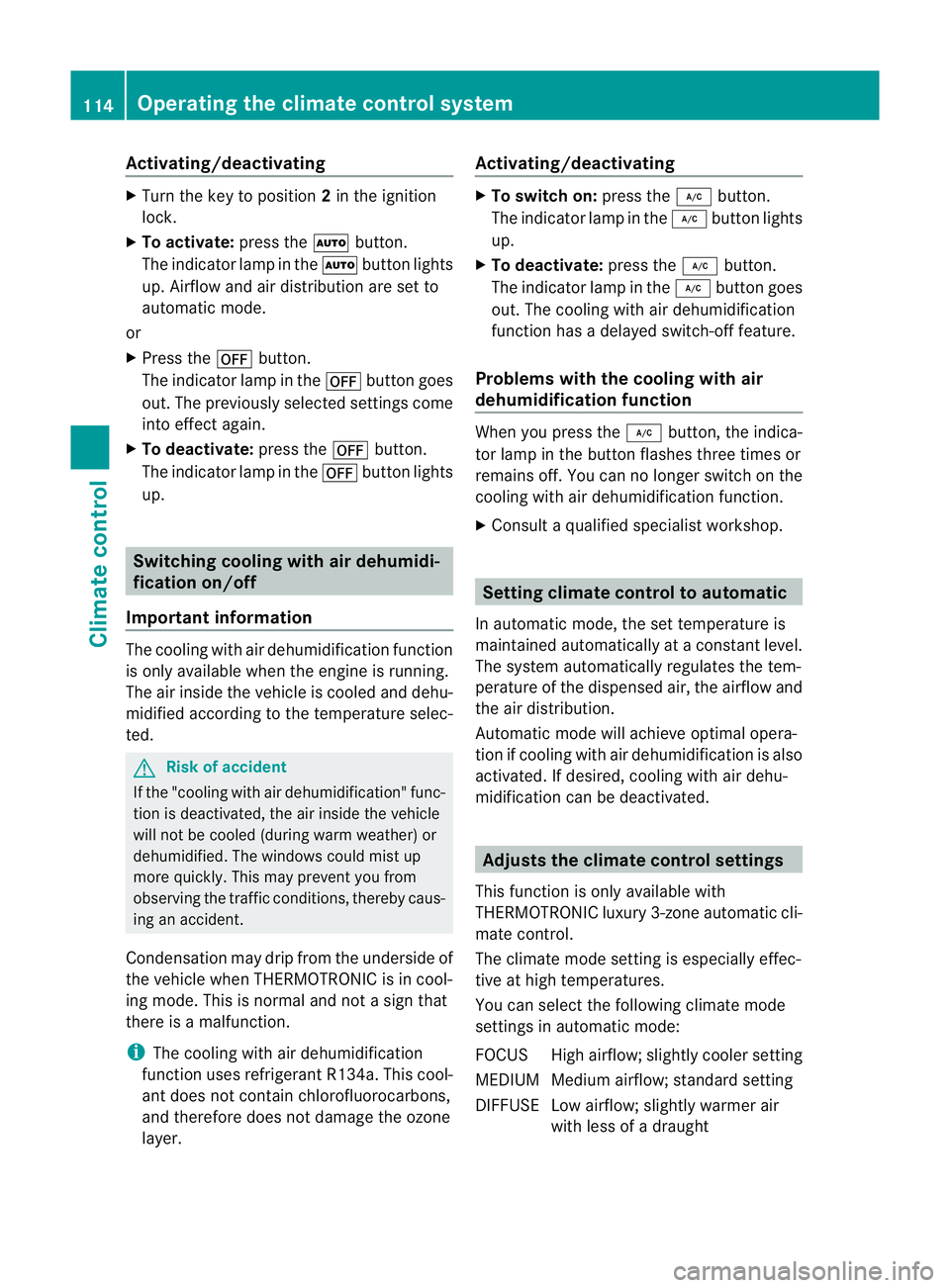

Activating/deactivating
X
Turn the key to position 2in the ignition
lock.
X To activate: press theÃbutton.
The indicator lamp in the Ãbuttonlights
up. Airflow and air distribution are set to
automatic mode.
or
X Press the ^button.
The indicator lamp in the ^button goes
out. The previously selected settings come
into effect again.
X To deactivate: press the^button.
The indicator lamp in the ^button lights
up. Switching cooling with air dehumidi-
fication on/off
Important information The cooling with air dehumidification function
is only available when the engine is running.
The air inside the vehicle is cooled and dehu-
midified according to the temperature selec-
ted.
G
Risk of accident
If the "cooling with air dehumidification" func-
tion is deactivated, the air inside the vehicle
will not be cooled (during warm weather) or
dehumidified. The windows could mist up
more quickly. This may prevent you from
observing the traffic conditions, thereby caus-
ing an accident.
Condensatio nmay drip from the underside of
the vehicle when THERMOTRONIC is in cool-
ing mode. This is normal and no tasign that
there is a malfunction.
i The cooling with air dehumidification
function uses refrigerant R134a. This cool-
ant does not contain chlorofluorocarbons,
and therefore does not damage the ozone
layer. Activating/deactivating X
To switch on: press the¿button.
The indicator lamp in the ¿button lights
up.
X To deactivate: press the¿button.
The indicator lamp in the ¿button goes
out. The cooling with air dehumidification
function has a delayed switch-off feature.
Problems with the cooling with air
dehumidification function When you press the
¿button, the indica-
tor lamp in the button flashes three times or
remains off. You can no longer switch on the
cooling with air dehumidification function.
X Consult a qualified specialist workshop. Setting climate control to automatic
In automatic mode, the set temperature is
maintained automatically at a constant level.
The system automatically regulates the tem-
perature of the dispensed air, the airflow and
the air distribution.
Automatic mode will achieve optimal opera-
tion if cooling with air dehumidification is also
activated. If desired, cooling with air dehu-
midification can be deactivated. Adjusts the climate control settings
This function is only available with
THERMOTRONIC luxury 3-zone automatic cli-
mate control.
The climate mode setting is especially effec-
tive at high temperatures.
You can select the following climate mode
settings in automatic mode:
FOCUS High airflow; slightly cooler setting
MEDIUM Mediuma irflow; standard setting
DIFFUSE Low airflow; slightly warmer air with less of a draught 114
Operating the climate control systemClimate control

X
Turn the key to position 2in the ignition
lock.
X Press the Ãbutton.
X Press the ñbutton repeatedly until the
desired climate mode appears in the dis-

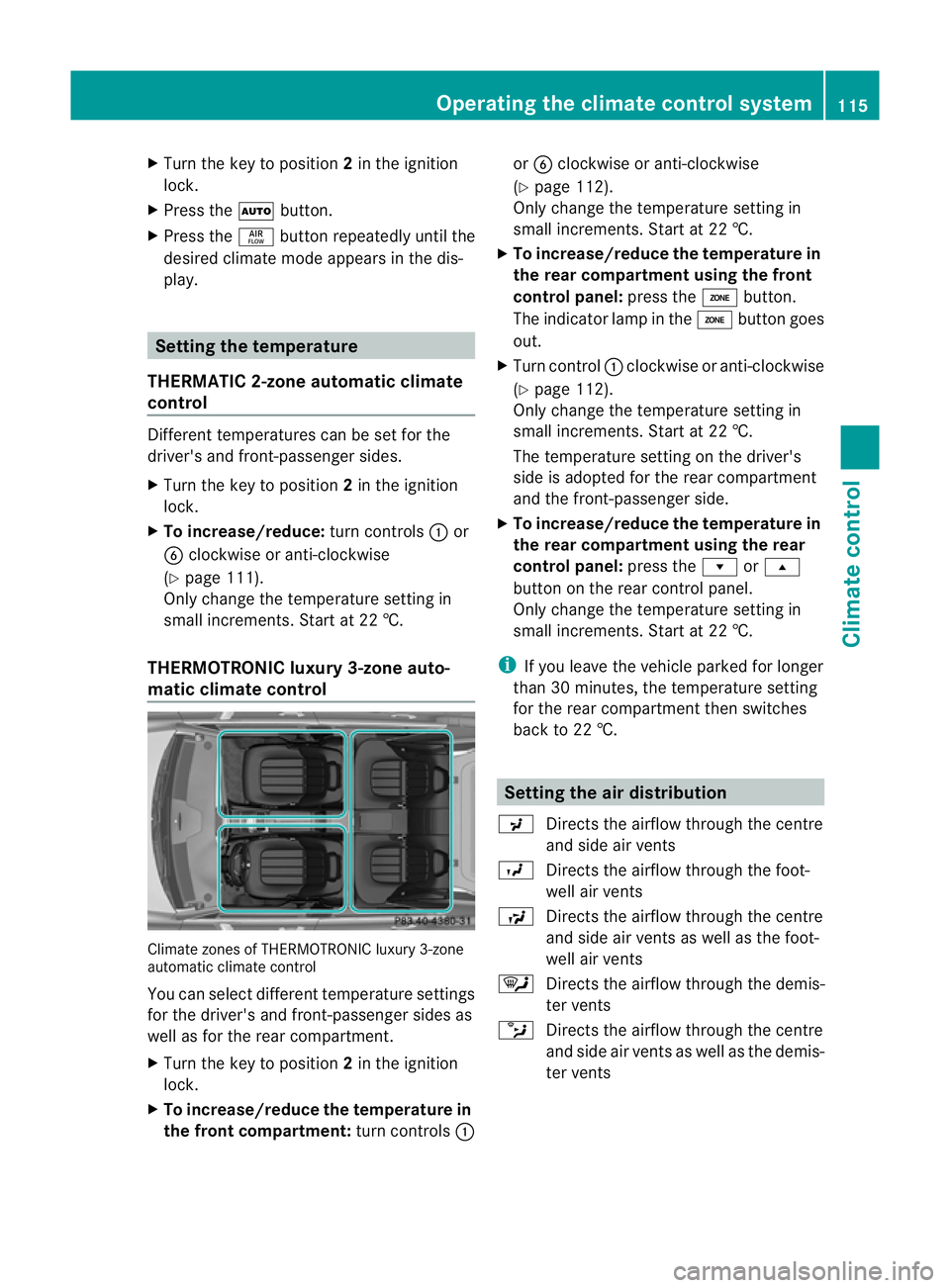

play. Setting the temperature
THERMATIC 2-zone automatic climate
control Different temperatures can be set for the
driver's and front-passenger sides.
X Turn the key to position 2in the ignition
lock.
X To increase/reduce: turn controls:or
B clockwise or anti-clockwise
(Y page 111).
Only change the temperature setting in
small increments. Start at 22 †.
THERMOTRONIC luxury 3-zone auto-
matic climate control Climate zones of THERMOTRONIC luxury 3-zone
automatic climate control
You can select different temperature settings
for the driver's and front-passenger sides as
well as for the rear compartment.
X Turn the key to position 2in the ignition
lock.
X To increase/reduce the temperature in
the front compartment: turn controls:or
B clockwise or anti-clockwise
(Y page 112).
Only change the temperature setting in
small increments. Start at 22 †.
X To increase/reduce the temperature in
the rear compartment using the front
control panel: press theábutton.
The indicator lamp in the ábutton goes
out.
X Turn control :clockwise or anti-clockwise
(Y page 112).
Only change the temperature setting in
small increments. Start at 22 †.
The temperature setting on the driver's
side is adopted for the rear compartment
and the front-passenger side.
X To increase/reduce the temperature in
the rear compartment using the rear
control panel: press therors
button on the rear control panel.
Only change the temperature setting in
small increments. Start at 22 †.
i If you leave the vehicle parked for longer
than 30 minutes, the temperature setting
for the rear compartment then switches
back to 22 †. Setting the air distribution
P Directs the airflow through the centre
and side air vents
O Directs the airflow through the foot-
well air vents

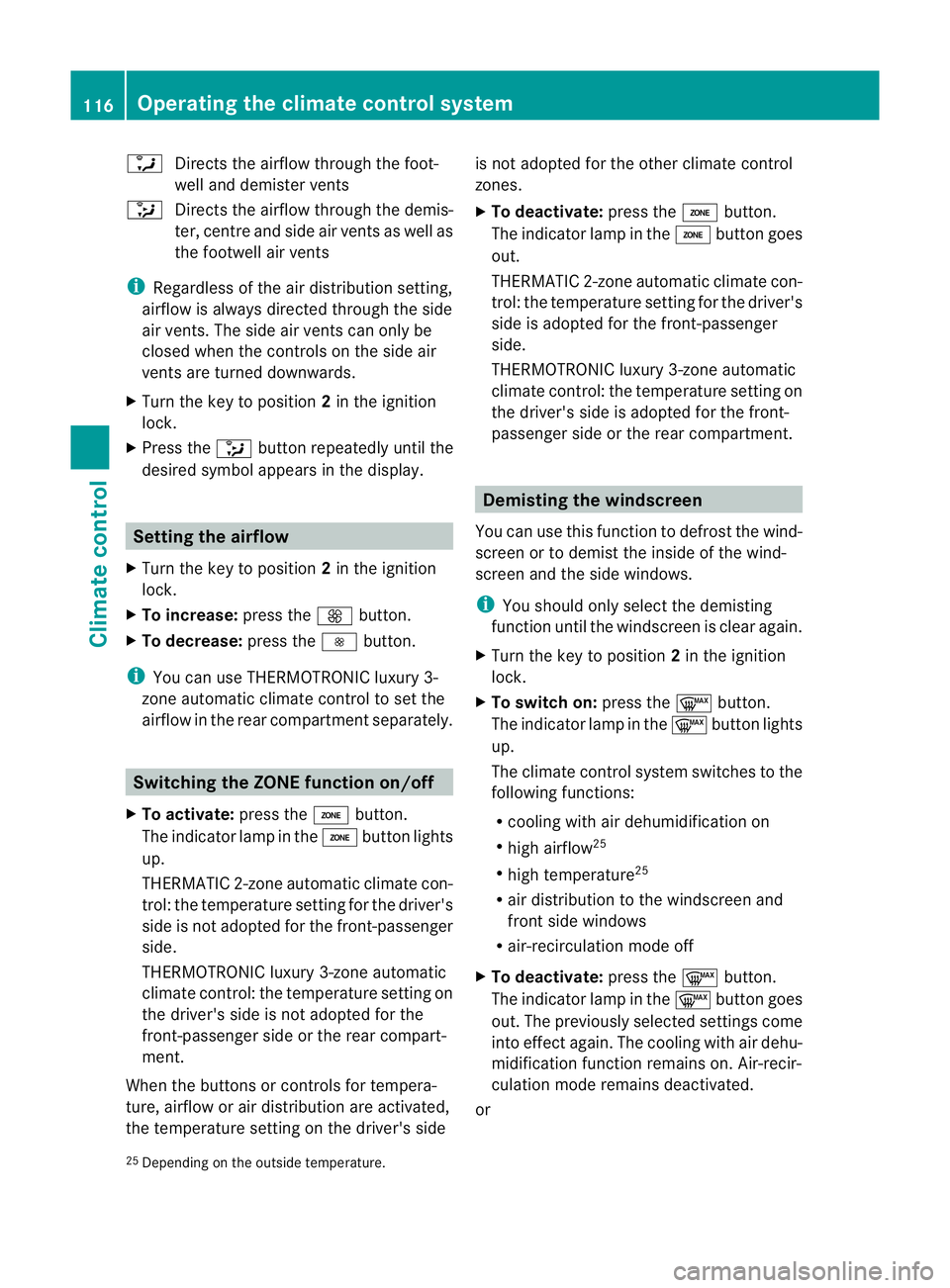

S Directs the airflow through the centre
and side air vents as well as the foot-
well air vents
¯ Directs the airflow through the demis-
ter vents
b Directs the airflow through the centre
and side air vents as well as the demis-
ter vents Operating the climate control system
115Climate control Z

a
Directs the airflow throug hthe foot-
well and demister vents
_ Directs the airflow through the demis-
ter, centre and side air vents as well as
the footwell air vents
i Regardless of the air distribution setting,
airflow is always directed through the side
air vents. The side air vents can only be
closed when the controls on the side air
vents are turned downwards.
X Turn the key to position 2in the ignition
lock.
X Press the _button repeatedly until the
desired symbol appears in the display. Setting the airflow
X Turn the key to position 2in the ignition
lock.
X To increase: press theKbutton.
X To decrease: press theIbutton.
i You can use THERMOTRONIC luxury 3-
zone automatic climate control to set the
airflow in the rear compartments eparately.Switching the ZONE function on/off
X To activate: press theábutton.
The indicator lamp in the ábutton lights
up.
THERMATIC 2-zone automatic climate con-
trol: the temperature setting for the driver's
side is not adopted for the front-passenger
side.
THERMOTRONIC luxury 3-zone automatic
climate control: the temperature setting on
the driver's side is not adopted for the
front-passenger side or the rear compart-
ment.
When the buttons or controls for tempera-
ture, airflow or air distribution are activated,
the temperature setting on the driver's side is not adopted for the other climate control
zones.
X
To deactivate: press theábutton.
The indicator lamp in the ábutton goes
out.
THERMATIC 2-zone automatic climate con-
trol: the temperature setting for the driver's
side is adopted for the front-passenger
side.
THERMOTRONIC luxury 3-zone automatic
climate control: the temperature setting on
the driver's side is adopted for the front-
passenger side or the rear compartment. Demisting the windscreen
You can use this function to defrost the wind-
screen or to demist the inside of the wind-
screen and the side windows.
i You should only select the demisting
function until the windscreen is clear again.
X Turn the key to position 2in the ignition
lock.
X To switch on: press the¬button.
The indicator lamp in the ¬button lights
up.
The climate control system switches to the
following functions:
R cooling with air dehumidification on
R high airflow 25
R high temperature 25
R air distribution to the windscreen and
fron tside windows
R air-recirculation mode off
X To deactivate: press the¬button.
The indicator lamp in the ¬button goes
out. The previously selected settings come
into effect again. The cooling with air dehu-
midification function remains on. Air-recir-
culation mode remains deactivated.
or
25 Depending on the outside temperature. 116
Operating the climate control systemClimate control

X
Press the Ãbutton.
The indicator lamp in the ¬button goes
out. Airflow and air distribution are set to
automatic mode.
or
X Turn controls :orB clockwise or anti-
clockwise (Y page 111), (Y page 112).
or

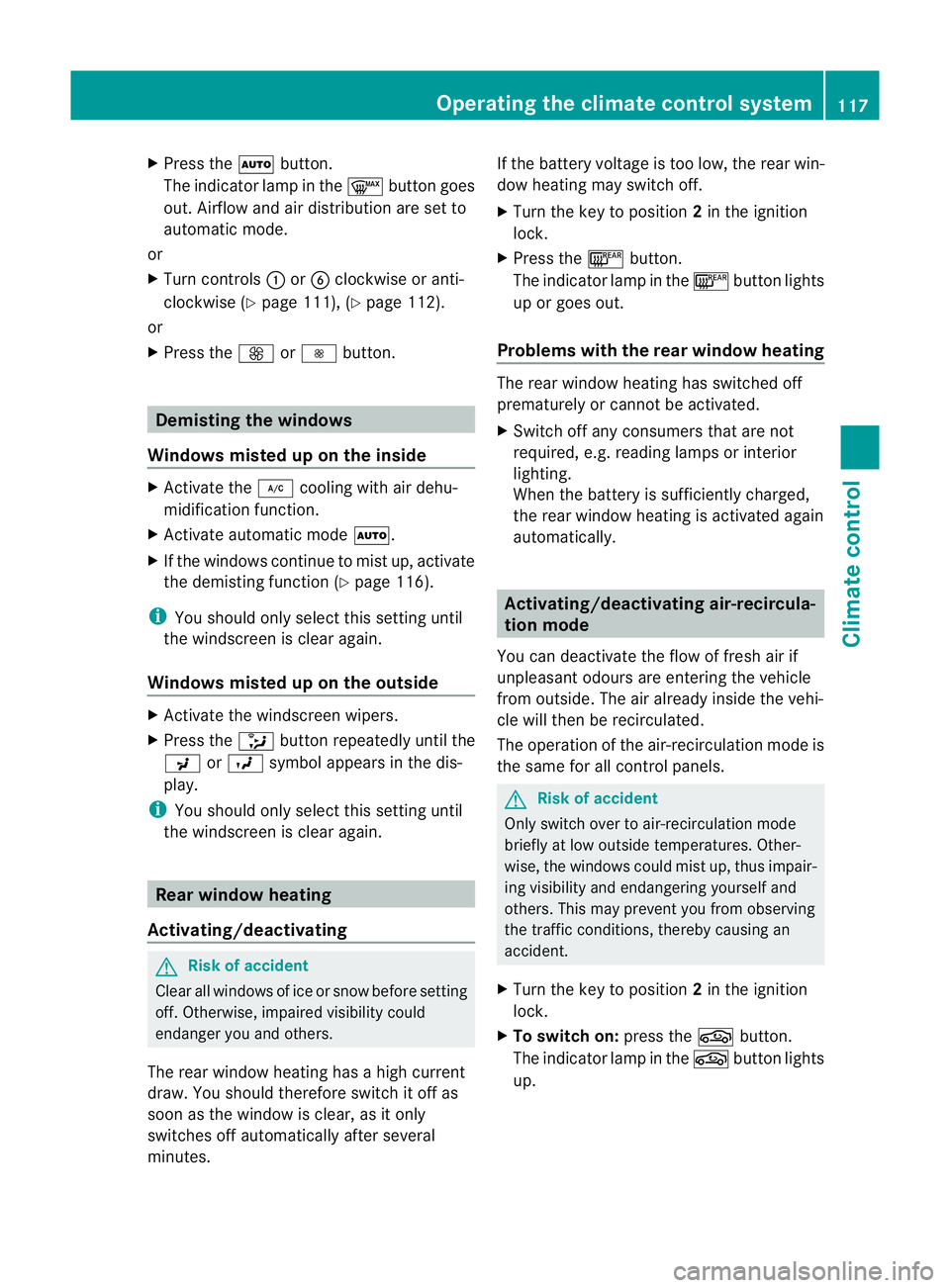

X Press the KorI button. Demisting the windows
Windows misted up on the inside X
Activate the ¿cooling with air dehu-
midification function.
X Activate automatic mode Ã.
X If the windows continue to mist up, activate
the demisting function (Y page 116).
i You should only select this setting until
the windscreen is clear again.
Windows misted up on the outside X
Activate the windscreen wipers.
X Press the _button repeatedly until the
P orO symbol appears in the dis-
play.
i You should only select this setting until
the windscreen is clear again. Rear window heating
Activating/deactivating G
Risk of accident
Clear all windows of ice or snow before setting
off. Otherwise, impaired visibility could
endanger you and others.
The rear window heating has ahigh current
draw. You should therefore switch it off as
soon as the window is clear, as it only
switches off automatically after several
minutes. If the battery voltage is too low, the rear win-
dow heating may switch off.
X Turn the key to position 2in the ignition
lock.
X Press the ¤button.
The indicator lamp in the ¤button lights
up or goes out.
Problems with the rea rwindow heating The rear window heating has switched off
prematurely or cannot be activated.
X
Switch off any consumers that are not
required, e.g. reading lamps or interior
lighting.
When the battery is sufficiently charged,
the rear window heating is activated again
automatically. Activating/deactivating air-recircula-
tion mode
You can deactivate the flow of fresh air if
unpleasan todours are entering the vehicle
from outside. The air already inside the vehi-
cle will then be recirculated.
The operation of the air-recirculation mode is
the same for all contro lpanels. G
Ris
kofa ccident
Only switch ove rto air-recirculation mode
briefly at low outside temperatures. Other-
wise, the windows could mist up, thus impair-
ing visibility and endangering yourself and
others. This may prevent you from observing
the traffic conditions, thereby causing an
accident.
X Turn the key to position 2in the ignition
lock.
X To switch on: press thegbutton.
The indicator lamp in the gbutton lights
up. Operating the climate control system
117Climate control Z
