MERCEDES-BENZ CLS SHOOTING BRAKE 2012 Owner's Guide

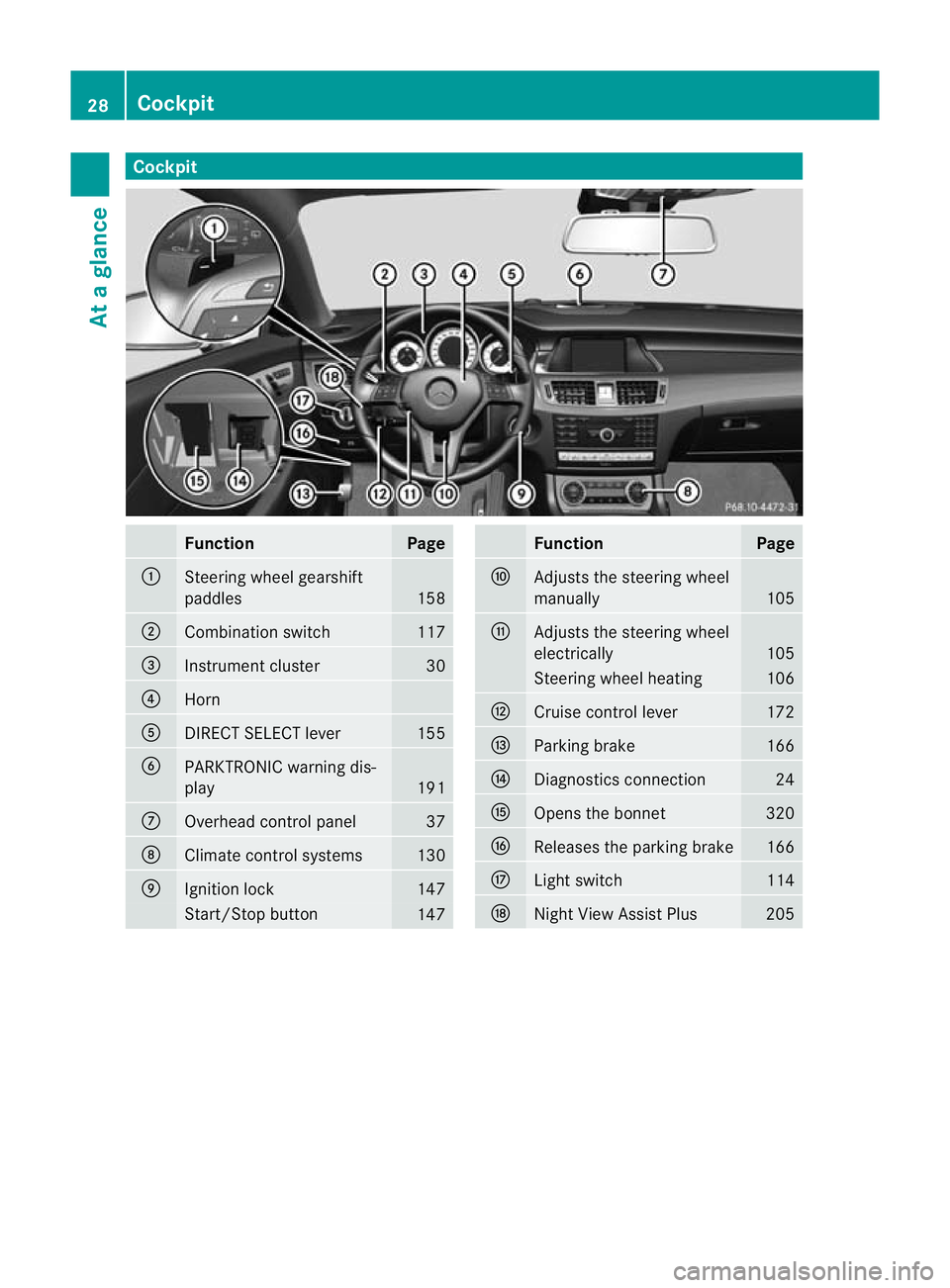

Cockpit
Function Page
:
Steering wheel gearshift
paddles
158
;
Combination switch 117
=
Instrument cluster 30
?
Horn
A
DIRECT SELECT lever 155
B
PARKTRONIC warning dis-
play
191
C
Overhead control panel 37
D
Climate control systems 130
E
Ignition lock 147
Start/Stop button
147 Function Page
F
Adjusts the steering wheel
manually 105
G
Adjusts the steering wheel
electrically 105
Steering wheel heating 106
H
Cruise control lever 172
I
Parking brake 166
J
Diagnostics connection 24
K
Opens the bonnet 320
L
Releases the parking brake 166
M
Ligh
tswitch 114
N
Night View Assist Plus 20528

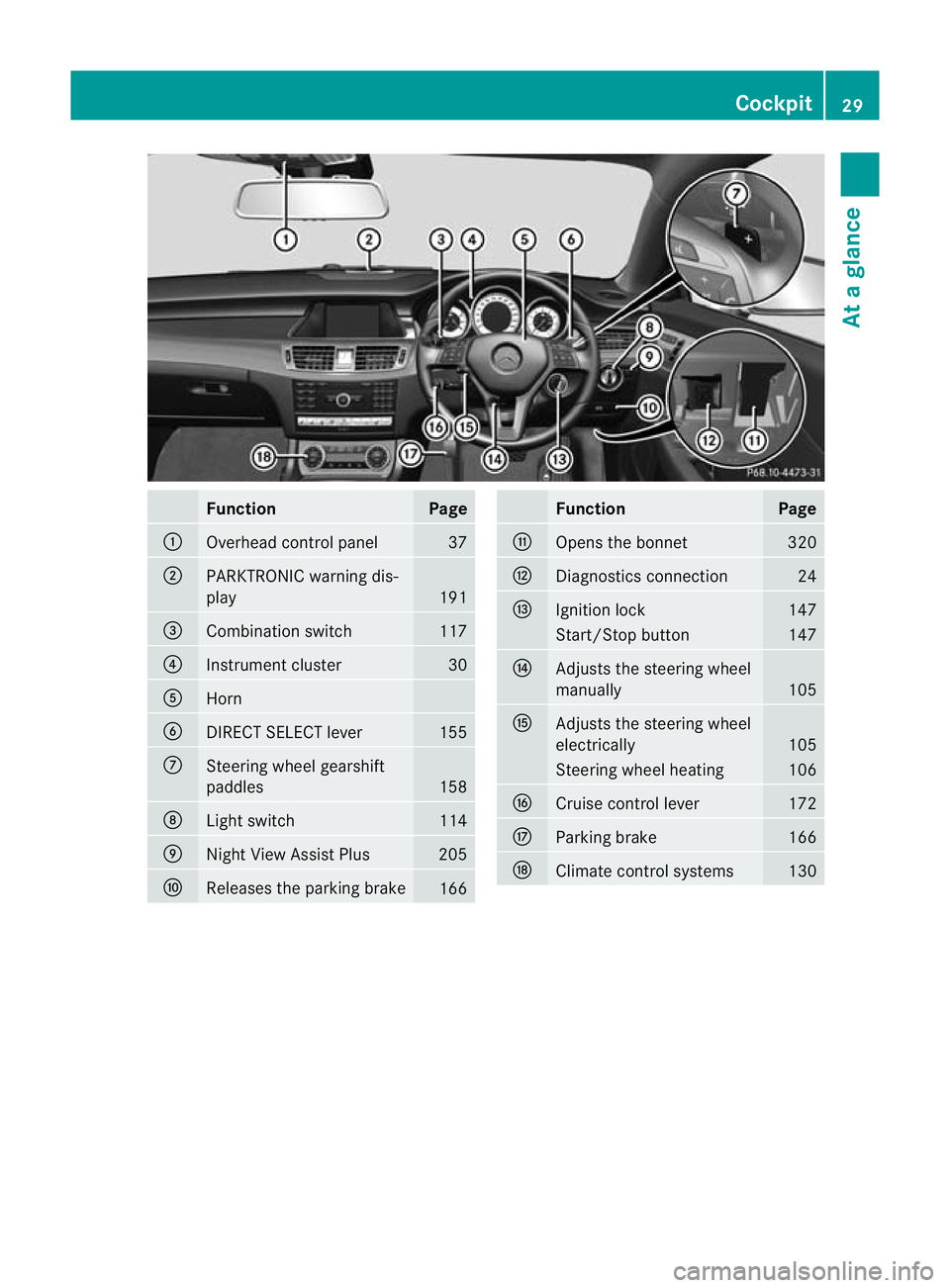

CockpitAt a glance

Function Page
:
Overhead control panel 37
;
PARKTRONIC warning dis-
play
191
=
Combination switch 117
?
Instrument cluster 30
A
Horn
B
DIRECT SELECT lever 155
C
Steering wheel gearshift
paddles
158
D
Ligh
tswitch 114
E
Nigh
tView Assist Plus 205
F
Releases the parking brake
166 Function Page
G
Opens the bonnet 320
H
Diagnostics connection 24
I
Ignition lock 147
Start/Stop button 147
J
Adjusts the steering wheel
manually
105
K
Adjusts the steering wheel
electrically
105
Steering wheel heating 106
L
Cruise control lever 172
M
Parking brake 166
N
Climate control systems 130Cockpit
29At a glance

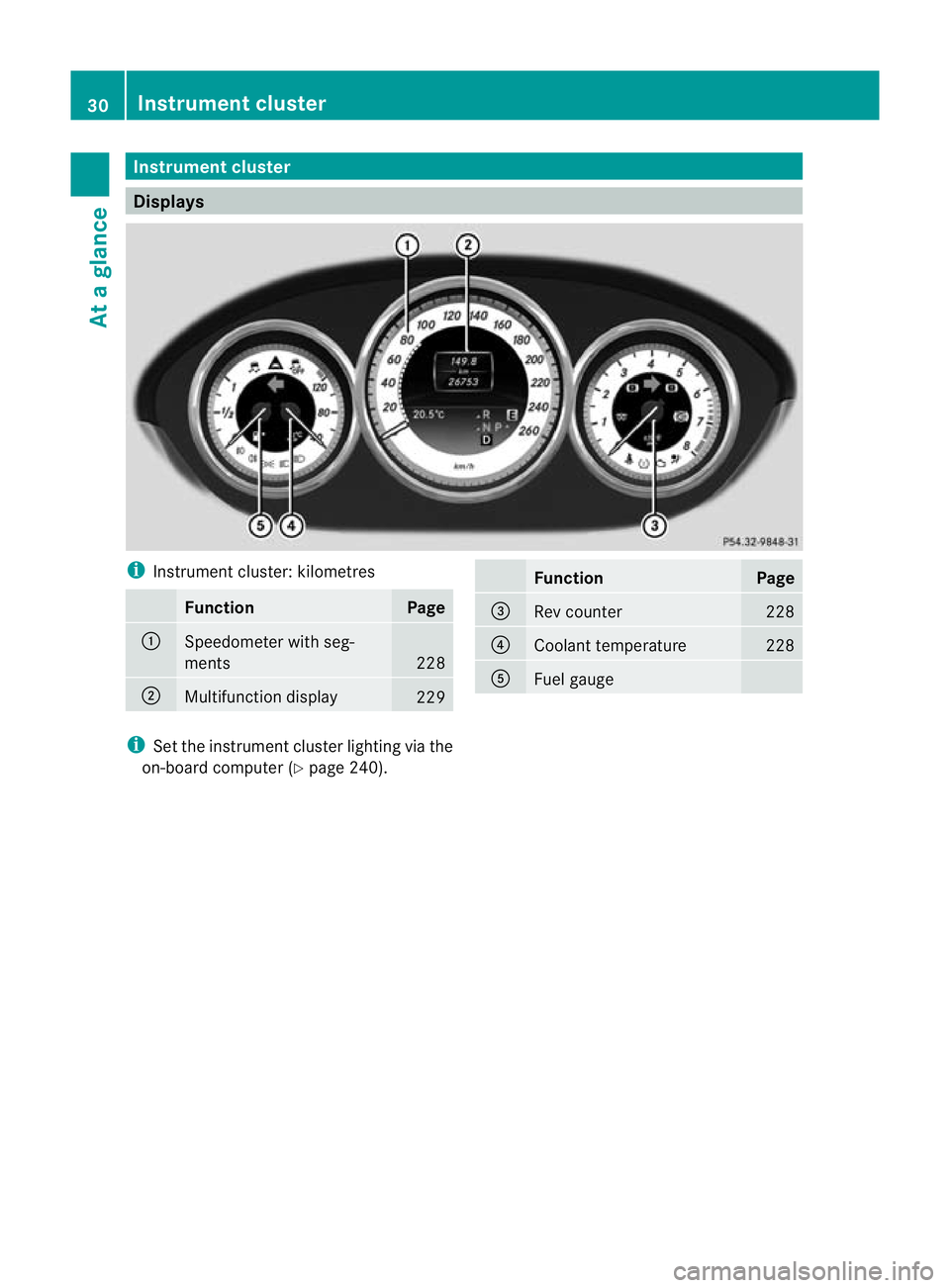

Instrumen
tcluster Displays
i
Instrument cluster: kilometres Function Page
:
Speedometer with seg-
ments
228
;
Multifunction display
229 Function Page
=
Rev counter 228
?
Coolant temperature 228
A
Fuel gauge
i
Set the instrumen tcluster lighting via the
on-board computer (Y page 240).30
Instrument clusterAt a glance

i
Instrument cluster: miles Function Page
:
Speedometer with seg-
ments
228
;
Multifunction display
229 Function Page
=
Rev counter 228
?
Coolant temperature 228
A
Fuel gauge
i
Set the instrument cluster lighting via the
on-board computer (Y page 240). Instrument cluster
31At a glance

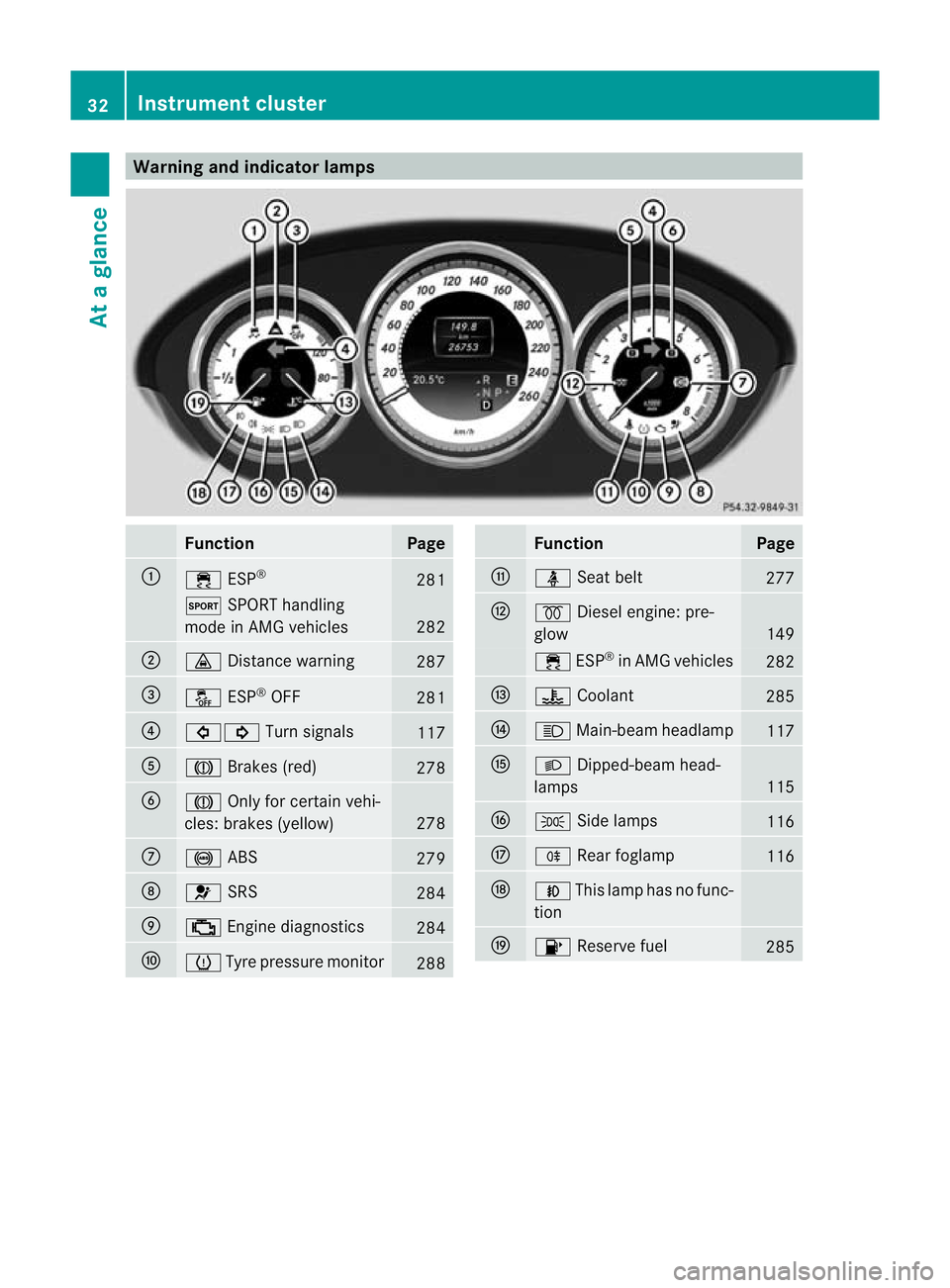

Warning and indicator lamps
Function Page
:
÷
ESP® 281
M
SPORT handling
mode in AMG vehicles 282
;
·
Distance warning 287
=
å
ESP®
OFF 281
?
#!
Turn signals 117
A
J
Brakes (red) 278
B
J
Only for certain vehi-
cles: brakes (yellow) 278
C
!
ABS 279
D
6
SRS 284
E
;
Engine diagnostics 284
F
h
Tyre pressure monitor 288 Function Page
G
ü
Seat belt 277
H
%
Diesel engine: pre-
glow 149
÷
ESP®
in AMG vehicles 282
I
?
Coolant 285
J
K
Main-beam headlamp 117
K
L
Dipped-bea mhead-
lamps 115
L
T
Side lamps 116
M
R
Rear foglamp 116
N
N
This lamp has no func-
tion O
8
Reserve fuel 28532
Instrument clusterAt a glance

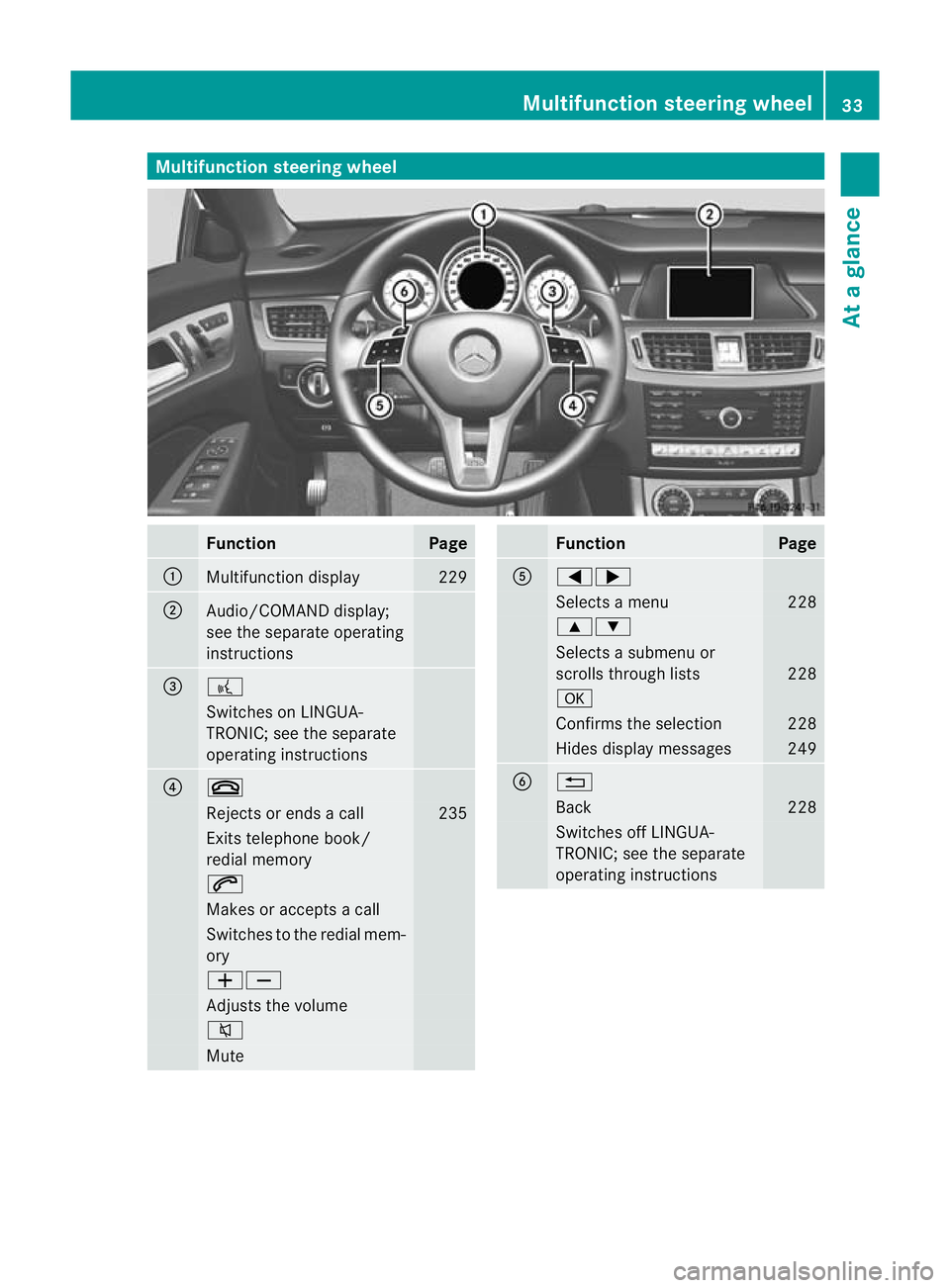

Multifunction steering wheel
Function Page
:
Multifunction display 229
;
Audio/COMAND display;
see the separate operating
instructions
=
?
Switches on LINGUA-
TRONIC; see the separate
operating instructions
?
~
Rejects or ends a call 235
Exits telephone book/
redial memory
6
Makes or accepts a call
Switches to the redial mem-
ory
WX
Adjusts the volume
8
Mute Function Page
A
=;
Selects a menu 228
9:
Selects a submenu or
scrolls through lists
228
a
Confirms the selection 228
Hides display messages 249
B
%
Back 228
Switches off LINGUA-
TRONIC; see the separate
operating instructionsMultifunction steering wheel
33At a glance

Centre console

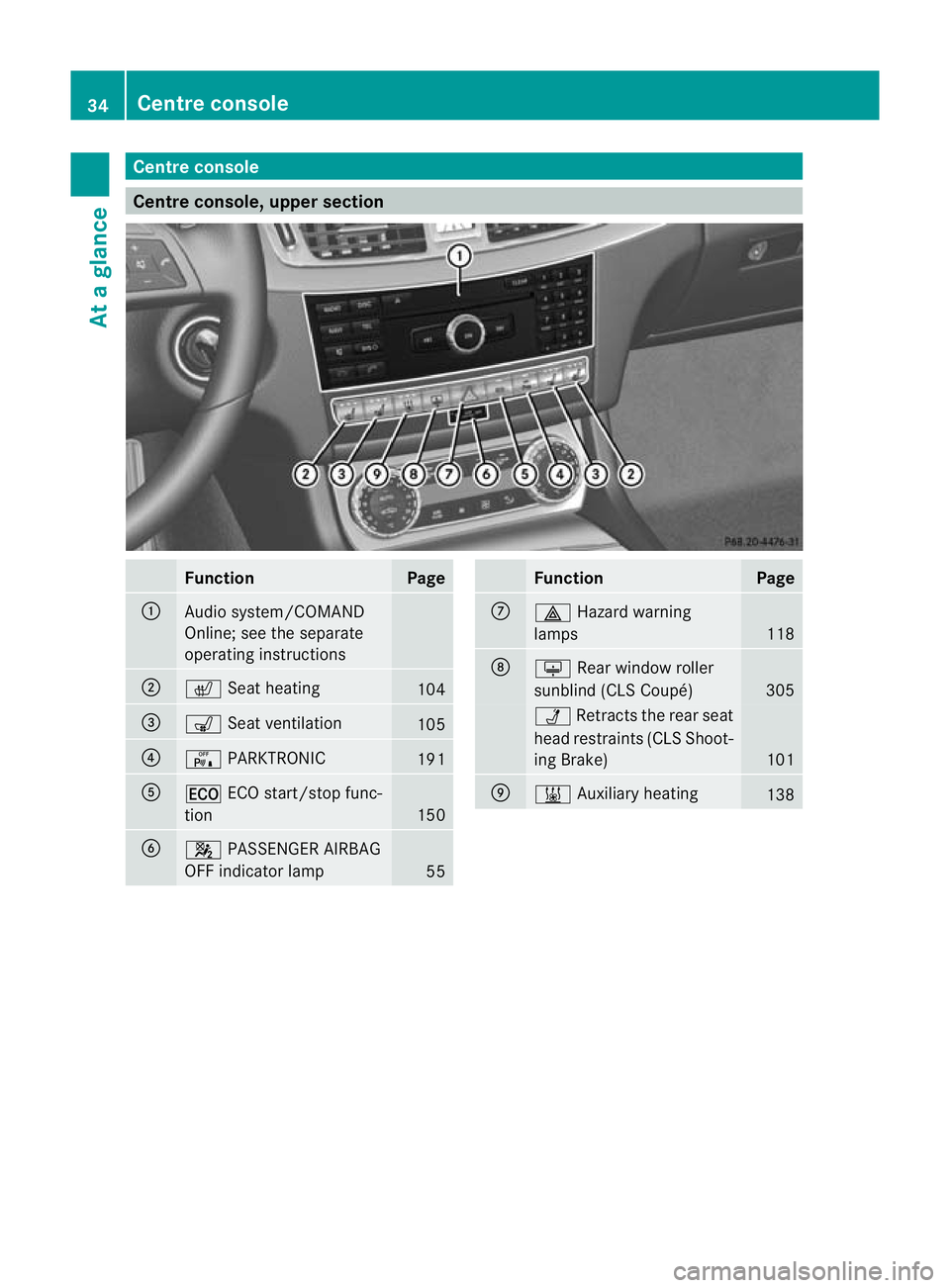

Centre console, upper section
Function Page
:
Audio system/COMAND
Online; see the separate
operating instructions
;
c
Seat heating 104
=
s
Seat ventilation 105
?
c
PARKTRONIC 191
A
¤
ECO start/stop func-
tion 150
B
4
PASSENGER AIRBAG
OFF indicator lamp 55 Function Page
C
£
Hazard warning
lamps 118
D
u
Rear window roller
sunblind (CLS Coupé) 305
Ü
Retracts the rear seat
head restraints (CLS Shoot-
ing Brake) 101
E
&
Auxiliary heating 13834
Centre consoleAt a glance

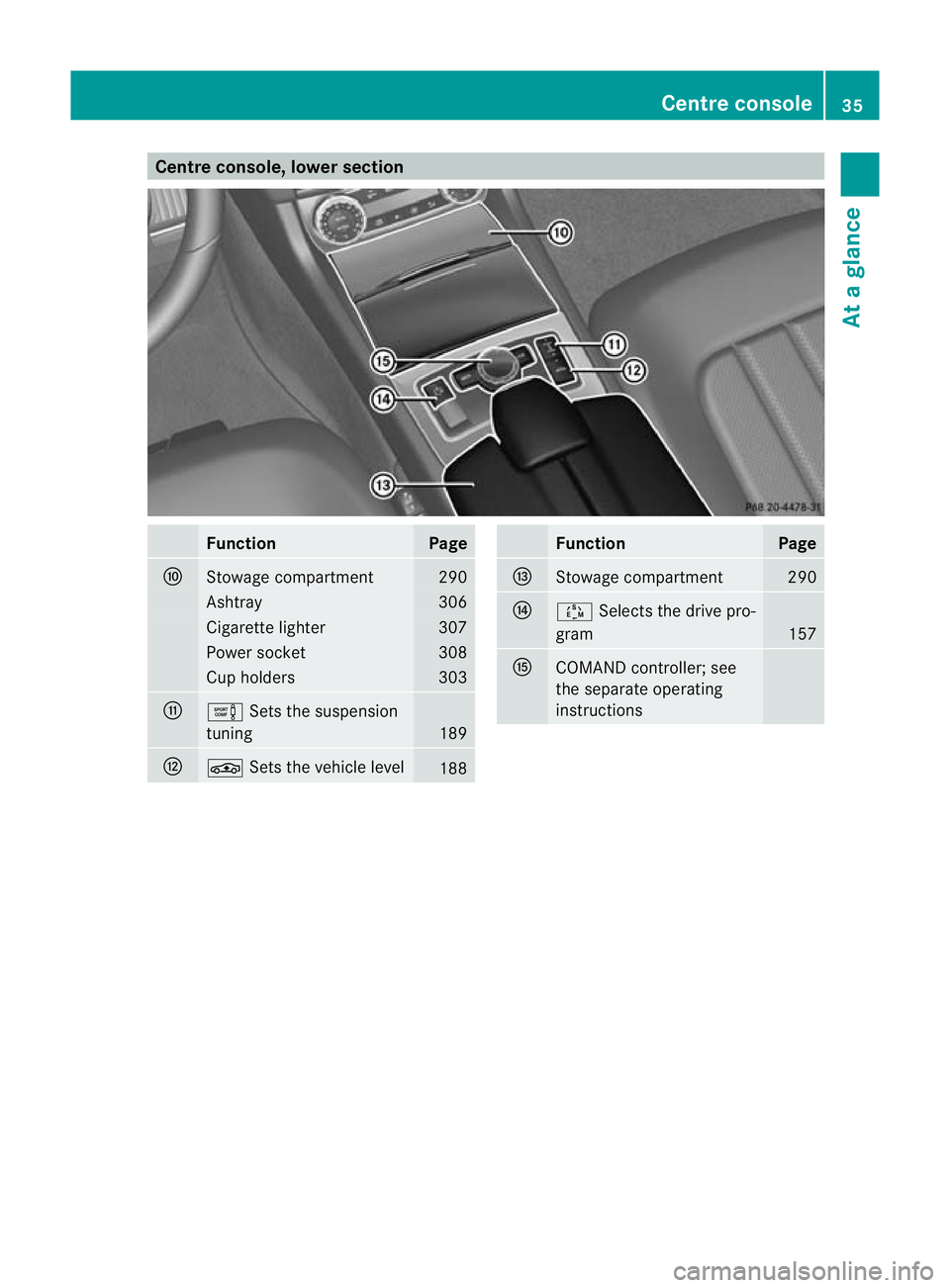

Centre console, lower section
Function Page
F
Stowage compartment 290
Ashtray 306
Cigarette lighter 307
Power socket 308
Cup holders 303
G
e
Sets the suspension
tuning 189
H
É
Sets the vehicle level 188 Function Page
I
Stowage compartment 290
J
Ú
Selects the drive pro-
gram 157
K
COMAND controller; see
the separate operating
instructions Centre console
35At a glance

Centre console, lower section (AMG vehicles)
Function Page
F
Cup holders 303
G
Engages parking position
P 166
H
Selector lever 154
I
Ashtray 306
Cigarette lighter 307
Power socket 308
J
COMAND controller; see
the separate operating
instructions Function Page
K
Stowage compartment 290
L
ß
Calls up/saves the
suspension tuning 190
M
à
Sets the suspension
tuning 190
N
å
ESP® 68
O
Drive program selector 15836
Centre consoleAt a glance

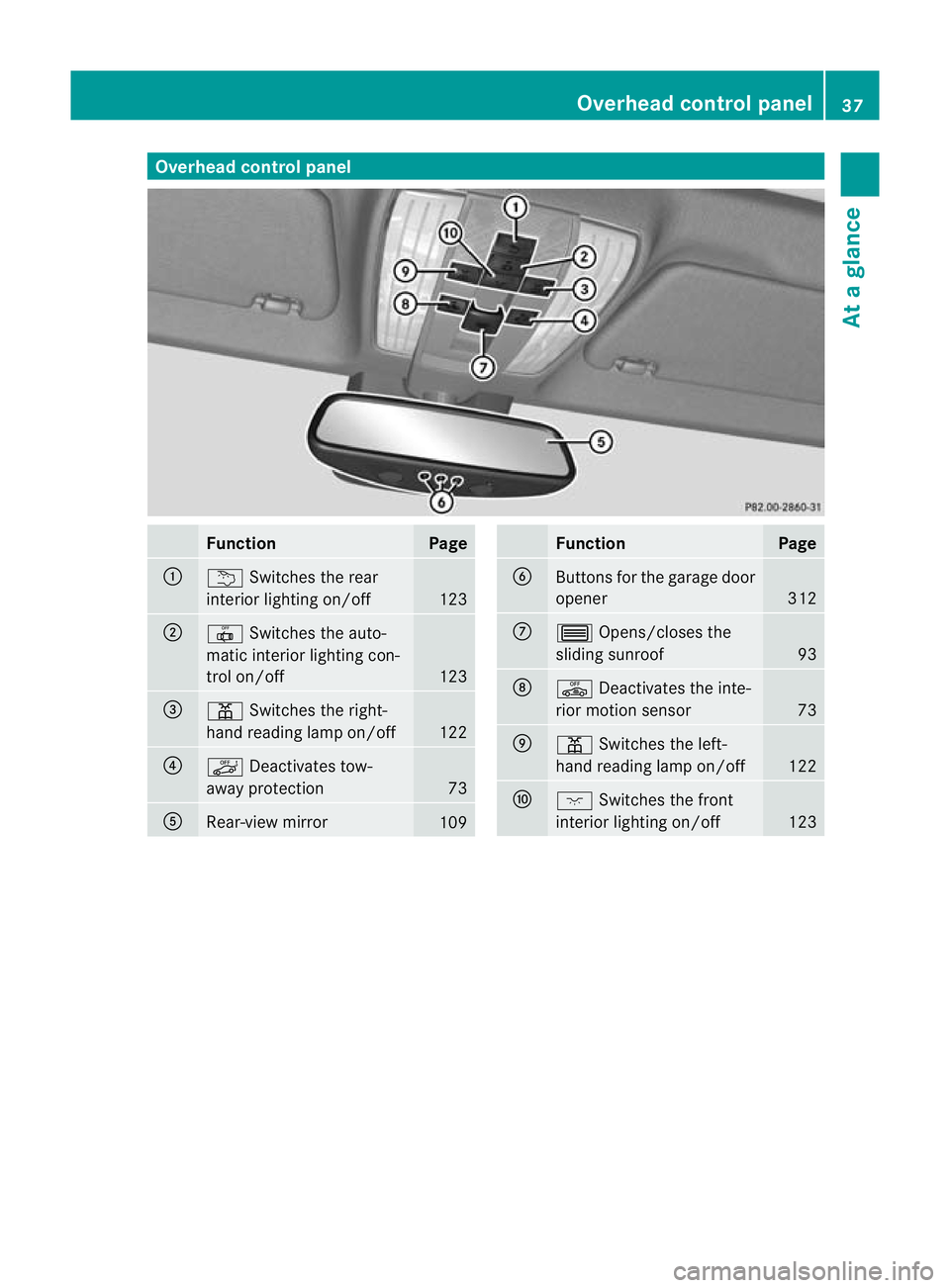

Overhea
dcontrol panel Function Page
:
u
Switches the rear
interio rlighting on/off 123
;
|
Switches the auto-
matic interior lighting con-
trol on/off 123
=
p
Switches the right-
hand reading lamp on/off 122
?
ë
Deactivates tow-
away protection 73
A
Rear-view mirror
109 Function Page
B
Buttons for the garage door
opener
312
C
3
Opens/closes the
sliding sunroof 93
D
ê
Deactivates the inte-
rior motion sensor 73
E
p
Switches the left-
hand reading lamp on/off 122
F
c
Switches the front
interior lighting on/off 123Overhead control panel
37At a glance
