140 Controls in detailLightingDriving rearward
Switching on corner-illuminating front
fog lamps
Place the gear selector lever in
positionR.
The inverse front fog lamp comes on
automatically depending on the steer-
ing direction and steering angle.
Switching on corner-illuminating front
fog lamps

Place the gear selector lever out of
positionR.
The respective front fog lamp goes out.
Hazard warning flasher
The hazard warning flasher can be
switched on at all times, even with the
SmartKey removed from the starter switch
or with the SmartKey with KEYLESS-GO*
removed from the vehicle.
The hazard warning flasher switches on
automatically when an air bag deploys.
The hazard warning flasher switch is locat-
ed on the center console.
1Hazard warning flasher switchSwitching on hazard warning flasher

Press the hazard warning flasher
switch1.
All turn signals are flashing.
Switching off hazard warning flasher

Press hazard warning flasher switch1
again.iWith the hazard warning flasher acti-
vated and the combination switch set
for either left or right turn, only the
respective left or right turn signals will
operate when the ignition is switched
on.iIf the hazard warning flasher has been
activated automatically, press hazard
warning flasher switch1 once to
switch off.

141 Controls in detail
Lighting
Interior lighting in the front
1Left front reading lamp on/off
2Rear interior lighting on/off
3Automatic control on/off
4Front interior lighting on/off
5Right front reading lamp on/off
6Ambient lighting
7Interior lighting
8Right front reading lamp
9Left front reading lampThe controls are located in the overhead
control panel.
Deactivating automatic control

Press switch3.
The interior lighting remains switched
off in darkness, even when you:

unlock the vehicle


remove the SmartKey from the
starter switch


open a door


open the trunkActivating automatic control

Press switch3.
The interior lighting switches on in
darkness, when you:

unlock the vehicle


remove the SmartKey from the
starter switch


open a door


open the trunk
The interior lighting switches off after a
preset time (
page 167).
!Leaving an interior lamp switch in the
ON position for extended periods of
time with the engine turned off could
result in a discharged battery.
iIf the door remains open, the interior
lamps switch off automatically after
approximately 5 minutes.
An interior lamp switched on manually
does not go out automatically.

142 Controls in detailLightingManual control
Switching front/rear interior lighting on
and off
Press front/rear interior lighting
switch4 or2 to switch on the
desired interior light.

Press front/rear interior lighting
switch4 or2 again to switch off the
respective interior light.
Switching front reading lamps on and off
The front reading lamps are located in low-
er edge of the interior rear view mirror.

Press front reading lamp
switch1or5 to switch on the
desired front reading lamp.

Press front reading lamp
switch1or5 again to switch off the
respective front reading lamp.
Interior lighting in the rear
The overhead control panel is located
above the rear seat bench.
1Ambient lighting switch, to brighten
2Rear reading lamp
3Rear reading lamp on/off
4Rear interior lamp
5Ambient lighting
6Ambient lighting switch, to dimRear reading lamps

Press desired rear reading lamp
switch3 to switch on the correspond-
ing rear reading lamp.

Press respective rear reading lamp
switch3 again to switch off the corre-
sponding rear reading lamp.
Ambient lighting

Press ambient lighting switch1or6
repeatedly until ambient lighting5
has reached the desired intensity.
You can switch the ambient lighting on and
off, using the Control system
(
page 166).

143 Controls in detail
Lighting
Door entry lamps
For better orientation in the dark, the cor-
responding door entry lamps will switch on
in darkness when you open a door and the
automatic control is activated.
The door entry lamps will switch off when
the corresponding door is closed.
Trunk lamp
The trunk lamp switches on if the trunk is
opened.
If the trunk remains open, the trunk light-
ing switches off automatically after ap-
proximately 10 minutes.
iIf you turn the SmartKey in the starter
switch to position0 and switch off the
headlamps, the door entry lamps will
remain lit for approximately 5 minutes.
iThe interior lighting is factory-set to au-
tomatic mode (
page 141).
The setting selected for the interior
lighting is used for the trunk lighting as
well.

144 Controls in detailInstrument clusterFor a full view illustration of the instrument
cluster, see “At a glance” (
page 24).

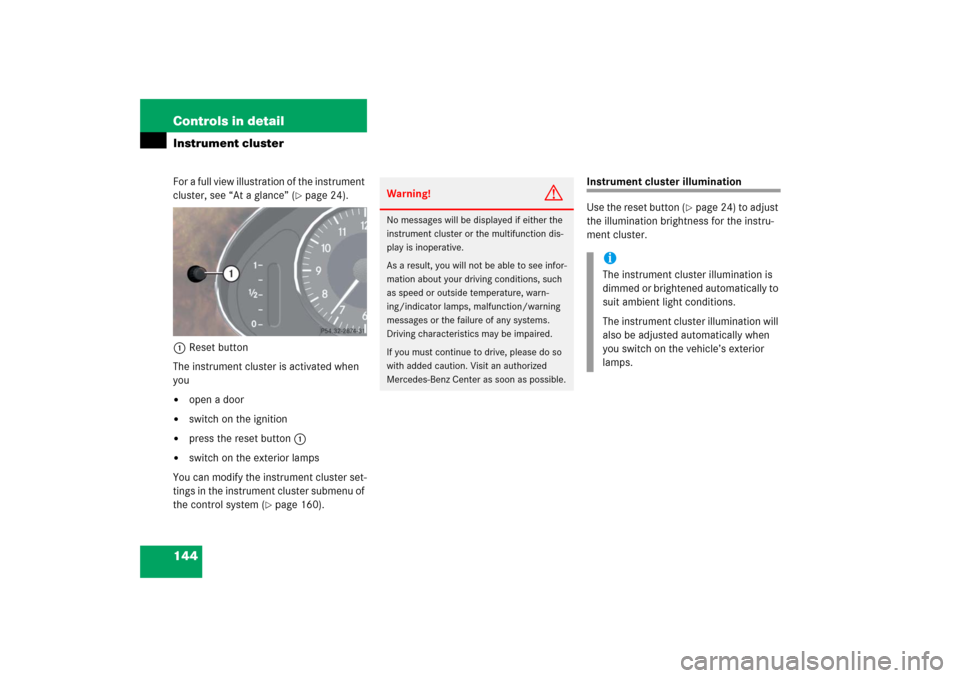

1Reset button
The instrument cluster is activated when
you


open a door


switch on the ignition


press the reset button1


switch on the exterior lamps
You can modify the instrument cluster set-
tings in the instrument cluster submenu of
the control system (
page 160).
Instrument cluster illumination
Use the reset button (
page 24) to adjust
the illumination brightness for the instru-
ment cluster.
Warning!
G
No messages will be displayed if either the
instrument cluster or the multifunction dis-
play is inoperative.
As a result, you will not be able to see infor-
mation about your driving conditions, such
as speed or outside temperature, warn-
ing/indicator lamps, malfunction/warning
messages or the failure of any systems.
Driving characteristics may be impaired.
If you must continue to drive, please do so
with added caution. Visit an authorized
Mercedes-Benz Center as soon as possible.
iThe instrument cluster illumination is
dimmed or brightened automatically to
suit ambient light conditions.
The instrument cluster illumination will
also be adjusted automatically when
you switch on the vehicle’s exterior
lamps.

145 Controls in detail
Instrument cluster
To brighten illumination
Turn the reset button in the instrument
cluster clockwise (
page 24).
The instrument cluster illumination will
brighten.
To dim illumination

Turn the reset button in the instrument
cluster counterclockwise (
page 24).
The instrument cluster illumination will
dim.
Coolant temperature indicatorWarning!
G


Driving when your engine is overheated
can cause some fluids which may have
leaked into the engine compartment to
catch fire. You could be seriously
burned.


Steam from an overheated engine can
cause serious burns and can occur just
by opening the hood. Stay away from
the engine if you see or hear steam com-
ing from it.
Turn off the engine, get out of the vehicle
and do not stand near the vehicle until the
engine has cooled down.
!Excessive coolant temperature triggers
the coolant temperature warning lamp
(page 357) and a warning in the
multifunction display (
page 379).
The engine should not be operated with
the coolant temperature above 248°F
(120°C). Doing so may cause serious
engine damage which is not covered by
the Mercedes-Benz Limited Warranty.
iDuring severe operating conditions,
e.g. stop-and-go traffic, the coolant
temperature may rise close to 248°F
(120°C).

146 Controls in detailInstrument clusterTrip odometer
Make sure you are viewing the trip odome-
ter display (
page 147).

If it is not displayed, press the è or
ÿ repeatedly until the trip odome-
ter appears.

Press and hold the reset button on the
instrument cluster (
page 24) until
the trip odometer is reset.
Tachometer
The red marking on the tachometer de-
notes excessive engine speed.
To help protect the engine, the fuel supply
is interrupted if the engine is operated
within the red marking.
Outside temperature indicator
The outside temperature is displayed in
the instrument cluster (
page 24).The temperature sensor is located in the
front bumper area. Due to its location, the
sensor can be affected by road or engine
heat during idling or slow driving. This
means that the accuracy of the displayed
temperature can only be verified by com-
parison to a thermometer placed next to
the sensor, not by comparison to external
displays (e.g. bank signs etc.).
When moving the vehicle into colder ambi-
ent temperatures (e.g. when leaving your
garage), you will notice a delay before the
lower temperature is displayed.
A delay also occurs when ambient temper-
atures rise. This prevents inaccurate tem-
perature indications caused by heat
radiated from the engine during idling or
slow driving.
!Avoid driving at excessive engine
speeds, as it may result in serious en-
gine damage that is not covered by the
Mercedes-Benz Limited Warranty.
Warning!
G
The outside temperature indicator is not
designed to serve as an ice-warning device
and is therefore unsuitable for that purpose.
Indicated temperatures just above the freez-
ing point do not guarantee that the road sur-
face is free of ice. The road may still be icy,
especially in wooded areas or on bridges.

147 Controls in detail
Control system
Control system
The control system is activated as soon as
the SmartKey in the starter switch is
turned to position1 or as soon as the
KEYLESS-GO start/stop button* is in
position1. The control system enables you
to:

call up information about your vehicle


change vehicle settings.
For example, you can use the control sys-
tem to find out when your vehicle is next
due for service, to set the language for
messages in the multifunction display, and
much more.
The control system relays information to
the multifunction display.
Multifunction display
1Outside temperature
2Trip odometer
3Automatic transmission program mode
4Main odometer
5Current gear selector lever position
Above illustration shows the standard
display.
For more information on menus displayed
in the multifunction display, see “Menus”
(page 150).
iThe displays for the audio systems (ra-
dio, CD player) will appear in English,
regardless of the language selected.
Warning!
G
A driver’s attention to the road and traffic
conditions must always be his/her primary
focus when driving.
For your safety and the safety of others,
selecting features through the multifunction
steering wheel should only be done by the
driver when traffic and road conditions per-
mit it to be done safely.
Bear in mind that at a speed of just 30 mph
(approximately 50 km/h), your vehicle is
covering a distance of 44 feet (approximate-
ly 14 m) every second.

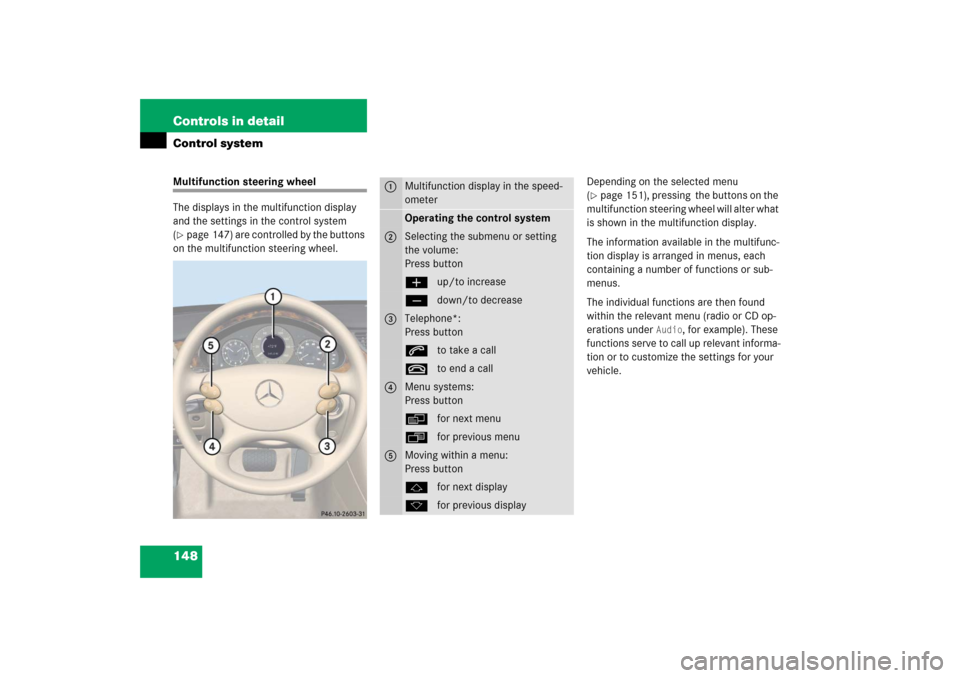

148 Controls in detailControl systemMultifunction steering wheel
The displays in the multifunction display
and the settings in the control system
(page 147) are controlled by the buttons
on the multifunction steering wheel.Depending on the selected menu
(
page 151), pressing the buttons on the
multifunction steering wheel will alter what
is shown in the multifunction display.
The information available in the multifunc-
tion display is arranged in menus, each
containing a number of functions or sub-
menus.
The individual functions are then found
within the relevant menu (radio or CD op-
erations under
Audio
, for example). These
functions serve to call up relevant informa-
tion or to customize the settings for your
vehicle.
1
Multifunction display in the speed-
ometerOperating the control system
2
Selecting the submenu or setting
the volume:
Press buttonæup/to increaseçdown/to decrease
3
Telephone*:
Press buttonsto take a calltto end a call
4
Menu systems:
Press buttonèfor next menuÿfor previous menu
5
Moving within a menu:
Press buttonjfor next displaykfor previous display

149 Controls in detail
Control system
It is helpful to think of the menus, and the
functions within each menu, as being
arranged in a circular pattern.

If you press buttonè orÿ
repeatedly, you will pass through each
menu one after the other.


If you press buttonk orj
repeatedly, you will pass through each
function display, one after the other, in
the current menu.In the
Settings
menu, instead of functions
you will find a number of submenus for
calling up and changing settings. For
instructions on using these submenus, see
the “Settings menu” section (
page 157).
The number of menus available in the sys-
tem depends on which optional equipment
is installed in your vehicle.The menus are described on the following
pages.
