MERCEDES-BENZ CLS500 2006 W219 Owner's Manual

170 Controls in detailControl system
Press buttonæ orç to switch
function
on or
off
.
Dynamic seat* submenu
Access the
Dynamic seat
submenu via the
Settings
menu. Use the
Dynamic seat

submenu to change the settings for the
dynamic seats. The following functions are
available:Adjusting the dynamic seat
The function dynamic seat adjustment lets
you determine the way the seat adjusts
while driving.

Move the selection marker with the
æ or çbutton to the Dynamic seat
submenu.

Press buttonj ork repeatedly
until you see
Dyn. multi-cont. seat,
driver
for the driver seat or
Dyn. multi-cont. seat, fr. pass.

for the passenger seat in the
multifunction display.
The selection marker is on the current
setting.

Press buttonæ orç to switch
function to
Weak
or
Powerful
.The following settings are available:
Function
Page
Adjust driver seat
170
Adjust passenger seat
170
Weak
(Comfort) Less lateral sup-
port and slow air pressure
build-up in the air cham-
bers of the backrest side
bolsters
Powerful
(Sporty) Strong lateral sup-
port and fast air pressure
build-up in the air cham-
bers of the backrest side
bolsters


171 Controls in detail
Control system
Trip computer menu
Use the trip computer menu to call up sta-
tistical data on your vehicle. The following
information is available:
Fuel consumption statistics after start
Press buttonÿ orè repeatedly
until you see the first function of the
trip computer menu.

Press buttonj ork repeatedly
until you see
After start
in the
multifunction display.1Distance driven since start
2Time elapsed since start
3Average speed since start
4Average fuel consumption since start
Fuel consumption since last reset

Press buttonÿ orè repeatedly
until you see the first function of the
trip computer menu.

Press buttonj ork repeatedly
until you see
After reset
in the
multifunction display.1Distance driven since last reset
2Time elapsed since last reset
3Average speed since last reset
4Average fuel consumption since last
reset
Function
Page
Fuel consumption statistics after
start
171
Fuel consumption statistics
since last reset
171
Distance to empty
172
iAll statistics stored since the last en-
gine start will be reset approximately
4 hours after the SmartKey in the start-
er switch is turned to position0 or
removed from the starter switch.
Resetting will not occur if you turn the
SmartKey back to position1 or2 with-
in this time period.

172 Controls in detailControl systemResetting fuel consumption statistics
Press buttonÿ orè repeatedly
until you see the first function of the
trip computer menu.

Press buttonj ork repeatedly
until you see the reading that you want
to reset in the multifunction display.

Press and hold the reset button in the
instrument cluster (
page 24) until
the value is reset to 0.Distance to empty

Press buttonÿ orè repeatedly
until you see the first function of the
trip computer menu.

Press buttonj ork repeatedly
until you see
Range:
in the multifunc-
tion display.
In the multifunction display you will see
the calculated range based on the cur-
rent fuel tank level.
TEL menu*Warning!
G
A driver’s attention to the road must always
be his/her primary focus when driving. For
your safety and the safety of others, we rec-
ommend that you pull over to a safe location
and stop before placing or taking a tele-
phone call. If you choose to use the tele-
phone while driving, please use the
hands-free device and only use the tele-
phone when weather, road and traffic condi-
tions permit.
Some jurisdictions prohibit the driver from
using a cellular telephone while driving a
vehicle.
Bear in mind that at a speed of just 30 mph
(approximately 50 km/h), your vehicle is
covering a distance of 44 feet (approximate-
ly 14 m) every second.

173 Controls in detail
Control system
You can use the functions in the
Tel
menu
to operate your telephone, provided it is
connected to a hands-free system and
switched on.

Switch on the telephone and COMAND.

Press buttonÿ orè on the
steering wheel repeatedly until you see
the
Tel
menu in the multifunction dis-
play.Which messages will appear in the multi-
function display depends on whether your
telephone is switched on or off:


If the telephone is off, the message in
the multifunction display is:
PHONE off
.


If the telephone is on:
The telephone will then search for a
network. During this time the multi-
function display is empty.
As soon as the telephone has found a
network,
READY
appears in the multi-
function display.
This standby message indicates that your
telephone is ready for use and you can
operate it using the control system.Answering a call
When your telephone is ready to receive
calls, you can answer a call at any time. In
the multifunction display you will then see
the message:

Press buttons.
You have answered the call. In the mul-
tifunction display you see the length of
the call.
Never operate radio transmitters equipped
with a built-in or attached antenna (i.e. with-
out being connected to an external antenna)
from inside the vehicle while the engine is
running. Doing so could lead to a malfunc-
tion of the vehicle’s electronic system, pos-
sibly resulting in an accident and/or
personal injury.
iIf you do not wish to accept a call,
press buttont.

174 Controls in detailControl systemEnding a call
Press buttont.
You have ended the call. In the multi-
function display you will again see the
standby message.
Dialing a number from the phone book
If your telephone is ready to receive calls,
you may select and dial a number from the
phone book at any time.

Press buttonÿ orè repeatedly
until you see the
Tel
menu in the
multifunction display.

Press buttonj ork.
The control system reads the phone
book which is stored in the telephone.
This may take up to 30 seconds. In the
multifunction display you will see the
message
Please wait
.
When the message
Please wait
disap-
pears, the phone book has been load-
ed.

Press buttonj ork repeatedly
until the desired name appears in the
multifunction display.
The stored names are displayed in as-
cending or descending alphabetical
order.iIf you press and holdj ork for
longer than 1 second, the system
scrolls rapidly through the list of names
until you release the button again.
Cancel the quick search mode by
pressingt.

175 Controls in detail
Control system

Press buttons.
The system dials the selected phone
number.

If the connection is successful, the
name of the party you called and
the duration of the call will appear
in the multifunction display.


If no connection is made, the con-
trol system stores the dialed num-
ber in the redial memory.Redialing
The control system stores the most recent-
ly dialed phone numbers. This eliminates
the need to search through your entire
phone book.

Press buttonÿ orè repeatedly
until you see the
Tel
menu in the mul-
tifunction display.

Press buttons.
In the multifunction display you see the
first number in the redial memory.

Press buttonj ork repeatedly
until the desired name appears in the
multifunction display.

Press buttons.
The control system dials the selected
phone number.

176 Controls in detailAutomatic transmissionFor more information on driving with an
automatic transmission see “Automatic
transmission” (
page 49).
Your vehicle’s transmission adapts its gear
shifting process to your individual driving
style by continually adjusting the shift
points up or down. These shift point adjust-
ments are performed based on current
operating and driving conditions.
If the operating conditions change, the
automatic transmission reacts by
adjusting its shift program.
Gearshift pattern for automatic
transmission
The automatic transmission selects indi-
vidual gears automatically, depending on:

the gear selector lever
positionD(
page 178) with
gear ranges (page 181)


the selected program mode:
(C/S)(
page 182)
or
(M/C/S) (CLS 55 AMG only)
(
page 187)


the position of the accelerator pedal
(page 180)


the vehicle speed
iDuring the brief warm-up, transmission
upshifting is delayed. This allows the
catalytic converter to heat up more
quickly to operating temperature.
Warning!
G
Make sure that absolutely no objects are ob-
structing the pedals range of movement.
Keep the driver’s footwell clear of all obsta-
cles. If there are any floormats or carpets in
the footwell, make sure that the pedals still
have sufficient clearance.

177 Controls in detail
Automatic transmission
1Current gear range/gear selector lever
position
2Current program mode
The current gear range/gear selector lever
position and program mode (
C/S) or
(
M/C/S) appear in the multifunction
display.An additional indication of the current gear
selector lever position can be found on the
cover of the shifting-gate.
The indicators come on when you activate
a switch (e.g. unlocking the vehicle or
opening a door) and go out after approxi-
mately 15 minutes.
When the gear selector lever is in
positionD, you can influence transmission
shifting by:


limiting the gear range


changing gears manually
Warning!
G
It is dangerous to shift the gear selector
lever out ofP orN if the engine speed is
higher than idle speed. If your foot is not
firmly on the brake pedal, the vehicle could
accelerate quickly forward or reverse. You
could lose control of the vehicle and hit
someone or something. Only shift into gear
when the engine is idling normally and when
your right foot is firmly on the brake pedal.
!Allow engine to warm up under low
load use. Do not place full load on the
engine until the operating temperature
has been reached.
Shift into reverse gearR or parking
positionP only when the vehicle is
stopped.
Avoid spinning of a drive wheel for an
extended period when driving off on
slippery road surfaces. This may cause
serious damage to the drivetrain which
is not covered by the Mercedes-Benz
Limited Warranty.

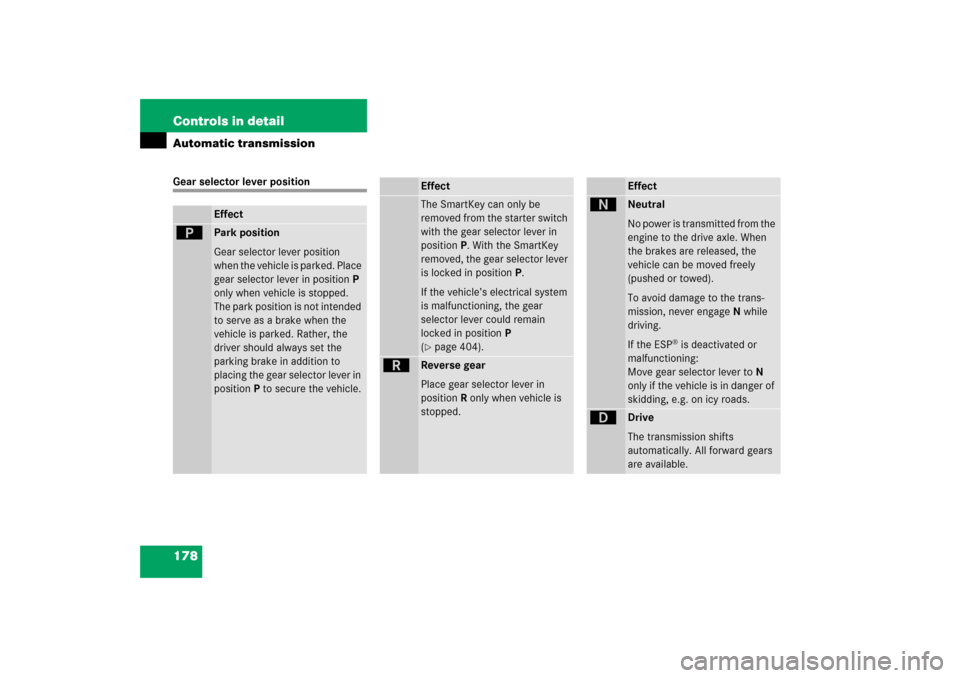

178 Controls in detailAutomatic transmissionGear selector lever position
Effect
ì
Park position
Gear selector lever position
when the vehicle is parked. Place
gear selector lever in positionP
only when vehicle is stopped.
The park position is not intended
to serve as a brake when the
vehicle is parked. Rather, the
driver should always set the
parking brake in addition to
placing the gear selector lever in
positionP to secure the vehicle.
EffectThe SmartKey can only be
removed from the starter switch
with the gear selector lever in
positionP. With the SmartKey
removed, the gear selector lever
is locked in positionP.
If the vehicle’s electrical system
is malfunctioning, the gear
selector lever could remain
locked in positionP
(page 404).
í
Reverse gear
Place gear selector lever in
positionR only when vehicle is
stopped.
Effect
ë
Neutral
No power is transmitted from the
engine to the drive axle. When
the brakes are released, the
vehicle can be moved freely
(pushed or towed).
To avoid damage to the trans-
mission, never engageN while
driving.
If the ESP
® is deactivated or
malfunctioning:
Move gear selector lever toN
only if the vehicle is in danger of
skidding, e.g. on icy roads.
ê
Drive
The transmission shifts
automatically. All forward gears
are available.

179 Controls in detail
Automatic transmission
!
Coasting the vehicle, or driving for any
other reason with gear selector lever
inN can result in transmission damage
that is not covered by the
Mercedes-Benz Limited Warranty.

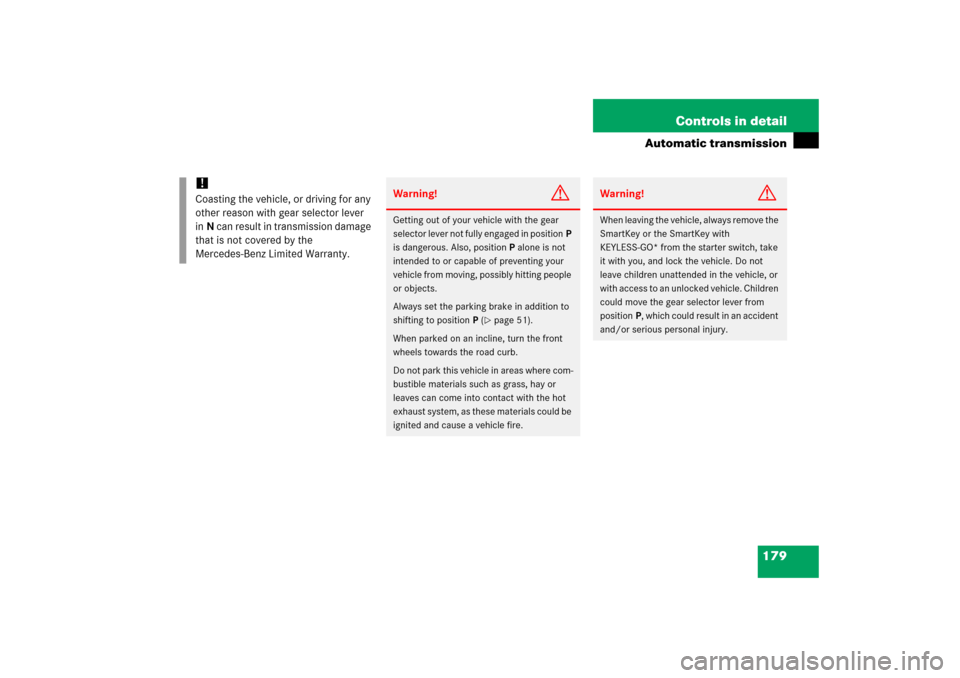

Warning!
G
Getting out of your vehicle with the gear
selector lever not fully engaged in positionP
is dangerous. Also, positionP alone is not
intended to or capable of preventing your
vehicle from moving, possibly hitting people
or objects.
Always set the parking brake in addition to
shifting to positionP (
page 51).
When parked on an incline, turn the front
wheels towards the road curb.
Do not park this vehicle in areas where com-
bustible materials such as grass, hay or
leaves can come into contact with the hot
exhaust system, as these materials could be
ignited and cause a vehicle fire.
Warning!
G
When leaving the vehicle, always remove the
SmartKey or the SmartKey with
KEYLESS-GO* from the starter switch, take
it with you, and lock the vehicle. Do not
leave children unattended in the vehicle, or
with access to an unlocked vehicle. Children
could move the gear selector lever from
positionP, which could result in an accident
and/or serious personal injury.
