MERCEDES-BENZ CLS63AMG 2007 W219 Owner's Guide

20

21 At a glance
Exterior view
Cockpit
Instrument cluster
Multifunction steering wheel
Center console
Overhead control panel
Storage compartments
Door control panel

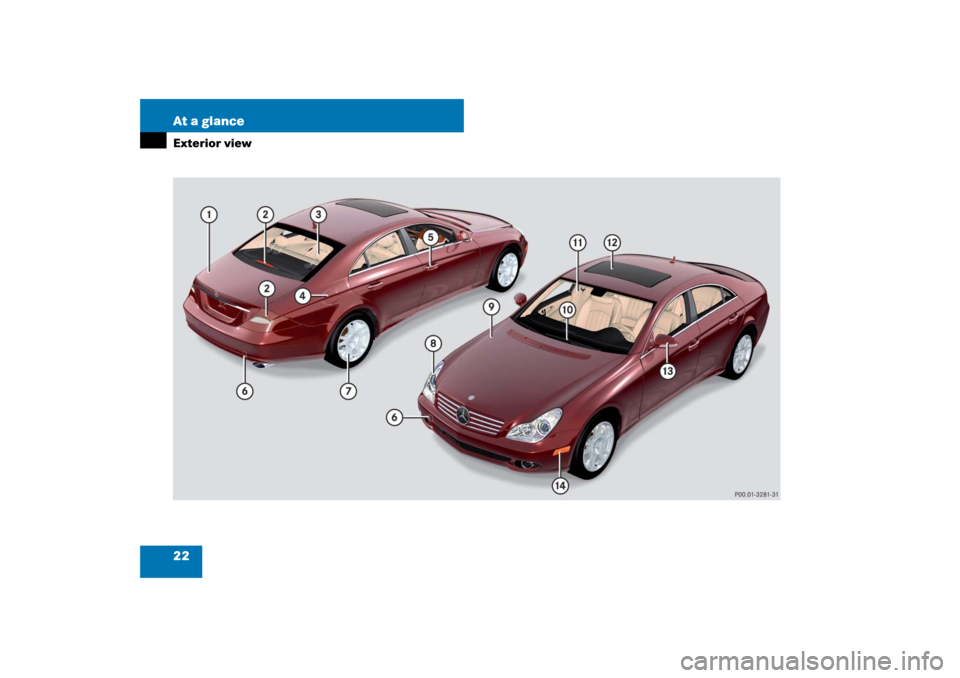

22 At a glanceExterior view

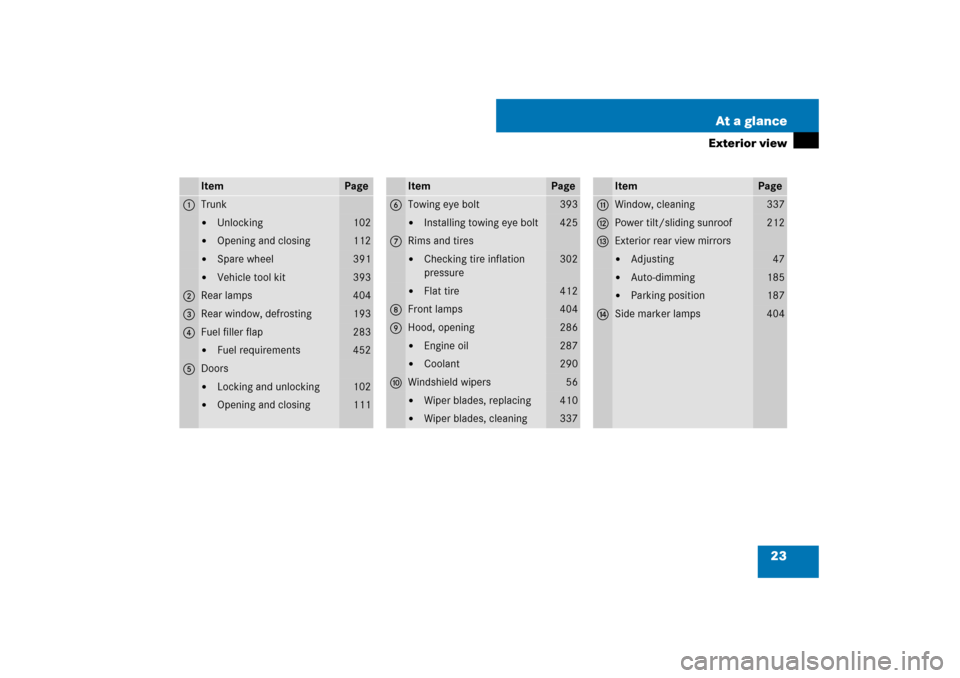

23 At a glance
Exterior view
Item
Page
1
Trunk

Unlocking
102


Opening and closing
112


Spare wheel
391


Vehicle tool kit
393
2
Rear lamps
404
3
Rear window, defrosting
193
4
Fuel filler flap
283


Fuel requirements
452
5
Doors

Locking and unlocking
102


Opening and closing
111
Item
Page
6
Towing eye bolt
393


Installing towing eye bolt
425
7
Rims and tires

Checking tire inflation
pressure
302


Flat tire
412
8
Front lamps
404
9
Hood, opening
286


Engine oil
287


Coolant
290
a
Windshield wipers
56


Wiper blades, replacing
410


Wiper blades, cleaning
337
Item
Page
b
Window, cleaning
337
c
Power tilt/sliding sunroof
212
d
Exterior rear view mirrors

Adjusting
47


Auto-dimming
185


Parking position
187
e
Side marker lamps
404

24 At a glanceCockpit

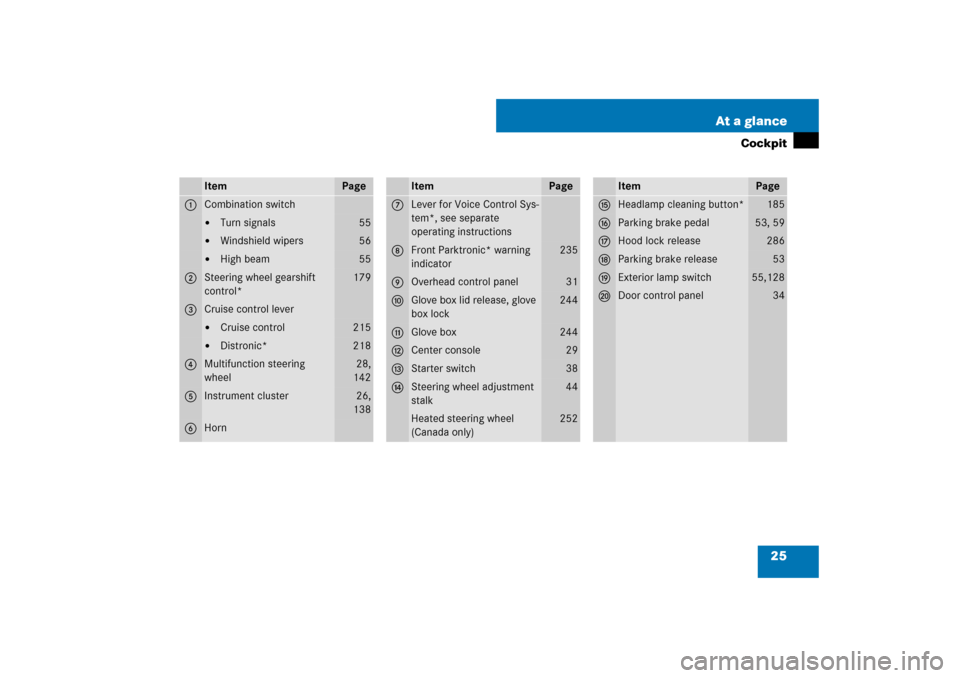

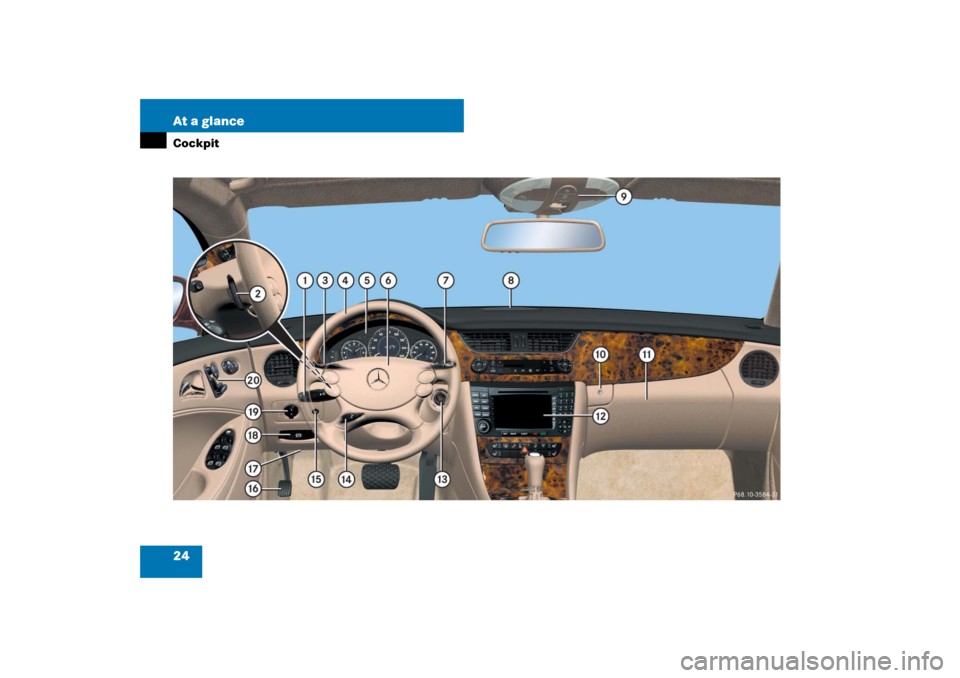

25 At a glance
Cockpit
Item
Page
1
Combination switch

Turn signals
55


Windshield wipers
56


High beam
55
2
Steering wheel gearshift
control*
179
3
Cruise control lever

Cruise control
215


Distronic*
218
4
Multifunction steering
wheel
28,
142
5
Instrument cluster
26,
138
6
Horn
Item
Page
7
Lever for Voice Control Sys-
tem*, see separate
operating instructions
8
Front Parktronic* warning
indicator
235
9
Overhead control panel
31
a
Glove box lid release, glove
box lock
244
b
Glove box
244
c
Center console
29
d
Starter switch
38
e
Steering wheel adjustment
stalk
44
Heated steering wheel
(Canada only)
252
Item
Page
f
Headlamp cleaning button*
185
g
Parking brake pedal
53, 59
h
Hood lock release
286
j
Parking brake release
53
k
Exterior lamp switch
55,128
l
Door control panel
34

26 At a glanceInstrument cluster

27 At a glance
Instrument cluster
Item
Page
1
LLeft turn signal
indicator lamp
2
vESP
® warning lamp
343
3
Speedometer
4
Multifunction display
141
5
lDistance warning
lamp
Vehicles without Distronic*:
Warning lamp without func-
tion. It illuminates with the
ignition on. It should go out
when the engine is running.
348
6
KRight turn signal
indicator lamp
7
Coolant temperature indi-
cator with:•Coolant temperature
warning lamp
347
Item
Page
8
Tachometer with:1Supplemental
Restraint System
(SRS) indicator lamp
350
-Antilock Brake Sys-
tem (ABS) indicator
lamp
342
348
AHigh beam headlamp
indicator lamp
132
9
Main odometer with:

Selector lever position
51


Program mode
177
a
Clock with:
159
;Brake warning lamp,
USA only
344
3Brake warning lamp,
Canada only
344
Item
Page
úEngine malfunction
indicator lamp, USA
only
345
±Engine malfunction
indicator lamp, Cana-
da only
345
HCombination low tire
pressure/TPMS mal-
function telltale,
USA only
351
Low tire pressure
telltale, Canada only
351
b
Fuel display with:AFuel tank reserve
warning lamp
348
c
Reset button for:

Resetting trip odometer
139


Adjusting instrument
cluster illumination
138


Confirming new time
settings
159

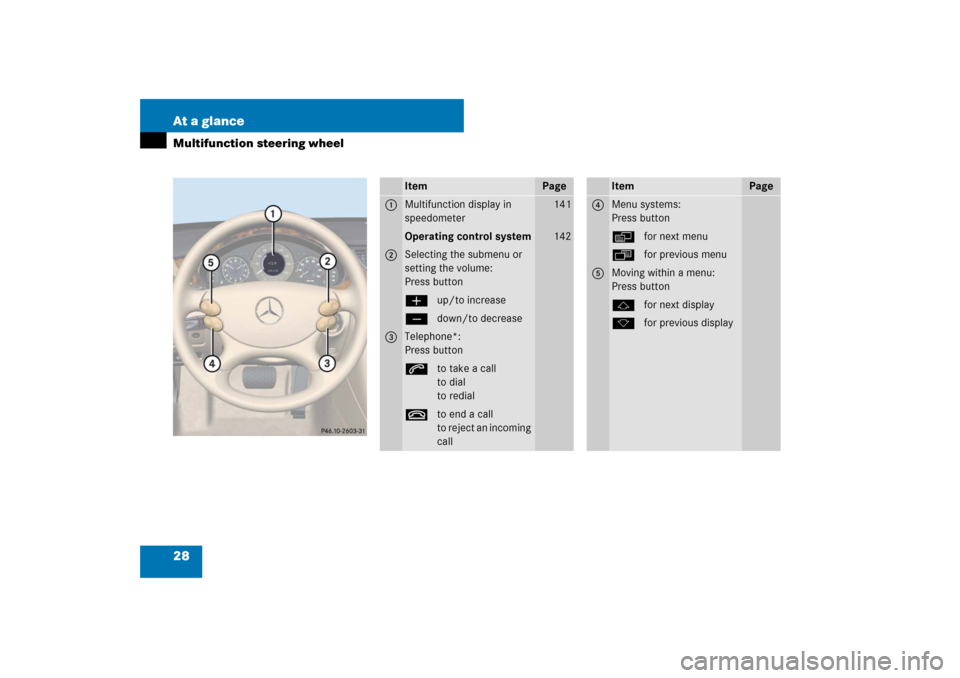

28 At a glanceMultifunction steering wheel
Item
Page
1
Multifunction display in
speedometer
141
Operating control system
142
2
Selecting the submenu or
setting the volume:
Press buttonæup/to increaseçdown/to decrease
3
Telephone*:
Press buttonsto take a call
to dial
to redialtto end a call
to reject an incoming
call
Item
Page
4
Menu systems:
Press buttonèfor next menuÿfor previous menu
5
Moving within a menu:
Press buttonjfor next displaykfor previous display

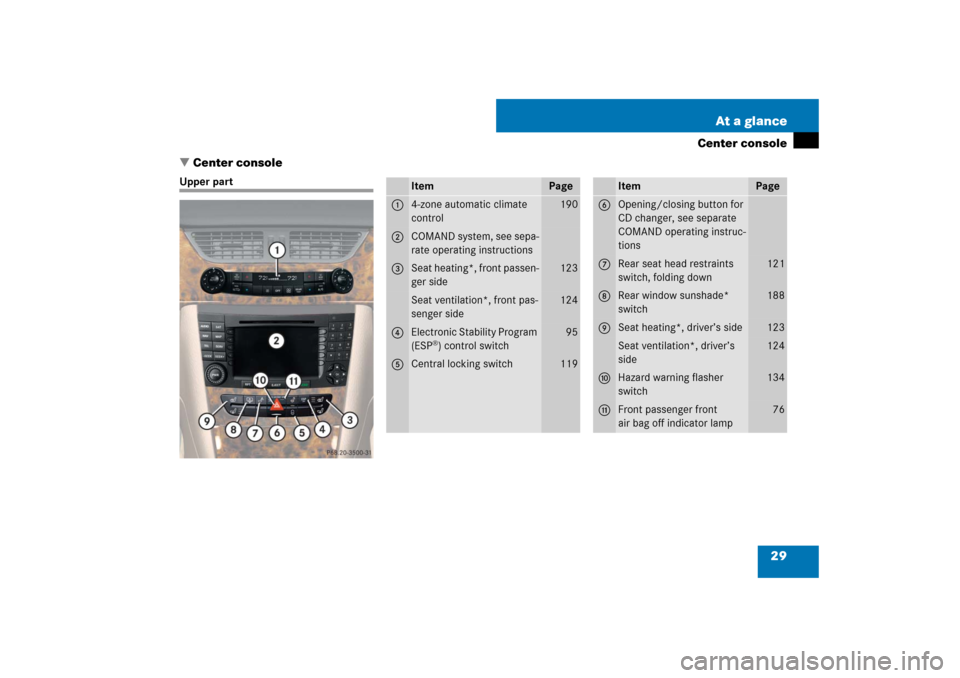

29 At a glance
Center console
Center console
Upper part
Item
Page
1
4-zone automatic climate
control
190
2
COMAND system, see sepa-
rate operating instructions
3
Seat heating*, front passen-
ger side
123
Seat ventilation*, front pas-
senger side
124
4
Electronic Stability Program
(ESP
®) control switch
95
5
Central locking switch
119
Item
Page
6
Opening/closing button for
CD changer, see separate
COMAND operating instruc-
tions
7
Rear seat head restraints
switch, folding down
121
8
Rear window sunshade*
switch
188
9
Seat heating*, driver’s side
123
Seat ventilation*, driver’s
side
124
a
Hazard warning flasher
switch
134
b
Front passenger front
air bag off indicator lamp
76
