MERCEDES-BENZ CLS63AMG 2007 W219 Owner's Guide

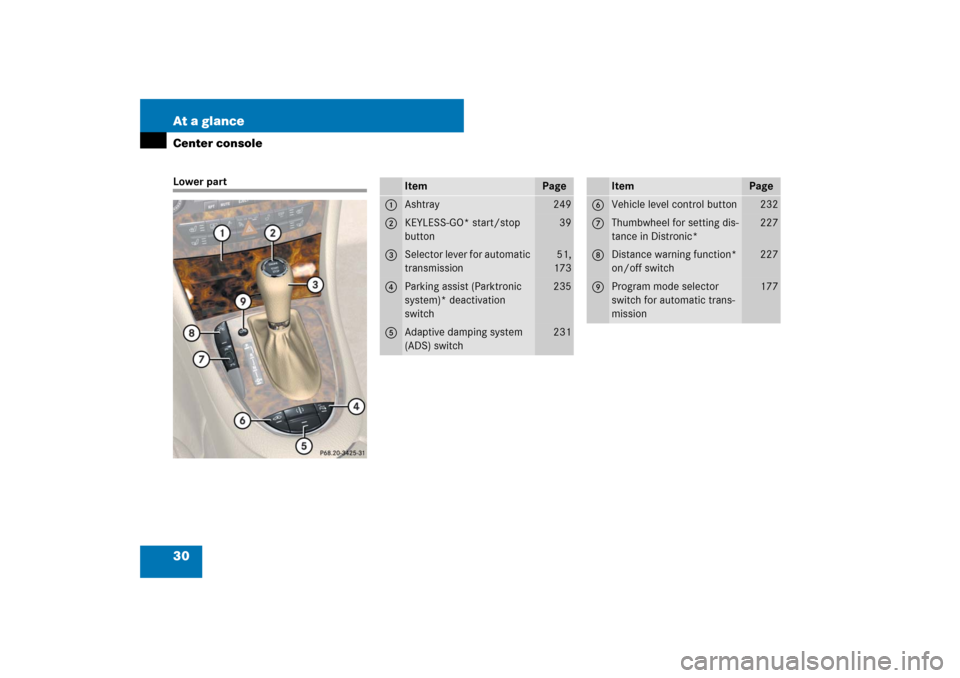

30 At a glanceCenter consoleLower part
Item
Page
1
Ashtray
249
2
KEYLESS-GO* start/stop
button
39
3
Selector lever for automatic
transmission
51,
173
4
Parking assist (Parktronic
system)* deactivation
switch
235
5
Adaptive damping system
(ADS) switch
231
Item
Page
6
Vehicle level control button
232
7
Thumbwheel for setting dis-
tance in Distronic*
227
8
Distance warning function*
on/off switch
227
9
Program mode selector
switch for automatic trans-
mission
177

31 At a glance

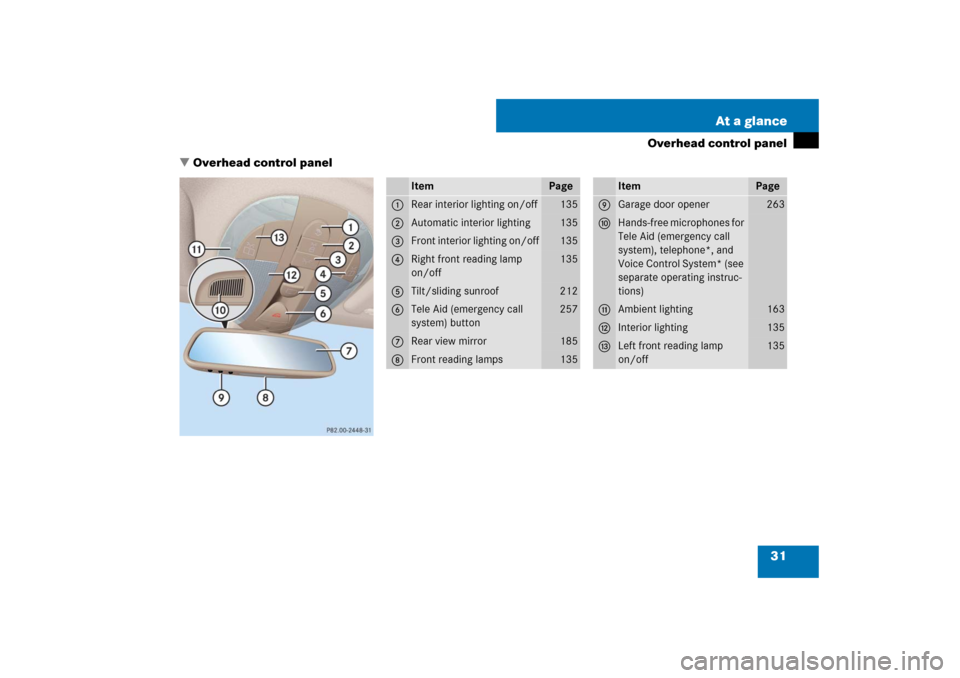

Overhead control panel
Overhead control panel
Item
Page
1
Rear interior lighting on/off
135
2
Automatic interior lighting
135
3
Front interior lighting on/off
135
4
Right front reading lamp
on/off
135
5
Tilt/sliding sunroof
212
6
Tele Aid (emergency call
system) button
257
7
Rear view mirror
185
8
Front reading lamps
135
Item
Page
9
Garage door opener
263
a
Hands-free microphones for
Tele Aid (emergency call
system), telephone*, and
Voice Control System* (see
separate operating instruc-
tions)
b
Ambient lighting
163
c
Interior lighting
135
d
Left front reading lamp
on/off
135

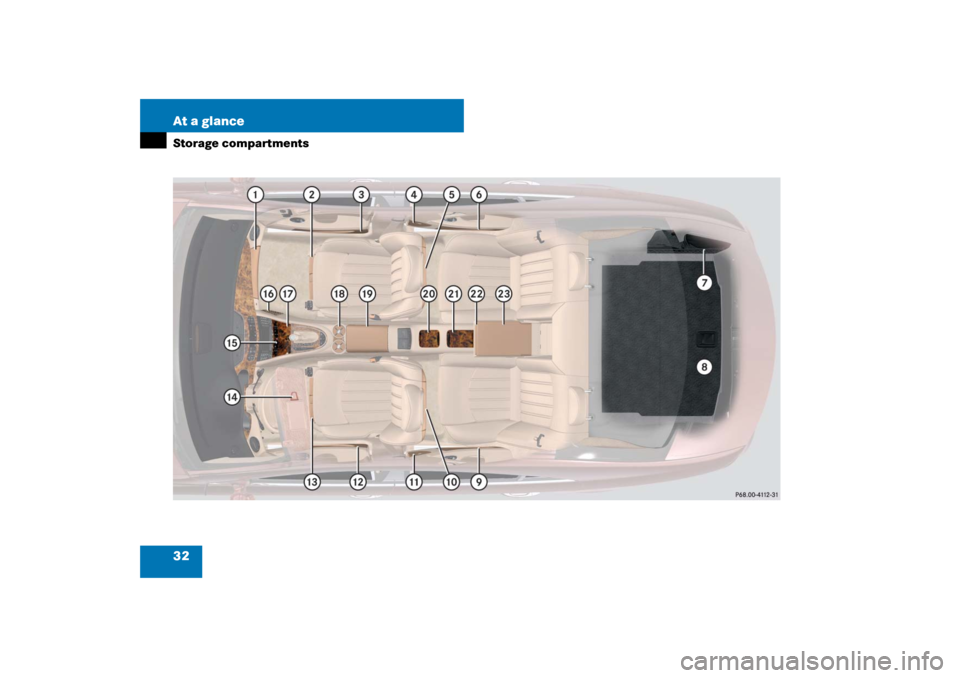

32 At a glanceStorage compartments

33 At a glance

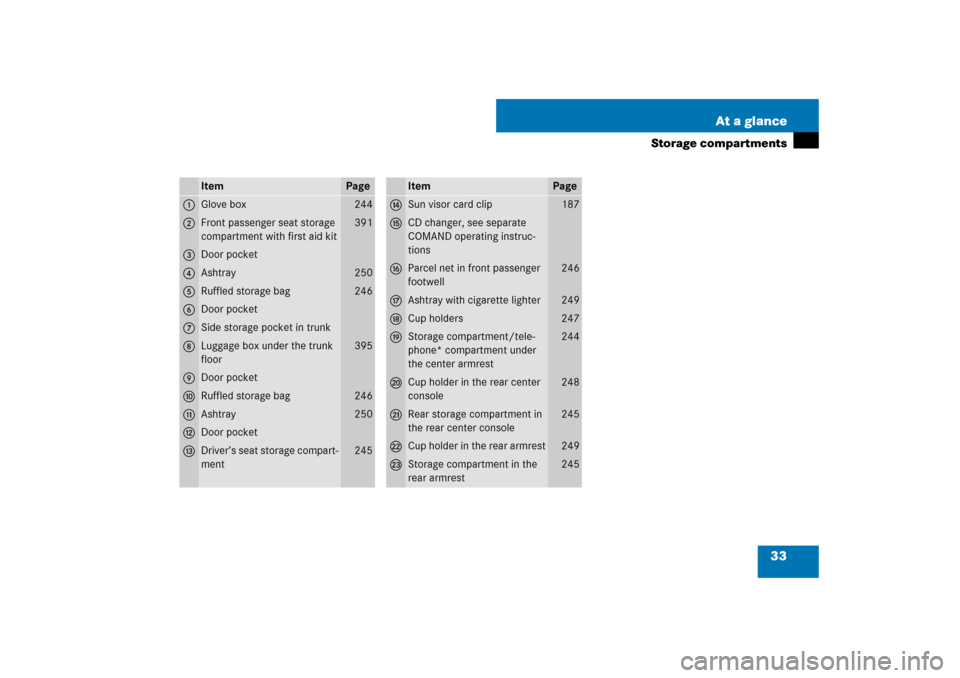

Storage compartments
Item
Page
1
Glove box
244
2
Front passenger seat storage
compartment with first aid kit
391
3
Door pocket
4
Ashtray
250
5
Ruffled storage bag
246
6
Door pocket
7
Side storage pocket in trunk
8
Luggage box under the trunk
floor
395
9
Door pocket
a
Ruffled storage bag
246
b
Ashtray
250
c
Door pocket
d
Driver’s seat storage compart-
ment
245
Item
Page
e
Sun visor card clip
187
f
CD changer, see separate
COMAND operating instruc-
tions
g
Parcel net in front passenger
footwell
246
h
Ashtray with cigarette lighter
249
j
Cup holders
247
k
Storage compartment/tele-
phone* compartment under
the center armrest
244
l
Cup holder in the rear center
console
248
m
Rear storage compartment in
the rear center console
245
n
Cup holder in the rear armrest
249
o
Storage compartment in the
rear armrest
245

34 At a glanceDoor control panel
Item
Page
1
Inside door handle
111
2
Seat adjustment
42
3
Memory function (for stor-
ing seat, exterior mirror and
steering wheel settings)
125
4
Exterior rear view mirror ad-
justment
47
5
Switches for opening/clos-
ing front and rear side win-
dows, rear window override
switch
207
6
Remote trunk release
switch, trunk opening/clos-
ing system*
113

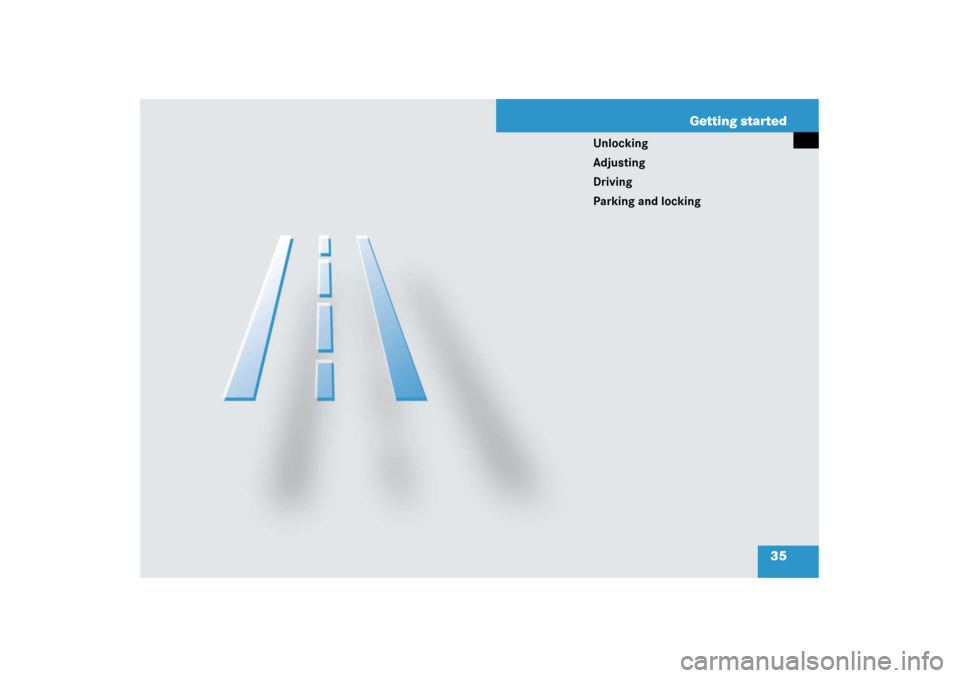

35 Getting started
Unlocking
Adjusting
Driving
Parking and locking

36 Getting startedThe “Getting started” section provides an
overview of the vehicle’s most basic func-
tions. First-time Mercedes-Benz owners
should pay special attention to the infor-
mation given here.
If you are already familiar with the basic
functions described here, the “Controls in
detail” section will provide you with further
information. The corresponding page refer-
ences are located at the end of each seg-
ment.Unlocking
Unlocking with the SmartKeySmartKey with remote control1‹Lock button
2ŠOpening button for trunk
3ŒUnlock button
4ÂPanic button

Press unlock buttonΠon the
SmartKey.

All turn signal lamps flash once.


An acoustic signal sounds once.


The locking knobs in the doors
move up.


The anti-theft alarm system is dis-
armed.

Get in the vehicle and insert the
SmartKey in the starter switch.Warning!
G
When leaving the vehicle, always remove the
SmartKey from the starter switch, take it
with you, and lock the vehicle. Do not leave
children unattended in the vehicle, or with
access to an unlocked vehicle. A child’s un-
supervised access to a vehicle could result
in an accident and/or serious personal
injury.

37 Getting started
Unlocking
For more information, see “Locking and
unlocking” (
page 102).
Unlocking with KEYLESS-GO*
With the KEYLESS-GO function, you can
lock and unlock the vehicle without using
the remote control buttons on the
SmartKey and start the engine without in-
serting the SmartKey in the starter switch.

Pull an outside door handle.

All turn signal lamps flash once.


An acoustic signal sounds once.


The locking knobs in the doors
move up.


The anti-theft alarm system is dis-
armed.

Get in the vehicle.
For more information, see “SmartKey with
KEYLESS-GO*” (
page 105).
i
Opening a door causes the window on that
door to open slightly. They will return to the up
position when the door is closed.
!
The side windows will not open or close if
the battery is discharged or the windows are cov-
ered with ice. As a result, you may no longer be
able to properly close the door. Do not attempt
to force the door shut. Doing so may damage the
door or the side window. Correct the condition
that prevents the windows from operating before
attempting to close the door.
Warning!
G
When leaving the vehicle, always take the
SmartKey with KEYLESS-GO with you, and
lock the vehicle. Do not leave children unat-
tended in the vehicle, or with access to an
unlocked vehicle. A child’s unsupervised ac-
cess to a vehicle could result in an accident
and/or serious personal injury.i
To unlock the vehicle, the SmartKey with
KEYLESS-GO must be outside the vehicle, no fur-
ther than approximately 3 feet (1 meter) away
from the door.
i
Opening a door causes the window on that
door to open slightly. They will return to the up
position when the door is closed.
!
The side windows will not open or close if
the battery is discharged or the windows are cov-
ered with ice. As a result, you may no longer be
able to properly close the door. Do not attempt
to force the door shut. Doing so may damage the
door or the side window. Correct the condition
that prevents the windows from operating before
attempting to close the door.

38 Getting startedUnlockingStarter switch positions SmartKey
Starter switch
Warning!
G
When leaving the vehicle, always remove the
SmartKey or SmartKey with KEYLESS-GO*
from the starter switch, take it with you, and
lock the vehicle. Do not leave children unat-
tended in the vehicle, or with access to an
unlocked vehicle. A child’s unsupervised ac-
cess to a vehicle could result in an accident
and/or serious personal injury.
0
For removing the SmartKey
1
Power supply for some electrical con-
sumers, such as seat adjustment
2
Ignition (power supply for all electri-
cal consumers) and driving position.
All lamps (except high beam head-
lamp indicator lamp and turn signal
indicator lamps unless activated) in
the instrument cluster come on. If a
lamp in the instrument cluster fails to
come on when the ignition is
switched on, have it checked and re-
placed if necessary. If a lamp in the
instrument cluster remains on after
starting the engine or comes on while
driving, see “Lamps in instrument
cluster” (
page 342).
3
Starting position
i
When you switch on the ignition, the
indicator and warning lamps (except high beam
headlamp indicator lamp and turn signal indica-
tor lamps unless activated) in the instrument
cluster come on. The indicator and warning
lamps (except high beam headlamp indicator
lamp and turn signal indicator lamps if activated)
should go out when the engine is running. This in-
dicates that the respective systems are opera-
tional.

39 Getting started
Unlocking
For information on starting the engine with
the SmartKey, see “SmartKey”
(page 102).SmartKey with KEYLESS-GO*
If the SmartKey with KEYLESS-GO is inside
the vehicle, pressing the KEYLESS-GO
start/stop button on the gear selector le-
ver corresponds to turning the SmartKey
to the various starter switch positions.
If you firmly depress the brake pedal dur-
ing pressing the KEYLESS-GO start/stop
button, the engine starts automatically.
KEYLESS-GO start/stop button1USA only
2Canada only
The SmartKey with KEYLESS-GO must be
located in the vehicle.
Make sure the gear selector lever is set
toP.

Do not depress the brake pedal.
i
The SmartKey can only be removed from the
starter switch with the gear selector lever in
position P.
i
If the SmartKey is left in starter switch posi-
tion 0 for an extended period of time, it can no
longer be turned in the switch. In this case, the
steering is locked. To unlock, remove SmartKey
from the starter switch and reinsert.
!
If the SmartKey cannot be turned in the
starter switch, the battery may not be sufficient-
ly charged.


Check the battery and charge it if necessary
(page 420).


Get a jump start (
page 423).
To prevent accelerated vehicle battery discharge
or a completely discharged vehicle battery, al-
ways remove the SmartKey from the starter
switch when the engine is not in operation.
i
The function of the SmartKey overrules the
KEYLESS-GO function.
