MERCEDES-BENZ E-CLASS CABRIOLET 2011 Owners Manual

328

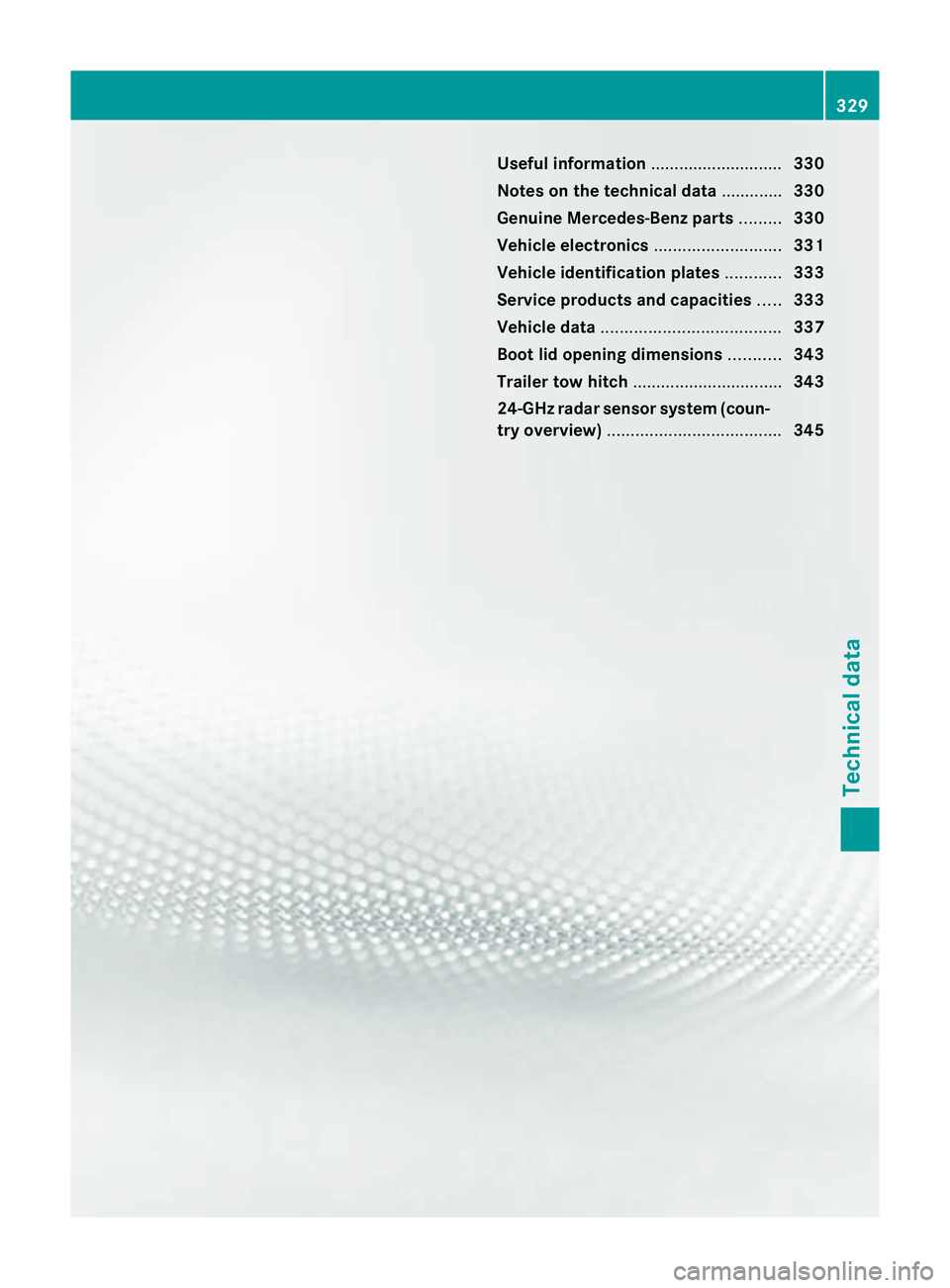

Useful information
............................330
Notes on the technical data .............330
Genuine Mercedes-Benz parts .........330
Vehicle electronics ...........................331
Vehicle identification plates ............333
Service products and capacities .....333
Vehicle data ...................................... 337
Boot lid opening dimensions ...........343
Trailer tow hitch ................................ 343
24-GHz radar sensor system (coun-
tryo verview) ..................................... 345 329Technical data

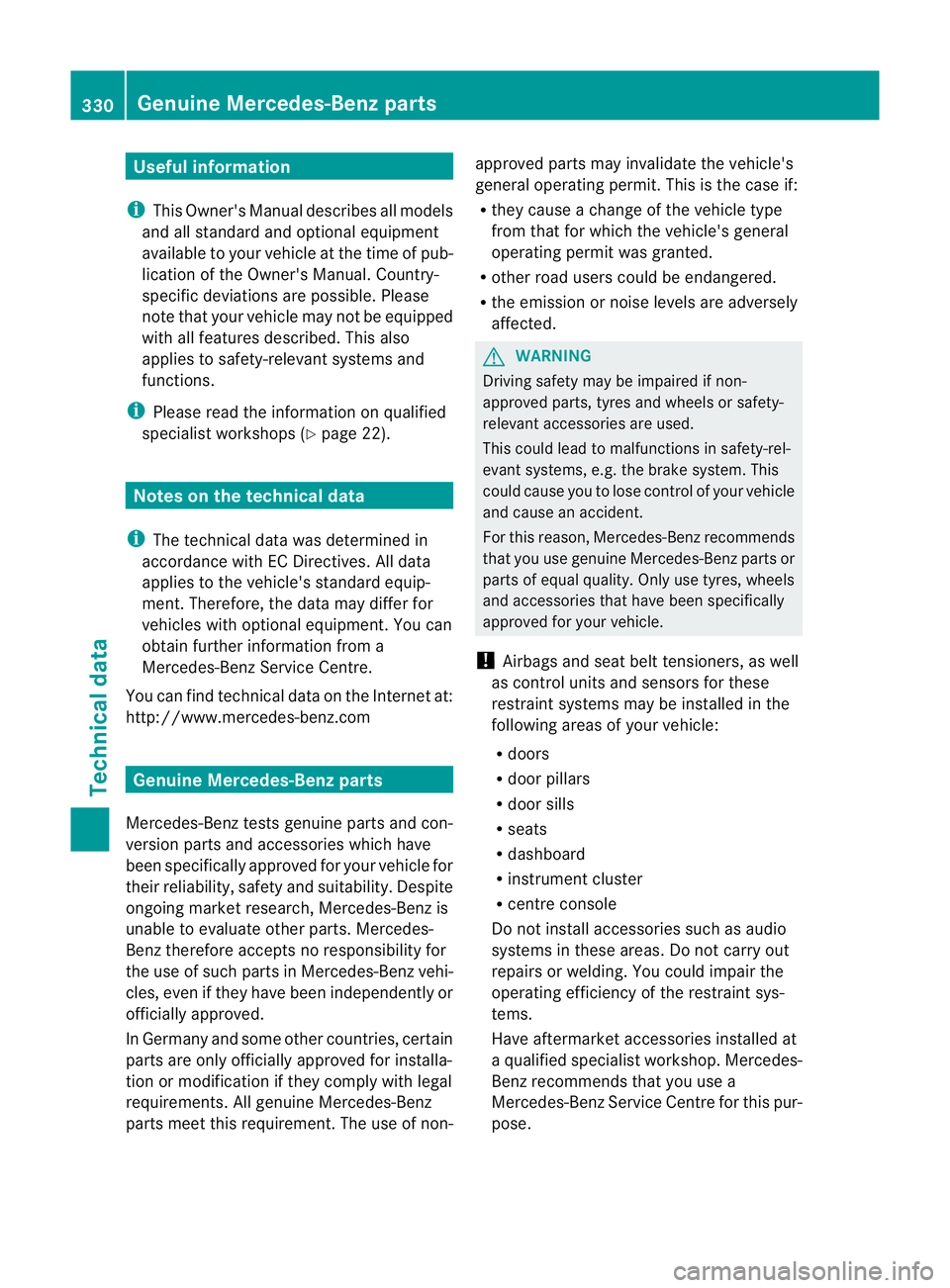

Useful information
i This Owner's Manual describes all models
and all standard and optional equipment
available to your vehicle at the time of pub-
lication of the Owner's Manual. Country-
specific deviation sare possible. Please
not ethat your vehicle may not be equipped
with all feature sdescribed. This also
applies to safety-relevan tsystems and
functions.
i Pleas ereadt he information on qualified
specialist workshop s(Ypage 22). Note
sont hetechnical data
i The technical dat awas determined in
accordance wit hECDirectives .Alldata
applies to th evehicle's standard equip-
ment. Therefore, th edatam ay differ for
vehicles wit hoptional equipment. You can
obtain further information from a
Mercedes-Ben zServi ce Centre.
You can fin dtechnic al dataonthe Internet at:
http://www.mercedes-benz.com Genuin
eMercedes-Ben zparts
Mercedes-Ben ztests genuine parts and con-
version parts and accessories which have
been specifically approved for your vehicle for
their reliability, safety and suitability. Despite
ongoin gmarket research ,Mercedes-Benz is
unable to evaluate other parts. Mercedes-
Benzt herefore accepts no responsibility for
the use of such parts in Mercedes-Ben zvehi-
cles, even if they have been independently or
officially approved.
In Germany and some other countries, certain
parts are only officially approved for installa-
tion or modification if they comply with legal
requirements. All genuine Mercedes-Benz
parts meet this requirement .The use of non- approved parts may invalidate the vehicle's
general operating permit. This is the case if:
R
they cause achange of the vehicle type
from that for which the vehicle's general
operating permit was granted.
R other road users could be endangered.
R the emission or noise levels are adversely
affected. G
WARNING
Driving safety may be impaired if non-
approved parts, tyres and wheels or safety-
relevant accessories are used.
This could lead to malfunctions in safety-rel-
evant systems, e.g. the brake system. This
could cause you to lose control of your vehicle
and cause an accident.
For this reason, Mercedes-Ben zrecommends
that you use genuine Mercedes-Benz parts or
parts of equal quality. Only use tyres, wheels
and accessories that have been specifically
approved for your vehicle.
! Airbags and seat belt tensioners, as well
as control units and sensor sfor these
restraint systems may be installed in the
following areas of your vehicle:
R doors
R door pillars
R door sills
R seats
R dashboard
R instrument cluster
R centre console
Do not install accessories such as audio
systems in these areas. Do not carry out
repairs or welding. You could impair the
operatin gefficiency of the restraint sys-
tems.
Have aftermarket accessories installed at
aq ualified specialist workshop. Mercedes-
Benz recommends that you use a
Mercedes-Benz Service Centr efor this pur-
pose. 330
Genuine Mercedes-Benz partsTechnical data

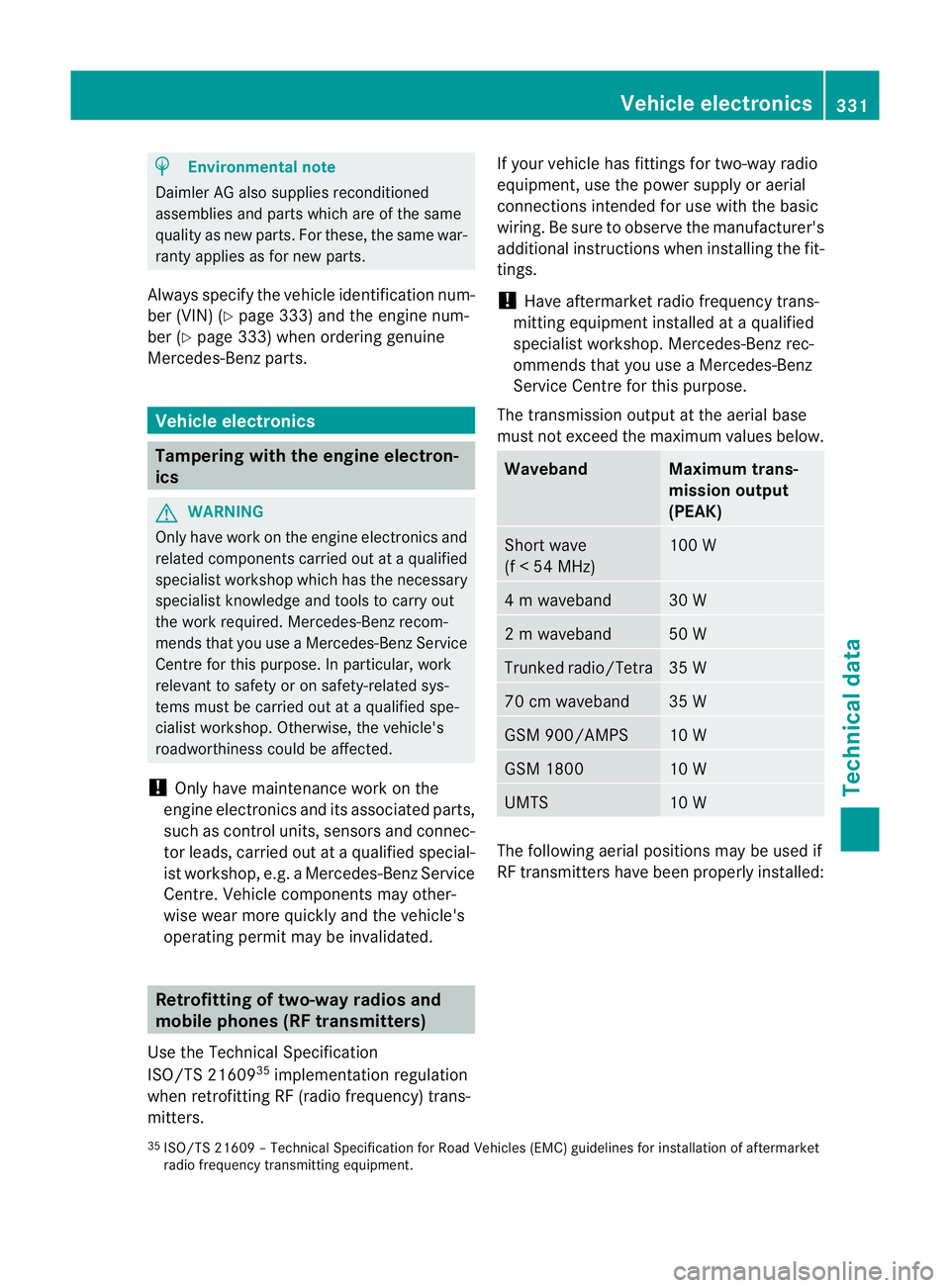

H
Environmenta
lnote
Daimler AG also supplies reconditioned
assemblies and part swhicha re of th esame
quality as new parts. For these, th esame war-
ranty applies as for new parts.
Always specify th evehicle identification num-
ber (VIN )(Y page 333) and th eengine num-
ber (Y page 333) when orderin ggenuine
Mercedes-Ben zparts. Vehicle electronics
Tampering with th
eengine electron-
ics G
WARNING
Only have work on th eenginee lectronics and
related component scarried out at aqualified
specialist worksho pwhichh as th enecessary
specialist knowledg eand tools to carry out
th ew ork required .Mercedes-Ben zrecom-
mends that you use aMercedes-Ben zService
Centr efor this purpose. In particular, work
relevant to safety or on safety-related sys-
tems must be carried out at aqualified spe-
cialist workshop. Otherwise, the vehicle's
roadworthiness could be affected.
! Only have maintenanc ework on the
engine electronics and its associated parts,
such as control units, sensor sand connec-
tor leads, carried out at aqualified special-
ist workshop, e.g. aMercedes-Benz Service
Centre. Vehicle componentsm ay other-
wise wear mor equickly and th evehicle's
operatin gpermit may be invalidated. Retrofitting of two-way radios and
mobile phones (RF transmitters)
Use th eTechnical Specification
ISO/TS 21609 35
implementation regulation
when retrofitting RF (radi ofrequency) trans-
mitters. If your vehicle has fittings for two-way radio
equipment, use th
epower supply or aerial
connection sintended for use wit hthe basic
wiring. Be sure to observ ethe manufacturer's
additional instruction swhen installing th efit-
tings.
! Hav eaftermarket radio frequency trans-
mittin gequipmen tinstalled at aquali fied
specialist workshop .Mercedes-Benzr ec-
ommends that you use aMercedes-Benz
Service Centr efor this purpose.
The transmission output at the aerial base
must not exceed the maximum values below. Waveband Maximum trans-
mission output
(PEAK)
Short wave
(f
<54M Hz) 100 W
4mw
aveband 30 W
2mw
aveband 50 W
Trunked radio/Tetra 35 W
70 cm waveband 35 W
GSM 900/AMPS 10 W
GSM 1800 10 W
UMTS 10 W
The following aerial position
smay be used if
RF transmitters have been properly installed:
35 ISO/TS 2160 9–Technical Specification for Road Vehicles (EMC) guidelines for installation of aftermarket
radio frequenc ytransmitting equipment. Vehicle electronics

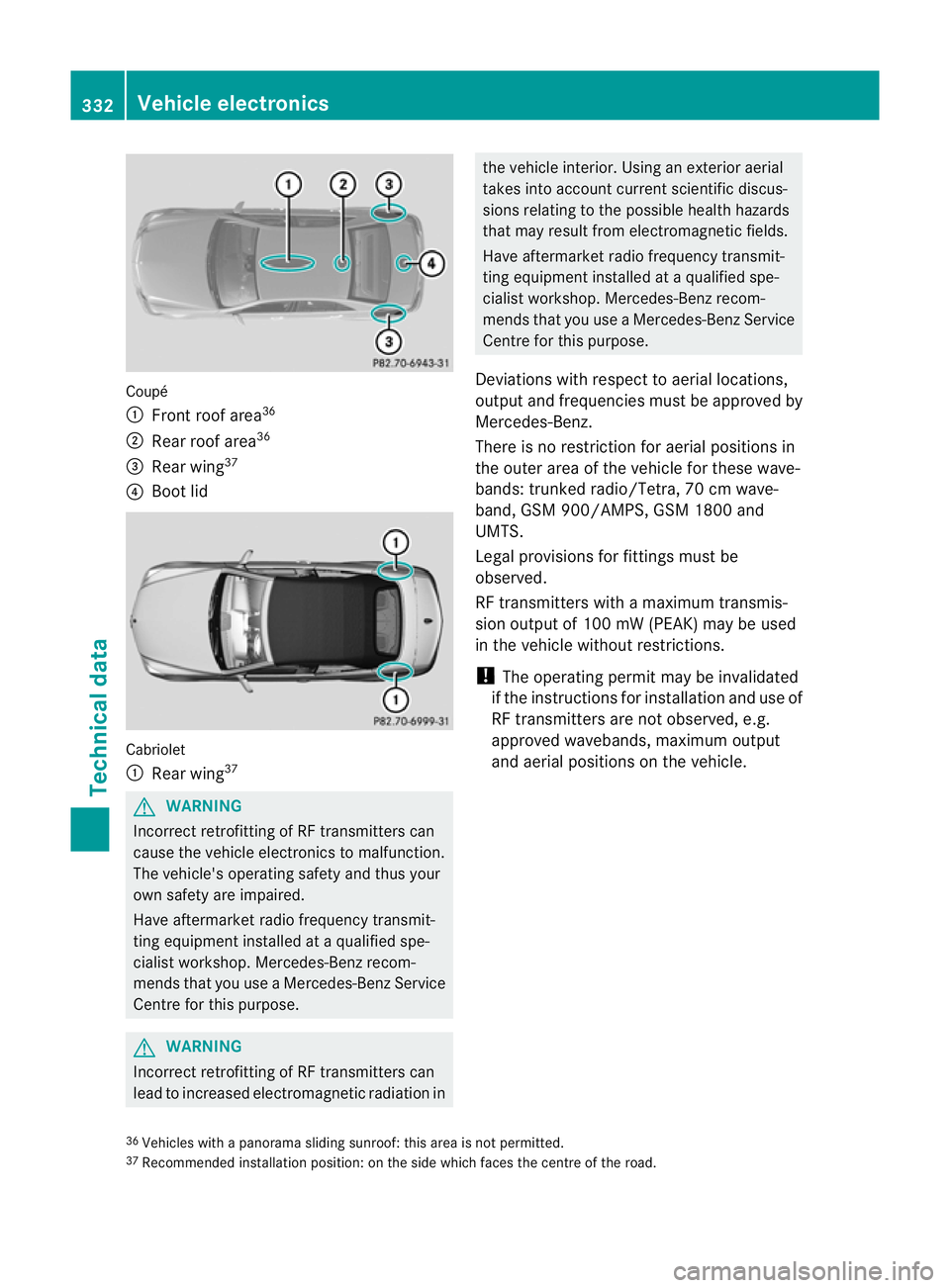

331Technical data Z

Coupé
:
Fron troo fa rea 36
; Rear roo farea 36
= Rearw ing37
? Boot lid Cabriolet
:
Rear wing 37 G
WARNING
Incorrec tretrofitting of RF transmitters can
cause the vehicle electronics to malfunction.
The vehicle's operating safet yand thus your
own safet yare impaired.
Have aftermarket radio frequenc ytransmit-
tin ge quipmen tinstalled at aquali fied spe-
cialist workshop .Mercedes-Benz recom-
mends that you use aMercedes-Benz Service
Centr efor this purpose. G
WARNING
Incorrec tretrofitting of RF transmitters can
lead to increased electromagnetic radiation in the vehicle interior. Using an exterior aerial
takes into account curren
tscientific discus-
sions relating to the possible health hazards
that may result from electromagnetic fields.
Have aftermarket radio frequenc ytransmit-
ting equipment installed at aqualified spe-
cialist workshop. Mercedes-Benz recom-
mends that you use aMercedes-Benz Service
Centr efor this purpose.
Deviations with respect to aerial locations,
output and frequencies must be approved by
Mercedes-Benz.
There is no restriction for aerial position sin
the outer area of the vehicle for these wave-
bands: trunked radio/Tetra, 70 cm wave-
band, GSM 900/AMPS, GSM 1800a nd
UMTS.
Legal provision sfor fittings must be
observed.
RF transmitters with amaximum transmis-
sion output of 100 mW (PEAK) may be used
in the vehicle without restrictions.
! The operatin gpermit may be invalidated
if the instructions for installation and use of
RF transmitters are not observed, e.g.
approved wavebands, maximum output
and aerial position sonthe vehicle.
36 Vehicles with apanorama sliding sunroof :this area is not permitted.
37 Recommended installation position: on the side which faces the centre of the road. 332
Vehicle electronicsTechnical data

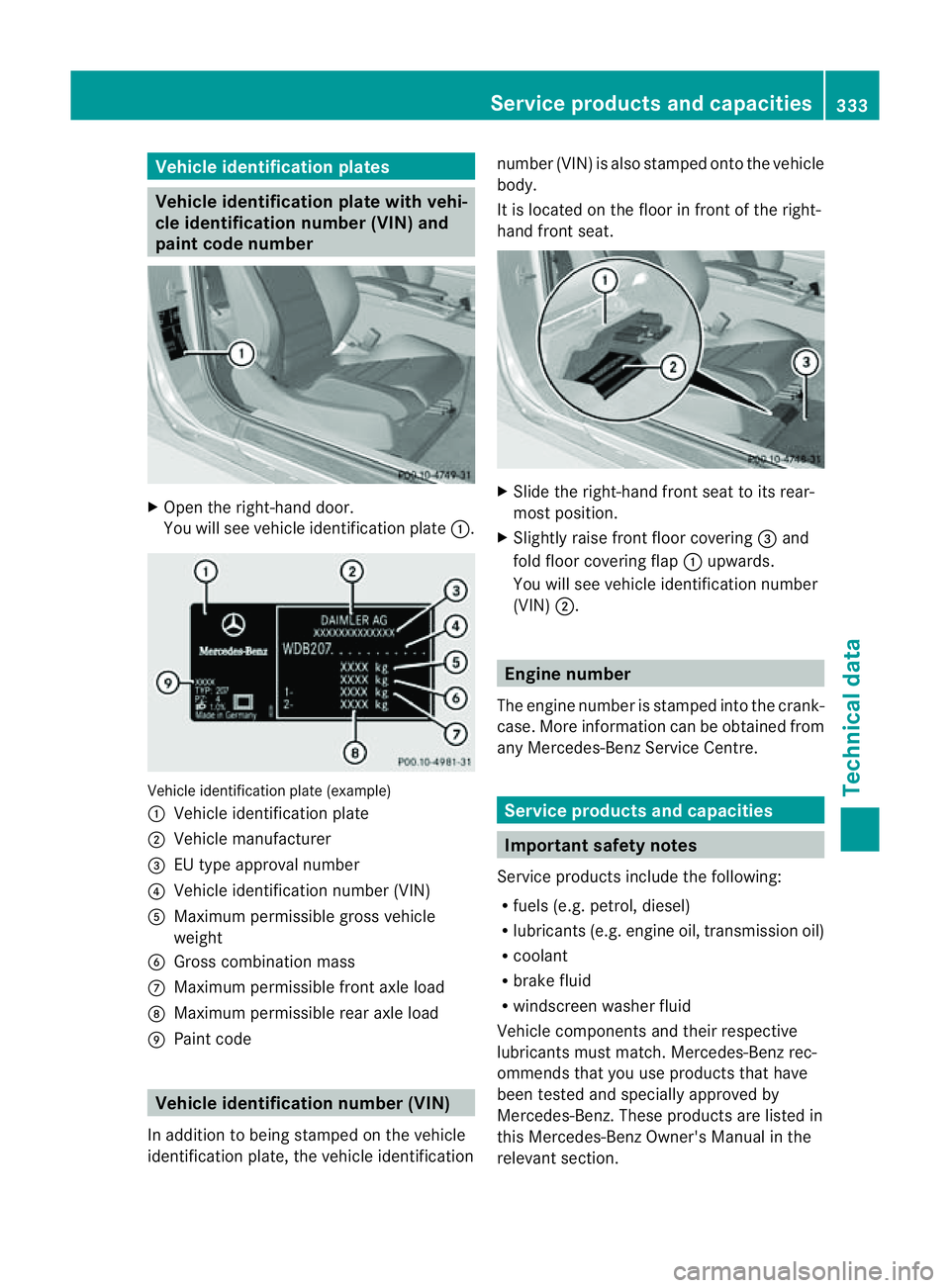

Vehicl
eidentificatio nplates Vehicl
eidentificatio nplate with vehi-
cl ei dentificatio nnumber (VIN) and
pain tcode number X
Open th eright-han ddoor.
You will see vehicle identification plate :.Vehicle identification plat
e(example)
: Vehicle identification plate
; Vehicle manufacturer
= EU type approval number
? Vehicle identification number (VIN)
A Maximum permissible gross vehicle
weight
B Gros scombinatio nmass
C Maximum permissible fron taxle load
D Maximu mpermissible rear axle load
E Paint code Vehicle identification number (VIN)
In addition to being stamped on the vehicle
identification plate, the vehicle identification number (VIN) is also stamped ontot
he vehicle
body.
It is located on the floor in fron tofthe right-
hand fron tseat. X
Slide the right-hand fron tseat to its rear-
most position.
X Slightly raise fron tfloor covering =and
fold floor coverin gflap :upwards.
You will see vehicle identification number
(VIN) ;. Engine number
The engine number is stamped int othe crank-
case. More information can be obtained from
any Mercedes-Ben zServic eCentre. Service products and capacities
Important safety notes
Servic eproducts include the following:
R fuels (e.g .petrol, diesel)
R lubricant s(e.g. engin eoil, transmission oil)
R coolant
R brake fluid
R windscreen washer fluid
Vehicle componentsa nd their respective
lubricant smust match. Mercedes-Benzr ec-
ommends that you use product sthat have
been tested and specially approved by
Mercedes-Benz.T hese productsare listed in
this Mercedes-BenzO wner's Manual in the
relevant section. Service products and capacities
333Technical data Z

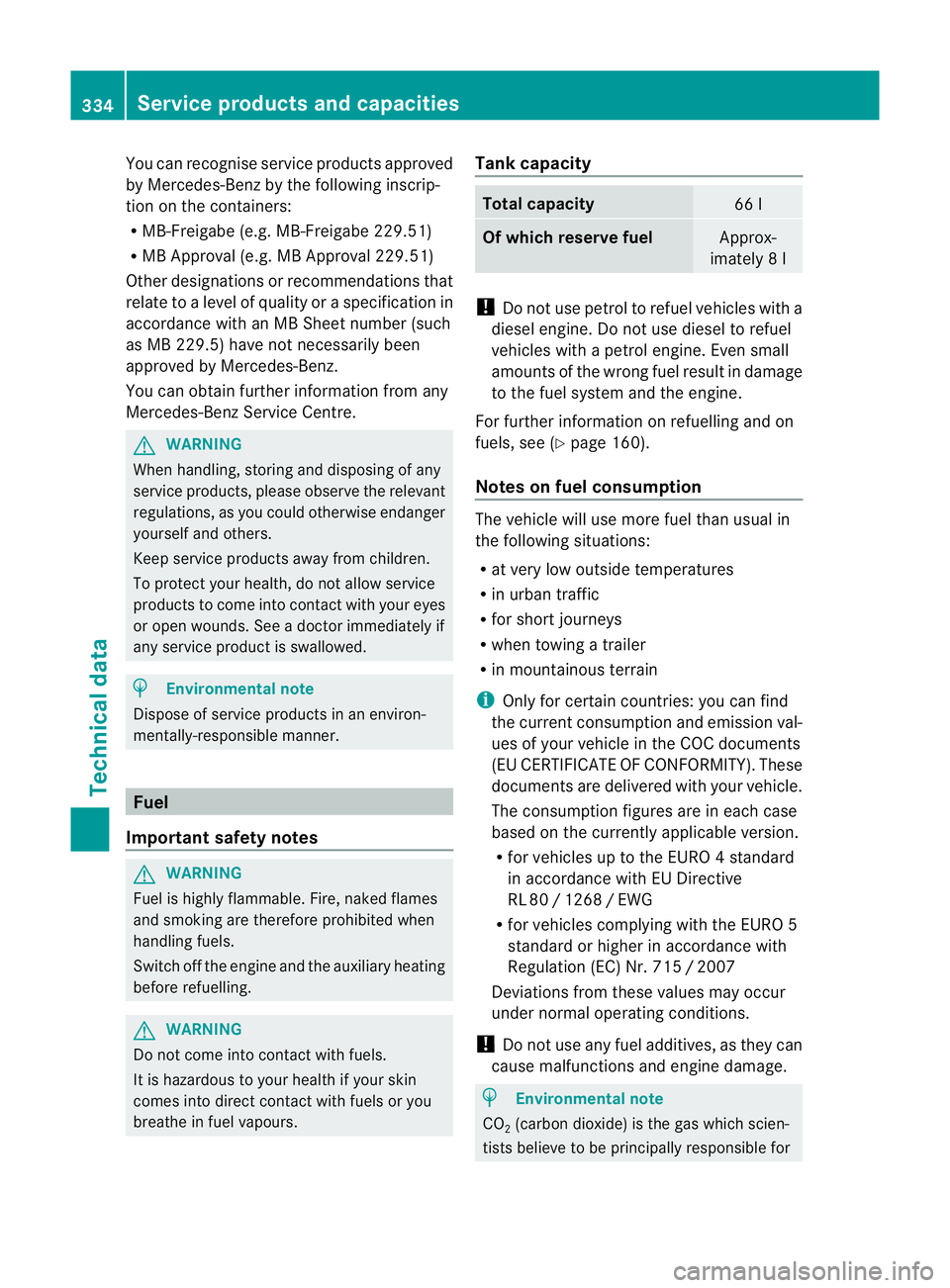

You can recognise service products approved
by Mercedes-Ben zbythefollowing inscrip-
tion on th econtaine rs:
R MB-Freigabe (e.g. MB-Freigabe 229.51)
R MB Approval (e.g. MB Approval 229.51)
Other designation sorrecommendation sthat
relat etoal evel of qualit yoras pecification in
accordance wit hanMBSheet number (such
as MB 229.5) hav enot necessarily been
approved by Mercedes-Benz.
You can obtain further information from any
Mercedes-Benz Servic eCentre. G
WARNING
When handling, storin gand disposing of any
service products, please observe the relevant
regulations, as you could otherwise endanger
yourself and others.
Keep service products away from children.
To protect your health, do not allow service
products to come into contact with your eyes
or open wounds. See adoctor immediately if
any service product is swallowed. H
Environmental note
Dispose of service products in an environ-
mentally-responsible manner. Fuel
Important safety notes G
WARNING
Fuel is highly flammable. Fire, naked flames
and smokin gare therefor eprohibited when
handling fuels.
Switch off the engine and the auxiliary heating
before refuelling. G
WARNING
Do not come into contact with fuels.
It is hazardous to your health if your skin
comes into direct contact with fuels or you
breathe in fuel vapours. Tank capacity Total capacity
66 l
Of which reserve fuel
Approx-
imately 8l !
Do not use petrol to refuel vehicles with a
diesel engine. Do not use diesel to refuel
vehicles with apetrol engine. Even small
amounts of the wrong fuel result in damage
to the fuel system and the engine.
For further information on refuelling and on
fuels, see (Y page 160).
Notes on fuel consumption The vehicle will use more fuel than usualin
the following situations:
R
at very low outside temperatures
R in urban traffic
R for short journeys
R when towing atrailer
R in mountainous terrain
i Only for certain countries: you can find
the current consumption and emission val-
ues of your vehicle in the COC documents
(EU CERTIFICATE OF CONFORMITY).T hese
documents are delivered with your vehicle.
The consumption figures are in each case
based on the currently applicable version.
R for vehicles up to the EURO 4standard
in accordance with EU Directive
RL 80 /1268 /EWG
R for vehicles complying with the EURO 5
standard or higher in accordance with
Regulation (EC) Nr. 715 /2007
Deviations from these values may occur
unde rnormal operating conditions.
! Do not use any fuel additives, as they can
cause malfunctions and engine damage. H
Environmental note

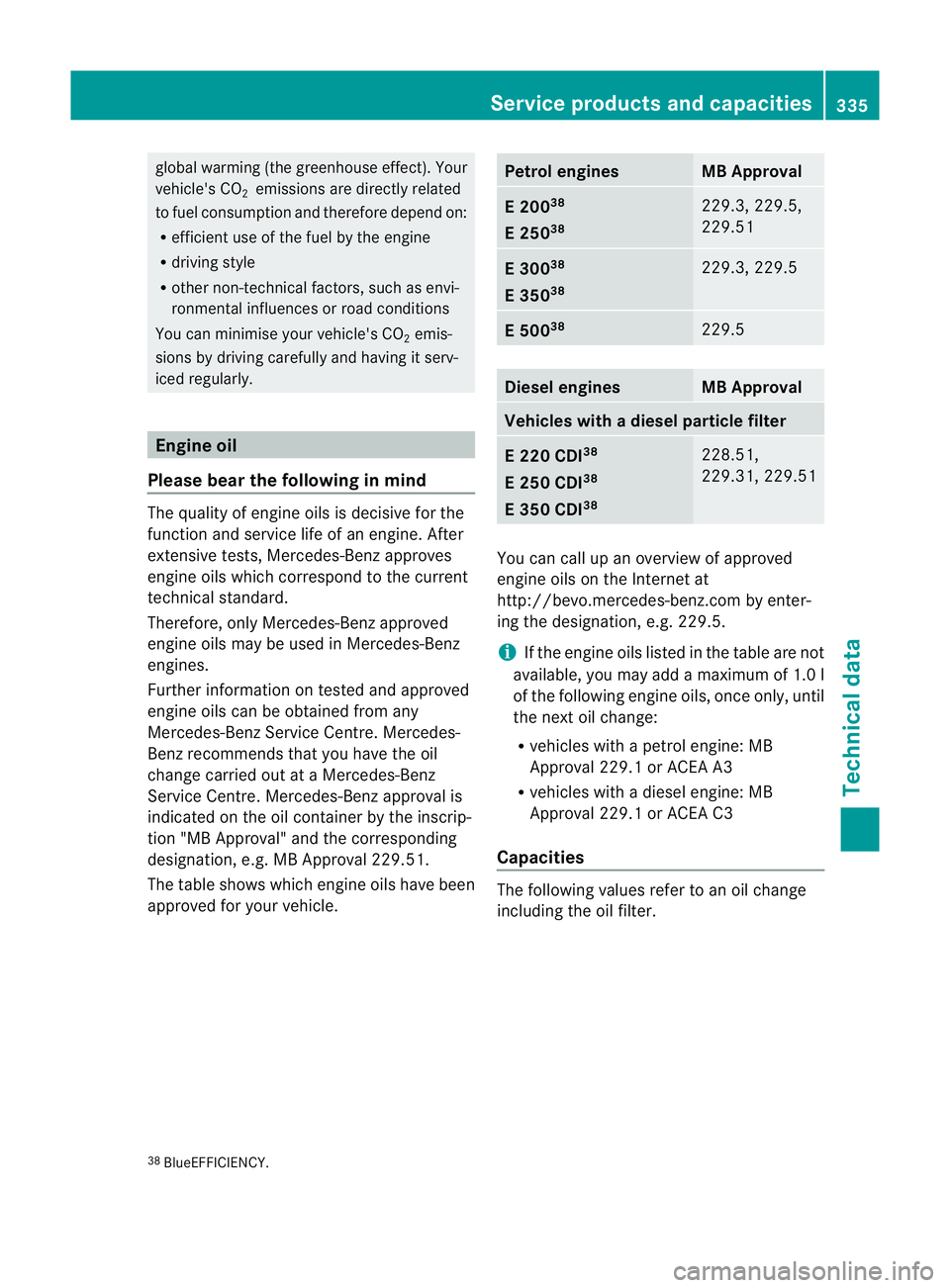

CO 2(carbon dioxide) is the gas which scien-
tists believe to be principally responsible for 334
Service products and capacitiesTechnical data

global warming (the greenhouse effect). Your
vehicle's CO 2emissions are directly related
to fuel consumption and therefor edepend on:
R efficient use of the fuel by the engine
R driving style
R other non-technical factors, such as envi-
ronmental influences or road conditions
You can minimise your vehicle's CO 2emis-
sions by driving carefully and having it serv-
iced regularly. Engine oil
Please bear the following in mind The quality of engine oils is decisive for the
function and service life of an engine. After
extensive tests, Mercedes-Benz approves
engine oils which correspon dtothe current
technical standard.
Therefore, only Mercedes-Benz approved
engine oils may be used in Mercedes-Benz
engines.
Further information on tested and approved
engine oils can be obtained from any
Mercedes-Benz Service Centre. Mercedes-
Benz recommends that you have the oil
change carried out at aMercedes-Benz
Service Centre. Mercedes-Benz approval is
indicated on the oil container by the inscrip-
tion "MB Approval" and the corresponding
designation, e.g. MB Approval 229.51.
The table shows which engine oils have been
approved for your vehicle. Petrol engines MB Approval
E2
0038
E2 5038 229.3, 229.5,
229.51
E3
0038
E3 5038 229.3, 229.5
E5
0038 229.5
Diesele
ngines MB Approval
Vehicles with
adiesel particle filter E2
20 CDI 38
E2 50 CDI 38
E3 50 CDI 38 228.51,
229.31, 229.51
You can call up an overview of approved
engin
eoils on the Internet at
http://bevo.mercedes-benz.com by enter-
ing the designation ,e.g. 229.5.
i If the engin eoils listed in the table are not
available, you may add amaximum of 1. 0l
of the following engine oils, once only, until
the next oil change:
R vehicles with apetrol engine: MB
Approval 229.1orA CEA A3
R vehicles with adiesel engine: MB
Approval 229.1orA CEA C3
Capacities The following values refer to an oil change
including the oil filter.
38 BlueEFFICIENCY. Service products and capacities
335Technical data Z

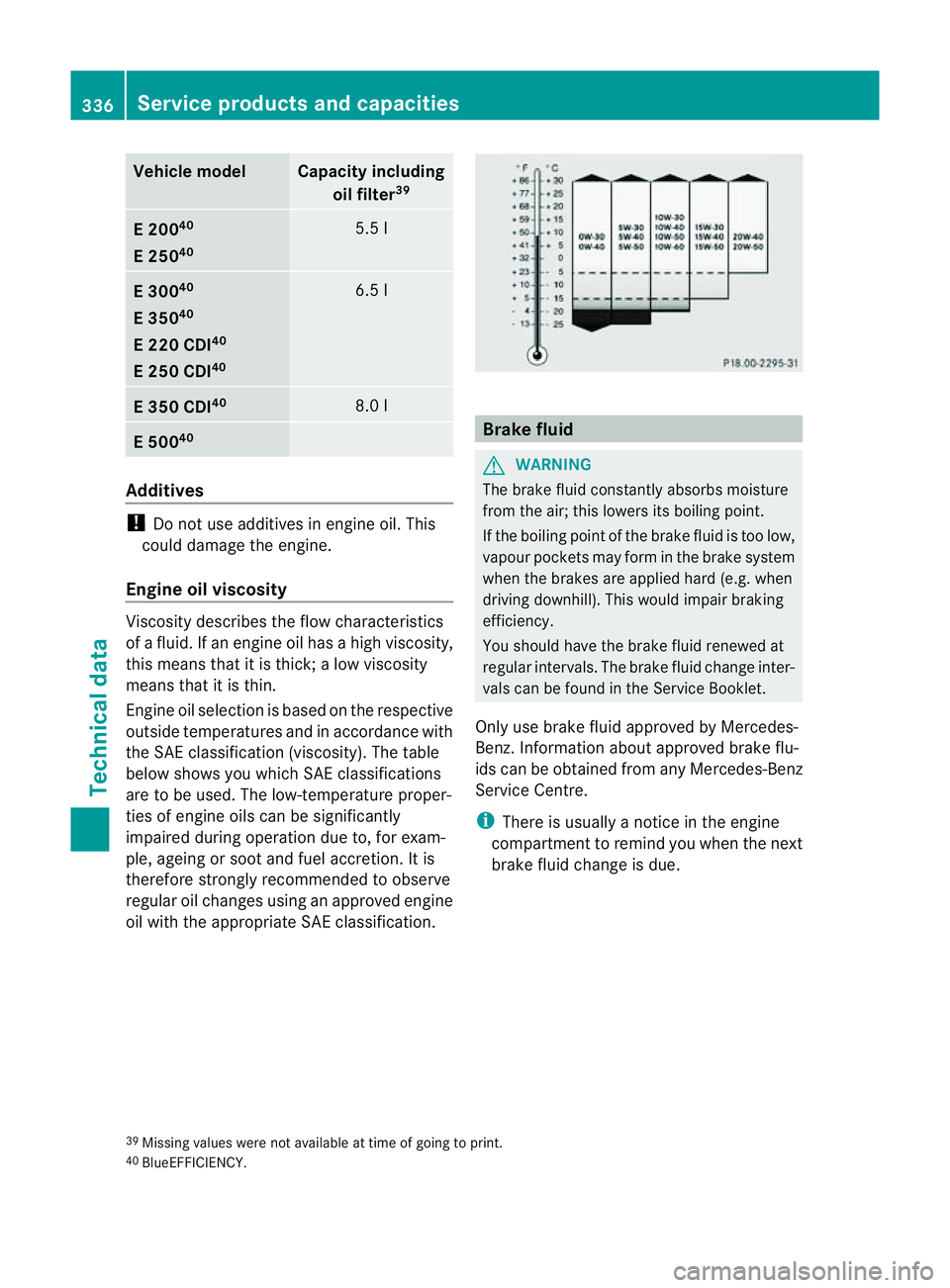

Vehicl
emodel Capacity including
oilf ilter 39 E2
0040
E2 5040 5.5 l
E3
0040
E3 5040
E2 20 CDI 40
E2 50 CDI 40 6.5 l
E3
50 CDI 40 8.0 l
E5
0040 Additives
!
Do not us eaddit ivesine ngine oil. This
could damag ethe engine.
Engine oi lviscosity Viscosity describe
sthe flo wcharacteristics
of afluid .Ifane ngine oi lhas ah ighv iscosity,
thi sm eans tha titisthick;alow viscosity
means that it is thin.
Engine oil selection is based on the respective
outside temperatures and in accordance with
the SAE classification (viscosity). The table
below shows you which SAE classifications
are to be used. The low-temperature proper-
ties of engine oils can be significantly
impaired during operation due to, for exam-
ple, ageing or soot and fuel accretion. It is
therefore strongly recommended to observe
regularo il changes using an approved engine
oil with the appropriate SA Eclassification. Brake fluid
G
WARNING
The brak efluid constantly absorb smoisture
fro mt he air; this lowers its boiling point.
If the boiling point of the brake fluid is too low,
vapour pockets may form in the brake system
when the brakes are applied hard (e.g. when
driving downhill). This would impair braking
efficiency.
You should have the brake fluid renewed at
regular intervals. The brake fluid change inter-
vals can be found in the Service Booklet.
Only use brake fluid approved by Mercedes-
Benz.I nformation about approved brake flu-
ids can be obtained from any Mercedes-Benz
Service Centre.
i There is usually anotic eint he engine
compartmenttor emind you when the next
brake fluid change is due.
39 Missing values were not availabl eattime of going to print.
40 BlueEFFICIENCY. 336
Service product
sand capacitiesTechnical data

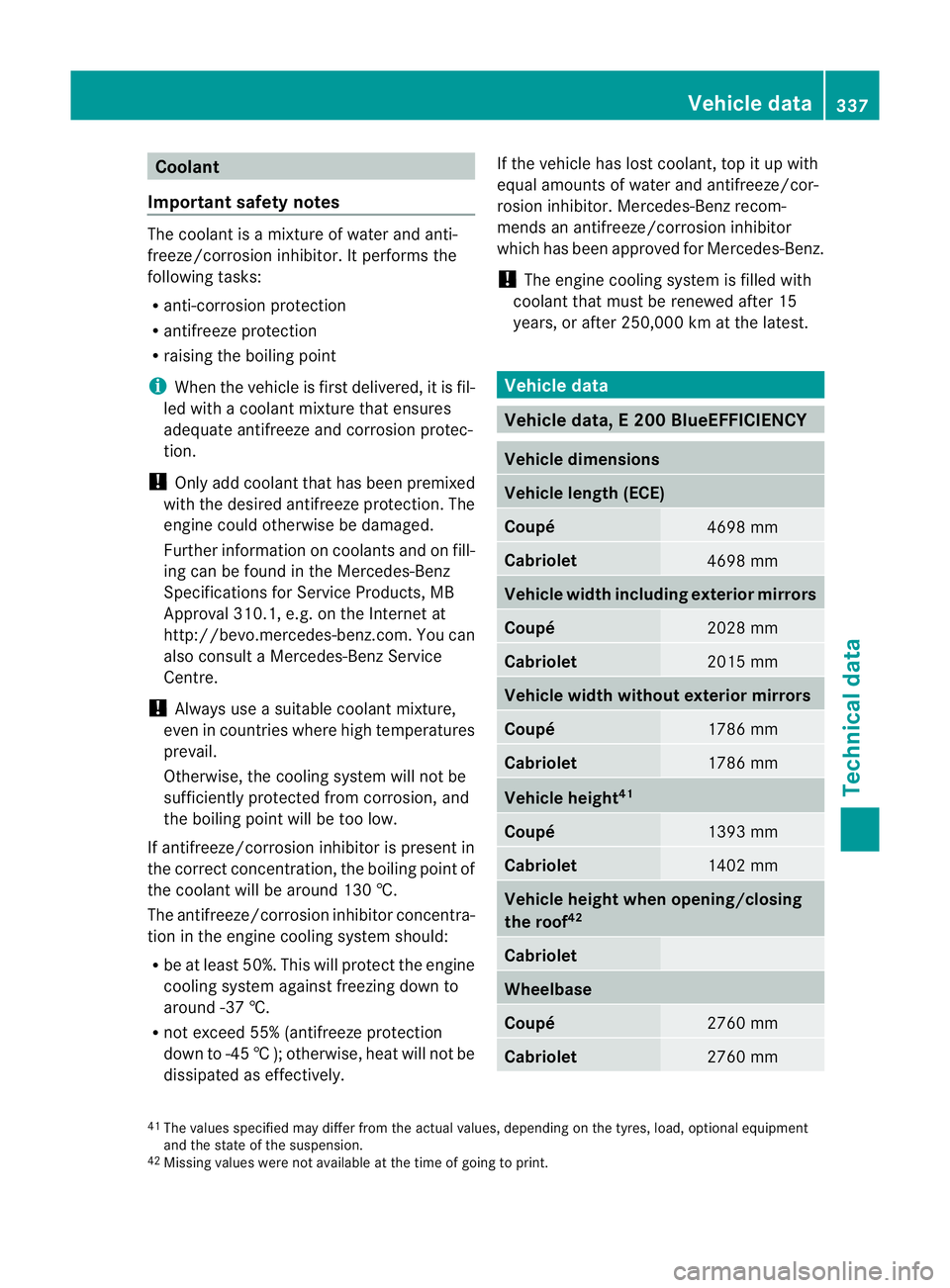

Coolant
Important safety notes The coolan
tisamixture of water and anti-
freeze/corrosion inhibitor. It performs the
following tasks:
R anti-corrosion protection
R antifreeze protection
R raising the boiling point
i When the vehicle is first delivered, it is fil-
led with acoolant mixture that ensures
adequate antifreeze and corrosion protec-
tion.
! Only add coolant that has been premixed
with the desired antifreeze protection. The
engine could otherwise be damaged.
Further information on coolants and on fill-
ing can be found in the Mercedes-Benz
Specifications for Service Products, MB
Approval 310.1,e .g. on the Internet at
http://bevo.mercedes-benz.com .You can
also consult aMercedes-Benz Service
Centre.
! Always use asuitable coolant mixture,
even in countries where high temperatures
prevail.
Otherwise, the cooling system will not be
sufficiently protected from corrosion ,and
the boiling point will be too low.
If antifreeze/corrosion inhibitor is present in
the correc tconcentration, the boiling point of
the coolant will be around 130 †.
The antifreeze/corrosion inhibitor concentra-
tion in the engine cooling system should:
R be at least 50%. This will protec tthe engine
cooling system against freezing down to
around -37 †.
R not exceed 55% (antifreeze protection
down to -45 †);otherwise, heat will not be
dissipated as effectively. If the vehicle has lost coolant, top it up with
equal amount
sofwater and antifreeze/cor-
rosion inhibitor. Mercedes-Benz recom-
mends an antifreeze/corrosion inhibitor
which has been approved for Mercedes-Benz.
! The engin ecoolin gsystem is filled with
coolan tthat must be renewed after 15
years, or after 250,000 km at the latest. Vehicle data
Vehicle data,
E200 BlueEFFICIENCY Vehicle dimensions
Vehicle length (ECE)
Coupé
469
8mm Cabriolet
469
8mm Vehicle width including exterior mirrors
Coupé
202
8mm Cabriolet
201
5mm Vehicle width withou
texterior mirrors Coupé
178
6mm Cabriolet
178
6mm Vehicle height
41 Coupé
139
3mm Cabriolet
140
2mm Vehicle height when opening/closing
ther
oof42 Cabriolet
Wheelbase
Coupé
276
0mm Cabriolet
276
0mm 41
The values specified may differ from the actual values, dependin gonthe tyres ,load, optional equipment
and the stat eofthe suspension.
42 Missin gvalues were not available at the time of going to print. Vehicle data
337Technical data Z
