The integrated filter can filter out most
particles of dust and completely filters out
pollen. Aclogged filter reduces the amount
of air supplied to the vehicle interior. For
this reason, you should alway sobserve the
interval for replacing the filter, which is
specified in the Servic eBooklet .Asit
depends on environmental conditions, e.g.
heavy air pollution, the interval may be
shorter than stated in the Servic eBooklet. G
Risk of accident
Observe the settings recommended on the
following pages. Otherwise, the windows
could mist up. This may obstruct your view of
the traffic situation and, as aresult, you may
cause an accident. Overview of air-conditioning system functions

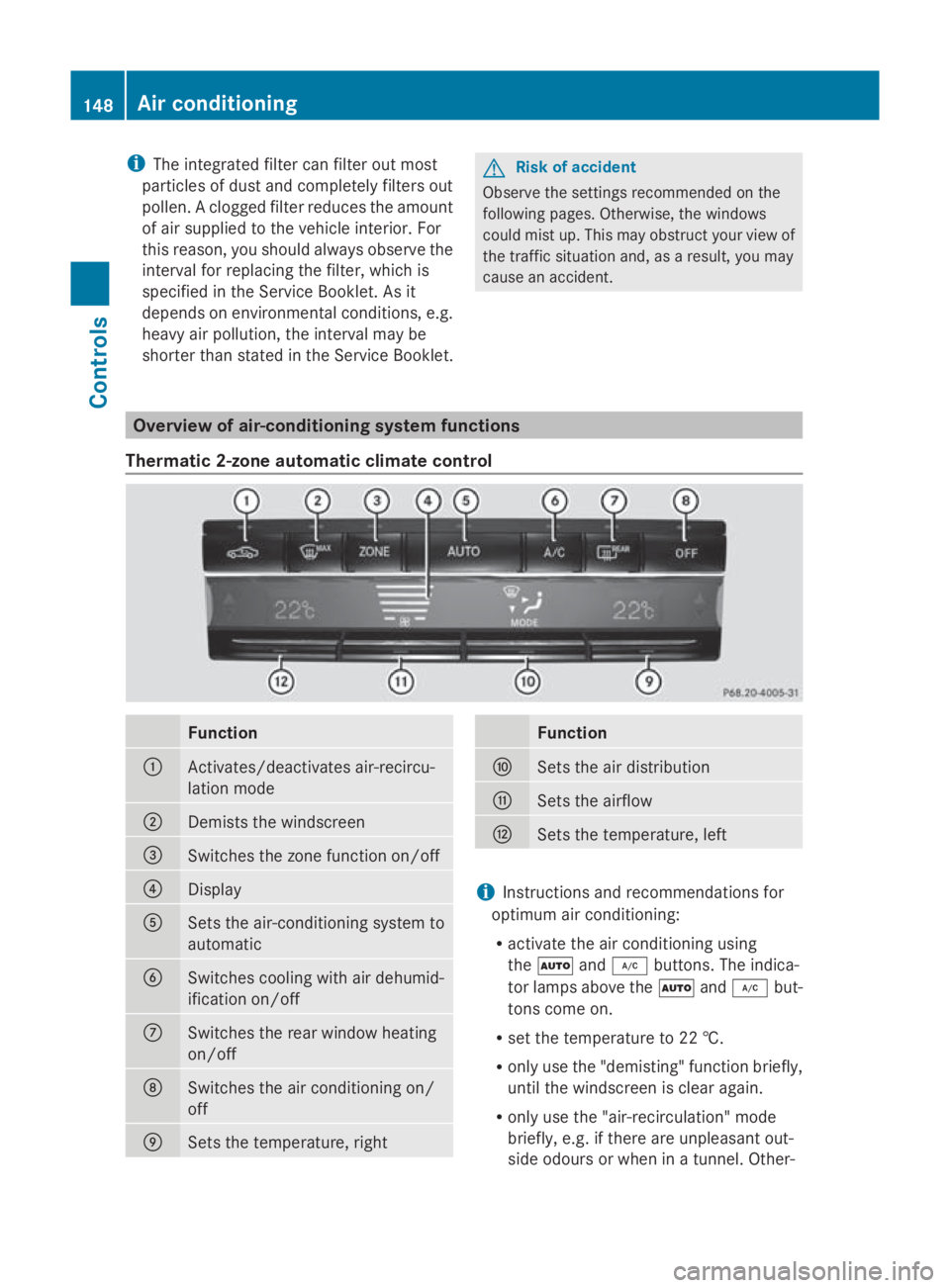

Thermatic 2-zone automatic climate control Function
0046
Activates/deactivates air-recircu-
lation mode
0047
Demist
sthe windscreen 008A
Switches the zonef
unction on/off0088
Display
0086
Sets the air-conditioning system to
automatic
0087
Switches cooling with air dehumid-
ification on/off
006E
Switches the rear window heating
on/off
006F
Switches the air conditioning on/
off
0070
Sets the temperature, right Function
0071
Sets the air distribution
0072
Sets the airflow
0073
Sets the temperature, left
i
Instruction sand recommendations for
optimum air conditioning:
R activat ethe air conditioning using
the 005A and005C buttons. The indica-
tor lamps above the 005Aand005C but-
tonsc ome on.
R set the temperature to 22 †.
R only use the "demisting" function briefly,
until the windscreen is clear again.
R only use the "air-recirculation" mode
briefly, e.g. if there are unpleasant out-
side odours or when in atunnel. Other- 148
Air conditioningControls
207_AKB; 2; 3, en-GB
mkalafa,
Version: 2.11.8.1 2009-07-23T10:23:49+02:00-Seite 148

wise, th
ewindows could mist up due to
al ack of fresh air.
R use th e"ZONE "function to adopt the
temperature settings on th edriver's side for th
efront-passenger side as well. The
indicator lamp above the 00D8button
goes out.

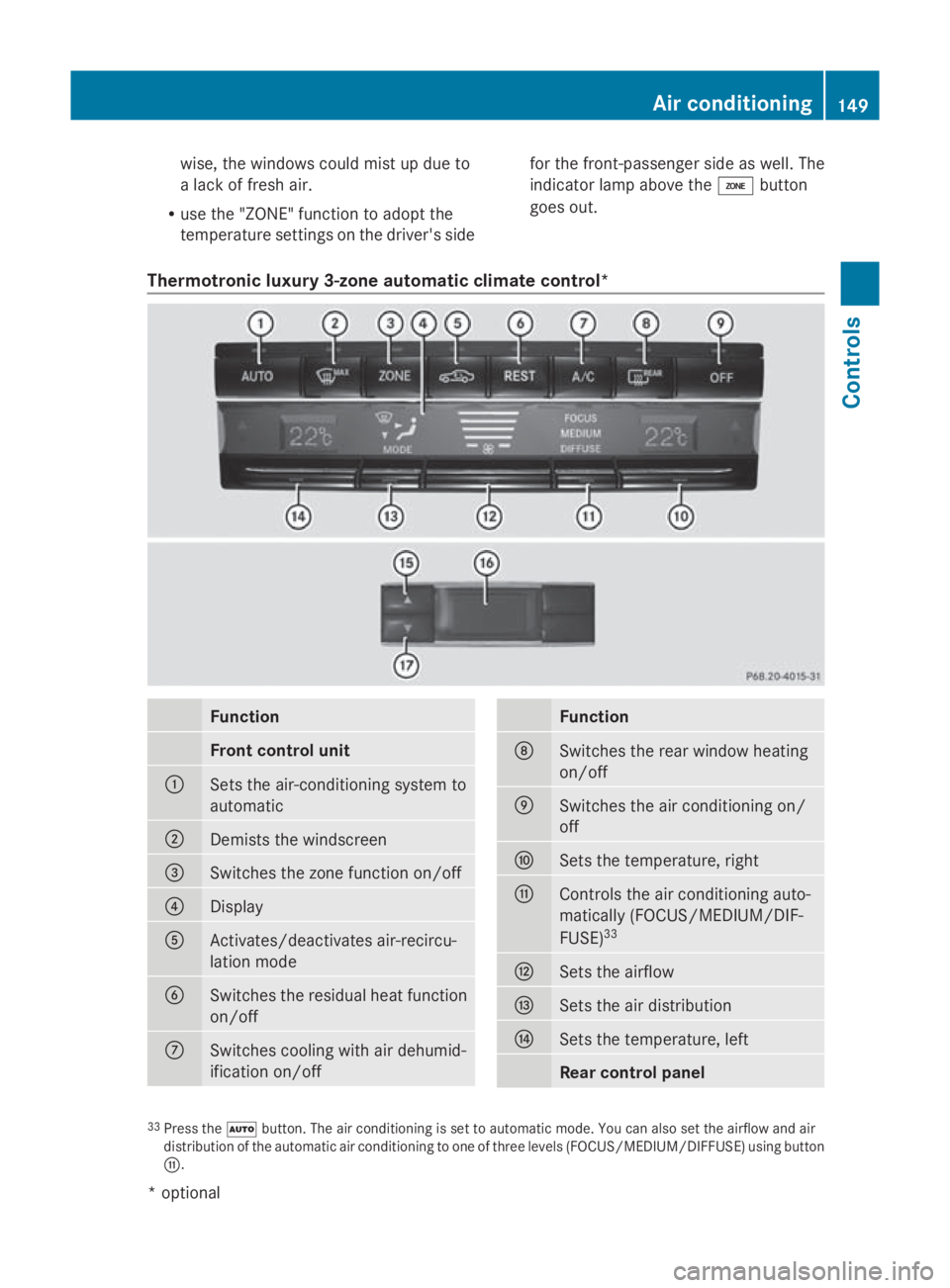

Thermotronic luxury 3-zone automatic climate control* Function
Front control unit
0046
Set
sthe air-conditioning system to
automatic 0047
Demist
sthe windscreen 008A
Switche
sthe zone function on/off 0088
Display
0086
Activates/deactivates air-recircu-
latio
nmode 0087
Switche
sthe residual heat function
on/off 006E
Switche
scooling with air dehumid-
ificatio non/off Function
006F
Switche
sthe rear windo wheating
on/off 0070
Switche
sthe air conditioning on/
off 0071
Set
sthe temperature, right 0072
Controls th
eair conditioning auto-
matically (FOCUS/MEDIUM/DIF-
FUSE) 33 0073
Set
sthe airflow 0074
Set
sthe air distribution 0075
Set
sthe temperature, left Rea
rcontrol panel 33
Pres sthe 005A button. The air conditioning is set to automatic mode .You can also set th eairflow and air
distribution of th eautomatic air conditioning to one of three level s(FOCUS/MEDIUM/DIFFUSE )usin gb utton
0072. Air conditioning
149Controls
*optional
207_AKB; 2; 3, en-GB
mkalafa,
Version:2.11.8.1
2009-07-23T10:23:49+02:00
-Seite1 49 Z

Function
0076
Increases th
etem perature 0077
Display
0078
Reduces th
etem perature i
Instructions and recommendation sfor
optimum air conditioning:
R activat ethe air conditioning using
the 005A and005C buttons .The indica-
to rlamps abov ethe 005A and005C but-
tons come on .You can also set th eair-
flo wa nd air distribution of th eautomatic
air conditioning to on eofthree levels
(FOCUS/MEDIUM/DIFFUSE). You can
set th edesired leve lusin gbutton 0072.The
MEDIUM leve lisrecommended.
R set th etem perature to 22 †.
R only use th e"demisting "function briefly,
until th ewindscree nisclear again.
R only use th e"air-recirculation "mode
briefly, e.g. if there are unpleasan tout-
side odour sorwhen in atunnel. Other-
wise, th ewindows could mis tupdue to
al ack of fresh air.
R use th e"ZONE "function to adopt the
temperature settings on th edriver' sside
for th efront-pa ssenger side and th erear
compartmen taswell. The indicator lamp
abov ethe 00D8 buttongoes out.
R use th e"residual heat "function if you
want to heat or ventilate th evehicle inte-
rior when th eignition is switched off .The
"residual heat "function can only be acti-
vated or deactivate dwitht he ignition
switched off. Switching th
eair conditioning on/off
i When th eair conditioning is switched off,
th ea ir supply and air circulation are also switched off
.Onlys elect this settin gbriefly,
otherwise th ewindows may mis tup.
i Activate th eair conditioning primarily
usin gthe 005A button(Ypage 151).
X Turn th ekeyto position 2in th eignition
lock.
X To activate: press the005Abutton.
The indicator lamp abov ethe 005A button
light sup. Airflo wand air distribution are set
to automatic mode.
or
X Press the 0061button.
The indicator lamp abov ethe 0061 button
goes out .The previously selected settings
come int oeffect again.
X To switch off: press the0061button.
The indicator lamp abov ethe 0061 button
light sup. Switching cooling with air dehumidi-
ficatio
non/off
The "coolin gwitha ir dehumidification "func-
tio niso nlya vailable when th eengineisr un-
ning. The air inside th evehicle is cooled and
dehumidified according to th etem perature
selected. G
Ris
kofa ccident
If th e"coolin gwitha ir dehumidification "func-
tio nisd eactivated, th eair inside th evehicle
will no tbecooled (during warm weather )or
dehumidified. The windows could mis tup
mor equickly. This may preven tyou from
observing th etraffic conditions, thereby caus-
ing an accident.
Condensation may drip from th eunderside of
th ev ehicle when Thermatic is in cooling
mode. 150
Air conditioningControls
207_AKB
;2;3,en-GB
mkalafa ,V ersion: 2.11.8.1
2009-07-23T10:23:49+02:00
-Seite 150

X
To activate: press the005Cbutton.
The indicator lamp above the 005Cbutton
come son.
X To switc hoff:press the 005Cbutton.
The indicator lamp above the 005Cbutton
goe sout.T he cooling with ai rdehumidifi-
cation functio nhasad elayed switch-off
feature. Controllin
gthe air conditioning auto-
matically
In automatic mode, the set temperatur eis
maintaine dautomaticall yataconstant level.
The system automaticall yregulate sthe tem-
peratur eofthe dispensed air, the airflow and
the ai rdistribution.
The automatic ai rconditioning will achieve
optima lope ratio nif" cooling with ai rdehu-
midification" is also activated .Ifnecessary,
cooling with ai rdehumidifica tion can be deac-
tivated.
X Turn the key to position 2in the ignition
lock.
X Set the desired temperature.
X To switc hon:press the 005Abutton.
The indicator lamp above the 005Abutton
lights up .Automatic ai rdistributio nand air-
flo wa reactivated.
X Thermotroni c3-zone luxur yautomatic cli-
mate control* :press button 0072up or down
and select the desired level (Y page 149).
FOCUS Air flo whigh/ai rdistributio nvia
the centre and side vents
MEDIU MAir flow medium/air distribution
via the centr eand side vents
DIFFUSE Air flow low/air distribution via the centre, side and defroster vents
i This settin gisespecially effective in auto-
matic mode when outside temperatures
are high.
X To deactivate: press the air distribution
button. Thermatic 2-zon
eautomatic climate con-
trol: press button 0071(Ypage 148).
Thermotronic 3-zon eluxury automatic cli-
mat econtrol*: press button 0074
(Y page 149).
The indicator lamp above the 005Abutton
goes out.
or
X Press the airflow button.
Thermatic 2-zon eautomatic climate con-
trol: press button 0072(Ypage 148).
Thermotronic 3-zon eluxury automatic cli-
mat econtrol*: press button 0073
(Y page 149).
The indicator lamp above the 005Abutton
goes out. Setting th
etemperature
2-zone THERMATIC automatic air condi-
tioning Different temperatures can be set for the
driver's and front-passenger sides.
X
Turn the key to position 2in the ignition
lock.
X To increase/reduce: press button0070or
0073 up or down ( Ypage 148). Only change
the temperature settin ginsmall incre-
ments .Start at 22 †. Air conditioning
151Controls
*optional
207_AKB; 2; 3, en-GB
mkalafa,
Version: 2.11.8.1 2009-07-23T10:23:49+02:00-Seite1 51 Z

THERMOTRONI
Cluxury 3-zone auto-
matic climate control* Climate zone
sofTHERMOTRONIC luxur y3-zone
automatic climate control*
Yo uc an select different temperatur esettings
for the driver's and front-passenge rsides as
well as for the rea rcompartment.
X Turn the key to position 2in the ignition
lock.
X To increase/reduc etemperature in the
front compartment: press button0071or
0075 up or down (Y page 149).Onlyc hange
the temperatur esetting in small incre-
ments .Star tat2 2†.
X To increase/reduc etemperature in the
rear compartment: press the00D8button
(Y page 149).
The indicator lamp above the 00D8button
goes out.
X Press button 0071or0075 up or down
(Y page 149) .Onlyc hange the temperature
setting in small increments. Star tat2 2†.
X To increase/reduc erear-compartment
temperature using the rear control
unit: press button 0076or0078 (Ypage 149).
Onl ychange the temperatur esetting in

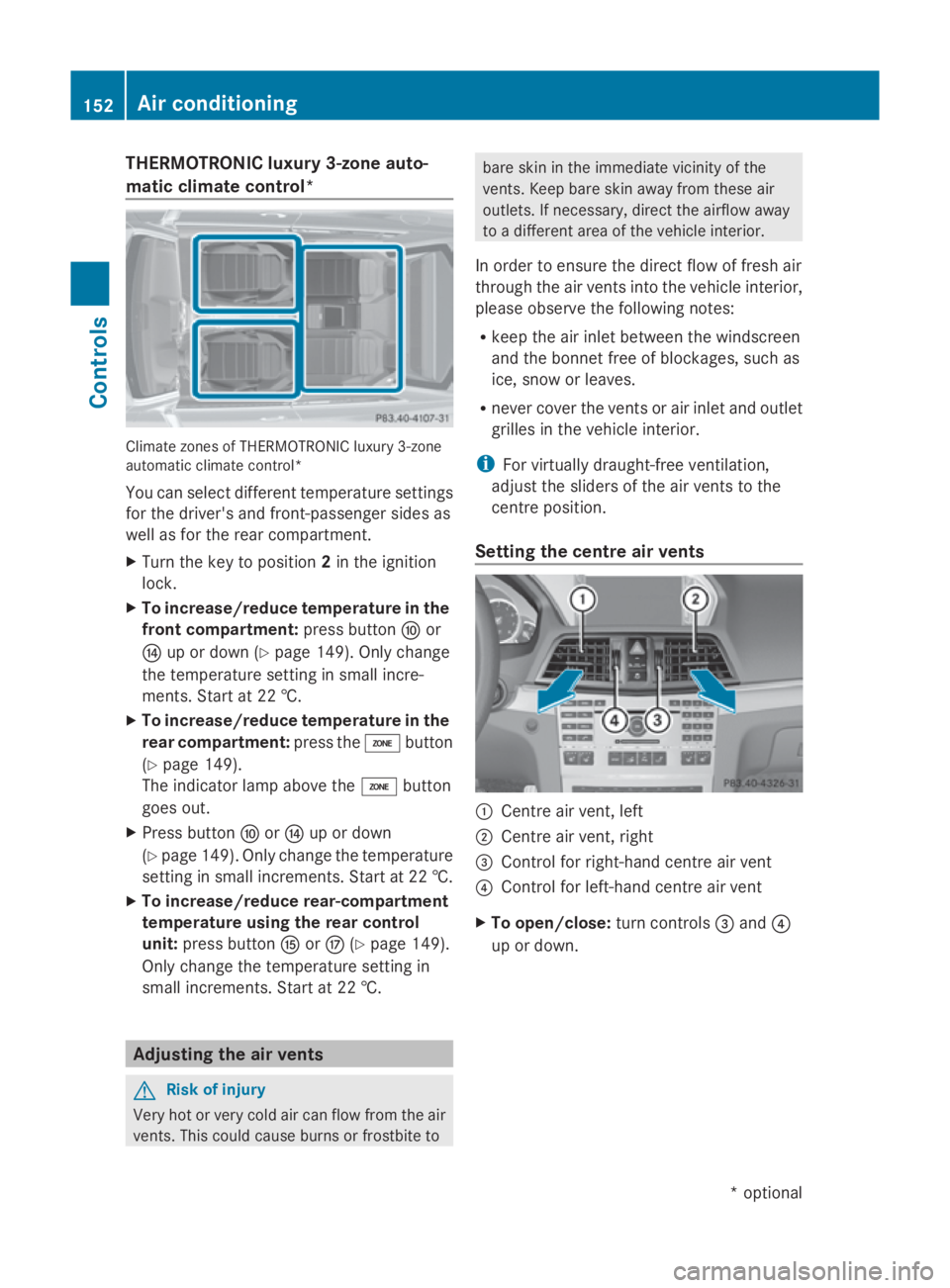

small increments. Star tat2 2†. Adjusting the air vents
G
Ris
kofi njury
Ver yhot or ver ycolda ircan flo wfromt he air
vents .Thisc ould cause burns or frostbite to bare ski
ninthe immediate vicinity of the
vents .Keepb ares kina wayfromt hese air
outlets. If necessary ,direct the airflow away
to ad ifferent area of the vehicl einterior.
In order to ensur ethe direct flo woffresh air
throug hthe ai rvents into the vehicl einterior,
please observe the following notes:
R kee pthe ai rinlet between the windscreen
and the bonnet fre eofblockages, such as
ice ,snow or leaves.
R neve rcove rthe vents or ai rinlet and outlet
grilles in the vehicl einterior.
i For virtuall ydraught-fre eventilation,
adjus tthe sliders of the ai rvents to the
centre position.
Settin gthe centre air vents 0046
Centre ai rvent, left
0047 Centre ai rvent, right
008A Control for right-hand centre ai rvent
0088 Control for left-hand centre ai rvent
X To open/close: turnc ontrols 008Aand 0088
up or down. 152
Ai
rc onditioningControls
*optional
207_AKB; 2; 3, en-GB
mkalafa
,V ersion: 2.11.8.1
2009-07-23T10:23:49+02:00
-Seite 152

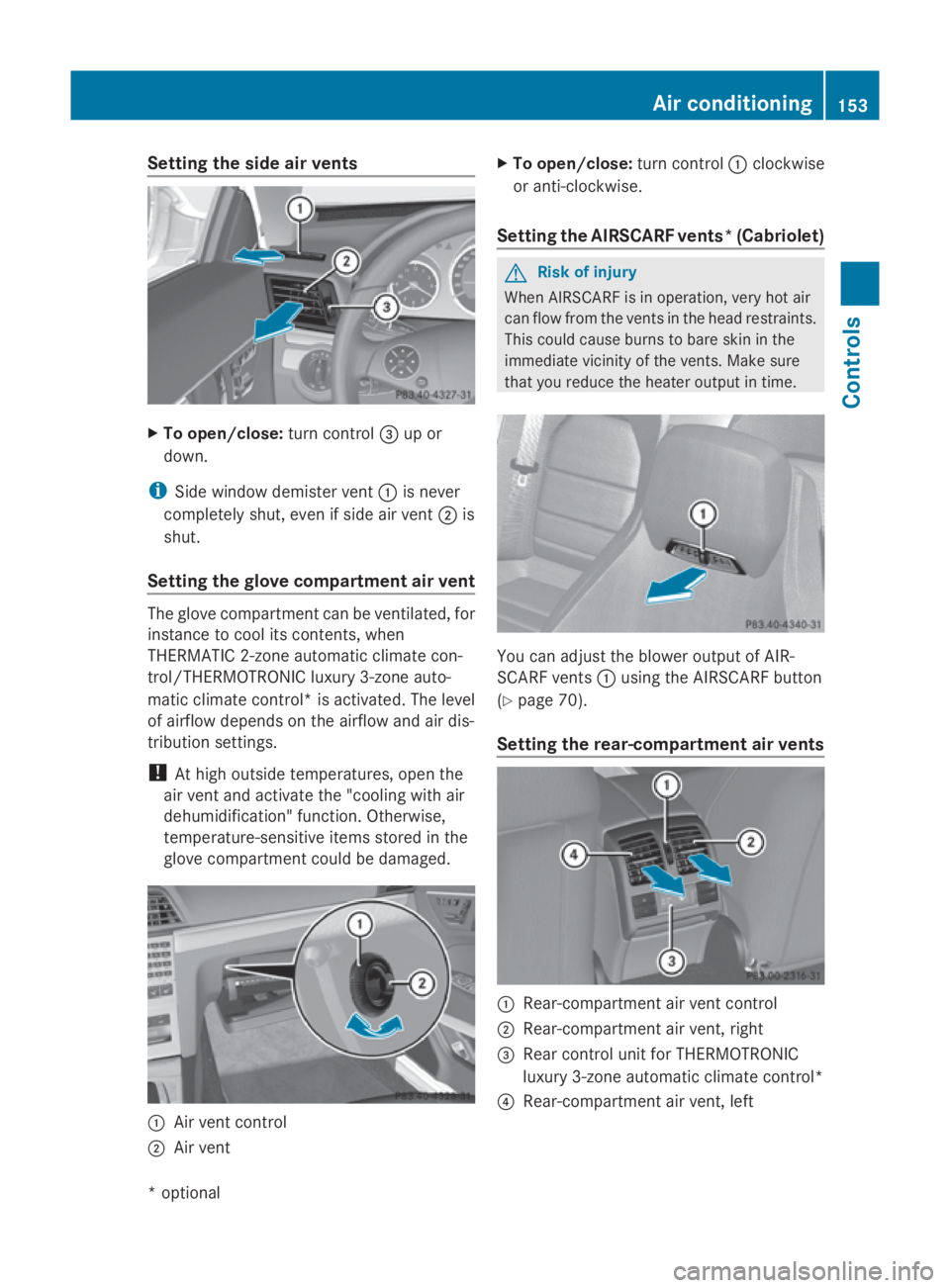

Setting the side air vents
X
To open/close: turn control008Aup or
down.
i Side window demister vent 0046is never
completely shut, even if side air vent 0047is
shut.
Setting the glove compartment air vent The glove compartmen
tcan be ventilated, for
instancetoc ool its contents, when
THERMATIC 2-zone automatic climate con-
trol/THERMOTRONIC luxury 3-zone auto-
matic climate control* is activated. The level
of airflow depends on the airflow and air dis-
tribution settings.
! At high outside temperatures, open the
air vent and activate the "cooling with air
dehumidification" function. Otherwise,
temperature-sensitive items stored in the
glove compartmen tcould be damaged. 0046
Air vent control
0047 Air vent X
To open/close: turn control0046clockwise
or anti-clockwise.
Setting the AIRSCARF vents* (Cabriolet) G
Risk of injury
When AIRSCARF is in operation, very hot air
can flow from the ventsint he head restraints.
This could cause burns to bare skin in the
immediate vicinity of the vents. Make sure
that you reduce the heater output in time. You can adjust the blower output of AIR-
SCARF vents
0046using the AIRSCARF button
(Y page 70).
Setting the rear-compartment air vents 0046
Rear-compartmen tair vent control
0047 Rear-compartmen tair vent,r ight
008A Rear control unit for THERMOTRONIC
luxury 3-zone automatic climate control*
0088 Rear-compartmen tair vent,l eft Air conditioning
153Controls
*optional
207_AKB; 2; 3, en-GB
mkalafa,
Version: 2.11.8.1 2009-07-23T10:23:49+02:00-Seite 153 Z

X
To open/close: turnc ontrol 0046up or
down. Settin
gthe air distribution
0063 directs the airflow throug hthe demis-
ter vents
009E directs the airflow throug hthe centre
and side ai rvents
009D directs the airflow throug hthe footwell
ai rv ents
00A1 directs the airflow throug hthe centre
and side ai rvents as well as the foot-
well ai rvents 34
0089 directs the airflow throug hthe centre
and side ai rvents ,asw ellast he demis-
ter vents
0088 directs the airflow throug hthe footwell
and demister vents
i Regardless of the ai rdistributio nsetting,
airflow is always directe dthroug hthe side
ai rv ents .The side ai rvents can onl ybe
closed when the controls on the side air
vents ar eturned downwards.
2-zone THERMATIC automatic air condi-
tioning X
Turn the key to position 2in the ignition
lock.
X Press button 0071up or down repeatedly
unti lthe desired symbo lappears in the dis-
play (Y page 148).
THERMOTRONIC 3-zone luxury auto-
matic climate control* X
Turn the key to position 2in the ignition
lock.
X Press button 0074up or down repeatedly
unti lthe desired symbo lappears in the dis-
play (Y page 149). Settin
gthe airflow
Thermati c2-zone automatic climate
control X
Turn the key to position 2in the ignition
lock.
X To increase/reduce: press button0072up
or down (Y page 148).
Thermotronic 3-zone luxury automatic
climate control* X
Turn the key to position 2in the ignition
lock.
X To increase/reduce: press button0073up
or down (Y page 149). Switchin
gthe ZONE function on/off
X To activate: press the00D8butt-
ton ( Ypage 148) ,(Ypage 149).
The indicator lamp above the 00D8button
lights up.
Thermatic 2-zone automatic climate con-
trol :the temperatur esetting for the driver's
side is not adopted for the front-passenger
side.
Thermotroni clux ury3 -zone automatic cli-
mate control* :the temperatur esetting on
the driver's side is not adopted for the
front-passenger side or the rea rcompart-
ment.
Whe nthe buttons for temperature, airflow or
ai rd istributio nareactivated ,the temperature
setting on the driver's side is not adopted for
the othe rairconditioning zones.
X To deactivate: press the00D8button
(Y page 148) ,(Ypage 149).
The indicator lamp above the 00D8button
goe sout.
Thermatic 2-zone automatic climate con-
trol :the temperatur esetting for the driver's
34 Thi sairdistributio nsetting is onl yavailable on the Cabriolet. 154
Ai
rc onditioningControls
*optional
207_AKB; 2; 3, en-GB
mkalafa,
Version: 2.11.8.1 2009-07-23T10:23:49+02:00-Seite 154

side is not adopted for the front-passenger
side.
Thermotronic luxury 3-zone automatic cli-
mate control*: the temperature setting on
the driver's side is not adopted for the
front-passenger side or the rear compart-
ment. Demisting the windscreen
i You should only select the "demisting"
function until the windscreen is clear again.
X Turn the key to position 2in the ignition
lock.
X To activate: press the0066button.
The indicator lamp above the 0066button
lights up.
The system automaticallys witches to the
following functions:
R cooling with air dehumidification on
R high airflow 35
R high temperature 35
R air distribution to the windscreen and
front side windows
R air-recirculation mode off
X To switch off: press the0066button.
The indicator lamp above the 0066button
goes out. The previouslys elected settings
come into effect again. The cooling with air
dehumidification function remains on. Air-
recirculation mode remains deactivated.
or
X Press the 005Abutton.
The indicator lamp above the 0066button
goes out. Airflow and air distribution are set
to automatic mode.
or
X Thermatic 2-zone automatic climate
control: press button 0070or0073 up or down
(Y page 148). Thermotronic luxury 3-zone automatic
climate control*:
press button0071or0075
up or down (Y page 149).
or
X Thermatic 2-zone automatic climate
control: press button 0072up or down
(Y page 148).
Thermotronic luxury 3-zone automatic
climate control*: press button0073up or
down (Y page 149). Demisting the windows
Windows misted up on the inside X
Activate the "cooling function with air dehu-
midification" function.
X Activate automatic mode.
X If the windows continue to mist up, activate
the demisting function.
i You should only select this setting until
the windscreen is clear again.
Windows misted up on the outside X
Activate the windscreen wipers.
X Thermatic 2-zone automatic climate
control: press button 0071up or down
(Y page 148) until the 009Eor009D symbol
appears in the display.
X Thermotronic luxury 3-zone automatic
climate control*: press button0074up or
down (Y page 149), until 009Eor009D
appears in the display.
i You should only select this setting until
the windscreen is clear again.
35 Depending on the outside temperature. Air conditioning
155Controls
*optional
207_AKB;2;3,e
n-GB
mkalafa, Version: 2.11.8.1 2009-07-23T10:23:49+02:00-Seite 155 Z

Switching the rear window heating
on/off
G
Risk of accident
Clear all windows of ice or snow before setting
off. Otherwise, impaired visibility could
endanger you and others.
i The rear window heating has ahigh cur-
rent draw. You should therefore switch it
off as soon as the window is clear, as it only
switches off automatically after several
minutes.
i If the battery voltage is too low, the rear
window heating may switch off.
X Turn the key to position 2in the ignition
lock.
X Press the 006Ebutton.
The indicator lamp above the 006Ebutton
lights up or goes out. Activating/deactivating air-recircula-
tion mode
You can deactivate the flow of fresh air if
unpleasant odours are enteringt he vehicle
from outside. The air already inside the vehi-
cle will then be recirculated. G
Risk of accident
Only switch over to air-recirculation mode
briefly at low outside temperatures. Other-
wise, the windows could mist up, thus impair-
ing visibility and endangering yourself and
others. This may prevent you from observing
the traffic conditions, thereby causing an
accident.
X Turn the key to position 2in the ignition
lock.
X To activate: press the0074button.
The indicator lamp above the 0074button
lights up. i
Air-recirculation mode is activated auto-
matically at high outside temperatures.
When air-recirculation mode is activated
automatically, the indicator lamp above the
0074 button is not lit.
Outside air is added after about 30
minutes.
X To switch off: press the0074button.
The indicator lamp above the 0074button
goes out.
i Air-recirculation mode switches off auto-
matically:
R after approximately five minutes at out-
side temperatures below approximately
5†
R after approximately five minutes if cool-
ing with air dehumidification is deactiva-
ted
R after approximately 30 minutes at out-
side temperatures above approximately
5†
Convenience opening/closing (Coupé) G
Risk of injury
Make sure that nobody can become trapped
between the side window and the door frame
as the side windows are opened and closed.
Do not place objectsorl ean against the side
windows when they are being opened or
closed. You or the objectsc ould be drawn in
or become trapped between the side window
and the door frame as the window moves. If
there is arisk of entrapment, press the
0074 button again. Press the button for stop-
ping, opening or closing the side windows in
the opposite direction as appropriate.
Make sure that nobody can become trapped
as the panorama sliding sunroof* is opened
and closed. If there is arisk of entrapment,
press the 0074button again. Press the button
to stop, open or close the panorama sliding
sunroof* in the opposite direction as appro-
priate. 156
Air conditioningControls
*o
ptional
207_AKB; 2; 3, en-GB
mkalafa,
Version: 2.11.8.1 2009-07-23T10:23:49+02:00-Seite 156

X
Convenience closing: pressand hold
the 0074 button until th eside windows and
th ep anorama slidin gsunroof* are closed.
The indicator lamp above the 0074button
light sup. Air-recirculation mode is activa-
ted.
X Convenience opening: pressand hold the
0074 button until th eside windows and the
panorama slidin gsunroof* have reached
their original position.
The indicator lamp above the 0074button
goes out .Air-recirculation mode is deacti-
vated.
i If you open th eside windows or th epan-
oram aslidin gsunroof* manually after clos-
ing with th econvenience closin gfeature,
they will remain in this position when
opened usin gthe convenience opening fea-
ture.
Convenience opening/closin g(Cabrio-
let) G
Ris
kofi njury
Mak esure that nobody can become trapped
between th eside window and th edoor frame
as th eside windows are opened and closed.
Do no tplace object sorlean against th eside
windows when they are bein gopened or
closed. You or th eobject scoul dbed rawn in
or become trapped between th eside window
and th edoor frame as th ewindow moves. If
there is arisk of entrapment ,pres sthe
0074 button again .Pres sthe button for stop-
ping, opening or closin gthe side windows in
th eo pposite direction as appropriate. X
Convenience closing: pressand hold the
0074 button until th eside windows are
closed.
The indicator lamp above the 0074button
light sup. Air-recirculation mode is activa-
ted.
X Convenience opening: pressand hold the
0074 button until th eside windows have
returned to their original position.
The indicator lamp above the 0074button
goes out .Air-recirculation mode is deacti-
vated.
i If you open th eside windows manually
after closin gwith th econvenience closing
feature, they will remain in this position
when opened usin gthe convenience open-
ing feature. Switching th
eresidual hea ton/off
The "residual heat "function is only available
with THERMOTRONIC luxur y3-zon eauto-
matic climate control*.
It is possible to mak euse of th eresidual heat
of th eengine to continue heating th estation-
ary vehicle for up to 30 minutes after the
engine has been switched off .The heating
tim edepends on th etem peratur ethath as
been set.
Coupé: th e"residual heat "function only
work soptimally when th eside windows and
panorama slidin gsunroof* are closed.
i The blower will run at alow speed regard-
less of th eairflow setting.
i If you activat ethe "residual heat "function
at high temperatures, only th eventilation
will be activated. The blower run sat
medium speed.
i It is possible that th e"residual heat "func-
tio nm ay be activated automatically an hour
after th ekeyis removed. The vehicle is then
ventilate dfor 30 minutes to dry th eair con-
ditioning system. Air conditioning
157Controls
*optional
207_AKB
;2;3,en-GB
mkalafa, Version:2.11.8.1
2009-07-23T10:23:49+02:00
-Seite 157 Z
