MERCEDES-BENZ E-CLASS SALOON 2015 Owners Manual

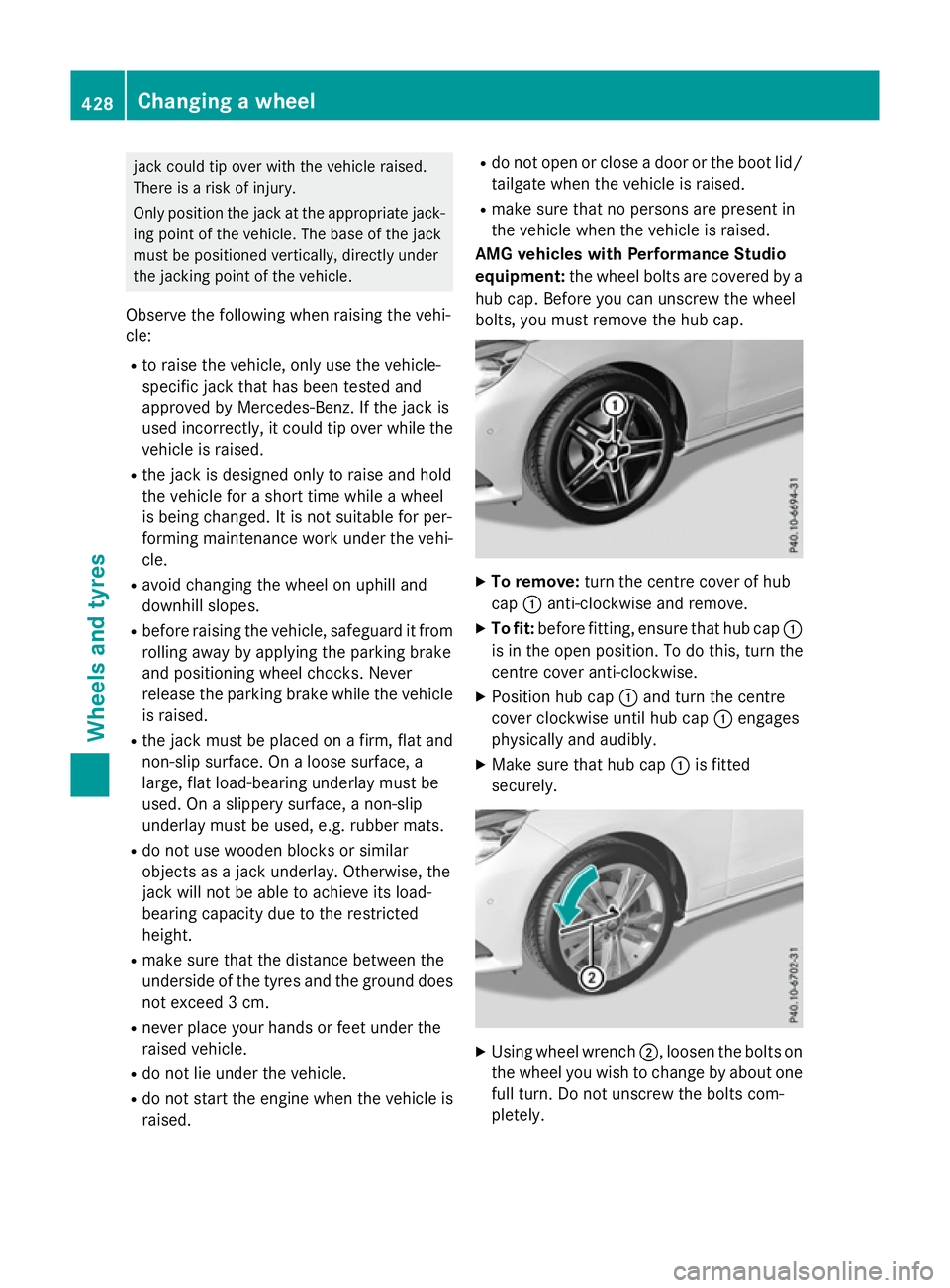

jack could tip ove
rwitht he vehicl eraised.
There is ariskofi njury.
Onl yposit iont he jack at the appropriate jack-
ing point of the vehicle. The base of the jack
must be positioned vertically, directl yunder
the jacking point of the vehicle.
Observe the following when raising the vehi-
cle:
R to rais ethe vehicle, onl yusethe vehicle-
specific jack tha thas been teste dand
approved by Mercedes-Benz. If the jack is
used incorrectly ,itcould tip ove rwhile the
vehicl eisraised.
R the jack is designe donlytor aiseand hold
the vehicl efor as hort time whil eawheel
is being changed. It is not suitabl efor per-
formin gmaintenance work under the vehi-
cle.
R avoi dchanging the whee lonuphilland
downhil lslope s.
R befor eraisi ng the vehicle, safeguard it from
rolling away by applying the parking brake
and positioning whee lchocks. Never
release the parking brake whil ethe vehicle
is raised.
R the jack must be place donafirm, flatand
non-sli psurface. On aloo se surface, a
large ,flatl oad- bearing underlay must be
used .Ona slippery surface, anon-slip
underlay must be used ,e.g.r ubbe rmats.
R do not us ewoode nblocks or similar
objects as ajack underlay .Otherwise, the
jack will not be able to achieve its load-
bearing capacity du etothe restricted
height.
R make sure tha tthe distance between the
undersid eofthe tyres and the ground does
not exceed 3cm.
R neve rplace your hands or fee tunder the
raised vehicle.
R do not li eunder the vehicle.
R do not start the engine when the vehicl eis
raised. R
do not open or close adoorort he boot lid/
tailgate when the vehicl eisraised.
R make sure tha tnopersons ar epresent in
the vehicl ewhent he vehicl eisraised.
AM Gvehicle swithP erformanc eStudio
equipment: the wheelbolts ar ecovered by a
hu bc ap.B efore yo ucan unscrew the wheel
bolts ,you must remove the hu bcap. X
To remove: turnthe centre cove rofhub
cap :anti-clockwise and remove.
X To fit: beforefitting, ensur etha thub cap :
is in the open position. To do this, tur nthe
centre cove ranti-clockwise.
X Positio nhub cap :and tur nthe centre
cove rclockwise unti lhub cap :engages
physicall yand audibly.
X Make sure tha thub cap :is fitted
securely. X
Using whee lwrench ;,l oosent he bolts on
the whee lyou wish to change by abou tone
full turn. Do not unscrew the bolts com-
pletely. 428
Changin
gawheelWheels an dtyres

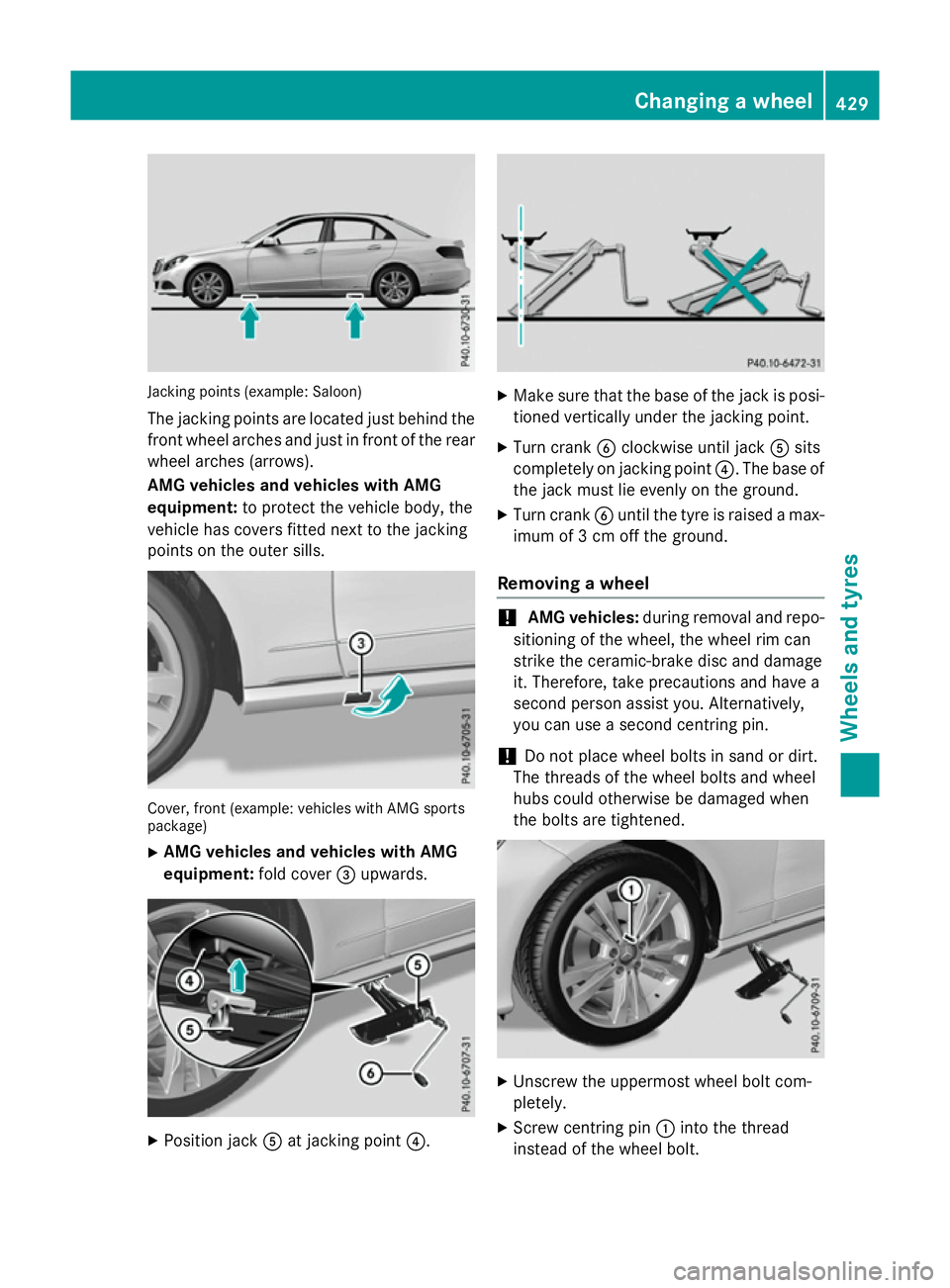

Jacking points (example: Saloon)
The jackin gpoints are located jus tbehin dthe
front wheel arches and jus tinfront of th erear
wheel arches (arrows).
AMG vehicles and vehicles with AMG
equipment: to protect thevehicle body, the
vehicle has covers fitted nex ttothejacking
points on th eoute rsills. Cover
,front (example: vehicles with AM Gsports
package)
X AMG vehicles and vehicles with AMG
equipment: fold cover=upwards. X
Position jack Aat jackin gpoint ?. X
Mak esure that th ebase of th ejackisp osi-
tioned vertically unde rthe jackin gpoint.
X Turn crank Bclockwis euntil jack Asits
completely on jackin gpoint ?.T he base of
th ej ackm ust lie evenly on th eground.
X Turn crank Buntil th etyreisr aisedam ax-
imum of 3cmoff theground.
Removing awheel !
AMG vehicles:
duringremoval and repo-
sitioning of th ewheel, th ewheel rim can
strik ethe ceramic-brake disc and damage
it. Therefore, tak eprecaution sand have a
second person assist you. Alternatively,
you can use asecond centring pin.
! Do not place wheel bolt
sinsandord irt.
The threads of th ewheel bolt sand wheel
hubs could otherwise be damaged when
th eb oltsa re tightened. X
Unscrew th euppermost wheel bolt com-
pletely.
X Screw centring pin :intot he thread
instead of th ewheel bolt. Changing
awheel
429Wheels and tyres Z

X

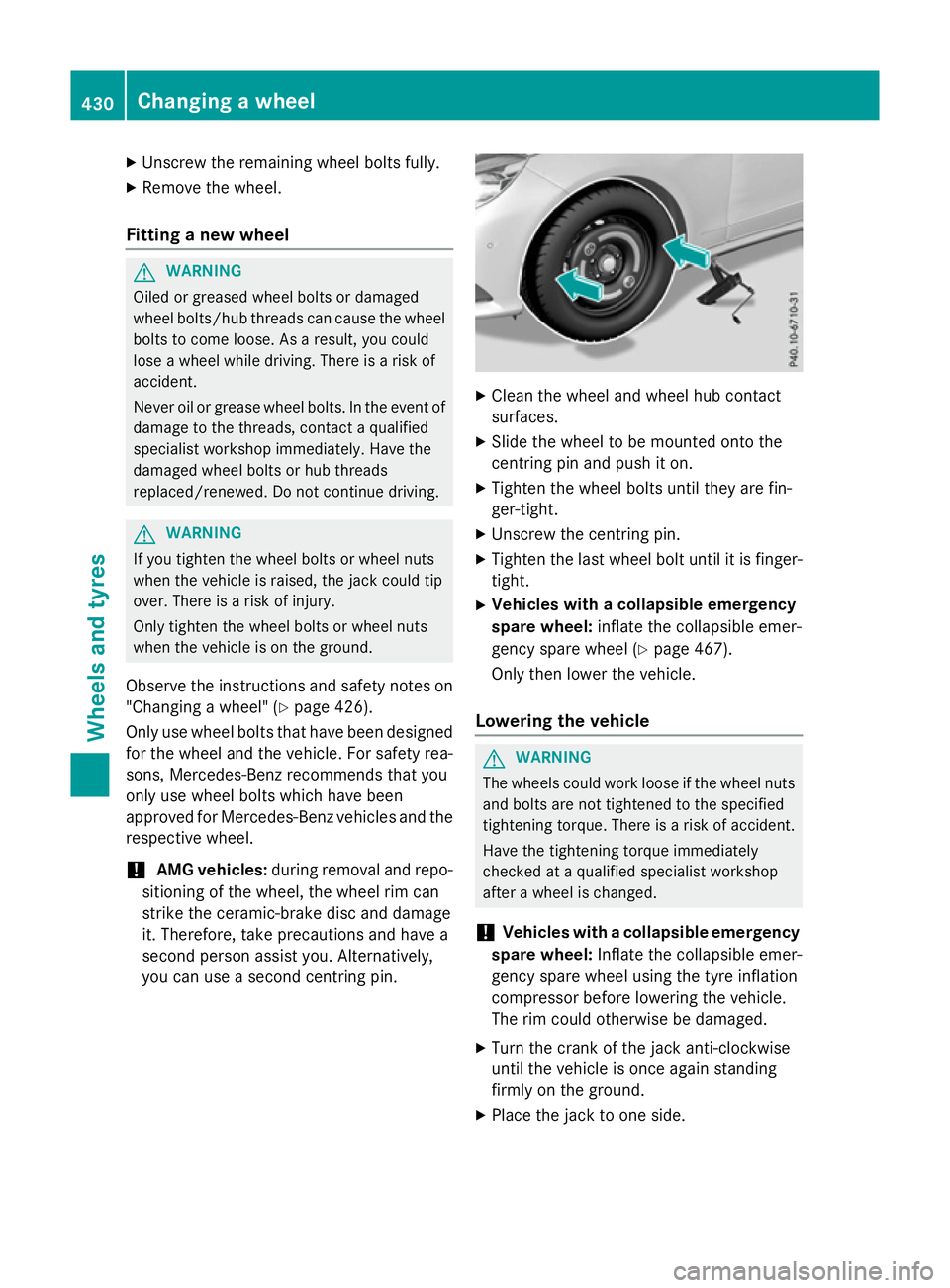

Unscrew the remaining wheel bolts fully.
X Remove the wheel.
Fitting anew wheel G
WARNING
Oiled or greased wheel bolts or damaged
wheel bolts/hub threads can cause the wheel bolts to come loose. As aresult, you could
lose awheel while driving. There is arisk of
accident.
Never oil or grease wheel bolts. In the event of damage to the threads, contact aqualified
specialist workshop immediately.H ave the
damagedw heel bolts or hub threads
replaced/renewed. Do not continue driving. G
WARNING
If you tighten the wheel bolts or wheel nuts
when the vehicle is raised, the jack could tip
over. There is arisk of injury.
Only tighten the wheel bolts or wheel nuts
when the vehicle is on the ground.
Observe the instructions and safety notes on "Changing awheel" (Y page 426).
Only use wheel bolts that have been designed
for the wheel and the vehicle. For safety rea-
sons, Mercedes-Benz recommends that you
only use wheel bolts which have been
approved for Mercedes-Benz vehicles and the
respective wheel.
! AMG vehicles:
during removal and repo-
sitioning of the wheel, the wheel rim can
strike the ceramic-brake disc and damage
it. Therefore, take precautions and have a
second person assist you. Alternatively,
you can use asecond centring pin. X
Cleant he wheel and wheel hub contact
surfaces.
X Slide the wheel to be mounted onto the
centring pin and push it on.
X Tighten the wheel bolts until they are fin-
ger-tight.
X Unscrew the centring pin.
X Tighten the last wheel bolt until it is finger-
tight.
X Vehiclesw ithacollapsible emergency
spare wheel: inflate the collapsible emer-
gency spare wheel (Y page 467).
Only then lower the vehicle.
Lowering the vehicle G
WARNING
The wheels could work loose if the wheel nuts and bolts are not tightened to the specified
tightening torque. There is arisk of accident.
Have the tightening torque immediately
checked at aqualified specialist workshop
after awheel is changed.
! Vehiclesw
ithacollapsible emergency
spare wheel: Inflate the collapsible emer-
gency spare wheel using the tyre inflation
compressor before lowering the vehicle.
The rim could otherwise be damaged.
X Turn the crank of the jack anti-clockwise
until the vehicle is once agains tanding
firmly on the ground.
X Place the jack to one side. 430
Changing
awheelWheels and tyres

X

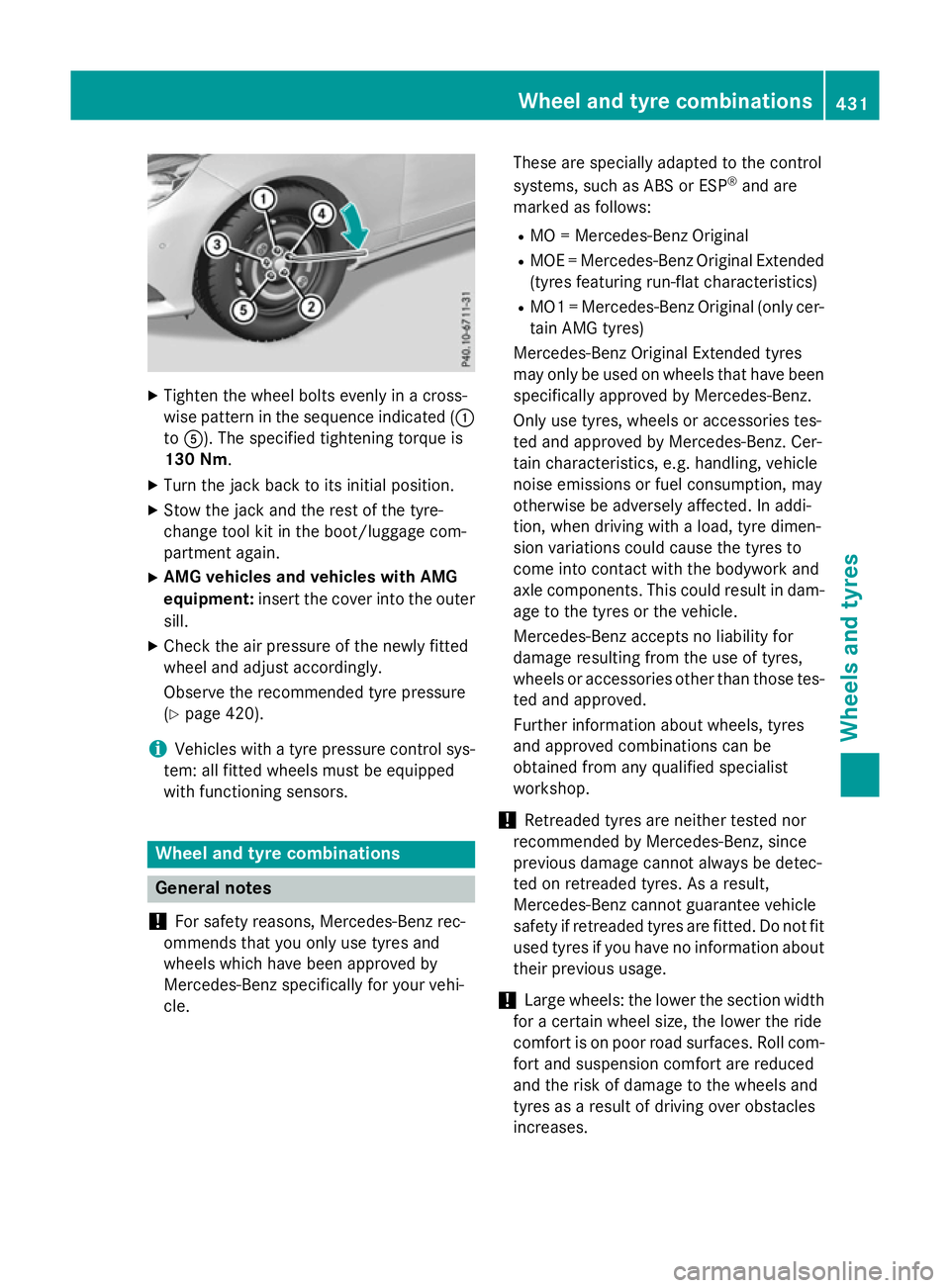

Tighten the wheel bolts evenly in across-
wise pattern in the sequence indicated ( :
to A). The specified tightening torque is
130 Nm.
X Turn the jack back to its initial position.
X Stow the jack and the rest of the tyre-
change tool kit in the boot/luggage com-
partmen tagain.
X AMG vehicles and vehicles with AMG
equipment: insert the cover into the outer
sill.
X Check the air pressure of the newly fitted
wheel and adjust accordingly.
Observe the recommended tyre pressure
(Y page 420).
i Vehicles with
atyre pressure control sys-
tem: all fitted wheels must be equipped
with functioning sensors. Wheel and tyrec
ombinations General notes
! For safety reasons, Mercedes-Benz rec-
ommends that you only use tyres and
wheels which have been approved by
Mercedes-Benz specifically for your vehi-
cle. These are specially adapted to the control
systems, such as ABS or ESP
®
and are
marked as follows:
R MO =Mercedes-Benz Original
R MOE =Mercedes-Benz Original Extended
(tyres featuring run-flat characteristics)
R MO1 =Mercedes-Benz Original (only cer-
tain AMG tyres)
Mercedes-Benz Original Extended tyres
may only be used on wheels that have been
specifically approved by Mercedes-Benz.
Only use tyres, wheels or accessories tes-
ted and approved by Mercedes-Benz.C er-
tain characteristics, e.g. handling, vehicle
noise emissions or fuel consumption, may
otherwise be adversely affected. In addi-
tion, when driving with aload, tyre dimen-
sion variations could cause the tyres to
come into contact with the bodywork and
axle components. This could result in dam- age to the tyres or the vehicle.
Mercedes-Benz accepts no liability for
damage resulting from the use of tyres,
wheels or accessories other than those tes-
ted and approved.
Further information about wheels, tyres
and approved combinations can be
obtained from any qualified specialist
workshop.
! Retreaded tyres are neither tested nor
recommended by Mercedes-Benz,s ince
previous damage cannot alway sbedetec-
ted on retreaded tyres. As aresult,
Mercedes-Benz cannot guarantee vehicle
safety if retreaded tyres are fitted. Do not fit
used tyres if you have no information about their previous usage.
! Large wheels: the lower the section width
for acertain wheel size, the lower the ride
comfor tisonp oor road surfaces. Roll com-
fort and suspension comfor tare reduced
and the risk of damage to the wheels and
tyres as aresult of driving over obstacles
increases. Wheel and tyrec
ombinations
431Wheels and tyres Z

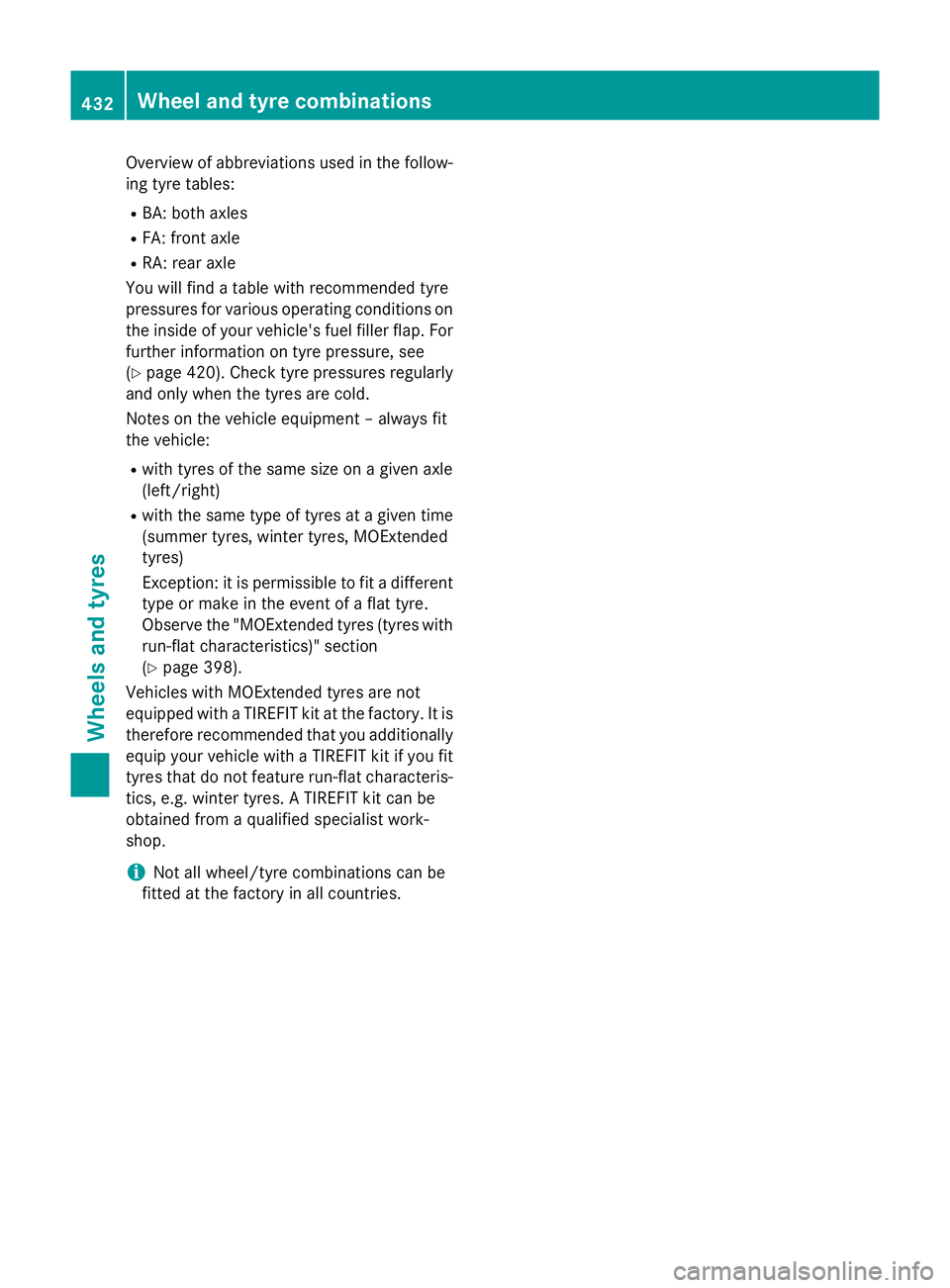

Overview of abbreviations used in the follow-
ing tyre tables:
R BA: both axles
R FA: front axle
R RA: rear axle
You will find atable with recommended tyre
pressures for various operating conditions on
the inside of your vehicle's fuel filler flap. For
further information on tyre pressure, see
(Y page 420). Check tyre pressures regularly
and only when the tyres are cold.
Notes on the vehicle equipment –always fit
the vehicle:
R with tyres of the same size on agiven axle
(left/right)
R with the same type of tyres at agiven time
(summer tyres, winter tyres, MOExtended
tyres)
Exception: it is permissibletof itad ifferent
type or make in the event of aflat tyre.
Observe the "MOExtended tyres (tyres with
run-flat characteristics)" section
(Y page 398).
Vehicles with MOExtended tyres are not
equipped with aTIREFIT kit at the factory. It is
therefore recommended that you additionally equipy our vehicle with aTIREFIT kit if you fit
tyres that do not feature run-flat characteris-
tics, e.g. winter tyres. ATIREFIT kit can be
obtained from aqualified specialist work-
shop.
i Not all wheel/tyre combinations can be
fitted at the factory in all countries. 432
Wheel and tyrec
ombinationsWheels and tyres

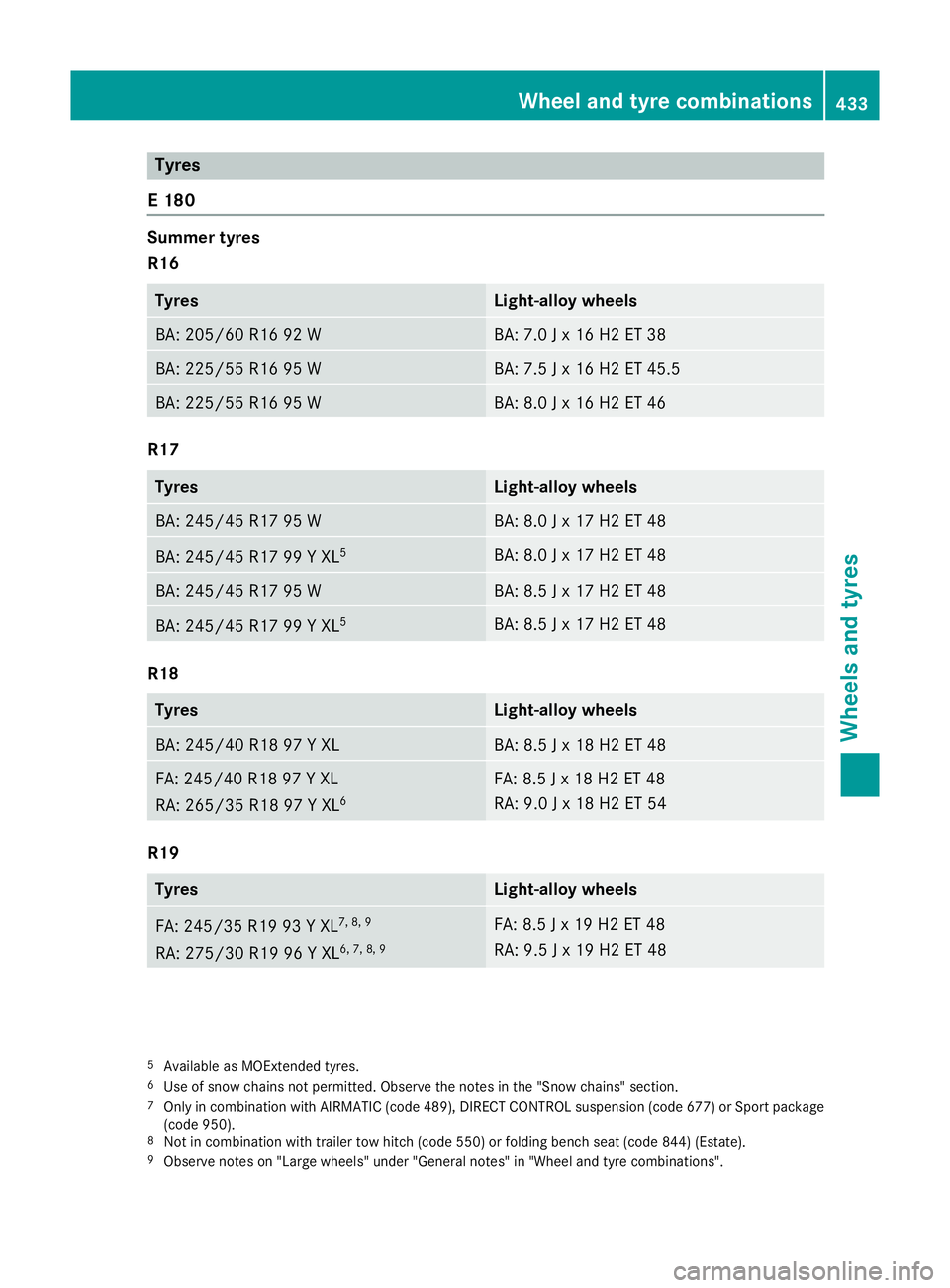

Tyres
E1 80 Summe
rtyres
R16 Tyres Light-alloy wheels
BA: 205/6
0R1692 W BA: 7.0
Jx16H2ET38 BA: 225/55 R16 95 W BA: 7.5
Jx16H2ET4 5.5 BA: 225/55 R16 95 W BA: 8.0

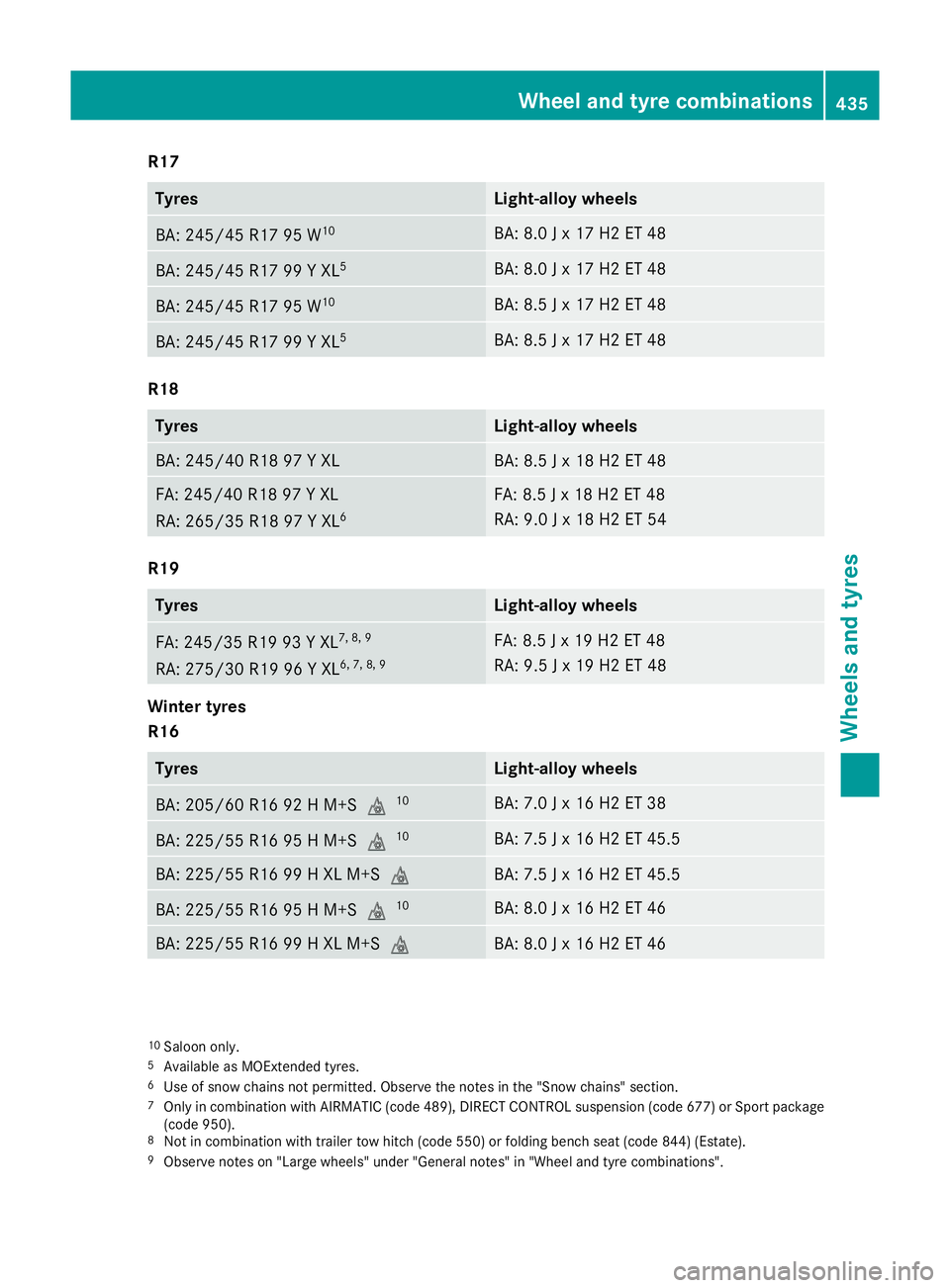

Jx16H2ET46 R17
Tyres Light-allo
ywheels BA: 245/45 R17 95 W BA: 8.0
Jx17H2ET48 BA: 245/45 R17 99
YXL5 BA: 8.0
Jx17H2ET48 BA: 245/45 R17 95 W BA: 8.5
Jx17H2ET48 BA: 245/45 R17 99
YXL5 BA: 8.5

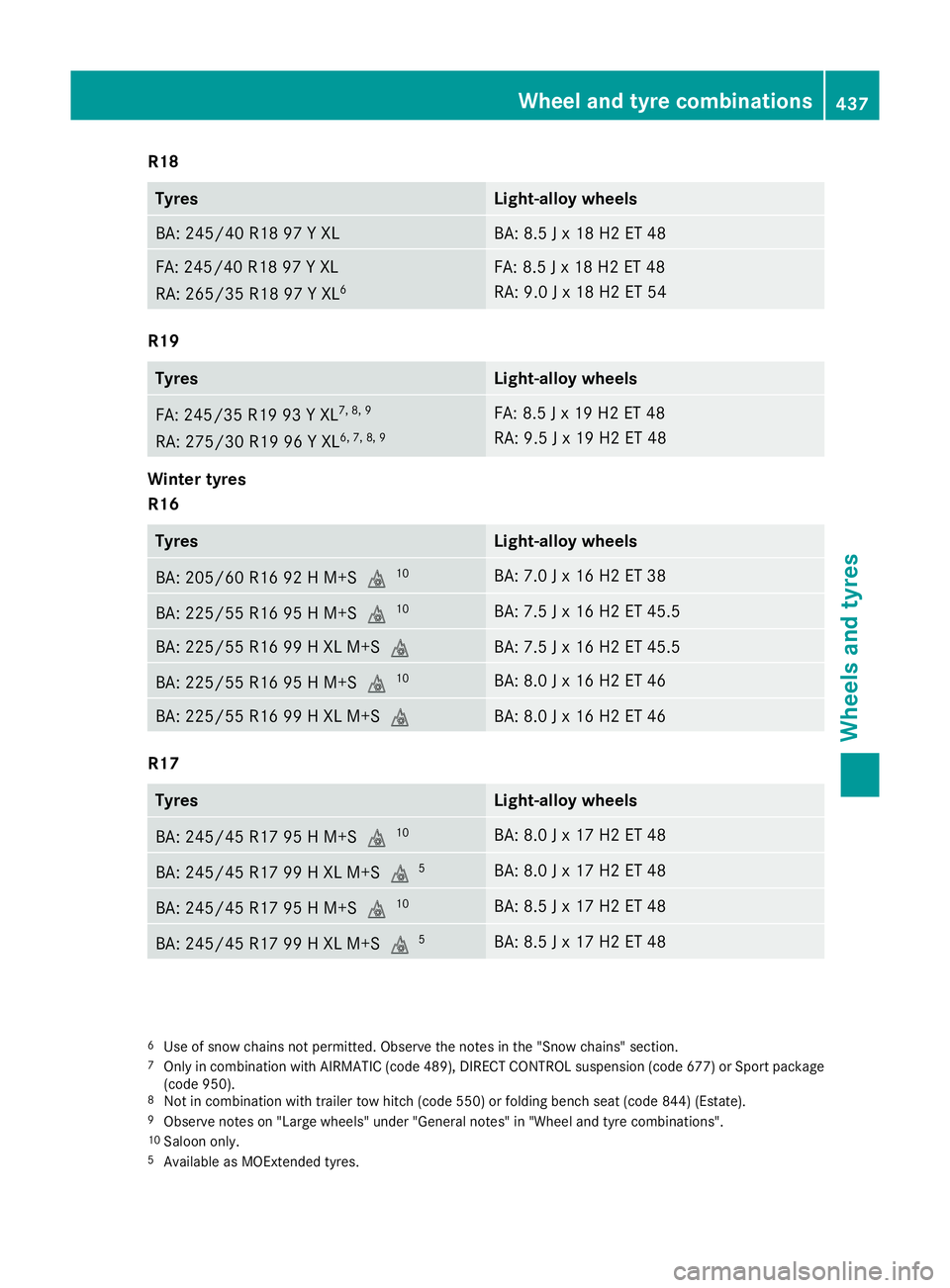

Jx17H2ET48 R18
Tyres Light-allo
ywheels BA: 245/40 R18 97
YXL BA: 8.5
Jx18H2ET48 FA: 245/40 R18 97
YXL
RA: 265/35 R18 97 YXL6 FA: 8.5
Jx18H2ET48
RA: 9.0 Jx18H2ET54 R19
Tyres Light-allo
ywheels FA: 245/35 R19 93
YXL7, 8, 9
RA: 275/30 R19 96 YXL6, 7, 8, 9 FA: 8.5
Jx19H2ET48
RA: 9.5 Jx19H2ET48 5
Available as MOExtended tyres.
6 Use of snow chains not permitted .Observe the notes in the "Snow chains" section.
7 Only in combination with AIRMATIC (cod e489), DIREC TCONTROL suspension (cod e677) or Spor tpackage
(cod e950).
8 Not in combination with trailer tow hitch (cod e550) or folding bench sea t(cod e844) (Estate).
9 Observe notes on "Large wheels "under "General notes" in "Whee land tyre combinations". Whee
land tyre combinations
433Wheels and tyres Z

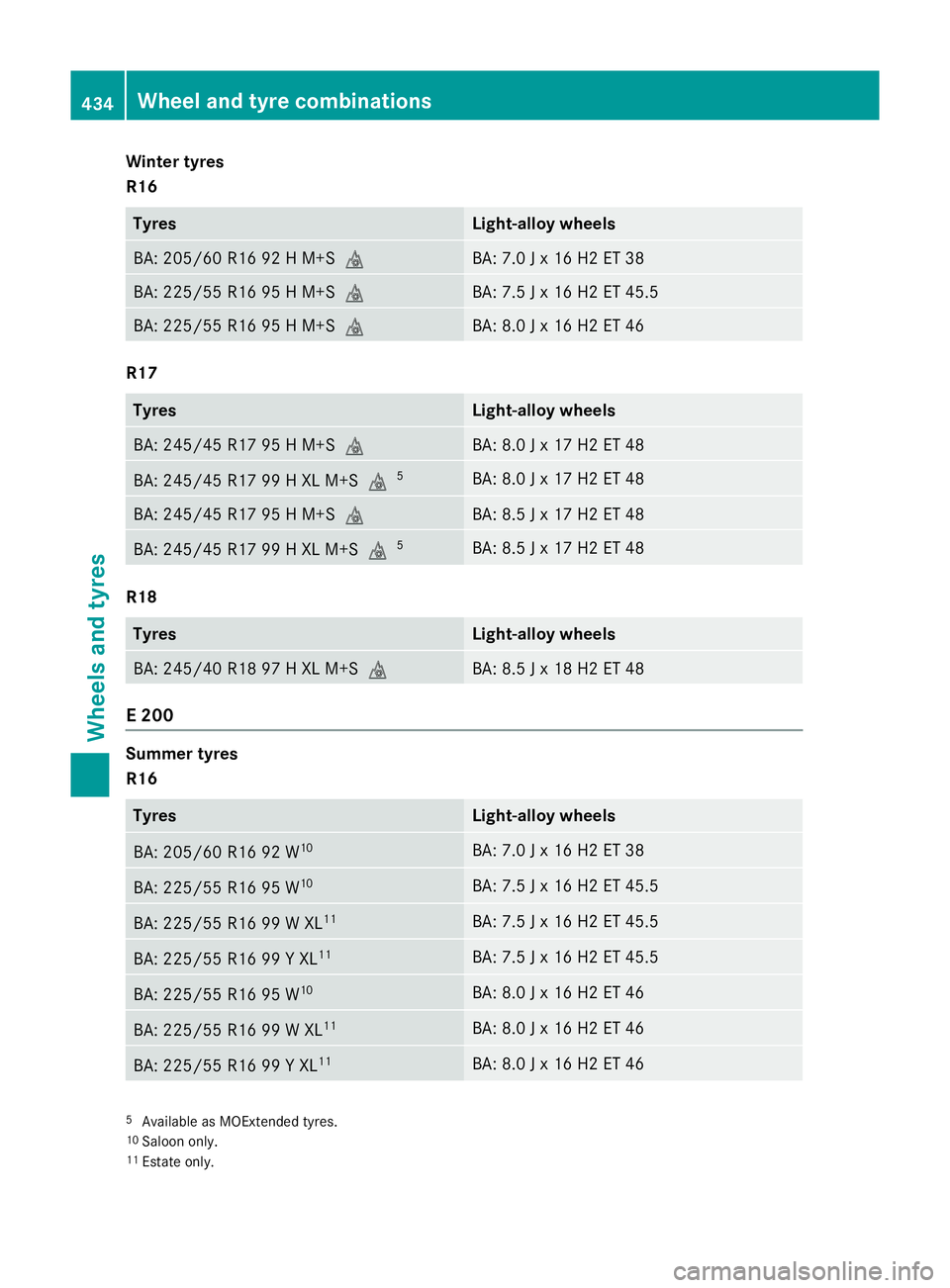

Winter tyres
R16
Tyres Light-alloy wheels
BA: 205/60 R16 92
HM+Si BA: 7.0
Jx16H2ET38 BA: 225/55 R16 95
HM+Si BA: 7.5
Jx16H2ET4 5.5 BA: 225/55 R16 95
HM+Si BA: 8.0
Jx16H2ET46 R17
Tyres Light-alloy wheels
BA: 245/45 R17 95
HM+Si BA: 8.0
Jx17H2ET48 BA: 245/45 R17 99
HXLM +Si 5 BA: 8.0
Jx17H2ET48 BA: 245/45 R17 95
HM+Si BA: 8.5
Jx17H2ET48 BA: 245/45 R17 99
HXLM +Si 5 BA: 8.5
Jx17H2ET48 R18
Tyres Light-alloy wheels
BA: 245/40 R18 97
HXLM +Si BA: 8.5
Jx18H2ET48 E2
00 Summer tyres
R16
Tyres Light-alloy wheels
BA: 205/60 R16 92 W
10 BA: 7.0
Jx16H2ET38 BA: 225/55 R16 95 W
10 BA: 7.5
Jx16H2ET4 5.5 BA: 225/55 R16 99
WXL11 BA: 7.5
Jx16H2ET4 5.5 BA: 225/55 R16 99
YXL11 BA: 7.5
Jx16H2ET4 5.5 BA: 225/55 R16 95 W
10 BA: 8.0
Jx16H2ET46 BA: 225/55 R16 99
WXL11 BA: 8.0
Jx16H2ET46 BA: 225/55 R16 99
YXL11 BA: 8.0
Jx16H2ET46 5
Availabl easMOExtended tyres.
10 Saloo nonly.
11 Estate only. 434
Whee
land tyre combinationsWheels and tyres

R17
Tyres Light-allo
ywheels BA: 245/45 R17 95 W
10 BA: 8.0
Jx17H2ET48 BA: 245/45 R17 99
YXL5 BA: 8.0
Jx17H2ET48 BA: 245/45 R17 95 W
10 BA: 8.5
Jx17H2ET48 BA: 245/45 R17 99
YXL5 BA: 8.5
Jx17H2ET48 R18
Tyres Light-allo
ywheels BA: 245/40 R18 97
YXL BA: 8.5
Jx18H2ET48 FA: 245/40 R18 97
YXL
RA: 265/35 R18 97 YXL6 FA: 8.5
Jx18H2ET48
RA: 9.0 Jx18H2ET54 R19
Tyres Light-allo
ywheels FA: 245/35 R19 93
YXL7, 8, 9
RA: 275/30 R19 96 YXL6, 7, 8, 9 FA: 8.5
Jx19H2ET48
RA: 9.5 Jx19H2ET48 Winter tyres
R16
Tyres Light-allo
ywheels BA: 205/60 R16 92
HM+Si 10 BA: 7.0
Jx16H2ET38 BA: 225/55 R16 95
HM+Si 10 BA: 7.5
Jx16H2ET4 5.5 BA: 225/55 R16 99
HXLM +Si BA: 7.5
Jx16H2ET4 5.5 BA: 225/55 R16 95
HM+Si 10 BA: 8.0
Jx16H2ET46 BA: 225/55 R16 99
HXLM +Si BA: 8.0
Jx16H2ET46 10
Saloon only.
5 Availabl easMOExtended tyres.
6 Use of snow chains not permitted. Observe the notes in the "Sno wchains" section.
7 Only in combination with AIRMATIC (cod e489), DIREC TCONTROL suspension (cod e677) or Spor tpackage
(cod e950).
8 Not in combination with trailer tow hitch (cod e550) or folding bench sea t(cod e844) (Estate).
9 Observe notes on "Large wheels "under "General notes "in"Wheeland tyre combinations". Whee
land tyre combinations
435Wheels and tyres Z

R17
Tyres Light-allo
ywheels BA: 245/45 R17 95
HM+Si 10 BA: 8.0
Jx17H2ET48 BA: 245/45 R17 99
HXLM +Si 5 BA: 8.0
Jx17H2ET48 BA: 245/45 R17 95
HM+Si 10 BA: 8.5
Jx17H2ET48 BA: 245/45 R17 99
HXLM +Si 5 BA: 8.5
Jx17H2ET48 R18
Tyres Light-allo
ywheels BA: 245/40 R18 97
HXLM +Si BA: 8.5
Jx18H2ET48 E2
00 BlueTEC Summer tyres
R16
Tyres Light-allo
ywheels BA: 205/60 R16 92 W
10 BA: 7.0
Jx16H2ET38 BA: 225/55 R16 95 W
10 BA: 7.5
Jx16H2ET4 5.5 BA: 225/55 R16 99
WXL11 BA: 7.5
Jx16H2ET4 5.5 BA: 225/55 R16 99
YXL11 BA: 7.5
Jx16H2ET4 5.5 BA: 225/55 R16 95 W
10 BA: 8.0
Jx16H2ET46 BA: 225/55 R16 99
WXL11 BA: 8.0
Jx16H2ET46 BA: 225/55 R16 99
YXL11 BA: 8.0
Jx16H2ET46 R17
Tyres Light-allo
ywheels BA: 245/45 R17 95 W
10 BA: 8.0
Jx17H2ET48 BA: 245/45 R17 99
YXL5 BA: 8.0
Jx17H2ET48 BA: 245/45 R17 95 W
10 BA: 8.5
Jx17H2ET48 BA: 245/45 R17 99
YXL5 BA: 8.5
Jx17H2ET48 10
Saloon only.
5 Availabl easMOExtended tyres.
11 Estate only. 436
Whee
land tyre combinationsWheels and tyres

R18
Tyres Light-allo
ywheels BA: 245/40 R18 97
YXL BA: 8.5
Jx18H2ET48 FA: 245/40 R18 97
YXL
RA: 265/35 R18 97 YXL6 FA: 8.5
Jx18H2ET48
RA: 9.0 Jx18H2ET54 R19
Tyres Light-allo
ywheels FA: 245/35 R19 93
YXL7, 8, 9
RA: 275/30 R19 96 YXL6, 7, 8, 9 FA: 8.5
Jx19H2ET48
RA: 9.5 Jx19H2ET48 Winter tyres
R16
Tyres Light-allo
ywheels BA: 205/60 R16 92
HM+Si 10 BA: 7.0
Jx16H2ET38 BA: 225/55 R16 95
HM+Si 10 BA: 7.5
Jx16H2ET4 5.5 BA: 225/55 R16 99
HXLM +Si BA: 7.5
Jx16H2ET4 5.5 BA: 225/55 R16 95
HM+Si 10 BA: 8.0
Jx16H2ET46 BA: 225/55 R16 99
HXLM +Si BA: 8.0
Jx16H2ET46 R17
Tyres Light-allo
ywheels BA: 245/45 R17 95
HM+Si 10 BA: 8.0
Jx17H2ET48 BA: 245/45 R17 99
HXLM +Si 5 BA: 8.0
Jx17H2ET48 BA: 245/45 R17 95
HM+Si 10 BA: 8.5
Jx17H2ET48 BA: 245/45 R17 99
HXLM +Si 5 BA: 8.5
Jx17H2ET48 6
Use of snow chains not permitted. Observe the notes in the "Sno wchains" section.
7 Only in combination with AIRMATIC (cod e489), DIREC TCONTROL suspension (cod e677) or Spor tpackage
(cod e950).
8 Not in combination with trailer tow hitch (cod e550) or folding bench sea t(cod e844) (Estate).
9 Observe notes on "Large wheels "under "General notes "in"Wheeland tyre combinations".
10 Saloon only.
5 Availabl easMOExtended tyres. Whee
land tyre combinations
437Wheels and tyres Z
