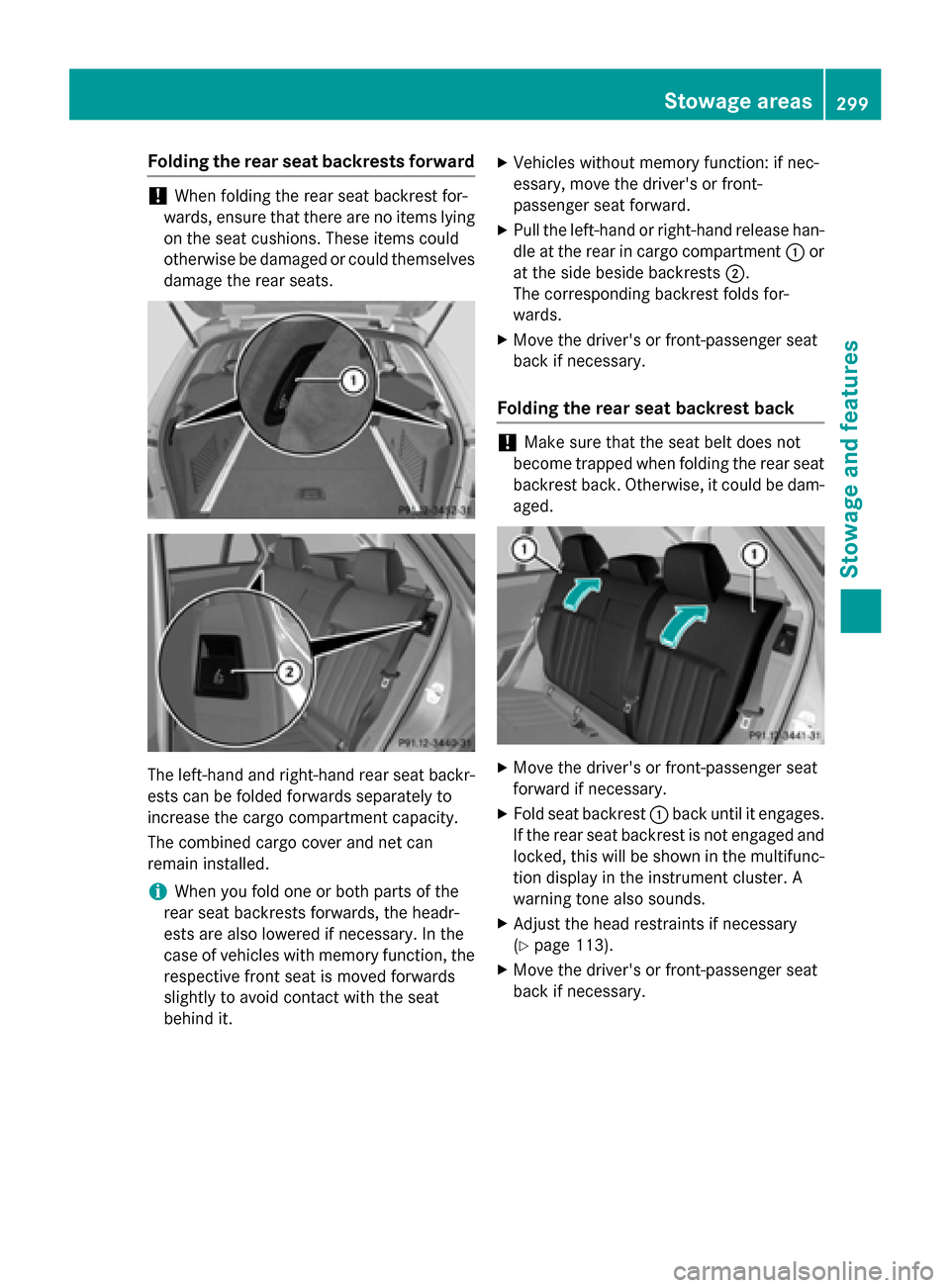

Folding the rear seat backrests forward
!
When folding the rear seat backrest for-
wards, ensure that there are no items lying on the seat cushions. These items could
otherwise be damaged or could themselves
damage the rear seats. The left-hand and right-hand rear seat backr-
ests can be folded forwards separately to
increase the cargo compartment capacity.
The combined cargo cover and net can
remain installed.
i When you fold one or both parts of the
rear seat backrests forwards, the headr-
ests are also lowered if necessary. In the
case of vehicles with memory function, the respective front seat is moved forwards
slightly to avoid contact with the seat
behind it. X
Vehicles without memory function: if nec-
essary, move the driver's or front-
passenger seat forward.
X Pull the left-hand or right-hand release han-
dle at the rear in cargo compartment 0043or
at the side beside backrests 0044.
The corresponding backrest folds for-
wards.
X Move the driver's or front-passenger seat
back if necessary.
Folding the rear seat backrest back !
Make sure that the seat belt does not
become trapped when folding the rear seat backrest back. Otherwise, it could be dam- aged. X
Move the driver's or front-passenger seat
forward if necessary.
X Fold seat backrest 0043back until it engages.
If the rear seat backrest is not engaged and locked, this will be shown in the multifunc-
tion display in the instrument cluster. A
warning tone also sounds.
X Adjust the head restraints if necessary
(Y page 113).
X Move the driver's or front-passenger seat
back if necessary. Stowage areas
299Stowage and featu res Z

Securing cargo
Plastic hooks (Sedan) On vehicles without a through-loading feature
in the rear bench seat, six plastic hooks are
installed to the trunk floor.
Cargo tie-down rings General notes
Observe the following notes on securing
loads:
R Observe the loading guidelines
(Y page 292).
R Secure the load using the cargo tie-down
rings.
R Distribute the load on the cargo tie-down
rings evenly.
R Do not use elastic straps or nets to secure
a load, as these are only intended as an
anti-slip protection for light loads.
R Do not route tie-downs across sharp edges
or corners.
R Pad sharp edges for protection. Trunk/cargo compartment Cargo tie-down rings
0043(Sedan) Cargo tie-down rings
0043(Wagon) EASY-PACK cargo compartment cover
Important safety notes G
WARNING
On its own, the cargo compartment cover
cannot secure or restrain heavy objects,
items of luggage and heavy loads. You could
be hit by an unsecured load during sudden
changes in direction, braking or in the event of an accident. There is an increased risk of
injury or even fatal injury.
Always store objects so that they cannot be
flung around. Secure objects, luggage or
loads against slipping or tipping over, e.g. by
using tie downs, even if you are using the
cargo compartment cover.
! When loading the vehicle, make sure that
you do not stack the load in the cargo com-
partment higher than the lower edge of the 300
Stowage areasStowage and features

side windows. Do not place heavy objects
on top of the cargo compartment cover.
The cargo compartment cover and the cargo
net are attached to anchorages on the right
and left in the cargo compartment as a com-
bined cargo cover and net.
When the tailgate is opened, the cargo com-
partment cover is automatically raised to
make loading easier. It is automatically low-
ered again when the tailgate is closed.
When the cargo compartment cover is clip-
ped in, there should be no objects obstructing
the downwards movement of the cover in the
cargo compartment when the tailgate is
closed. The cargo compartment cover will
otherwise be raised again.
Extending/retracting the cargo com-
partment cover X
To extend: pull cargo compartment
cover 0043back by grab handle 0044and clip it
into the retainers on the left and right. X
To retract: unhook cargo compartment
cover 0043from the retainers on the left and right and guide it forwards by grab han-
dle
0044until it is fully retracted.
Installing/removing the combined
cargo cover and net You can reach the combined cargo cover and
net to install and remove it from the cargo
compartment and, with the seat backrest fol-
ded forwards, from the left-hand rear door.
X Make sure that the cargo net and the cargo
compartment cover are rolled up.
X To remove: press button 0044.
X Fold the combined cargo cover and net for-
wards on the left-hand side with the seat
backrest folded forwards, and fold it back-
wards with the seat backrest folded up.
X First, detach the combined cargo cover and
net from left-hand catch 0043and then
remove it from right-hand fixture 0087.
X To install: push the combined cargo cover
and net up to the stop into right-hand fix-
ture 0087.
X Place the combined cargo cover and net
into the left-hand fixture and push it into
catch 0043until the combined cargo cover
and net engages audibly. Stowage areas
301Stowage and features Z

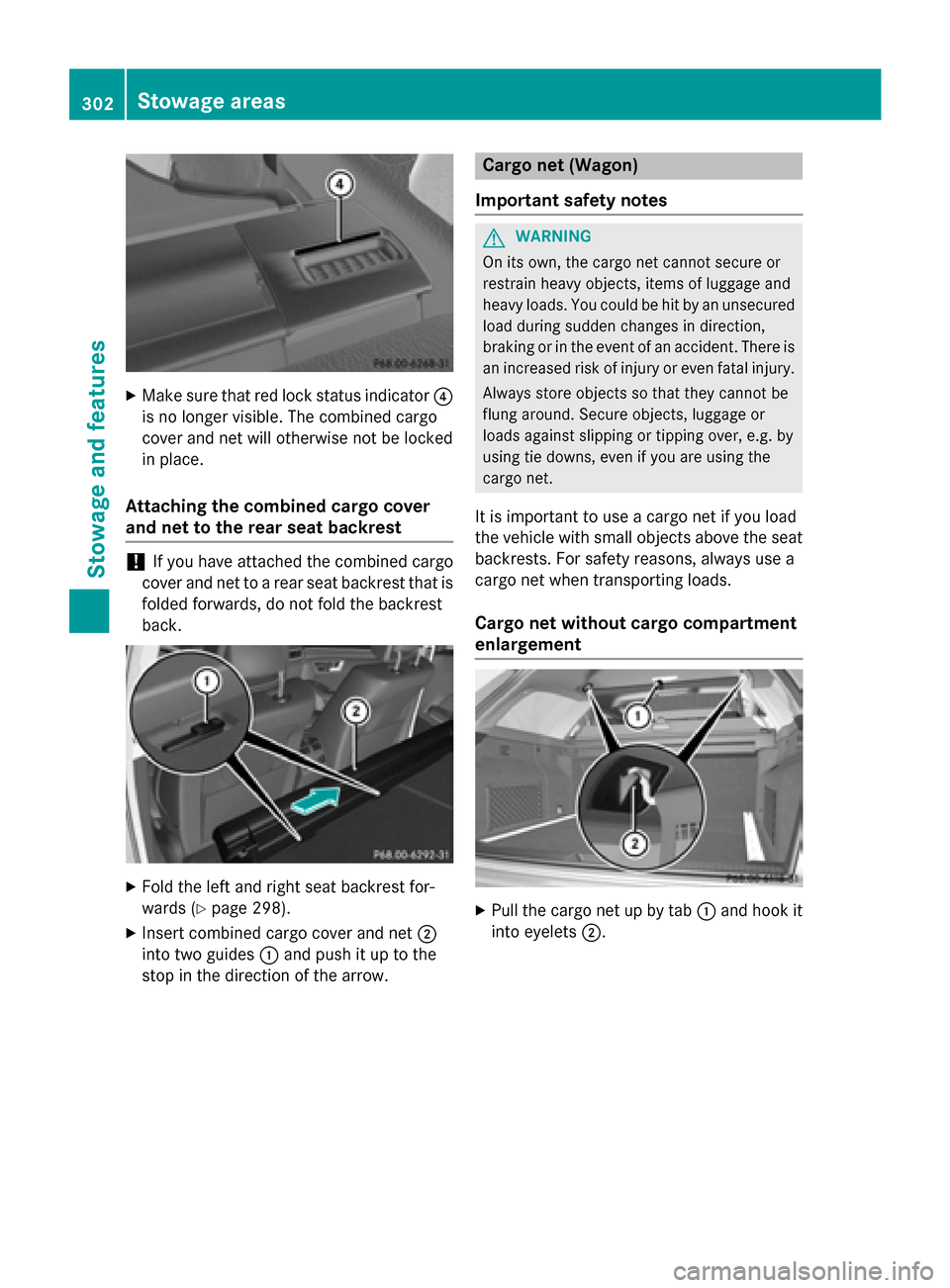

X
Make sure that red lock status indicator 0085
is no longer visible. The combined cargo
cover and net will otherwise not be locked
in place.
Attaching the combined cargo cover
and net to the rear seat backrest !
If you have attached the combined cargo
cover and net to a rear seat backrest that is folded forwards, do not fold the backrest
back. X
Fold the left and right seat backrest for-
wards (Y page 298).
X Insert combined cargo cover and net 0044
into two guides 0043and push it up to the
stop in the direction of the arrow. Cargo net (Wagon)
Important safety notes G
WARNING
On its own, the cargo net cannot secure or
restrain heavy objects, items of luggage and
heavy loads. You could be hit by an unsecured load during sudden changes in direction,
braking or in the event of an accident. There isan increased risk of injury or even fatal injury.
Always store objects so that they cannot be
flung around. Secure objects, luggage or
loads against slipping or tipping over, e.g. by
using tie downs, even if you are using the
cargo net.
It is important to use a cargo net if you load
the vehicle with small objects above the seat backrests. For safety reasons, always use a
cargo net when transporting loads.
Cargo net without cargo compartment
enlargement X
Pull the cargo net up by tab 0043and hook it
into eyelets 0044.302
Stowage areasStowage and features

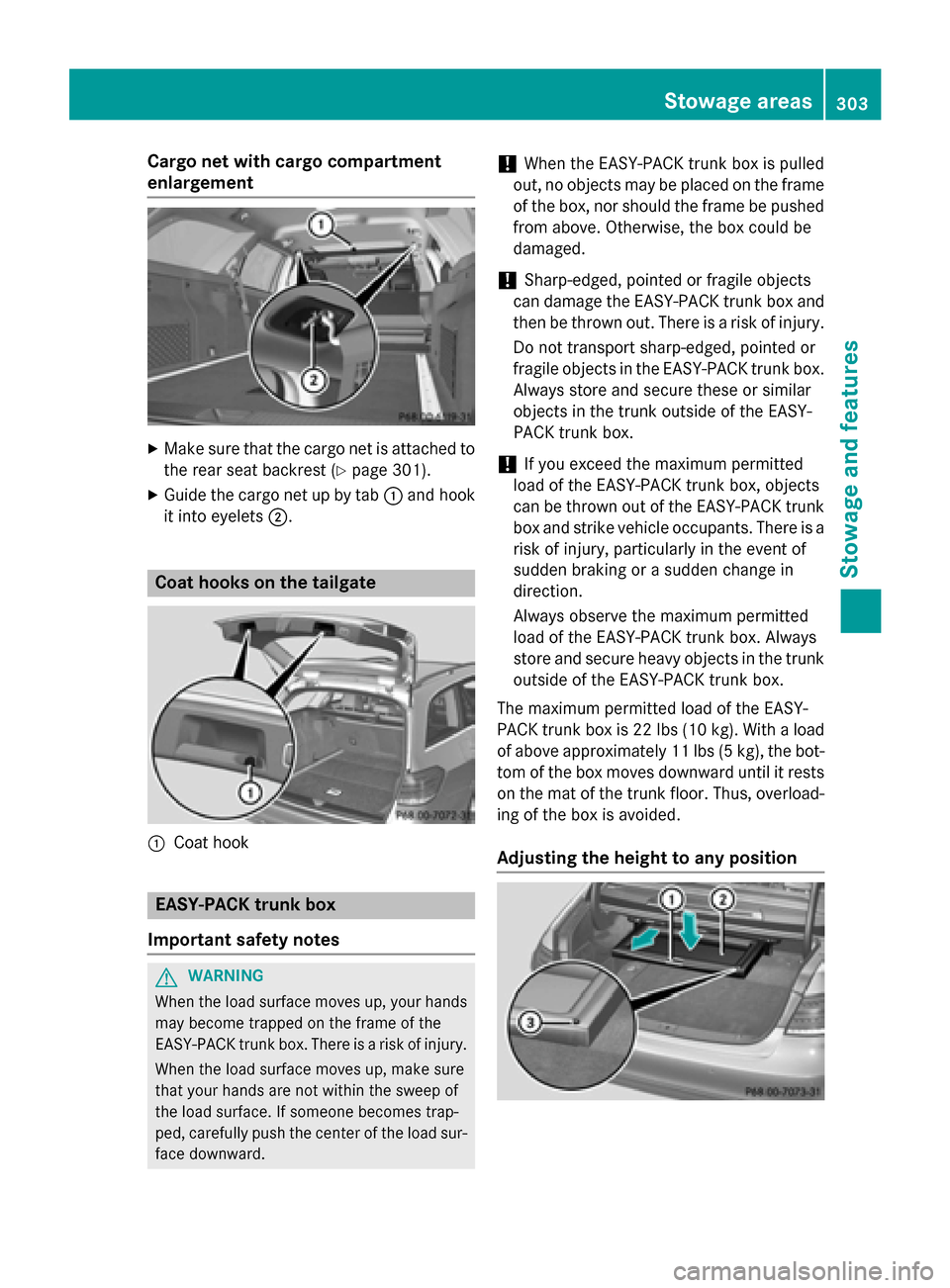

Cargo net with cargo compartment
enlargement X
Make sure that the cargo net is attached to
the rear seat backrest (Y page 301).
X Guide the cargo net up by tab 0043and hook
it into eyelets 0044. Coat hooks on the tailgate
0043
Coat hook EASY-PACK trunk box
Important safety notes G
WARNING
When the load surface moves up, your hands may become trapped on the frame of the
EASY-PACK trunk box. There is a risk of injury.
When the load surface moves up, make sure
that your hands are not within the sweep of
the load surface. If someone becomes trap-
ped, carefully push the center of the load sur-
face downward. !
When the EASY-PACK trunk box is pulled
out, no objects may be placed on the frame
of the box, nor should the frame be pushed from above. Otherwise, the box could be
damaged.
! Sharp-edged, pointed or fragile objects
can damage the EASY-PACK trunk box and
then be thrown out. There is a risk of injury.
Do not transport sharp-edged, pointed or
fragile objects in the EASY-PACK trunk box. Always store and secure these or similar
objects in the trunk outside of the EASY-
PACK trunk box.
! If you exceed the maximum permitted
load of the EASY-PACK trunk box, objects
can be thrown out of the EASY-PACK trunk box and strike vehicle occupants. There is arisk of injury, particularly in the event of
sudden braking or a sudden change in
direction.
Always observe the maximum permitted
load of the EASY-PACK trunk box. Always
store and secure heavy objects in the trunk
outside of the EASY-PACK trunk box.
The maximum permitted load of the EASY-
PACK trunk box is 22 lbs (10 kg). Witha load
of above approximately 11 lbs (5 kg), the bot-
tom of the box moves do wnward until it rests
on the mat of the trunk floor. Thus, overload-
ing of the box is avoided.
Adjusting the height to any position Stowage areas
303Stowage and features Z

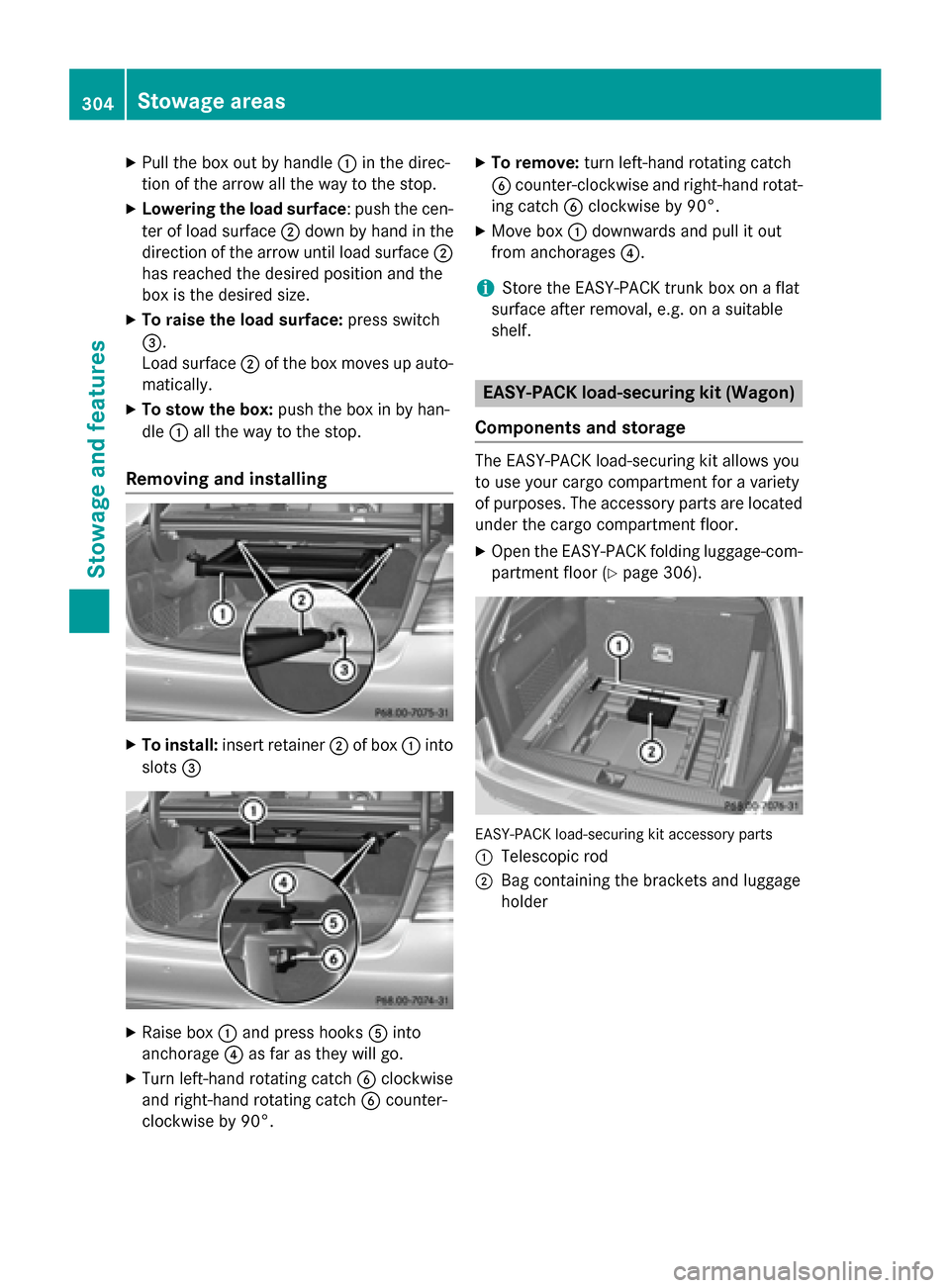

X
Pull the box out by handle 0043in the direc-
tion of the arrow all the way to the stop.
X Lowering the load surface: push the cen-
ter of load surface 0044down by hand in the
direction of the arrow until load surface 0044
has reached the desired position and the
box is the desired size.
X To raise the load surface: press switch
0087.
Load surface 0044of the box moves up auto-
matically.
X To stow the box: push the box in by han-
dle 0043all the way to the stop.
Removing and installing X
To install: insert retainer 0044of box 0043into
slots 0087 X
Raise box 0043and press hooks 0083into
anchorage 0085as far as they will go.
X Turn left-hand rotating catch 0084clockwise
and right-hand rotating catch 0084counter-
clockwise by 90°. X
To remove: turn left-hand rotating catch
0084 counter-clockwise and right-hand rotat-
ing catch 0084clockwise by 90°.
X Move box 0043downwards and pull it out
from anchorages 0085.
i Store the EASY-PACK trunk box on a flat
surface after removal, e.g. on a suitable
shelf. EASY-PACK load-securing kit (Wagon)
Components and storage The EASY-PACK load-securing kit allows you
to use your cargo compartment for a variety
of purposes. The accessory parts are located
under the cargo compartment floor.
X Open the EASY-PACK folding luggage-com-
partment floor (Y page 306). EASY-PACK load-securing kit accessory parts
0043
Telescopic rod
0044 Bag containing the brackets and luggage
holder 304
Stowage areasStowage and features

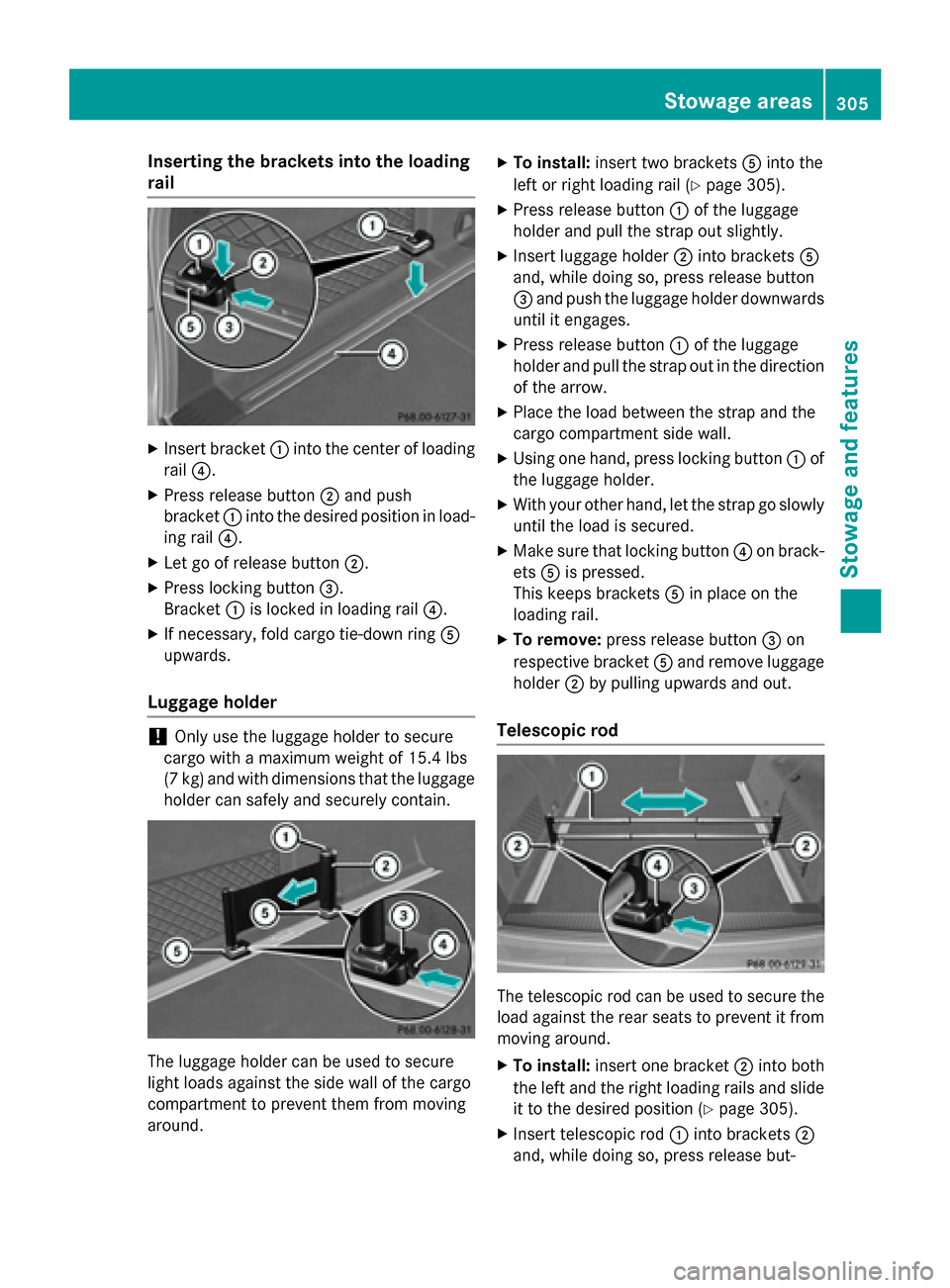

Inserting the brackets into the loading
rail X
Insert bracket 0043into the center of loading
rail 0085.
X Press release button 0044and push
bracket 0043into the desired position in load-
ing rail 0085.
X Let go of release button 0044.
X Press locking button 0087.
Bracket 0043is locked in loading rail 0085.
X If necessary, fold cargo tie-down ring 0083
upwards.
Luggage holder !
Only use the luggage holder to secure
cargo with a maximum weight of 15.4 lbs
(7 kg) and with dimensions that the luggage holder can safely and securely contain. The luggage holder can be used to secure
light loads against the side wall of the cargo
compartment to prevent them from moving
around. X
To install: insert two brackets 0083into the
left or right loading rail (Y page 305).
X Press release button 0043of the luggage
holder and pull the strap out slightly.
X Insert luggage holder 0044into brackets 0083
and, while doing so, press release button
0087 and push the luggage holder downwards
until it engages.
X Press release button 0043of the luggage
holder and pull the strap out in the direction
of the arrow.
X Place the load between the strap and the
cargo compartment side wall.
X Using one hand, press locking button 0043of
the luggage holder.
X With your other hand, let the strap go slowly
until the load is secured.
X Make sure that locking button 0085on brack-
ets 0083is pressed.
This keeps brackets 0083in place on the
loading rail.
X To remove: press release button 0087on
respective bracket 0083and remove luggage
holder 0044by pulling upwards and out.
Telescopic rod The telescopic rod can be used to secure the
load against the rear seats to prevent it from
moving around.
X To install: insert one bracket 0044into both
the left and the right loading rails and slide it to the desired position (Y page 305).
X Insert telescopic rod 0043into brackets 0044
and, while doing so, press release but- Stowage areas
305Stowage and featu res Z

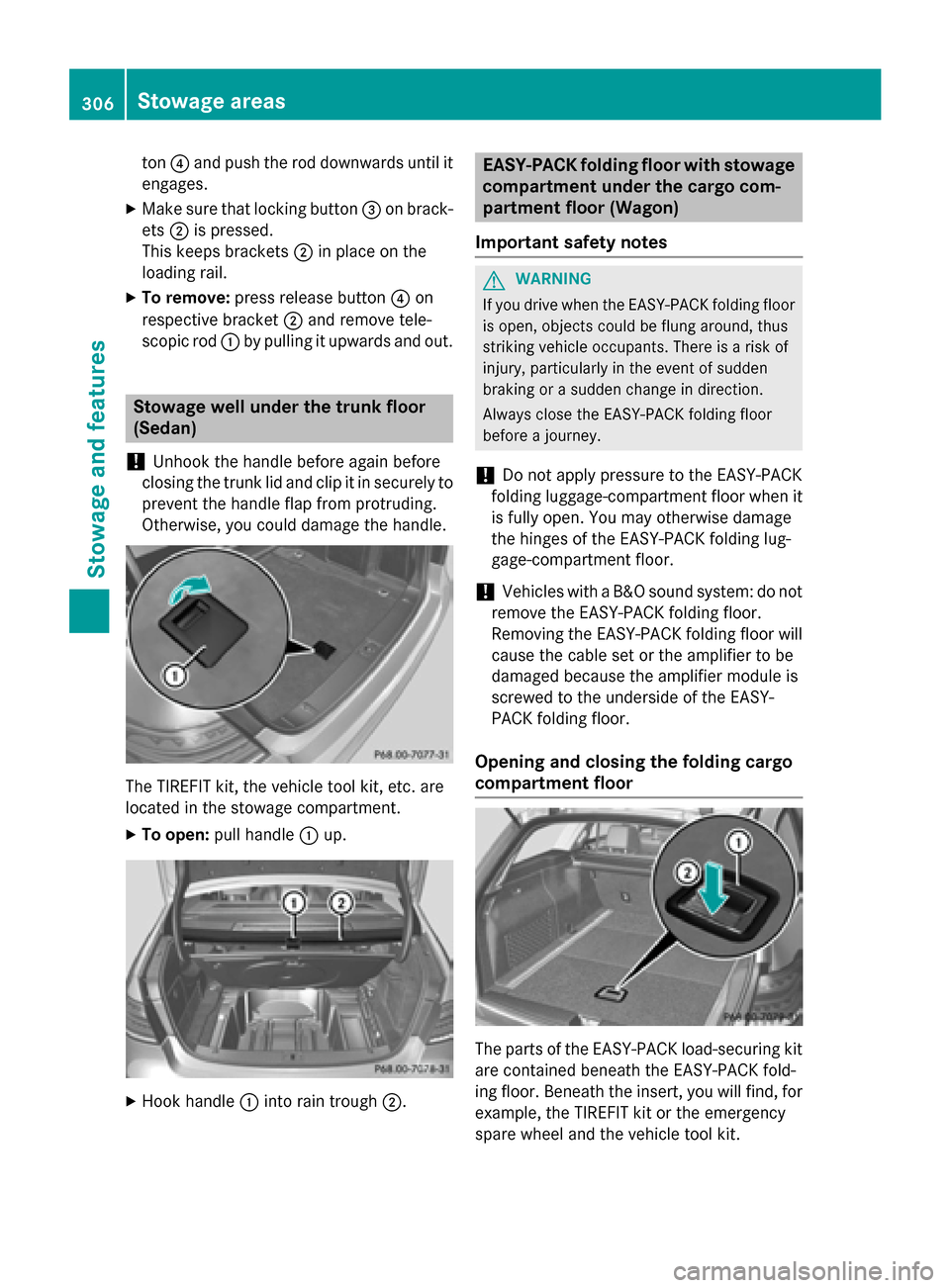

ton
0085and push the rod downwards until it
engages.
X Make sure that locking button 0087on brack-
ets 0044is pressed.
This keeps brackets 0044in place on the
loading rail.
X To remove: press release button 0085on
respective bracket 0044and remove tele-
scopic rod 0043by pulling it upwards and out. Stowage well under the trunk floor
(Sedan)
! Unhook the handle before again before
closing the trunk lid and clip it in securely to prevent the handle flap from protruding.
Otherwise, you could damage the handle. The TIREFIT kit, the vehicle tool kit, etc. are
located in the stowage compartment.
X To open: pull handle 0043up. X
Hook handle 0043into rain trough 0044. EASY-PACK folding floor with stowage
compartment under the cargo com-
partment floor (Wagon)
Important safety notes G
WARNING
If you drive when the EASY-PACK folding floor is open, objects could be flung around, thus
striking vehicle occupants. There is a risk of
injury, particularly in the event of sudden
braking or a sudden change in direction.
Always close the EASY-PACK folding floor
before a journey.
! Do not apply pressure to the EASY-PACK
folding luggage-compartment floor when it is fully open. You may otherwise damage
the hinges of the EASY-PACK folding lug-
gage-compartment floor.
! Vehicles with a B&O sound system: do not
remove the EASY-PACK folding floor.
Removing the EASY-PACK folding floor will
cause the cable set or the amplifier to be
damaged because the amplifier module is
screwed to the underside of the EASY-
PACK folding floor.
Opening and closing the folding cargo
compartment floor The parts of the EASY-PACK load-securing kit
are contained beneath the EASY-PACK fold-
ing floor. Beneath the insert, you will find, for
example, the TIREFIT kit or the emergency
spare wheel and the vehicle tool kit. 306
Sto
wage areasStowage an d features

X

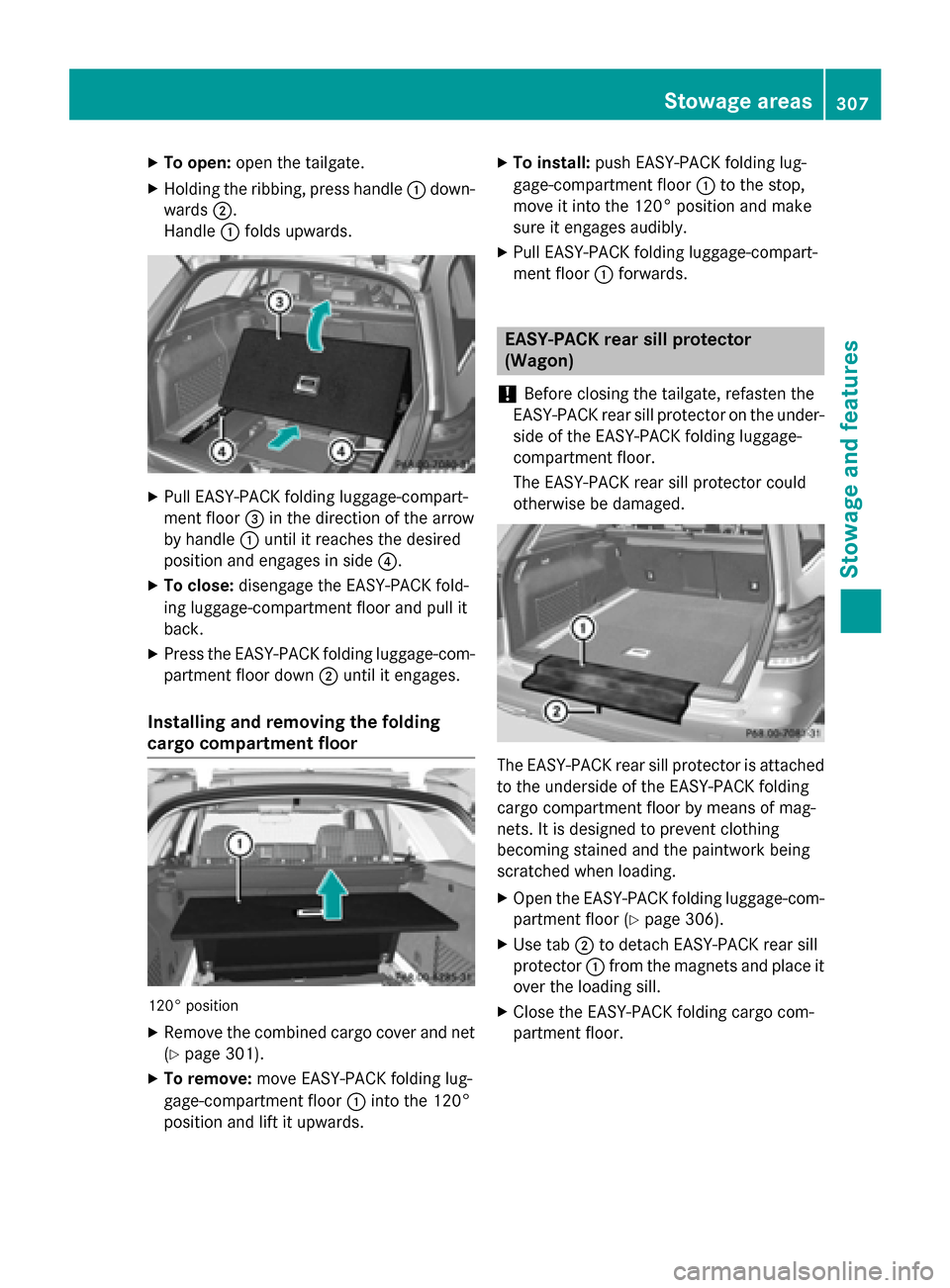

To open: open the tailgate.
X Holding the ribbing, press handle 0043down-
wards 0044.
Handle 0043folds upwards. X
Pull EASY-PACK folding luggage-compart-
ment floor 0087in the direction of the arrow
by handle 0043until it reaches the desired
position and engages in side 0085.
X To close: disengage the EASY-PACK fold-
ing luggage-compartment floor and pull it
back.
X Press the EASY-PACK folding luggage-com-
partment floor down 0044until it engages.
Installing and removing the folding
cargo compartment floor 120° position
X Remove the combined cargo cover and net
(Y page 301).
X To remove: move EASY-PACK folding lug-
gage-compartment floor 0043into the 120°
position and lift it upwards. X
To install: push EASY-PACK folding lug-
gage-compartment floor 0043to the stop,
move it into the 120° position and make
sure it engages audibly.
X Pull EASY-PACK folding luggage-compart-
ment floor 0043forwards. EASY-PACK rear sill protector
(Wagon)
! Before closing the tailgate, refasten the
EASY-PACK rear sill protector on the under-
side of the EASY-PACK folding luggage-
compartment floor.
The EASY-PACK rear sill protector could
otherwise be damaged. The EASY-PACK rear sill protector is attached
to the underside of the EASY-PACK folding
cargo compartment floor by means of mag-
nets. It is designed to prevent clothing
becoming stained and the paintwork being
scratched when loading.
X Open the EASY-PACK folding luggage-com-
partment floor (Y page 306).
X Use tab 0044to detach EASY-PACK rear sill
protector 0043from the magnets and place it
over the loading sill.
X Close the EASY-PACK folding cargo com-
partment floor. Stowage areas
307Stowage an d features Z

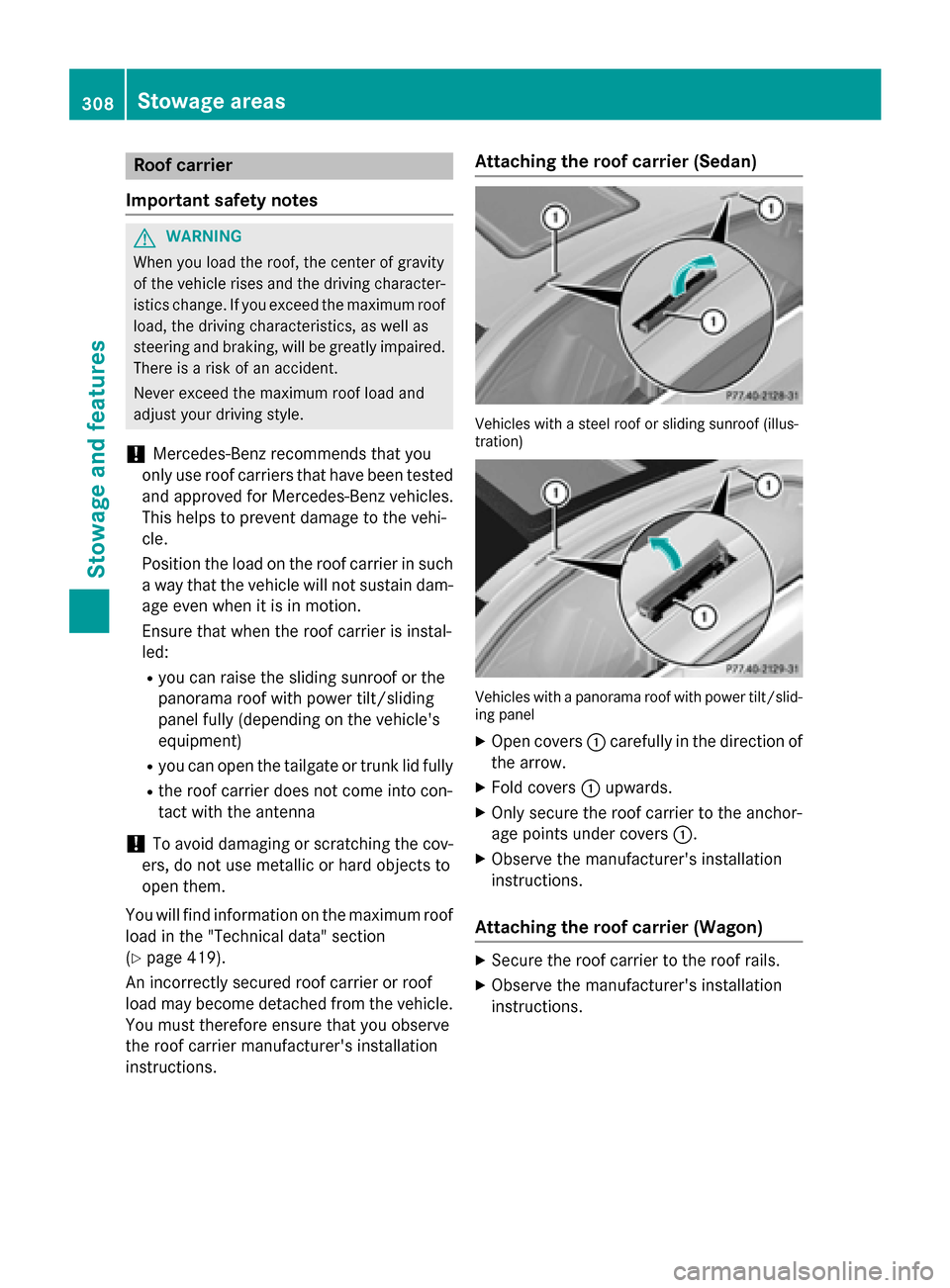

Roof carrier
Important safety notes G
WARNING
When you load the roof, the center of gravity
of the vehicle rises and the driving character- istics change. If you exceed the maximum roof
load, the driving characteristics, as well as
steering and braking, will be greatly impaired. There is a risk of an accident.
Never exceed the maximum roof load and
adjust your driving style.
! Mercedes-Benz recommends that you
only use roof carriers that have been tested
and approved for Mercedes-Benz vehicles.
This helps to prevent damage to the vehi-
cle.
Position the load on the roof carrier in such
a way that the vehicle will not sustain dam-
age even when it is in motion.
Ensure that when the roof carrier is instal-
led:
R you can raise the sliding sunroof or the
panorama roof with power tilt/sliding
panel fully (depending on the vehicle's
equipment)
R you can open the tailgate or trunk lid fully
R the roof carrier does not come into con-
tact with the antenna
! To avoid damaging or scratching the cov-
ers, do not use metallic or hard objects to
open them.
You will find information on the maximum roof
load in the "Technical data" section
(Y page 419).
An incorrectly secured roof carrier or roof
load may become detached from the vehicle.
You must therefore ensure that you observe
the roof carrier manufacturer's installation
instructions. Attaching the roof carrier (Sedan)
Vehicles with a steel roof or sliding sunroof (illus-
tration)
Vehicles with a panorama roof with power tilt/slid-
ing panel
X Open covers 0043carefully in the direction of
the arrow.
X Fold covers 0043upwards.
X Only secure the roof carrier to the anchor-
age points under covers 0043.
X Observe the manufacturer's installation
instructions.
Attaching the roof carrier (Wagon) X
Secure the roof carrier to the roof rails.
X Observe the manufacturer's installation
instructions. 308
Stowage areasStowage and features
