Cockpit
................................................. 30
Instrument cluster ..............................31
Multifunction steering wheel .............33
Center console .................................... 34
Overhead control panel ......................36
Door control panel .............................. 37 29At a glance
Page 32 of 420

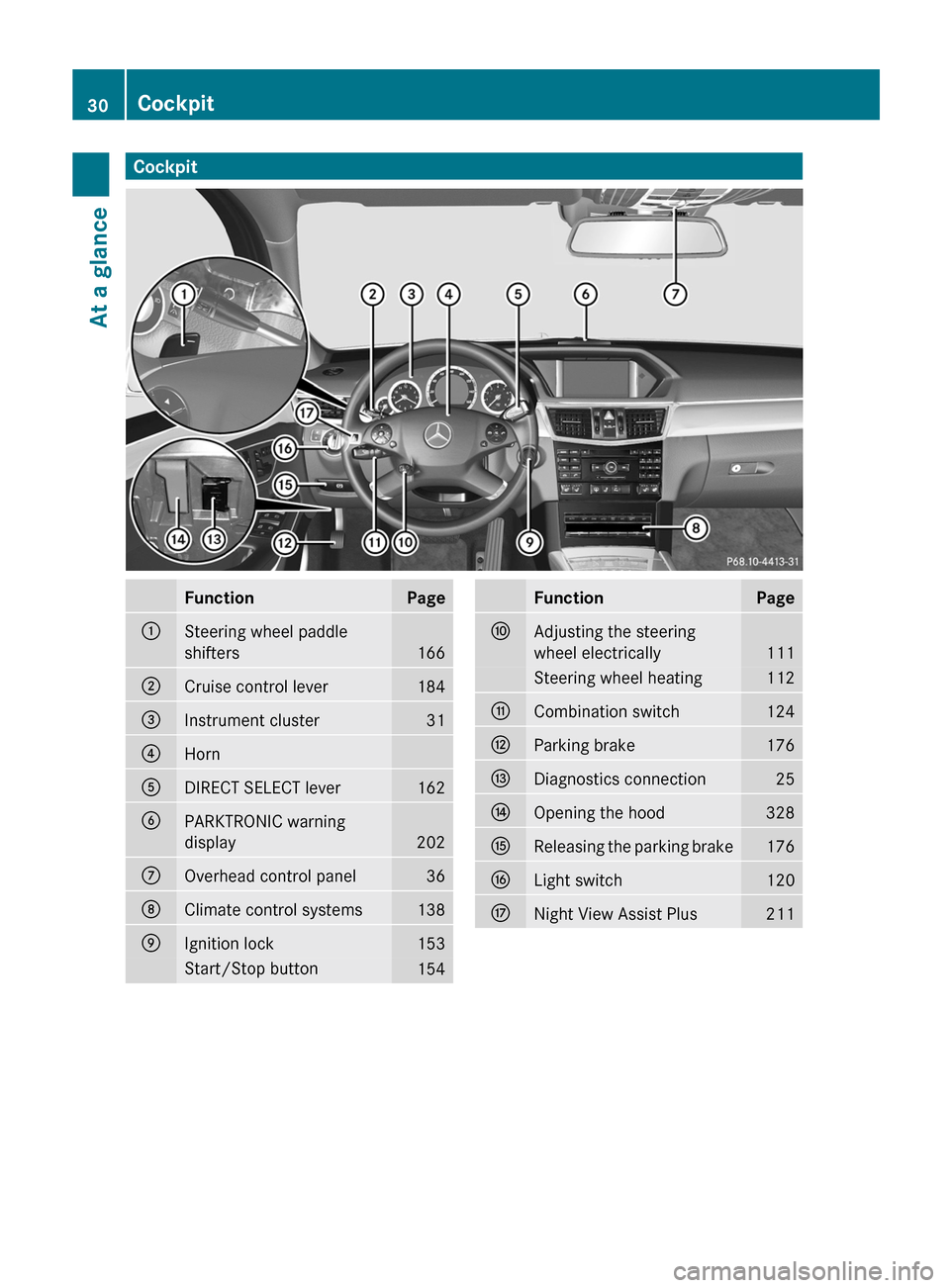

Cockpit
Function Page
:
Steering wheel paddle
shifters
166
;
Cruise control lever 184
=
Instrument cluster 31
?
Horn
A
DIRECT SELECT lever 162
B
PARKTRONIC warning
display
202
C
Overhead control panel 36
D
Climate control systems 138
E
Ignition lock 153
Start/Stop button
154 Function Page
F
Adjusting the steering
wheel electrically
111
Steering wheel heating 112
G
Combination switch 124
H
Parking brake 176
I
Diagnostics connection 25
J
Opening the hood 328
K
Releasing the parking brake 176
L
Light switch 120
M
Night View Assist Plus 21130
CockpitAt a glance
Page 33 of 420

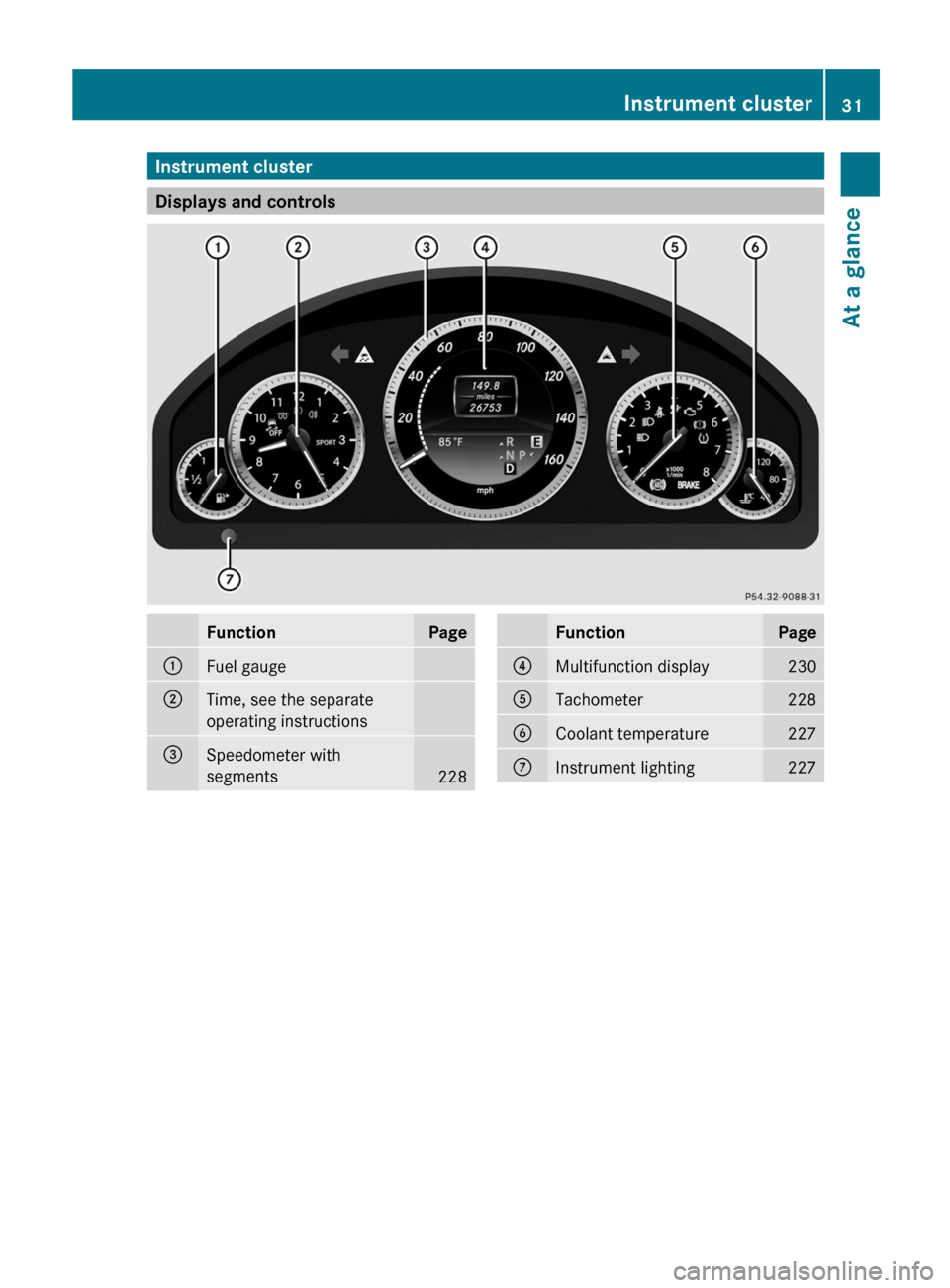

Instrument cluster
Displays and controls
Function Page
:
Fuel gauge
;
Time, see the separate
operating instructions
=
Speedometer with
segments
228 Function Page
?
Multifunction display 230
A
Tachometer 228
B
Coolant temperature 227
C
Instrument lighting 227Instrument cluster
31At a glance
Page 34 of 420
Warning and indicator lamps
Function Page
:
å ESP
®
OFF 279
;
% Diesel engine:
preglow
155
=
N Front fog lamps
122
?
R Rear fog lamp
123
A
M SPORT handling
mode in AMG vehicles
280
B
#! Turn signals
124
C
ä ESP
® 279
D
· Distance warning
285
E
K High-beam headlamp
124
F
L Low-beam
headlamps
122 Function Page
G
ü Seat belt
276
H
6 SRS
281
I
; Check Engine
282
J
J Brakes (Canada only)
277
K
h Tire pressure monitor
286
L
? Coolant
283
M
$ Brakes (USA only)
277
N
! ABS
278
O
8 Reserve fuel
28232
Instrument cluster
At a glance
Page 35 of 420
Multifunction steering wheel
Function Page
:
Multifunction display 230
;
COMAND display; see the
separate Operating
Instructions
=
~
Rejects or ends a call 234
Exits phone book/redial
memory
6
Makes or accepts a call
Switches to the redial
memory
WX
Adjusts the volume
8
Mute
?
?
Switches on the Voice
Control System; see the
separate operating
instructions Function Page
A
%
Back 228
Switches off the Voice
Control System; see the
separate operating
instructions
B
=;
Selects a menu 228
9:
Selects a submenu or
scrolls through lists
228
a
Confirms your selection 228
Hides display messages 246Multifunction steering wheel
33At a glance
Page 36 of 420
Center console
Center console, upper section
Function Page
:
£ Hazard warning
lamps
125
;
ATA indicator lamp 75
=
45 Indicator lamp
48
?
COMAND; see the separate
operating instructions
A
c Seat heating
110
B
s Seat ventilation
111 Function Page
C
¤ ECO start/stop
function (AMG vehicles)
157
D
c PARKTRONIC
202
E
Ü Retracts the rear seat
head restraints
105
F
u Sedan: rear window
roller sunblind
30734
Center console
At a glance
Page 37 of 420
Center console, lower section
Function Page
G
Stowage compartment 288
Ashtray 308
Cigarette lighter 309
Cup holders 305
H
e Sets the suspension
tuning
200
I
É Sets the vehicle level
199 Function Page
J
Stowage compartment 288
K
Ú Selects the drive
program
165
L
COMAND controller; see
the separate operating
instructions Center console
35At a glance
Page 38 of 420

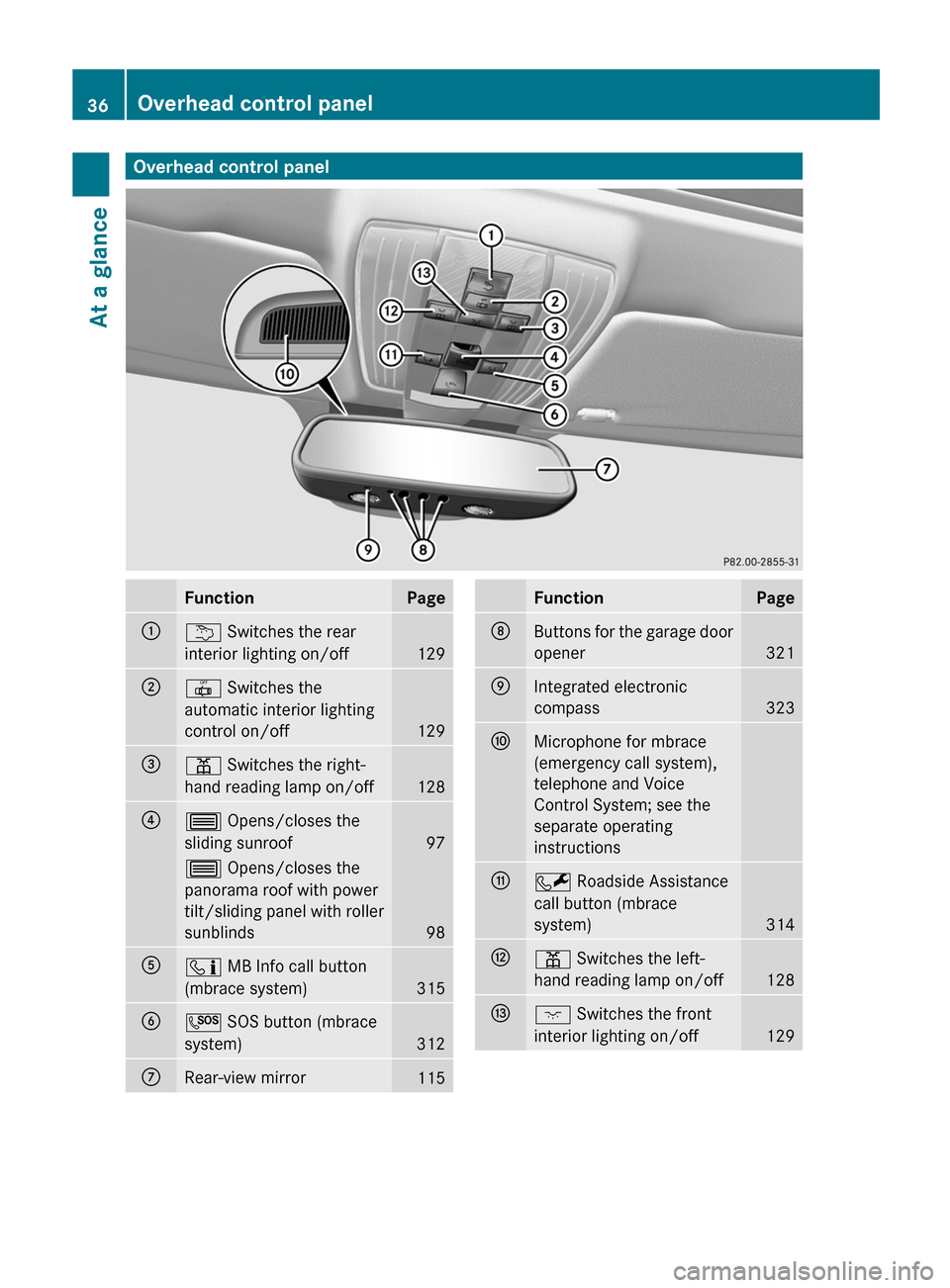

Overhead control panel
Function Page
:
u Switches the rear
interior lighting on/off
129
;
| Switches the
automatic interior lighting
control on/off
129
=
p Switches the right-
hand reading lamp on/off
128
?
3 Opens/closes the
sliding sunroof
97
3 Opens/closes the
panorama roof with power
tilt/sliding
panel with roller
sunblinds 98
A
ï MB Info call button
(mbrace system)
315
B
G SOS button (mbrace
system)
312
C
Rear-view mirror
115 Function Page
D
Buttons for the garage door
opener
321
E
Integrated electronic
compass
323
F
Microphone for mbrace
(emergency call system),
telephone and Voice
Control System; see the
separate operating
instructions
G
F Roadside Assistance
call button (mbrace
system)
314
H
p Switches the left-
hand reading lamp on/off
128
I
c Switches the front
interior lighting on/off
12936
Overhead control panel
At a glance
Page 39 of 420

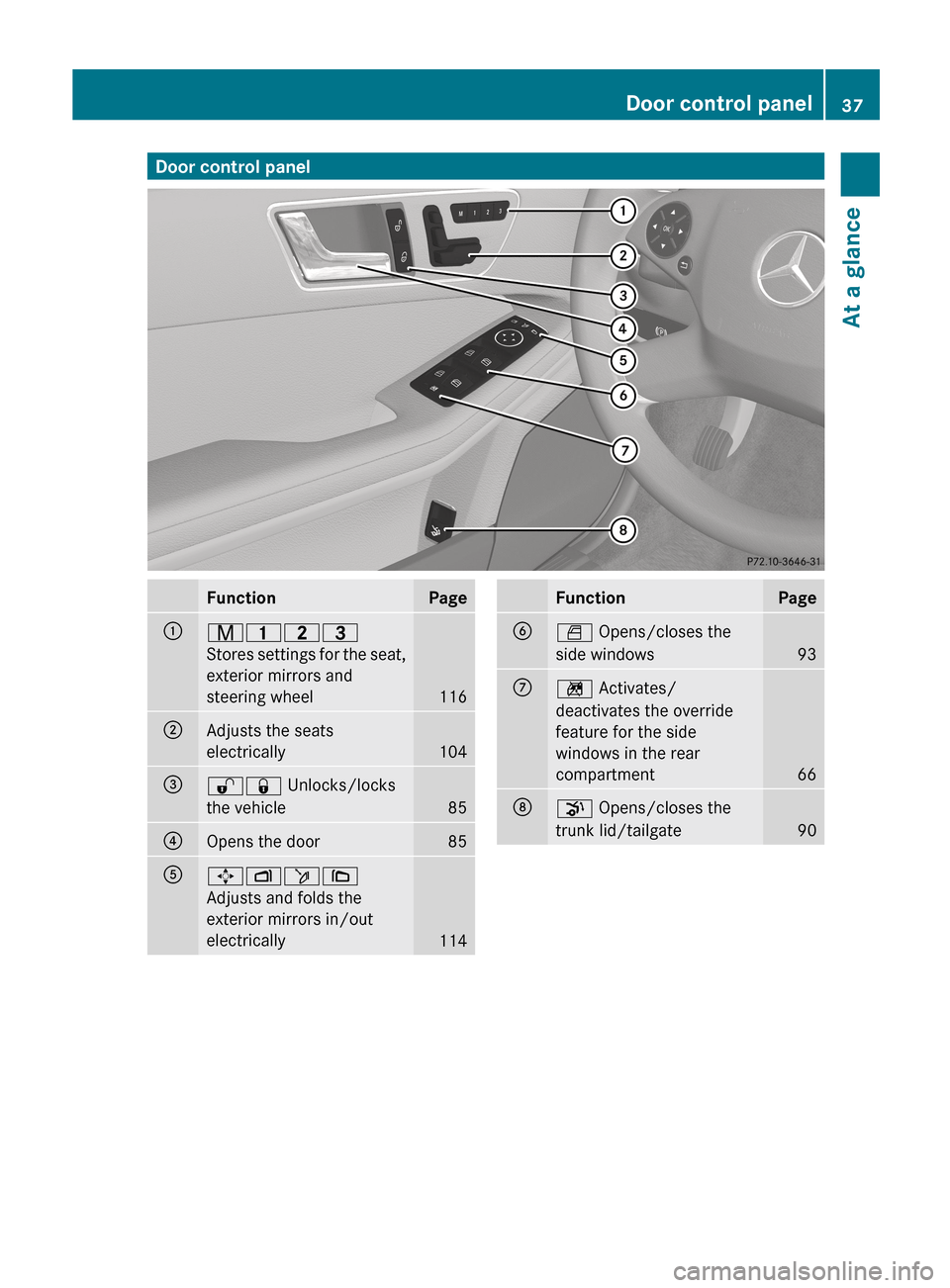

Door control panel
Function Page
:
r45=
Stores
settings for the seat,
exterior mirrors and
steering wheel 116
;
Adjusts the seats
electrically
104
=
%& Unlocks/locks
the vehicle
85
?
Opens the door 85
A
7Zö\
Adjusts and folds the
exterior mirrors in/out
electrically
114 Function Page
B
W Opens/closes the
side windows
93
C
n Activates/
deactivates the override
feature for the side
windows in the rear
compartment
66
D
p Opens/closes the
trunk lid/tailgate
90Door control panel
37
At a glance
