50 Getting startedDrivingDriving
Depress the brake pedal.

Move selector lever to positionDorR.

Release the brake pedal.

Carefully depress the accelerator
pedal.
Once the vehicle is in motion, the automat-
ic central locking system engages and the
locking knobs drop down.After a cold start the automatic transmis-
sion engages at a higher revolution. This al-
lows the catalytic converter to reach its
operating temperature earlier.
For more information on driving, see “Driv-
ing instructions” (
page 285).
iWait for the gear selection process to
complete before setting the vehicle in
motion.iYou can open a locked door from the
inside. Open door only when conditions
are safe to do so.
!If you hear a warning signal and a mes-
sage appears in the multifunction dis-
play when driving off, you have
forgotten to release the parking brake.
Release the parking brake.Warning!
G
On slippery road surfaces, never downshift
in order to obtain braking action. This could
result in drive wheel slip and reduced vehi-
cle control. Your vehicle’s ABS will not pre-
vent this type of loss of control.
Warning!
G
It is dangerous to shift the gear selector le-
ver out ofP orN if the engine speed is high-
er than idle speed. If your foot is not firmly
on the brake pedal, the vehicle could accel-
erate quickly forward or in reverse. You
could lose control of the vehicle and hit
someone or something. Only shift into gear
when the engine is idling normally and when
your right foot is firmly on the brake pedal.!Simultaneously depressing the acceler-
ator pedal and applying the brake re-
duces engine performance and causes
premature brake and drivetrain wear.

51 Getting started
Driving
Switching on headlamps
Low beam headlamps
The exterior lamp switch is located on the
dashboard to the left of the steering wheel.Exterior lamp switch1Off
2Low beam headlamps on
Turn exterior lamp switch to
positionB.
The low beam headlamp indicator
lampB in the instrument cluster
comes on (
page 141).High beam
The combination switch is located on the
left of the steering column.
Combination switch1High beam
2High beam flasher
Turn combination switch in direction of
arrow1.
The high beam headlamp indicator
lampA in the instrument cluster
comes on (
page 24).
For more information on headlamps, see
“Lighting” (
page 141).
Turn signals
The combination switch is located on the
left of the steering column.Combination switch1Turn signal, right
2Turn signal, left
Press combination switch in direction
of arrow1 or2.
The corresponding turn signal indicator
lamp L or K in the instrument
cluster flashes.

52 Getting startedDrivingThe combination switch resets automati-
cally after major steering wheel move-
ments.
Windshield wipers
The combination switch is located on the
left of the steering column.Combination switch1Single wipe
2Switching on windshield wipers
Switch on the ignition (
page 34).Switching on windshield wipers

Turn the combination switch to the de-
sired position depending on the inten-
sity of the rain.
0Windshield wipers off
IIntermittent wiping
IINormal wiper speed
IIIFast wiper speed
iTo signal minor directional changes
such as changing lanes, press combi-
nation switch only to point of resis-
tance and release. The corresponding
turn signals will flash three times.
iIntermittent wiping interval is depen-
dent on wetness of windshield. After
the initial wipe, pauses between wipes
are automatically controlled by the rain
sensor.

53 Getting started
Driving
Intermittent wiping
Turn the combination switch to
positionI.
Single wipe

Press switch briefly in the direction of
arrow1.
The windshield wipers wipe one time
without washer fluid.
Wiping with windshield washer fluid

Push switch in the direction of
arrow1 past the resistance point.
The windshield wipers operate with
washer fluid.
For information on filling up the washer
reservoir, see “Windshield washer system
and headlamp cleaning system*”
(
page 306).
!Do not leave windshield wipers in inter-
mittent setting when the vehicle is tak-
en to an automatic car wash or during
windshield cleaning. Wipers will oper-
ate in the presence of water sprayed on
the windshield, and wipers may be
damaged as a result.
The combination switch should not be
left in intermittent setting as the wipers
will wipe the windshield once every
time the engine is started. Dust that ac-
cumulates on the windshield might
scratch the glass and / or damage the
wiper blades when wiping occurs on a
dry windshield.
iIntermittent wiping is interrupted when
the vehicle is at a standstill and a front
door is opened.
!If anything blocks the windshield wip-
ers (leaves, snow, etc.), switch them off
immediately.

For safety reasons,

turn off the engine by turning
the SmartKey to position0 and
withdraw SmartKey from starter
switch
or


turn off the engine by pressing
the KEYLESS-GO* start/stop
button and open the driver’s
door (with the driver’s door
open, starter switch is in
position0, same as with
SmartKey removed from starter
switch)
before attempting to remove any
blockage.

54 Getting startedDriving
Rear window wiper / washer
The switch is located on the center con-
sole.
1Intermittent wipe
2Indicator lamp
3Rear window washer system
Activating intermittent wipe
Switch on the ignition (
page 34)

Press upper section1 of the switch.
Indicator lamp2 comes on.Deactivating intermittent wipe

Press upper section1 of the switch
again.
Indicator lamp2 goes out.
Wiping with window washer fluid

Press and hold lower half3 of the
switch.
The rear window is wiped for a further
five seconds after the switch is re-
leased.


Remove blockage.


Turn the windshield wipers on
again.
If windshield wipers fail to function at
all in switch positionI,


set the combination switch to the
next highest wiper speed


have the windshield wipers
checked at the nearest authorized
Mercedes-Benz Center

55 Getting started
Driving
Problems while driving
The engine runs erratically and misfires

An ignition cable may be damaged.


The engine electronics may not be
operating properly.


Unburned gasoline may have entered
the catalytic converter and damaged it.

Give very little gas.

Have the problem repaired by an
authorized Mercedes-Benz Center as
soon as possible.The coolant temperature is above
248°F (120°C)
The coolant is too hot and is no longer
cooling the engine.

Stop the vehicle as soon as possible
and turn off the engine. Allow engine
and coolant to cool.

Check the coolant level and add cool-
ant if necessary (
page 303).In case of accident
If the vehicle is leaking fuel:

Do not start the engine under any cir-
cumstances.

Notify local fire and/or police authori-
ties.
If the extent of the damage cannot be de-
termined:

Notify an authorized Mercedes-Benz
Center.
If no damage can be determined on the


major assemblies


fuel system


engine mount:

Start the engine in the usual manner.

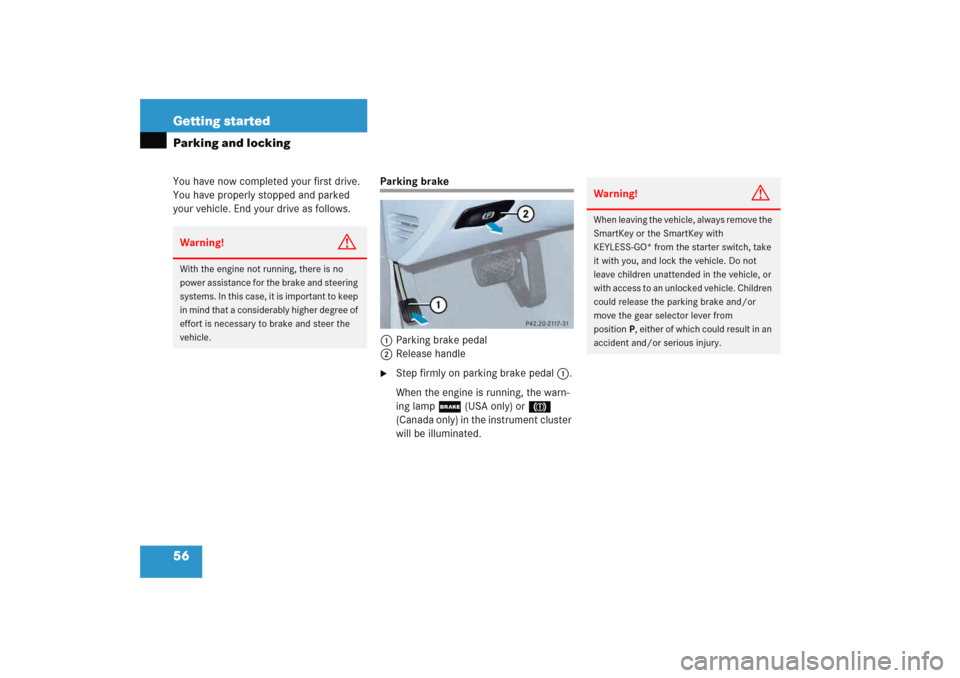

56 Getting startedParking and lockingYou have now completed your first drive.
You have properly stopped and parked
your vehicle. End your drive as follows.
Parking brake
1Parking brake pedal
2Release handle
Step firmly on parking brake pedal1.
When the engine is running, the warn-
ing lamp ; (USA only) or 3
(Canada only) in the instrument cluster
will be illuminated.
Warning!
G
With the engine not running, there is no
power assistance for the brake and steering
systems. In this case, it is important to keep
in mind that a considerably higher degree of
effort is necessary to brake and steer the
vehicle.
Warning!
G
When leaving the vehicle, always remove the
SmartKey or the SmartKey with
KEYLESS-GO* from the starter switch, take
it with you, and lock the vehicle. Do not
leave children unattended in the vehicle, or
with access to an unlocked vehicle. Children
could release the parking brake and/or
move the gear selector lever from
positionP, either of which could result in an
accident and/or serious injury.

57 Getting started
Parking and locking
Switching off headlamps
Turn the exterior lamp switch toM
(page 51).
For more information, see the “Controls in
detail” section (
page 141).
Turning off engine
Place the gear selector lever in
positionP.Turning off with the SmartKey

Turn the SmartKey in the starter switch
(page 34) to position0 and remove
it.
The immobilizer is activated.

Press the seat belt release button
(page 45).
Allow the retractor to completely re-
wind the seat belt by guiding the latch
plate.
Warning!
G
Getting out of your vehicle with the gear se-
lector lever not fully engaged in positionP is
dangerous. Also, when parked on an incline,
positionP alone may not prevent your vehi-
cle from moving, possibly hitting people or
objects.
Always set the parking brake in addition to
shifting to positionP.
When parked on an incline, turn front wheels
towards the road curb.
iAlways set the parking brake in addi-
tion to shifting to positionP.
On slopes, turn the front wheels to-
wards the road curb.
iThe SmartKey can only be removed
from the starter switch with the gear
selector lever in positionP.


58 Getting startedParking and locking

After exiting the vehicle press the lock
button‹ on the SmartKey
(page 32).


All turn signal lamps flash three
times.


An acoustic signal sounds three
times (if equipped and feature acti-
vated).
For more information, see “Factory
setting” (
page 104).


The locking knobs in the doors
move down.


The anti-theft alarm system is
armed.For more information, see the “Controls in
detail” section (
page 102).
iWith the SmartKey removed and the
driver’s door open, a warning sounds
and the message
Switch off lights
appears in the multifunction display if
the vehicle’s exterior lamps are not
switched off.Warning!
G
To prevent possible personal injury, always
keep hands and fingers away from the door
openings when closing the doors. Be espe-
cially careful when small children are
around.
Before closing doors, make sure that there
is no possibility of someone getting caught
in a door during closing.
Warning!
G
When leaving the vehicle, always remove the
SmartKey from the starter switch, take it
with you, and lock the vehicle. Do not leave
children unattended in the vehicle, or with
access to an unlocked vehicle. Unsuper-
vised use of vehicle may cause an accident
and/or serious personal injury.


59 Getting started
Parking and locking
Turning off with KEYLESS-GO*
Place the gear selector lever inP.

Press the KEYLESS-GO start/stop but-
ton to shut off the engine.
With the driver's door closed, the start-
er switch is now in position1. With the
driver’s door opened, the starter switch
is set to position0, same as SmartKey
removed from starter switch
(page 34).

Press the seat belt release button
(page 45).
Allow the retractor to completely re-
wind the seat belt by guiding the latch
plate.
!If you hear a warning signal, you have
either

forgotten to switch off the vehicle’s
exterior lamps before opening the
driver’s door,
or


tried to turn off the engine while the
gear selector lever is not inP.
Turn off the lights or place the gear se-
lector lever inP.
Warning!
G
To prevent possible personal injury, always
keep hands and fingers away from the door
openings when closing the doors. Be espe-
cially careful when small children are
around.
Before closing doors, make sure that there
is no possibility of someone getting caught
in a door during closing.
