MERCEDES-BENZ E WAGON 2005 S211 Owner's Manual

190 Controls in detailAutomatic transmissionStopping
When you stop briefly, e.g. at traffic lights:
Leave the transmission in gear.

Hold the vehicle with the brake.
When you stop longer with the engine
idling or on an uphill gradient:

Move the gear selector lever to
positionP.

Set the parking brake.Maneuvering
When you maneuver in tight areas,
e.g. when pulling into a parking space:

Control the vehicle speed by gradually
releasing the brakes.

Accelerate gently.

Never abruptly step on the accelerator.
Working on the vehicleEmergency operation
(Limp Home Mode)
If vehicle acceleration worsens or the
transmission no longer shifts, the trans-
mission is most likely operating in limp
home (emergency operation) mode. In this
mode only second gear and reverse gear
can be activated.
Stop the vehicle.

Move gear selector lever toP.

Turn off the engine.

Wait at least ten seconds before
restarting.

Restart the engine.

Move gear selector lever to positionD
(for second gear) orR.

Have the transmission checked at an
authorized Mercedes-Benz Center as
soon as possible.
Warning!
G
When working on the vehicle, set the
parking brake and move gear selector lever
to positionP. Otherwise the vehicle could
roll away.

191 Controls in detail
Good visibility
Good visibility
For information on windshield wipers, see
“Windshield wipers” (
page 52).
Headlamp cleaning system*
The button is located on the left side of the
dashboard.
1Headlamp washer button
Switch on the ignition (
page 34).

Press button1.
The headlamps are cleaned with a
high-pressure water jet.For more information on filling up the
washer reservoir, see “Windshield washer
system and headlamp cleaning system*”
(
page 306).
Rear view mirror
For more information on setting the rear
view mirrors, see “Mirrors” (
page 41).
Auto-dimming mirror
The reflection brightness of the exterior
rear view mirror on the driver’s side and
the interior rear view mirror will respond
automatically to glare when


the ignition is switched on, and


incoming light from headlamps falls on
the sensor in the interior rear view mir-
ror
The rear view mirror will not react if


reverse gear is engaged


the interior lighting is turned on
Warning!
G
The auto-dimming function does not react if
incoming light is not aimed directly at sen-
sors in the interior rear view mirror.
The interior rear view mirror does not react,
for example, if the rear window sunshade is
in raised position.
Glare can endanger you and others.Warning!
G
In the case of an accident liquid electrolyte
may escape from the mirror housing if the
mirror glass breaks.
Electrolyte has an irritating effect. Do not al-
low the liquid to come into contact with
eyes, skin, clothing, or respiratory system.
In case it does, immediately flush affected
area with water, and seek medical help if
necessary.

192 Controls in detailGood visibility
Activating exterior rear view mirror
parking position
Follow these steps to activate the mirror
parking position so that the passen-
ger-side exterior rear view mirror will be
turned downward to the stored position.
The buttons are located on the driver’s
door.
1Driver’s side exterior rear view mirror
button
2Passenger-side exterior rear view
mirror button
Make sure you have stored a parking
position for the passenger-side exterior
rear view mirror (
page 140).

Make sure the
Mirror adjustment
parking aid function in the
Conve-
nience
submenu of the control system
is switched to
on (page 176).

Switch on the ignition (
page 34).

Press button2 for the passenger-side
exterior rear view mirror.

Place the gear selector lever in reverse
gearR.
The passenger-side exterior rear view
mirror will be turned downward to the
stored position.
The exterior rear view mirror returns to its
previously stored driving position:


ten seconds after you put the gear se-
lector lever out of positionR


immediately once your vehicle exceeds
a speed of approximately 6 mph
(10 km/h)


immediately when you press button1
for driver’s side mirror.
!Electrolyte drops coming into contact
with the vehicle paint finish can be
completely removed only while in the
liquid state by applying plenty of water.Warning!
G
Exercise care when using the passenger
side exterior rear view mirror. The mirror
surface is convex (outwardly curved surface
for a wider field of view). Objects in mirror
are closer than they appear. Check your in-
terior rear view mirror or glance over your
shoulder before changing lanes.

193 Controls in detail
Good visibility
Sun visors
The sun visors protect you from sun glare
while driving.
1Sun visor
2Mounting

Swing sun visor1 down when you ex-
perience glare. 1Sun visor
2Mirror cover
3Mirror lamp
4Vanity mirror

Make sure the sun visor is properly en-
gaged in the mounting.

Lift the mirror cover to access the mir-
ror.
Lamp3 switches on.
Warning!
G
Do not use the vanity mirror while driving.
Keep the mirrors in the sun visors closed
while vehicle is in motion. Reflected glare
can endanger you and others.

194 Controls in detailGood visibility1Mounting
2Additional visor*
3Sun visor
If sunlight enters through a side window:
Disengage sun visor from mounting1.

Pivot sun visor to the side.
The sun visors are extendable.

Adjust the sun visors by pushing or
pulling in the direction of the arrows.
Roller sunblind* in the rear doors
Pull the roller sunblind out using the
hooks.

Attach the hooks at the top.
iIf sunlight enters through a side win-
dow, disengage sun visor from
mounting1 and pivot to the side.
Mirror lamp3 (
page 193) will
switch off.
!Always guide the sunblind by hand. Do
not let it snap back, as the retractor
could be damaged.

195 Controls in detail
Good visibility
Rear window defroster
The rear window defroster uses a large
amount of power. To keep the battery
drain to a minimum, switch off the defrost-
er as soon as the rear window is clear. The
defroster is automatically deactivated af-
ter approximately 6 to 17 minutes of oper-
ation depending on the outside
temperature.
Activating
Press buttonF (
page 198) or
(
page 210) or1(
page 199)
or (
page 211) on the respective
climate control panel.
The indicator lamp on the button
comes on.Deactivating

Press buttonF or1 again.
The indicator lamp on the button goes
out.Warning!
G
Any accumulation of snow and ice should be
removed from the rear window before driv-
ing. Visibility could otherwise be impaired,
endangering you and others.
!If the rear window defroster switches
off too soon and the indicator lamp
starts flashing, this means that too
many electrical consumers are operat-
ing simultaneously and there is insuffi-
cient voltage in the battery. The system
responds automatically by deactivating
the rear window defroster.
As soon as the battery has sufficient
voltage, the rear window defroster
automatically turns itself back on.

196 Controls in detailDual-zone automatic climate control

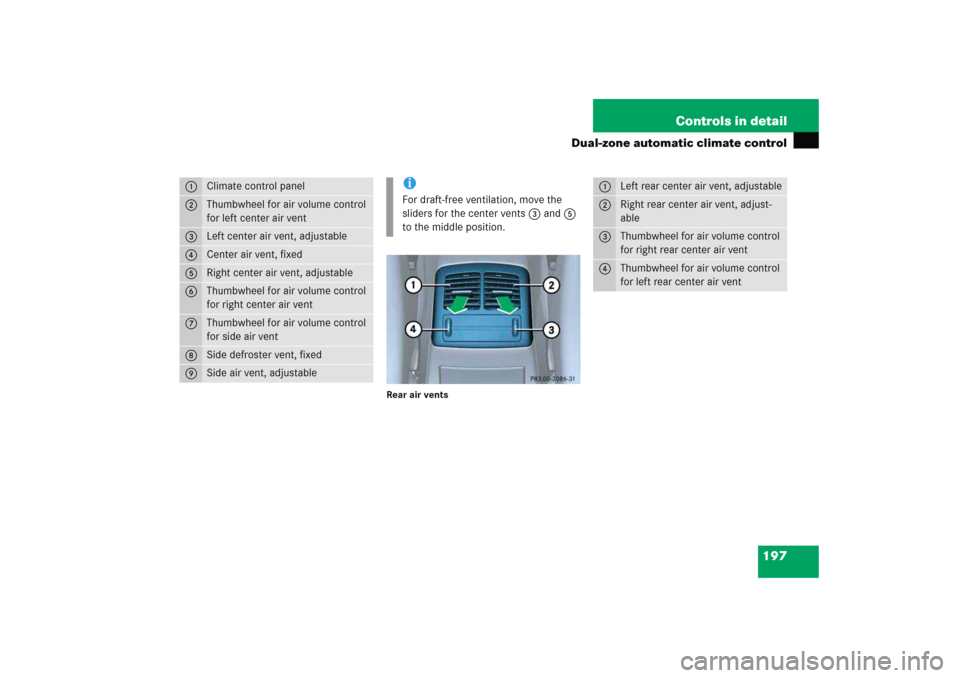

197 Controls in detail
Dual-zone automatic climate control
Rear air vents
1
Climate control panel
2
Thumbwheel for air volume control
for left center air vent
3
Left center air vent, adjustable
4
Center air vent, fixed
5
Right center air vent, adjustable
6
Thumbwheel for air volume control
for right center air vent
7
Thumbwheel for air volume control
for side air vent
8
Side defroster vent, fixed
9
Side air vent, adjustable
iFor draft-free ventilation, move the
sliders for the center vents 3 and 5
to the middle position.
1
Left rear center air vent, adjustable
2
Right rear center air vent, adjust-
able
3
Thumbwheel for air volume control
for right rear center air vent
4
Thumbwheel for air volume control
for left rear center air vent

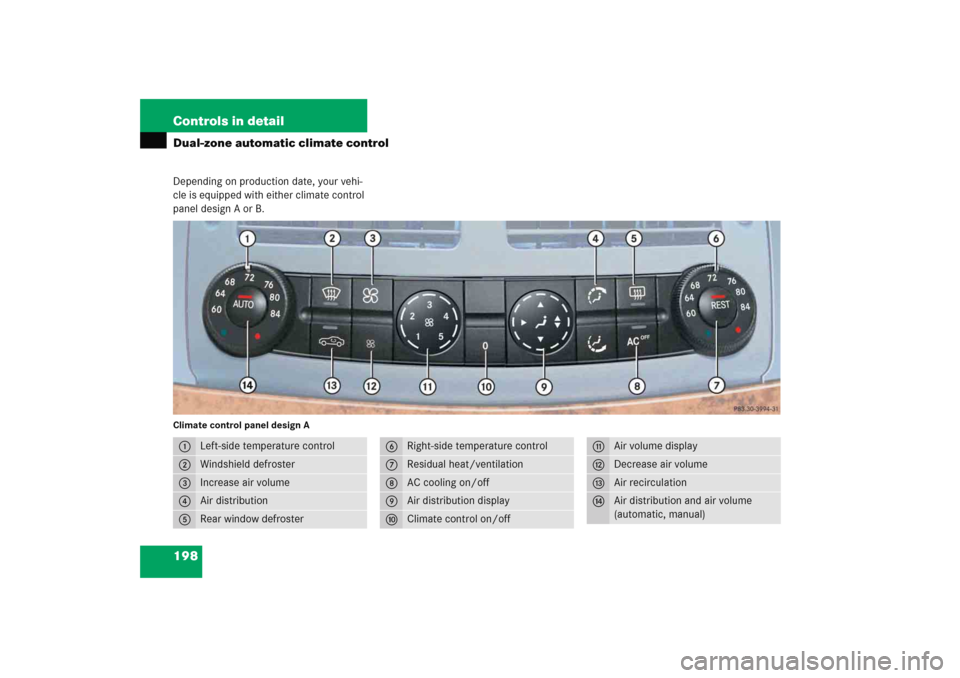

198 Controls in detailDual-zone automatic climate controlDepending on production date, your vehi-
cle is equipped with either climate control
panel design A or B.Climate control panel design A1
Left-side temperature control
2
Windshield defroster
3
Increase air volume
4
Air distribution
5
Rear window defroster
6
Right-side temperature control
7
Residual heat/ventilation
8
AC cooling on/off
9
Air distribution display
a
Climate control on/off
b
Air volume display
c
Decrease air volume
d
Air recirculation
e
Air distribution and air volume
(automatic, manual)

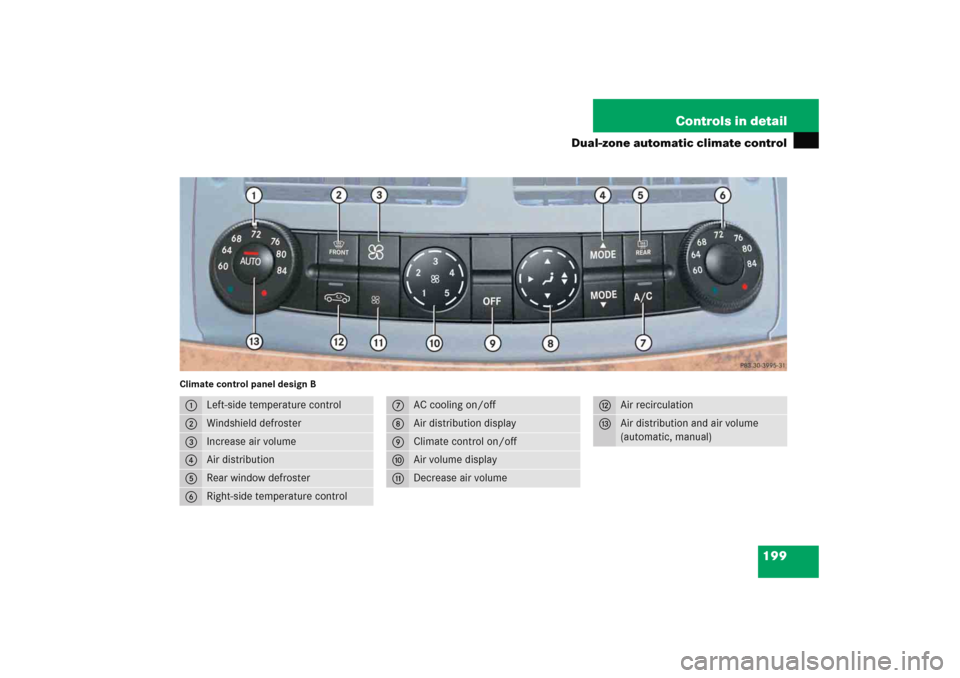

199 Controls in detail
Dual-zone automatic climate control
Climate control panel design B 1
Left-side temperature control
2
Windshield defroster
3
Increase air volume
4
Air distribution
5
Rear window defroster
6
Right-side temperature control
7
AC cooling on/off
8
Air distribution display
9
Climate control on/off
a
Air volume display
b
Decrease air volume
c
Air recirculation
d
Air distribution and air volume
(automatic, manual)
