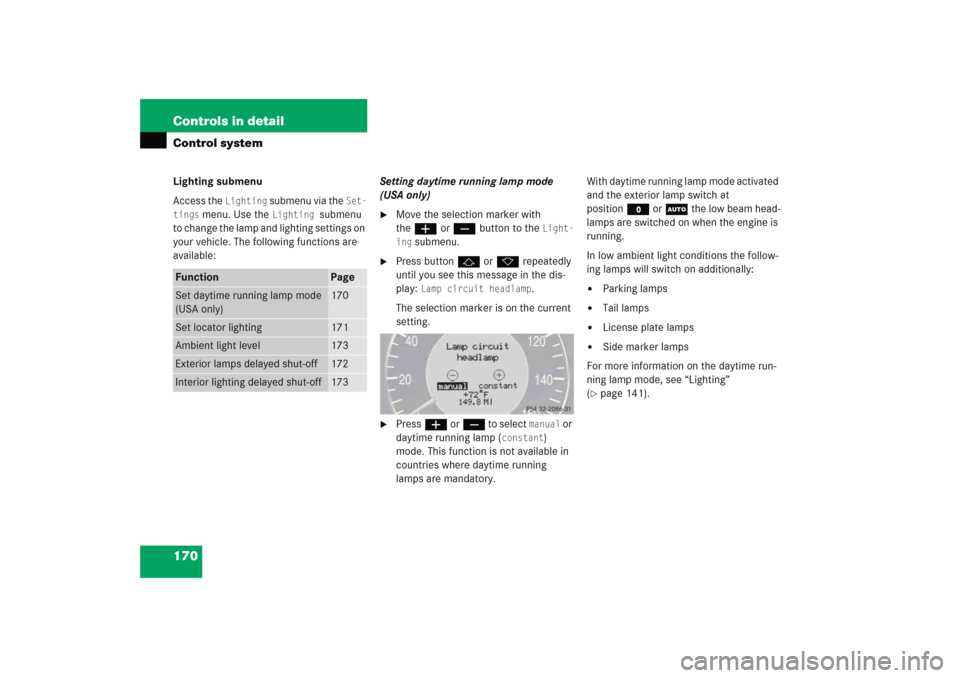

170 Controls in detailControl systemLighting submenu
Access the
Lighting
submenu via the
Set-
tings
menu. Use the
Lighting
submenu
to change the lamp and lighting settings on
your vehicle. The following functions are
available:Setting daytime running lamp mode
(USA only)

Move the selection marker with
theæ orç button to the
Light-
ing
submenu.

Press buttonj ork repeatedly
until you see this message in the dis-
play:
Lamp circuit headlamp
.
The selection marker is on the current
setting.

Pressæ orç to select
manual
or
daytime running lamp (
constant
)
mode. This function is not available in
countries where daytime running
lamps are mandatory.With daytime running lamp mode activated
and the exterior lamp switch at
positionM orU the low beam head-
lamps are switched on when the engine is
running.
In low ambient light conditions the follow-
ing lamps will switch on additionally:


Parking lamps


Tail lamps


License plate lamps


Side marker lamps
For more information on the daytime run-
ning lamp mode, see “Lighting”
(
page 141).
Function
Page
Set daytime running lamp mode
(USA only)
170
Set locator lighting
171
Ambient light level
173
Exterior lamps delayed shut-off
172
Interior lighting delayed shut-off
173

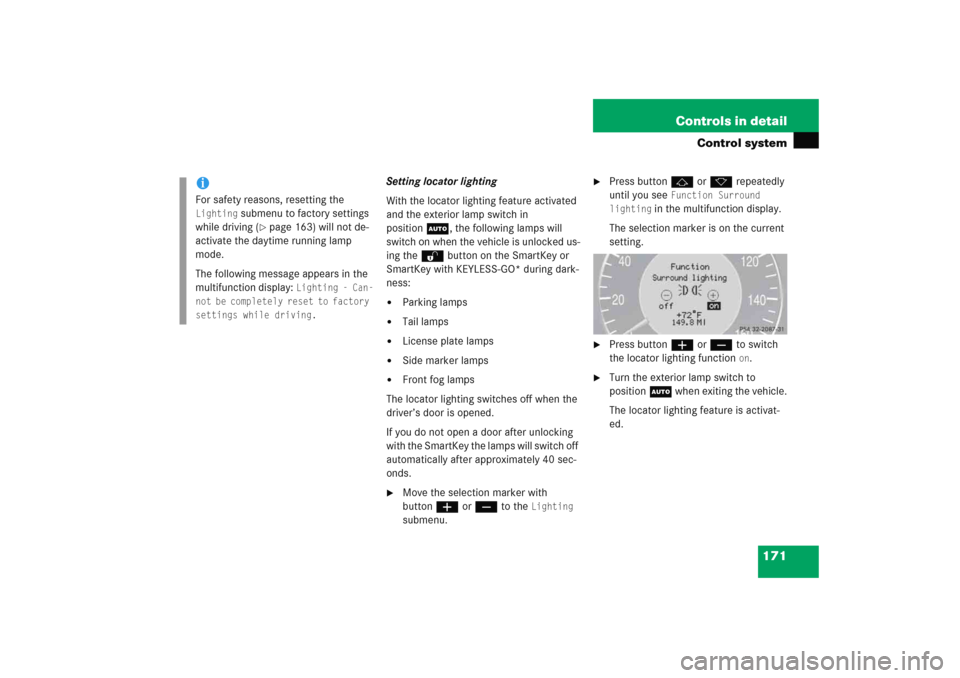

171 Controls in detail
Control system
Setting locator lighting
With the locator lighting feature activated
and the exterior lamp switch in
positionU, the following lamps will
switch on when the vehicle is unlocked us-
ing the Πbutton on the SmartKey or
SmartKey with KEYLESS-GO* during dark-
ness:

Parking lamps


Tail lamps


License plate lamps


Side marker lamps


Front fog lamps
The locator lighting switches off when the
driver’s door is opened.
If you do not open a door after unlocking
with the SmartKey the lamps will switch off
automatically after approximately 40 sec-
onds.

Move the selection marker with
buttonæ orç to the
Lighting

submenu.

Press buttonj ork repeatedly
until you see
Function Surround
lighting
in the multifunction display.
The selection marker is on the current
setting.

Press buttonæ orç to switch
the locator lighting function
on.

Turn the exterior lamp switch to
positionU when exiting the vehicle.
The locator lighting feature is activat-
ed.
iFor safety reasons, resetting the Lighting
submenu to factory settings
while driving (
page 163) will not de-
activate the daytime running lamp
mode.
The following message appears in the
multifunction display:
Lighting - Can-
not be completely reset to factory
settings while driving.

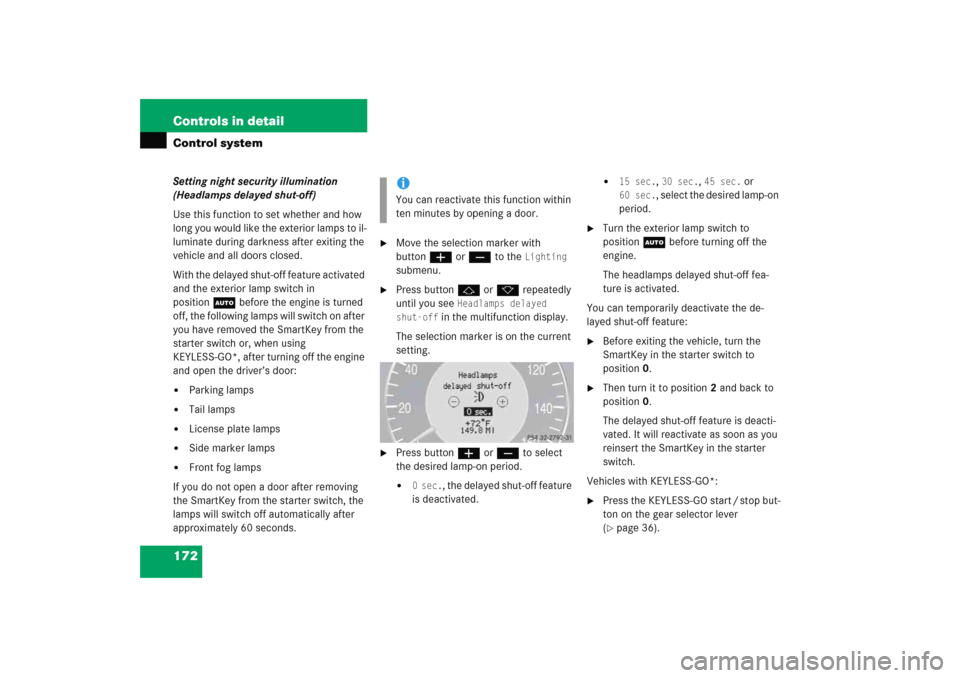

172 Controls in detailControl systemSetting night security illumination
(Headlamps delayed shut-off)
Use this function to set whether and how
long you would like the exterior lamps to il-
luminate during darkness after exiting the
vehicle and all doors closed.
With the delayed shut-off feature activated
and the exterior lamp switch in
positionU before the engine is turned
off, the following lamps will switch on after
you have removed the SmartKey from the
starter switch or, when using
KEYLESS-GO*, after turning off the engine
and open the driver’s door:

Parking lamps


Tail lamps


License plate lamps


Side marker lamps


Front fog lamps
If you do not open a door after removing
the SmartKey from the starter switch, the
lamps will switch off automatically after
approximately 60 seconds.

Move the selection marker with
buttonæ orç to the
Lighting
submenu.

Press buttonj ork repeatedly
until you see
Headlamps delayed
shut-off
in the multifunction display.
The selection marker is on the current
setting.

Press buttonæ orç to select
the desired lamp-on period.

0 sec.
, the delayed shut-off feature
is deactivated.


15 sec.
, 30 sec.
, 45 sec.
or
60 sec.
, select the desired lamp-on
period.

Turn the exterior lamp switch to
positionU before turning off the
engine.
The headlamps delayed shut-off fea-
ture is activated.
You can temporarily deactivate the de-
layed shut-off feature:

Before exiting the vehicle, turn the
SmartKey in the starter switch to
position0.

Then turn it to position2 and back to
position0.
The delayed shut-off feature is deacti-
vated. It will reactivate as soon as you
reinsert the SmartKey in the starter
switch.
Vehicles with KEYLESS-GO*:

Press the KEYLESS-GO start / stop but-
ton on the gear selector lever
(page 36).
iYou can reactivate this function within
ten minutes by opening a door.

173 Controls in detail
Control system
Setting interior lighting delayed shut-off
Use this function to set whether and how
long you would like the interior lighting to
remain lit during darkness after you have
removed the SmartKey from the starter
switch.
Move the selection marker with
buttonæ orç to the
Lighting
submenu.

Press buttonj ork repeatedly
until you see
Interior lamp delayed
shut-off
in the multifunction display.
The selection marker is on the current
setting.

Press buttonæ orç to select
the desired lamp-on period.
You can select:

0 sec.
, the delayed shut-off feature
is deactivated.


5 sec.,
10 sec.
, 15 sec.
or
20 sec.
, the interior lighting de-
layed shut-off feature is activated
with the desired lamp-on period.
Setting ambient lighting
Using this function to adjust the brightness
of the ambient lighting.

Move the selection marker with
buttonæ orç to the
Lighting

submenu.

Press buttonj ork repeatedly
until you see
Ambient light Level
in
the multifunction display.
The selection marker is on the current
setting.

Press buttonæ orç to select
the desired brightness of the ambient
lighting.
The setting
1 represents the darkest
level and setting
5 the brightest level.
The ambient light is switched off at set-
ting
0.

174 Controls in detailControl systemVehicle submenu
Access the
Vehicle
submenu via the
Set-
tings
menu. Use the
Vehicle
submenu to
make general vehicle settings. The follow-
ing functions are available:
Setting automatic locking
Use this function to activate or deactivate
the automatic central locking. With the au-
tomatic central locking system activated,
the vehicle is centrally locked at vehicle
speeds of approximately 9 mph
(15 km / h).

Move the selection marker with
theæ orç button to the Vehicle
submenu.

Press buttonj ork repeatedly
until you see this message in the dis-
play:
Automatic door lock
.
The selection marker is on the current
setting.

Pressæ orç to switch
Automat-
ic door lock
on or
off
.Limiting opening height of tailgate*
Use this function to activate or deactivate
the limiting opening height of tailgate.

Move the selection marker with
theæ orç button to the Vehicle
submenu.

Press buttonj ork repeatedly
until you see this message in the
display:
Opening limiter Tailgate
.
The selection marker is on the current
setting.

Pressæ orç to switch
Opening
limiter Tailgate on
or
off
.
Function
Page
Set automatic locking
174
Limiting opening height of tail-
gate*
174

175 Controls in detail
Control system
Convenience submenu
Access the
Convenience
submenu via the
Settings
menu. Use the
Convenience
sub-
menu to change the settings for a number
of convenience features. The following
functions are available:
Activating easy-entry / exit feature*
Use this function to activate and deacti-
vate the easy-entry/exit feature
(
page 124).

Move the selection marker with
theæ orç button to
the
Convenience
submenu.

Press buttonj ork repeatedly
until you see this message in the dis-
play:
Function Easy-entry feature
.
The selection marker is on the current
setting.

Press buttonæ orç to change
the easy-entry/exit setting.
Function
Page
Activate easy-entry / exit feature
175
Set SmartKey-dependency
176
Set parking position for exterior
rear view mirror
176
Warning!
G
You must make sure that no one can be-
come trapped or injured by the moving
steering wheel and driver’s seat when the
easy-entry / exit feature is activated.
To cancel seat / steering wheel movement,
do one of the following:

Press seat adjustment switch
(page 30).


Move steering column stalk
(page 41).


Press one of the memory position
buttons or the memory button M
(page 30).
The steering wheel and driver’s seat stop
moving.
Do not leave children unattended in the ve-
hicle, or with access to an unlocked vehicle.
Children could open the driver's door and
unintentionally activate the easy-entry/exit
feature, which could result in an accident
and/or serious personal injury.

176 Controls in detailControl systemThe following settings are available for the
easy-entry/exit feature:Setting SmartKey-dependency
Use this function to set whether the mem-
ory settings for the seats, the steering
wheel, the mirrors and other settings of
the control system should be stored sepa-
rately for each SmartKey (
page 102).

Move the selection marker with
theæ orç button to
the
Convenience
submenu.

Press buttonj ork repeatedly
until you see this message in the dis-
play:
Key-dependent
.
The selection marker is on the current
setting.

Pressæ orç to set
SmartKey-dependency to
on or
off
. Setting parking position for exterior rear
view mirror
Use the
Mirror adjustment parking aid

function to select whether the passen-
ger-side exterior rear view mirror should be
turned downward during parking maneu-
vers when reverse gearR is engaged. For
additional information, see “Activating ex-
terior rear view mirror parking position”
(
page 192).

Move the selection marker to the Convenience
submenu using theæ
orç button.

Press buttonj ork repeatedly
until you see this message in the dis-
play:
Mirror adjustment parking aid
.
The selection marker is on the current
setting.
off
The easy-entry/ex-
it feature is deacti-
vated.
Steering col.
Only the steering
column is moved.
Steering col. +
seat

Both the steering
column and the
seat are moved.

177 Controls in detail
Control system

Press buttonæ orç to switch
function
on or
off
.
Dynamic seat* submenu
Access the
Dynamic Seat
submenu via the
Settings
menu. Use the
Dynamic Seat

submenu to change the settings for the dy-
namic seats. The following functions are
available:Adjusting the dynamic seat
The function dynamic seat adjustment lets
you determine the way the seat adjusts
while driving.

Move the selection marker with
theæ orç button to the Dynamic Seat
submenu.

Press buttonj ork repeatedly
until you see this message in the dis-
play:
Dyn. Multi-cont. Seat, driver
for the driver seat or Dyn. Multi-cont. Seat, fr. pass.

for the passenger seat.
The selection marker is on the current
setting.

Pressæ orç to switch function Level 1
or
Level 2
.The following settings are available:
Function
Page
Adjust driver seat
177
Adjust passenger seat
177
Level 1
(Comfort) Less lat-
eral support and
slow air pressure
build-up in the air
chambers of the
backrest side bol-
sters
Level 2
(Sporty) Strong lat-
eral support and
fast air pressure
build-up in the air
chambers of the
backrest side bol-
sters

178 Controls in detailControl systemTrip computer menu
Use the trip computer menu to call up sta-
tistical data on your vehicle. The following
information is available:Fuel consumption statistics after start

Press buttonÿ orè repeatedly
until you see the first function of the
Trip computer menu.

Press buttonj ork repeatedly
until you see this message in the left
display:
After start
.
1Distance driven since start
2Time elapsed since start
3Average speed since start
4Average fuel consumption since startFuel consumption since last reset

Press buttonÿ orè repeatedly
until you see the first function of the
Trip computer menu.

Press buttonj ork repeatedly
until you see this message in the dis-
play:
After reset
.
1Distance driven since last reset
2Time elapsed since last reset
3Average speed since last reset
4Average fuel consumption since last re-
set
Function
Page
Fuel consumption statistics after
start
178
Fuel consumption statistics
since last reset
178
Call up range (distance to empty)
179

179 Controls in detail
Control system
Resetting fuel consumption statistics
Press buttonÿ orè repeatedly
until you see the first function of the
Trip computer menu.

Press buttonj ork repeatedly
until you see the reading that you want
to reset in the display.

Press and hold the reset button in the
instrument cluster (
page 24) until
the value is reset to 0.Call up range (distance to empty)

Press buttonÿ orè repeatedly
until you see the first function of the
Trip computer menu.

Press buttonj ork repeatedly
until you see this message in the dis-
play:
Range:
In the display you will see the calculat-
ed range based on the current fuel tank
level.
TEL menu*
iAll statistics stored since the last en-
gine start will be reset approximately
four hours after the SmartKey in the
starter switch is turned to position0 or
removed from the starter switch.
Resetting will not occur if you turn the
SmartKey back to position1 or2 with-
in this time period.
Warning!
G
A driver’s attention to the road must always
be his / her primary focus when driving. For
your safety and the safety of others, we rec-
ommend that you pull over to a safe location
and stop before placing or taking a tele-
phone call. If you choose to use the tele-
phone while driving, please use the
hands-free device and only use the tele-
phone when weather, road and traffic condi-
tions permit.
Some jurisdictions prohibit the driver from
using a cellular telephone while driving a ve-
hicle.
Bear in mind that at a speed of just 30 mph
(approximately 50 km / h), your vehicle is
covering a distance of 44 feet (approximate-
ly 14 m) every second.
