MERCEDES-BENZ E WAGON 2005 S211 Owner's Manual

230 Controls in detailDriving systemsCanceling cruise control
There are several ways to cancel cruise
control:
Step on the brake pedal.
Cruise control will be canceled. The
last speed set will be stored for later
use.
or

Briefly push the cruise control lever to
position3.
Cruise control will be canceled. The
last speed set will be stored for later
use.iThe last stored speed is canceled when
you turn off the engine.
iCruise control automatically switched
off, if
E 320, E 500:

you step on the brake pedal.


you depress the parking brake ped-
al.
In this case the segments in the
multifunction display go out and no
warning sounds.


the vehicle speed is under 25 mph
(40 km/h).


ESP is in operation or switched off
with the ESP switch (
page 92).


you move the gear selector lever in
position N while driving.
The segments in the multifunction dis-
play go out, and an acoustic warning
sounds.
E 320 4MATIC, E 500 4MATIC:

you step on the brake pedal.


you move the gear selector lever to
position N while driving.


the vehicle speed is below 20 mph
(30 km/h).


ESP is in operation.
The segments in the multifunction dis-
play are flashing.
!Moving gear selector lever to
positionN while driving also cancels
cruise control. However, the gear se-
lector lever should not be moved to
positionN while driving except to coast
when the vehicle is in danger of skid-
ding (e.g. on icy roads).

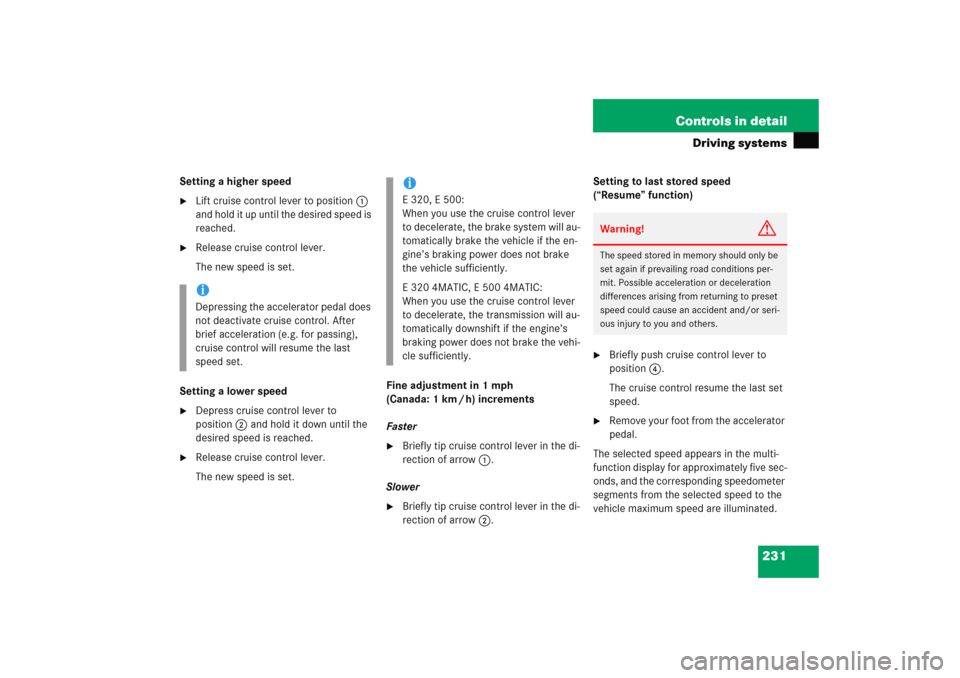

231 Controls in detail
Driving systems
Setting a higher speed
Lift cruise control lever to position1
and hold it up until the desired speed is
reached.

Release cruise control lever.
The new speed is set.
Setting a lower speed

Depress cruise control lever to
position2 and hold it down until the
desired speed is reached.

Release cruise control lever.
The new speed is set.Fine adjustment in 1 mph
(Canada: 1 km / h) increments
Faster

Briefly tip cruise control lever in the di-
rection of arrow1.
Slower

Briefly tip cruise control lever in the di-
rection of arrow2.Setting to last stored speed
(“Resume” function)

Briefly push cruise control lever to
position4.
The cruise control resume the last set
speed.

Remove your foot from the accelerator
pedal.
The selected speed appears in the multi-
function display for approximately five sec-
onds, and the corresponding speedometer
segments from the selected speed to the
vehicle maximum speed are illuminated.
iDepressing the accelerator pedal does
not deactivate cruise control. After
brief acceleration (e.g. for passing),
cruise control will resume the last
speed set.
iE 320, E 500:
When you use the cruise control lever
to decelerate, the brake system will au-
tomatically brake the vehicle if the en-
gine’s braking power does not brake
the vehicle sufficiently.
E 320 4MATIC, E 500 4MATIC:
When you use the cruise control lever
to decelerate, the transmission will au-
tomatically downshift if the engine’s
braking power does not brake the vehi-
cle sufficiently.
Warning!
G
The speed stored in memory should only be
set again if prevailing road conditions per-
mit. Possible acceleration or deceleration
differences arising from returning to preset
speed could cause an accident and/or seri-
ous injury to you and others.

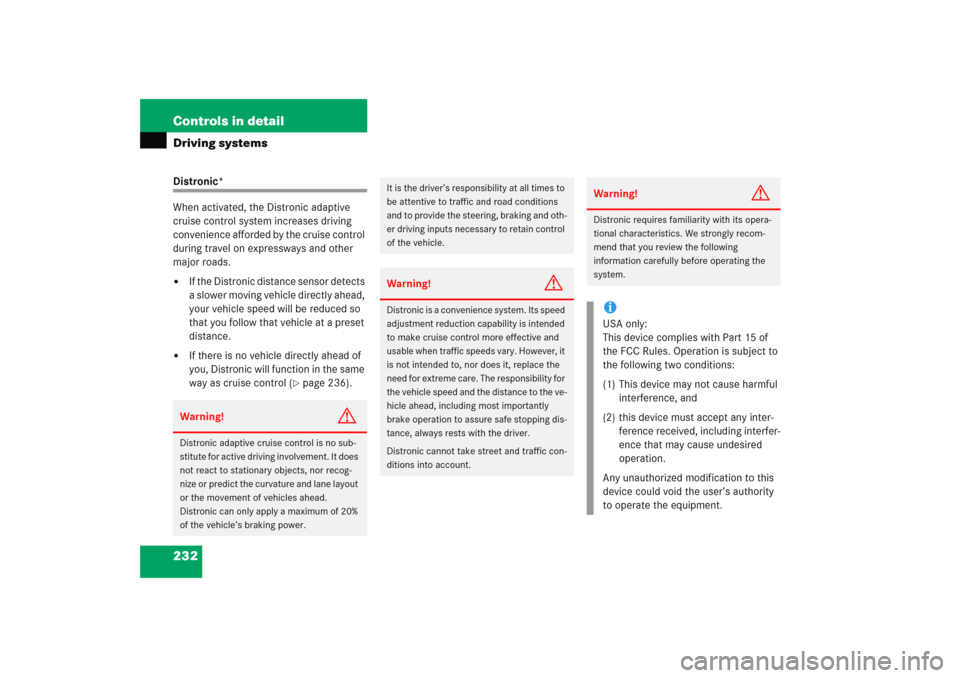

232 Controls in detailDriving systemsDistronic*
When activated, the Distronic adaptive
cruise control system increases driving
convenience afforded by the cruise control
during travel on expressways and other
major roads.

If the Distronic distance sensor detects
a slower moving vehicle directly ahead,
your vehicle speed will be reduced so
that you follow that vehicle at a preset
distance.


If there is no vehicle directly ahead of
you, Distronic will function in the same
way as cruise control (
page 236).
Warning!
G
Distronic adaptive cruise control is no sub-
stitute for active driving involvement. It does
not react to stationary objects, nor recog-
nize or predict the curvature and lane layout
or the movement of vehicles ahead.
Distronic can only apply a maximum of 20%
of the vehicle’s braking power.
It is the driver’s responsibility at all times to
be attentive to traffic and road conditions
and to provide the steering, braking and oth-
er driving inputs necessary to retain control
of the vehicle.Warning!
G
Distronic is a convenience system. Its speed
adjustment reduction capability is intended
to make cruise control more effective and
usable when traffic speeds vary. However, it
is not intended to, nor does it, replace the
need for extreme care. The responsibility for
the vehicle speed and the distance to the ve-
hicle ahead, including most importantly
brake operation to assure safe stopping dis-
tance, always rests with the driver.
Distronic cannot take street and traffic con-
ditions into account.
Warning!
G
Distronic requires familiarity with its opera-
tional characteristics. We strongly recom-
mend that you review the following
information carefully before operating the
system.iUSA only:
This device complies with Part 15 of
the FCC Rules. Operation is subject to
the following two conditions:
(1) This device may not cause harmful
interference, and
(2) this device must accept any inter-
ference received, including interfer-
ence that may cause undesired
operation.
Any unauthorized modification to this
device could void the user’s authority
to operate the equipment.

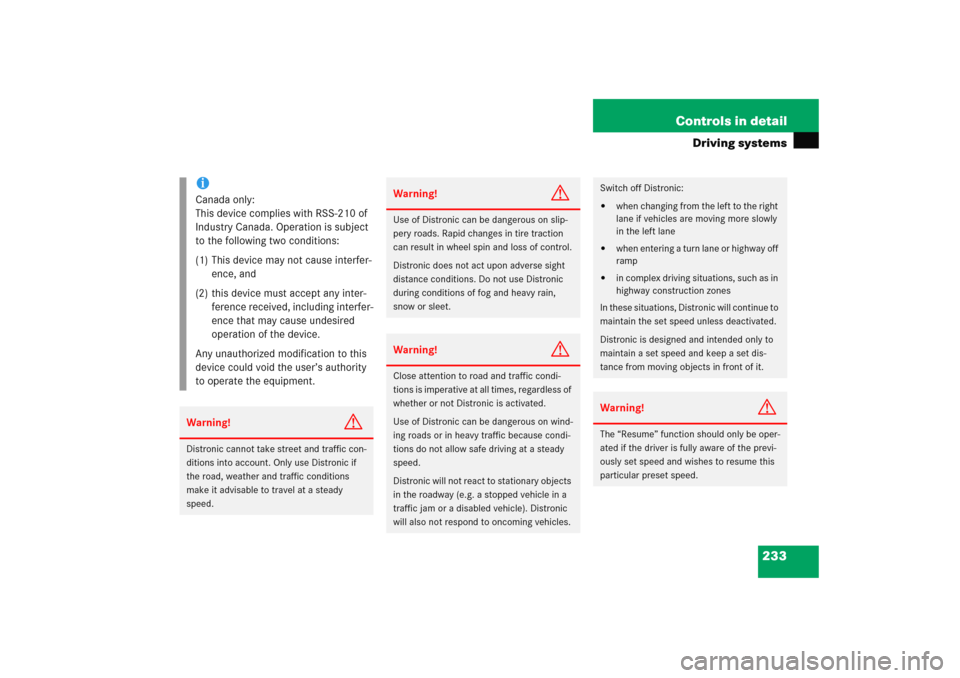

233 Controls in detail
Driving systems
iCanada only:
This device complies with RSS-210 of
Industry Canada. Operation is subject
to the following two conditions:
(1) This device may not cause interfer-
ence, and
(2) this device must accept any inter-
ference received, including interfer-
ence that may cause undesired
operation of the device.
Any unauthorized modification to this
device could void the user’s authority
to operate the equipment.Warning!
G
Distronic cannot take street and traffic con-
ditions into account. Only use Distronic if
the road, weather and traffic conditions
make it advisable to travel at a steady
speed.
Warning!
G
Use of Distronic can be dangerous on slip-
pery roads. Rapid changes in tire traction
can result in wheel spin and loss of control.
Distronic does not act upon adverse sight
distance conditions. Do not use Distronic
during conditions of fog and heavy rain,
snow or sleet.Warning!
G
Close attention to road and traffic condi-
tions is imperative at all times, regardless of
whether or not Distronic is activated.
Use of Distronic can be dangerous on wind-
ing roads or in heavy traffic because condi-
tions do not allow safe driving at a steady
speed.
Distronic will not react to stationary objects
in the roadway (e.g. a stopped vehicle in a
traffic jam or a disabled vehicle). Distronic
will also not respond to oncoming vehicles.
Switch off Distronic:

when changing from the left to the right
lane if vehicles are moving more slowly
in the left lane


when entering a turn lane or highway off
ramp


in complex driving situations, such as in
highway construction zones
In these situations, Distronic will continue to
maintain the set speed unless deactivated.
Distronic is designed and intended only to
maintain a set speed and keep a set dis-
tance from moving objects in front of it.
Warning!
G
The “Resume” function should only be oper-
ated if the driver is fully aware of the previ-
ously set speed and wishes to resume this
particular preset speed.

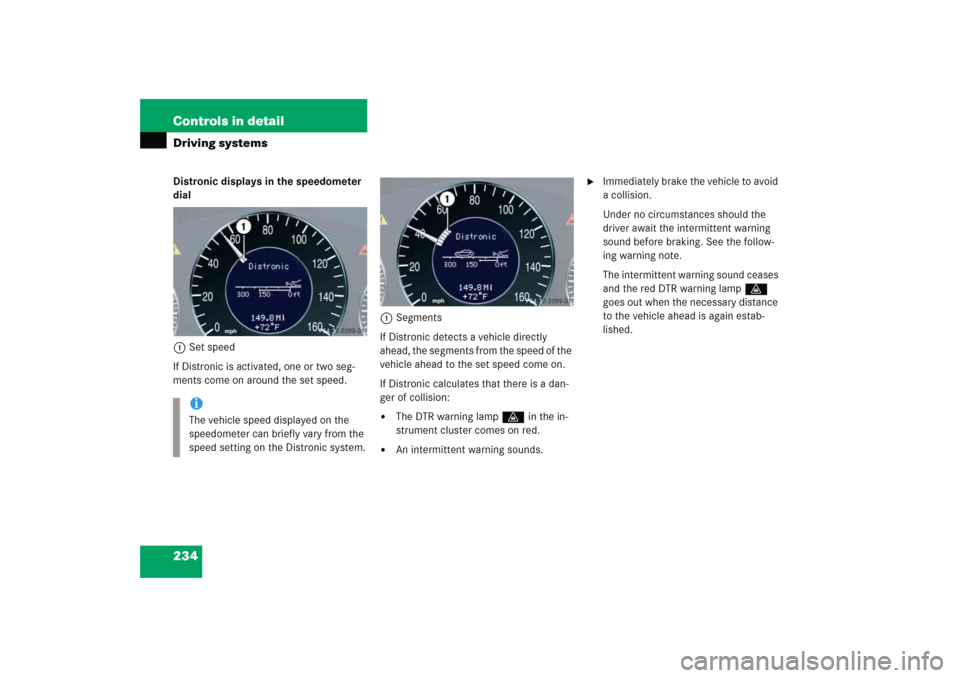

234 Controls in detailDriving systemsDistronic displays in the speedometer
dial
1Set speed
If Distronic is activated, one or two seg-
ments come on around the set speed.1Segments
If Distronic detects a vehicle directly
ahead, the segments from the speed of the
vehicle ahead to the set speed come on.
If Distronic calculates that there is a dan-
ger of collision:


The DTR warning lampl in the in-
strument cluster comes on red.


An intermittent warning sounds.

Immediately brake the vehicle to avoid
a collision.
Under no circumstances should the
driver await the intermittent warning
sound before braking. See the follow-
ing warning note.
The intermittent warning sound ceases
and the red DTR warning lampl
goes out when the necessary distance
to the vehicle ahead is again estab-
lished.
iThe vehicle speed displayed on the
speedometer can briefly vary from the
speed setting on the Distronic system.

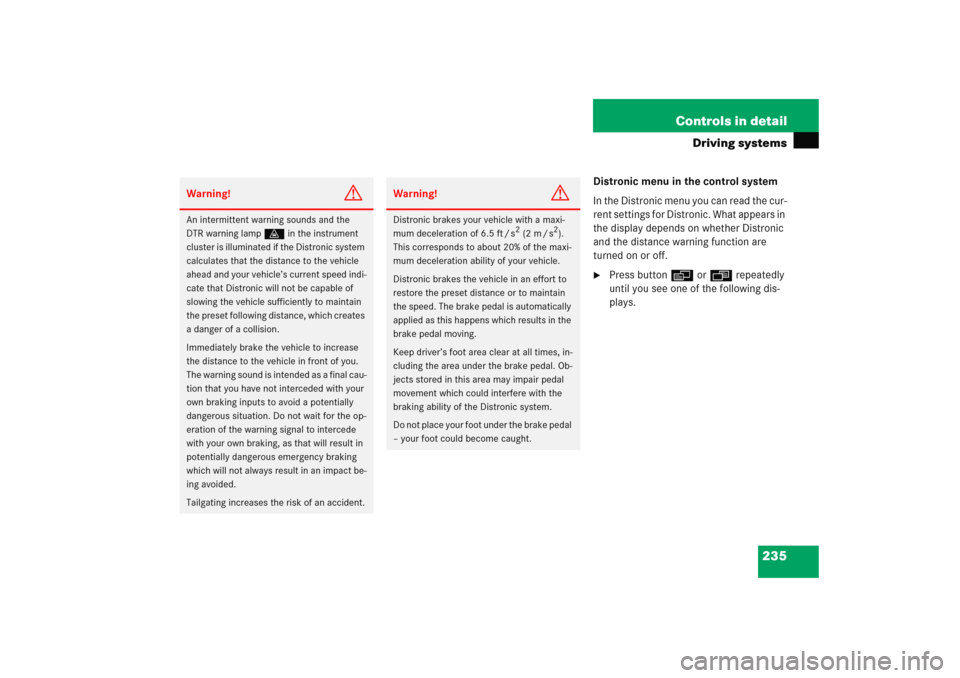

235 Controls in detail
Driving systems
Distronic menu in the control system
In the Distronic menu you can read the cur-
rent settings for Distronic. What appears in
the display depends on whether Distronic
and the distance warning function are
turned on or off.
Press buttonè orÿ repeatedly
until you see one of the following dis-
plays.
Warning!
G
An intermittent warning sounds and the
DTR warning lampl in the instrument
cluster is illuminated if the Distronic system
calculates that the distance to the vehicle
ahead and your vehicle’s current speed indi-
cate that Distronic will not be capable of
slowing the vehicle sufficiently to maintain
the preset following distance, which creates
a danger of a collision.
Immediately brake the vehicle to increase
the distance to the vehicle in front of you.
The warning sound is intended as a final cau-
tion that you have not interceded with your
own braking inputs to avoid a potentially
dangerous situation. Do not wait for the op-
eration of the warning signal to intercede
with your own braking, as that will result in
potentially dangerous emergency braking
which will not always result in an impact be-
ing avoided.
Tailgating increases the risk of an accident.
Warning!
G
Distronic brakes your vehicle with a maxi-
mum deceleration of 6.5 ft / s
2 (2 m / s
2).
This corresponds to about 20% of the maxi-
mum deceleration ability of your vehicle.
Distronic brakes the vehicle in an effort to
restore the preset distance or to maintain
the speed. The brake pedal is automatically
applied as this happens which results in the
brake pedal moving.
Keep driver’s foot area clear at all times, in-
cluding the area under the brake pedal. Ob-
jects stored in this area may impair pedal
movement which could interfere with the
braking ability of the Distronic system.
Do not place your foot under the brake pedal
– your foot could become caught.

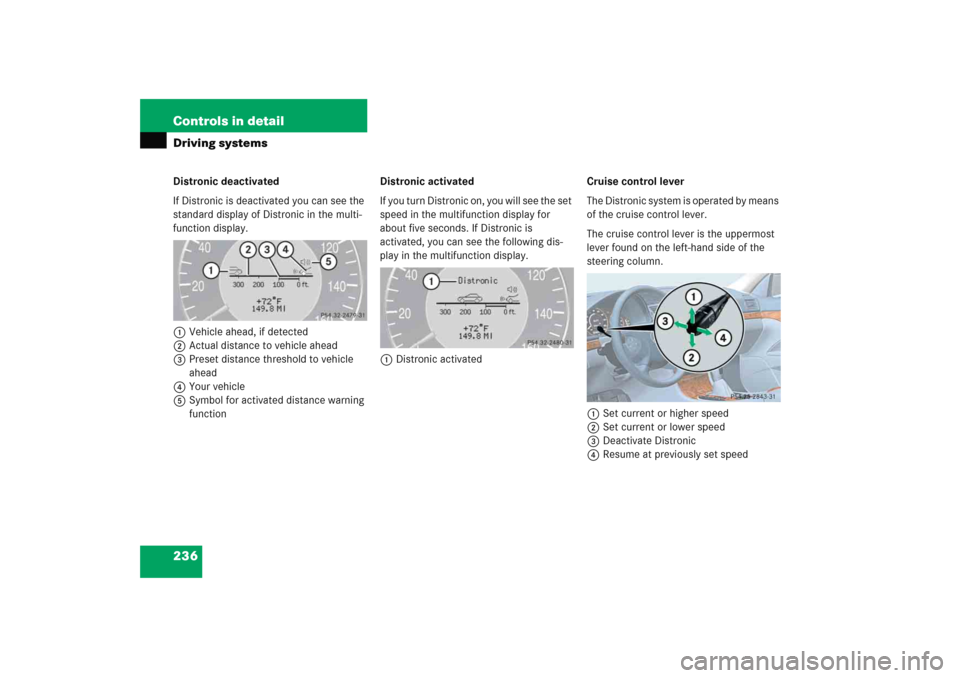

236 Controls in detailDriving systemsDistronic deactivated
If Distronic is deactivated you can see the
standard display of Distronic in the multi-
function display.
1Vehicle ahead, if detected
2Actual distance to vehicle ahead
3Preset distance threshold to vehicle
ahead
4Your vehicle
5Symbol for activated distance warning
functionDistronic activated
If you turn Distronic on, you will see the set
speed in the multifunction display for
about five seconds. If Distronic is
activated, you can see the following dis-
play in the multifunction display.
1Distronic activatedCruise control lever
The Distronic system is operated by means
of the cruise control lever.
The cruise control lever is the uppermost
lever found on the left-hand side of the
steering column.
1Set current or higher speed
2Set current or lower speed
3Deactivate Distronic
4Resume at previously set speed

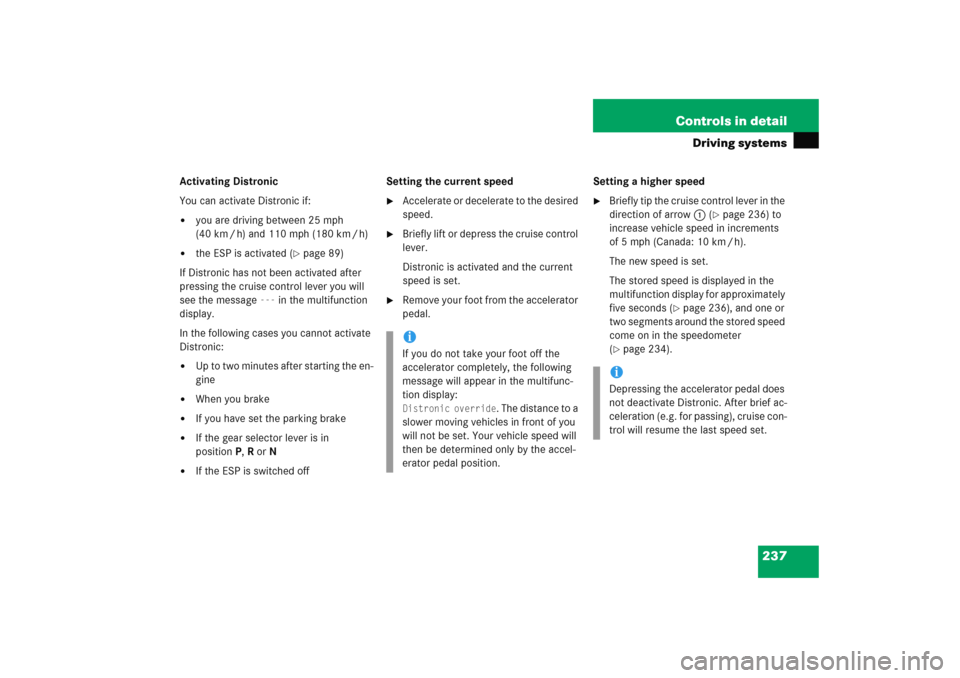

237 Controls in detail
Driving systems
Activating Distronic
You can activate Distronic if:

you are driving between 25 mph
(40km/h) and 110mph (180km/h)


the ESP is activated (
page 89)
If Distronic has not been activated after
pressing the cruise control lever you will
see the message
---
in the multifunction
display.
In the following cases you cannot activate
Distronic:


Up to two minutes after starting the en-
gine


When you brake


If you have set the parking brake


If the gear selector lever is in
positionP, R or N


If the ESP is switched offSetting the current speed

Accelerate or decelerate to the desired
speed.

Briefly lift or depress the cruise control
lever.
Distronic is activated and the current
speed is set.

Remove your foot from the accelerator
pedal.Setting a higher speed

Briefly tip the cruise control lever in the
direction of arrow1 (
page 236) to
increase vehicle speed in increments
of 5 mph (Canada: 10 km / h).
The new speed is set.
The stored speed is displayed in the
multifunction display for approximately
five seconds (
page 236), and one or
two segments around the stored speed
come on in the speedometer
(
page 234).
iIf you do not take your foot off the
accelerator completely, the following
message will appear in the multifunc-
tion display: Distronic override
. The distance to a
slower moving vehicles in front of you
will not be set. Your vehicle speed will
then be determined only by the accel-
erator pedal position.
iDepressing the accelerator pedal does
not deactivate Distronic. After brief ac-
celeration (e.g. for passing), cruise con-
trol will resume the last speed set.

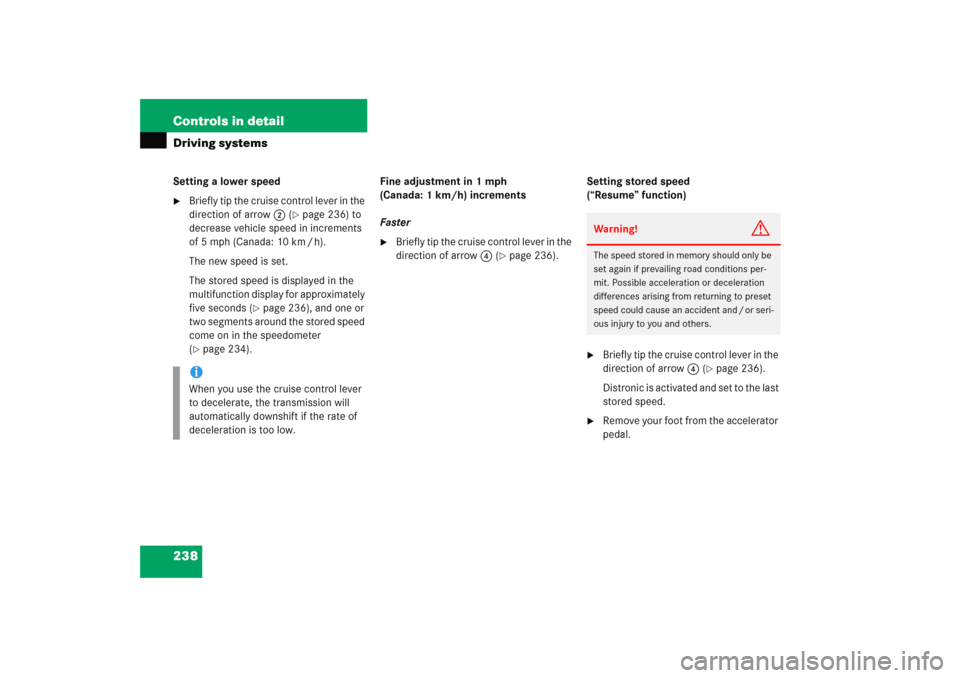

238 Controls in detailDriving systemsSetting a lower speed
Briefly tip the cruise control lever in the
direction of arrow2 (
page 236) to
decrease vehicle speed in increments
of 5 mph (Canada: 10 km / h).
The new speed is set.
The stored speed is displayed in the
multifunction display for approximately
five seconds (
page 236), and one or
two segments around the stored speed
come on in the speedometer
(
page 234).Fine adjustment in 1 mph
(Canada: 1 km/h) increments
Faster

Briefly tip the cruise control lever in the
direction of arrow4 (
page 236).Setting stored speed
(“Resume” function)

Briefly tip the cruise control lever in the
direction of arrow4 (
page 236).
Distronic is activated and set to the last
stored speed.

Remove your foot from the accelerator
pedal.
iWhen you use the cruise control lever
to decelerate, the transmission will
automatically downshift if the rate of
deceleration is too low.
Warning!
G
The speed stored in memory should only be
set again if prevailing road conditions per-
mit. Possible acceleration or deceleration
differences arising from returning to preset
speed could cause an accident and / or seri-
ous injury to you and others.

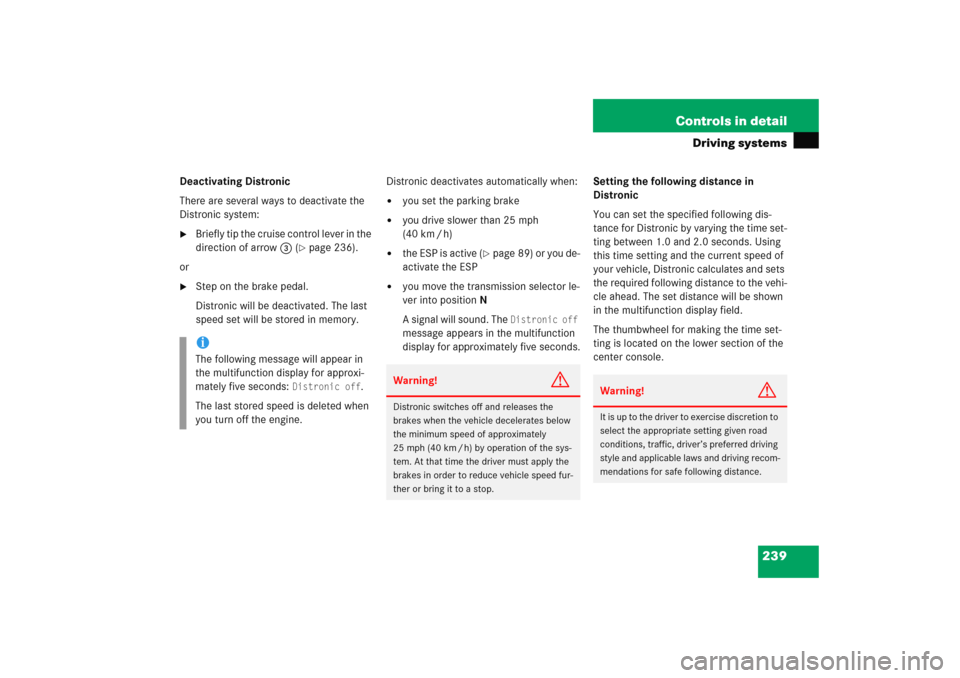

239 Controls in detail
Driving systems
Deactivating Distronic
There are several ways to deactivate the
Distronic system:
Briefly tip the cruise control lever in the
direction of arrow3 (
page 236).
or

Step on the brake pedal.
Distronic will be deactivated. The last
speed set will be stored in memory.Distronic deactivates automatically when:


you set the parking brake


you drive slower than 25 mph
(40 km / h)


the ESP is active (
page 89) or you de-
activate the ESP


you move the transmission selector le-
ver into positionN
A signal will sound. The
Distronic off

message appears in the multifunction
display for approximately five seconds.Setting the following distance in
Distronic
You can set the specified following dis-
tance for Distronic by varying the time set-
ting between 1.0 and 2.0 seconds. Using
this time setting and the current speed of
your vehicle, Distronic calculates and sets
the required following distance to the vehi-
cle ahead. The set distance will be shown
in the multifunction display field.
The thumbwheel for making the time set-
ting is located on the lower section of the
center console.
iThe following message will appear in
the multifunction display for approxi-
mately five seconds:
Distronic off
.
The last stored speed is deleted when
you turn off the engine.
Warning!
G
Distronic switches off and releases the
brakes when the vehicle decelerates below
the minimum speed of approximately
25 mph (40 km / h) by operation of the sys-
tem. At that time the driver must apply the
brakes in order to reduce vehicle speed fur-
ther or bring it to a stop.
Warning!
G
It is up to the driver to exercise discretion to
select the appropriate setting given road
conditions, traffic, driver’s preferred driving
style and applicable laws and driving recom-
mendations for safe following distance.
