21 At a glance
Cockpit
Instrument cluster
Multifunction steering wheel
Center console
Overhead control panel
Door control panel
Page 23 of 491

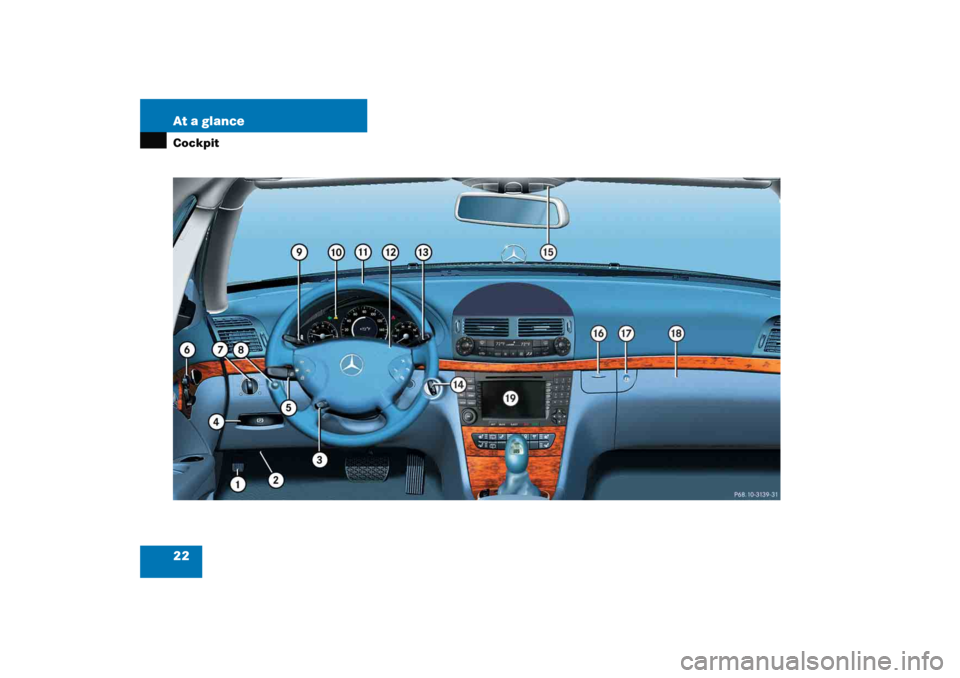

22 At a glanceCockpit
Page 24 of 491
23 At a glance

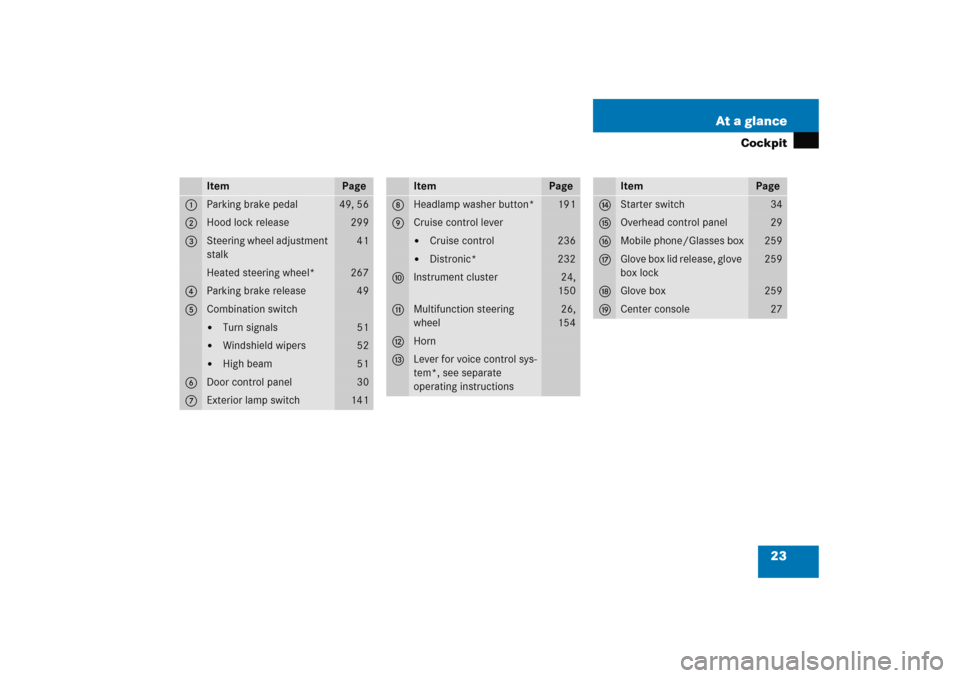

Cockpit
Item
Page
1
Parking brake pedal
49, 56
2
Hood lock release
299
3
Steering wheel adjustment
stalk
41
Heated steering wheel*
267
4
Parking brake release
49
5
Combination switch
Turn signals
51
Windshield wipers
52
High beam
51
6
Door control panel
30
7
Exterior lamp switch
141
Item
Page
8
Headlamp washer button*
191
9
Cruise control lever
Cruise control
236
Distronic*
232
a
Instrument cluster
24,
150
b
Multifunction steering
wheel
26,
154
c
Horn
d
Lever for voice control sys-
tem*, see separate
operating instructions
Item
Page
e
Starter switch
34
f
Overhead control panel
29
g
Mobile phone/Glasses box
259
h
Glove box lid release, glove
box lock
259
j
Glove box
259
k
Center console
27
Page 25 of 491

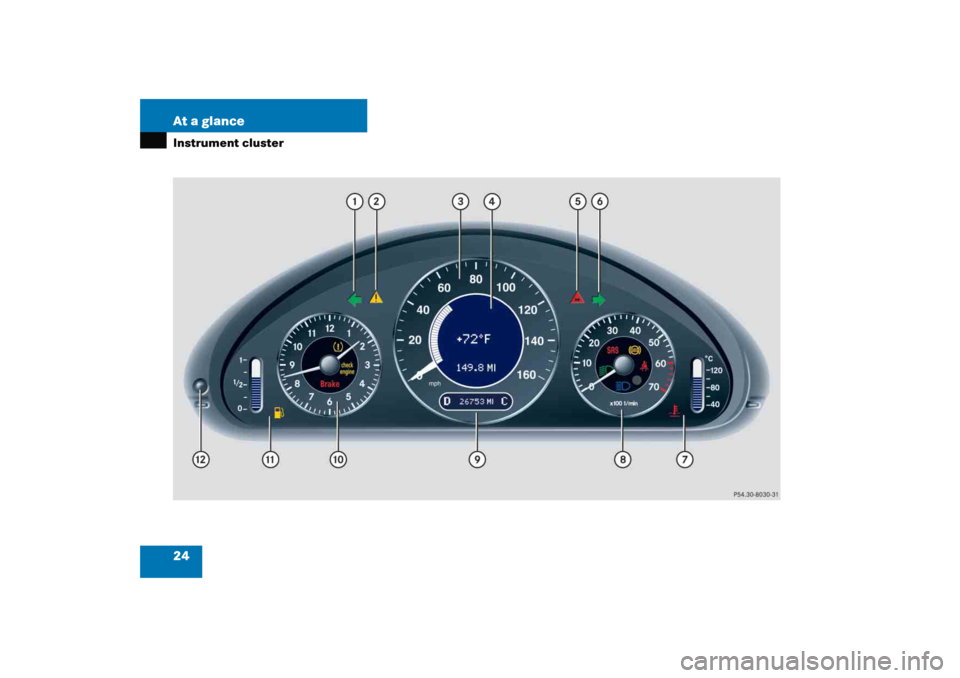

24 At a glanceInstrument cluster
Page 26 of 491
25 At a glance
Instrument cluster
Item
Page
1
LLeft turn signal indica-
tor lamp
2
vABS/ ESP warning
lamp
353
3
Speedometer
4
Multifunction display
153
5
lDistance warning
lamp
Vehicles without Distronic*:
Warning lamp without func-
tion. It illuminates when the
ignition is on. It should go out
when the engine is running.
357
6
KRight turn signal indi-
cator lamp
7
Coolant temperature dis-
play with:•Coolant temperature
warning lamp
356
Item
Page
8
Tachometer with:1Supplemental
restraint system
indicator lamp
359
-Antilock Brake Sys-
tem (ABS) malfunc-
tion indicator lamp
352
BLow beam headlamp
indicator
51
AHigh beam headlamp
indicator
145
9
Main odometer with:
Selector lever position
47
Program mode
188
a
Clock with:
167
;Brake warning lamp,
USA only
354
3Brake warning lamp,
Canada only
354
Item
Page
?Engine malfunction in-
dicator lamp, USA
only
355
±Engine malfunction in-
dicator lamp, Canada
only
355
HTire pressure warning
lamp*
358
390
b
Fuel display with:AFuel reserve warning
lamp
357
c
Reset button for:
Resetting trip odometer
151
Adjusting instrument
cluster illumination
150
Confirming new time set-
tings
167
Page 27 of 491

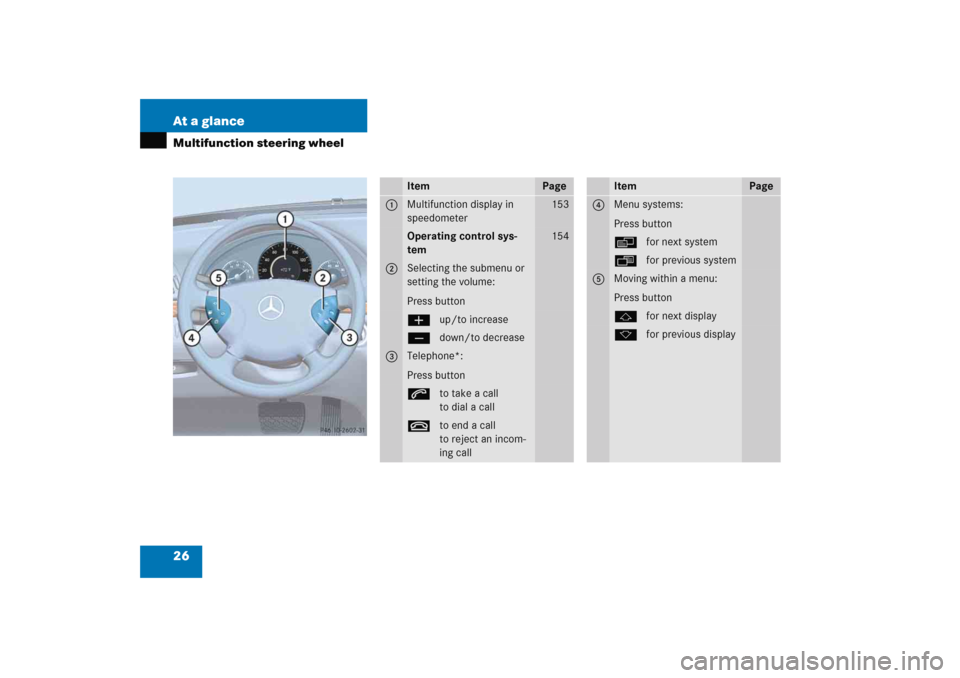

26 At a glanceMultifunction steering wheel
Item
Page
1
Multifunction display in
speedometer
153
Operating control sys-
tem
154
2
Selecting the submenu or
setting the volume:
Press buttonæup/to increaseçdown/to decrease
3
Telephone*:
Press buttonsto take a call
to dial a calltto end a call
to reject an incom-
ing call
Item
Page
4
Menu systems:
Press buttonèfor next systemÿfor previous system
5
Moving within a menu:
Press buttonjfor next displaykfor previous display
Page 28 of 491
27 At a glance

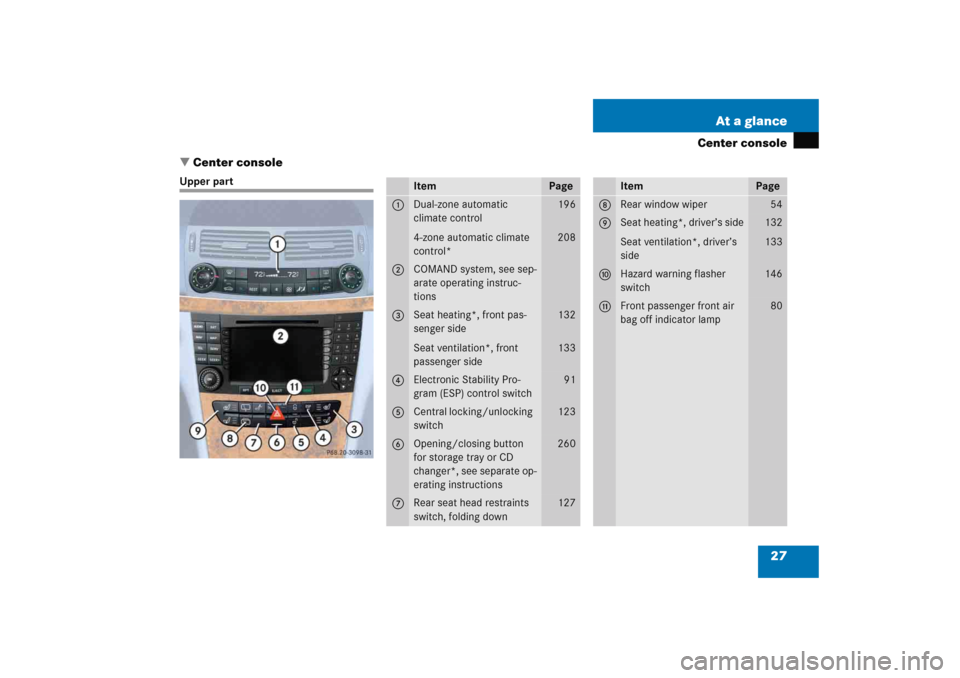

Center console
Center console
Upper part
Item
Page
1
Dual-zone automatic
climate control
4-zone automatic climate
control*
196
208
2
COMAND system, see sep-
arate operating instruc-
tions
3
Seat heating*, front pas-
senger side
Seat ventilation*, front
passenger side
132
133
4
Electronic Stability Pro-
gram (ESP) control switch
91
5
Central locking/unlocking
switch
123
6
Opening/closing button
for storage tray or CD
changer*, see separate op-
erating instructions
260
7
Rear seat head restraints
switch, folding down
127
Item
Page
8
Rear window wiper
54
9
Seat heating*, driver’s side
Seat ventilation*, driver’s
side
132
133
a
Hazard warning flasher
switch
146
b
Front passenger front air
bag off indicator lamp
80
Page 29 of 491

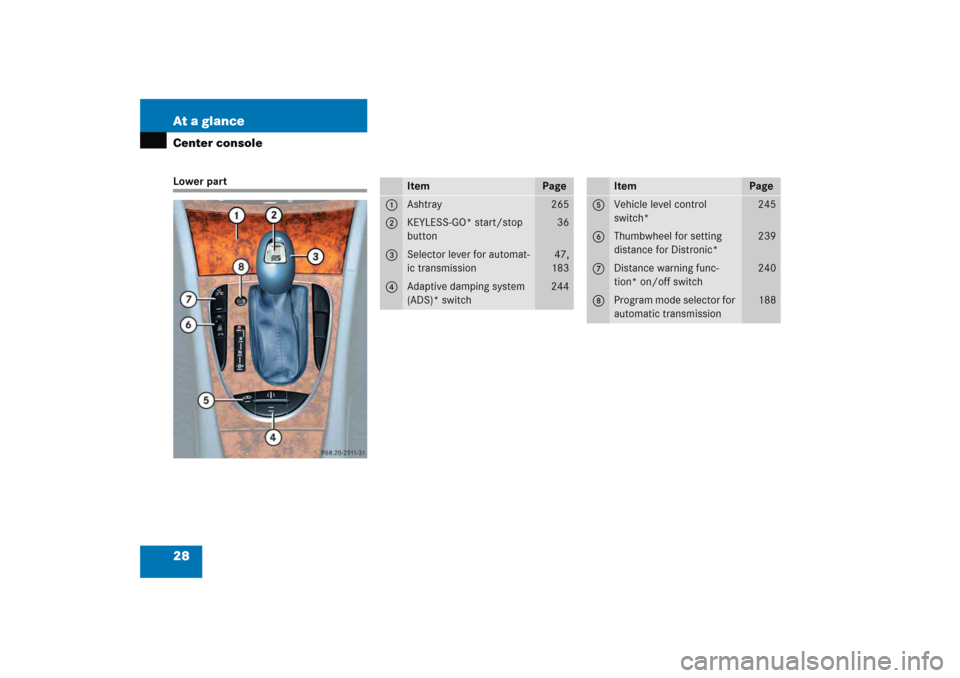

28 At a glanceCenter consoleLower part
Item
Page
1
Ashtray
265
2
KEYLESS-GO* start/stop
button
36
3
Selector lever for automat-
ic transmission
47,
183
4
Adaptive damping system
(ADS)* switch
244
Item
Page
5
Vehicle level control
switch*
245
6
Thumbwheel for setting
distance for Distronic*
239
7
Distance warning func-
tion* on/off switch
240
8
Program mode selector for
automatic transmission
188
Page 30 of 491
29 At a glance

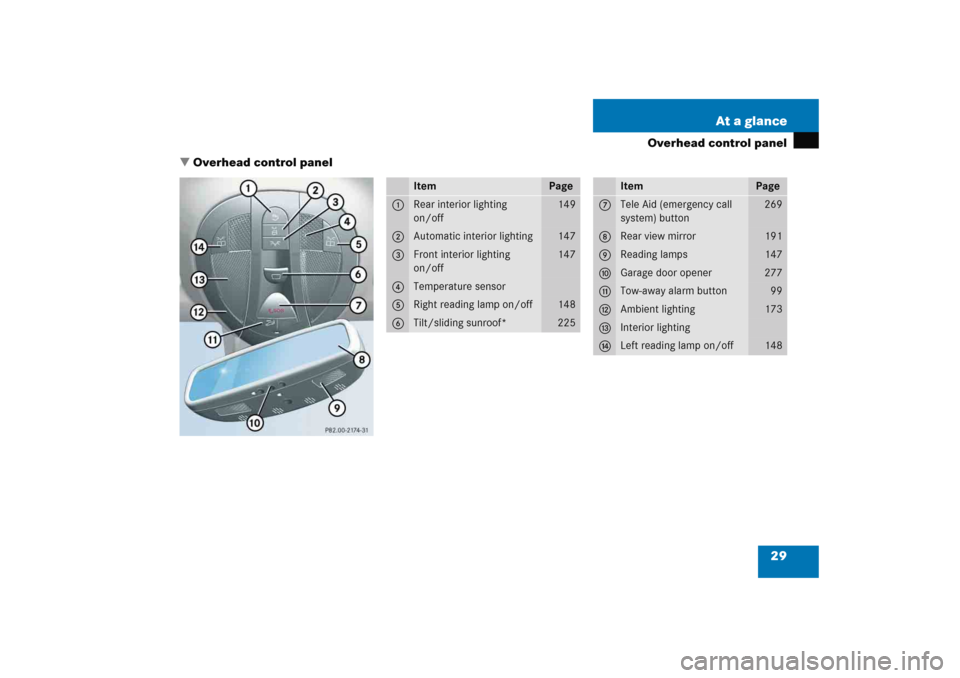

Overhead control panel
Overhead control panel
Item
Page
1
Rear interior lighting
on/off
149
2
Automatic interior lighting
147
3
Front interior lighting
on/off
147
4
Temperature sensor
5
Right reading lamp on/off
148
6
Tilt/sliding sunroof*
225
Item
Page
7
Tele Aid (emergency call
system) button
269
8
Rear view mirror
191
9
Reading lamps
147
a
Garage door opener
277
b
Tow-away alarm button
99
c
Ambient lighting
173
d
Interior lighting
e
Left reading lamp on/off
148
