MERCEDES-BENZ E WAGON 2005 S211 Owner's Guide
Manufacturer: MERCEDES-BENZ, Model Year: 2005, Model line: E WAGON, Model: MERCEDES-BENZ E WAGON 2005 S211Pages: 491, PDF Size: 4.37 MB
Page 31 of 491

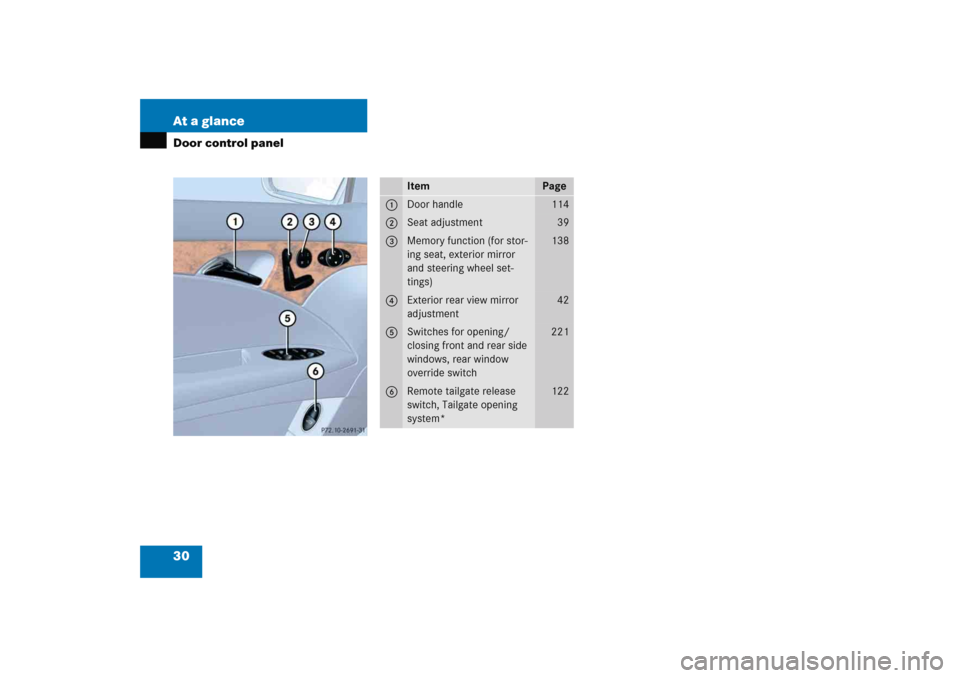

30 At a glanceDoor control panel
Item
Page
1
Door handle
114
2
Seat adjustment
39
3
Memory function (for stor-
ing seat, exterior mirror
and steering wheel set-
tings)
138
4
Exterior rear view mirror
adjustment
42
5
Switches for opening/
closing front and rear side
windows, rear window
override switch
221
6
Remote tailgate release
switch, Tailgate opening
system*
122
Page 32 of 491

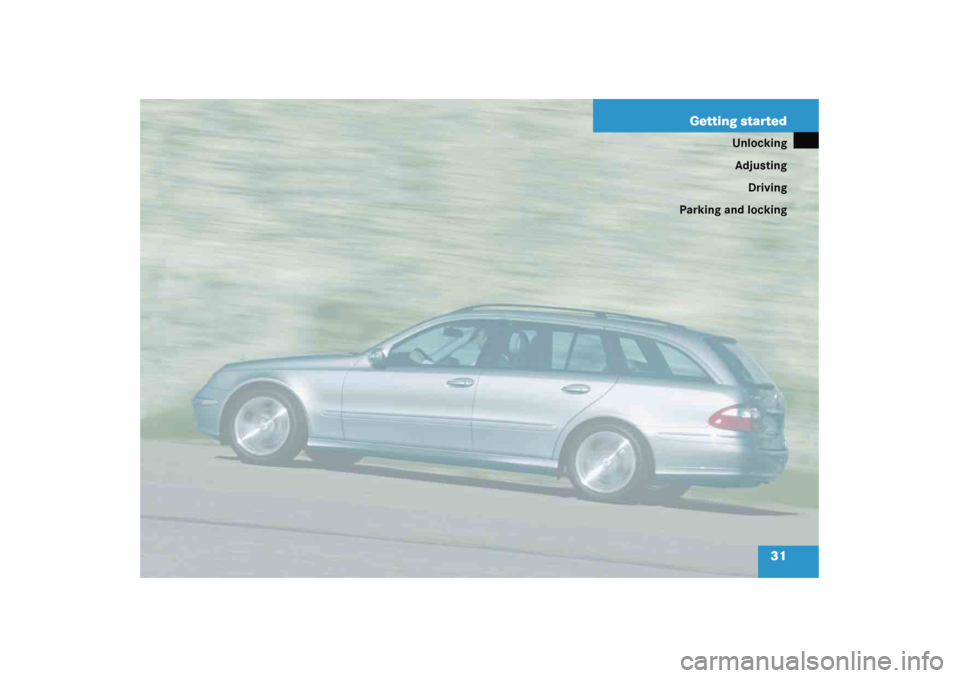

31 Getting started
Unlocking
Adjusting
Driving
Parking and locking
Page 33 of 491
32 Getting startedThe “Getting started” section provides an
overview of the vehicle’s most basic
functions.
If you are already familiar with the basic
functions described here, the “Controls in
detail” section will provide you with further
information. The corresponding page
references are located at the end of each
segment.Unlocking
Unlocking with the SmartKeySmartKey 1‹Lock button
2ŠUnlock button for tailgate*
3ŒUnlock button
4ÂPanic button (
page 86)
Press unlock button Œ on the
SmartKey.
All turn signal lamps flash once.
An acoustic signal sounds once (if
equipped and feature activated).
For more information, see “Factory
setting” (
page 104).
The locking knobs in the doors
move up.
The anti-theft alarm system is dis-
armed.
Warning!
G
When leaving the vehicle, always remove the
SmartKey or SmartKey with KEYLESS-GO*
from the starter switch, take it with you, and
lock the vehicle. Do not leave children unat-
tended in the vehicle, or with access to an
unlocked vehicle. Unsupervised use of vehi-
cle equipment may cause an accident
and/or serious personal injury.
Page 34 of 491
33 Getting started
Unlocking
Get in the vehicle and insert the
SmartKey in the starter switch.
For more information, see “Locking and
unlocking” (
page 102).
Unlocking with KEYLESS-GO*
With KEYLESS-GO your can open your
vehicle without using the buttons on the
SmartKey.
Pull the outside door handle.
All turn signal lamps flash once.
An acoustic signal sounds once (if
equipped and feature activated).
For more information, see “Factory
setting” (
page 110).
The locking knobs in the doors
move up.
The anti-theft alarm system is dis-
armed.
Get in the vehicle.
For more information, see “SmartKey with
KEYLESS-GO*” (
page 107).
iThe SBC brake system is activated.iTo unlock the vehicle, the SmartKey
with KEYLESS-GO must be outside the
vehicle, no further than approximately
3 feet (1 meter) away from the door.
Warning!
G
When leaving the vehicle, always take the
SmartKey with KEYLESS-GO with you, and
lock the vehicle. Do not leave children unat-
tended in the vehicle, or with access to an
unlocked vehicle. Unsupervised use of vehi-
cle equipment may cause an accident
and/or serious personal injury.
iThe SBC brake system is activated.
Page 35 of 491
34 Getting startedUnlockingStarter switch positions SmartKey
Starter switch0For removing SmartKey
1Power supply to some electrical con-
sumers, such as seat adjustment2Ignition (power supply for all electrical
consumers) and driving position.
All lamps (expect low beam headlamp
indicator lamp, high beam headlamp
indicator lamp, and turn signal indica-
tor lamps unless activated) in the
instrument cluster come on. If a lamp
in the instrument cluster fails to come
on when the ignition is switched on,
have it checked and replaced if neces-
sary. If a lamp in the instrument cluster
remains on after starting the engine or
comes on while driving, refer to “Lamps
in instrument cluster” (
page 352).
3Starting position
Warning!
G
When leaving the vehicle, always remove the
SmartKey or SmartKey with KEYLESS-GO*
from the starter switch, take it with you, and
lock the vehicle. Do not leave children unat-
tended in the vehicle, or with access to an
unlocked vehicle. Unsupervised use of vehi-
cle equipment may cause an accident
and/or serious personal injury.
Page 36 of 491
35 Getting started
Unlocking
For information on starting the engine
using the SmartKey, see “Starting the en-
gine” (
page 47).SmartKey with KEYLESS-GO*
Pressing the KEYLESS-GO start/stop but-
ton on the gear selector lever corresponds
to turning the SmartKey to the various
starter switch positions.
If you firmly depress the brake pedal dur-
ing pressing the KEYLESS-GO start/stop
button, the engine starts automatically.
iWhen you switch on the ignition, the in-
dicator and warning lamps (expect low
beam headlamp indicator lamp, high
beam headlamp indicator lamp, and
turn signal indicator lamps unless acti-
vated) in the instrument cluster come
on. This indicates that the respective
systems are operational. The indicator
and warning lamps (expect low beam
headlamp indicator lamp, high beam
headlamp indicator lamp, and turn sig-
nal indicator lamps if activated) should
go out when the engine is running.iThe SmartKey can only be removed
from the starter switch with the gear
selector lever in position P.
!If the SmartKey cannot be turned in the
starter switch, the starter battery may
not be sufficiently charged.
Check the battery and charge it
if necessary (
page 408).
Get a jump start (
page 428).
To prevent accelerated battery dis-
charge or a completely discharged bat-
tery, always remove the SmartKey from
the starter switch when the engine is
not in operation.
iThe function of the SmartKey overrules
the KEYLESS-GO function.
Page 37 of 491
36 Getting startedUnlockingKEYLESS-GO start/stop button1USA only
2Canada only
The SmartKey with KEYLESS-GO must be
located in the vehicle.
Make sure the gear selector lever is set
toP.
Do not depress the brake pedal.Position 0
Before you press the KEYLESS-GO start/
stop button, the vehicle's on-board elec-
tronics have status 0 (as with SmartKey
removed).
Position 1
Press the KEYLESS-GO start/stop but-
ton once.
This supplies power to some electrical
consumers, such as seat adjustment.Ignition (or position 2)
Press KEYLESS-GO start/stop button
twice.
This supplies power to all electrical
consumers. All lamps in the instrument
cluster (expect low beam headlamp in-
dicator lamp, high beam headlamp
indicator lamp, and turn signal indica-
tor lamps unless activated) come on. If
a lamp in the instrument cluster fails to
come on when the ignition is switched
on, have it checked and replaced if nec-
essary. If a lamp in the instrument clus-
ter remains on after starting the engine
or comes on while driving, see “Lamps
in instrument cluster” (
page 352).
iIf you now press the KEYLESS-GO
start/stop button
once again, the ignition (position2)
is switched on.
twice, the power supply is again
switched off.
iIf you now press the KEYLESS-GO
start/stop button once, the power sup-
ply is again switched off.
Page 38 of 491
37 Getting started
Unlocking
For information on starting the engine us-
ing the KEYLESS-GO start/stop button,
see “Starting with KEYLESS-GO*”
(page 48).iWhen you switch on the ignition, the in-
dicator and warning lamps (expect low
beam headlamp indicator lamp, high
beam headlamp indicator lamp, and
turn signal indicator lamps unless acti-
vated) in the instrument cluster come
on. This indicates that the respective
systems are operational. The indicator
and warning lamps (expect low beam
headlamp indicator lamp, high beam
headlamp indicator lamp, and turn sig-
nal indicator lamps if activated) should
go out when the engine is running.
Page 39 of 491
38 Getting startedAdjustingSeatsWarning!
G
All seat, head restraint, steering wheel, and
rear view mirror adjustments, as well as fas-
tening of seat belts, must be done before
the vehicle is put into motion.Warning!
G
Do not adjust the driver’s seat while driving.
Adjusting the seat while driving could cause
the driver to lose control of the vehicle.
Never ride in a moving vehicle with the seat
backrest in an excessively reclined position
as this can be dangerous. You could slide
under the seat belt in a collision. If you slide
under it, the belt would apply force at the ab-
domen or neck. That could cause serious or
fatal injuries. The seat back and seat belts
provide the best restraint when the wearer
is in a nearly upright position and belts are
properly positioned on the body.
Your seat must be adjusted so that you can
correctly fasten your seat belt (
page 44).
Never place hands under the seat or near
any moving parts while a seat is being ad-
justed.
Warning!
G
When leaving the vehicle, always remove the
SmartKey or the SmartKey with
KEYLESS-GO* from the starter switch, take
it with you, and lock the vehicle.
Even with the SmartKey or the SmartKey
with KEYLESS-GO* removed from the start-
er switch or the SmartKey with
KEYLESS-GO* removed from the vehicle,
the power seats can be operated when the
respective door is open. Therefore, do not
leave children unattended in the vehicle, or
with access to an unlocked vehicle. Unsu-
pervised use of vehicle equipment may
cause an accident and / or serious personal
injury.
Warning!
G
According to accident statistics, children
are safer when properly restrained in the
rear seating positions than in the front seat-
ing position. Thus, we strongly recommend
that children be placed in the rear seats. Re-
gardless of seating position, children 12
years old and under must be seated and
properly secured in an appropriate infant or
toddler restraint, or booster seat recom-
mended for the size and weight of the child.
For additional information, see “Children in
the vehicle” (
page 73).
A child’s risk of serious or fatal injuries is
significantly increased if the child restraints
are not properly secured in the vehicle and
the child is not properly secured in the child
restraint.
Page 40 of 491
39 Getting started
Adjusting
Seat adjustment
The seat adjustment switches are located
on the front doors.
1Head restraint height
2Seat height
3Seat cushion tilt
4Seat fore and aft adjustment
5Backrest tilt
Switch on the ignition (
page 34).
or
Open the respective door.Seat fore and aft adjustment
Press the switch forward or backward
in the direction of arrow4.
Adjust a comfortable seating position
that still allows you to reach the
accelerator / brake pedal safely. The
position should be as far to the rear as
possible, consistent with ability to
properly operate controls.Seat cushion tilt
Press the switch up or down in the di-
rection of arrow3 until your upper
legs are lightly supported.
Backrest tilt
Press the switch forward or backward
in the direction of arrow5 until your
arms are slightly angled when holding
the steering wheel.
Seat height
Press the switch up or down in the
direction of arrow2.
iWhen moving the seat, be sure there
are no items in the footwell or behind
the seats. Otherwise you could damage
the seats.
The memory function (
page 138) lets
you store the setting for the seat posi-
tion together with the setting for the
steering wheel and the exterior rear
view mirrors.
