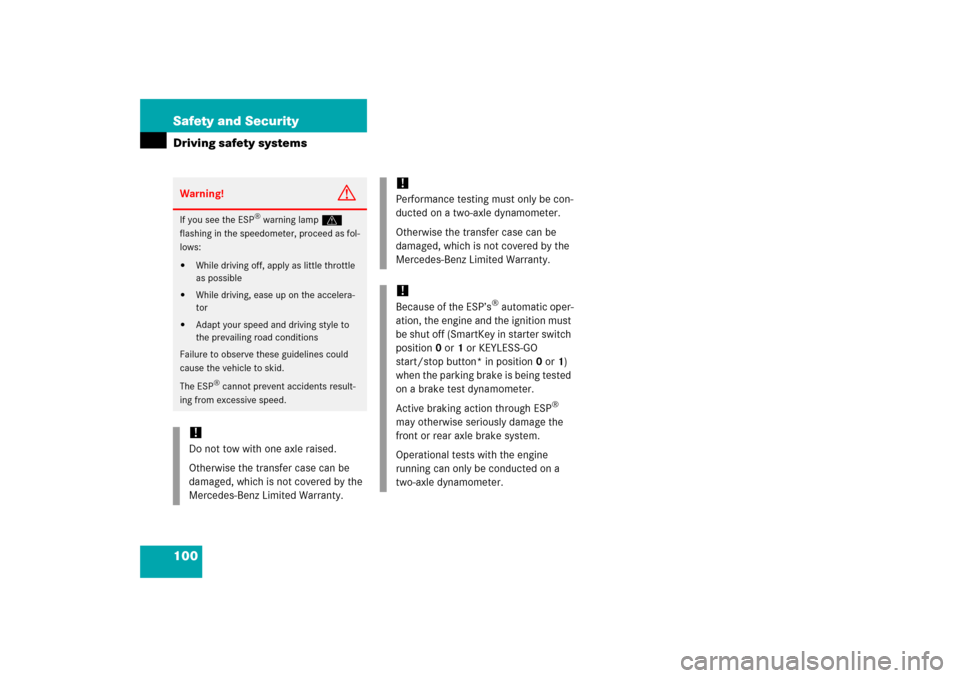

100 Safety and SecurityDriving safety systemsWarning!
G
If you see the ESP
® warning lampv
flashing in the speedometer, proceed as fol-
lows:


While driving off, apply as little throttle
as possible


While driving, ease up on the accelera-
tor


Adapt your speed and driving style to
the prevailing road conditions
Failure to observe these guidelines could
cause the vehicle to skid.
The ESP
® cannot prevent accidents result-
ing from excessive speed.
!Do not tow with one axle raised.
Otherwise the transfer case can be
damaged, which is not covered by the
Mercedes-Benz Limited Warranty.
!Performance testing must only be con-
ducted on a two-axle dynamometer.
Otherwise the transfer case can be
damaged, which is not covered by the
Mercedes-Benz Limited Warranty.!Because of the ESP’s
® automatic oper-
ation, the engine and the ignition must
be shut off (SmartKey in starter switch
position0 or1 or KEYLESS-GO
start/stop button* in position0 or1)
when the parking brake is being tested
on a brake test dynamometer.
Active braking action through ESP
®
may otherwise seriously damage the
front or rear axle brake system.
Operational tests with the engine
running can only be conducted on a
two-axle dynamometer.

101 Safety and Security
Anti-theft systems
Anti-theft systems
Immobilizer
The immobilizer prevents unauthorized
persons from starting your vehicle.
Activating
With the SmartKey
Remove the SmartKey from the starter
switch.
With KEYLESS-GO*

Turn off the engine by means of the
start/stop button on the gear selector
lever.

Open the driver’s door.Deactivating
With the SmartKey

Switch on the ignition.
With KEYLESS-GO*

Start the engine by means of the
start/stop button on the gear selector
lever.
Anti-theft alarm system
Once the alarm system has been armed, a
visual and audible alarm is triggered when
someone opens:

a door


the tailgate


the hood
The alarm will stay on, even if the activat-
ing element (a door, for example) is imme-
diately closed.
The alarm system will also be triggered
when


someone attempts to raise the vehicle


the vehicle is opened using the
mechanical key


someone opens a door from the inside
iIn case the engine cannot be started
(yet the vehicle’s battery is charged),
the system is not operational. Contact
an authorized Mercedes-Benz Center
or call 1-800-FOR-MERCedes (in the
USA), or 1-800-387-0100 (in Canada).

102 Safety and SecurityAnti-theft systemsArming the alarm system
The indicator lamp located in the central
locking switch in the center console.
1Indicator lamp

Lock the vehicle with the SmartKey or
KEYLESS-GO*.
The turn signal lamps flash three times
to indicate that the alarm system is
armed. The indicator lamp1 begins to
flash after approximately 30 seconds
after arming the alarm system.Disarming the alarm system

Unlock your vehicle with the SmartKey
or KEYLESS-GO*.
The turn signal lamps flash once to
indicate that the alarm system is
disarmed.
Canceling the alarm
With the SmartKey

Insert the SmartKey in the starter
switch.
or

Press button Œ or ‹ on the
SmartKey.
iIf the alarm stays on for more than
30 seconds, a call to the Response
Center is initiated automatically by the
Tele Aid system (
page 282) provided
Tele Aid service was subscribed to and
properly activated, and that necessary
cellular service and GPS coverage are
available.
iIf the turn signal lamps do not flash
three times, one of the following ele-
ments may not be properly closed:

a door


the tailgate


the hood
Close the respective element and lock
the vehicle again.
iThe alarm system will rearm automati-
cally after approximately 40 seconds if
neither a door nor the tailgate was
opened.

103 Safety and Security
Anti-theft systems
With KEYLESS-GO*
Pull an outside door handle.
The SmartKey with KEYLESS-GO must
be within 3 ft (1 m) of the vehicle.
or

Press the KEYLESS-GO* start/stop
button (
page 37).
The SmartKey with KEYLESS-GO must
be inside the vehicle.
Tow-away alarm
Once the tow-away alarm is armed, a visual
and audible alarm will be triggered when
someone attempts to raise the vehicle.Arming tow-away alarm

Lock the vehicle with the SmartKey or
KEYLESS-GO*.
The tow-away alarm is automatically
armed after about 30 seconds.
iThe tow-away protection alarm is trig-
gered, for example, if the vehicle is lift-
ed on one side.
If the alarm stays on for more than
30 seconds, a call to the Response
Center is initiated automatically by the
Tele Aid system* (
page 282), provid-
ed that the Tele Aid service was sub-
scribed to and properly activated, and
that necessary cellular service and GPS
coverage are available.

104 Safety and SecurityAnti-theft systemsDisarming tow-away alarm
To prevent triggering the tow-away alarm
feature, switch off the tow-away alarm be-
fore towing the vehicle, or when parking on
a surface subject to movement, such as a
ferry or auto train.
The button is located on the overhead con-
trol panel.
1Tow-away alarm off button
Switch off the ignition and remove the
SmartKey from the starter switch.

Press button1.
The indicator lamp in the button1
comes on briefly.

Exit and lock the vehicle with the
SmartKey or (vehicles with
KEYLESS-GO*) the lock button at each
door handle.Canceling tow-away alarm
With the SmartKey

Insert the SmartKey in the starter
switch.
or

Press button Œ or ‹ on the
SmartKey.
With KEYLESS-GO*

Pull an outside door handle.
The SmartKey with KEYLESS-GO must
be within 3 ft (1 m) of the vehicle.
or

Press the KEYLESS-GO* start/stop
button (
page 38).
The SmartKey with KEYLESS-GO must
be inside the vehicle.
iYou cannot disarm the tow-away alarm
when the ignition is switched on.
iWhen you unlock the vehicle, the
tow-away protection disarms automati-
cally.
The tow-away alarm remains disarmed
until you lock the vehicle again.

105 Controls in detail
Locking and unlocking
Seats
Memory function
Lighting
Instrument cluster
Control system
Automatic transmission
Good visibility
Dual-zone automatic climate control (USA only)
4-zone automatic climate control*
Power windows
Power tilt/sliding sunroof*
Driving systems
Loading
Useful features

106 Controls in detailIn the “Controls in detail” section you will
find detailed information on how to oper-
ate the equipment installed on your vehi-
cle. If you are already familiar with the
basic functions of your vehicle, this section
will be of particular interest to you.
To quickly familiarize yourself with the ba-
sic functions of the vehicle, refer to the
“Getting started” section of this manual.
The corresponding page numbers are
given at the beginning of each segment.Locking and unlocking
For more information on locking and un-
locking, see “Getting started” (
page 34)
and (
page 59).
SmartKey
Your vehicle comes supplied with two
SmartKeys, each with remote control and
a removable mechanical key. The locking
tabs for the mechanical key portion of the
two SmartKeys are a different color to help
distinguish each key unit.
The SmartKey provides an extended oper-
ating range. To prevent theft, however, it is
advisable to only unlock the vehicle when
you are in close proximity to it.
The SmartKey centrally locks and unlocks

the doors


the tailgate


the fuel filler flap
SmartKey with remote control1‹ Lock button
2Š Unlock button* for the tailgate
3Mechanical key locking tab
4ΠUnlock button
5Battery check lamp
6Â Panic button (
page 90)

107 Controls in detail
Locking and unlocking
Warning!
G
When leaving the vehicle, always remove the
SmartKey from the starter switch, take it
with you and lock the vehicle. Do not leave
children unattended in the vehicle, or with
access to an unlocked vehicle. It is possible
for children to open a looked door from the
inside, which could result in an accident
and/or serious personal injury.!To prevent possible malfunction, avoid
exposing the SmartKey to high levels of
electromagnetic radiation.
iUSA only:
This device complies with Part 15 of
the FCC Rules. Operation is subject to
the following two conditions:
(1) This device may not cause harmful
interference, and
(2) this device must accept any
interference received, including
interference that may cause
undesired operation.
Any unauthorized modification to this
device could void the user’s authority
to operate the equipment.
iCanada only:
This device complies with RSS-210 of
Industry Canada. Operation is subject
to the following two conditions:
(1) This device may not cause
interference, and
(2) this device must accept any
interference received, including
interference that may cause
undesired operation of the device.
Any unauthorized modification to this
device could void the user’s authority
to operate the equipment.iThe electrohydraulic brake system is
activated (
page 96).
iYou can also open and close the power
windows and tilt/sliding sunroof* us-
ing the SmartKey (
page 234).

108 Controls in detailLocking and unlockingFactory settingGlobal unlocking

Press buttonŒ.

All turn signal lamps flash once.


An acoustic signal sounds once
(if equipped and feature activated).


The locking knobs in the doors
move up.


The anti-theft alarm system is dis-
armed.
The vehicle will lock again automatically
and reactivate the anti-theft alarm system
within approximately 40 seconds of un-
locking if:


neither a door nor the tailgate is
opened


the SmartKey is not inserted in the
starter switch


the central locking switch is not acti-
vatedGlobal locking

Press button‹.

All turn signal lamps flash three
times.


An acoustic signal sounds three
times (if equipped and feature acti-
vated).


The locking knobs in the doors
move down.


The anti-theft alarm system is
armed.
iYour vehicle may be equipped with an
acoustic lock and unlock confirmation
signal feature. If your vehicle is
equipped with this feature and the fea-
ture is activated, an acoustic signal will
sound when the vehicle is locked or un-
locked using the SmartKey.
To determine whether or not your vehi-
cle is equipped with this feature, con-
tact an authorized Mercedes-Benz
Center. If equipped and you wish to ac-
tivate or deactivate the feature, or ad-
just its signal volume, also contact an
authorized Mercedes-Benz Center.

109 Controls in detail
Locking and unlocking
Selective setting
If you frequently travel alone, you may wish
to reprogram the SmartKey so that
pressingŒ only unlocks the driver’s
door and the fuel filler flap.
Press and hold buttonsŒ and‹
simultaneously for about 5 seconds un-
til battery check lamp5 (
page 106)
flashes twice.
The SmartKey will then function as fol-
lows:
Unlocking driver’s door and fuel filler
flap

Press buttonΠonce.

All turn signal lamps flash once.


An acoustic signal sounds once (if
equipped and feature activated).
For more information, see “Factory
setting” (
page 108).


The locking knob in the driver’s
door moves up.


The anti-theft alarm system is dis-
armed.
Global unlocking

Press buttonΠtwice.

All turn signal lamps flash once.


An acoustic signal sounds once
(if equipped and feature activated).


The locking knobs in the doors
move up.


The anti-theft alarm system is dis-
armed.
Global locking

Press button‹.

All turn signal lamps flash three
times.


An acoustic signal sounds three
times (if equipped and feature acti-
vated).


The locking knobs in the doors
move down.


The anti-theft alarm system is
armed.
Restoring to factory setting

Press and hold buttonsŒ and‹
simultaneously for about 6 seconds un-
til battery check lamp5 (
page 106)
flashes twice.
