340 OperationTires and wheelsMOExtended system*
The MOExtended system allows you to
continue driving your vehicle even if there
is a total loss of pressure in one or more
tires.
You may only use the MOExtended system
with the Tire Pressure Monitoring System*
(TPMS*) (
page 335).
For information on driving in case of pres-
sure loss in one or more tires (emergency
mode), see the “Practical hints” section
(
page 451).
Tire labeling
Besides tire name (sales designation) and
manufacturer name, a number of markings
can be found on a tire.

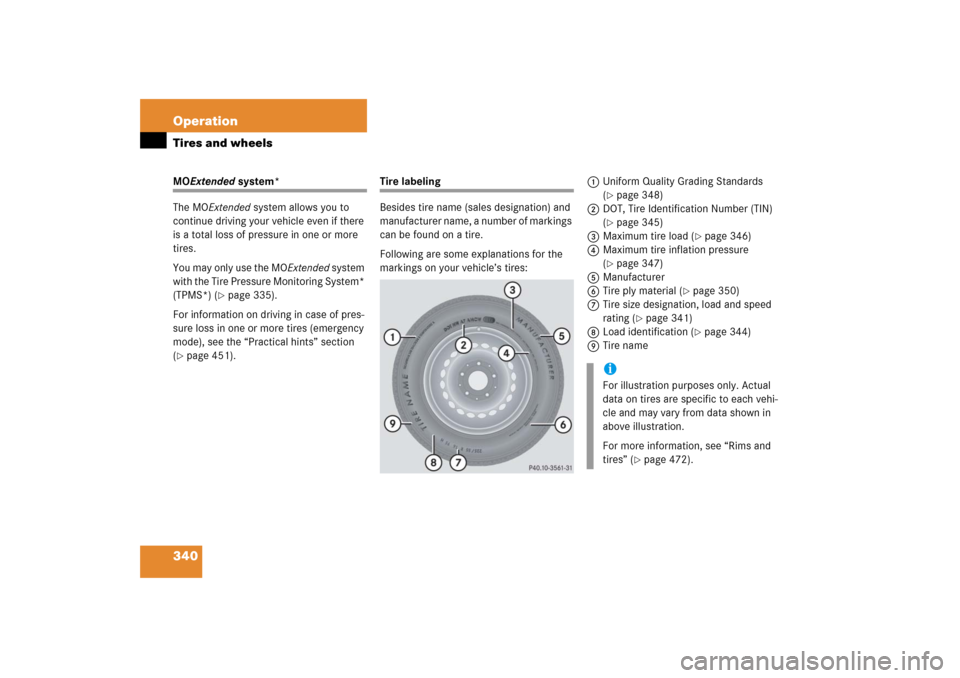

Following are some explanations for the
markings on your vehicle’s tires:1Uniform Quality Grading Standards
(
page 348)
2DOT, Tire Identification Number (TIN)
(page 345)
3Maximum tire load (
page 346)
4Maximum tire inflation pressure
(
page 347)
5Manufacturer
6Tire ply material (
page 350)
7Tire size designation, load and speed
rating (
page 341)
8Load identification (
page 344)
9Tire name
iFor illustration purposes only. Actual
data on tires are specific to each vehi-
cle and may vary from data shown in
above illustration.
For more information, see “Rims and
tires” (
page 472).

341 Operation
Tires and wheels
Tire size designation, load and speed
rating

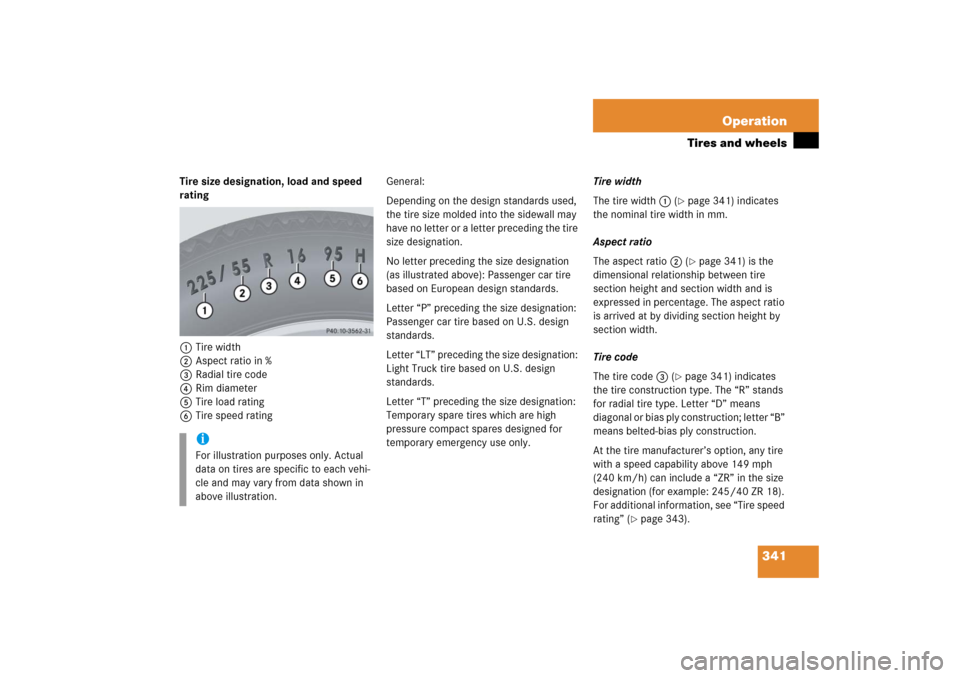

1Tire width
2Aspect ratio in %
3Radial tire code
4Rim diameter
5Tire load rating
6Tire speed ratingGeneral:
Depending on the design standards used,
the tire size molded into the sidewall may
have no letter or a letter preceding the tire
size designation.
No letter preceding the size designation
(as illustrated above): Passenger car tire
based on European design standards.
Letter “P” preceding the size designation:
Passenger car tire based on U.S. design
standards.
Letter “LT” preceding the size designation:
Light Truck tire based on U.S. design
standards.
Letter “T” preceding the size designation:
Temporary spare tires which are high
pressure compact spares designed for
temporary emergency use only. Tire width
The tire width1 (
page 341) indicates
the nominal tire width in mm.
Aspect ratio
The aspect ratio2 (page 341) is the
dimensional relationship between tire
section height and section width and is
expressed in percentage. The aspect ratio
is arrived at by dividing section height by
section width.
Tire code
The tire code3 (
page 341) indicates
the tire construction type. The “R” stands
for radial tire type. Letter “D” means
diagonal or bias ply construction; letter “B”
means belted-bias ply construction.
At the tire manufacturer’s option, any tire
with a speed capability above 149 mph
(240 km/h) can include a “ZR” in the size
designation (for example: 245/40 ZR 18).
For additional information, see “Tire speed
rating” (
page 343).
iFor illustration purposes only. Actual
data on tires are specific to each vehi-
cle and may vary from data shown in
above illustration.

342 OperationTires and wheelsRim diameter
The rim diameter4 (
page 341) is the
diameter of the bead seat, not the
diameter of the rim edge. Rim diameter is
indicated in inches (in).
Tire load rating
The tire load rating5 (page 341) is a
numerical code associated with the
maximum load a tire can support.
For example, a load rating of 91 corre-
sponds to a maximum load of 1 356 lbs
(615 kg) the tire is designed to support.
See also “Maximum tire load”
(
page 346) where the maximum load as-
sociated with the load index is indicated in
kilograms and lbs.For additional information on tire load
rating, see “Load identification”
(
page 344).

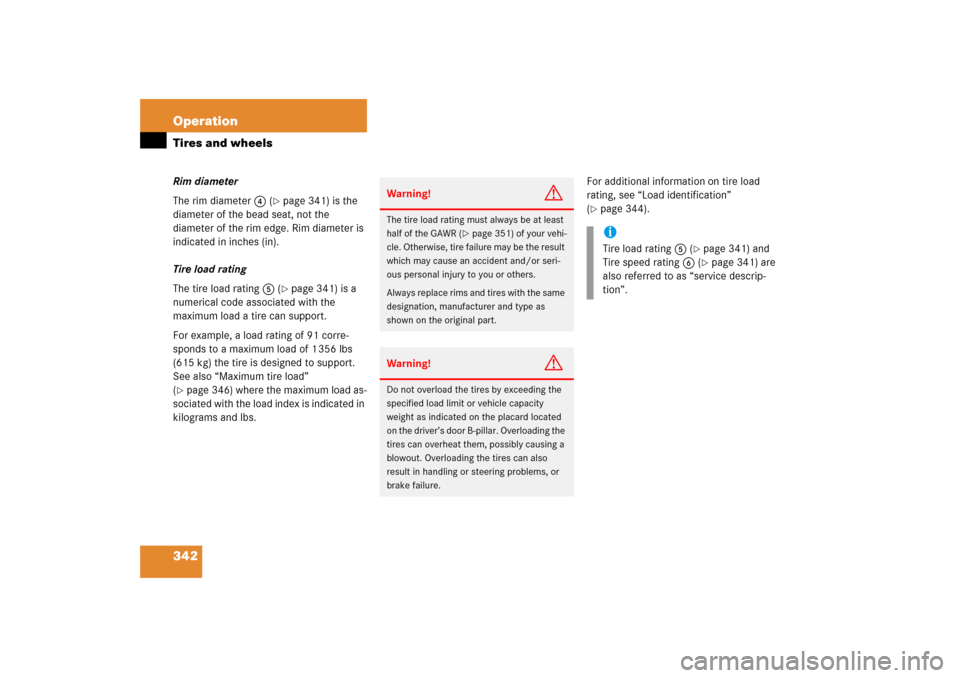

Warning!
G
The tire load rating must always be at least
half of the GAWR (
page 351) of your vehi-
cle. Otherwise, tire failure may be the result
which may cause an accident and/or seri-
ous personal injury to you or others.
Always replace rims and tires with the same
designation, manufacturer and type as
shown on the original part.
Warning!
G
Do not overload the tires by exceeding the
specified load limit or vehicle capacity
weight as indicated on the placard located
on the driver’s door B-pillar. Overloading the
tires can overheat them, possibly causing a
blowout. Overloading the tires can also
result in handling or steering problems, or
brake failure.
iTire load rating5 (
page 341) and
Tire speed rating6 (page 341) are
also referred to as “service descrip-
tion”.

343 Operation
Tires and wheels
Tire speed rating
The tire speed rating6 (
page 341)
indicates the approved maximum speed
for the tire.Summer tires


At the tire manufacturer’s option, any
tire with a speed capability above
149 mph (240 km/h) can include a
“ZR” in the size designation (for exam-
ple: 245/40 ZR18). To determine the
maximum speed capability of the tire,
the service description for the tire must
be referred to. The service description is comprised of the tire load rating5
(
page 341) and the tire speed
rating6 (
page 341).
If your tire includes “ZR” in the size
designation and no service
description5 and6 (
page 341) is
given, the tire manufacturer must be
consulted for the maximum speed ca-
pability.
If a service description5 and6
(
page 341) is given, the speed capa-
bility is limited by the speed symbol in
the service description.
Example: 245/40 ZR18 97Y.
In this example, “97Y” is the service
description. The letter “Y” designates
the speed rating and the speed capabil-
ity of the tire is limited to 186 mph
(300 km/h).
Warning!
G
Even when permitted by law, never operate
a vehicle at speeds greater than the
maximum speed rating of the tires.
Exceeding the maximum speed for which
tires are rated can lead to sudden tire
failure, causing loss of vehicle control and
possibly resulting in an accident and/or
personal injury and possible death, for you
and for others. iTire load rating5 (
page 341) and
Tire speed rating6 (page 341) are
also referred to as “service descrip-
tion”.
Index
Speed rating
Q
up to 100 mph (160 km/h)
R
up to 106 mph (170 km/h)
S
up to 112 mph (180 km/h)
T
up to 118 mph (190 km/h)
H
up to 130 mph (210 km/h)
V
up to 149 mph (240 km/h)
W
up to 168 mph (270 km/h)
Y
up to 186 mph (300 km/h)
(Y)
above 186 mph (300 km/h)
ZR
above 149 mph (240 km/h)

344 OperationTires and wheels

Any tire with a speed capability above
186 mph (300 km/h) must include a
“ZR” in the size designation AND the
service description must be placed in
parenthesis. Example: 275/40 ZR 18
(99Y). The “(Y)” speed rating in paren-
thesis designates the maximum speed
capability of the tire as being above
186 mph (300 km/h). Consult the tire
manufacturer for the actual maximum
permissible speed of the tire.All-season and winter tires
Load identification

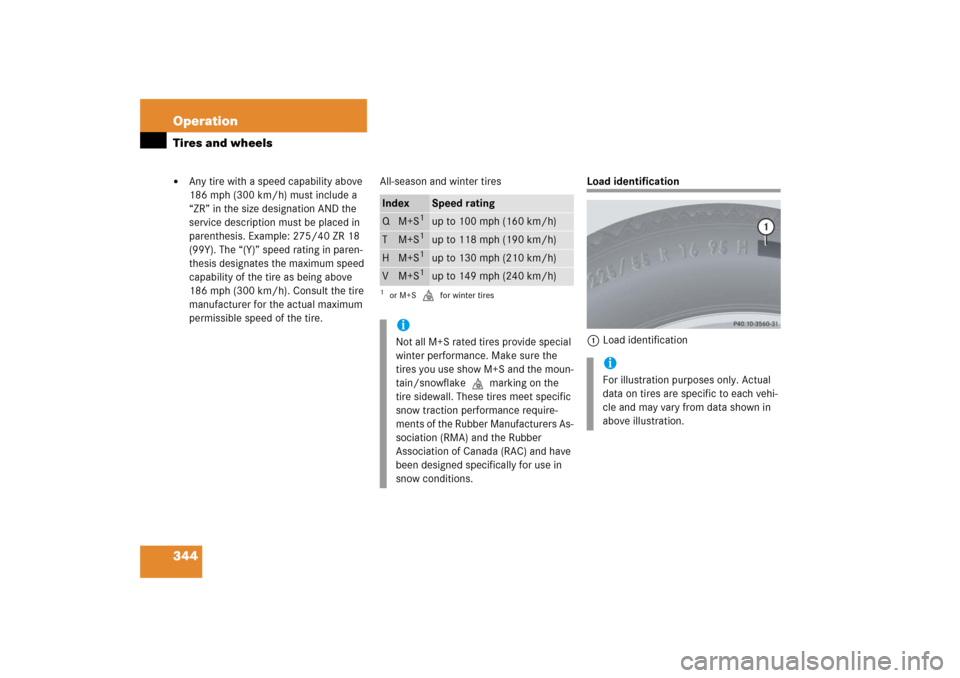

1Load identification
Index
Speed rating
QM+S
1
1or M+S
.
for winter tiresup to 100 mph (160 km/h)
TM+S
1
up to 118 mph (190 km/h)
HM+S
1
up to 130 mph (210 km/h)
VM+S
1
up to 149 mph (240 km/h)
iNot all M+S rated tires provide special
winter performance. Make sure the
tires you use show M+S and the moun-
tain/snowflake.marking on the
tire sidewall. These tires meet specific
snow traction performance require-
ments of the Rubber Manufacturers As-
sociation (RMA) and the Rubber
Association of Canada (RAC) and have
been designed specifically for use in
snow conditions.
iFor illustration purposes only. Actual
data on tires are specific to each vehi-
cle and may vary from data shown in
above illustration.

345 Operation
Tires and wheels
In addition to tire load rating, special load
information may be molded into the tire
sidewall following the letter designating
the tire speed rating1 (
page 343).
No specification given: absence of any text
(like in above example) indicates a
standard load (SL) tire.
XL or Extra Load: designates an extra load
(or reinforced) tire.
Light Load: designates a light load tire.
C, D, E: designates load range associated
with the maximum load a tire can carry at
a specified pressure.
DOT, Tire Identification Number (TIN)
U.S. tire regulations require each new tire
manufacturer or tire retreader to mold a
TIN into or onto a sidewall of each tire
produced.
The TIN is a unique identifier which facili-
tates efforts by tire manufactures to notify
purchasers in recall situations or other
safety matters concerning tires and gives
purchasers the means to easily identify
such tires.
The TIN is comprised of “Manufacturer’s
identification mark”, “Tire size”, “Tire type

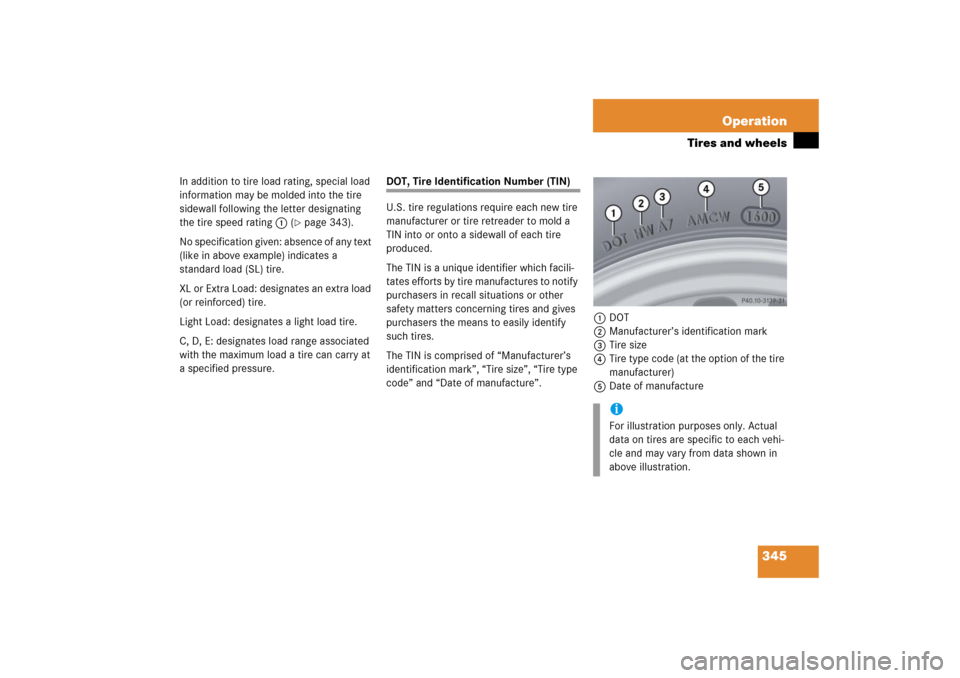

code” and “Date of manufacture”.1DOT
2Manufacturer’s identification mark
3Tire size
4Tire type code (at the option of the tire
manufacturer)
5Date of manufacture
iFor illustration purposes only. Actual
data on tires are specific to each vehi-
cle and may vary from data shown in
above illustration.

346 OperationTires and wheelsDOT (D
epartment o
f T
ransportation)
A tire branding symbol1 (
page 345)
which denotes the tire meets require-
ments of the U.S. Department of Transpor-
tation.
Manufacturer’s identification mark
The manufacturer’s identification mark2
(
page 345) denotes the tire
manufacturer.
New tires have a mark with two symbols.
Retreaded tires have a mark with four sym-
bols. For more information on retreaded
tires, see (
page 324).
Tire size
The code3 (page 345) indicates the
tire size.Tire type code
The code4 (
page 345) may, at the
option of the manufacturer, be used as a
descriptive code for identifying significant
characteristics of the tire.
Date of manufacture
The date of manufacture5 (
page 345)
identifies the week and year of manufac-
ture.
The first two figures identify the week,
starting with “01” to represent the first full
week of the calendar year. The second two
figures represent the year.
For example, “3202” represents the 32nd
week of 2002.
Maximum tire load

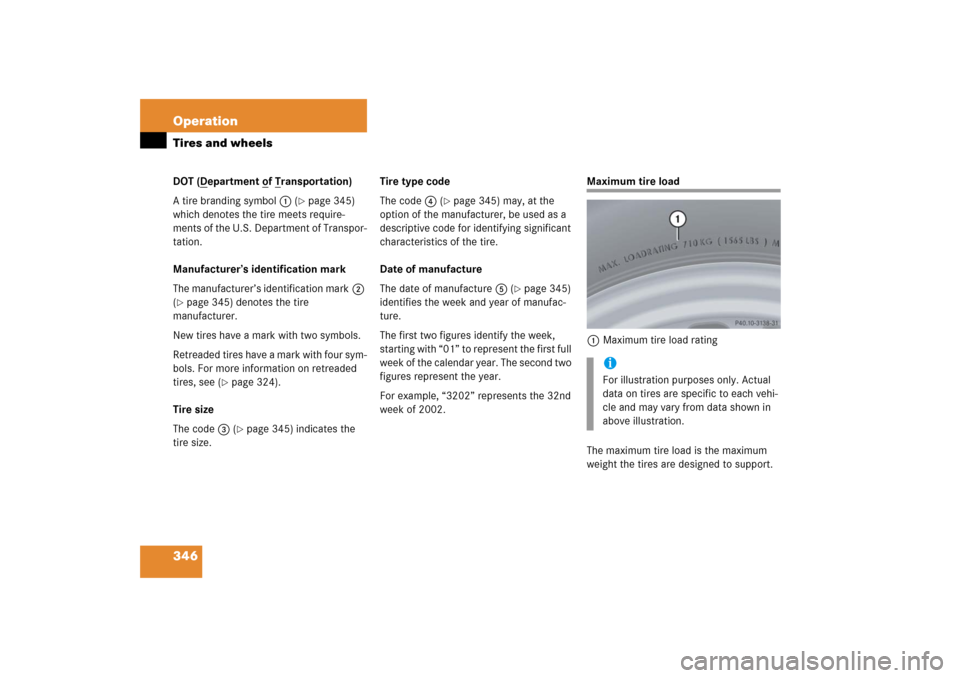

1Maximum tire load rating
The maximum tire load is the maximum
weight the tires are designed to support.
iFor illustration purposes only. Actual
data on tires are specific to each vehi-
cle and may vary from data shown in
above illustration.

347 Operation
Tires and wheels
For more information on tire load rating
(page 342).
For information on calculating total and
cargo load capacities (
page 330).
Maximum tire inflation pressure

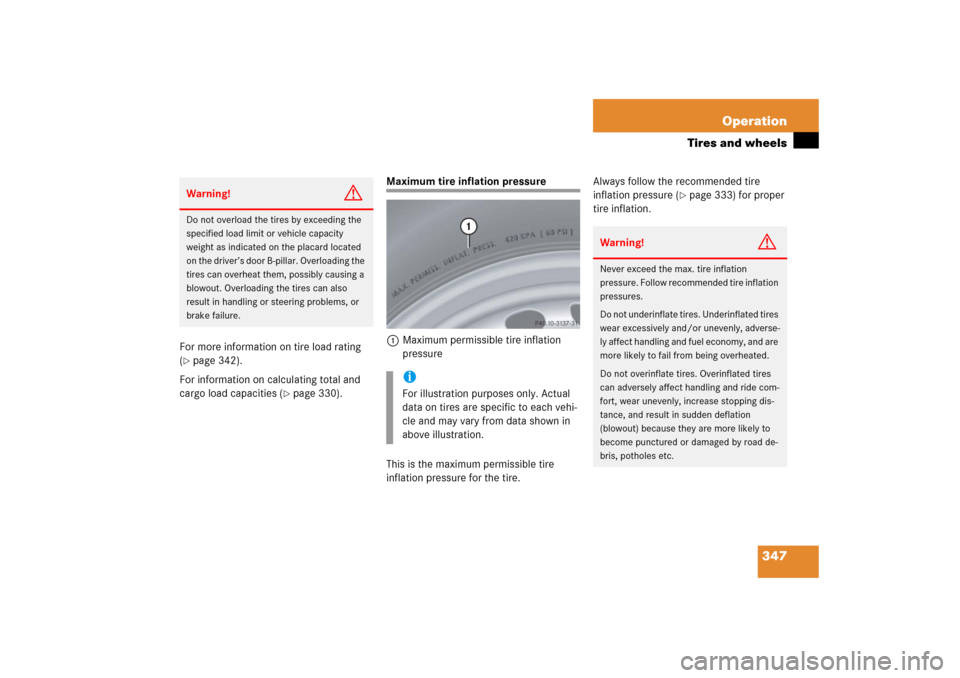

1Maximum permissible tire inflation
pressure
This is the maximum permissible tire
inflation pressure for the tire.Always follow the recommended tire
inflation pressure (
page 333) for proper
tire inflation.
Warning!
G
Do not overload the tires by exceeding the
specified load limit or vehicle capacity
weight as indicated on the placard located
on the driver’s door B-pillar. Overloading the
tires can overheat them, possibly causing a
blowout. Overloading the tires can also
result in handling or steering problems, or
brake failure.
iFor illustration purposes only. Actual
data on tires are specific to each vehi-
cle and may vary from data shown in
above illustration.
Warning!
G
Never exceed the max. tire inflation
pressure. Follow recommended tire inflation
pressures.
Do not underinflate tires. Underinflated tires
wear excessively and/or unevenly, adverse-
ly affect handling and fuel economy, and are
more likely to fail from being overheated.
Do not overinflate tires. Overinflated tires
can adversely affect handling and ride com-
fort, wear unevenly, increase stopping dis-
tance, and result in sudden deflation
(blowout) because they are more likely to
become punctured or damaged by road de-
bris, potholes etc.

348 OperationTires and wheelsUniform Tire Quality Grading Standards (U.S. vehicles)
Tire manufacturers are required to grade
tires based on three performance factors:
treadwear, traction and temperature resis-
tance.
1Treadwear
2Traction

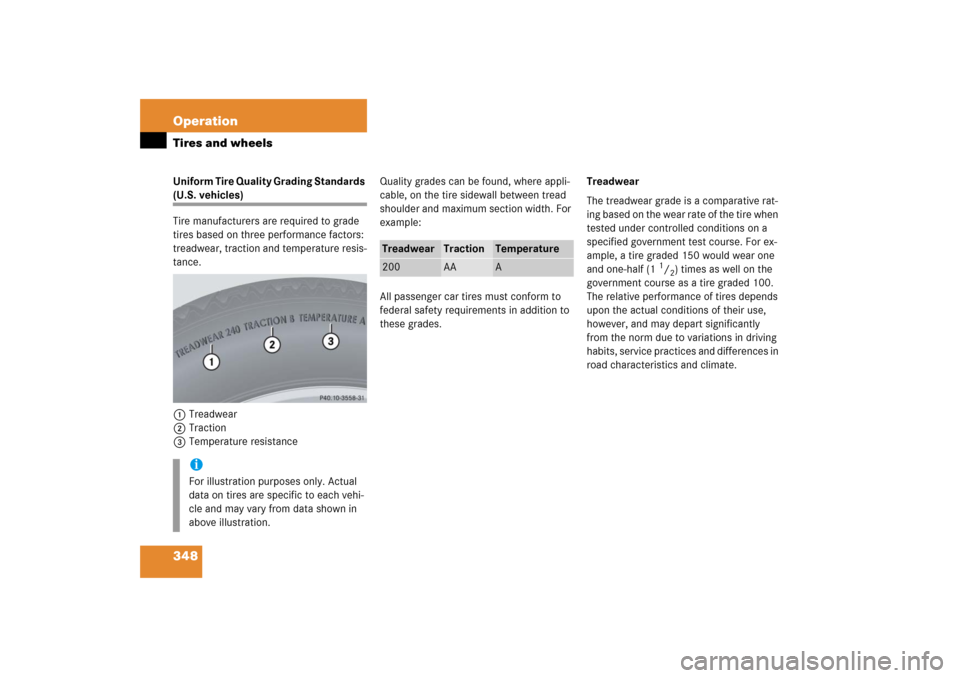

3Temperature resistanceQuality grades can be found, where appli-
cable, on the tire sidewall between tread
shoulder and maximum section width. For
example:
All passenger car tires must conform to
federal safety requirements in addition to
these grades.Treadwear
The treadwear grade is a comparative rat-
ing based on the wear rate of the tire when
tested under controlled conditions on a
specified government test course. For ex-
ample, a tire graded 150 would wear one
and one-half (1
1/2) times as well on the
government course as a tire graded 100.
The relative performance of tires depends
upon the actual conditions of their use,
however, and may depart significantly
from the norm due to variations in driving
habits, service practices and differences in
road characteristics and climate.
iFor illustration purposes only. Actual
data on tires are specific to each vehi-
cle and may vary from data shown in
above illustration.
Treadwear
Traction
Temperature
200
AA
A

349 Operation
Tires and wheels
Traction
The traction grades, from highest to low-
est, are AA, A, B, and C. Those grades rep-
resent the tire’s ability to stop on wet
pavement as measured under controlled
conditions on specified government test
surfaces of asphalt and concrete. A tire
marked C may have poor traction perfor-
mance.Temperature
The temperature grades are A (the high-
est), B, and C, representing the tire’s resis-
tance to the generation of heat and its
ability to dissipate heat when tested under
controlled conditions on a specified indoor
laboratory test wheel. Sustained high tem-
perature can cause the material of the tire
to degenerate and reduce tire life, and ex-
cessive temperature can lead to sudden
tire failure. The grade C corresponds to a
level of performance which all passenger
car tires must meet under the Federal Mo-
tor Vehicle Safety Standard No. 109.
Grades B and A represent higher levels of
performance on the laboratory test wheel

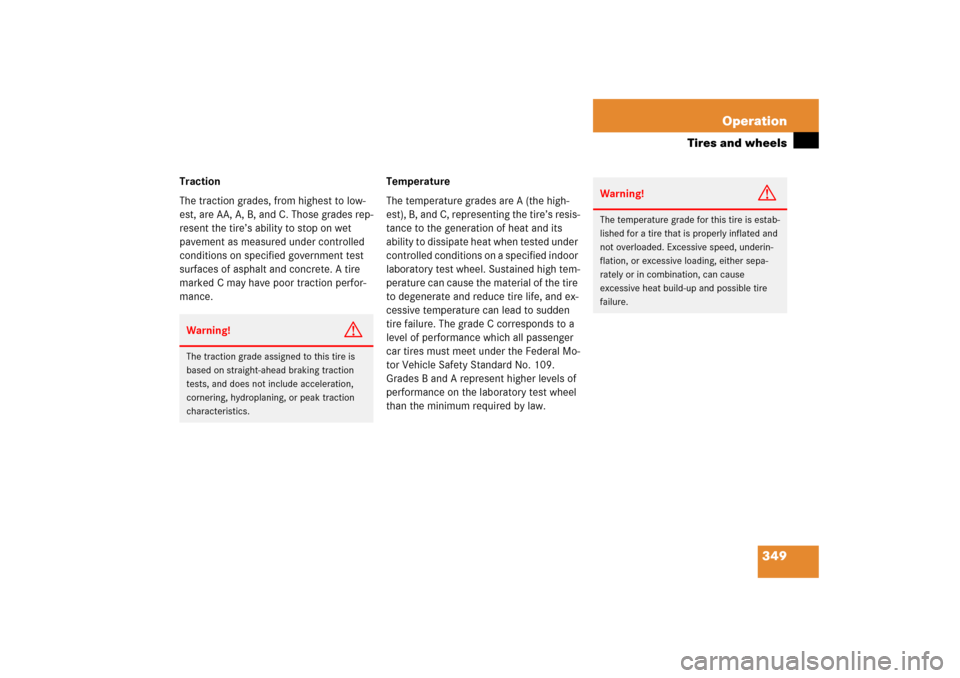

than the minimum required by law.Warning!
G
The traction grade assigned to this tire is
based on straight-ahead braking traction
tests, and does not include acceleration,
cornering, hydroplaning, or peak traction
characteristics.
Warning!
G
The temperature grade for this tire is estab-
lished for a tire that is properly inflated and
not overloaded. Excessive speed, underin-
flation, or excessive loading, either sepa-
rately or in combination, can cause
excessive heat build-up and possible tire
failure.
