MERCEDES-BENZ E WAGON 2006 S211 Owner's Manual

380 Practical hintsWhat to do if …Problem
Possible cause/consequence
Suggested solution
1

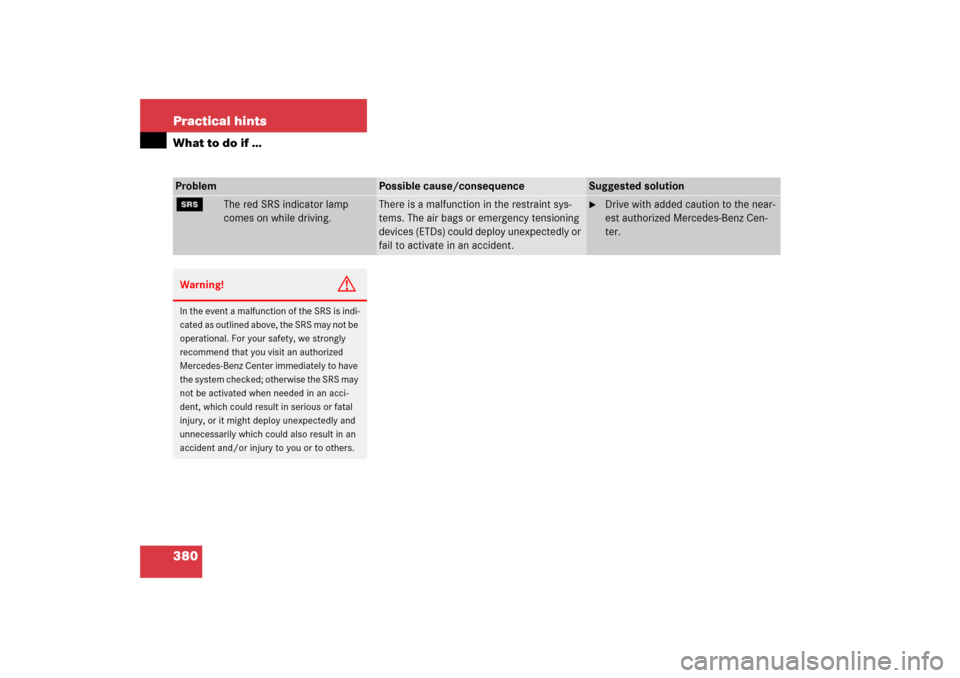

The red SRS indicator lamp
comes on while driving.
There is a malfunction in the restraint sys-
tems. The air bags or emergency tensioning
devices (ETDs) could deploy unexpectedly or
fail to activate in an accident.

Drive with added caution to the near-
est authorized Mercedes-Benz Cen-
ter.
Warning!
G
In the event a malfunction of the SRS is indi-
cated as outlined above, the SRS may not be
operational. For your safety, we strongly
recommend that you visit an authorized
Mercedes-Benz Center immediately to have
the system checked; otherwise the SRS may
not be activated when needed in an acci-
dent, which could result in serious or fatal
injury, or it might deploy unexpectedly and
unnecessarily which could also result in an
accident and/or injury to you or to others.

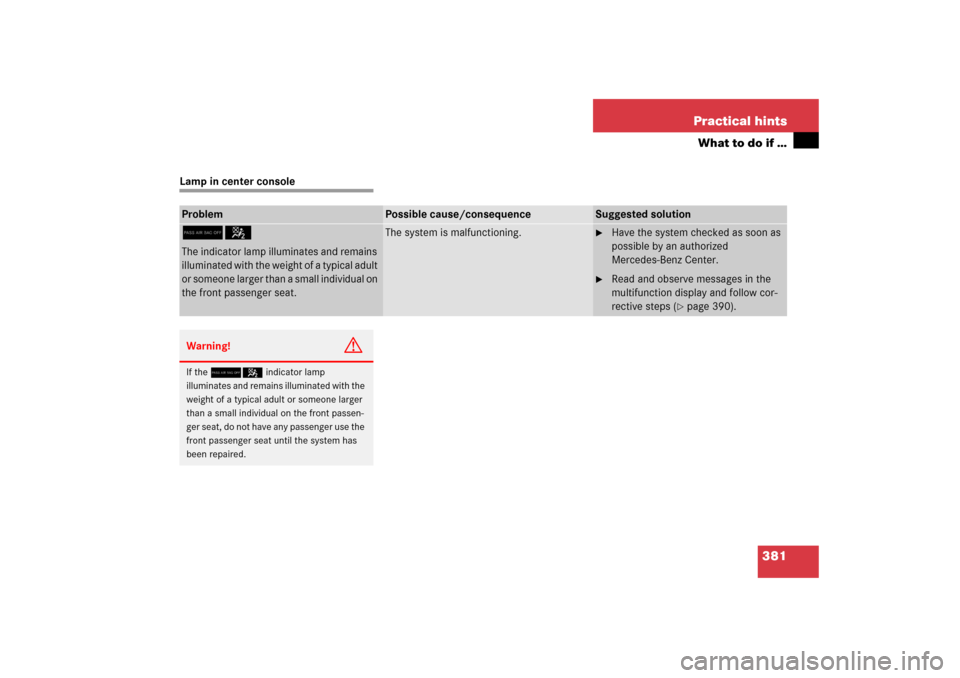

381 Practical hints
What to do if …
Lamp in center consoleProblem
Possible cause/consequence
Suggested solution
75The indicator lamp illuminates and remains
illuminated with the weight of a typical adult
or someone larger than a small individual on
the front passenger seat.
The system is malfunctioning.

Have the system checked as soon as
possible by an authorized
Mercedes-Benz Center.

Read and observe messages in the
multifunction display and follow cor-
rective steps (
page 390).
Warning!
G
If the 75indicator lamp
illuminates and remains illuminated with the
weight of a typical adult or someone larger
than a small individual on the front passen-
ger seat, do not have any passenger use the
front passenger seat until the system has
been repaired.

382 Practical hintsWhat to do if …Problem
Possible cause/conse-
quence
Suggested solution
75The indicator lamp does not illuminate
and/or does not remain illuminated with
the weight of a typical 12-month-old child in
a standard child restraint or less on the
front passenger seat.
The system is malfunctioning.

Make sure that there is nothing between seat cush-
ion and child seat and check installation of the child
seat.

Make sure that no objects applying supplemental
weight onto the seat are present.

Make sure that no objects which apply forces to the
seat are present (e.g. objects such as books, brief-
cases etc. lodged behind or around the seat, head
restraints pushing against roof etc.). The system
may recognize such forces as supplemental weight.

If the light remains out, have the system checked as
soon as possible by an authorized Mercedes-Benz
Center. Do not transport a child on the front passen-
ger seat until the system has been repaired.

Read and observe messages in the multifunction
display and follow corrective steps (
page 390).
Warning!
G
If the 75indicator lamp does not
illuminate or remains out with the weight of
a typical 12-month-old child in a standard
child restraint or less on the front passenger
seat,
do not transport a child on the front passen-
ger seat until the system has been repaired.

383 Practical hints
What to do if …
Vehicle status messages in the multi-function display
Warning and malfunction messages ap-
pear in the multifunction display located in
the instrument cluster.
Certain warning and malfunction messag-
es are accompanied by an audible signal.
Address these messages accordingly and
follow the additional instructions given in
this Operator’s Manual.
Selecting the vehicle status message
memory menu in the control system
(page 164) displays both cleared and
uncleared messages.
High-priority messages appear in the
multifunction display in red color.Certain messages of high priority cannot
be cleared from the multifunction display
using the reset button (
page 151) or
buttonj, k, ÿ or è on the
multifunction steering wheel.
Other messages of high priority and mes-
sages of less immediate priority can be
cleared from the multifunction display
using the reset button (page 151) or
buttonj, k, ÿ or è on the
multifunction steering wheel. They are
then stored in the vehicle status message
memory (
page 164). Remember that
clearing a message will only make the mes-
sage disappear. Clearing a message will
not correct the condition that caused the
message to appear.
Warning!
G
All categories of messages contain impor-
tant information which should be taken note
of and, where a malfunction is indicated, ad-
dressed as soon as possible at an autho-
rized Mercedes-Benz Center.
Failure to repair condition noted may cause
damage not covered by the Mercedes-Benz
Limited Warranty, or result in property dam-
age or personal injury.Warning!
G
No messages will be displayed if either the
instrument cluster or the multifunction dis-
play is inoperative.
Contact the nearest authorized
Mercedes-Benz Center.

384 Practical hintsWhat to do if …On the pages that follow, you will find a
compilation of the most important warning
and malfunction messages that may
appear in the multifunction display.
For your convenience the messages are di-
vided into two sections:

Text messages (
page 385)


Symbol messages (
page 395)
iSwitching on the ignition causes all in-
strument cluster lamps (except low
beam headlamp indicator lamp, high
beam headlamp indicator lamp, and
turn signal indicator lamps unless acti-
vated) as well as the multifunction dis-
play to come on. Make sure the lamps
and multifunction display are in work-
ing order before starting your journey.

385 Practical hints
What to do if …

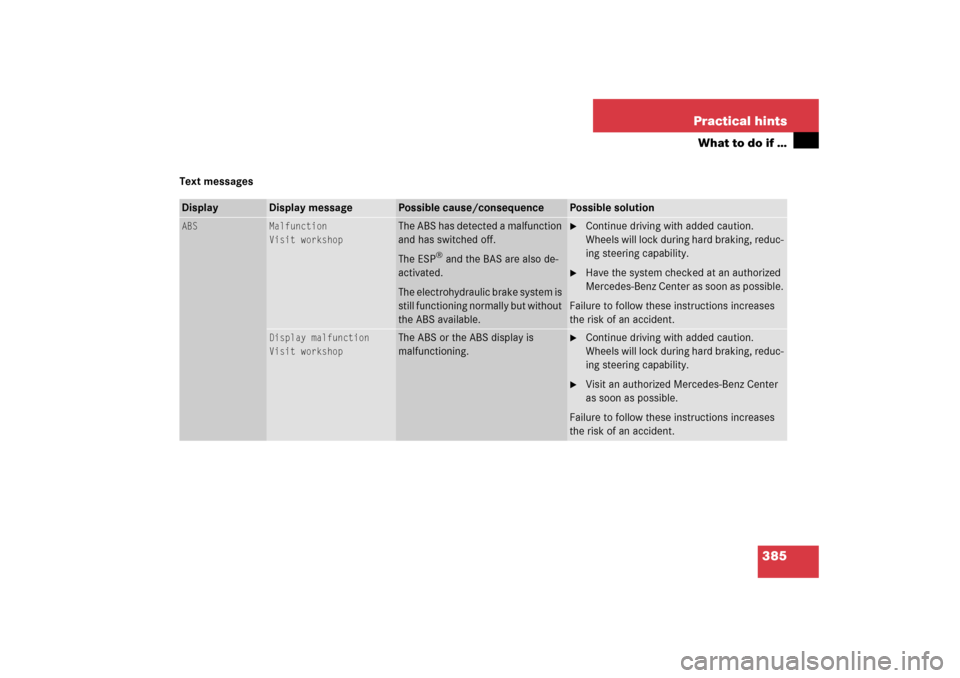

Text messagesDisplay
Display message
Possible cause/consequence
Possible solution
ABS
Malfunction
Visit workshop
The ABS has detected a malfunction
and has switched off.
The ESP
® and the BAS are also de-
activated.
The electrohydraulic brake system is
still functioning normally but without
the ABS available.

Continue driving with added caution.
Wheels will lock during hard braking, reduc-
ing steering capability.

Have the system checked at an authorized
Mercedes-Benz Center as soon as possible.
Failure to follow these instructions increases
the risk of an accident.
Display malfunction
Visit workshop
The ABS or the ABS display is
malfunctioning.

Continue driving with added caution.
Wheels will lock during hard braking, reduc-
ing steering capability.

Visit an authorized Mercedes-Benz Center
as soon as possible.
Failure to follow these instructions increases
the risk of an accident.

386 Practical hintsWhat to do if …Display
Display message
Possible cause/consequence
Possible solution

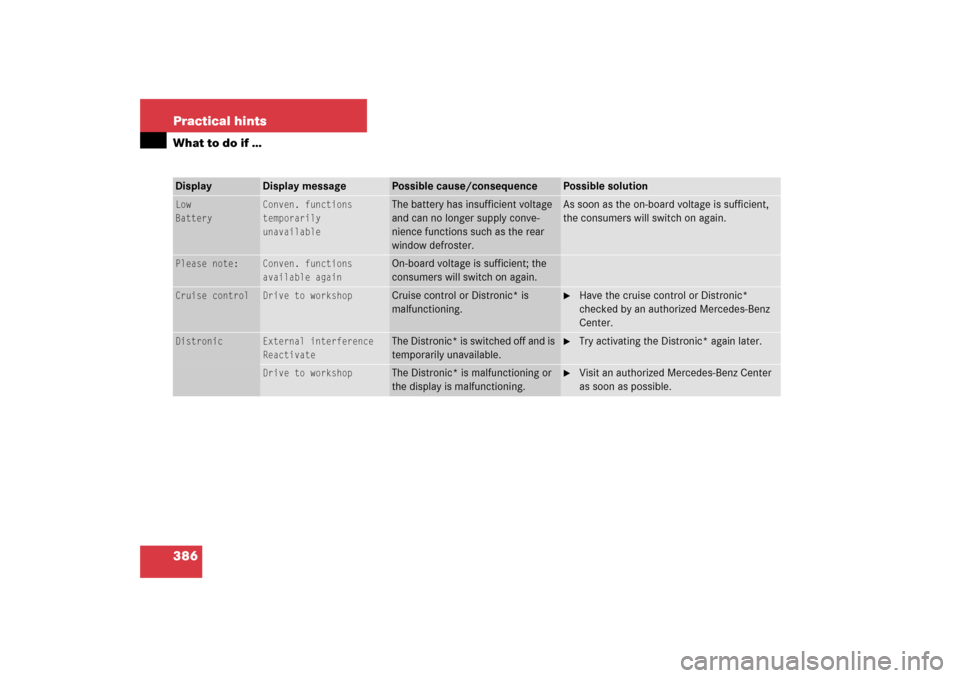

Low
Battery
Conven. functions
temporarily
unavailable
The battery has insufficient voltage
and can no longer supply conve-
nience functions such as the rear
window defroster.
As soon as the on-board voltage is sufficient,
the consumers will switch on again.
Please note:
Conven. functions
available again

On-board voltage is sufficient; the
consumers will switch on again.
Cruise control
Drive to workshop
Cruise control or Distronic* is
malfunctioning.

Have the cruise control or Distronic*
checked by an authorized Mercedes-Benz
Center.
Distronic
External interference
Reactivate
The Distronic* is switched off and is
temporarily unavailable.

Try activating the Distronic* again later.
Drive to workshop
The Distronic* is malfunctioning or
the display is malfunctioning.

Visit an authorized Mercedes-Benz Center
as soon as possible.

387 Practical hints
What to do if …
Display
Display message
Possible cause/consequence
Possible solution

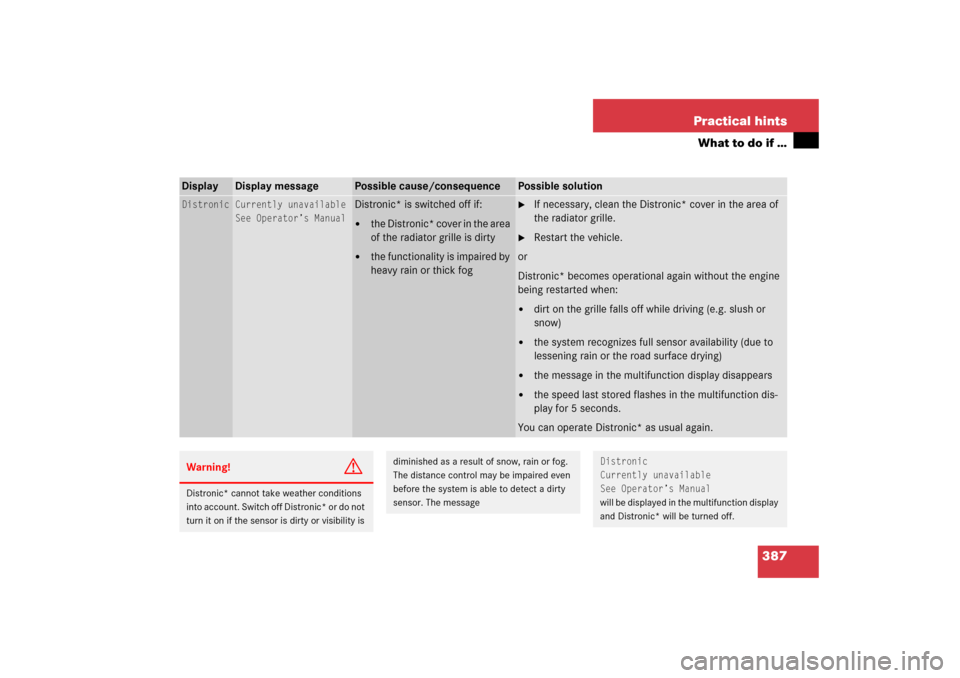

Distronic
Currently unavailable
See Operator’s Manual
Distronic* is switched off if:

the Distronic* cover in the area
of the radiator grille is dirty


the functionality is impaired by
heavy rain or thick fog

If necessary, clean the Distronic* cover in the area of
the radiator grille.

Restart the vehicle.
or
Distronic* becomes operational again without the engine
being restarted when:


dirt on the grille falls off while driving (e.g. slush or
snow)


the system recognizes full sensor availability (due to
lessening rain or the road surface drying)


the message in the multifunction display disappears


the speed last stored flashes in the multifunction dis-
play for 5 seconds.
You can operate Distronic* as usual again.
Warning!
G
Distronic* cannot take weather conditions
into account. Switch off Distronic* or do not
turn it on if the sensor is dirty or visibility is
diminished as a result of snow, rain or fog.
The distance control may be impaired even
before the system is able to detect a dirty
sensor. The message
Distronic
Currently unavailable
See Operator’s Manualwill be displayed in the multifunction display
and Distronic* will be turned off.

388 Practical hintsWhat to do if …Display
Display message
Possible cause/consequence
Possible solution

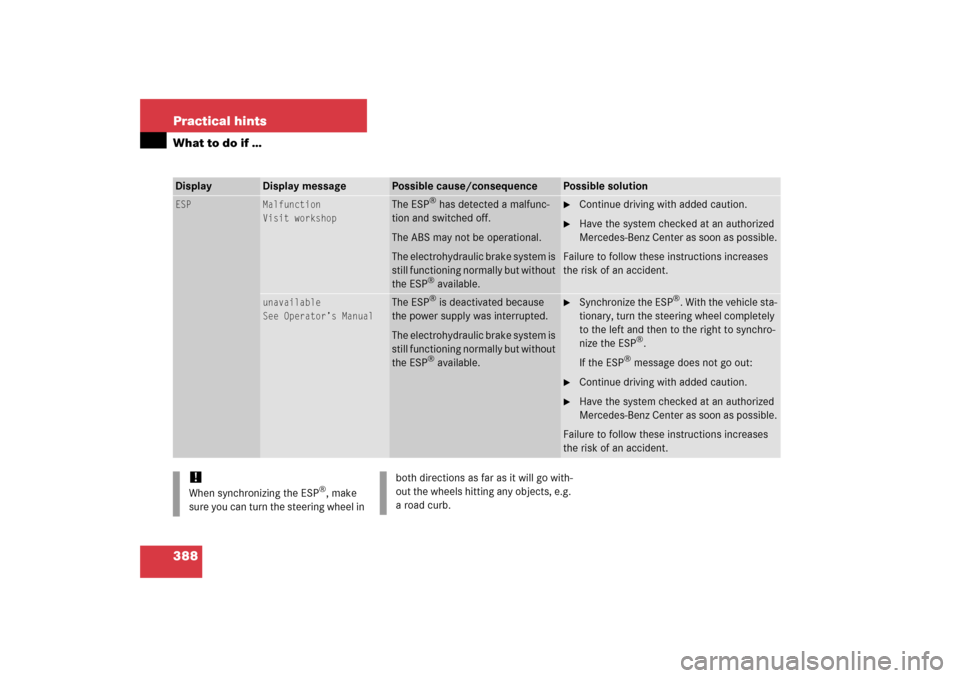

ESP
Malfunction
Visit workshop
The ESP
® has detected a malfunc-
tion and switched off.
The ABS may not be operational.
The electrohydraulic brake system is
still functioning normally but without
the ESP® available.

Continue driving with added caution.

Have the system checked at an authorized
Mercedes-Benz Center as soon as possible.
Failure to follow these instructions increases
the risk of an accident.
unavailable
See Operator’s Manual
The ESP
® is deactivated because
the power supply was interrupted.
The electrohydraulic brake system is
still functioning normally but without
the ESP® available.

Synchronize the ESP
®. With the vehicle sta-
tionary, turn the steering wheel completely
to the left and then to the right to synchro-
nize the ESP
®.
If the ESP
® message does not go out:

Continue driving with added caution.

Have the system checked at an authorized
Mercedes-Benz Center as soon as possible.
Failure to follow these instructions increases
the risk of an accident.
!When synchronizing the ESP
®, make
sure you can turn the steering wheel in
both directions as far as it will go with-
out the wheels hitting any objects, e.g.
a road curb.

389 Practical hints
What to do if …
Display
Display message
Possible cause/consequence
Possible solution

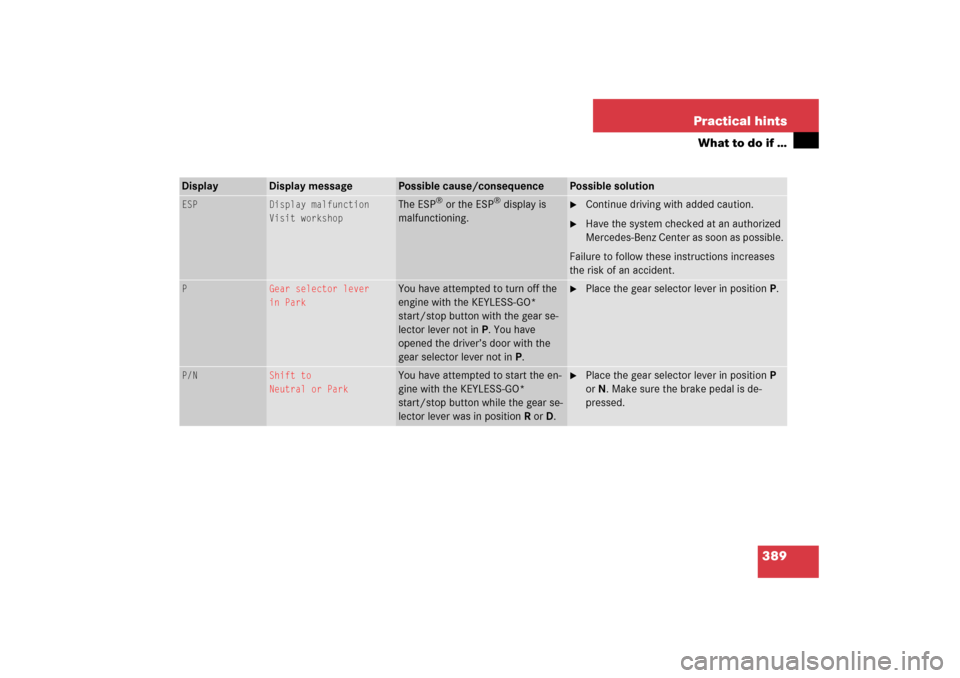

ESP
Display malfunction
Visit workshop
The ESP
® or the ESP
® display is
malfunctioning.

Continue driving with added caution.

Have the system checked at an authorized
Mercedes-Benz Center as soon as possible.
Failure to follow these instructions increases
the risk of an accident.
P
Gear selector lever
in Park
You have attempted to turn off the
engine with the KEYLESS-GO*
start/stop button with the gear se-
lector lever not inP. You have
opened the driver’s door with the
gear selector lever not inP.

Place the gear selector lever in positionP.
P/N
Shift to
Neutral or Park
You have attempted to start the en-
gine with the KEYLESS-GO*
start/stop button while the gear se-
lector lever was in positionR orD.

Place the gear selector lever in positionP
orN. Make sure the brake pedal is de-
pressed.
