MERCEDES-BENZ E350 2006 W211 Owner's Manual

470 Technical dataLayout of poly-V-belt driveE55AMGThe E 55 AMG has two poly-V-belts (belt one
shown in purple/belt two shown in black).1Idler pulley
2Automatic belt tensioner
3Power steering pump
4Air conditioning compressor
5Crankshaft
6Coolant pump
7Generator (alternator)
8Idler pulley
9Automatic belt tensioner
aSuper charger
E320 CDI
1Idler pulley
2Coolant pump
3Idler pulley
4Power steering pump
5Air conditioning compressor
6Automatic belt tensioner
7Crankshaft
8Generator (alternator)

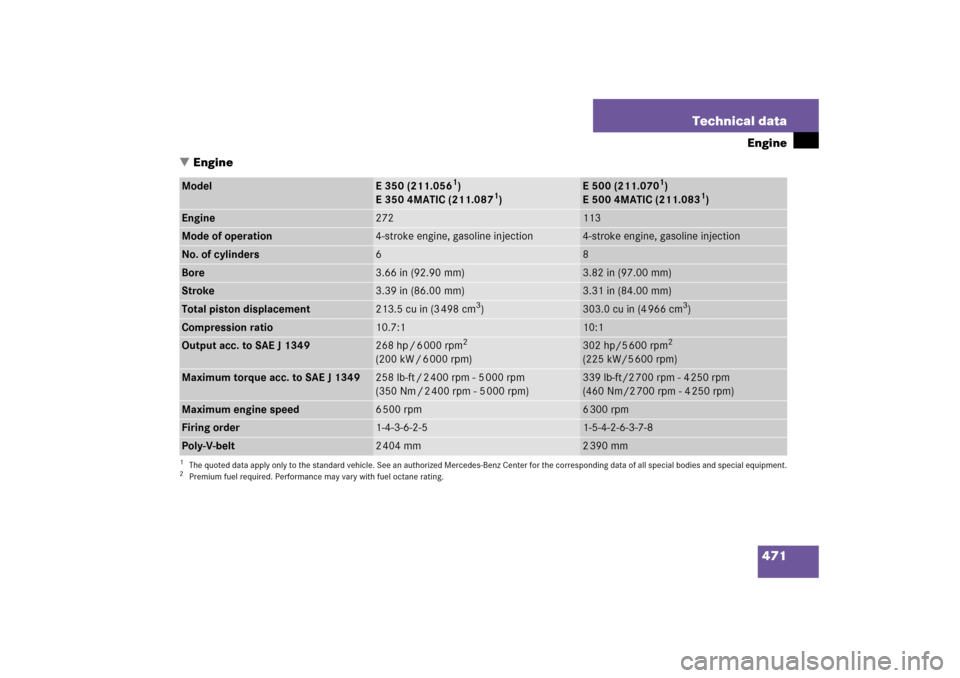

471 Technical data
Engine
Engine
Model
E 350 (211.056
1)
E 350 4MATIC (211.087
1)
1The quoted data apply only to the standard vehicle. See an authorized Mercedes-Benz Center for the corresponding data of all special bodies and special equipment.
E 500 (211.070
1)
E 500 4MATIC (211.083
1)
Engine
272
113
Mode of operation
4-stroke engine, gasoline injection
4-stroke engine, gasoline injection
No. of cylinders
6
8
Bore
3.66 in (92.90 mm)
3.82 in (97.00 mm)
Stroke
3.39 in (86.00 mm)
3.31 in (84.00 mm)
Total piston displacement
213.5 cu in (3 498 cm
3)
303.0 cu in (4 966 cm
3)
Compression ratio
10.7:1
10:1
Output acc. to SAE J 1349
268 hp / 6 000 rpm
2
(200 kW / 6 000 rpm)
2Premium fuel required. Performance may vary with fuel octane rating.
302 hp/5 600 rpm
2
(225 kW/5 600 rpm)
Maximum torque acc. to SAE J 1349
258 lb-ft / 2 400 rpm - 5 000 rpm
(350 Nm / 2 400 rpm - 5 000 rpm)
339 lb-ft/2 700 rpm - 4 250 rpm
(460 Nm/2 700 rpm - 4 250 rpm)
Maximum engine speed
6500 rpm
6 300 rpm
Firing order
1-4-3-6-2-5
1-5-4-2-6-3-7-8
Poly-V-belt
2404 mm
2 390 mm

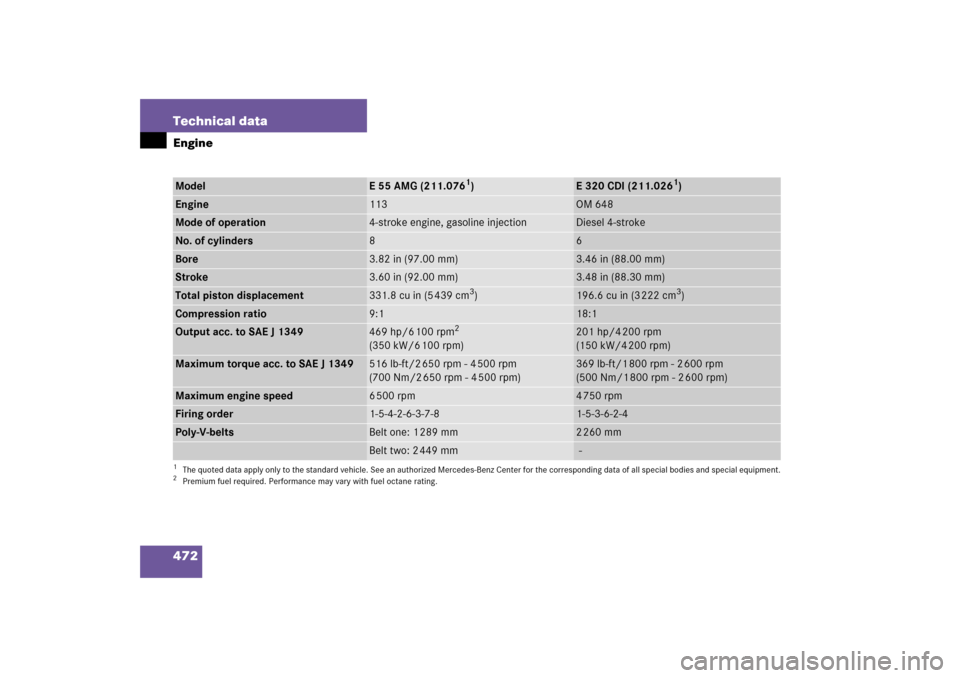

472 Technical dataEngineModel
E 55 AMG (211.076
1)
1The quoted data apply only to the standard vehicle. See an authorized Mercedes-Benz Center for the corresponding data of all special bodies and special equipment.
E 320 CDI (211.026
1)
Engine
113
OM 648
Mode of operation
4-stroke engine, gasoline injection
Diesel 4-stroke
No. of cylinders
8
6
Bore
3.82 in (97.00 mm)
3.46 in (88.00 mm)
Stroke
3.60 in (92.00 mm)
3.48 in (88.30 mm)
Total piston displacement
331.8 cu in (5 439 cm
3)
196.6 cu in (3 222 cm
3)
Compression ratio
9:1
18:1
Output acc. to SAE J 1349
469 hp/6 100 rpm
2
(350 kW/6 100 rpm)
2Premium fuel required. Performance may vary with fuel octane rating.
201 hp/4 200 rpm
(150 kW/4 200 rpm)
Maximum torque acc. to SAE J 1349
516 lb-ft/2 650 rpm - 4 500 rpm
(700 Nm/2 650 rpm - 4 500 rpm)
369 lb-ft/1 800 rpm - 2 600 rpm
(500 Nm/1 800 rpm - 2 600 rpm)
Maximum engine speed
6500 rpm
4750 rpm
Firing order
1-5-4-2-6-3-7-8
1-5-3-6-2-4
Poly-V-belts
Belt one: 1 289 mm
2260 mm
Belt two: 2 449 mm
-

473 Technical data
Rims and tires
Rims and tires
!
Only use tires which have been tested
and approved for your vehicle by
Mercedes-Benz. Tires approved by
Mercedes-Benz are developed to pro-
vide best possible performance in con-
junction with the driving safety
systems on your vehicle such as ABS or
ESP
®. Tires specially developed for
your vehicle and tested and approved
by Mercedes-Benz can be identified by
finding the following on the tire’s side-
wall:


MO = M
ercedes-Benz O
riginal
equipment tires
AMG vehicles:
Does not apply to all approved tires
on AMG vehicles. For information
on tested and approved tires for
AMG vehicles, contact an autho-
rized Mercedes-Benz Center.


MOE = M
ercedes-Benz O
riginal
E
xtended (tires with limited run-flat
characteristics) original equipment
tires
Using tires other than those approved
by Mercedes-Benz may result in dam-
age that is not covered by the
Mercedes-Benz Limited Warranty.
iFor information on driving with
MOExtended tires, see
“MOExtendedsystem*” (
page 343).
!Using tires other than those approved
by Mercedes-Benz can have detrimen-
tal effects, such as

poor handling characteristics


increased noise


increased fuel consumption
Moreover, tires and rims not approved
by Mercedes-Benz may, under load,
exhibit dimensional variations and dif-
ferent tire deformation characteristics
that could cause them to come into
contact with the vehicle body or axle
parts. Damage to the tires or the vehi-
cle may be the result.

474 Technical dataRims and tires
iFurther information on tires and rims is
available at any authorized
Mercedes-Benz Center. A placard with
the recommended tire inflation pres-
sures is located on the driver’s door
B-pillar. Some vehicles may have sup-
plemental tire inflation pressure infor-
mation for driving at high speeds
(page 338) or for vehicle loads less
than the maximum loaded vehicle con-
dition. If such information is provided,
it can be found on the placard located
on the inside of the fuel filler flap. The
tire inflation pressure should be
checked regularly and should only be
adjusted on cold tires. Follow tire man-
ufacturer’s maintenance recommenda-
tion included with the vehicle.
iThe following pages also list the ap-
proved wheel rim and tire sizes for
equipping your vehicles with winter
tires. Winter tires are not available as
standard or optional factory-equip-
ment, but can be purchased from an
authorized Mercedes-Benz Center.
Depending on vehicle model and the
standard or optional factory-equipped
wheel rim/tire configuration on your
vehicle (Appearance Package, Sport
Package etc.), equipping your vehicle
with winter tires approved for your ve-
hicle model may also require the pur-
chase of two or four wheel rims of the
recommended size for use with these
winter tires. See an authorized
Mercedes-Benz Center for more infor-
mation.

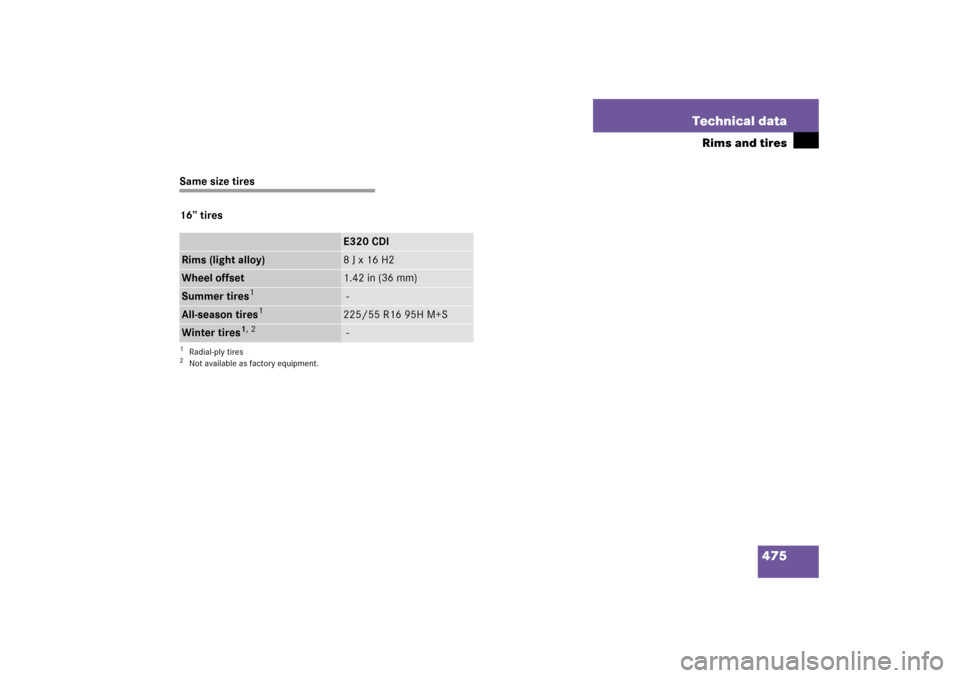

475 Technical data
Rims and tires
Same size tires
16’’ tires
E320 CDI
Rims (light alloy)
8 J x 16 H2
Wheel offset
1.42 in (36 mm)
Summer tires
1
1Radial-ply tires
-
All-season tires
1
225/55 R16 95H M+S
Winter tires
1, 2
2Not available as factory equipment.
-

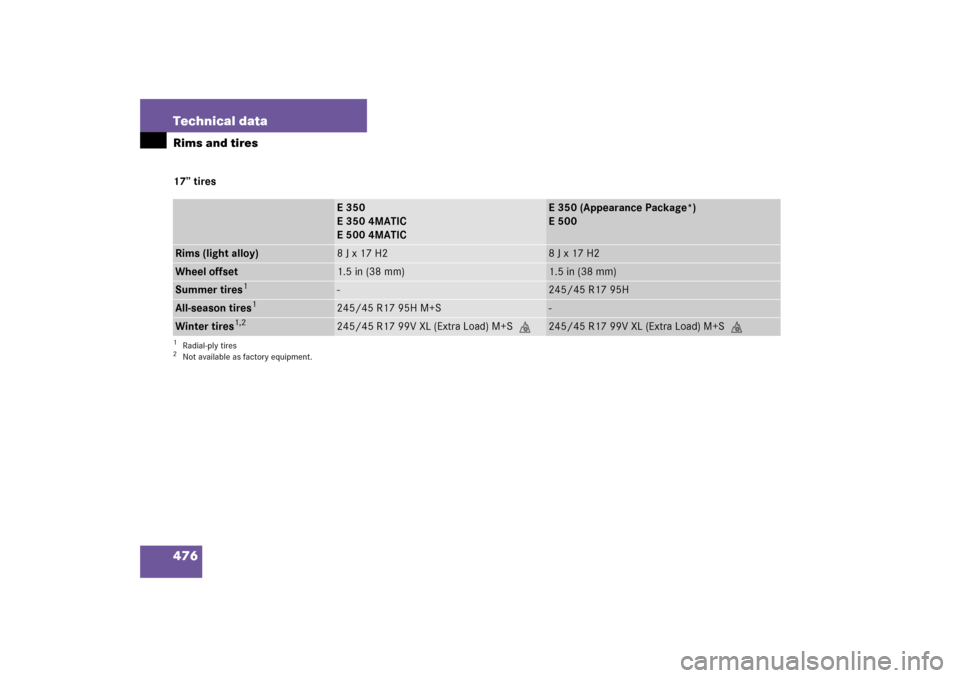

476 Technical dataRims and tires17’’ tires
E350
E 350 4MATIC
E 500 4MATIC
E 350 (Appearance Package*)
E500
Rims (light alloy)
8 J x 17 H2
8 J x 17 H2
Wheel offset
1.5 in (38 mm)
1.5 in (38 mm)
Summer tires
1
1Radial-ply tires
-
245/45 R17 95H
All-season tires
1
245/45 R17 95H M+S
-
Winter tires
1,2
2Not available as factory equipment.
245/45 R17 99V XL (Extra Load) M+S.
245/45 R17 99V XL (Extra Load) M+S.

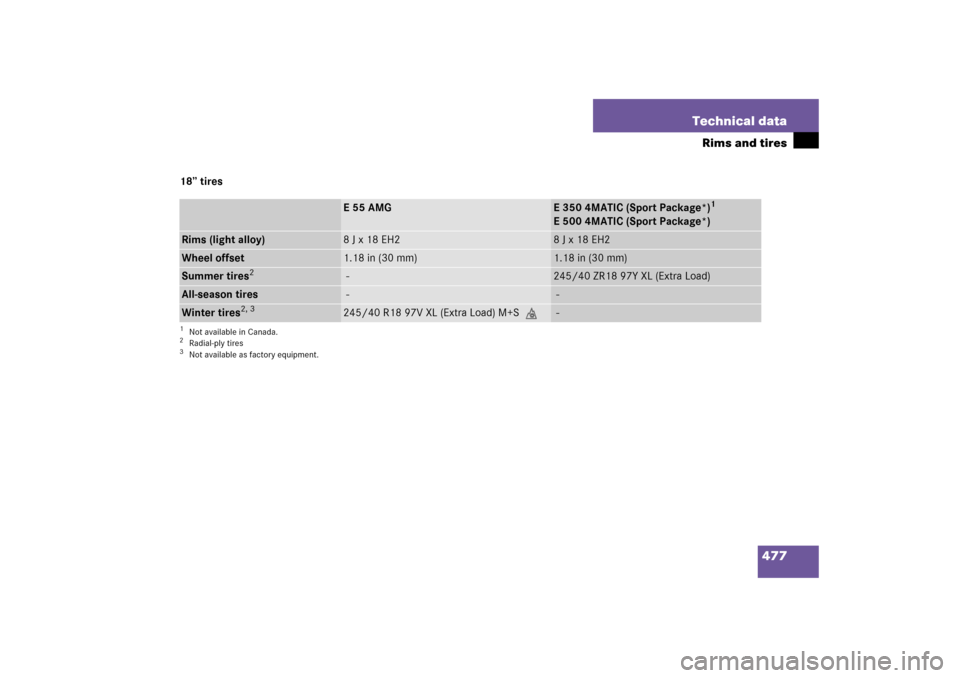

477 Technical data
Rims and tires
18’’ tires
E55AMG
E 350 4MATIC (Sport Package*)
1
E 500 4MATIC (Sport Package*)
1Not available in Canada.Rims (light alloy)
8 J x 18 EH2
8 J x 18 EH2
Wheel offset
1.18 in (30 mm)
1.18 in (30 mm)
Summer tires
2
2Radial-ply tires
-
245/40 ZR18 97Y XL (Extra Load)
All-season tires
-
-
Winter tires
2, 3
3Not available as factory equipment.
245/40 R18 97V XL (Extra Load) M+S.
-

478 Technical dataRims and tiresMixed size tires
E350(Sport Package*)
E500(Sport Package*)
E55AMG
Front axle:
Rims (light alloy)
8 J x 18 EH2
Wheel offset
1.18 in (30 mm)
Summer tires
1
1Radial-ply tires
245/40 ZR18
Rear axle:
Rims (light alloy)
9 J x 18 EH2
Wheel offset
1.54 in (39 mm)
Summer tires
1
265/35 ZR18 XL (Extra Load)
2
2Must not be used with snow chains.

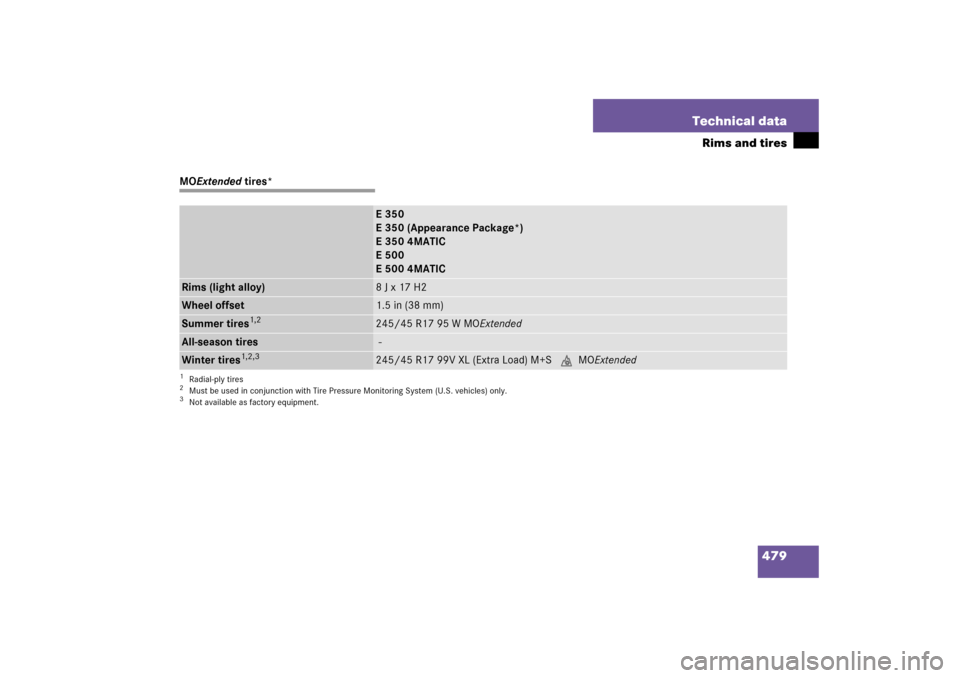

479 Technical data
Rims and tires
MOExtended tires*
E350
E 350 (Appearance Package*)
E 350 4MATIC
E500
E 500 4MATIC
Rims (light alloy)
8 J x 17 H2
Wheel offset
1.5 in (38 mm)
Summer tires
1,2
1Radial-ply tires2Must be used in conjunction with Tire Pressure Monitoring System (U.S. vehicles) only.
245/45 R17 95 W MOExtended
All-season tires
-
Winter tires
1,2,3
3Not available as factory equipment.
245/45 R17 99V XL (Extra Load) M+S .MOExtended
