60 Getting startedParking and lockingYou have now completed your first drive.
You have properly stopped and parked
your vehicle. End your drive as follows.Warning!
G
With the engine not running, there is no
power assistance for the brake and steering
systems. In this case, it is important to keep
in mind that a considerably higher degree of
effort is necessary to brake and steer the ve-
hicle.Warning!
G
Vehicles with Airmatic*: If you have selected
the Comfort suspension tuning
(page 259), the vehicle lowers slightly
when it is locked. You should therefore
make sure that no one is standing near the
wheel arches or lying underneath the vehi-
cle when it is being locked. Otherwise, per-
sonal injury could result.
Warning!
G
Do not park this vehicle in areas where com-
bustible materials such as grass, hay or
leaves can come into contact with the hot
exhaust system, as these materials could be
ignited and cause a vehicle fire.
To reduce the risk of personal injury as a re-
sult of vehicle movement, before turning off
the engine and leaving the vehicle always:
Keep right foot on brake pedal.
Firmly depress parking brake pedal.
Move the gear selector lever to
positionP.
Slowly release brake pedal.
When parked on an incline, turn front
wheel towards the road curb.
Turn the SmartKey to starter switch
position0 and remove, or press
start- / stop button (vehicles with
KEYLESS-GO*).
Take the SmartKey or the SmartKey with
KEYLESS-GO* and lock vehicle when
leaving.!Vehicles with Airmatic*: If you have se-
lected the Comfort suspension tuning
(page 259), the vehicle lowers slight-
ly when you lock it within approximate-
ly 60 seconds after switching off the
engine. When parking, make sure that
your vehicle cannot come into contact
with other objects, such as a curb,
while lowering. Your vehicle could oth-
erwise be damaged.
Page 62 of 521
61 Getting started
Parking and locking

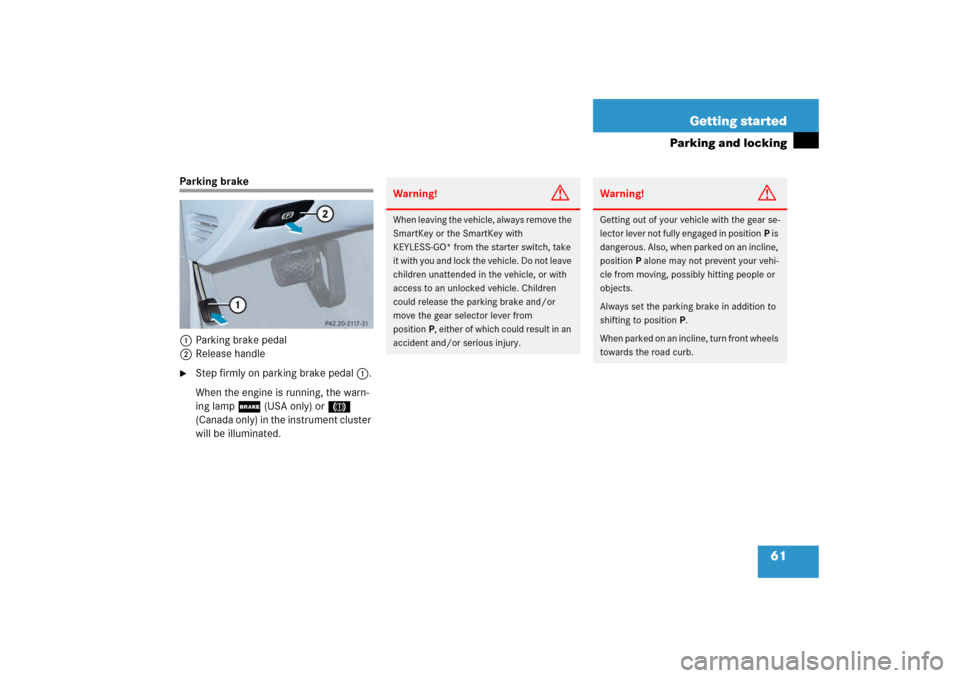

Parking brake
1Parking brake pedal
2Release handle
Step firmly on parking brake pedal1.
When the engine is running, the warn-
ing lamp ; (USA only) or 3
(Canada only) in the instrument cluster
will be illuminated.
Warning!
G
When leaving the vehicle, always remove the
SmartKey or the SmartKey with
KEYLESS-GO* from the starter switch, take
i t w i t h y o u a n d l o c k t h e v e h i c l e . D o n o t l e a v e
children unattended in the vehicle, or with
access to an unlocked vehicle. Children
could release the parking brake and/or
move the gear selector lever from
positionP, either of which could result in an
accident and/or serious injury.
Warning!
G
Getting out of your vehicle with the gear se-
lector lever not fully engaged in positionP is
dangerous. Also, when parked on an incline,
positionP alone may not prevent your vehi-
cle from moving, possibly hitting people or
objects.
Always set the parking brake in addition to
shifting to positionP.
When parked on an incline, turn front wheels
towards the road curb.
Page 63 of 521
62 Getting startedParking and lockingSwitching off headlamps
Turn the exterior lamp switch toM
(page 54).
For more information, see the “Controls in
detail” section (
page 141).
Turning off engine
Move the gear selector lever to
positionP.
Apply the parking brake (
page 61).Turning off with the SmartKey
Turn the SmartKey in the starter switch
(page 36) to position0 and remove
it.
The immobilizer is activated.Turning off with KEYLESS-GO*
Place the gear selector lever inP.
Press the KEYLESS-GO start/stop but-
ton to shut off the engine.
With the driver’s door closed, the start-
er switch is now in position1. With the
driver’s door opened, the starter switch
is set to position0, same as SmartKey
removed from starter switch
(page 36).
iAlways set the parking brake in addi-
tion to shifting to positionP.
On slopes, turn the front wheels to-
wards the road curb.
iThe SmartKey can only be removed
from the starter switch with the gear
selector lever in positionP.
!If you hear a warning signal, you have
either
forgotten to switch off the vehicle’s
exterior lamps before opening the
driver’s door,
or
tried to turn off the engine while the
gear selector lever is not inP.
Turn off the lights or place the gear se-
lector lever inP.
Page 64 of 521

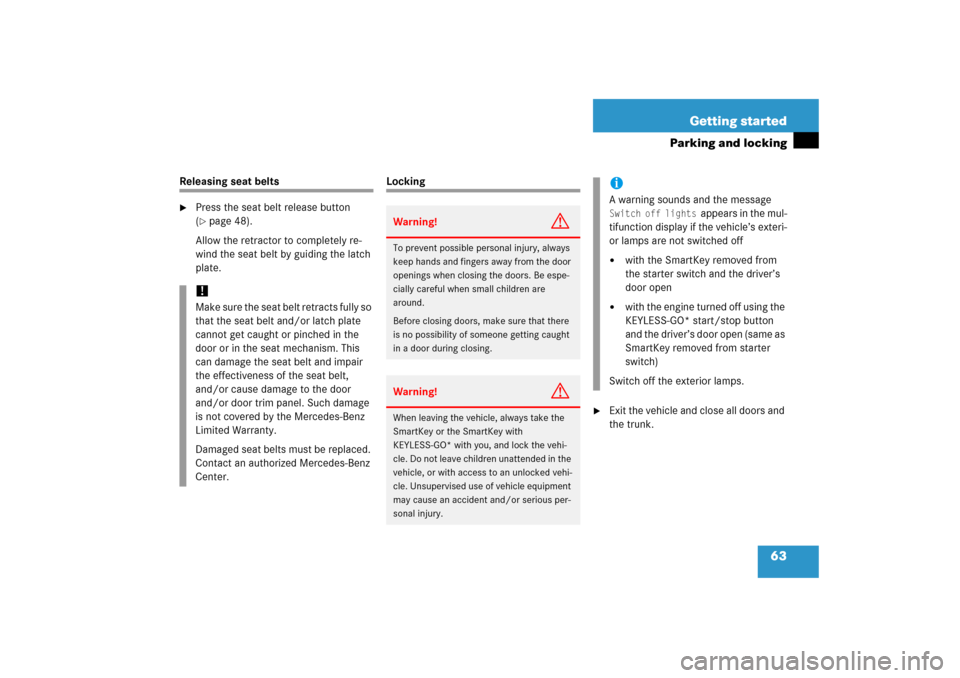

63 Getting started
Parking and locking
Releasing seat belts
Press the seat belt release button
(page 48).
Allow the retractor to completely re-
wind the seat belt by guiding the latch
plate.
Locking
Exit the vehicle and close all doors and
the trunk.
!Make sure the seat belt retracts fully so
that the seat belt and/or latch plate
cannot get caught or pinched in the
door or in the seat mechanism. This
can damage the seat belt and impair
the effectiveness of the seat belt,
and/or cause damage to the door
and/or door trim panel. Such damage
is not covered by the Mercedes-Benz
Limited Warranty.
Damaged seat belts must be replaced.
Contact an authorized Mercedes-Benz
Center.
Warning!
G
To prevent possible personal injury, always
keep hands and fingers away from the door
openings when closing the doors. Be espe-
cially careful when small children are
around.
Before closing doors, make sure that there
is no possibility of someone getting caught
in a door during closing.Warning!
G
When leaving the vehicle, always take the
SmartKey or the SmartKey with
KEYLESS-GO* with you, and lock the vehi-
cle. Do not leave children unattended in the
vehicle, or with access to an unlocked vehi-
cle. Unsupervised use of vehicle equipment
may cause an accident and/or serious per-
sonal injury.
iA warning sounds and the message Switch off lights
appears in the mul-
tifunction display if the vehicle’s exteri-
or lamps are not switched off
with the SmartKey removed from
the starter switch and the driver’s
door open
with the engine turned off using the
KEYLESS-GO* start/stop button
and the driver’s door open (same as
SmartKey removed from starter
switch)
Switch off the exterior lamps.
Page 65 of 521
64 Getting startedParking and lockingLocking with the SmartKey
After exiting the vehicle, press lock
button‹ on the SmartKey
(page 34).
All turn signal lamps flash three
times.
An acoustic signal sounds three
times (if equipped and feature acti-
vated).
For more information, see “Factory
setting” (
page 108).
The locking knobs in the doors
move down.
The anti-theft alarm system is
armed.
For more information, see the “Controls in
detail” section (

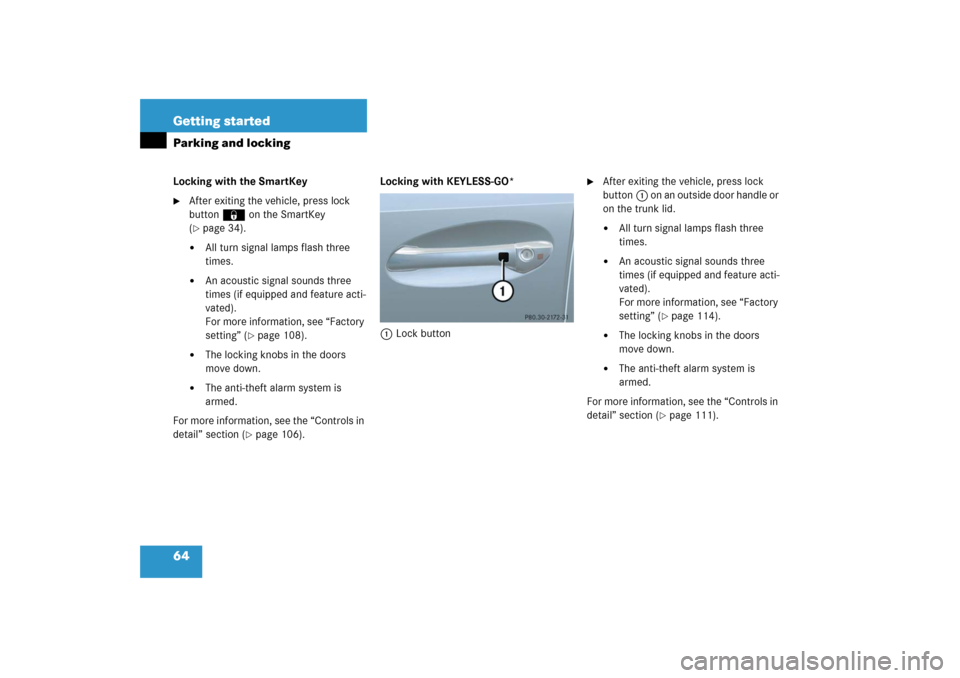

page 106).Locking with KEYLESS-GO*
1Lock button
After exiting the vehicle, press lock
button1 on an outside door handle or
on the trunk lid.
All turn signal lamps flash three
times.
An acoustic signal sounds three
times (if equipped and feature acti-
vated).
For more information, see “Factory
setting” (
page 114).
The locking knobs in the doors
move down.
The anti-theft alarm system is
armed.
For more information, see the “Controls in
detail” section (
page 111).
Page 66 of 521

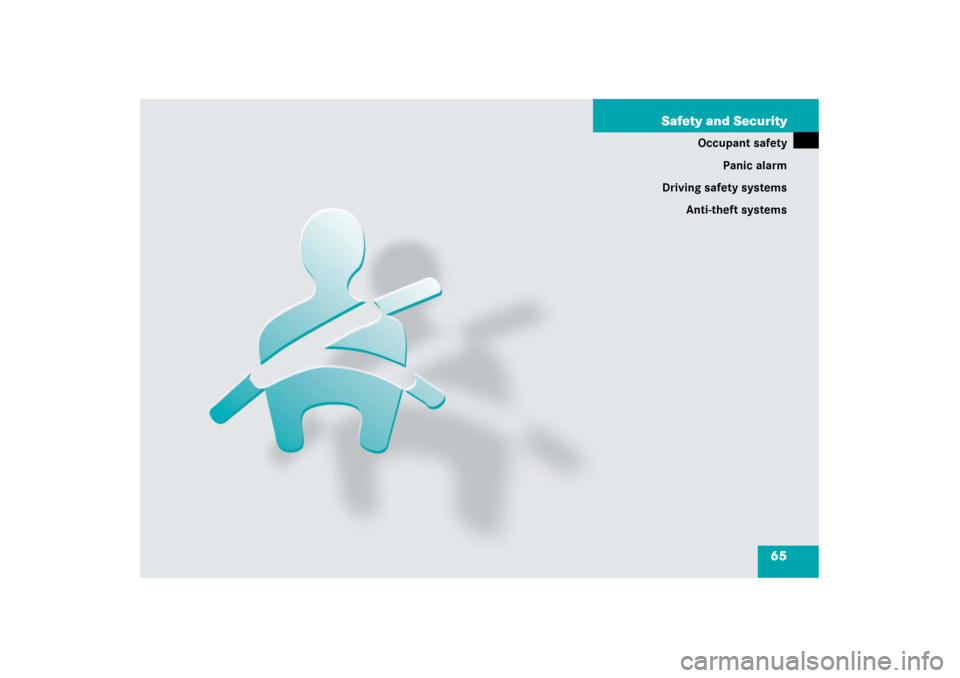

65 Safety and Security
Occupant safety
Panic alarm
Driving safety systems
Anti-theft systems
Page 67 of 521
66 Safety and SecurityOccupant safetyIn this section you will learn the most
important facts about the restraint system
components of the vehicle.
Seat belts (
page 73)
Child restraints (
page 86)
Lower anchors and tethers for children
(LATCH) (
page 88)
Supplemental Restraint System (SRS) with
Air bags (
page 67)
Air bag control unit (with crash
sensors)
Emergency tensioning device (ETD) for
seat belts (
page 76)Air bag system components with
75indicator lamp
(page 85)
Front passenger seat with Occupant
Classification System (OCS)
(page 81)
As independent systems, their protective
functions work in conjunction with each
other. The SRS system conducts a self-test when
the ignition is switched on and in regular
intervals while the engine is running. This
facilitates early detection of malfunctions.
The
1
indicator lamp in the instrument
cluster lights up when the ignition is
switched on and goes out no later than a
few seconds after the engine has been
started.
The SRS components are in operational
readiness if the
1
indicator lamp is not
lit when the engine is running.
A malfunction in the system has been
detected if the
1
indicator lamp:
fails to go out after approximately
4 seconds after the engine was started
does not come on at all
comes on after the engine was started
or while driving
iFor information on infants and children
traveling with you in the vehicle and
restraint systems for infants and chil-
dren, see “Children in the vehicle”
(page 78).
Page 68 of 521

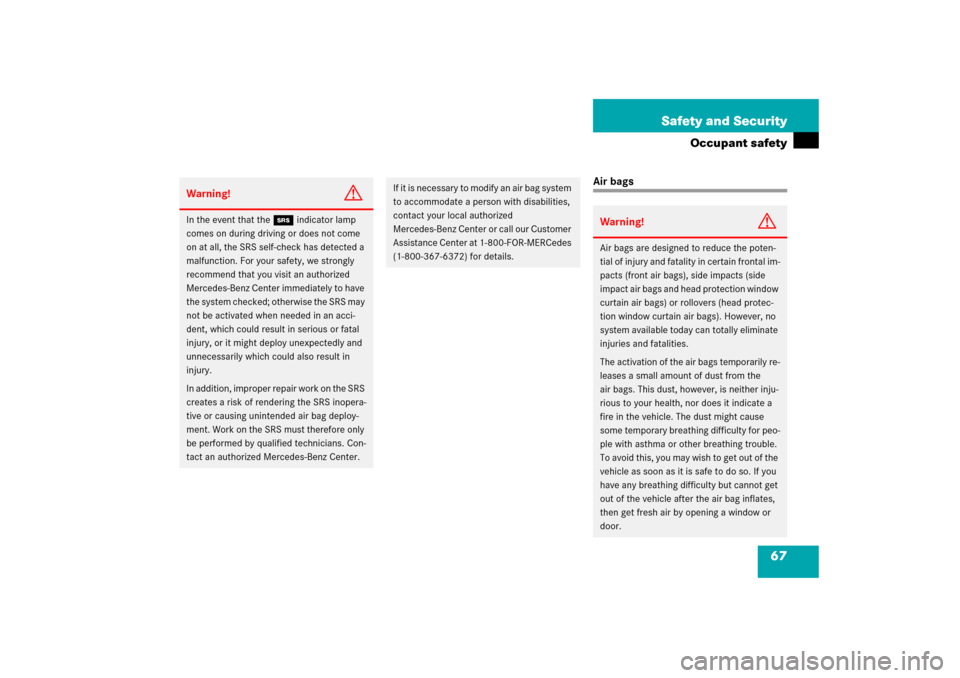

67 Safety and Security
Occupant safety
Air bags
Warning!
G
In the event that the 1 indicator lamp
comes on during driving or does not come
on at all, the SRS self-check has detected a
malfunction. For your safety, we strongly
recommend that you visit an authorized
Mercedes-Benz Center immediately to have
the system checked; otherwise the SRS may
not be activated when needed in an acci-
dent, which could result in serious or fatal
injury, or it might deploy unexpectedly and
unnecessarily which could also result in
injury.
In addition, improper repair work on the SRS
creates a risk of rendering the SRS inopera-
tive or causing unintended air bag deploy-
ment. Work on the SRS must therefore only
be performed by qualified technicians. Con-
tact an authorized Mercedes-Benz Center.
If it is necessary to modify an air bag system
to accommodate a person with disabilities,
contact your local authorized
Mercedes-Benz Center or call our Customer
Assistance Center at 1-800-FOR-MERCedes
(1-800-367-6372) for details.
Warning!
G
Air bags are designed to reduce the poten-
tial of injury and fatality in certain frontal im-
pacts (front air bags), side impacts (side
impact air bags and head protection window
curtain air bags) or rollovers (head protec-
tion window curtain air bags). However, no
system available today can totally eliminate
injuries and fatalities.
The activation of the air bags temporarily re-
leases a small amount of dust from the
air bags. This dust, however, is neither inju-
rious to your health, nor does it indicate a
fire in the vehicle. The dust might cause
some temporary breathing difficulty for peo-
ple with asthma or other breathing trouble.
To avoid this, you may wish to get out of the
vehicle as soon as it is safe to do so. If you
have any breathing difficulty but cannot get
out of the vehicle after the air bag inflates,
then get fresh air by opening a window or
door.
Page 69 of 521

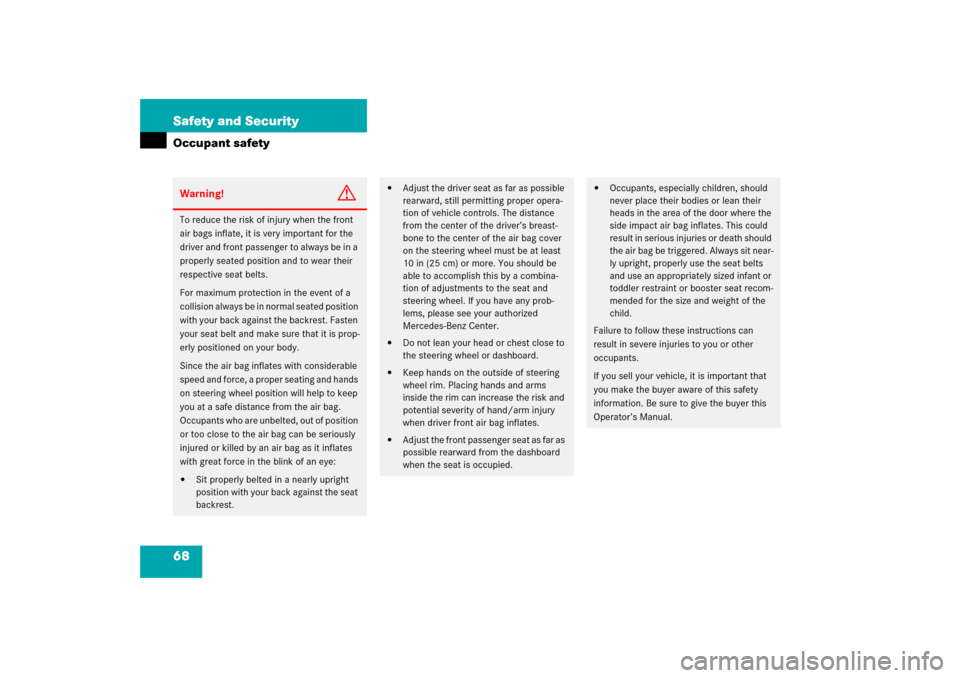

68 Safety and SecurityOccupant safetyWarning!
G
To reduce the risk of injury when the front
air bags inflate, it is very important for the
driver and front passenger to always be in a
properly seated position and to wear their
respective seat belts.
For maximum protection in the event of a
collision always be in normal seated position
with your back against the backrest. Fasten
your seat belt and make sure that it is prop-
erly positioned on your body.
Since the air bag inflates with considerable
speed and force, a proper seating and hands
on steering wheel position will help to keep
you at a safe distance from the air bag.
Occupants who are unbelted, out of position
or too close to the air bag can be seriously
injured or killed by an air bag as it inflates
with great force in the blink of an eye:
Sit properly belted in a nearly upright
position with your back against the seat
backrest.
Adjust the driver seat as far as possible
rearward, still permitting proper opera-
tion of vehicle controls. The distance
from the center of the driver’s breast-
bone to the center of the air bag cover
on the steering wheel must be at least
10 in (25 cm) or more. You should be
able to accomplish this by a combina-
tion of adjustments to the seat and
steering wheel. If you have any prob-
lems, please see your authorized
Mercedes-Benz Center.
Do not lean your head or chest close to
the steering wheel or dashboard.
Keep hands on the outside of steering
wheel rim. Placing hands and arms
inside the rim can increase the risk and
potential severity of hand/arm injury
when driver front air bag inflates.
Adjust the front passenger seat as far as
possible rearward from the dashboard
when the seat is occupied.
Occupants, especially children, should
never place their bodies or lean their
heads in the area of the door where the
side impact air bag inflates. This could
result in serious injuries or death should
the air bag be triggered. Always sit near-
ly upright, properly use the seat belts
and use an appropriately sized infant or
toddler restraint or booster seat recom-
mended for the size and weight of the
child.
Failure to follow these instructions can
result in severe injuries to you or other
occupants.
If you sell your vehicle, it is important that
you make the buyer aware of this safety
information. Be sure to give the buyer this
Operator’s Manual.
Page 70 of 521

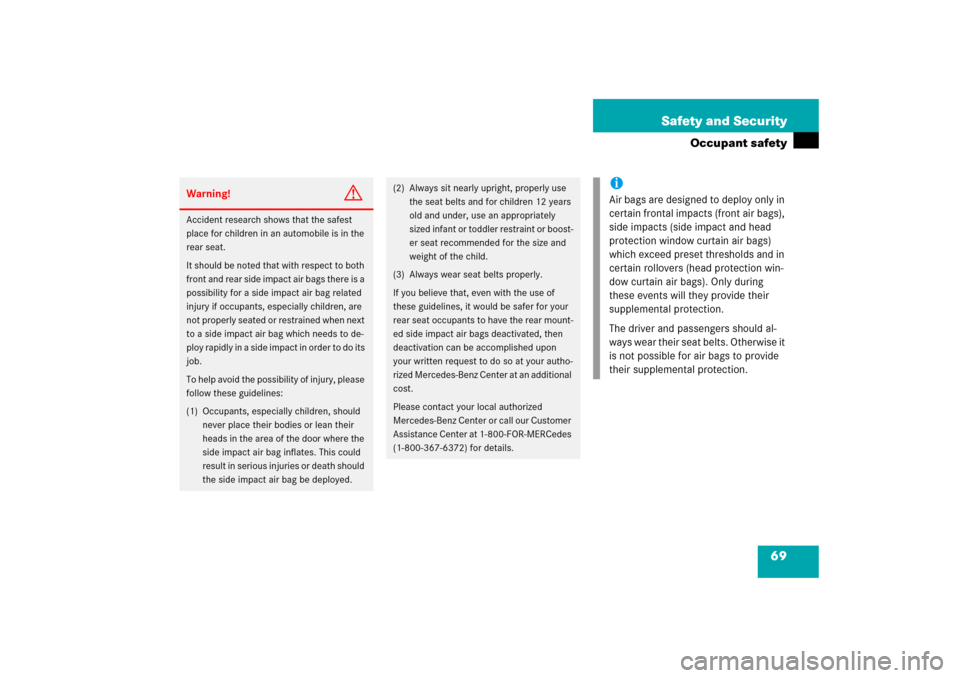

69 Safety and Security
Occupant safety
Warning!
G
Accident research shows that the safest
place for children in an automobile is in the
rear seat.
It should be noted that with respect to both
front and rear side impact air bags there is a
possibility for a side impact air bag related
injury if occupants, especially children, are
not properly seated or restrained when next
to a side impact air bag which needs to de-
ploy rapidly in a side impact in order to do its
job.
To help avoid the possibility of injury, please
follow these guidelines:
(1) Occupants, especially children, should
never place their bodies or lean their
heads in the area of the door where the
side impact air bag inflates. This could
result in serious injuries or death should
the side impact air bag be deployed.
(2) Always sit nearly upright, properly use
the seat belts and for children 12 years
old and under, use an appropriately
sized infant or toddler restraint or boost-
er seat recommended for the size and
weight of the child.
(3) Always wear seat belts properly.
If you believe that, even with the use of
these guidelines, it would be safer for your
rear seat occupants to have the rear mount-
ed side impact air bags deactivated, then
deactivation can be accomplished upon
your written request to do so at your autho-
rized Mercedes-Benz Center at an additional
cost.
Please contact your local authorized
Mercedes-Benz Center or call our Customer
Assistance Center at 1-800-FOR-MERCedes
(1-800-367-6372) for details.
iAir bags are designed to deploy only in
certain frontal impacts (front air bags),
side impacts (side impact and head
protection window curtain air bags)
which exceed preset thresholds and in
certain rollovers (head protection win-
dow curtain air bags). Only during
these events will they provide their
supplemental protection.
The driver and passengers should al-
ways wear their seat belts. Otherwise it
is not possible for air bags to provide
their supplemental protection.
