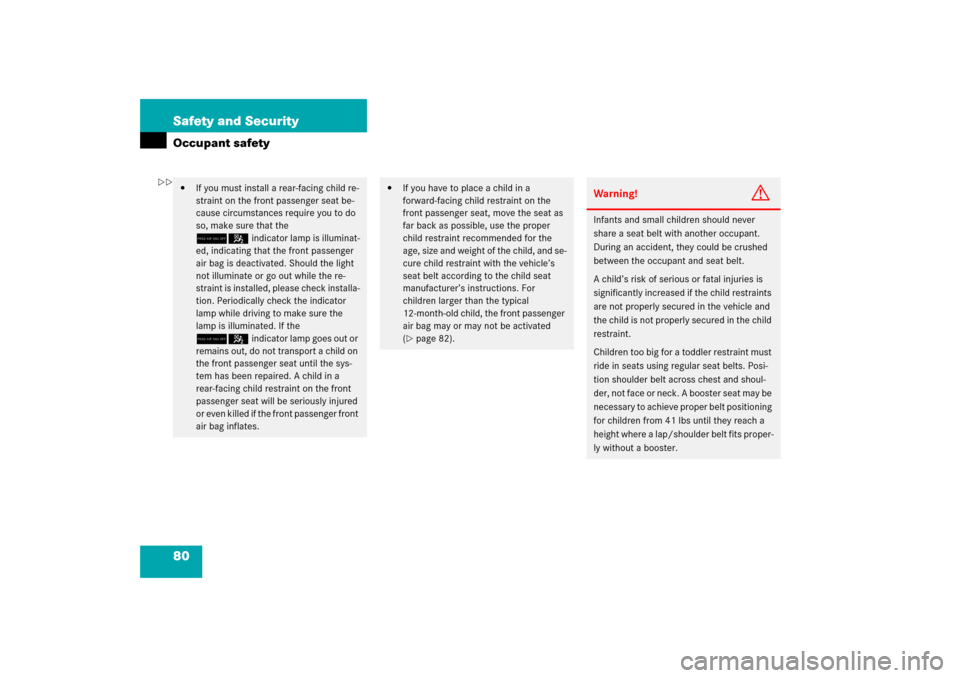

80 Safety and SecurityOccupant safety
If you must install a rear-facing child re-
straint on the front passenger seat be-
cause circumstances require you to do
so, make sure that the
75indicator lamp is illuminat-
ed, indicating that the front passenger
air bag is deactivated. Should the light
not illuminate or go out while the re-
straint is installed, please check installa-
tion. Periodically check the indicator
lamp while driving to make sure the
lamp is illuminated. If the
75indicator lamp goes out or
remains out, do not transport a child on
the front passenger seat until the sys-
tem has been repaired. A child in a
rear-facing child restraint on the front
passenger seat will be seriously injured
or even killed if the front passenger front
air bag inflates.
If you have to place a child in a
forward-facing child restraint on the
front passenger seat, move the seat as
far back as possible, use the proper
child restraint recommended for the
age, size and weight of the child, and se-
cure child restraint with the vehicle’s
seat belt according to the child seat
manufacturer’s instructions. For
children larger than the typical
12-month-old child, the front passenger
air bag may or may not be activated
(page 82).
Warning!
G
Infants and small children should never
share a seat belt with another occupant.
During an accident, they could be crushed
between the occupant and seat belt.
A child’s risk of serious or fatal injuries is
significantly increased if the child restraints
are not properly secured in the vehicle and
the child is not properly secured in the child
restraint.
Children too big for a toddler restraint must
ride in seats using regular seat belts. Posi-
tion shoulder belt across chest and shoul-
der, not face or neck. A booster seat may be
necessary to achieve proper belt positioning
for children from 41 lbs until they reach a
height where a lap/shoulder belt fits proper-
ly without a booster.
Page 82 of 521
81 Safety and Security
Occupant safety
Occupant Classification System
The Occupant Classification System (OCS)
automatically turns the front passenger
front air bag on or off based on the classi-
fied occupant weight category determined
by weight sensor readings from the front
passenger seat.
Occupants must sit properly belted in a
nearly upright position with their back
against the seat backrest and feet on the
floor to be correctly classified. If the occu-
pant’s weight is transferred to another
object in the vehicle (e.g. by leaning on
armrests), the OCS may not be able to
properly approximate the occupant’s
weight category. Furthermore, the occupant weight may ap-
pear to increase or decrease due to
objects hanging on the seat, other passen-
gers pushing on the seat, objects lodged
underneath the seat or stuffed between
seat and middle console or between seat
and door or due to objects applying pres-
sure on the back of the seat. Always make
sure that the seat has clearance in all di-
rections at all times.
Both driver and the front passenger should
always use the 75 indicator
lamp as an indication of whether or not the
front passenger is properly positioned.
When the child restraint is not in use, re-
move it from the vehicle or secure it with the
seat belt to prevent the child restraint from
becoming a projectile in the event of an ac-
cident.
Do not leave children unattended in the ve-
hicle, even if the children are secured in a
child restraint system. Unsupervised chil-
dren in a child restraint system may use ve-
hicle equipment and may cause an accident
and/or serious personal injury.
iThe system does not deactivate the
front passenger side impact air bag,
the window curtain air bag and the
emergency tensioning device.
iIf your seat, including your trim cover
and cushion needs to be serviced in
any way, take the vehicle to your autho-
rized Mercedes-Benz Center.
Only seat accessories approved by
Mercedes-Benz may be used.
Page 83 of 521

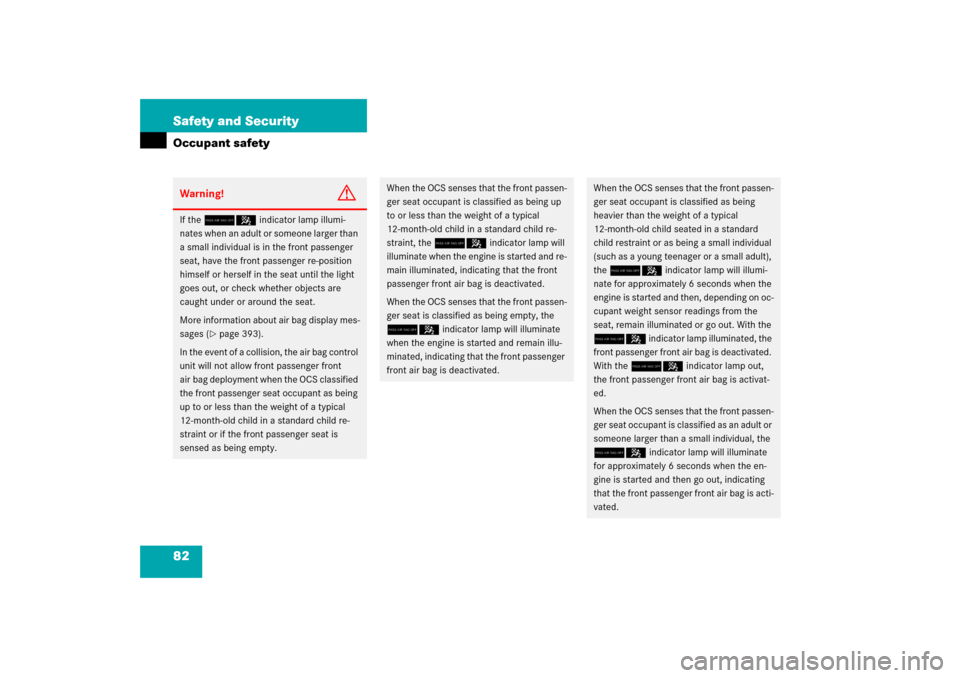

82 Safety and SecurityOccupant safetyWarning!
G
If the 75 indicator lamp illumi-
nates when an adult or someone larger than
a small individual is in the front passenger
seat, have the front passenger re-position
himself or herself in the seat until the light
goes out, or check whether objects are
caught under or around the seat.
More information about air bag display mes-
sages (
page 393).
In the event of a collision, the air bag control
unit will not allow front passenger front
air bag deployment when the OCS classified
the front passenger seat occupant as being
up to or less than the weight of a typical
12-month-old child in a standard child re-
straint or if the front passenger seat is
sensed as being empty.
When the OCS senses that the front passen-
ger seat occupant is classified as being up
to or less than the weight of a typical
12-month-old child in a standard child re-
straint, the 75 indicator lamp will
illuminate when the engine is started and re-
main illuminated, indicating that the front
passenger front air bag is deactivated.
When the OCS senses that the front passen-
ger seat is classified as being empty, the
75 indicator lamp will illuminate
when the engine is started and remain illu-
minated, indicating that the front passenger
front air bag is deactivated.
When the OCS senses that the front passen-
ger seat occupant is classified as being
heavier than the weight of a typical
12-month-old child seated in a standard
child restraint or as being a small individual
(such as a young teenager or a small adult),
the 75 indicator lamp will illumi-
nate for approximately 6 seconds when the
engine is started and then, depending on oc-
cupant weight sensor readings from the
seat, remain illuminated or go out. With the
75 indicator lamp illuminated, the
front passenger front air bag is deactivated.
With the 75 indicator lamp out,
the front passenger front air bag is activat-
ed.
When the OCS senses that the front passen-
g e r s e a t o c c u p a n t i s c l a s s i f i e d a s a n a d u l t o r
someone larger than a small individual, the
75 indicator lamp will illuminate
for approximately 6 seconds when the en-
gine is started and then go out, indicating
that the front passenger front air bag is acti-
vated.
Page 84 of 521

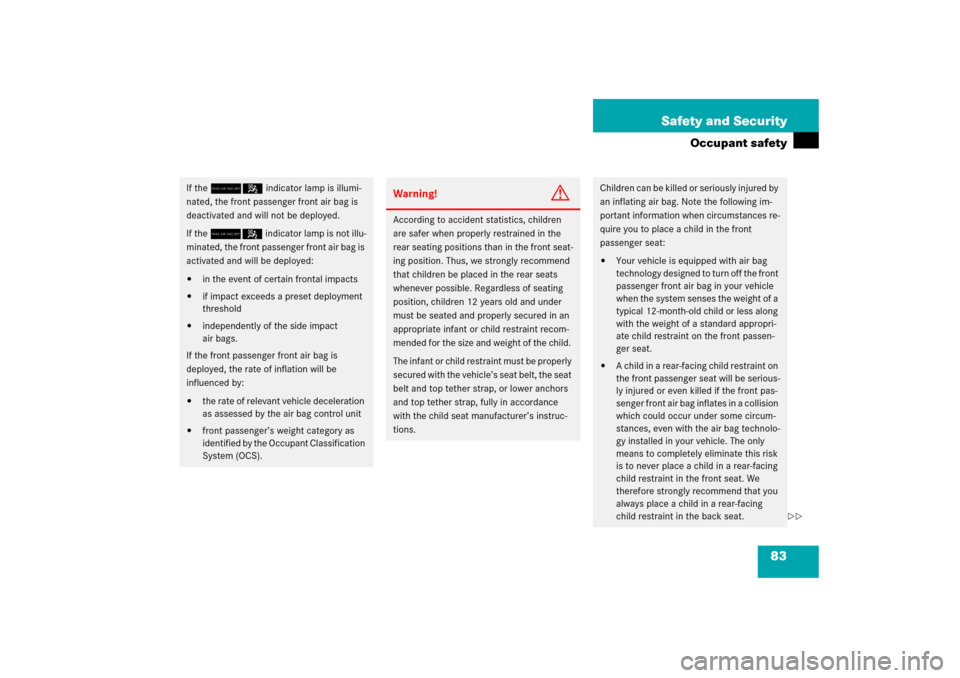

83 Safety and Security
Occupant safety
If the 75 indicator lamp is illumi-
nated, the front passenger front air bag is
deactivated and will not be deployed.
If the 75 indicator lamp is not illu-
minated, the front passenger front air bag is
activated and will be deployed:
in the event of certain frontal impacts
if impact exceeds a preset deployment
threshold
independently of the side impact
air bags.
If the front passenger front air bag is
deployed, the rate of inflation will be
influenced by:
the rate of relevant vehicle deceleration
as assessed by the air bag control unit
front passenger’s weight category as
identified by the Occupant Classification
System (OCS).
Warning!
G
According to accident statistics, children
are safer when properly restrained in the
rear seating positions than in the front seat-
ing position. Thus, we strongly recommend
that children be placed in the rear seats
whenever possible. Regardless of seating
position, children 12 years old and under
must be seated and properly secured in an
appropriate infant or child restraint recom-
mended for the size and weight of the child.
The infant or child restraint must be properly
secured with the vehicle’s seat belt, the seat
belt and top tether strap, or lower anchors
and top tether strap, fully in accordance
with the child seat manufacturer’s instruc-
tions.
Children can be killed or seriously injured by
an inflating air bag. Note the following im-
portant information when circumstances re-
quire you to place a child in the front
passenger seat:
Your vehicle is equipped with air bag
technology designed to turn off the front
passenger front air bag in your vehicle
when the system senses the weight of a
typical 12-month-old child or less along
with the weight of a standard appropri-
ate child restraint on the front passen-
ger seat.
A child in a rear-facing child restraint on
the front passenger seat will be serious-
ly injured or even killed if the front pas-
senger front air bag inflates in a collision
which could occur under some circum-
stances, even with the air bag technolo-
gy installed in your vehicle. The only
means to completely eliminate this risk
is to never place a child in a rear-facing
child restraint in the front seat. We
therefore strongly recommend that you
always place a child in a rear-facing
child restraint in the back seat.
Page 85 of 521
84 Safety and SecurityOccupant safety
If you must install a rear-facing child re-
straint on the front passenger seat be-
cause circumstances require you to do
so, make sure that the
75indicator lamp is illuminat-
ed, indicating that the front passenger
air bag is deactivated. Should the light
not illuminate or go out while the re-
straint is installed, please check installa-
tion. Periodically check the indicator
lamp while driving to make sure the
lamp is illuminated. If the
75indicator lamp goes out or
remains out, do not transport a child on
the front passenger seat until the sys-
tem has been repaired. A child in a
rear-facing child restraint on the front
passenger seat will be seriously injured
or even killed if the front passenger front
air bag inflates.
If you have to place a child in a
forward-facing child restraint on the
front passenger seat, move the seat as
far back as possible, use the proper
child restraint recommended for the
age, size and weight of the child, and se-
cure child restraint with the vehicle’s
seat belt according to the child seat
manufacturer’s instructions. For
children larger than the typical
12-month-old child, the front passenger
air bag may or may not be activated
(page 82).
iDeployment of the driver front air bag
does not mean that the front passenger
front air bag also should have de-
ployed.
The Occupant Classification System
(page 81) may have determined:
that the seat was empty or occu-
p i e d b y t h e w e i g h t u p t o o r l e s s t h a n
that of a typical 12-month-old child
seated in a standard child restraint
- both instances where the system
suppresses deployment of the pas-
senger front air bag even though
the impact met the criteria and was
of sufficient severity to deploy the
driver front air bag.
Page 86 of 521
85 Safety and Security
Occupant safety

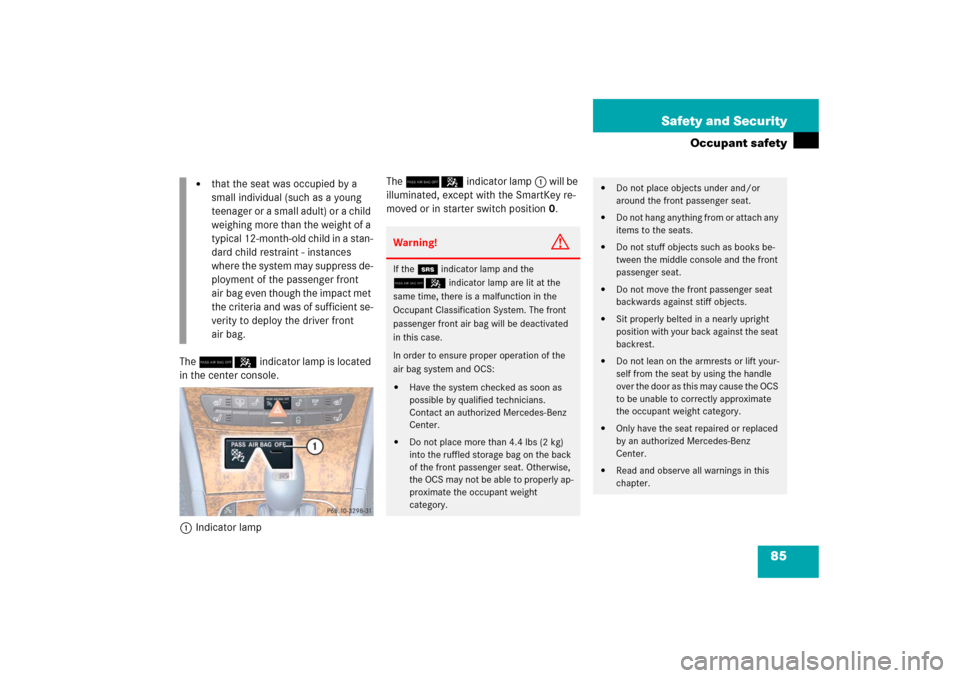

The 75 indicator lamp is located
in the center console.
1Indicator lampThe 75 indicator lamp1 will be
illuminated, except with the SmartKey re-
moved or in starter switch position0.
that the seat was occupied by a
small individual (such as a young
teenager or a small adult) or a child
weighing more than the weight of a
typical 12-month-old child in a stan-
dard child restraint - instances
where the system may suppress de-
ployment of the passenger front
air bag even though the impact met
the criteria and was of sufficient se-
verity to deploy the driver front
air bag.
Warning!
G
If the 1indicator lamp and the
75 indicator lamp are lit at the
same time, there is a malfunction in the
Occupant Classification System. The front
passenger front air bag will be deactivated
in this case.
In order to ensure proper operation of the
air bag system and OCS:
Have the system checked as soon as
possible by qualified technicians.
Contact an authorized Mercedes-Benz
Center.
Do not place more than 4.4 lbs (2 kg)
into the ruffled storage bag on the back
of the front passenger seat. Otherwise,
the OCS may not be able to properly ap-
proximate the occupant weight
category.
Do not place objects under and/or
around the front passenger seat.
Do not hang anything from or attach any
items to the seats.
Do not stuff objects such as books be-
tween the middle console and the front
passenger seat.
Do not move the front passenger seat
backwards against stiff objects.
Sit properly belted in a nearly upright
position with your back against the seat
backrest.
Do not lean on the armrests or lift your-
self from the seat by using the handle
over the door as this may cause the OCS
to be unable to correctly approximate
the occupant weight category.
Only have the seat repaired or replaced
by an authorized Mercedes-Benz
Center.
Read and observe all warnings in this
chapter.
Page 87 of 521

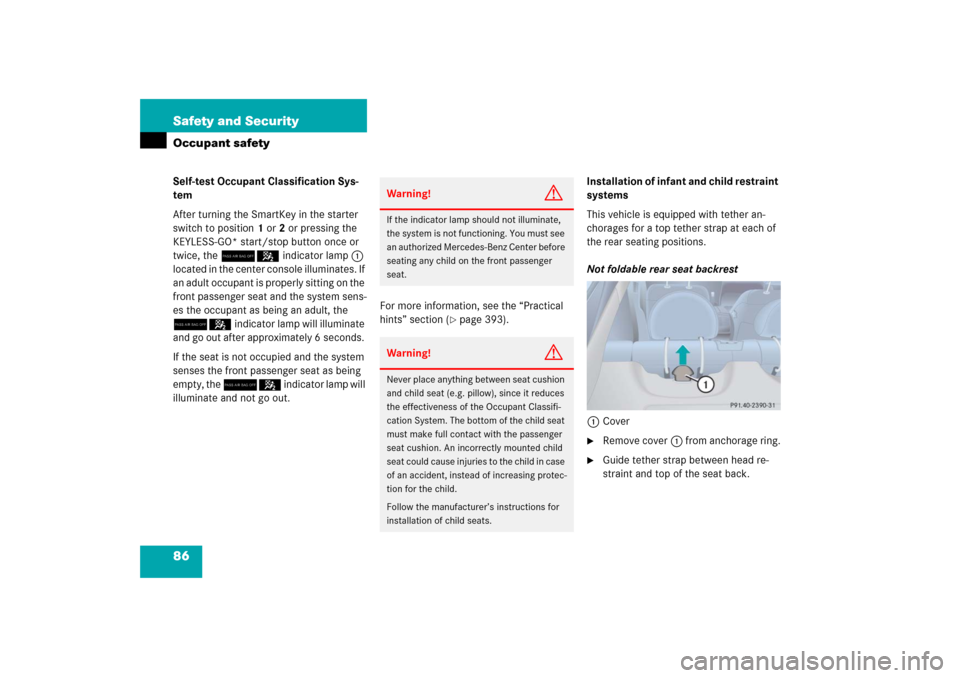

86 Safety and SecurityOccupant safetySelf-test Occupant Classification Sys-
tem
After turning the SmartKey in the starter
switch to position1 or2 or pressing the
KEYLESS-GO* start/stop button once or
twice, the 75 indicator lamp1
located in the center console illuminates. If
an adult occupant is properly sitting on the
front passenger seat and the system sens-
es the occupant as being an adult, the
75 indicator lamp will illuminate
and go out after approximately 6 seconds.
If the seat is not occupied and the system
senses the front passenger seat as being
empty, the 75 indicator lamp will
illuminate and not go out. For more information, see the “Practical
hints” section (
page 393).Installation of infant and child restraint
systems
This vehicle is equipped with tether an-
chorages for a top tether strap at each of
the rear seating positions.
Not foldable rear seat backrest
1Cover
Remove cover1 from anchorage ring.
Guide tether strap between head re-
straint and top of the seat back.
Warning!
G
If the indicator lamp should not illuminate,
the system is not functioning. You must see
an authorized Mercedes-Benz Center before
seating any child on the front passenger
seat.Warning!
G
Never place anything between seat cushion
and child seat (e.g. pillow), since it reduces
the effectiveness of the Occupant Classifi-
cation System. The bottom of the child seat
must make full contact with the passenger
seat cushion. An incorrectly mounted child
seat could cause injuries to the child in case
of an accident, instead of increasing protec-
tion for the child.
Follow the manufacturer’s instructions for
installation of child seats.
Page 88 of 521
87 Safety and Security
Occupant safety
Head restraint must be installed (if re-
movable) and positioned such that the
top tether strap can pass freely be-
tween the head restraint and the top of
the seat back.
Make sure the tether strap is not twist-
ed.
2Hook
3Anchorage ring
Securely fasten the hook2 to the an-
chorage ring3.Once the top tether anchorage hook is at-
tached, the child restraint itself can be se-
cured. Secure the child restraint and
tighten the top tether strap according to
the child restraint manufacturer’s instruc-
tions.
Foldable rear seat backrest*
Fold rear seat backrest slightly forward
(page 271).
Remove cover from anchorage ring.
Guide tether strap between head re-
straint and top of the seat back.
Head restraint must be positioned such
that the top tether strap can pass freely
between the head restraint and the top
of the seat back.
Make sure the tether strap is not twist-
ed.2Hook
3Anchorage ring
Securely fasten the hook2 to the an-
chorage ring3.
iFor safety, make sure the hook2 has
attached to the ring3 beyond the
safety catch, as illustrated.
iFor safety, make sure the hook2 has
attached to the ring3 beyond the
safety catch, as illustrated below.
Page 89 of 521
88 Safety and SecurityOccupant safety2Hook
3Anchorage ring
Swing rear seat backrest to the rear un-
til it engages.
Check the rear seat backrest to be
locked in its upright position
(page 399).
Once the top tether anchorage hook is
attached, the child restraint itself can be
secured. Secure the child restraint and
tighten the top tether strap according to
the child restraint manufacturer’s instruc-
tions. Child seat anchors - LATCH type
This vehicle is equipped with two LATCH
(L
ower A
nchors and T
ethers for CH
ildren)
type anchors (at each of the outer rear
seats) for the installation of a “LATCH”
child seat with the matching mounting fit-
tings.
The anchors are located behind an uphol-
stery blend.
1Indicates the position of the anchors
2Anchors
Lift up upholstery blend to access the
anchors.
Install child seat according to the
manufacturer’s instructions.
Page 90 of 521
89 Safety and Security
Occupant safety
Blocking of rear door window operation
1Override switch
2Indicator lamp
Press override switch1.
Indicator lamp2 comes on. The rear
door windows can no longer be operat-
ed using the switches located in the
rear doors.
!Make sure the seat belt for the center
seat can operate freely with a child
seat installed.iNon-LATCH type child seats may also
be used and can be installed using the
vehicle’s seat belt system (
page 78).
Install child seat according to the man-
ufacturer’s instructions.
Warning!
G
Children too big for a toddler restraint must
ride in seats using regular seat belts. Posi-
tion shoulder belt across chest and shoul-
der, not face or neck. A booster seat may be
necessary to achieve proper belt positioning
for children over 41 lbs until they reach a
height where a lap/shoulder belt fits proper-
ly without a booster.
Install child seat according to manufactur-
er’s instructions.
T h e c h i l d s e a t m u s t b e f i r m l y a t t a c h e d i n t h e
right and left side anchors2.
An incorrectly mounted child seat may come
loose during an accident which could result
in serious injury or death to the child.
Damaged or impact damaged child seats or
child seat mounting fittings must be re-
placed.
Do not leave children unattended in the ve-
hicle, even if the children are secured in a
child restraint system.
!Operation of the rear door windows
with the switches located on the door
control panel of the driver’s door is still
possible.
