MERCEDES-BENZ E350 4MATIC WAGON 2007 S211 Owner's Manual

100 Safety and SecurityDriving safety systems

After driving on wet or snow-covered
roads, you should apply your brakes
firmly before parking your vehicle. This
produces heat which serves to dry the
brake disks and help prevent corro-
sion.


On long and steep grades, shift to a
lower gear (gear range 1, 2, or 3) to
prevent the brakes from overheating
and to reduce brake wear.


After hard braking, it is advisable to
drive on for some time so that the air
stream will cool down the brakes fast-
er.


Only Mercedes-Benz approved compo-
nents (e.g. brake pads) should be in-
stalled on your vehicle. Brake pads not
approved by Mercedes-Benz may im-
pair the safety of your vehicle.
EBP
The Electronic Brake Proportioning (EBP)
enhances braking effectiveness by allow-
ing the rear brakes to supply a greater pro-
portion of the braking effort in straight line
breaking without a loss of vehicle stability.
ESP
®
The Electronic Stability Program (ESP
®) is
operational as soon as the engine is run-
ning and monitors the vehicle’s traction
(force of adhesive friction between the
tires and the road surface) and handling.
The ESP
® recognizes when a wheel is spin-
ning or if the vehicle starts to skid. By ap-
plying the brakes to the appropriate wheel
and by limiting engine output, the ESP
®
works to stabilize the vehicle. The ESP® is
especially useful while driving off and on
wet or slippery road surfaces. The ESP®
also stabilizes the vehicle during braking
maneuvers.
The ESP
® warning lamp v in the
instrument cluster flashes when the ESP
®
is engaged.
The ESP
® warning lamp v in the
instrument cluster comes on when you
switch on the ignition. It goes out when the
engine is running.
Warning!
G
When the EBP is malfunctioning, the ABS,
BAS, and ESP
® are also switched off.
If the EBP is malfunctioning, the brake sys-
tem will still function with full brake boost.
However, the rear wheels could lock up dur-
ing emergency braking situations, for exam-
ple. You could lose control of the vehicle and
cause an accident. Adapt your driving style
to the changed driving characteristics.

101 Safety and Security
Driving safety systems
For more information, see the “Practical
hints” section (
page 379) and
(
page 400).
Warning!
G
Never switch off the ESP
® when you see the
ESP
® warning lamp v flashing in the in-
s t r u m e n t c l u s t e r . I n t h i s c a s e p r o c e e d a s f o l -
lows:


While driving off, apply as little throttle
as possible.


While driving, ease up on the accelera-
tor.


Adapt your speed and driving style to
the prevailing road conditions.
Failure to observe these guidelines could
cause the vehicle to skid.
The ESP
® cannot prevent accidents result-
ing from excessive speed.
Warning!
G
The ESP
® cannot prevent the natural laws of
physics from acting on the vehicle, nor can
it increase the traction afforded. The ESP
®
cannot prevent accidents, including those
resulting from excessive speed in turns, or
hydroplaning. Only a safe, attentive, and
skillful driver can prevent accidents. The ca-
pabilities of an ESP
® equipped vehicle must
never be exploited in a reckless or danger-
ous manner which could jeopardize the us-
er’s safety or the safety of others.
!
The ESP
® will only function properly if you
use wheels of the recommended tire size
(
page 480).
!
Vehicles without 4MATIC:
Because the ESP
® operates automatically, the
engine and the ignition must be shut off
(SmartKey in starter switch position0 or1 or
KEYLESS-GO start/stop button* in position0
or1) when:


the parking brake is being tested on a brake
test dynamometer


the vehicle is being towed with the front axle
raised
Active braking action through the ESP
® may oth-
erwise seriously damage the brake system.
For information on vehicles with 4MATIC, see
“Four wheel electronic traction system (4MATIC)
with the ESP
®” (page 104).

102 Safety and SecurityDriving safety systemsSwitching off the ESP
®
Switching off the ESP
®
(except E 63 AMG)
To improve the vehicle’s traction, switch
off the ESP
® in driving situations where it
would be advantageous to have drive
wheels spin and thus cut into surfaces for
better grip such as:


when driving with snow chains


in deep snow


in sand or gravelWhen you switch off the ESP
®


the ESP
® does not stabilize the vehicle


the engine output is not limited, which
allows the drive wheels to spin and
thus cut into surfaces for better grip


the traction control will still apply the
brakes to a spinning wheel


the ESP
® continues to operate when
you are braking


you cannot activate the cruise control
or the Distronic*


the cruise control or Distronic* switch
off if currently activatedThe switch is located on the center con-
sole.
1ESP
® switch

With the engine running, press ESP
®
switch1 until the ESP
® warning
lampv in the instrument cluster
comes on.
The ESP
® is switched off.
Warning!
G
The ESP
® should not be switched off during
normal driving other than in the circum-
stances described below. Disabling of the
system will reduce vehicle stability in driving
maneuvers.
Do not switch off the ESP
® when a spare
wheel is mounted.
Warning!
G
Switch on the ESP
® immediately if the afore-
mentioned circumstances do not apply any-
more. Otherwise the ESP
® will not stabilize
the vehicle when it is starting to skid or a
wheel is spinning.
i
When the ESP
® is switched off and one or
more drive wheels are spinning, the ESP
® warn-
ing lamp v in the instrument cluster flashes.
However, the ESP
® will then not stabilize the ve-
hicle.

103 Safety and Security
Driving safety systems
Switching off the ESP
® (E 63 AMG only)When you switch off the ESP
®


the ESP
® does not stabilize the vehicle


the engine output is not limited, which
allows the drive wheels to spin


the traction control will still apply the
brakes to a spinning wheel


the ESP
® operates while you are brak-
ing


you cannot activate the cruise control
or the Distronic*


the cruise control or Distronic* switch
off if currently activated
Warning!
G
When the ESP
® warning lamp v is
illuminated continuously, the ESP
® is
switched off or is not operational due to a
malfunction. Vehicle stability in standard
driving maneuvers is reduced.
Adapt your speed and driving to the prevail-
ing road conditions and to the non-operating
status of the ESP
®.
!
Avoid spinning of a drive wheel for an ex-
tended period with the ESP
® switched off. This
may cause serious damage to the drivetrain
which is not covered by the Mercedes-Benz
Limited Warranty.
Warning!
G
The ESP
® should not be switched off during
normal driving. Disabling of the system will
result in the following:


no restriction to engine torque


loss of system supported traction
control
“ESP® O F F ” i s d e s i g n e d f or driving on closed
tracks when the vehicle’s natural oversteer
and understeer characteristics are desired
and requires a highly skilled and experi-
enced driver able to handle these critical
driving situations.
You could lose control of your vehicle and
cause an accident.
Please be aware of these limits when you
switch off the ESP
®.
Do not switch off the ESP
® when a spare
wheel is mounted.
i
When the ESP
® is switched off and one or
more drive wheels are spinning, the ESP
® warn-
ing lamp v in the instrument cluster flashes.
However, the ESP
® will then not stabilize the ve-
hicle.

104 Safety and SecurityDriving safety systemsThe switch is located on the center con-
sole.
1ESP
® switch

With the engine running, press ESP
®
switch1 until the ESP
® warning
lampv in the instrument cluster
comes on.
The ESP
® is switched off.
Switching on the ESP
®

Press ESP
® switch1 until the ESP
®
warning lamp v in the instrument
cluster goes out.
You are now again in normal driving
mode with the ESP
® switched on.Four wheel electronic traction system
(4MATIC) with the ESP
®
Models with all-wheel-drive only.
The 4MATIC improves the vehicle’s ability
to use available traction, e.g. during winter
operation in mountains under slippery road
conditions, by applying power to all four
wheels.
Warning!
G
When the ESP
® warning lamp v is
illuminated continuously, the ESP
® is
switched off or is not operational due to a
malfunction. Vehicle stability in standard
driving maneuvers is reduced.
Adapt your speed and driving to the prevail-
ing road conditions and to the non-operating
status of the ESP
®.
!
Avoid spinning of a drive wheel for an ex-
tended period with the ESP
® switched off. This
may cause serious damage to the drivetrain
which is not covered by the Mercedes-Benz
Limited Warranty.
Warning!
G
If you see the ESP
® warning lampv
flashing in the instrument cluster, proceed
as follows:


While driving off, apply as little throttle
as possible.


While driving, ease up on the accelera-
tor.


Adapt your speed and driving style to
the prevailing road conditions.
Failure to observe these guidelines could
cause the vehicle to skid.

105 Safety and Security
Driving safety systems
The ESP
® cannot prevent accidents result-
ing from excessive speed.
!
Do not tow with one axle raised.
Otherwise the transfer case can be damaged,
which is not covered by the Mercedes-Benz
Limited Warranty.
!
Performance testing must only be conduct-
ed on a two-axle dynamometer.
Otherwise the transfer case can be damaged,
which is not covered by the Mercedes-Benz
Limited Warranty.
!
Because the ESP
® operates automatically,
the engine and the ignition must be shut off
(SmartKey in starter switch position0 or 1 or
KEYLESS-GO start/stop button* in position0
or1) when the parking brake is being tested on a
brake test dynamometer.
Active braking action through the ESP
® may oth-
erwise seriously damage the brake system.
Operational tests with the engine running can
only be conducted on a two-axle dynamometer.

106 Safety and SecurityAnti-theft systemsImmobilizer
The immobilizer prevents unauthorized
persons from starting your vehicle.
Activating
With the SmartKey
Remove the SmartKey from the starter
switch.
With KEYLESS-GO*

Turn off the engine by means of the
start/stop button on the gear selector
lever.

Open the driver’s door.Deactivating
With the SmartKey

Switch on the ignition.
With KEYLESS-GO*

Start the engine by means of the
start/stop button on the gear selector
lever.
Anti-theft alarm system
Once the alarm system has been armed, a
visual and audible alarm is triggered when
someone opens:

a door


the tailgate


the hood
The alarm will stay on, even if the activat-
ing element (a door, for example) is imme-
diately closed.
The alarm system will also be triggered
when


the vehicle is opened using the
mechanical key


someone opens a door from the inside
i
In case the engine cannot be started (yet the
vehicle’s battery is charged), the system is not
operational. Contact an authorized
Mercedes-Benz Center or call
1-800-FOR-MERCedes (in the USA), or
1-800-387-0100 (in Canada).

107 Safety and Security
Anti-theft systems
Arming the alarm system
The indicator lamp located in the central
locking switch in the center console.
1Indicator lamp

Lock the vehicle with the SmartKey or
KEYLESS-GO*.
The turn signal lamps flash three times
to indicate that the alarm system is
armed. The indicator lamp1 begins to
flash after approximately 30 seconds
after arming the alarm system.
Disarming the alarm system

Unlock the vehicle with the SmartKey
or KEYLESS-GO*.
The turn signal lamps flash once to
indicate that the alarm system is
disarmed.Canceling the alarm
With the SmartKey

Insert the SmartKey in the starter
switch.
or

Press button Œ or ‹ on the
SmartKey.
With KEYLESS-GO*

Pull an outside door handle.
The SmartKey with KEYLESS-GO must
be within 3 ft (1 m) of the vehicle.
or

Press the KEYLESS-GO* start/stop
button (
page 39).
The SmartKey with KEYLESS-GO must
be inside the vehicle.
i
If the alarm stays on for more than
30 seconds, a call to the Response Center is ini-
tiated automatically by the Tele Aid system
(
page 292) provided Tele Aid service was sub-
scribed to and properly activated, and that nec-
essary cellular service and GPS coverage are
available.
i
If the turn signal lamps do not flash three
times, one of the following elements may not be
properly closed:


a door


the tailgate
Close the respective element and lock the vehi-
cle again.
i
The alarm system will rearm automatically
after approximately 40 seconds if neither a door
nor the tailgate was opened.

108

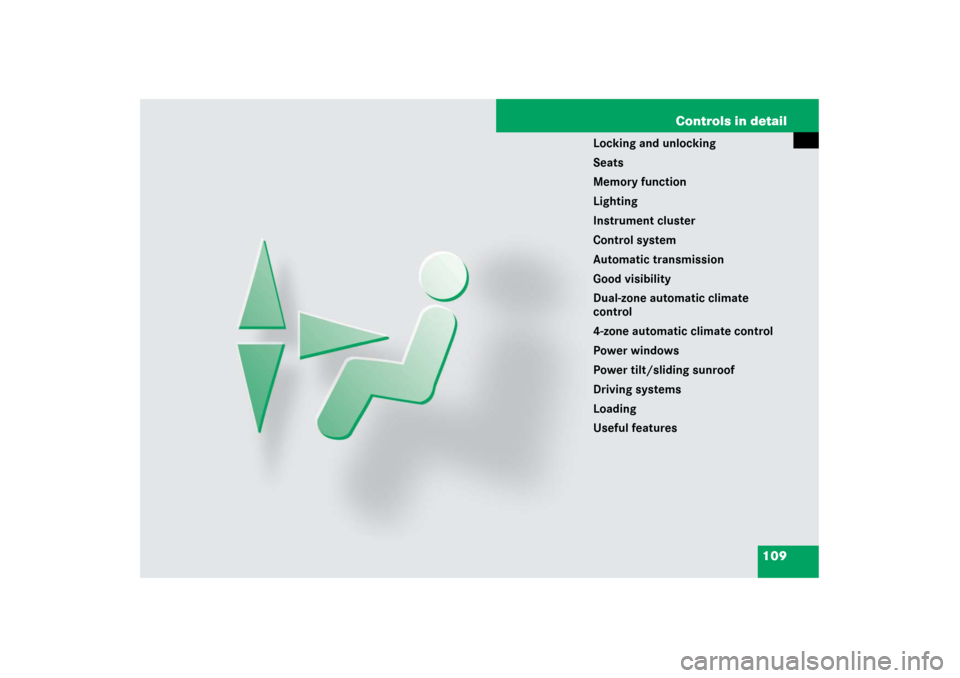

109 Controls in detail
Locking and unlocking
Seats
Memory function
Lighting
Instrument cluster
Control system
Automatic transmission
Good visibility
Dual-zone automatic climate
control
4-zone automatic climate control
Power windows
Power tilt/sliding sunroof
Driving systems
Loading
Useful features
